ECTACO SAT-1600 SAT-Words Tutor User Manual
1
CONTENTS
INTRODUCTION ---------------------------------------------------------------------3
GETTING STARTED ----------------------------------------------------------------5
General View ------------------------------------------------------------------------5
Display --------------------------------------------------------------------------------5
Power Supply------------------------------------------------------------------------7
MultiMedia Card --------------------------------------------------------------------8
Initialization---------------------------------------------------------------------------9
Control Pad ------------------------------------------------------------------------ 10
Control Wheel --------------------------------------------------------------------- 13
Opening and Closing Programs----------------------------------------------- 14
Natural Handwriting -------------------------------------------------------------- 14
Writing Punctuation -------------------------------------------------------------- 15
Writing Functions ----------------------------------------------------------------- 15
Deleting Characters-------------------------------------------------------------- 16
Writing Accented Characters -------------------------------------------------- 16
Hints for Successful Handwriting --------------------------------------------- 16
On-screen Keyboard------------------------------------------------------------- 17
APPLICATIONS -------------------------------------------------------------------- 17
Flash Cards ------------------------------------------------------------------------ 18
Pockets------------------------------------------------------------------------------ 20
Sentence Completion------------------------------------------------------------ 21
Spell It ------------------------------------------------------------------------------- 23
Choose It --------------------------------------------------------------------------- 24
SAT Setup-------------------------------------------------------------------------- 26
SAT 200----------------------------------------------------------------------------- 27
SAT 5000--------------------------------------------------------------------------- 29
WordNet ---------------------------------------------------------------------------- 30

ECTACO SAT-1600 SAT-Words Tutor User Manual
2
Address Book---------------------------------------------------------------------- 30
Calculator--------------------------------------------------------------------------- 34
Date Book -------------------------------------------------------------------------- 34
Memo Book ------------------------------------------------------------------------ 38
Music Player ----------------------------------------------------------------------- 39
Franklin Reader ------------------------------------------------------------------- 41
ToDo Book ------------------------------------------------------------------------- 42
Voice Memo------------------------------------------------------------------------ 45
SETUP -------------------------------------------------------------------------------- 46
Select Date------------------------------------------------------------------------- 47
Select Time ------------------------------------------------------------------------ 47
Volume ------------------------------------------------------------------------------ 47
Password --------------------------------------------------------------------------- 47
Sounds ------------------------------------------------------------------------------ 48
Pen Language--------------------------------------------------------------------- 48
Shutoff Time ----------------------------------------------------------------------- 49
Time Format ----------------------------------------------------------------------- 49
Date Format------------------------------------------------------------------------ 49
Numbers ---------------------------------------------------------------------------- 49
Week Starts------------------------------------------------------------------------ 49
Double-click------------------------------------------------------------------------ 49
PC COMMUNICATION ----------------------------------------------------------- 50

ECTACO SAT-1600 SAT-Words Tutor User Manual
3
INTRODUCTION
Congratulations on purchasing ECTACO SAT-1600 SAT-Words Tutor! This
product is the result of combined efforts of Ectaco staff of linguists, engineers, and
programmers. You are now the owner of the versatile, handheld electronic device,
which will serve you as an advanced English tutor, personal organizer, ebook
reader, and a music player. Now you can memorize new words quickly and easily.
Choose from five fascinating educational games!
ECTACO SAT-1600 features:
Flash Cards – learn words playing this classic word game
Pockets – improve your vocabulary by putting words into four hierarchically
arranged pockets
Sentence Completion – choose an answer containing the most logical phrase
completion
Spell It – spell words correctly
Choose It – choose a word which best matches the given description
SAT 200 – 200 words with explanations, synonyms, and samples
SAT 5000 – 5,000 words with explanations
WordNet – 70,000 words with explanations from the WordNet vocabulary
Advanced speech synthesis
Transcription
Dictionary look-up
Address Book
Calculator
Date Book with audio reminders
Memo Book
Music Player
Franklin Reader
ToDo Book
Voice Memo
High-speed data exchange and synchronization with PC
Password protection
High resolution touch screen
Screen backlight

ECTACO SAT-1600 SAT-Words Tutor User Manual
4
MMC slot
USB port
Headphone jack
The latest speech technology employed by ECTACO SAT-1600 allows you to listen
to clearly pronounced English words and phrases.
This model features a breakthrough combination of two input methods −a well
designed on-screen keyboard and a high-resolution touch-sensitive handwriting
area, which makes character input simple, fast and accurate.
♦Note: As continuous efforts are made by the manufacturer to ensure better
quality and performance of the ECTACO products, some characteristics or the
design of the actual device you purchased may slightly differ from their
description in this manual.
ECTACO SAT-1600 gives you the freedom of speech and communication. Enjoy
your ECTACO SAT-1600 and make it your companion!

ECTACO SAT-1600 SAT-Words Tutor User Manual
5
GETTING STARTED

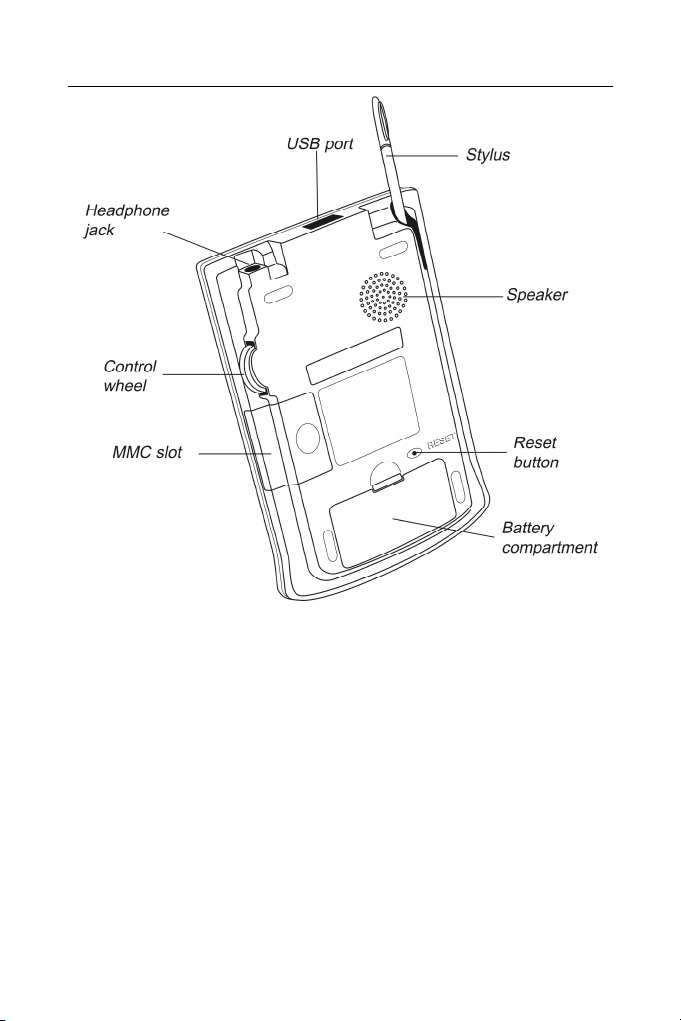

General View
The general view and external appliances of ECTACO SAT-1600 are shown below.
Display
ECTACO SAT-1600 features a large-size touch screen with efficient windows-
driven graphic interface.
Touch-screen elements
By tapping certain types of screen items – a push-button or pre-highlighted text –
you perform an action associated with this item. In most windows or dialog boxes,
tap Done to accept changes or Cancel to exit without saving any changes.

ECTACO SAT-1600 SAT-Words Tutor User Manual
6
Stylus
Tap the screen with the supplied pointing device called the stylus which, when not
in use, is conveniently kept in a special slot at the side of the device’s back panel.
The stylus is especially useful for operations, which cannot be performed by the
control wheel, for example, highlighting an arbitrary text fragment or a multi-word
translation in a dictionary entry.
♦Note: If, for some reason, using the stylus does not provide the desired effect,
you may need to recalibrate the screen (see page 12).
Screen backlight
This feature allows for easy viewing of the device screen regardless of an external
light source.

ECTACO SAT-1600 SAT-Words Tutor User Manual
7
•When the device is on, press and hold the On/Off button for approximately two
seconds to turn the backlight on.
•Press and hold the On/Off button once again to turn the backlight off.
Cover
ECTACO SAT-1600 comes with a hard plastic cover to protect the screen when
the device is not in use. To attach the cover, insert the pegs on the cover into the
holes on either side of the device. To detach the cover, gently snap the pegs out of
the holes. We recommend that you keep the cover attached when you are not
using your ECTACO SAT-1600.
Power Supply
ECTACO SAT-1600 is powered by two AAA (LR03) batteries. Please insert the
batteries before connecting your device to a PC. Use the universal indicator to
check the current condition of the batteries (see page 11). Replace the batteries
when the indicator runs low.
♦Note: If the battery power runs too low, the unit will start up when you press the
On/Off button but will then shut off automatically. When this happens, please
replace the batteries immediately to avoid the risk of losing user data.
How to replace the batteries
•Press the On/Off button to turn the device off.
•Make sure the device is not on a hard surface – if the On/Off button is pressed
accidentally, user data may be lost.
♦Note: To avoid data loss, never try to remove the batteries from the device
when the power is on. If you experience difficulties turning the device off,
press the RESET button on the back of the device and restart the system.
•Remove the battery compartment cover by sliding it away from the device.
•Remove the used batteries and replace them with new ones.
♦Note: Do not mix old and new batteries.
•Make sure to place the batteries according to the polarity marks (+ -) inside the
battery compartment.
•Put back the battery compartment cover by sliding it toward the device. Make
sure the cover sits in place properly.

ECTACO SAT-1600 SAT-Words Tutor User Manual
8
♦Note: You have one minute to replace the batteries without risk of losing the
data stored in RAM. Do not exceed the one-minute limit! Neither the
manufacturer nor the dealer may be held responsible for the loss of user data.
MultiMedia Card
ECTACO SAT-1600 MultiMedia Card is included in the standard package. The
card contains the operating system and a set of applications described in the
Applications chapter (see page 17).
•Please insert ECTACO SAT-1600 MultiMedia Card into the MMC slot before
you turn the device on.
♦Note: Always make sure the device is turned off before installing or removing
the MMC. Never insert or remove the card when the device is on. Use the
On/Off button to turn the device off.
Installing MMC
•Put your thumb on the MMC slot cover and slide it off.
•Slide the MMC into the compartment with the contacts facing up and the label
facing down. Push the card gently until it clicks into place.
•Snap the cover back on.
•Turn the device on.
The operating system and program files will be installed on your ECTACO SAT-
1600. This will take about 2.5 minutes. When the installation procedure is
completed and the screen is calibrated, the Setup application will be shown.
•Set the desired preferences (see page 46 for details) and tap Done.
If the MMC is not installed, a brief tour will be shown.

ECTACO SAT-1600 SAT-Words Tutor User Manual
9
♦Note: The tour appears only after the device is left without battery power for
more than five minutes or when a hard reset is performed.
•Tap the introductory sentence in the language of your choice to view the tour.
•To skip pages in the tour, tap anywhere on the screen.
•Turn the device off and insert the MMC as described above.
Removing MMC
•Turn the device off by using the On/Off button.
•Remove the MMC slot cover.
•Push the MMC in slightly.
You hear a click and the card pops out.
•Slide it out and snap the cover back on.
Initialization
The initialization routine is started:
•when ECTACO SAT-1600 is turned on for the first time;
•when you remove the batteries (e.g. when replacing them) for longer than
five minutes;
•after the system has been reset with the RESET button – see Soft Reset
and Hard Reset below.
Soft Reset
Occasionally, ECTACO SAT-1600 may need to be reset to clear its memory. In
most cases, a soft reset is sufficient. The soft reset does not affect programs or
user data.
•Tap to go to the Main Menu.

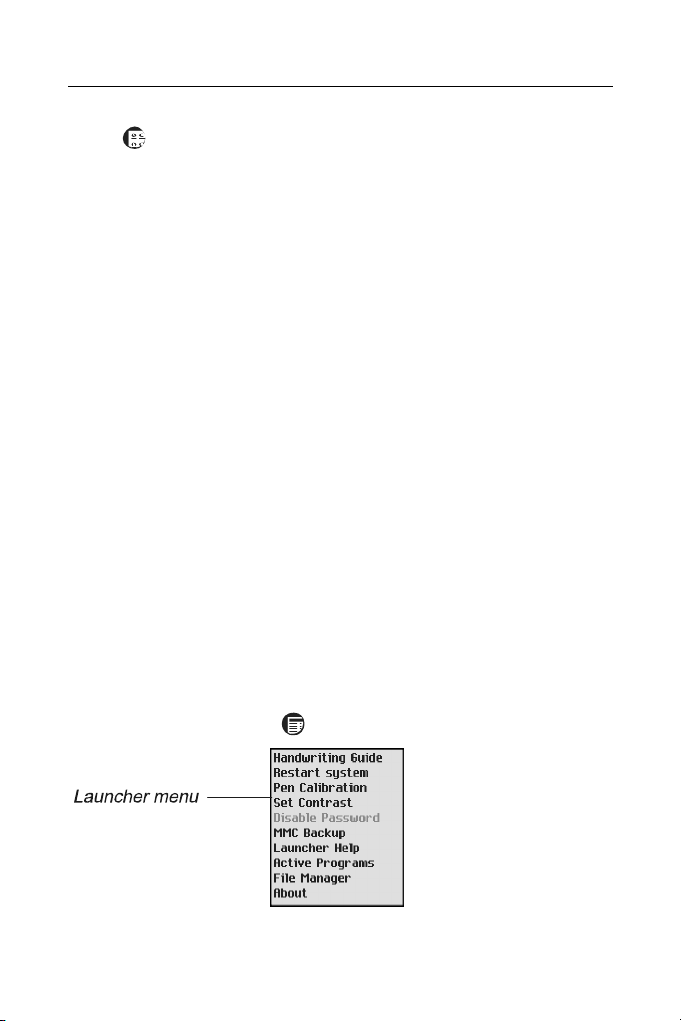

•Tap to open the Launcher Menu.
•Tap Restart system on the Launcher Menu.
•In the Ready for Restart screen, tap Restart Now.

ECTACO SAT-1600 SAT-Words Tutor User Manual
10
♦Note: On completion of the reboot, you will be prompted to conduct the touch-
screen calibration, which configures the proper spacing and alignment of the
touch-sensitive screen elements (see page 12).
If the Launcher Menu is not accessible, use the blunt end of a paperclip to gently
press the RESET button located on the back of the device.
♦Note: The RESET button is located on the back of the device and can be
accessed with any thin object like a paper clip. Never use a needle or a pin
since it can damage the device.
Hard Reset
In the rare event that the data on the screen is corrupted, a program is not
responding properly, or you forget your password, you will need to perform a hard
reset. After a hard reset all user data will be lost. Synchronize your data often so
that you always have a copy on your PC.
•To perform the hard reset, keep the On/Off button pressed while pressing the
RESET button.
Control Pad
The Control Pad is the area below the touch-sensitive screen where you can tap
icons, write characters, or use the scroll area to control ECTACO SAT-1600.
Control Pad Elements and Their Functions
Launcher icon Switch to the Main Menu.
Menu icon Show the available menus. Menus shortcuts, where
available, are shown to the right of the menu items.
Handwriting area Input letters (in the Letter input area), input punctuation
marks (in the Punctuation input area), input numbers (in
the Number input area).
Scroll area Scroll the screen content.

ECTACO SAT-1600 SAT-Words Tutor User Manual
11
Main Menu
•Tap to switch to the Main Menu.
All programs and some content files in RAM and on MultiMedia Card (MMC) are
represented by icons on this screen. Program and content icons of an MMC have
an M on the bottom right corner. ECTACO SAT-1600 Main Menu contains a row of
three tabs at the bottom of the screen and the universal indicator. The tabs are
named as follows: SAT, Reference, and Extras.
SAT
•Tap the SAT tab to access the following applications: Flash Cards, Pockets,
Sentence Completion, Spell It, Choose It, and SAT Setup.
Reference
•Tap the Reference tab to access the following applications: SAT 200,
SAT 5000, and WordNet.
Extras
•Tap the Extras tab to access the following applications: Setup, Address Book,
Calculator, Date Book, Memo Book, Music Player, Franklin Reader, ToDo
Book, Voice Memo.
Universal Indicator
This is a graphic item located in the lower right corner of the Main Menu. By
default, it shows the current time.
•Tap the universal indicator a few times to successively display the current date,
percent of remaining battery power, battery graphic power, and the amount of
available memory in the device.
Launcher Menu
•When in the Main Menu, tap to invoke the Launcher Menu.

ECTACO SAT-1600 SAT-Words Tutor User Manual
12
The options available on the Launcher Menu are described below.
Handwriting Guide
Provides a quick, on-screen reference for natural handwriting input. It shows all
supported letter styles. For more information about handwriting, see page 14.
Restart System
Closes programs and then restarts the system.
Pen Calibration
Displays the Calibration screen and allows you to re-calibrate your ECTACO SAT-
1600.
•To perform the calibration, tap the center of the target with the stylus. Repeat
the process with three more targets, which will appear one after another.
Set Contrast
Allows you to adjust the screen contrast level.
Disable Password
Allows you to turn your password off or on. When no password is set, the menu
item is grayed and inactive. When you set a password, Disable Password becomes
active. Tap this menu item to temporarily disable the password. The menu item
becomes Enable Password. To turn your password on again, tap Enable
Password. For more information, see page 47.
MMC Backup
Allows you to copy all files from your ECTACO SAT-1600 to MMC, restore files
from MMC to your ECTACO SAT-1600, or erase MMC content. The menu item is
grayed (inactive) when no MMC is installed.
Launcher Help
Displays on-screen help for the Launcher.
Active Programs
Allows you to view and manage currently open applications. Programs can be
closed quickly from this location to allocate memory for other programs.
File Manager
Displays the name and size of all program and content files stored in RAM. Also
allows you to move files into categories or remove files from your ECTACO SAT-
1600.

ECTACO SAT-1600 SAT-Words Tutor User Manual
13
About
Displays ECTACO SAT-1600 ID, the operating system version number, the unique
device identifier, and other information.
Handwriting Area
Natural handwriting is the recognition system used by the device allowing data
entry through writing. It makes character input simple, fast and accurate by
supporting multiple ways of writing most characters. All writing must be entered in
the appropriate section of the Handwriting area, located at the center of the Control
Pad.
The handwriting area is divided into the Letter input area, Number input area and
Punctuation input area. Write letters in the Letter input area "abc", punctuation in
the Punctuation input area ":-)", and numbers in the Number input area "123".
Handwriting Guide
To open the Handwriting Guide, please follow the steps below.
•From the Main Menu, tap .
•Tap Handwriting Guide.
The first screen of the Handwriting Guide will be displayed.
•Tap the arrows , at the top right corner to scroll through each screen of
the Handwriting Guide.
♦Note: Before you input accented characters, please make sure you have
selected the appropriate Pen Language (see Pen Language on page 48).
Control Wheel
The round control in the rear of ECTACO SAT-1600 functions as Enter key, a
scrolling mechanism, and volume control.
•In a program, turn or push the control wheel to select or open the desired item.

ECTACO SAT-1600 SAT-Words Tutor User Manual
14
•Turn the control wheel to scroll one page when reading.
♦Note: The control wheel turns up and down; it does not spin. Please do not
put excessive force on the control wheel.
•Hold the control wheel up or down to scroll continuously.
•Turn the control wheel to control the volume when listening. Hold the wheel up
or down to change volume continuously.
Opening and Closing Programs
•To open a program or file, tap its corresponding icon.
•When a program is running, you can return to the Main Menu without closing
the program – just tap .
•Tap once again to return to the program immediately.
ECTACO SAT-1600 features multitasking; the lines on the right and left of the
program icon indicate that it is running in the background. Each time you close a
program, you return to the Main Menu.
You can close a program using one of the following options:
•In most programs, appears in the top right corner. Tap to exit.
•From the Launcher Menu by using Active Programs.
•In some programs, you can exit by using the File menu. From the program, tap
then select File /Exit.
Natural Handwriting
Entering data with natural handwriting takes some practice. Please follow the steps
below to enter a sentence in the Memo Book.
•From the Main Menu, tap an icon for a program allowing data entry. For
example, Memo Book.
•Locate a field for data entry. For example, tap New to go to the Edit screen.
A blinking cursor appears in all fields where data can be entered. If the blinking
cursor does not appear, the field is not active.

ECTACO SAT-1600 SAT-Words Tutor User Manual
15
•Place the pointed end of the stylus at the center of the Letter input area and
draw a line straight up to write the following letter in uppercase (Shift mode).
A single dot appears in the cursor to indicate shift.
•In the center of the Letter input area; write the letter "a". Start the stroke where
indicated by the point and draw it as it appears in the Handwriting Guide. Write
the characters left to right.
•Take the stylus off the screen, and the character appears in the data entry field.
Natural handwriting also recognizes simple strokes for Backspace, Return and
Space, as well as Shift and Cap Lock.
♦Note: Always write in lowercase, as shown in the Handwriting Guide. If you
want to enter letters in uppercase, first write the stroke for Shift or Caps Lock.
•To enter a space, place the pointed end of the stylus in the center or left side of
the Letter input area and draw a horizontal straight line to the right.
If the character is composed of more than one stroke, you may see interim results
on the screen. For example, when you write "k," an "l" may show on the screen
before the "k" appears.
♦Note: If a character is not recognized, you will hear a beep.
Writing Punctuation
Please follow these guidelines when entering punctuation marks:
Period and Comma Write in the lower part of the appropriate input area.
Apostrophe Write in the upper part of the appropriate input area.
Writing Functions
Simple strokes make it easy to write functions, such as Backspace, Space, Shift,
and Caps Lock.
Stroke Function
Delete the previous character (Backspace).
Inserts a space.
Inserts a line break (Enter).
Write the next letter in uppercase (Shift).

ECTACO SAT-1600 SAT-Words Tutor User Manual
16
Switch to uppercase (Caps Lock). When it is necessary to return
to lowercase, draw the Shift key symbol, as shown above.
Deleting Characters
The deletion of characters in the data entry field is performed by writing the
Backspace symbol.
•To delete one character, place the cursor to the right of the character you want
to delete and write the Backspace function in the Letter input area.
To delete several characters at once, do the following:
•Drag the stylus over the characters to highlight them.
•Write the Backspace function in the Letter input area.
Writing Accented Characters
Natural handwriting supports accented character recognition for Spanish,
Portuguese, French, German, Italian, and Dutch. To enable accented characters,
first set the desired Pen Language (see page 48).
♦Note: The following special characters can only be written in the Punctuation
input area:
French << >>
Spanish ¡ ¿
The table below lists the accented characters available for each language.
Dutch à á ä â è é ë ê ì í ï î ò ó ô ö ù ú ü û ñ ç
French à â ç ë è é ê ï î ô œ ü ù û
German ä ö ü ß
Italian à è é ì ò ù
Portuguese ã á â ç è é ê í ò ó ô õ ü ú
Spanish á é í ñ ó ú ü ¡ ¿
Hints for Successful Handwriting
•Write characters as they appear in the Handwriting Guide.
•Always write in lower case.

ECTACO SAT-1600 SAT-Words Tutor User Manual
17
•For an initial capital letter, use the Shift symbol.
•Write the characters large enough in the appropriate input area.
•For a series of capital letters, use the Caps Lock function. Double dots appear
in the cursor to indicate Caps Lock.
On-screen Keyboard
The on-screen keyboard offers an alternative way of entering data in your
ECTACO SAT-1600. It supports letters, numerals, and punctuation marks. The
keyboard is available in most programs in every screen allowing data entry.
•To invoke the on-screen keyboard, draw a line straight up outside the
Handwriting area or tap , where available.
The on-screen keyboard appears. The basic layout contains the letters and a set of
symbols. The control key images have the following legend:
Touch key Function
Backspace
Enter
Shift
Caps Lock
•To delete more than one character, drag the stylus across the characters you
want to delete to highlight them and start entering new data. The highlighted
portion will be overwritten.
•Tap ENTER to save your text and hide the keyboard.
•Tap to hide the keyboard without saving.
APPLICATIONS
This chapter describes work in a variety of applications recorded on ECTACO SAT-
1600 MultiMedia Card.

ECTACO SAT-1600 SAT-Words Tutor User Manual
18
Flash Cards
This fascinating game will help you develop your vocabulary quickly and advance
considerably in learning new words. Our method is simple: learn new words while
playing Flash Cards.
The face of a card shows the source word explanation, and the reverse side shows
the source word. The player browses the cards and, whenever necessary, uses a
hint.
There are 20 pre-defined card sets in this game. Besides, you can create your own
sets based on the SAT 5000 vocabulary. The goal is to learn all cards in the set.
You will be prompted to proceed to the next set once you have finished the current
one.
The game statistics is stored in the device memory so you can resume playing
from where you left off.
•Tap the Flash Cards icon from the SAT tab to launch the application.
The Flash cards screen with the first card from the first set will be shown. By
default, the game is based on the SAT 200 vocabulary. You may change it via the
SAT Setup (see page 26).
From the Flash Cards screen use:
•to look up the source word explanation in the WordNet dictionary. You
can also highlight a word or lexeme in the description area and tap to
obtain its explanation.
•to look up the source word synonyms in the SAT 200 dictionary.
•to look up samples of the source word use in the SAT 200 dictionary.

ECTACO SAT-1600 SAT-Words Tutor User Manual
19
•to listen to the pronunciation of the source word. You can also highlight
a word or portion of text in the description area and tap to listen to its
pronunciation.
•to reset statistics for the currently viewed set.
•to invoke the on-screen keyboard.
•to display the List of sets available for the game. You can mark off
finished sets here.
By default, you can select up to 20 pre-defined sets. If you want to create your
personal sets of flash cards, please refer to the SAT Setup chapter on page 26.
The number of unlearned cards in a set is recorded for each game. This
information is displayed on the screen. For example, Left: 10 means you have 10
cards unlearned.
•Tap the Drop button to set a card apart.
•To go to the next card, tap Next >>.
•Select the Always show source word option to have the program show you the
source word in each card.
•Alternatively, tap on the Show source word message to see the source word.
To hide the source word, just tap on it.
You may quit the game and resume playing at any time. Just launch Flash Cards to
start playing beginning from where you left off.

ECTACO SAT-1600 SAT-Words Tutor User Manual
20
Pockets
This is a traditional game targeting in-depth word learning. In this game, the same
cards as those used in the Flash Cards game are divided into 4 groups (4 pockets).
At the beginning of the game, all cards are located in the first pocket. You turn the
cards one by one and, if you know the hidden source word, put the card in the
second pocket. Keep browsing until all the cards from the first pocket are
transferred to the second pocket.
At the second stage, you go through the cards in the second pocket and, if you
know the hidden source word, put the card in the next pocket. If you cannot recall
the hidden source word, put the card back in the first pocket.
The goal is to put all cards in the fourth pocket. You will aim most of your efforts at
learning difficult words, while simple words will shortly jump to the fourth pocket.
The game statistics is stored in the device memory so you can resume playing
beginning from where you left off.
•Tap the Pockets icon from the SAT tab to launch the application.
•Tap on the first pocket to start the game.
Use:
•to reset game statistics.
•to display the List of sets available for the game. You can mark off
finished sets here.
The first card from those stored in the selected pocket will be shown.
•Tap Got it if you know the hidden word.
