Nyrius NPCS600 User manual

NPCS600
INSTRUCTION MANUAL
WIRELESS HD RECEIVER

WHAT'S INCLUDED..............................................................................................................3
PRODUCT OVERVIEW TRANSMITTER ...........................................................................3
PRODUCT OVERVIEW RECEIVER....................................................................................4
TRANSMITTER INSTALLATION ........................................................................................5
RECEIVER INSTALLATION.................................................................................................6
LED BEHAVIOUR...................................................................................................................7
STANDBY MODE ...................................................................................................................8
INFO BUTTON........................................................................................................................8
COMPUTER DISPLAY OPTIONS........................................................................................8
PAIRING INSTRUCTIONS....................................................................................................9
WALL MOUNTING...............................................................................................................10
DRILLING TEMPLATE ........................................................................................................10
TROUBLESHOOTING .......................................................................................................... 11
SPECIFICATIONS ................................................................................................................ 13
FCC STATEMENT ................................................................................................................ 14
IC STATEMENT .................................................................................................................... 15
SAFETY INFORMATION.................................................................................................... 16
WARRANTY.......................................................................................................................... 17
CONTENT

3

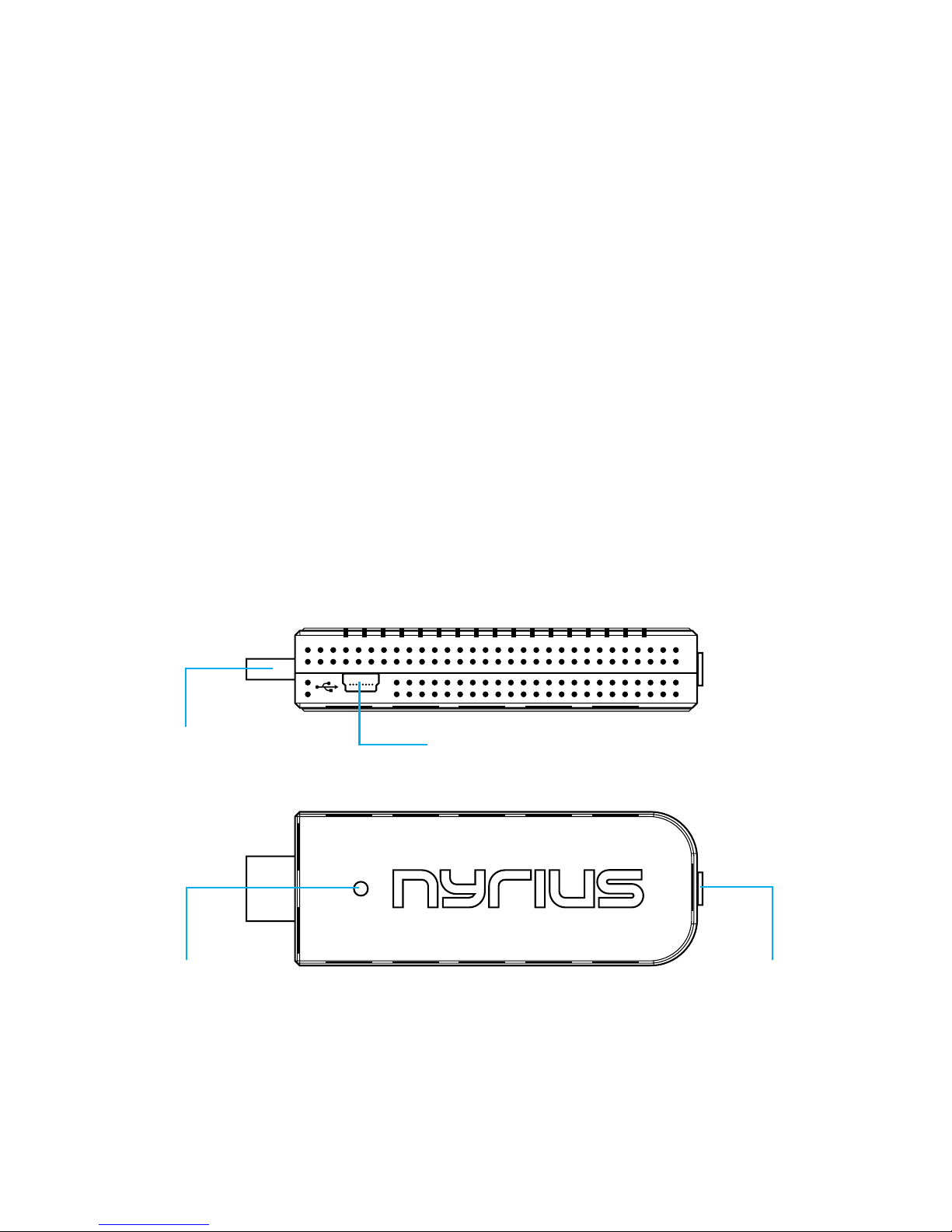

PRODUCT OVERVIEW
TRANSMITTER
WHAT'S INCLUDED
Digital Wireless HD Transmitter
Digital Wireless HD Receiver
1 x 100-240V AC Power Adapter to
Mini USB
Right Angle HDMI Adapter
2 x Screws/Screw Anchors
USB Power Cable
Instruction Manual
Quick Start Guide
1 Year Warranty
Lifetime Customer Support
HDMI Input USB Power Input
LED Indicator Pairing/Info
Button

HDMI
4

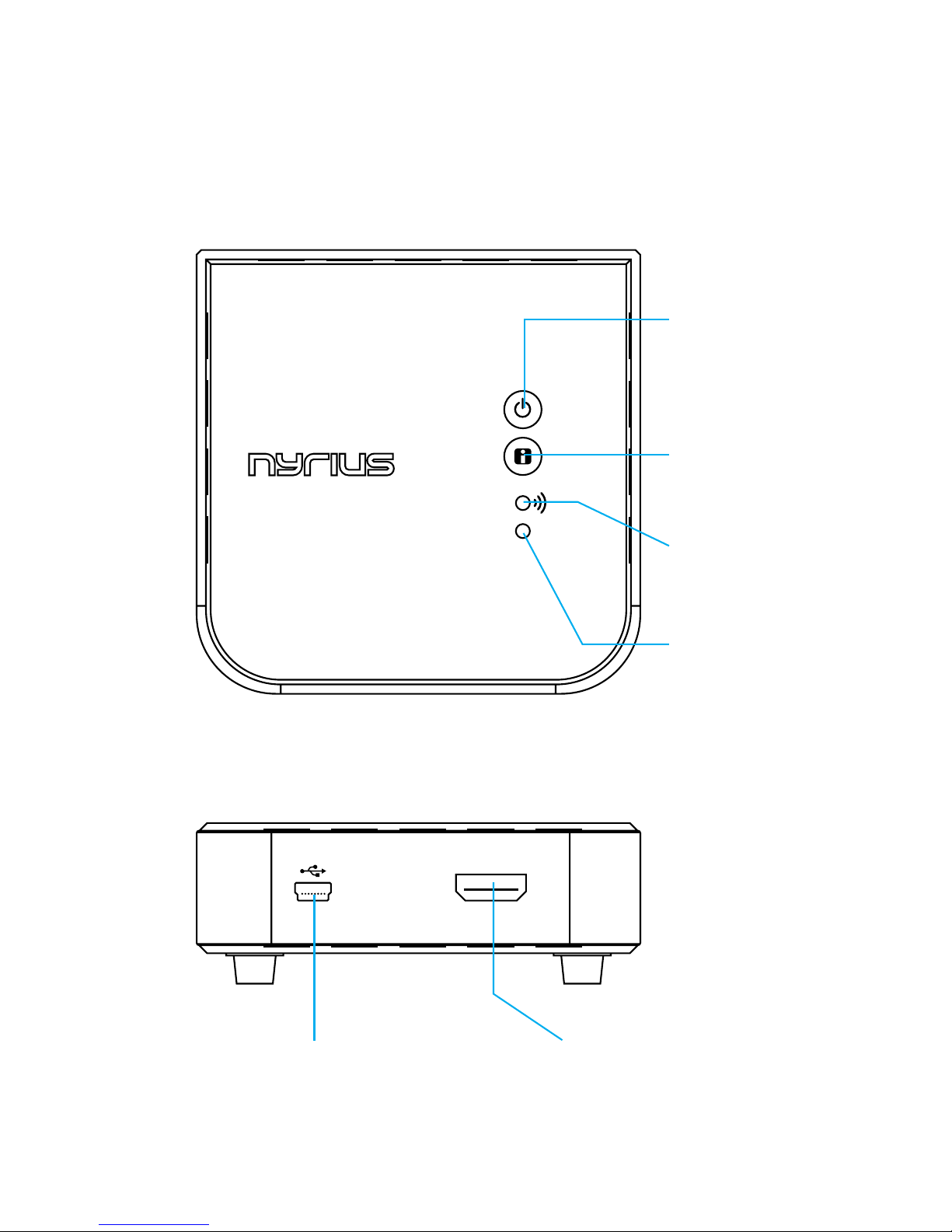

PRODUCT OVERVIEW
RECEIVER
Power Input HDMI Out
Power Button with
LED Indicator
Info Button
Status LED
Unused LED

5
Note: The LED Indicator on the Transmitter will light up WHITE when the Transmitter is
properly connected to the computer via USB.
TRANSMITTER INSTALLATION
• Connect the Transmitter directly to
the HDMI output on a PC, cable box
or any HDMI device.
• Connect the Transmitter to power
using the USB cable provided or
connect the power adapter to the
mini USB port on the Transmitter
and plug it in to an available wall
outlet.
HDMI
USB
Right Angle
HDMI Adapter
• You may also connect the Right
Angle HDMI Adapter for easier
setup with certain computers.

6
RECEIVER INSTALLATION
• Connect the HDMI cable to the HDMI Output of the Receiver and to your HDTV
television or HD projector.
• Ensure your TV or projector is powered ON and is in "HDMI input" mode.
• Connect the power adapter to the DC Input of the Receiver and plug into a wall
outlet. When the unit is successfully connected, the Power LED indicator on the
POWER button lights up in WHITE.
• Once the Transmitter and Receiver are both connected, they will automatically pair
to each other.
• When you disconnect the Transmitter and the link is disconnected over 10 minutes,
the Receiver will enter STANDBY MODE (Power LED of the Receiver is Orange)
• When the Transmitter is reconnected the Receiver will automatically wake and
reconnect. During the warm-up period, the POWER LED will ash WHITE until
the signal between the Transmitter and the Receiver is established. It will take
approximately 15 ~ 20 seconds to boot-up and establish a link providing everything
is operating normally.
• If all is operating normally, the LEDs will be SOLID WHITE and setup will be
complete.
RCA
VIDEO 1
HDMI
CABLE
COMPONENT
Note: Obstacles may decrease transmission distance. Interference may come from
other wireless devices using 5GHz band.
For maximum performance, please use the included power adapters.
Receiver
HDTV

7
FUNCTION STATUS BEHAVIOUR
SOLID WHITE CONNECTED Transmitter/Receiver is connected.
FLASHING WHITE CONNECTING Transmitter/Receiver are searching
for connection.
SOLID ORANGE STANDBY Receiver is in standby mode.
SLOWLY FLASHING
ORANGE PAIRING Receiver is in pairing mode
LED BEHAVIOUR
• If the system is unable to establish a connection within 80 seconds, the connection
has been lost or the Transmitter is out of range. Verify the distance between the
Transmitter and Receiver. The maximum video transmission range for 1080p
content is up to 100ft in line of sight (LOS). The minimum range is 6.5ft.
• If no video is displayed and OSD (on-screen display) message states "NOT SUP-
PORTED FORMAT", then the video resolution from the computer is NOT supported.
• If you have more than one pair of each Transmitter/Receiver, each pair should be
at least 6.5 feet away from each other.

8
STANDBY MODE
Press the POWER button on top of the Receiver to go from “Active mode” to “Active
Standby mode”. When the transmitter is connected to power the Receiver will wake
and reconnect.
INFO BUTTON
Press the INFO button on the Receiver or Transmitter. The Signal Quality, Source,
Channel and Resolution will be displayed on the OSD for your reference. Press the
INFO button again to exit.
COMPUTER DISPLAY OPTIONS
You can change the display option in the computer’s display settings. Normal display
options are “Extend”, “Duplicate”, or “Show desktop only on …”. While all display
options are supported by the NPCS600 some computers do not support all. Please
check your computer manual for details on display options.
ABAA A
Extend Duplicate Show desktop only on...

9
PAIRING INSTRUCTIONS
The NPCS600 Transmitter and Receiver come paired. If re-pairing is necessary use the
below steps to reconnect the units.
• Press and hold down the power button LED on the Receiver and plug in the power
adapter. Release the Power button once the power LED blinks orange.
• Plug the power adapter into the Transmitter. Press and hold down the pairing button.
• The Power LED should be ashing white. The white ashing speed will begin to
slow down. Once it has slowed down, release pairing button to enter pairing mode.
HDMI
Note: The Transmitter and Receiver should complete pairing and once LEDs change to
solid white connection will be complete.

10
WALL MOUNTING
1. Drill pilot holes using drilling template included below.
2. Insert the supplied two anchors into the wall.
3. Insert two screws into the anchors. Leave 1/8” length for mounting the Transmitter
or Receiver.
4. Remove the rubber feet from the NPCS600. Place NPCS600 main holes over the
protruding screws and slide down into position.

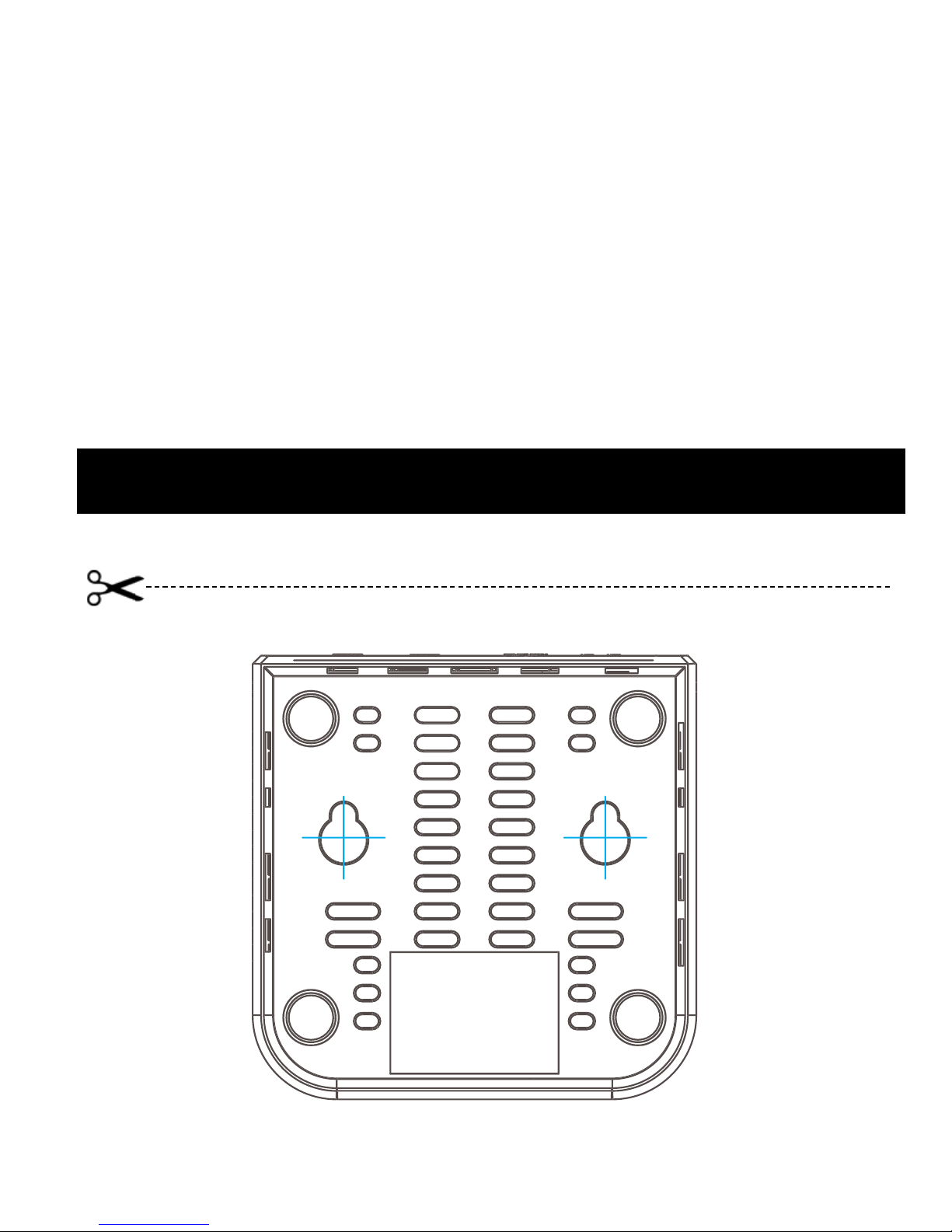

DRILLING TEMPLATE
Note: This template is to scale. When printing out please ensure your printer setting is
set to Actual size (100%)
