C SERIES BRONZE
SEMI-MODULAR ATX PSU
ENGLISH
2 / 251 / 232 / 25

TABLE OF CONTENTS
1. COMPONENTS LIST.................... 02 3. INSTALLATION........................... 05
2. SPECIFICATIONS ....................... 04 4. APPENDIX ............................... A-1
VERSION 1.0
3 / 252 / 233 / 25

02
C SERIES BRONZE
1. COMPONENTS LIST
A. C550 / C650 / C750 Bronze PSU
x1
B. 20+4 pin ATX power
x1
C. 4+4 pin CPU power
x2
D. PCI-e power
C550/C650 Bronze - x2 , C750 Bronze - x3
4 / 253 / 234 / 25

03
C SERIES BRONZE
E. Peripheral Power
x1
F. SATA Power
x2
G. Mounting Screws
6-32 - x5
H. AC Power Cord
x1
COMPONENT LIST
5 / 254 / 235 / 25

04
C SERIES BRONZE
C SERIES BRONZE
Compliance Standard ATX12V v2.52 / EPS12V v2.92
PF Correction Active@0.96
AC Input & DC Output Rating
Fan Specs
Bearing type FDB (Fluid Dynamic Bearing)
Dimension 120 x 120 x 25 (mm)
Air Flow 72.90 CFM (Tpy.)
Noise value < 44.0 dBA
Rated speed 2400 ± 10% RPM
Hazardous Materials RoHS & China RoHS
Energy Efficiency 80 Plus Bronze 10% loading:82%, 20% loading: 82%, 50% loading: 85%, 100% loading: 82%
Operation Temperature 0 to 40°C
Regulations & Certifications
(EMC & Safety)
CB / CE / FCC / TUV / China CCC / BSMI / RCM / EAC / UKCA / WEEE /Canada ICES / BIS
MTBF 100,000 hours
2. SPECIFICATIONS
C550 BRONZE
MODEL NO. PA-5B1B
AC INPUT RATING 100V-240V 8A-4A 50Hz-60Hz
DC OUTPUT +3.3V +5V +5Vsb +12V -12V
MAX LOAD 20A 20A 2.5A 45.5A 0.3A
TOTAL POWER
110W 12.5W 550W 3.6W
550W
C750 BRONZE
MODEL NO. PA-7B1B
AC INPUT RATING 100V-240V 10A-5A 50Hz-60Hz
DC OUTPUT +3.3V +5V +5Vsb +12V -12V
MAX LOAD 20A 20A 2.5A 62.5A 0.3A
TOTAL POWER
120W 12.5W 750W 3.6W
750W
C650 BRONZE
MODEL NO. PA-6B1B
AC INPUT RATING 100V-240V 10A-5A 50Hz-60Hz
DC OUTPUT +3.3V +5V +5Vsb +12V -12V
MAX LOAD 20A 20A 2.5A 54A 0.3A
TOTAL POWER
110W 12.5W 650W 3.6W
650W
6 / 255 / 236 / 25

05
C SERIES BRONZE
3. INSTALLATION
STEP 1
Install the power supply into the case using the provided screws.
A
G
1
2
7 / 256 / 237 / 25

06
C SERIES BRONZE
STEP 2
Connect the 20+4-pin power to the motherboard.
INSTALLATION
B
8 / 257 / 238 / 25

07
C SERIES BRONZE
STEP 3
Connect the 4+4-pin CPU power.
INSTALLATION
C
9 / 258 / 239 / 25

08
C SERIES BRONZE

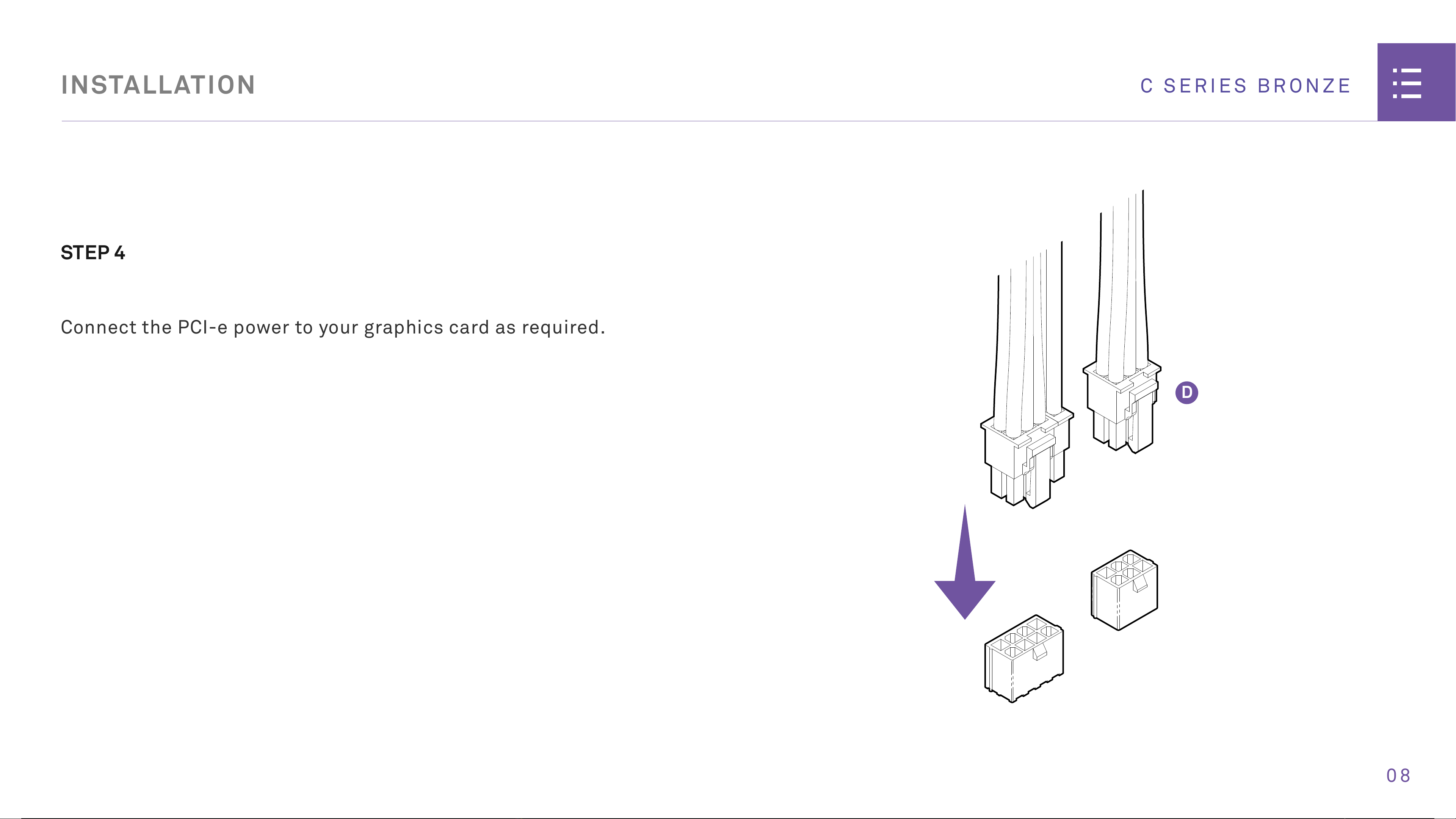

STEP 4
Connect the PCI-e power to your graphics card as required.
INSTALLATION
D
