Chapter1：Summary
1.1 Features
1.1.1 Universal
1.1.2 Advantages
Providing multi-language environment so it can be used
in different countries and regions.
The main unit system uses ARM high-speed chip to keep
it running fast, stable, and anti-jamming.
Support updating via TF card. You can update the
software at any time.
With modern design and high-definition true color screen
to realize the integration of automotive industry and
electronic information technologies and make auto
diagnostic and key programming more easier, practical
and economical.
1.1.3 Durability
Integrity structure design, Drop and Shock Resistance,
and durable.
Industrial design to ensure the tool work stable in harsh
environment such as high temperature, low temperature,
etc.

X-200 PRO User Manual
2
1.2 The introduction of the device

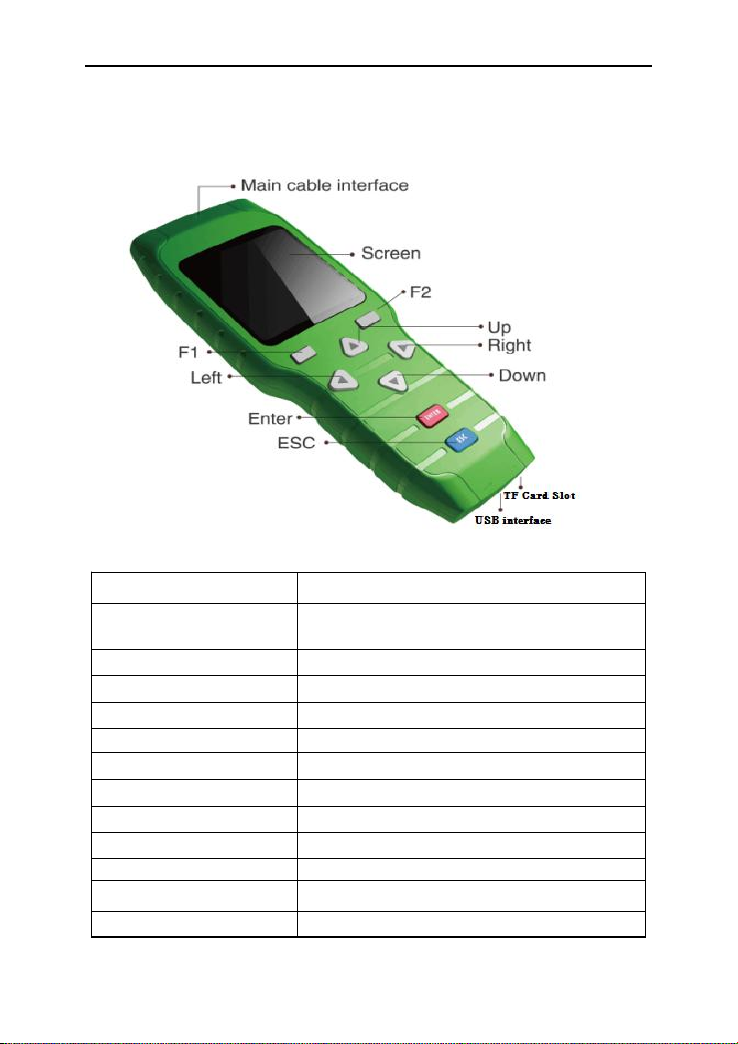

1.2.1 The Main unit and accessories（picture as below）
Name
Instruction
Testing cable interface
Connect to the main testing cable for key
programming
USB interface
For connecting USB cable
TF Card Slot
To store diagnostic program and data
F1
Keyboard input option key
Left
To left
Enter
OK
ESC
Exit or give up
Screen
Show information
F2
Other functions option
UP
UP
Right
To right
Down
Down

X-200 PRO User Manual
3
1.3 Hardware Specification
Dimension: 192mm(L) *93mm(W) *29mm(H)
CPU: ARM7
Power Supply: DC12V
Operation Power：DC12V
Operating Temperature: -10-60℃
Display Screen: 160×160 TFT Screen
1.4 Functions Setting
Power on,and then press ENTER on the screen,then go to the
function setting, setting information as shown below:
X-200 PRO
>VEHICLES
OPTION
ABOUT
SELFTEST

X-200 PRO User Manual
4
1.4.1 System Setting
Select OPTION, then you can set the language、contrast、Metric
/ Inch, data logging, as shown below:
1.4.1.1 Language option
The device supports Chinese, English, Portuguese, Russian,
Spanish, and Traditional Chinese, etc.
1.4.1.2 Contrast
According to the environment, adjust the brightness of the screen
by the left and right buttons, as shown below:
OPTION
>LANGUAGE
CONTRAST
METRIC / INCH
DATA LOGGING
OPTION
70%

X-200 PRO User Manual
5
1.4.1.3 Metric / Inch
According to your needs, select the Metric/Inch through the
up and down keys, and press ENTER to switch, as shown below:
1.4.1.4 Data Logging
If you have problems during the testing, please use the Data
Recording function to record the testing process and send the data
to us. If you want to use Data Record function, select “ON” by the
up and down keys and press ENTER to switch, as shown below:
Note: Please select "OFF", otherwise there will be not enough
capacity in TF card after using it for a long time.
METRIC / INCH
>METRIC
INCH
DATA LOGGING
>OFF
ON

X-200 PRO User Manual
6
1.4.2 System Information
System information includes product serial number, hardware
version, software version, release date, register password, etc.
1.4.3 Device self-testing
Device self-testing includes screen display testing, keyboard
testing, hardware self-testing, etc. If it cannot show enough
pictures on the screen, keyboards not work, and hardware self-
testing not get through, please return the X-200 PRO to the
manufacturer.
ABOUT
>S/N：813300000010
HARDWARE VERSION：3.23
SOFTWARE VERSION ：3.00
RELEASE DATE：2015/03/03
PASSWORD：12044354
WWW.OBDSTAR.COM
SELFTEST
>DISPLAY TEST
KEYBOARD TEST

X-200 PRO User Manual
7
Chapter 2: How to update software for X-200 PRO
2.1 Update tool software installation

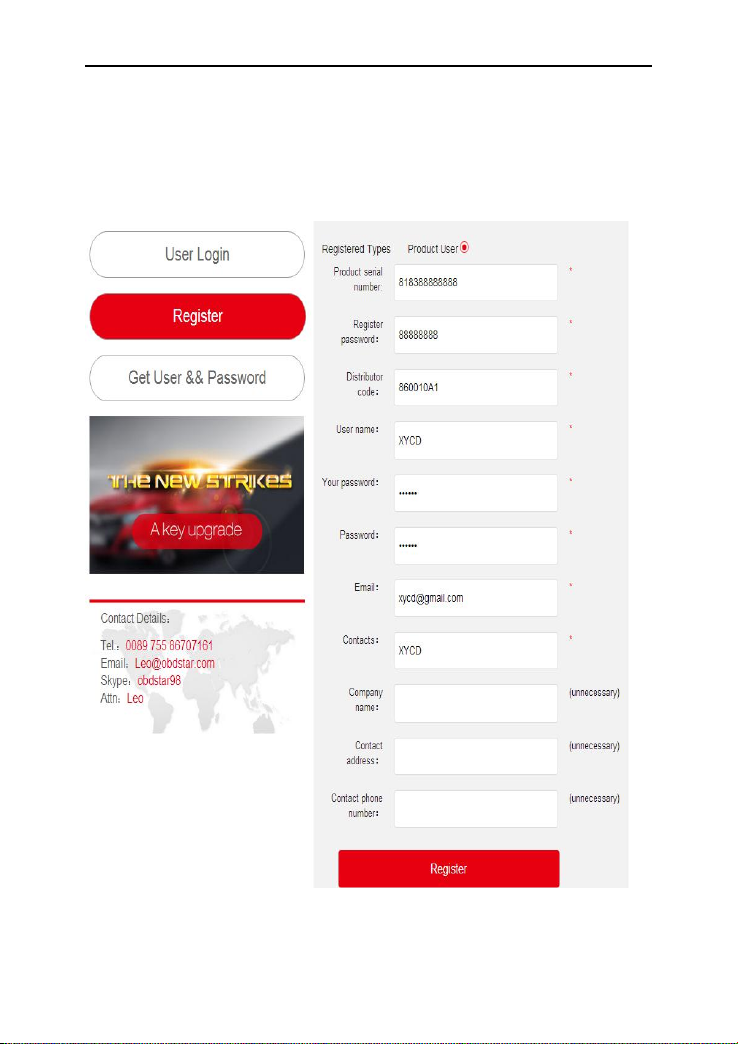

Long in our website:http://en.obdstar.com and click “One key Upgrade”.
Download the update tool and diagnostic software,double click,then go to
the next step:
Step 1: Click “Next”
Step 2: Click “Next”

X-200 PRO User Manual
8
Step 3: Wait for several minutes then the installation finished

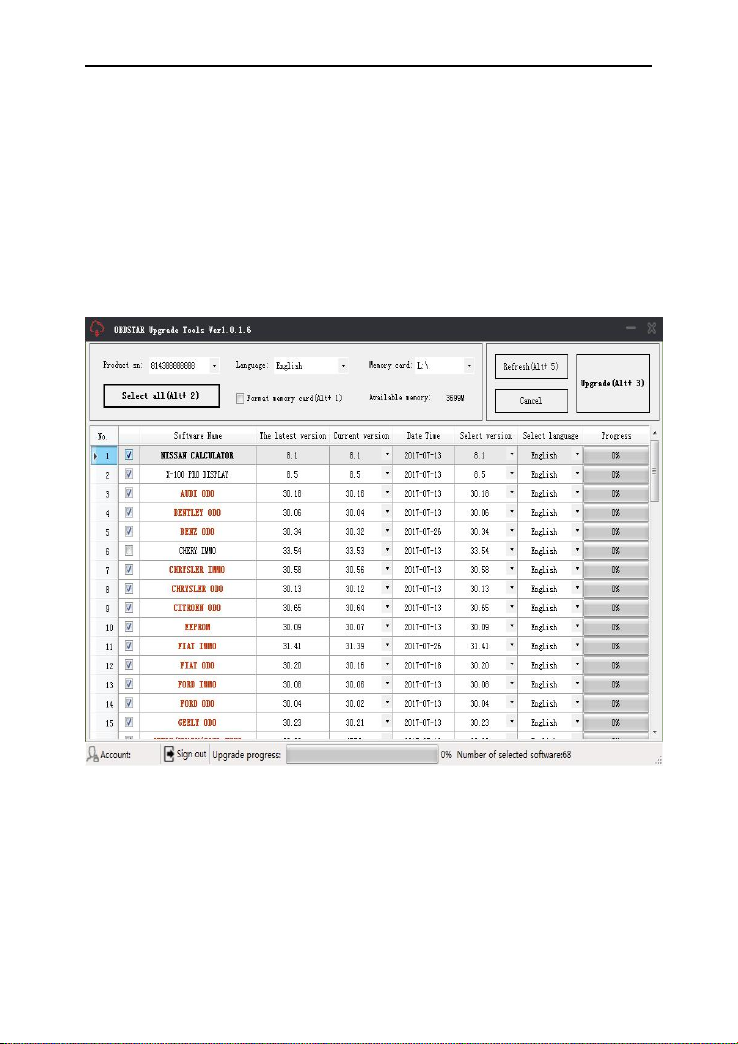

Step 4: Click “Finish”
