OBID i-scan HF User manual
INSTALLATION
customized (E)
2012-09-28 –M00910-8e-ID-B.doc
ID ISC.ANT1800/700
Type A and B
Version: Reader ID ISC.LRM2500-B
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 2 von 71
M00910-8e-ID-B.doc
Note
Copyright 2012 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: +49 6471 3109-0
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.
OBID®and OBID i-scan®are registered trademarks of FEIG ELECTRONIC GmbH.
my-d®is a registered trademark of Infineon Technologies AG
I-CODE®is a registered trademark of Philips Electronics N.V.
Tag-itTM is a registered trademark of Texas Instruments Incorporated.
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 3 von 71
M00910-8e-ID-B.doc
General information's regarding this document
The sign "" indicates extensions or changes of this manual compared with the former issue.
If bits within one byte are filled with "-", these bit spaces are reserved for future extensions or
for internal testing- and manufacturing-functions. These bit spaces must not be changed, as this
may cause faulty operation of the reader.
The following figure formats are used:
0...9: for decimal figures
0x00...0xFF: for hexadecimal figures,
b0...1 for binary figures.
The hexadecimal value in brackets "[ ]" marks a control byte (command).
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 4 von 71
M00910-8e-ID-B.doc
Contents
1. Safety Instructions / Warning - Read before Start-Up ! 6
2. Maintenance 7
3. Instruction on transportation and shipping of the antennas 8
4. Performance Features of the ID ISC.ANT1800/700 Antennas 9
4.1 Performance Features of the People Counter ID ISC.ANT1800/700-GPC .............10
4.2 Available Antenna Types .........................................................................................13
5. Installation and Wiring 14
5.1 Mounting Preparation..............................................................................................15
5.2 Installing the antenna............................................................................................... 16

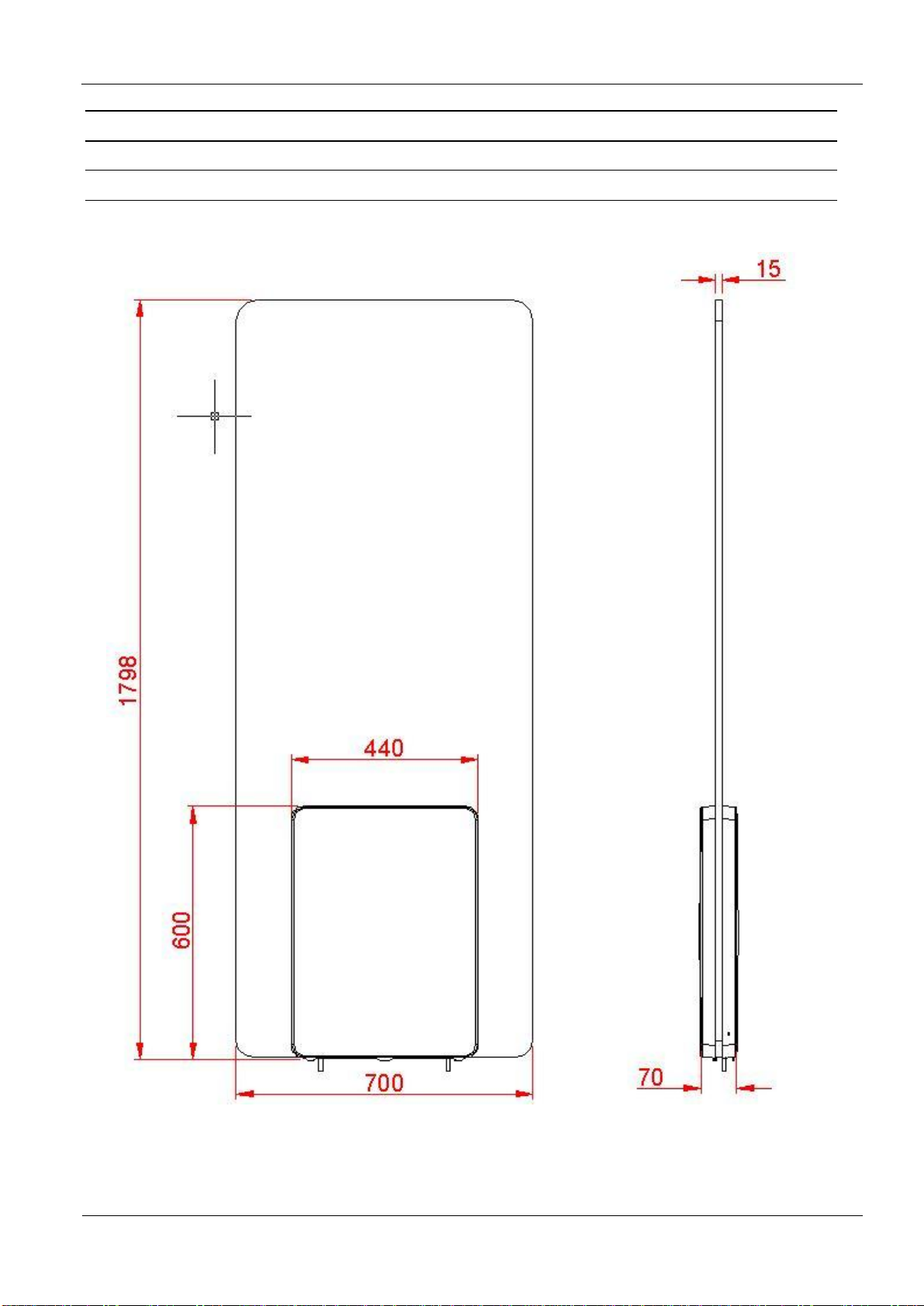

5.2.1 Dimensions of antenna........................................................................................... 16
5.2.2 Drilling the Mounting Holes ....................................................................................17
5.2.3 Installing the Antenna Base and Antenna Body......................................................19
6. Typical Antenna Configuration (Gate Antenna with two Antennas) 20
6.1 Project Notes Antenna .............................................................................................20
6.2 Project Notes People Counter (GPC) ......................................................................23
6.3 Gate Configuration and Setup using Antennas......................................................25
6.3.1 Required Components ...........................................................................................25
6.3.2 Configuration of a Gate Antenna with Multiplexer...................................................26
6.3.3 Setting the Multiplexer............................................................................................ 30
6.3.4 Setting the Antenna Tuner .....................................................................................31
6.3.5 Interface Connections ............................................................................................32
6.3.5.1 RS 232.........................................................................................................32
6.3.5.2 LAN / TCP/IP................................................................................................33
6.3.6 Reader Configuration with Multiplexer....................................................................34
6.3.7 Tuning the Gate Antenna .......................................................................................37
6.4 Testing the Gate Antenna.........................................................................................38
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 5 von 71
M00910-8e-ID-B.doc
6.4.1 Checking the Noise Level.......................................................................................38
6.4.2 Reading a Serial Number.......................................................................................40
6.4.3 Testing the performance ........................................................................................41
6.5 Setting the Alarm Kit ................................................................................................ 43
6.5.1 Reader Setting for Indicator....................................................................................44
6.5.2 Programming a Transponder with the AFI Byte......................................................46
6.6 Activating the Automatic Mode................................................................................ 47
6.7 Installation ID ISC.ANT.GPC-E................................................................................. 48
6.8 Configuration and Test............................................................................................. 50
6.8.1 Connecting several People Counter....................................................................... 51
6.8.2 Configuration and Test in ISO-Host or Buffered Read............................................52
6.8.3 Configuration and Test in Notification Mode...........................................................55
6.8.4 Using the trigger function of Gate People Counter .................................................57
7. Configure the reader in accordance with national RF regulations 59
8. Technical Data 61
8.1 Antenna ID ISC.ANT1800/700 Type A and B ........................................................... 61
8.2 People Counter ID ISC.ANT1800/700-GPC and ID ISC.ANT.GPC-E......................64
8.3 Approvals..................................................................................................................65
8.3.1 Europe (CE)...........................................................................................................65
8.3.1.1 Antenne ID ISC.ANT1800/700......................................................................65
8.3.1.2 People Counter ID ISC.ANT1800/700-GPC ................................................65
8.3.2 USA (FCC) and Canada (IC).................................................................................. 66
8.3.2.1 Antenna ID ISC.ANT1800/700......................................................................66
8.3.2.2 People Counter ID ISC.ANT1800/700-GPC .................................................67
8.3.3 USA and Canada (UL) ...........................................................................................68
9. Annex A 69
9.1 Terminal assignment “Terminal Board”.................................................................. 69
9.2 Internal wiring........................................................................................................... 71
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 6 von 71
M00910-8e-ID-B.doc
Safety Instructions / Warning - Read before Start-Up !
The device may only be used for the intended purpose designed by for the manufacturer.
The operation manual should be conveniently kept available at all times for each user.
Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
Repairs may only be executed by the manufacturer.
Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
When working on devices the valid safety regulations must be observed.
Please observe that some parts of the device may heat severely.
Before touching the device, the power supply must always be interrupted. Make sure that the
device is without voltage by measuring. The fading of an operation control (LED) is no indicator
for an interrupted power supply or the device being out of voltage!
For installation and dismantling you should wear suitable safety gloves, because parts of an-
tenna housing could be sharp-edged.
CAUTION! The Antenna-Tuner and the Antenna conductor carry voltages up to
1000V.
The Antenna is not water proof and should not be exposed to rain or humidity.
Under extreme circumstances water could seep into the antenna and damage the electronic
circuits.
Special advice for wearers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should
keep a minimum distance of 25 cm between the device and your cardiac pacemaker and
not stay in an immediate proximity of the reader’s antennas for any length of time.
CAUTION! Do not look directly into the LED light. There is a danger of injury of
the eyes!
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 7 von 71
M00910-8e-ID-B.doc
Maintenance
The antenna ID ISC.ANT1800/700 is a design product with high quality surfaces, and should al-
ways be handled with caution. The antenna was designed to work reliably and flawlessly for years
without special maintenance.
Attention! The surfaces should be cleaned with a clean, soft cloth dampened in a
dishwashing liquid –water solution. The use of alcohol, spirit, thinners, glass clean-
ers or other harsh cleaning liquids is prohibited and will damage the acrylic plate.
To improve the durability and the appearance, please follow the instructions below:
Keep the antenna clean and take care the antenna is not scratched. Also regularly apply spe-
cific antistatic products for acrylic surfaces.
Regularly remove dust and other impurities with a soft cloth and a solution of water with a little
dishwashing liquid.
Keep the antenna dry. All kinds of moisture should be avoided during operation and storage.
Precipitation, humidity and liquids contain minerals that will corrode electronic circuits and da-
maging transparent plastic parts.
Protect the antenna from high temperatures. Mount the antenna away from heaters and other
heat sources. Operation under direct sunlight can cause extreme high temperatures and a fad-
ing cause of the surface.
Avoid storing or operating the antenna at dirty or wet locations. The surfaces or electronic
components may be-damaging.
Handle the device with care. Shocks may break internal circuit boards.
Do not try to open the antenna during operation or outside maintenance periods. Non-
professional management can result in damage to the device.
If any device not working properly, please contact the appropriate representative.
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 8 von 71
M00910-8e-ID-B.doc

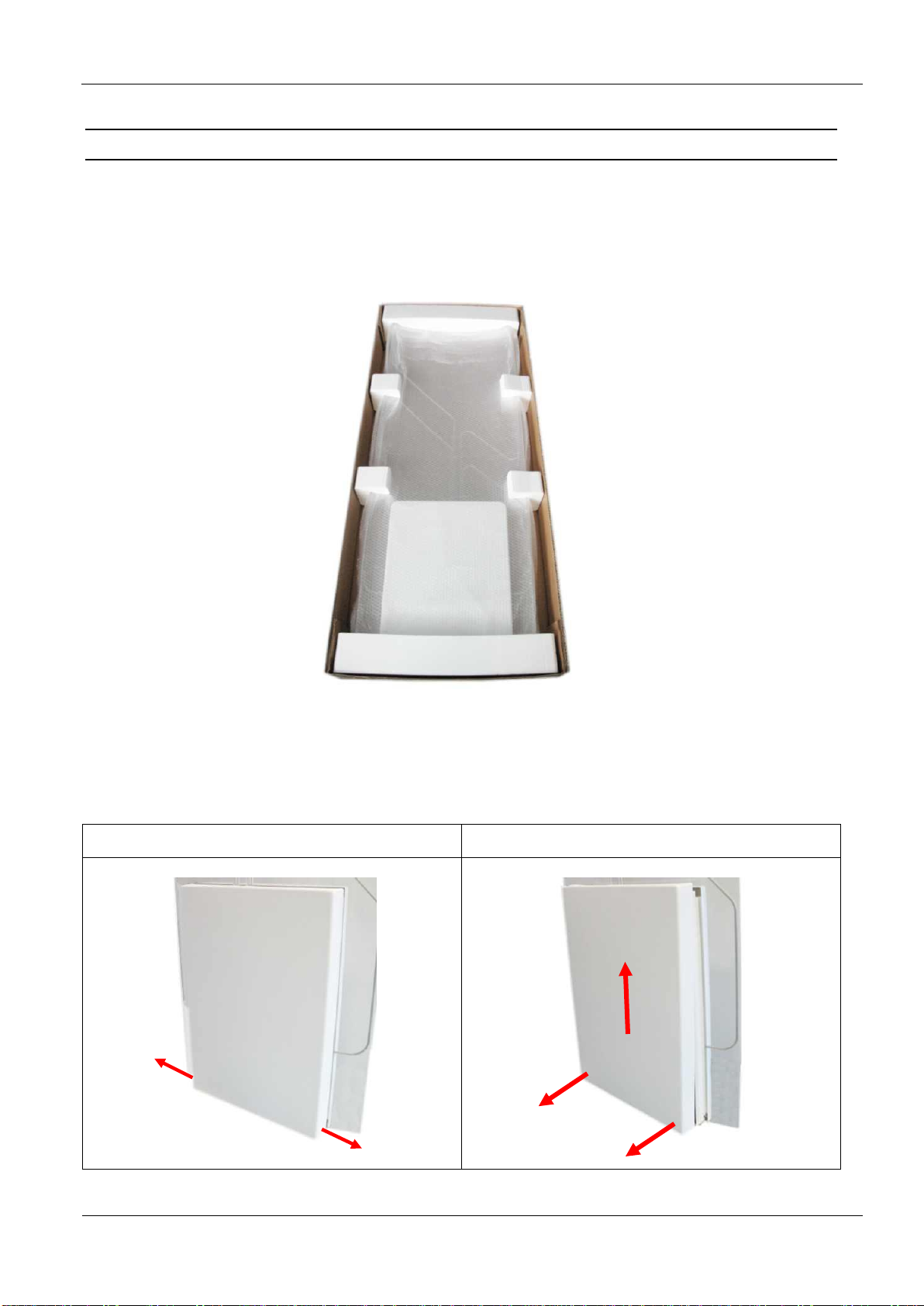

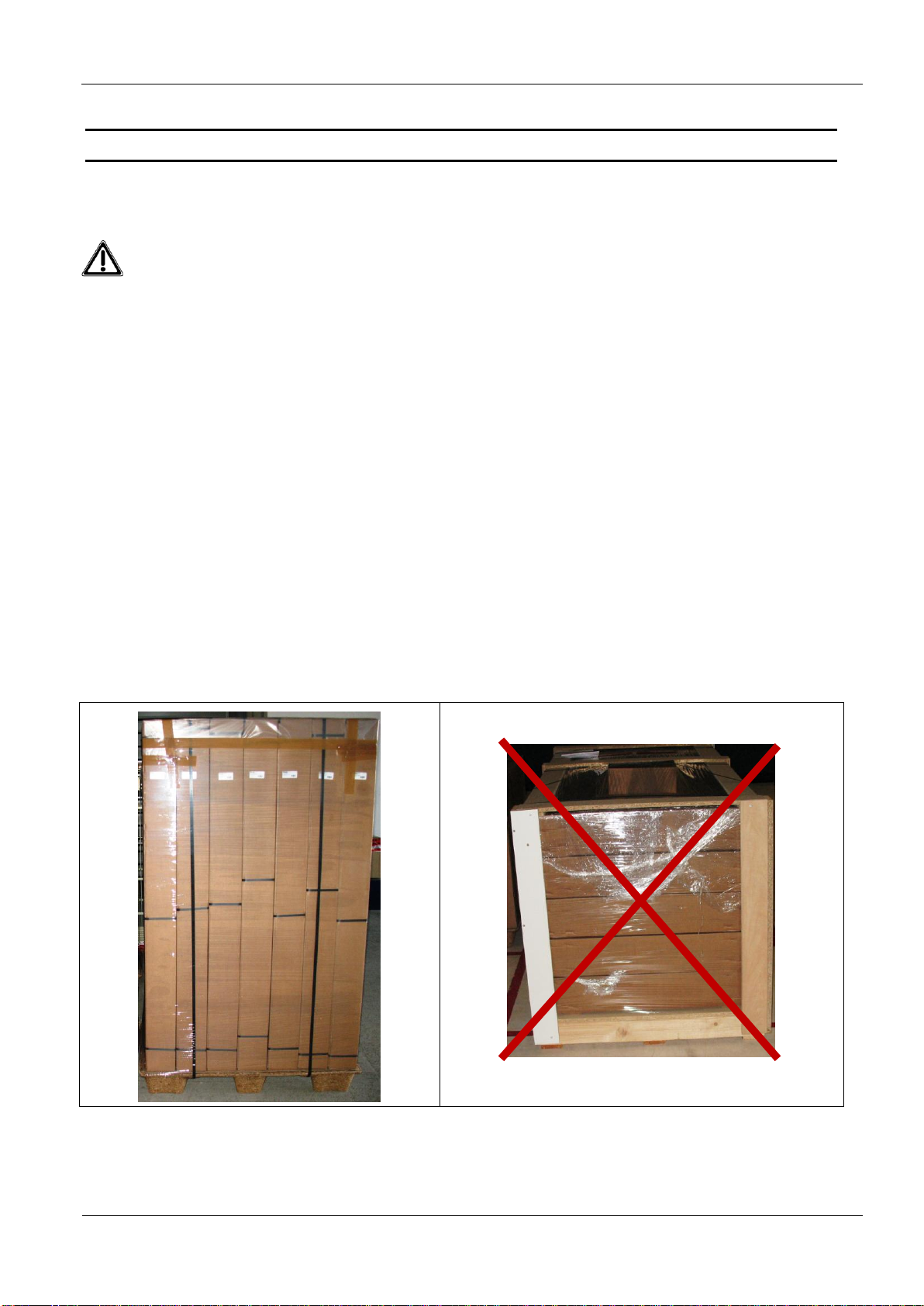

Instruction on transportation and shipping of the antennas
The packaging of the antennas has been designed to transport antennas vertically standing on a
pallet to the site of installation.
Attention! The antenna has be transported vertically on the base side on the pallet. A
transporting or storing in the false orientation can cause damaging at the antenna.
In case a vertically positioned transport is not possible, the antenna can be transported lying on the
narrow side. A transporting lying on its wide /flat side of the packaging can cause damage to the
device.
The pallet has to be adapted to the size and the number of antennas. In no case shall the
packaging stand out of the range. An additional protection of the edges of the pallet is recom-
mended.
The packaging mustn’t be moist at all times. When transporting overseas by ship or plane, the
packaging has to be protected against get damp at any time.
Temperatures above or below the specified temperature range may damage the antenna and / or
the packaging.
Any mechanical stress on the packaging is not permitted. Any stacking of packaging, can cause
damaging in the packaging below.
Even after the unpacking of the antennas the face of the antenna plate must be always transported
and stored vertically. A transport in horizontally oriented antenna can deform the antenna plate.
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 9 von 71
M00910-8e-ID-B.doc
Performance Features of the ID ISC.ANT1800/700 Antennas
The ID ISC.ANT1800/700-A antenna is a version with integrated Dynamic Antenna Tuning Board
ID ISC.DAT , Long Range Reader ID ISC.LRM2500-B, 4-times Multiplexer Module
ID ISC.ANT.MUX M4, signal light and buzzer.
Additionally, one People Counter and one radar Detector are already integrated in the antenna
ID ISC.ANT1800/700-A.
The ID ISC.ANT1800/700-B antenna is a version with integrated Dynamic Antenna Tuning Board
ID ISC.DAT and signal light mounted, only.
Up to
-two antennas with reader and multiplexer as a single gate,
-three to four antennas with reader and multiplexer as a double gate or triple gate
-up to 8 antennas as multiple gate with up to 7 aisle at the use of the 8-times Multiplexer
ID ISC.ANT-MUX M8.
can be operated.
Depending on the antenna configuration, one, two or all three read orientations of the Smart Tags
and various aisle widths (gate widths) are possible.
The ID ISC.ANT1800/700-A/B is a „figure-of-eight“ antenna with tuner and has been optimized as
transmitting and receiving antennas for the ID ISC.LRM2500 Reader. It is however also possible to
operate them with other readers at a transmission frequency of 13.56 MHz and an output
impedance of 50 . The read ranges indicated in this document and the tuning procedures may
vary.
The antennas comprise the electrical antenna conductor, the housing, the ID ISC.DAT Dynamic
Antenna Tuner and the connection cables.The antennas are tuned to the factory default to an
impedance of 50 in a magnetically neutral environment at a distance of 95 cm. When installing in
different ambient conditions the antenna can be retuned using the “DATuningTool“ PC software.
After tuning, the antennas will retain their settings as long as the ambient conditions remain
unchanged.
The antennas can be used for detecting both product and persons. It is for indoors use, only.
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 10 von 71
M00910-8e-ID-B.doc
Performance Features of the People Counter ID ISC.ANT1800/700-GPC
The product ID ISC.ANT1800/700-GPC, short form “Gate People Counter” or “GPC”, are made for
mounting in the gate antennas ID ISC.ANT1800/700.
A Gate People Counter consist of a People Counter board (PC) and one Radar Detector! The
product ID ISC.ANT.GPC-E Extension Radar Detector is used to extend the People Counter to a
second gate aisles.
The People Counter has two counters per aisle. The values of the incoming and outgoing persons
will be separately captured.

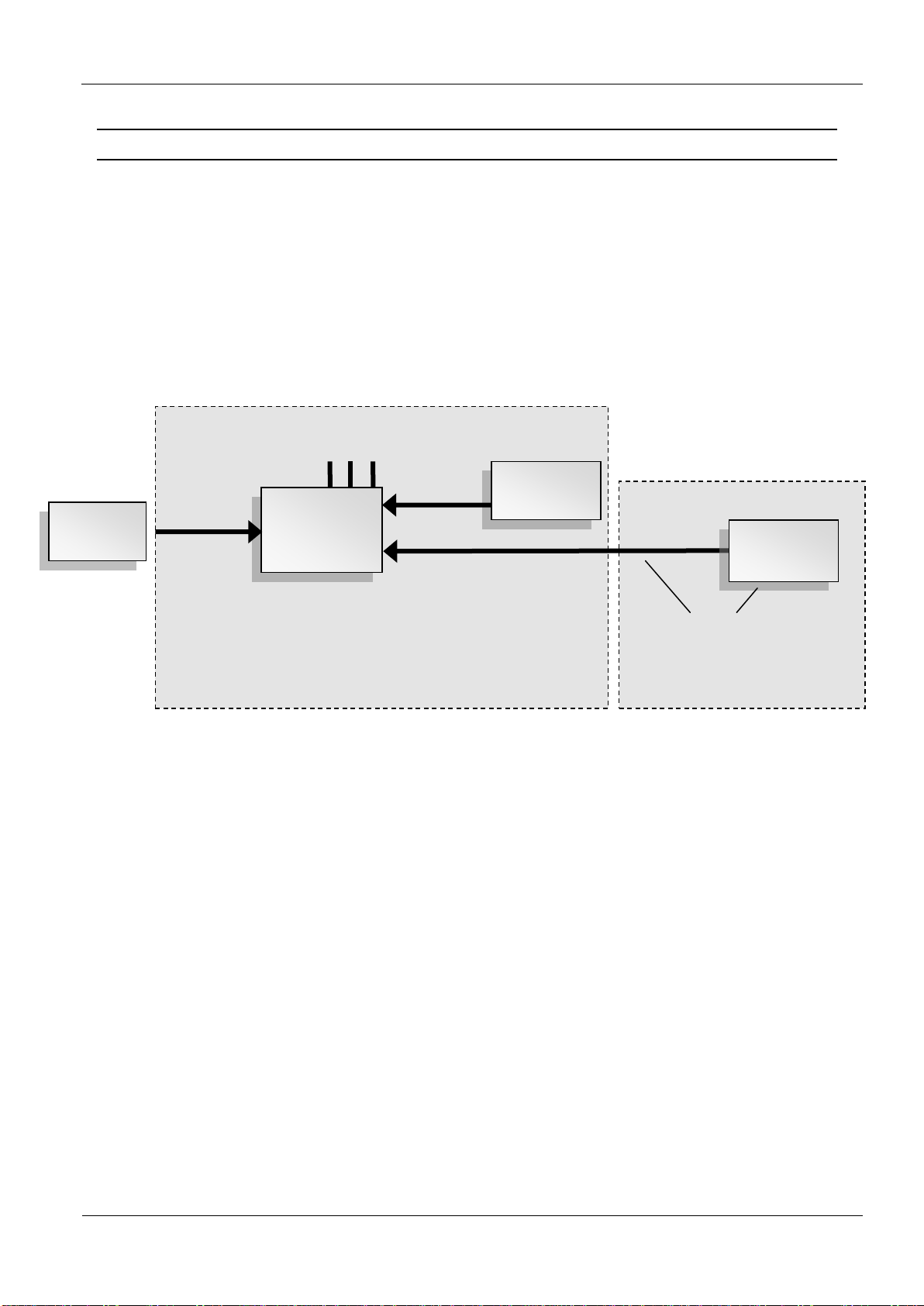

Fig. 1: Gate People Counter Structure (2-3 antennas, 1-2 gate aisles)
A change of the counter values will be stored in the EEPROM of the People Counter board. By
sending the command “0x78 Set People Counter” the values could be set/reset to the needed
value.
People
Counter 1
Radar
Detector 1
Out / LED 1-3
ID ISC.ANT.GPC-E
Extension Radar Detector
(e.g. 2’cd aisle of the gate)
Radar
Detector 2
Gate antenna
ID ISC.ANT1800/700.GPC
Reader
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 11 von 71
M00910-8e-ID-B.doc
Radar detection zone of a single gate
Radar detection zone with two aisles
Radar detection zone with three aisles
Radar detection zone with four aisles
Fig. 2: Top view of the detection areas (2-5 antennas, 1-4 gate aisles)
The People Counter board and the Radar detectors are mounted in the base of the antennas. Due
to the radar beam can pervade the plastic housing of the antenna, no openings a necessary.
The three digital output can be used, to enable a signal light at every gate antenna or activate an
alarm buzzer in the gate antenna.
Counter 1 | Counter 2
In | Out
Cnt. 1 | Cnt. 2
In | Out
Cnt. 3 | Cnt. 4
In | Out
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 12 von 71
M00910-8e-ID-B.doc
The Connection between reader and people counter takes place through the RS485 Interface of
the reader, inside the antenna.
There is no need of a direct connection from the GPC to the Host. All commands from the Host to
the People Counters are embedded in the Pickyback command of the reader.
Generally, there are two possibilities to get the actual people counter values. Either the Host poll
the People Counter periodically or in the Notification Mode of the reader, the reader send a notifi-
cation protocol at every change.
In ISO Host or Buffered Read Mode, the host poll the GPC by sending protocols. Only, in the Noti-
fication Mode, the reader poll the counter values, automatically, and send data according the read-
er configuration to the host.
See also System Manual H01011-0e-ID-B.DOC
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 13 von 71
M00910-8e-ID-B.doc
Available Antenna Types
The following products are currently available:
Antenna Type
Description
ID ISC.ANT1800/700-A
Crystal Gate
Antenna with Reader, Multiplexer , dynamic tuning board, signal
light, buzzer and People Counter Board with one radar detector.
ID ISC.ANT1800/700-B
Crystal Gate
Antenna with dynamic tuning board ID ISC.DAT and signal light
ID ISC.ANT1800/700-GPC
Gate People Counter
People Counter and one piece of radar detector for antenna ID
ISC.ANT1800/700 incl. Mounting and cabling set. (optional)
ID ISC.ANT.GPC-E Exten-
sion Radar Detector
Second radar detector with cable for the second direct parallel aisle
(optional)
Table 1: Available Antenna Types and Accessories
Required components to setup a gate by using the Gate People Counter:
Number of
antennas
Antenna
People Counter (Optional)
ID ISC.
ANT1800/700
-A
ID ISC.
ANT1800/700
-B
ID ISC.
ANT1800/
700-GPC
ID ISC.ANT.
GPC-E
Note
2 Antennas
1
1
0
3 Antennas
1
2
0
1
4 Antennas
1
3
1
1
Table 2 Required components for gates with People Counter
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 14 von 71
M00910-8e-ID-B.doc
Installation and Wiring
Notes:
Before installing the antennas please read 0 Project Notes .The spacing of the antennas in
a gate depends on the antenna configuration.
If multiple antennas or gates are connected to different readers, a minimum clearance of
8 m must be kept between the antennas or gates. For shorter distances (1 m –8 m) the
readers must be synchronized. The synchronization of the readers is only possible in one
of the Automatic Modes (Buffered Read, Notification or Scan Mode). Below a distance of 1.5
m the antennas must also be shielded from each other. Otherwise the read range will be
significantly reduced. The antennas must have a minimum distance of 20 cm to all larger
metal parts! At a distance of less than 50 cm between the antenna and metal parts the read
range will be significantly reduced.
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 15 von 71
M00910-8e-ID-B.doc
Mounting Preparation
For the assembly of the antenna it has to be carefully unpacked and the antenna base to be
opened. This is done as described in the following steps:
1. Place the packed antenna on the floor with the top side facing up. Carefully open the box and
then remove the antenna.
Fig. 3: Packed Antenna
2. Afterwards, the antenna has to be placed carefully on the floor again. Now, the two fastening
screws (hexagon socket width AF 2,5) have to remove of the antenna base cover. By moving
the cover upwards, carefully, remove the cover from the antenna base. Fig. 4
Step 1
Step 2
Fig. 4: Opening the antenna base
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 16 von 71
M00910-8e-ID-B.doc
Installing the antenna
Dimensions of antenna
The overall dimensions of the antenna are shown in Fig. 5
Fig. 5: Antenna outside dimensions
All dimensions are in mm with general tolerance according to ISO 2768 m (mean).
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 17 von 71
M00910-8e-ID-B.doc
Drilling the Mounting Holes
If the position of the antennas has been marked or determined, the mounting holes and the holes
for the cable entry, can be marked and drilled. The dimensions are shown in Fig. 6:
Fig. 6: Floor plate dimensions
All dimensions are in mm with general tolerance to ISO 2768 m (middle).
The size and type of the anchors depends considerably on the strength of the base or floor. The
anchors should be capable of withstanding a permissible load of at least 5 kN per anchor for all
load directions (e.g. for concrete floor Hilti HVA anchors with HAS-(E) M8 threaded rod or Hilti HIS-
N M8 (5/16”) threaded inserts). The size of the mounting holes in the antenna is 10 mm (.39”). The
length of the anchors or bolts should be selected such so they jut out at least 40 mm (1.6”) and
maximum of 55 mm (2.2”) of the floor.
Please follow the mounting instructions of the anchor manufacturer!
A cable opening is provided for the necessary connection cable (see Fig. 6). The cable opening is
dimensioned such as up to 10 cables having a diameter of 6 mm can be passed through the
opening.
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 19 von 71
M00910-8e-ID-B.doc
Installing the Antenna Base and Antenna Body
The antenna will be mounted on the floor. Please note, the antenna conductors in the middle of the
antenna body have to have the same direction (Fig. 8). Afterwards, the antenna has to be aligned
the antenna vertically, by using the adjusting screws (Fig. 9). Please read also 0 Using the trigger
function of Gate People Counter and 0 Project Notes People Counter (GPC).
Fig. 8 Conductors shape have to have same direction
Adjusting screws (hexagon socket width AF 4)
Fig. 9: Attaching and aligning the antenna
OBID i-scan® HF
Installation
ID ISC.ANT1800/700-A/-B
FEIG ELECTRONIC GmbH
Seite 20 von 71
M00910-8e-ID-B.doc
Typical Antenna Configuration (Gate Antenna with two Antennas)
The standard configuration of a gate with three-dimensional tag orientation consists of one
ID ISC.ANT1800/700-A with reader and multiplexer and one ID ISC.ANT1800/700-B. If a tag
moves, at horizontal line, through the gate, it can be read at least once. This ensures high reliability
of the antenna system.
Project Notes Antenna
The antenna configuration as described allows detection of a tag moving at a horizontal line,
through the reading area of the gate. The tag orientation is non-critical. The tags are detected
along a horizontal axis of motion in certain regions within the antennas. The area of detection
depends on the tag orientation.
The size of the three-dimensional reading area of the antennas is shown in the sketch below.
Fig. 10: Capture area and tag orientation
Notes:
Note that the entire reading area of the antenna gate is larger than the three-dimensional
area shown in the drawing. (Fig. 11). This means there are tag orientations in which the tag
can be detected outside the reading area.
To get a optimal performance the reader has to be configured and run in one of the
Automatic Modes (Buffered Read, Notification or Scan Mode).
GD
A= 20 cm
H= 180 cm
This manual suits for next models
2
Table of contents
Other OBID Antenna manuals
