occiam K23 User manual

K23
User Manual
TRUE WIRELESS SPORTS EARBUDS

What’s in the box?
Charging Case x1 Wireless Earbuds x2
Type-C Cable x1 Ear tips x3
User Manual
TRUE WIRELESS SPORTS EARBUDS
User Manual x1
* Note: Please Remove Protective Films of The LED Power
Display and Charging Contacts Before Using It.

Overview
Earbud LED Indicator
Multi-function
Button (MFB)
MIC
USB Output Port
Led Bar for
Earbud
Charging Case LED
Type-C
Power
Display
Charging Port
Produc t Parameters
1.Bluetooth Version: BT5.0+EDR
2.Supports: HSP/HFP/A2DP/AVRCP
3.Charging Interface: Point-Contact
4.Charging Port: Type-C
5.Battery Capacity: (Li-ion battery inside) Earbud: 75mAh
Charging case: 2200mAh
6.Battery Life: Twin Earbuds will last 8 hours on single fully
charge(Actual battery life changes with the song types and
volume requirements)
7.Standby Time: Up to 100 hours
8.Charging Time: 1-1.5 Hrs for earbuds / 2.5Hrs for charging case
9.Transmission Range: 33 feet (with no obstacle)
10.Earbud Weight / Size: 10g / 37*55*30mm
11.Charging Case Weight / Size: 130g / 106¥63.5*40mm

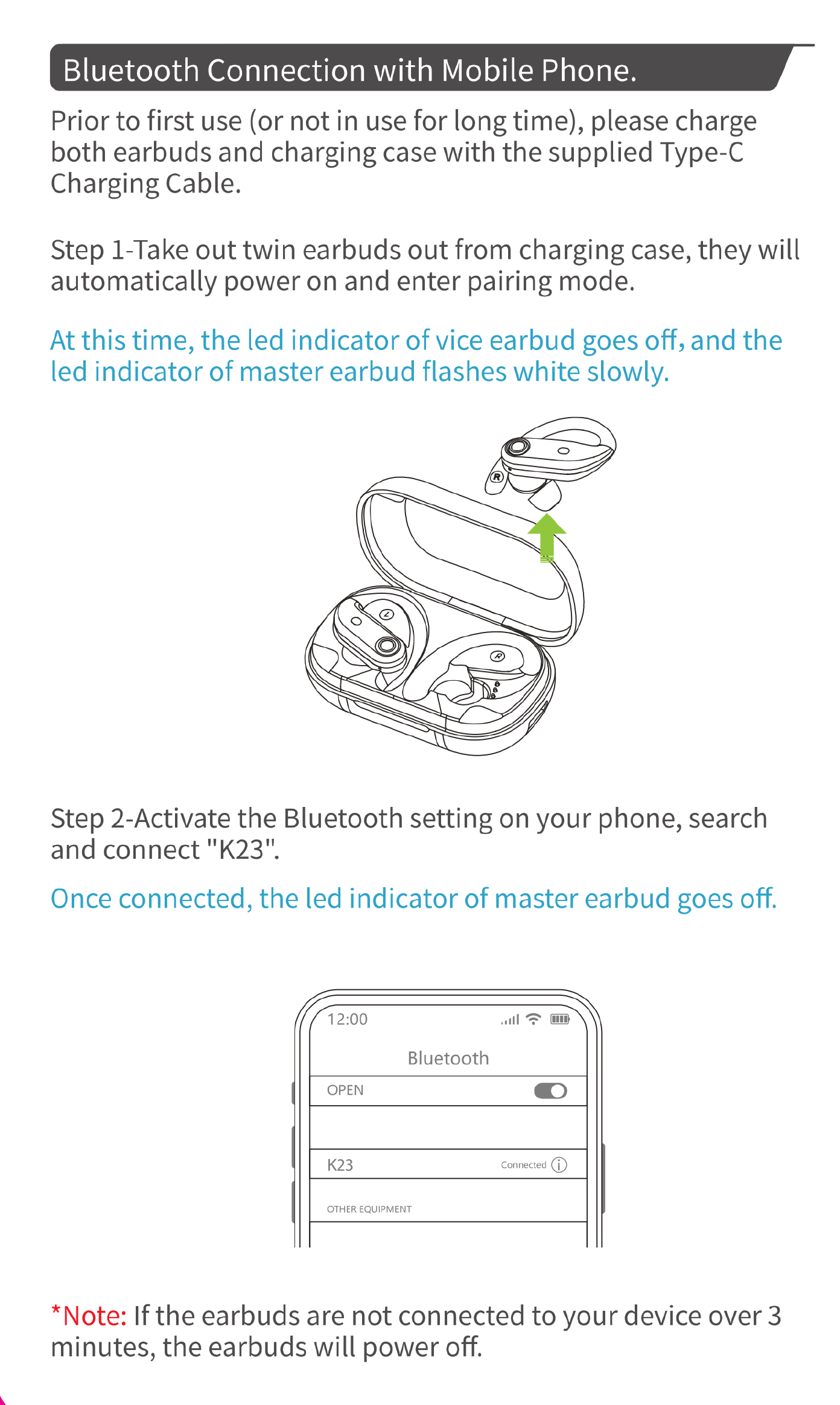

Bluetooth Connection with Mobile Phone.
Prior to first use (or not in use for long time), please charge
both earbuds and charging case with the supplied Type-C
Charging Cable.
Step 1-Take out twin earbuds out from charging case, they will
automatically power on and enter pairing mode.
At this time, the led indicator of vice earbud goes off, and the
led indicator of master earbud flashes white slowly.
Step 2-Activate the Bluetooth setting on your phone, search
and connect "K23".
Once connected, the led indicator of master earbud goes off.
fflz;oo il = @\\
Bluetooth
OPEN @)
K23
Connected
(1)
OTHER EQUIPMENT
*Note: If the earbuds are not connected to your device over 3
minutes, the earbuds will power off.

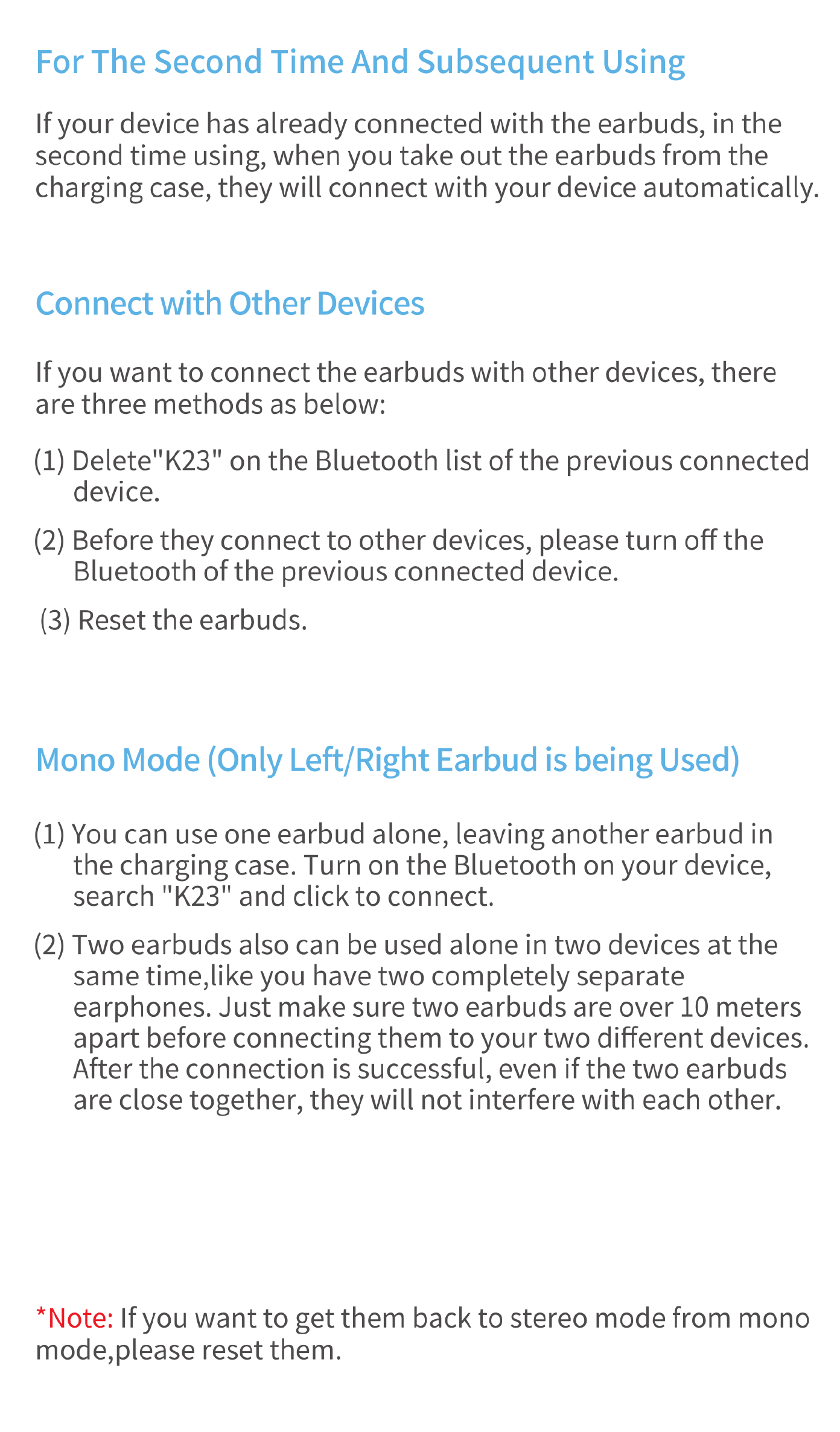

For The Second Time And Subsequent Using
If your device has already connected with the earbuds, in the
second time using, when you take out the earbuds from the
charging case, they will connect with your device automatically.
Connect with Other Devices
If you want to connect the earbuds with other devices, there
are three methods as below:
(1) Delete"K23" on the Bluetooth list of the previous connected
device.
(2) Before they connect to other devices, please turn off the
Bluetooth of the previous connected device.
(3) Reset the earbuds.
Mono Mode (Only Left/Right Earbud is being Used)
(1) You can use one earbud alone, leaving another earbud in
the charging case. Turn on the Bluetooth on your device,
search "K23" and click to connect.
(2) Two earbuds also can be used alone in two devices at the
same time,like you have two completely separate
earphones. Just make sure two earbuds are over 10 meters
apart before connecting them to your two different devices.
After the connection is successful, even if the two earbuds
are close together, they will not interfere with each other.
*Note: If you want to get them back to stereo mode from mono
mode,please reset them.

Factory Restore Setting
When should | reset?
When only one side plays music.
When you can’ t use the two earbuds together.
When both earbuds fail to pair with each other or occur
connection related issues.
How to reset?
Step 1: Deactive the Bluetooth setting of all devices nearby the
earbuds.
Step 2: Pick up two earbuds from charging case, the earbuds
will power on automatically.
Step 3: Turn off both earbuds manually.
Step 4: Long-press 10 seconds on the button of one earbud
until the earbud led indicator flash 5 times quickly (If you wear
the earbud, you will hear voice prompt “power on > di di di>
power off” ), then the earbud will power off, that means
resetting finished.
Step 5: Repeat step 4 to reset another earbud.
*Note: After resetting, the pairing record between the earbuds
and all your devices will be cleared. In case there is any
unsuccessful message in your devices, please consider to
delete historical record of K23, and try the pairing process
again.

Power On / Power Off
Auto Power On
Take out the earbuds from charging case, the earbuds will
automatically power on and start pairing.
Auto Power Off
Put the earbuds back into the charging case, the earbuds will
automatically power off and enter charging mode.
Manual Power On
If the earbuds are not in the charging case, press and hold each
earbud for 3 seconds.
Manual Power Off
If the earbuds are not in the charging case, press and hold each
earbud for 5 seconds.
How to wear the earbuds correctly?
Gently push the earbuds into your ear and adjust the earbuds
to get a comfortable fit.

For music
[Functions on "R Earbud"]
Play/Pause: Click Once
Next Track: Quick Double-Click
Volume +: Long Press MFB
Note: At mono mode, R earbud
only support next song and volume +.
Q For Call
Answer Call: Click Once
End Call: Click Once
Reject Call: Long Press 2S
Switch to the third party call while hanging
up your current call: Click Once
Deline the thrid party call and keep your
current call: Long Press MFB
Voice Assistance
Activate Siri or other voice
assistances: Quick Triple-Click
R Earbud
Volume -:
[Functions on "L Earbud"]
Play/Pause:
Previous Track: Quick Double-Click
Long Press MFB
Note: At mono mode, L earbud
only support previous song and volume +.
Click Once
"L" or "R" Earbud,
Both OK
Quick Triple-Click

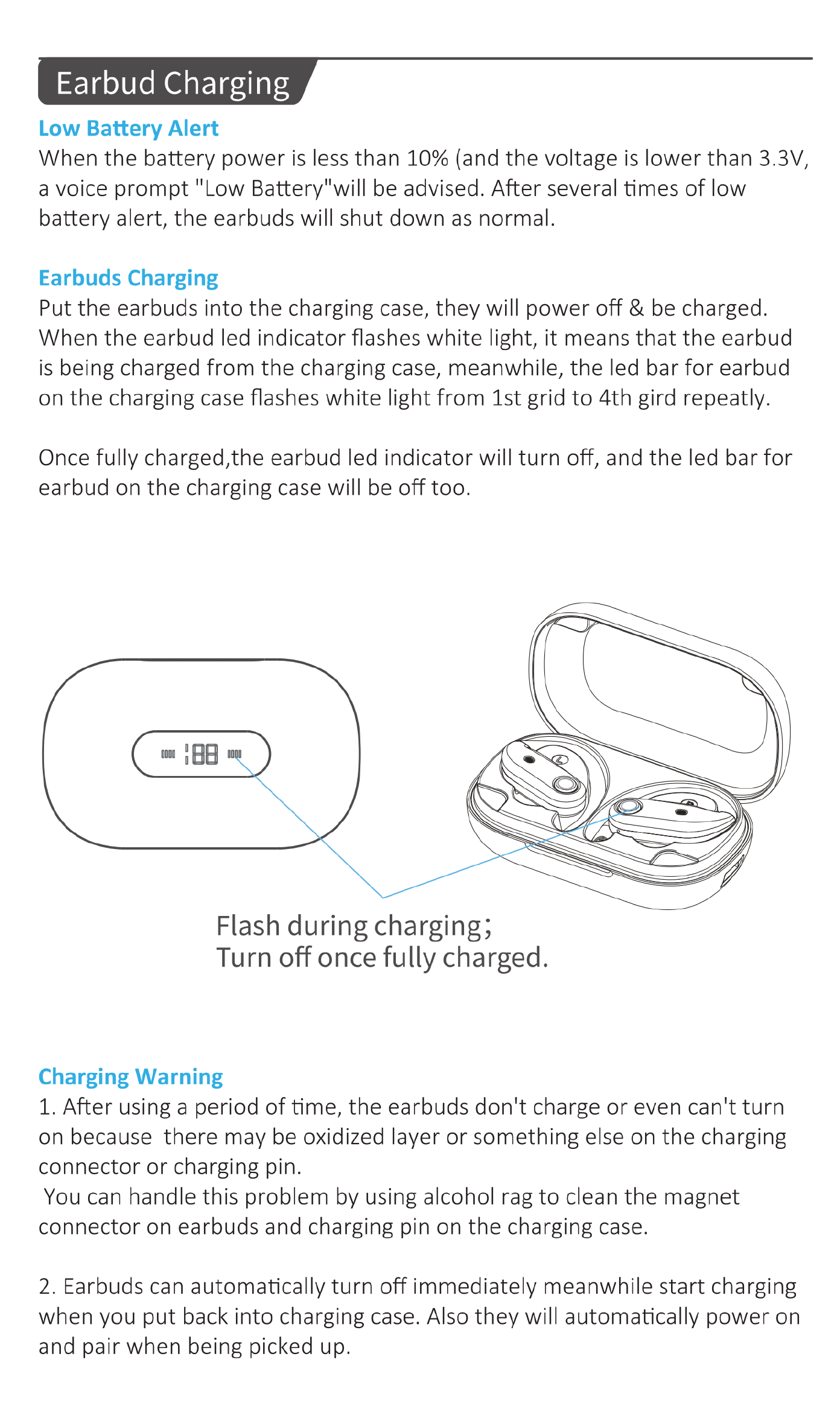

Earbud Charging
Low Battery Alert
When the battery power is less than 10% (and the voltage is lower than 3.3V,
a voice prompt "Low Battery"will be advised. After several times of low
battery alert, the earbuds will shut down as normal.
Earbuds Charging
Put the earbuds into the charging case, they will power off & be charged.
When the earbud led indicator flashes white light, it means that the earbud
is being charged from the charging case, meanwhile, the led bar for earbud
on the charging case flashes white light from 1st grid to 4th gird repeatly.
Once fully charged,the earbud led indicator will turn off, and the led bar for
earbud on the charging case will be off too.
Flash during charging;
Turn off once fully charged.
Charging Warning
1. After using a period of time, the earbuds don't charge or even can't turn
on because there may be oxidized layer or something else on the charging
connector or charging pin.
You can handle this problem by using alcohol rag to clean the magnet
connector on earbuds and charging pin on the charging case.
2. Earbuds can automatically turn off immediately meanwhile start charging
when you put back into charging case. Also they will automatically power on
and pair when being picked up.

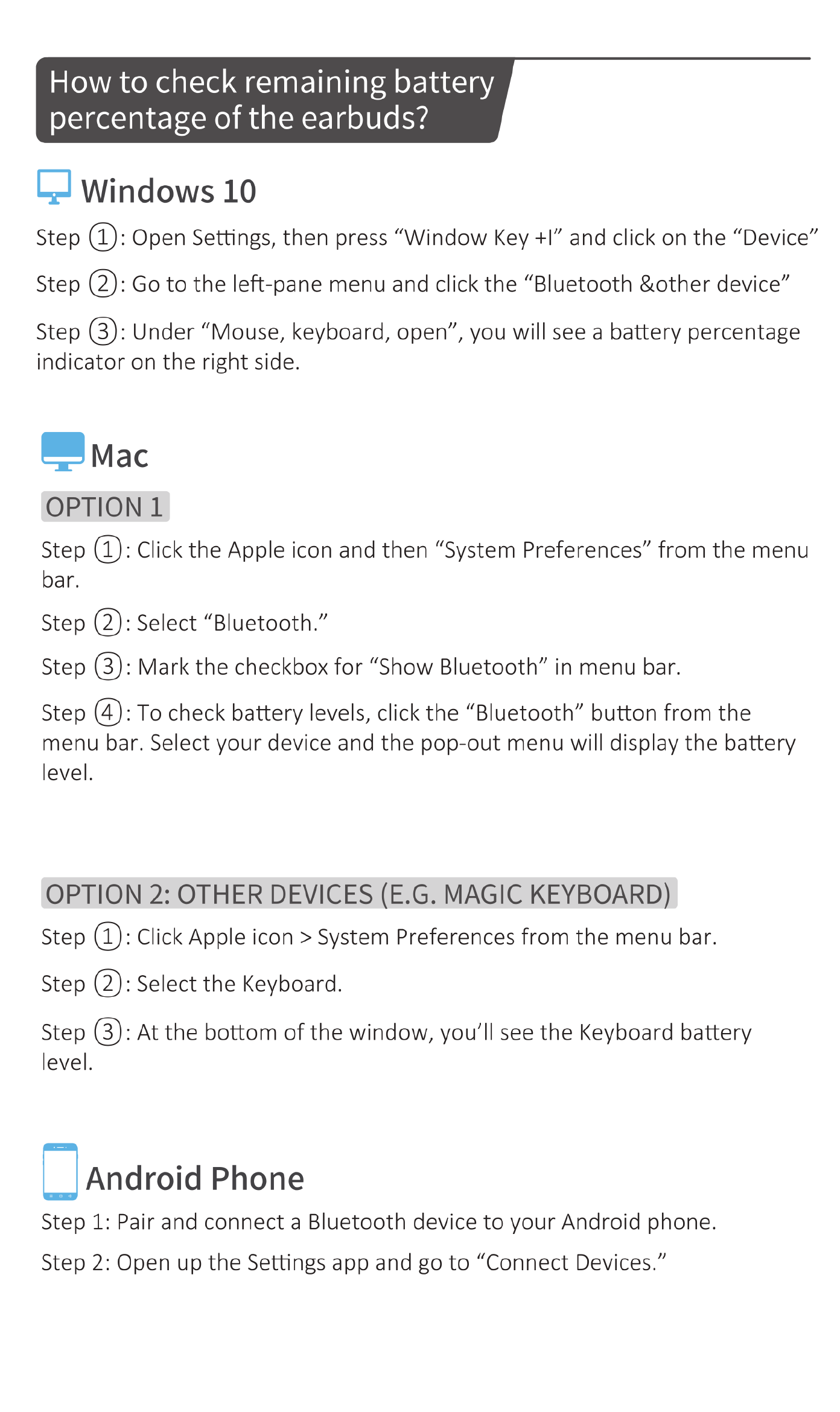

How to check remaining battery
percentage of the earbuds?
L Windows 10
Step @: Open Settings, then press “Window Key +I” and click on the “Device”
Step @: Go to the left-pane menu and click the “Bluetooth &other device”
Step @: Under “Mouse, keyboard, open”, you will see a battery percentage
indicator on the right side.
EMac
OPTION 1
Step @: Click the Apple icon and then “System Preferences” from the menu
bar.
Step (2): Select “Bluetooth.”
Step (3): Mark the checkbox for “Show Bluetooth” in menu bar.
Step @: To check battery levels, click the “Bluetooth” button from the
menu bar. Select your device and the pop-out menu will display the battery
level.
OPTION 2: OTHER DEVICES (E.G. MAGIC KEYBOARD)
Step @: Click Apple icon > System Preferences from the menu bar.
Step @: Select the Keyboard.
Step @: At the bottom of the window, you’ll see the Keyboard battery
level.
DAndroid Phone
Step 1: Pair and connect a Bluetooth device to your Android phone.
Step 2: Open up the Settings app and go to “Connect Devices.”

Step 3: Tap on the word “Bluetooth” (not the switch next to it) and you
will see complete list of all connected devices and their battery level.

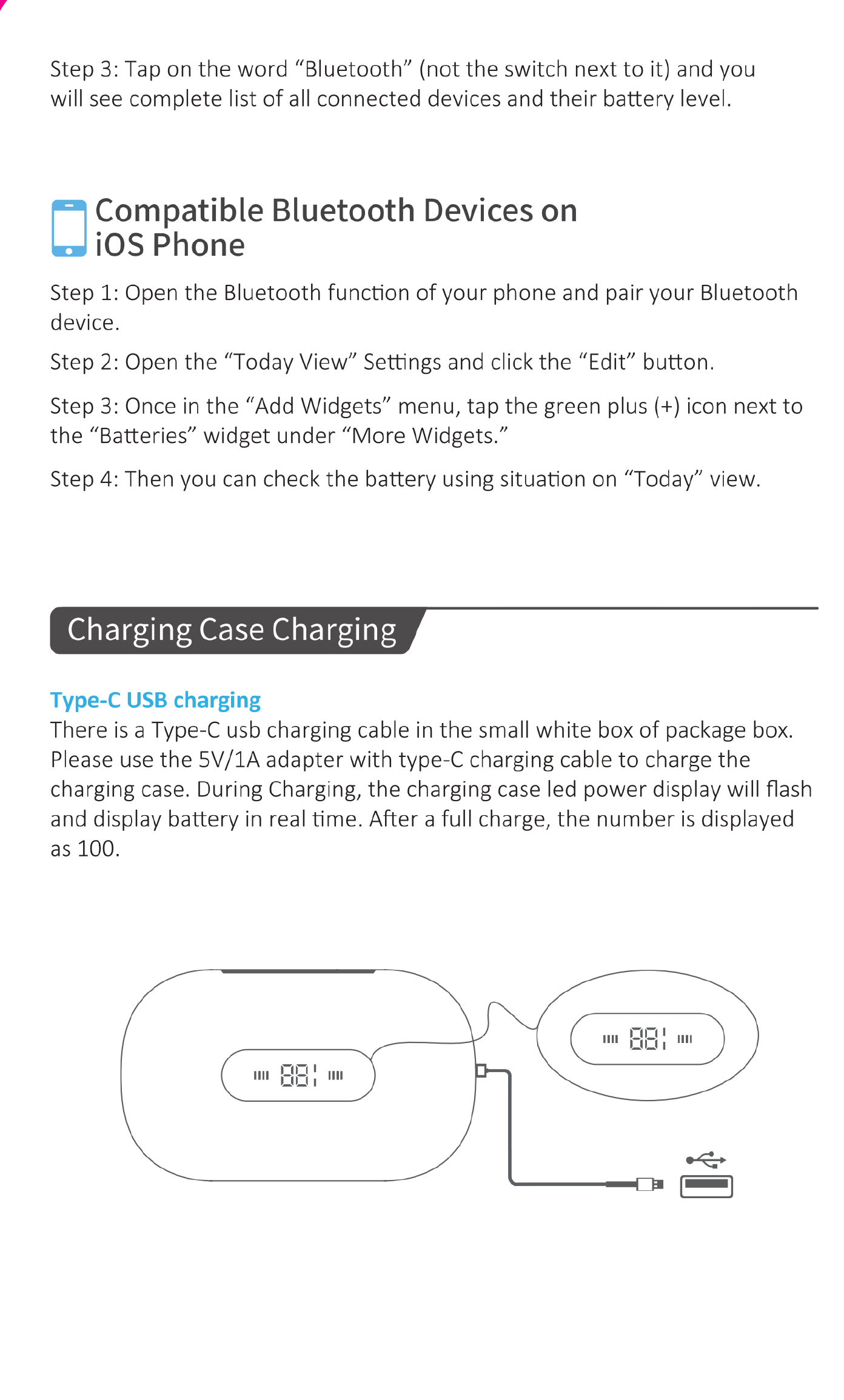

Compatible Bluetooth Devices on
iOS Phone
Step 1: Open the Bluetooth function of your phone and pair your Bluetooth
device.
Step 2: Open the “Today View” Settings and click the “Edit” button.
Step 3: Once in the “Add Widgets” menu, tap the green plus (+) icon next to
the “Batteries” widget under “More Widgets.”
Step 4: Then you can check the battery using situation on “Today” view.
Charging Case Charging
Type-C USB charging
There is a Type-C usb charging cable in the small white box of package box.
Please use the 5V/1A adapter with type-C charging cable to charge the
charging case. During Charging, the charging case led power display will flash
and display battery in real time. After a full charge, the number is displayed
as 100.

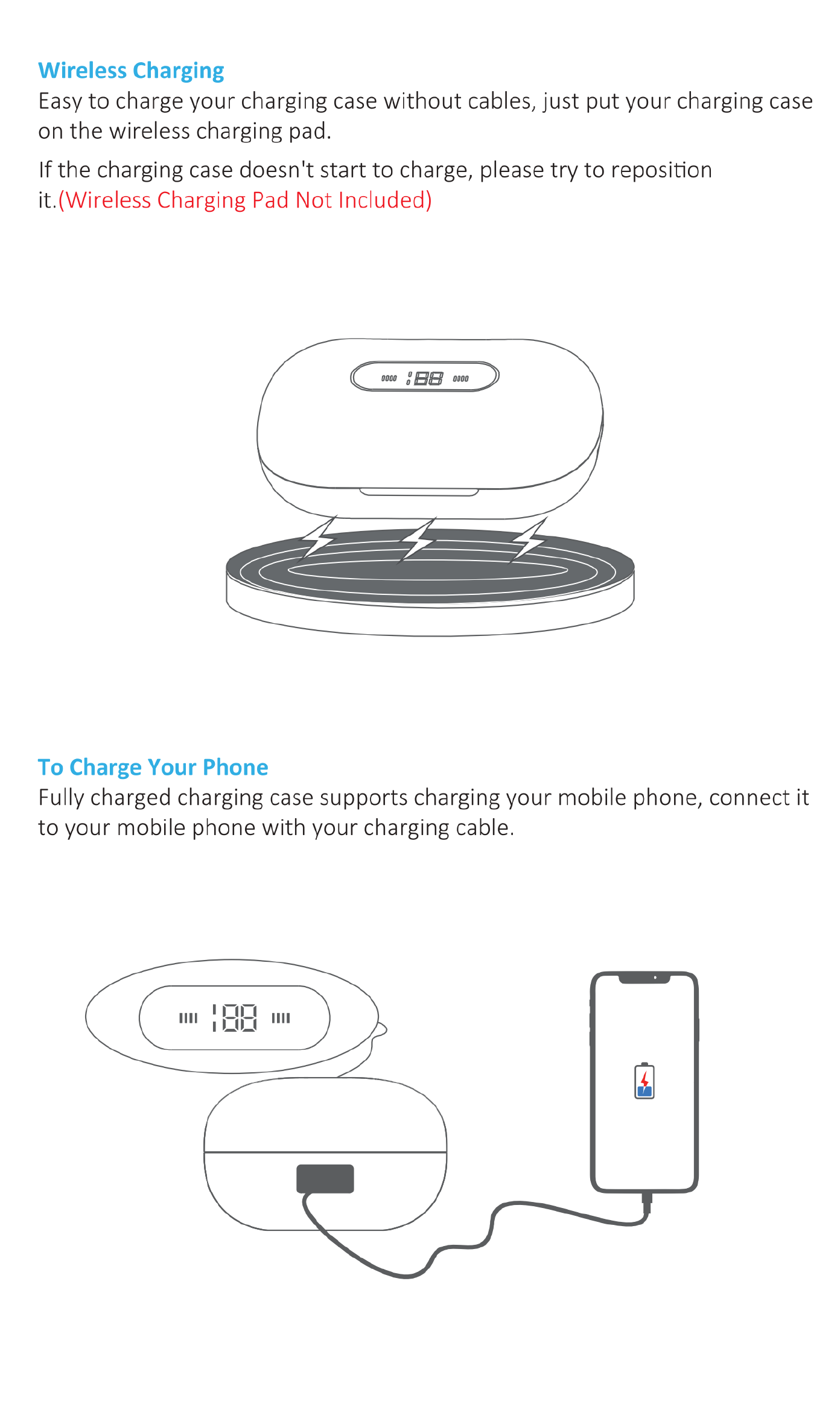

Wireless Charging
Easy to charge your charging case without cables, just put your charging case
on the wireless charging pad.
If the charging case doesn't start to charge, please try to reposition
it.(Wireless Charging Pad Not Included)
To Charge Your Phone
Fully charged charging case supports charging your mobile phone, connect it
to your mobile phone with your charging cable.

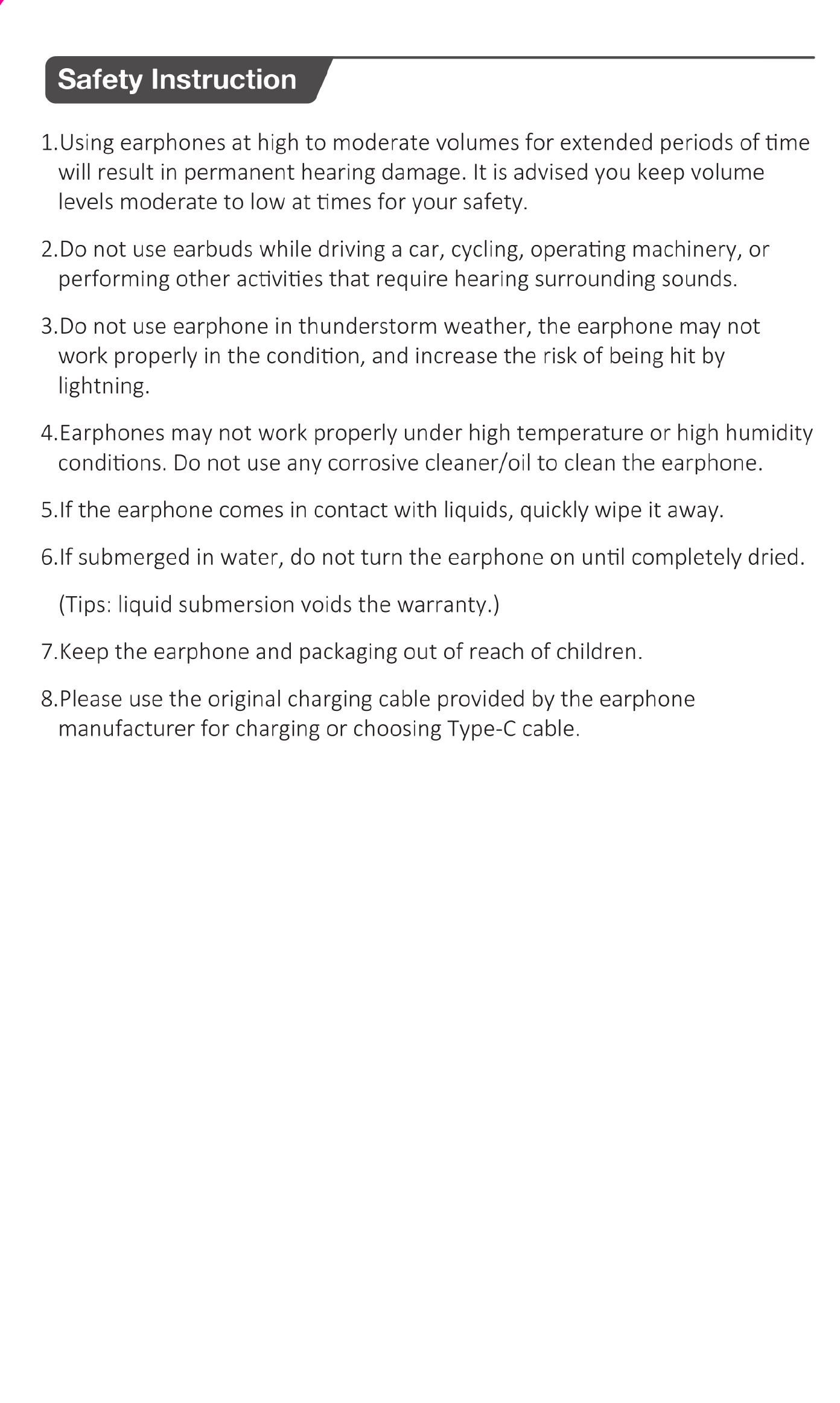

Safety Instruction
1.Using earphones at high to moderate volumes for extended periods of time
will result in permanent hearing damage. It is advised you keep volume
levels moderate to low at times for your safety.
2.Do not use earbuds while driving a car, cycling, operating machinery, or
performing other activities that require hearing surrounding sounds.
3.Do not use earphone in thunderstorm weather, the earphone may not
work properly in the condition, and increase the risk of being hit by
lightning.
4.Earphones may not work properly under high temperature or high humidity
conditions. Do not use any corrosive cleaner/oil to clean the earphone.
5.If the earphone comes in contact with liquids, quickly wipe it away.
6.If submerged in water, do not turn the earphone on until completely dried.
(Tips: liquid submersion voids the warranty.)
7.Keep the earphone and packaging out of reach of children.
8.Please use the original charging cable provided by the earphone
manufacturer for charging or choosing Type-C cable.

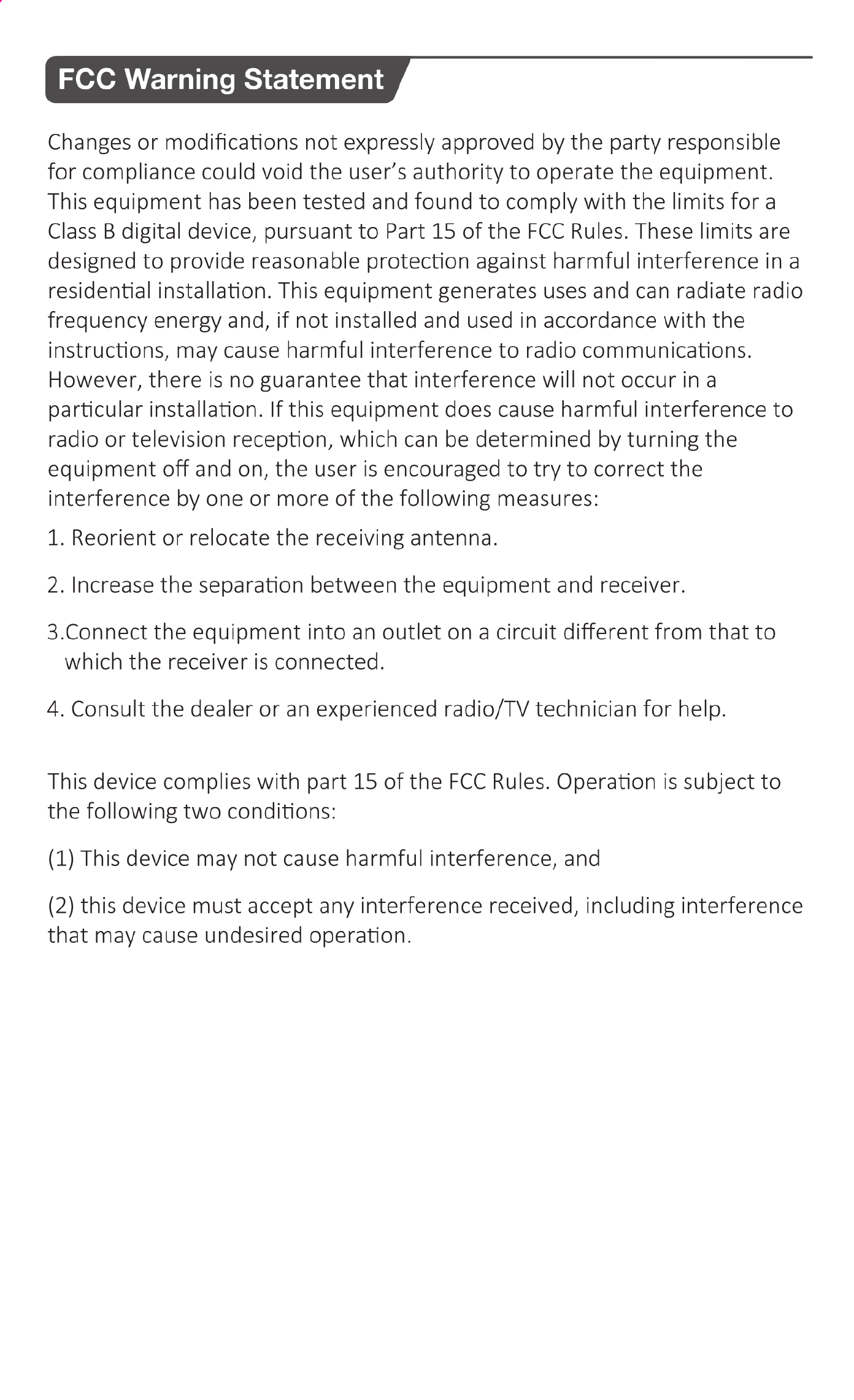

FCC Warning Statement
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3.Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
