Oce P2T User manual
Operation guide
P2T 2-Knife Trimmer
Copyright and Trademarks
Copyright
Copyright 2018 Océ.
Illustrations and specifications do not necessarily apply to products and services offered in each
local market. No part of this publication may be reproduced, copied, adapted or transmitted,
transcribed, stored in a retrieval system, or translated into any language or computer language in
any form or by any means, electronic, mechanical, optical, chemical, manual, or otherwise,
without the prior written permission of Océ.
OCÉ MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THE CONTENTS OF THIS
PUBLICATION, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING
WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE OF USE OR NON-INFRINGEMENT. OCÉ SHALL NOT BE
LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR
LOSSES OR EXPENSES RESULTING FROM THE USE OF THE CONTENTS OF THIS PUBLICATION.
Océ reserves the right to revise this publication and to make changes from time to time in the
content hereof without obligation to notify any person of such revision or changes.
Language
Translation of the original instructions that are in British English.
Trademarks
All other trademarks are the property of their respective owners.
Edition 2018-01 US
Contents
Chapter 1
Preface................................................................................................................................. 5
Notes for the reader......................................................................................................................................... 6
Chapter 2
Introduction to the P2T 2-Knife Trimmer ........................................................................ 9
Description of the side-trimmer.................................................................................................................... 11
Chapter 3
How to use the .................................................................................................................13
Introduction.....................................................................................................................................................14
Turn on the Two-side trimmer...................................................................................................................... 15
Enter the Job Settings....................................................................................................................................16
Adjust the Stacker.......................................................................................................................................... 17
During the job.................................................................................................................................................18
Chapter 4
The user interface............................................................................................................. 19
The Job Mimic................................................................................................................................................20
The [BASIC] window...................................................................................................................................... 22
The [CONFIGURE] window............................................................................................................................23
Chapter 5
Standard Tasks................................................................................................................. 25
Introduction.....................................................................................................................................................26
Adjust the side-trim offset............................................................................................................................. 27
Empty the trim bin..........................................................................................................................................28
Adjust the side-trimmer stacker.................................................................................................................... 30
Raise and lower the side-trimmer stacker....................................................................................................31
Move the side-trimmer.................................................................................................................................. 33
Remove and re-fit the book supports of the side-trimmer..........................................................................34
Chapter 6
Error Conditions, Problems and Solutions.....................................................................41
Side-trimmer error......................................................................................................................................... 42
Quality problems............................................................................................................................................43
Error messages...............................................................................................................................................47
Paper jams...................................................................................................................................................... 49
Change the fuses - side-trimmer...................................................................................................................50
Chapter 7
Maintenance......................................................................................................................51
Service and maintenance.............................................................................................................................. 52
Operator maintenance................................................................................................................................... 53
Contents
3
Chapter 1
Preface
Notes for the reader
Typography
This manual uses the following typography to indicate elements that are part of the user
interface.
Typography Indicates
[Text between square brackets] Name of a button, tile, setting, value, or other
option of the user interface
<Text between angle brackets> • Name of a key on a keyboard
• Name of a variable: item that varies accord-
ing to the context
Text displayed in courier font • File path
• Command Prompt comment
[Text] →[displayed in] →[menucascade] Names of options to be used in a fixed order
Safety symbols
Before you use this product, make sure you read and understand the safety information that
belongs to the product. Find the safety information on
"http://downloads.oce.com"
. Also be sure
to follow all warnings and instructions marked on the product.
This manual uses the following safety symbols to indicate hazards and precautions.
Symbol Type of symbol Indicates
WARNING Indicates a warning concerning operations that may lead to
death or injury to persons if not performed correctly. To use
the machine safely, always pay attention to these warnings.
CAUTION Indicates a caution concerning operations that may lead to in-
jury to persons if not performed correctly. To use the ma-
chine safely, always pay attention to these cautions.
This indication can concern hazards that have a specific CAU-
TION symbol. The 'hot surface', 'electric shock', 'moving
parts' and 'laser beam' cautions are listed below.
CAUTION Hot surface
Indicates a caution concerning operations that may lead to in-
jury to persons if not performed correctly. To use the ma-
chine safely, always pay attention to these cautions.
CAUTION Electric shock
Indicates a caution concerning operations that may lead to in-
jury to persons if not performed correctly. To use the ma-
chine safely, always pay attention to these cautions.
CAUTION Moving parts
Indicates a caution concerning operations that may lead to in-
jury to persons if not performed correctly. To use the ma-
chine safely, always pay attention to these cautions. 4
Notes for the reader
6Chapter 1 - Preface
Symbol Type of symbol Indicates
CAUTION Laser beam
Indicates a caution concerning operations that may lead to in-
jury to persons if not performed correctly. To use the ma-
chine safely, always pay attention to these cautions.
IMPORTANT Indicates an operational requirement or restriction. Read
these items carefully in order to prevent damage to equip-
ment, software, data, media, or property.
NOTE Indicates a clarification of an operation or contains additional
explanations for a procedure. Reading these notes is highly
recommended.
Body protection symbols
This manual uses the following body protection symbols to indicate that it is important to protect
yourself before performing a specific task or action.
Symbol Type of symbol Indicates
IMPORTANT Hand protection
Wear the mentioned type of gloves when you perform this
task or action.
IMPORTANT Eye protection
Use the mentioned type of eye protection when you perform
this task or action.
IMPORTANT Body protection
Wear the mentioned type of body protection when you per-
form this task or action.
IMPORTANT Foot protection
Wear the mentioned type of safety footwear when you per-
form this task or action.
Notes for the reader
Chapter 1 - Preface 7
Notes for the reader
8Chapter 1 - Preface
Chapter 2
Introduction to the P2T 2-Knife
Trimmer
Your guide
This operation guide describes how to do these tasks.
• Operate the P2T 2-Knife Trimmer
• Find and correct error conditions
• Perform normal maintenance tasks
Operator training is given when the Booklet maker is installed. To make sure you use your
Booklet maker correctly, read your manual.
This operation guide does not describe the operation of the booklet maker. If needed, refer to
your printer user manual.
In this manual the ‘P2T 2-Knife Trimmer’ is referred to as the ‘side-trimmer’.
Safety Information
Safety information is included in the separate “Safety Information Manual.”
Read the safety information before you use your Booklet maker.
Warning and Caution
The warning and caution messages used in this manual are shown below.
WARNING
A CAUTION message tells you that a procedure or operation can be dangerous. To prevent
injury, you must follow the instructions.
CAUTION
A CAUTION message tells you that a procedure or operation can be dangerous. To prevent
damage, you must follow the instructions.
Installation
Your Booklet maker must be installed by a service engineer. Special knowledge is needed to
install the machine.
CAUTION
Connect the machine only to a power supply of the correct voltage with a good ground
connection. The correct machine voltage is shown on the label at the power supply input on the
rear of the machine. If the machine is connected to the wrong supply, the warranty is voided.
How to Get Help
If you have any questions or problems, refer to the problem solving section in this manual (
Error
Conditions, Problems and Solutions
on page 41). Contact your supplier for further information.
10 Chapter 2 - Introduction to the P2T 2-Knife Trimmer
Description of the side-trimmer
Introduction
The side-trimmer completes the booklet-making process by trimming the top and bottom edges
of the book. The fore-edge of the book is already trimmed by the booklet maker, so this additional
module provides a professional solution for full bleed printed work.
[1] Side-trimmer
1. Side-trimmer
The side-trimmer
[2] Side-trimmer components
Component Function
1 Close the top cover The top cover opens to allow error recovery. 4
Description of the side-trimmer
Chapter 2 - Introduction to the P2T 2-Knife Trimmer 11
Component Function
2 Empty the trim bin The trim bin collects the paper that is trimmed from the
edge of the book
If the booklet maker is configured with a book stacker
and a side-trimmer, the trim bin is located in the book
stacker.
3 The Stacker The stacker collects the finished books.
4 Communications cable The communications cable connects the side-trimmer to
the booklet maker.
5 Voltage label The voltage label displays the selected voltage.
6 Power input connector The power input connector is used to connect the Book-
let maker to the electrical power supply.
7 Power ON/OFF switch The mains power ON/OFF switch turns the Book Stacker
ON or OFF.
8 Fuses The fuses make sure the operator and the machine are
protected if there is an electrical problem or short circuit.
9 Rating and serial label The rating label displays the type of machine, serial
number, power use, and fuse information.
Description of the side-trimmer
12 Chapter 2 - Introduction to the P2T 2-Knife Trimmer
Chapter 3
How to use the
Introduction
This chapter gives information on how to use the side-trimmer.
For information on how to operate the printer, refer to the printer documentation.
Information about the user interface is included in the chapter “The User Interface.”
Information about standard procedures, for example opening covers to clear a paper jam, is
included in the chapter “Standard Tasks.”
Introduction
14 Chapter 3 - How to use the
Turn on the Two-side trimmer.
Procedure
1. Connect the Booklet maker to the power supply.
2. Use the ON/OFF switch to turn ON the Booklet maker.
Turn on the Two-side trimmer.
Chapter 3 - How to use the 15
Enter the Job Settings
Make the settings for a new job in the BASIC [BASIC] window on the touch screen. See
The user
interface
on page 19 for further information.
• The trim dimension is calculated automatically according to the PAPER SIZE and SET
THICKNESS.
• To change the size and trim position, touch [SIDE TRIM]. Side Trim:
• If the side-trim size is 190mm or less, remove the book supports. See
Remove and re-fit the
book supports of the side-trimmer
on page 34.
Enter the Job Settings
16 Chapter 3 - How to use the
Chapter 4
The user interface

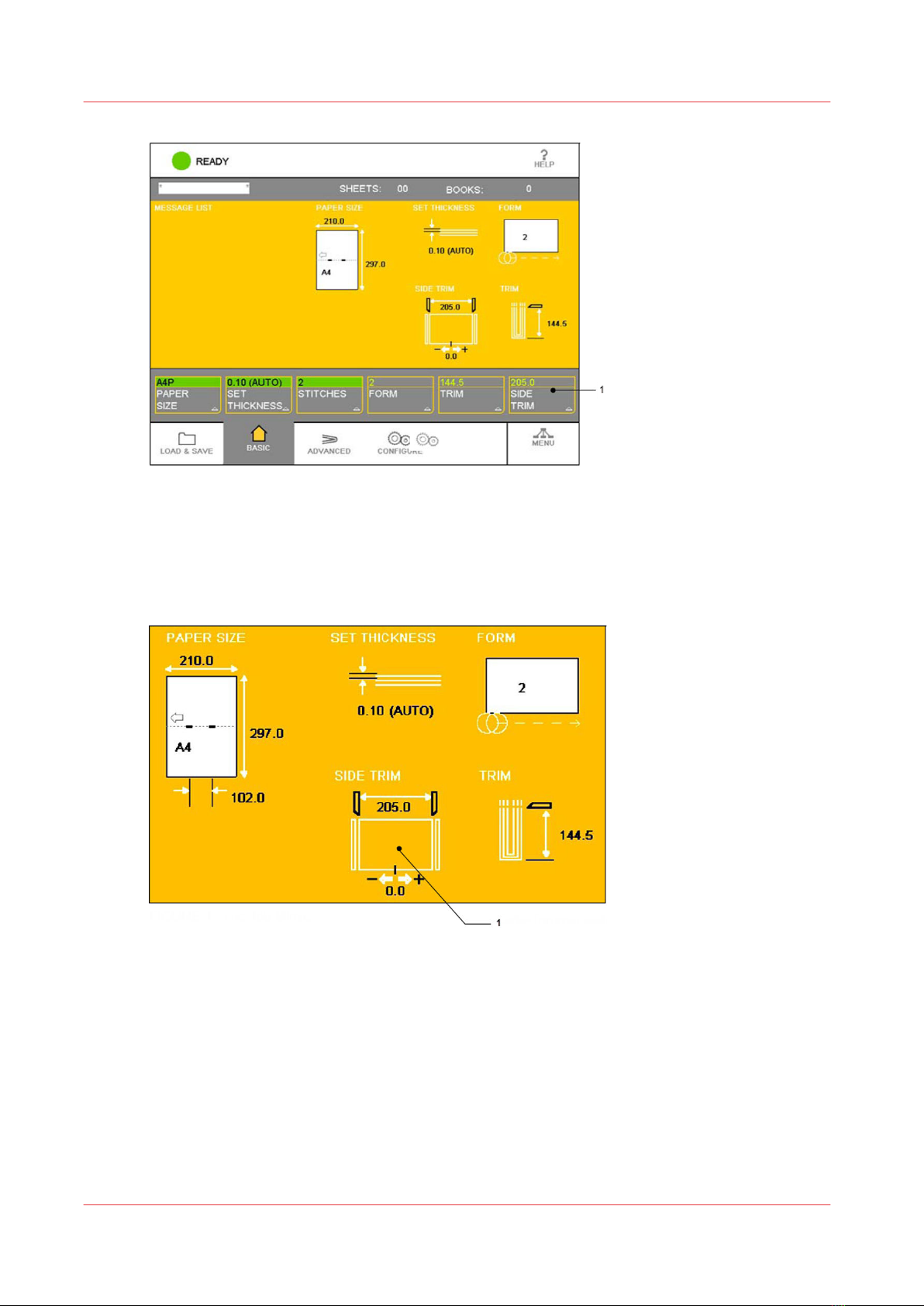

[3] The booklet maker touch screen
1. Adjustment < 0:
The Job Mimic
The job mimic shows the current machine status.
[4] The Job Mimic
1. Side-trimmer status.
The Job Mimic
20 Chapter 4 - The user interface
