OCEANAIRE 2OACH Series Manual

ENGINEERING, INSTALLATION AND SERVICE MANUAL
2OACH SERIES
Portable Air-Cooled Heat Pump
Form EISM-2OACH 10012021

FORWARD
This manual provides the user with basic details for the installation and operation of
the OceanAire 2OACH heat pump. It is recommended to read and fully understand the
instructions outlined within this manual, before operating the 2OACH unit.
As with all commercial air conditioning equipment, it is recommended to have the
2OACH sized and installed by a licensed specifying engineer and contractor, in
accordance with all local and state codes. The length of service received can be
extended by following the installation and preventive maintenance instructions.
NOTICE
In our ongoing process of continuous improvement, the items and procedures described
in this manual are subject to change without notice. Please note model and serial
number of the 2OACH unit before contacting the factory.
TABLE OF CONTENTS
PAGE
GENERAL INFORMATION ….................................... 1
PRODUCT DATA AND SPECIFICATIONS............ 2
UNIT DESCRIPTION
Standard Features.................................. 3
Applications / Operation
Cooling Mode......................... 4
Heating Mode……………………… 5
Electrical Configurations..................... 6
Use of Extension Cords…………………….. 7
Condensate............................................. 8

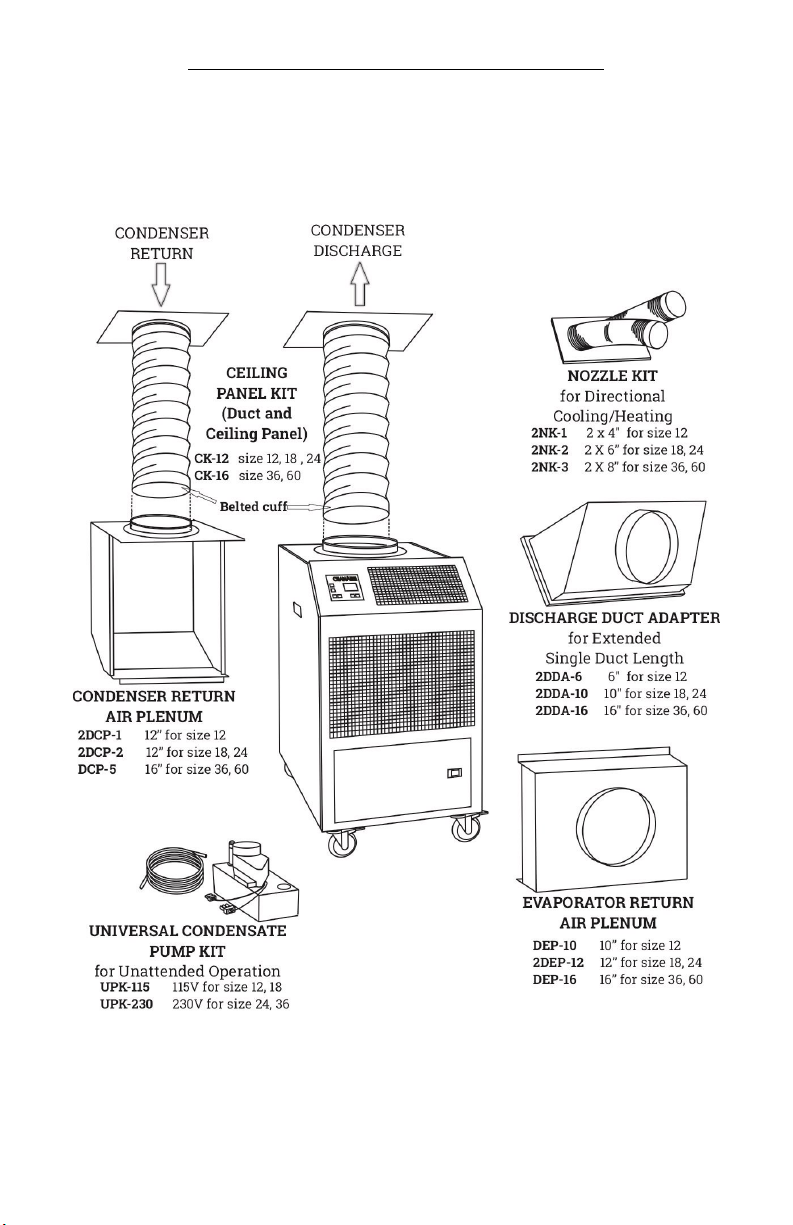

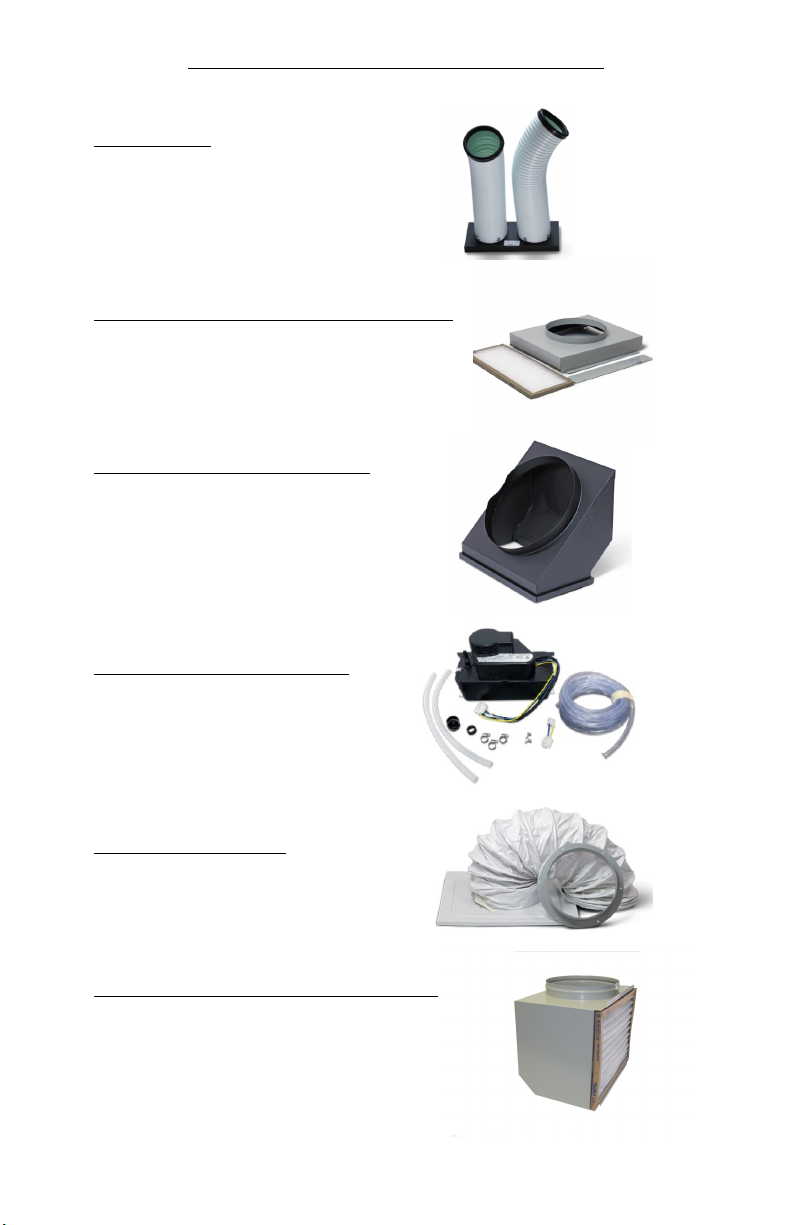

Accessories………..................................... 9 - 15
Inspection/Installation........................ 16
Deluxe Electronic Controller.............. 17-19
SERVICE
Replacement Parts Procedure........... 20
Troubleshooting Guide......................... 21
Preventive Maintenance...................... 22
Interior View............................................ 23
DIAGRAMS/SCHEMATIC
Piping Schematic………………………………. 24
Single Phase Wiring Diagrams.......... 25 - 27
Three Phase Monitor............................ 28
Three Phase Wiring Diagrams.......... 29 - 32
WARRANTY…............................................................ . 33
END USER INFORMATION / TECH NOTES..... Back Cover

The OceanAire 2OACH is a portable air-cooled heat pump designed for permanent or
temporary spot cooling or heating applications. The entire unit has been built in a
premium sheet metal cabinet, equipped with heavy-duty casters for mobility. All
2OACH models come standard with a 10-foot power cord for electrical connection and
added mobility in service. These units direct heated/cooled air to specific areas or
objects through a discharge grille located on the upper-front of the unit, while rejecting
cooled/heated air from the top of the unit. The 2OACH models range in capacities from
12,000 BTU/HR to 60,000 BTU/HR to satisfy most space cooling or heating requirements.
The 2OACH is a self-contained unit with the entire system (evaporator and condenser
blower assemblies, electrical and refrigeration components), neatly arranged in a gray
and blue polyester powder coated metal cabinet. When connected to the proper source
of electrical power, the 2OACH is controlled by a solid-state electronic controller, with
numerous options of temperature and airflow controls that will provide the desired level
of comfort when cooling or heating.
A wide variety of accessories and factory installed options are available for the 2OACH
units allowing for improved performance and added versatility.
WARRANTY CARD
It is important that the warranty card be filled out completely and returned to the
factory within fourteen (14) days of installation of the unit in order to receive the
benefits of the warranty.
1
PHASE (1 or 3)
WARRANTY
ALL OCEANAIRE PRODUCTS ARE COVERED BY THE OCEANAIRE LIMITED WARRANTY
1 YEAR ON THE FULL PRODUCT
PLUS, 4 ADDITIONAL YEARS FOR THE COMPRESSOR
(Restrictions Apply)
GENERAL INFORMATION
2nd GENERATION
PORTABLE
AIR COOLED
DELUXE PORTABLE
HEAT PUMP
CAPACITY RATING
12..........12,000 BTU/HR
18..........18,000 BTU/HR
24..........24,000 BTU/HR
36..........36,000 BTU/HR
60……...60,000 BTU/HR
NOT APPROVED FOR OUTDOOR USE
NOMENCLATURE
2 O AC H60 12
VOLTAGE
1—115V
2—208-230V
4—460V
NOMINAL
CAPACITY

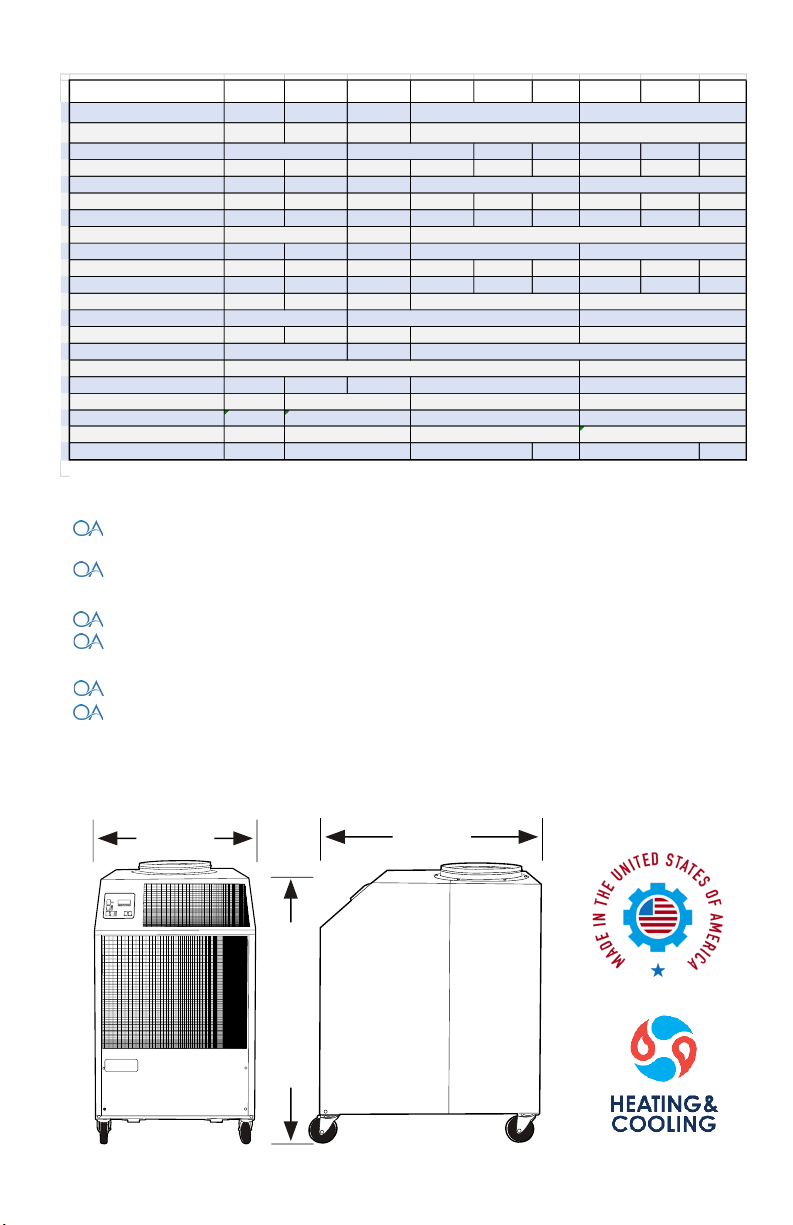

SPECIFICATIONS 2OACH
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor
at high fan speed
Heating Capacity is total BTUH at 70ºDB/60ºWB indoor, 47ºDB/43ºWB
Outdoor
Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
EER is determined at high fan speed, with condenser discharge air ducted
into another area
CFM with free discharge
Amps & Watts at 115/208/460 volts
COOLING AMBIENT OPERATING RANGE 65º TO 105º
HEATING AMBIENT OPERATING RANGE 40º TO 85º
NOT APPROVED FOR OUTDOOR
2
width
h
e
i
g
h
t
depth
MODEL: 2OACH 1211 1811 2412 3612 3632 3634 6012 6032 6034
COOLING CAPACITY 11,800 16,800 24,020
HEATING CAPACITY 11,000 15,000 22,000
VOLTAGE (V/Phase) at 60Hz 208-230/3 460/3 208-230/1 208-230/3 460/3
AMPS 10.4 14.1 14.9 19.6 17.2 8.7 32 20.4 14.8
TOTAL WATTS 1180 1670 2700
IN-RUSH AMPS 60 75 68 113 93 60 178 162 87
PLUG TYPE 5-15P LCDI 5-20P LCDI 6-20P LCDI 6-30P LCDI L15-30P L16-20P 6-50P L15-30P L16-20P
EER 8.9
COMPRESSOR ROTARY ROTARY ROTARY
COMPRESSOR HP 1 1.5 2 3 3 3 5 5 5
COMPRESSOR LRA 50 63 48 83 77 35 158 137 52
EVAPORATOR CFM - HIGH 400 600 810
EVAPORATOR MOTOR HP
CONDENSER CFM 580 930 1010
CONDENSER MOTOR HP 1/3
CONDENSATE TANK
R-410A CHARGE (oz.) 18 40 37
HEIGHT (in.) 38.8
WIDTH (in.) 20.0
DEPTH (in.) 26.8
NET WEIGHT (lb.) 180 380 520
2OACHSPECS10012021
115/1
1200
1950
208-230/1
10.0
10.0
SCROLL
SCROLL
5 Gallon - STANDARD (Pump Optional)
Pump - STANDARD (20 ft. Lift)
66
80
46.8
52.7
54.3
60,100
53,500
36,050
32,500
3620
6000
24.0
365
31.4
37
41.0
260
485
28.2
28.1
2200
1
1
1/8
1/3
1390
1/8

STANDARD FEATURES
CABINET
The 2OACH Series heat pump has a cabinet that is constructed of 18 gauge steel with a
polyester powder coated finish that will compliment any decor. The cool blue front
compliments any surrounding space, and is insulated with sound-absorbing insulation
for cool, quiet comfort. All units come equipped with handles and premium swivel
casters for portability and convenient set-up.
DELUXE ELECTRONIC CONTROLLER
Each 2OACH unit is equipped with a deluxe electronic controller. When power is
connected to the unit, the thermostat will control the unit to cool/heat a space to the
desired temperature. The thermostat is also capable of controlling the fan to operate
automatically when needed, or continuously.
One additional feature of the Deluxe Electronic Controller is that it will display a
condition alarm “CON”. “CON” displays when a condensate alarm, or a high pressure
reset condition has been met. To protect the compressor from short-cycling, there is a
built-in time delay. In the event of a power outage, all thermostat settings are saved, and
the unit will re-start automatically.
FAN SPEED CONTROL
One of the features of the electronic controller is that the unit supply fan can be
controlled either automatically or manually. In AUTO mode, the indoor blower will
adjust air flow automatically for added comfort and performance. Or, if desired, the
controller can be set to MANUAL fan mode, and the indoor blower will run continuously
at one of six levels of fan speed.
CONDENSATE TANK/PUMP
2OACH units come equipped with a means for handling the condensate generated
during the cooling/heating process. All units, except the 5-ton models, come equipped
with a condensate tank. The tank can be easily removed from the unit and emptied as
needed.
The 2OACH60 models come equipped with an automatic condensate pump. The pump
comes with a 20 foot long vinyl hose that allows for the removal of the condensate water
to a drain. The automatic pump is capable of a 20ft vertical lift, to handle almost any
installation requirement.
FILTERS
All 2OACH units are equipped with washable filters at the air intakes. Electrostatic mesh
air filters located behind the evaporator return air grille serve to filter the air before it is
cooled/heated, and behind the condenser return air grille to prevent dust build-up. Both
filters can be easily removed and cleaned.
HIGH PRESSURE SAFETY SWITCH
Located on the back of the 2OACH unit is a manual re-set high pressure switch, used for
the protection of the compressor. If the condensing pressure exceeds the limit setting,
the switch will cycle the compressor off, while the evaporator fan remains running. The
display will indicate the default setting “CON”. The compressor can then be re-started,
once the condensing pressure has equalized, by depressing the “RESET” button.
POWER CORDS
All 2OACH units come standard with a power cord for a convenient connection. All
models, except for the 3-phase units and 5-ton units, are equipped with LCDI for added
safety features.
3

4
APPLICATIONS
COOLING MODE—SPOT COOLER
The 2OACH can be used in an open environment to cool specific objects or "spots".
Spot Cooling is a convenient and economical way to provide air conditioning,
where cooling the entire space is impractical. Cool air is discharged from the unit
and is directed where it is needed. Nozzle kits can be used for directional cooling.
AREA COOLER
When the 2OACH is installed in an open area, the condenser exhaust duct directs
the warm air away from the space, allowing the evaporator air to cool the specific
area.
ROOM AIR CONDITIONER
When ducted properly, the 2OACH can be used as a room air conditioner to cool an
enclosed space. Using the condenser return air plenum, additional ceiling kit, and
other accessories, the 2OACH can then operate as a room air conditioner with the
condenser air isolated from the conditioned space.
CONDENSER AIR
INLET
(Back of Unit)
OUTDOOR FAN DISCHARGE
“HOT”
WASHABLE
GRILLE
AND FILTER
ELECTRONIC
CONTROLLER INDOOR FAN
SUPPLY AIR
“COOL”
2OACH—COOLING MODE
2OACH—COOLING MODE OPERATION / DESCRIPTION
EVAPORATOR
RETURN

5
APPLICATIONS
HEATING MODE—HEAT PUMP
In HEAT mode, The 2OACH can be used in an open environment to provide heat to
a specific area or "spots". The 2OACH is a heat pump, and the supply air will feel
warm, but not extremely hot to the touch. Nozzle kits can be used for directional
heating.
OUTDOOR FAN DISCHARGE
“COLD”
RETURN AIR
GRILLE
AND FILTER
ELECTRONIC
CONTROLLER
INDOOR FAN
SUPPLY AIR
“HOT”
2OACH—HEATING MODE
OUTDOOR AIR
INLET
(Back of Unit)
2OACH—HEATING MODE OPERATION / DESCRIPTION
INDOOR AIR

SERVICE CORD
All 2OACH-Series units are equipped with a standard 10-foot long service cord
with plug configurations and receptacle requirements as shown in this chart.
2OACH1211, 2OACH1811, 2OACH2412 and 2OACH3612 units come with LCDI
(Leakage Current Detection & Interruption) devices that serve as a means of
electrical protection.
CAUTION
DO NOT USE THE LCDI AS AN ON/OFF SWITCH FOR THE UNIT
All 3-phase models are equipped with locking plugs for added connection
reliability. Refer to the chart below for plug and receptacle details for all 2OACH
models.
A DAMAGED POWER SUPPLY CORD MUST BE
REPLACED WITH A NEW POWER SUPPLY CORD
AND NOT REPAIRED

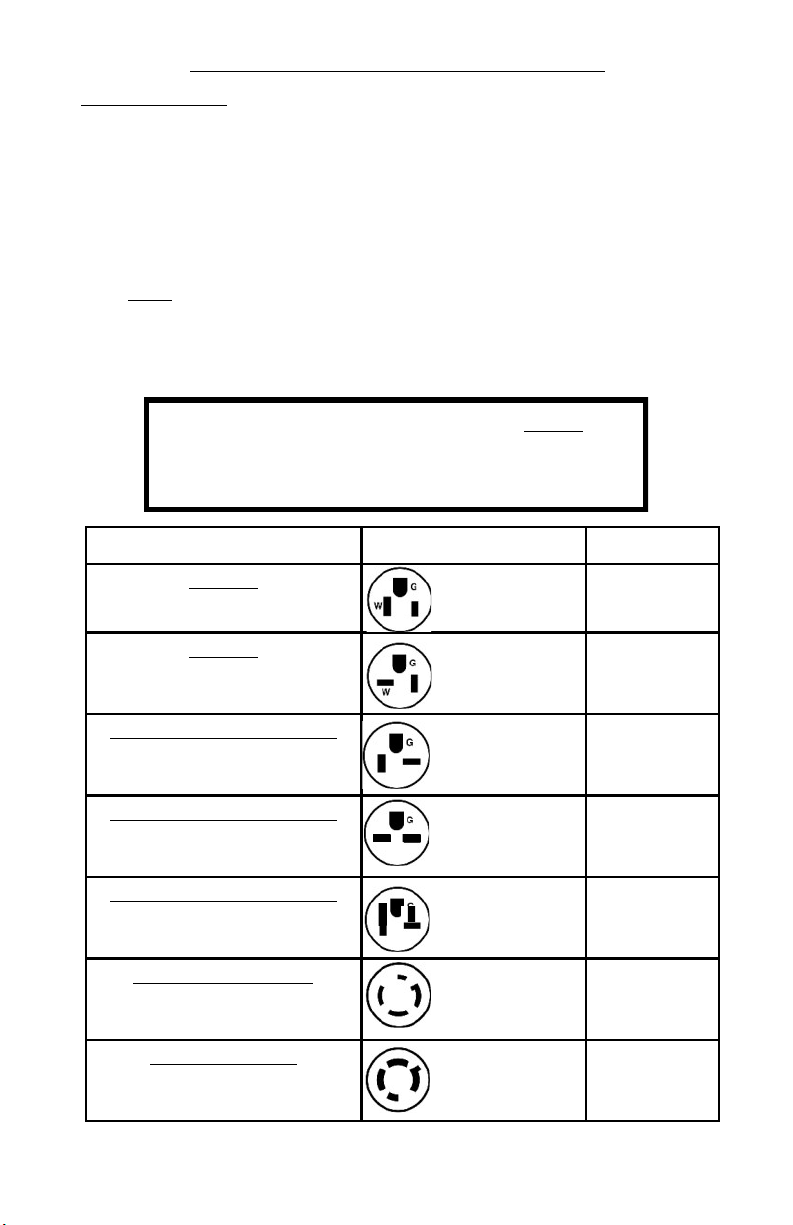

UNIT/MODEL PLUG CONFIGURATION RECEPTACLE
115 VOLT
2OACH1211 NEMA 5-15R
115 VOLT
2OACH1811
NEMA 5-20R
208-230 VOLT SINGLE PHASE
2OACH2412
NEMA 6-20R
208-230 VOLT SINGLE PHASE
2OACH3612
NEMA 6-30R
208-230 VOLT SINGLE PHASE
2OACH6012
NEMA 6-50R
208-230 VOLT 3-PHASE
2OACH3632
2OACH6032
NEMA L15-30R
460 VOLT 3-PHASE
2OACH3634
2OACH6034
NEMA L16-20R
15A-125 VOLT
NEMA 5-15P
20A-125 VOLT
NEMA 5-20P
20A-250 VOLT
NEMA 6-20P
30A-250 VOLT
NEMA 6-30P
50A-250 VOLT
NEMA 6-50P
30A-250 VOLT
NEMA L15-30P
20A-460 VOLT
NEMA L16-20P
6
ELECTRICAL CONFIGURATION

USE OF EXTENSION CORDS
CAUTION
FOR MODEL 2OACH1211 AN EXTENSION CORD CAN BE USED, PROVIDED IT IS
RATED AT LEAST 15 AMPS @ 115 VOLTS WITH GROUNDING-TYPE
ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODEL 2OACH1811 AN EXTENSION CORD CAN BE USED, PROVIDED IT IS
RATED AT LEAST 20 AMPS @ 115 VOLTS WITH GROUNDING-TYPE
ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODEL 2OACH2412 AN EXTENSION CORD CAN BE USED, PROVIDED IT IS
RATED AT LEAST 20 AMPS @ 250 VOLTS WITH GROUNDING-TYPE
ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODEL 2OACH3612 AN EXTENSION CORD CAN BE USED, PROVIDED IT IS
RATED AT LEAST 30 AMPS @ 250 VOLTS WITH GROUNDING-TYPE
ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODEL 2OACH6012 AN EXTENSION CORD CAN BE USED, PROVIDED IT IS
RATED AT LEAST 50 AMPS @ 250 VOLTS WITH GROUNDING-TYPE
ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODELS 2OACH3632 AND 2OACH6032 AN EXTENSION CORD CAN BE
USED, PROVIDED IT IS RATED AT LEAST 30 AMPS @ 250 VOLTS, 3 PHASE
FOR MODELS 2OACH3634 AND 2OACH6034 AN EXTENSION CORD CAN BE
USED, PROVIDED IT IS RATED AT LEAST 20 AMPS @ 600 VOLTS, 3 PHASE
SPECIAL NOTICE—THREE PHASE OPERATION
Models 2OACH3632, 2OACH3634, 2OACH6032 and 2OACH6034
All three-phase 2OACH models are equipped with a three-phase monitor for
added compressor protection. The phase monitor, located in the control box, has
a multi-color LED that reports status. The monitor protects the compressor from
reverse operation, phase loss, and low voltage situations. Further description of
the three-phase monitor is located in the electrical section of this manual.
NOTICE - DO NOT OPERATE ANY THREE-PHASE UNIT WHILE BYPASSING
THE MONITOR. THIS WILL VOID THE WARRANTY.
7

8
CONDENSATE
For Models 2OACH1211, 2OACH1811, 2OACH24 and 2OACH36, a 5-gallon
polyethylene tank is provided to collect condensate. The tank is located in the
lower front section of the unit, and can be accessed though the condensate tank
door. When the high water level is reached, a cut-out switch will AUTOMATICALLY
cycle off the compressor/condenser fan.
TANK LEVEL ADJUSTMENT INSTRUCTIONS
An adjustment screw is provided to
vary the cut-off level of the tank full
switch. If less water is desired, turn the
adjusting screw clockwise (CW).
Turning the screw clockwise (CW),
will make the tank easier to remove.
MAXIMUM WATER LEVEL
3” FROM TOP OF TANK
CAUTION
UNPLUG UNIT BEFORE REMOVING
TANK TO ADJUST THE SET SCREW.

9
NOTE - IT IS IMPORTANT TO SPECIFY MODEL NUMBER
AND SERIAL NUMBER WHEN ORDERING ACCESSORIES
2OACH Optional ACCESSORIES

10
2OACH Optional ACCESSORIES
NOZZLE KIT
2NK-1 (2 X 4-Inch) 2OACH12
2NK-2 (2 X 6-Inch) 2OACH18, 24
2NK-3 (2 X 8-Inch) 2OACH36, 60
EVAPORATOR RETURN AIR PLENUM
DEP-10 (10-Inch Round) 2OACH12
2DEP-12 (12-Inch Round) 2OACH18, 24
DEP-16 (16-Inch Round) 2OACH36, 60
DISCHARGE DUCT ADAPTER
2DDA-6 (6-Inch Round) 2OACH12
2DDA-10 (10-Inch Round) 2OACH18, 24
2DDA-16 (16-Inch Round) 2OACH36, 60
CONDENSATE PUMP KIT *
UPK-115 115V Models
UPK-230 230V Model
*Not Required on 2OACH60’s
CEILING PANEL KIT
CK-12 Kit for 2OACH12, 18, 24
CK-16 Kit for 2OACH36, 60
CONDENSER RETURN AIR PLENUM
2DCP-1 (12-Inch Round) 2OACH12
2DCP-2 (12-inch Round) 2OACH18, 24
DCP-5 (16-Inch Round) 2OACH36, 60

Ceiling
Kit
Model
Flexible Duct
Diameter X
Length
Fits
2OACH
12
Fits
2OACH
18
Fits
2OACH
24
Fits
2OACH
36
Fits
2OACH
60
CK-12 12 inch X 8 feet ✓✓✓No No
CK-16 16 Inch X 8 feet No No No ✓✓
25
(.20)
50
(.25)
60
(.25)
70
(.25)
80
(.50)
Maximum Equivalent
Feet (approx)
(ESP)
11
ACCESSORIES
CEILING PANEL DUCT KIT
A ceiling panel kit is available for discharging
the condenser air above a drop ceiling. The
ceiling panel duct kits are furnished with a
white vinyl coated flexible duct that allows for
convenient installation. A 2ft X 2ft ceiling duct
- panel is included to replace a 2ft X 2ft drop-
ceiling panel where the connection is desired.
The CK-12 is available for 2OACH12, 18, and 24.
The ceiling panel kit consists of 8 feet of
flexible duct, and a 2' X 2' lay in ceiling panel
that attaches to the condenser air discharge
opening on the top of the unit. The CK-16 (for
3 and 5-ton units) consists of a ceiling duct-
panel, and a 16 inch flexible duct.
Note—Drop ceiling spaces should be vented or
large enough to handle the warm condenser air.
Check local codes to insure compliance .
If longer runs of duct are required, table below
lists maximum duct run with no bends. For
every 90° elbow, subtract 6 feet from the run.
2 x 2 CEILING
DUCT PANEL
VINYL COATED
FABRIC DUCT
BELTED CUFF
DUCT FLANGE

ACCESSORIES
DISCHARGE AIR NOZZLE KIT ASSEMBLY
The optional discharge nozzle kits are used to direct the conditioned
air to a specific target area. By concentrating the airflow, the noz-
zles increase the air velocity towards production lines to cool per-
sonnel and/or equipment. In server rooms, the nozzles can be used
to direct the airflow through the rack to remove the hot air from the
area of the equipment.
2NK-1 for model 2OACH12, (2) 4-inch diameter nozzles with an
approximate compressed length of 15 inches. The Approximate
extended length is 21 inches.
2NK-2 for models 2OACH18, 2OACH24 (2) 6-inch diameter nozzles
with an approximate compressed length of 22 inches. The approxi-
mate extended length is 32 inches.
2NK-3 for models 2OACH36 and 2OACH60, (2) 8-inch diameter
nozzles with an approximate compressed length of 20 inches. The
extended length is approximately 29 inches.
Nozzle Kit
Kit Voltage
UPK-115 115V
UPK-230 208/230V
Replacement Pump Only
057-008R 115V
057-012R 230V
CONDENSATE PUMP KIT
A plug-in condensate pump kit is available for applications where emptying the
5-gallon condensate tank is not practical. The pump kit consists of a condensate
pump with mounting hardware and electrical connections, along with the tubing
required for the drain and discharge of the condensate water.
PARTS LIST
• Condensate Pump with Mounting
Hardware/Screws
• Drain hose
• Tubing
• Wiring Harness
• Low Voltage Jumper
• Hose Clamps
The condensate pump provides for the automatic removal of
condensate water during the cooling process. The pump is
capable of pumping to a 20 foot height, allowing for the
routing of the drain line above the drop-ceiling to a nearby
drain. The pump is controlled by an internal float-switch/
check valve, which turns the pump on and off automatically.
The pump is also equipped with a condensate over-flow
safety switch that will shut down the unit compressor when
the pump is not working properly.
12
The nozzle kits come pre-assembled with the nozzles secured to a mounting plate
and with edge guards. By removing the discharge grille, you can insert the nozzle
kit into the opening without the use of tools.

Plenum Duct
Kit Flange 2OACH12 2OACH18 2OACH24 2OACH36 2OACH60
2DCP-1 12-inch ✓
2DCP-2 12-inch ✓ ✓
DCP-5 16-Inch ✓ ✓
Maximum Approximate
Equivalent Feet
25 50 60 70 80
Estimated External
Static Pressure (.20) (.25) (.25) (.25) (.50)
2DCP-1, 2DCP-2, DCP-5
To estimate the “equivalent feet” of condenser duct, add the length of
the condenser intake duct run and the length of the condenser discharge duct run,
and add 6 equivalent feet per bend in the duct. Make sure that you do not exceed
the rated E.S.P. to avoid shut down due to the high pressure switch cut-out.
13
ACCESSORIES
CONDENSER RETURN AIR PLENUM
NOTE —When installing the condenser return air plenum with a ceiling panel kit,
allow for a minimum separation distance of 2 feet between the unit discharge duct
and the return air duct. It is also recommended to direct the condenser discharge
air away from the condenser return air duct.
Condenser return air plenums are available for installations where it is required to
duct air to the inlet of the condenser. The plenum easily fits into place on the back
of the unit, and is provided with a flange for connecting 12-inch or 16-inch flexible
ducting. A condenser return air plenum can substantially reduce air noise and
allow the unit to operate without drawing condenser air from the conditioned
space. Refer to the table below for configuration and application information.

Plenum Kit
Duct/Flange 2OACH12 2OACH18 2OACH24 2OACH36 2OACH60 FILTERS
DEP-10
10 inch ✓ (1) 10”X20”X1”
2DEP-12
12 inch
✓ ✓ (1) 16”X24”X1”
DEP-16
16 inch
✓ ✓ (1) 10”X30”X1”
(1) 12”X30”X1”
Maximum
Equivalent
Feet
25 50 60 70 80
Est. External
Static
Pressure
(.20) (.25) (.25) (.25) (.50)
ACCESSORIES

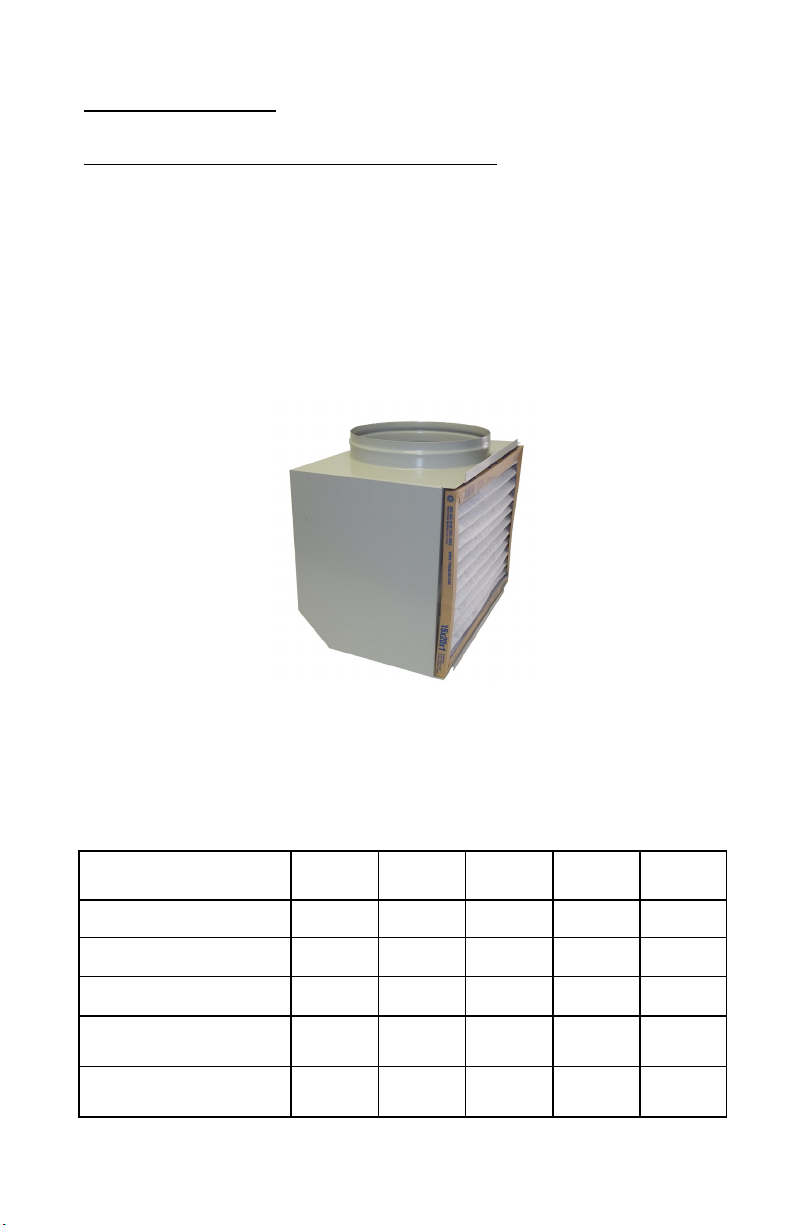

EVAPORATOR RETURN AIR PLENUM
Evaporator return air plenums are available for installations where it is required to
duct air to the inlet of the evaporator. The evaporator return air plenum allows the
user to connect round duct (flexible or rigid) to the return air intake to reduce air noise
and increase the number of options for solving difficult application problems. The
plenum attaches to the front of the unit, replacing the return air grille. Refer to the
table below for configuration and application information.
DEP-10 for 2OACH12 transitions the return air opening to a 10-inch round duct.
2DEP-12 for 2OACH18 & 2OACH24 transitions the return opening to a 12-inch round
duct.
DEP-16 for 2OACH36, 60 transitions the return opening to a 16-inch round duct.
NOTE—When an evaporator return air plenum is installed, it is recommended to set
the evaporator blower speed to high, to avoid coil freeze-up .
FILTER(S)
EVAPORATOR
RETURN AIR PLENUM
14

ACCESSORIES
DISCHARGE DUCT ADAPTER
Discharge duct adapters are available for applications where ducted evaporator
discharge is required. The adapters can be easily installed on the unit without
fasteners, and can be used for either vertical or horizontal ducting. The standard
discharge grille is removed and the 2DDA is attached in the grille opening.
2DDA-6 for model 2OACH12, converts the evaporator discharge to a 6-inch
diameter round duct.
2DDA-10 for models 2OACH18 and 2OACH24, converts the evaporator discharge
to a 10-inch diameter round duct.
2DDA-16 for models 2OACH36 AND 2OACH60, converts the evaporator discharge
to a 16-inch round duct.
When used in conjunction with the evaporator return air plenum, the unit can
provide a closed-loop cooling solution for a given space without the influence of
any outside air.
Adapter
Model
Round
Duct
Size
2OACH12 2OACH18 2OACH24 2OACH36 2OACH60
2DDA-6 6-inch ✓
2DDA-10 10-inch ✓✓
2DDA-16 16-inch ✓✓
Maximum
Approx.
Equivalent Feet
25 50 60 70 80
Maximum
E.S.P .15 .25 .25 .25 .50
15

INSTALLATION INSTRUCTIONS
RECEIVING—INSPECTION
Upon receiving your 2OACH unit, inspect the packaging for any damage. All
units are shipped on a skid, and packaged in a triple-wall carton for added
protection.
BEFORE INSTALLING
Check the unit for any damage. All OceanAire products are thoroughly inspected
at the factory and carefully packaged. If any damage is evident, contact
OceanAire IMMEDIATELY.
ELECTRICAL REQUIREMENTS
Check the nameplate located on the back of the unit to confirm the proper power
is available for the unit. Refer to "Specifications" section for voltage and
amperage requirements. For proper NEMA receptacles, refer to "Electrical
service plug configuration". When using extension cords, use the proper gauge
cord, and check cord voltage to the unit.
TIME DELAY FUSES/CIRCUIT BREAKERS ARE RECOMMENDED
WARNING—OPERATING THE UNIT ON IMPROPER
VOLTAGE WILL VOID THE WARRANTY
ACCESSORIES
Verify that all accessories are correct for the model, and are installed in
accordance with all instructions.
START-UP
Install the unit in accordance with all local and state building codes, and install
all accessories. Allow for a clearance around the unit for future maintenance
and/or service. Level unit and lock casters, when available. Connect power and
test the LCDI on the power cord (if available). Power up unit, via thermostat and
check for proper operation. Refer to Thermostat Operation for more details.
16

17
OCEANAIRE DELUXE ELECTRONIC CONTROLLER
When power is connected, the controller will display “888” momentarily, and will then
disappear. Press the POWER button, then press the TEMP SELECT button until the
SET POINT is displayed. Adjust the SET POINT to the desired temperature, and the
unit will heat/cool as programmed.
The systems controls temperature within +/- 2°
POWER - Turns the unit on/off when power is supplied
MODE - Select the mode of operation from
AUTO...COOL….HEAT….MOISTURE CONTROL.
AUTO - The controller will heat or cool as required. HEAT or COOL will display
accordingly. A 4° differential is needed to change between cooling and heating modes.
COOL - The system will operate in cooling mode, only.
HEAT - The system will operate in heating mode, only.
MOISTURE CONTROL - The system operates in the cooling mode to reduce
humidity within the conditioned space. Every 4 hours, the fan is started, circulating
the air, and the air temperature is recorded by the controller. The cooling cycle is
started for one hour, or until the room temperature drops 2°, which ever comes first.
This cycle repeats every four hours.
DELUXE ELECTRONIC CONTROLLER
The 2OACH controller is equipped with many features for a more precise level of
comfort and operation. Additionally, the controller can be removed from the unit
and installed for remote operation, if needed (accessory parts may be required).
POWER
button

CONTROLLER PROGRAMMING MENU
1) Make sure the unit has power.
2) Press the power button “OFF”.
3) Press the following buttons in sequence “S-U-D-S”
(Select—Up arrow —Down arrow —Select)
4) The display will begin flashing P1 and a number.
If there is no display, repeat the sequence,
making sure the unit has power, but is turned OFF.
5) To adjust any program feature, press the ARROW UP▲or ARROW DOWN ▼button
until the desired value is displayed.
6) Use the “MODE” button to scroll through the programmable settings P1 through P16.
7) If no buttons are pressed, the display will then return to the “OFF” position after
about 50 seconds.
PROGRAM SETTINGS
P1—High Fan Speed Limit Setting. 56 - 85
P2—Low Fan Speed Limit Setting, 30 - 55
P4—Temperature Sensor Calibration, +/- 10°
P10—Temperature Display, °F or °C
P13—Supply Fan Operation, Cycling or Continuous
P1, P2 - To adjust fan speed settings, P1 represents the high fan speed parameter, while
P2 represents the low fan speed parameter. When using nozzle kits, discharge duct
adapters and evaporator plenums, setting P1 to 85 will help to avoid freeze ups.
P4 - Adjust the P4 setting to match the actual INSIDE room temperature, if needed.
P10 - Use this parameter to display temperatures in the desired units.
P13 - To cycle the evaporator fan with the compressor, access code P-13. Press the up or
down button to switch to “CYC”, which means cycle the fan with the compressor. The
factory default setting is “CON”, which means continuous fan operation.
8) Press POWER—you should see an alphanumeric code.
Press POWER and the unit will start at the new settings.
18
FAN SPEED—The operator can select between AUTO or MANUAL fan speed
control. Pressing the FAN SPEED button will switch speed from AUTO to MANUAL.
In MANUAL mode, pressing the FAN SPEED button will change fan speed from low
to high. In AUTO mode, the fan speed is controlled automatically. In cooling mode,
the controller automatically adjusts the fan speed to high, and as the inside tempera-
ture approaches the set point, the fan speed will reduce. In heat mode, the fan speed
adjusts from low to high as the temperature reaches the set point
TEMP SELECT—Allows the operator to view the controller temperatures
INSIDE = return air temperature, DISCHARGE = supply air temperature,
SET POINT can be seen and adjusted by pressing ▲or▼.
