INSTALLATION INSTRUCTIONS
ALLURE, NEWPORT & INTRIGUE OUTDOOR SCONCE WITH O1OA HANGING SYSTEM
These instructions cover the ALLURE, NEWPORT & INTRIGUE luminaire with the following options:
GENERAL NOTES:
1. PLEASE COMPLETELY READ THE INSTALLATION INSTRUCTIONS BEFORE STARTING INSTALLATION.
2. TURN OFF POWER TO CIRCUIT FIXTURE WHILE IT IS BEING INSTALLED.
3. INSTALL IN ACCORDANCE WITH ALL LOCAL, STATE AND NATIONAL CODES CONSULT WITH A QUALIFIED
ELECTRICIAN FOR PROPER INSTALLATION.
4. CAREFULLY UNPACK ALL CONTENTS; SOME COMPONENTS MAY HAVE BEEN SHIPPED IN SEPARATE BOXES
MOST FIXTURES ARE SHIPPED PARTIALLY ASSEMBLED. SOME UNASSEMBLY MAY BE REQUIRED FOR
INSTALLATION.
5. DO NOT LET THE LUMINAIRE HANG FROM THE WIRE CONNECTIONS.
SERIES
HANGING
SYSTEM
SIZE
LIGHT
SOURCE
CONTROL
WIRE LABEL
TABLE
1. ALLURE
(AU1)
2. NEWPORT
(NP1)
3. INTRIGUE
(IN1 & IN2)
O1OA:
OUTDOOR
SCONCE
18”
24”
36”
48”
STATIC
WHITE
DM1: 0-10V DIM 1%
WIRE LABEL
TABLE ON
PAGE 5
FIG. 1 - AU1-O1OA-24-XX-PTD-LEDX_XXK-
UNV-DM1-XXX (AS SHOWN)
FIG. 2 –NP1-O1OA-24-XX-PTD-LEDX_XXK-
UNV-DM1-XXX (AS SHOWN)
FIG. 3 –INX-O1OA-24-XX-PTD-LEDX_XXK-
UNV-DM1-XXX (AS SHOWN)

ALLURE_NEWPORT_INTRIGUE-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 2
Rev date: 14 APR 2021
Sensitivity: Internal & Restricted
Table of Contents
GENERAL INFORMATION: ......................................................................................................................................3
MOUNTING:...........................................................................................................................................................4
ALLURE/NEWPORT/INTRIGUE MOUNTING:.......................................................................................................4

ALLURE_NEWPORT_INTRIGUE-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 3
Rev date: 14 APR 2021
Sensitivity: Internal & Restricted
GENERAL INFORMATION:
You will receive the following with each ALLURE/NEWPORT/INTRIGUE S1SC Series fixture:

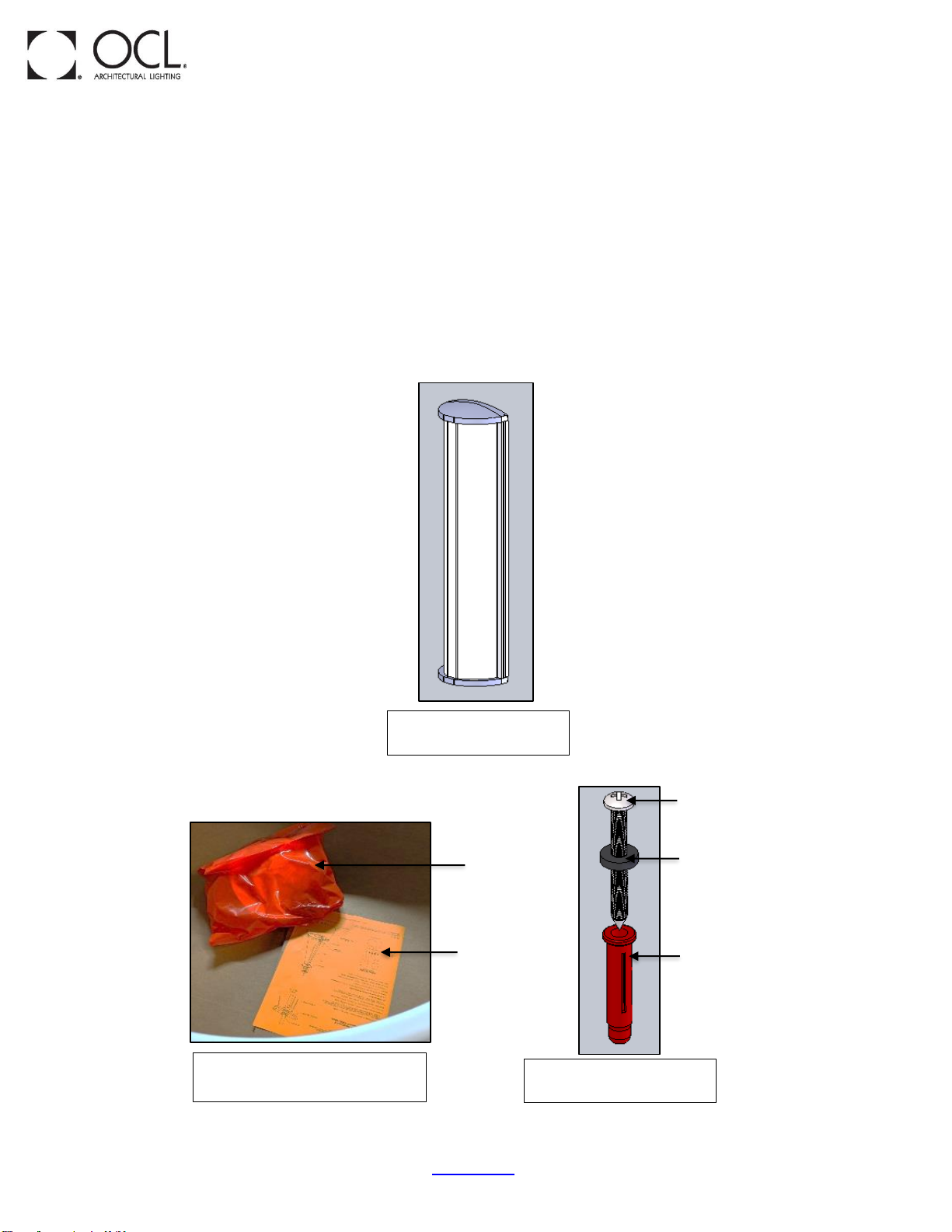

1. ALLURE/NEWPORT/INTRIGUE INDOOR SCONCE LUMINAIRE. (as shown in FIG. 4)
2. INSTALLATION INSTRUCTION MANUAL (shown in FIG. 5) - Please completely read the install instructions
before starting installation.
3. RED BAG (shown in FIG. 5)
i. FOUR (4) ANCHOR BODY (shown in FIG. 6)
ii. FOUR (4) ANCHOR SCREWS (shown in FIG. 6)
iii. FOUR (4) SEALING WASHER (shown in FIG. 6)
WARNING: Examine all components for any damage before beginning installation.
WARNING: This fixture should be installed by a licensed electrician only.
WARNING: Be careful not to scratch or damage any finished parts.
INSTALLATION
INSTRUCTION
FIG.5 - RED BAG AND INSTALLATION
INSTRUCTION MANUAL
FIG.4 –NEWPORT LUMINAIRE
(AS SHOWN)
FIG.6 –MOUNTING HARDWARE
ANCHOR SCREWS
4 QTY
SEALING WASHER
4 QTY
ANCHOR BODY
4 QTY
RED BAG

ALLURE_NEWPORT_INTRIGUE-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 4
Rev date: 14 APR 2021
Sensitivity: Internal & Restricted
MOUNTING:
ALLURE/NEWPORT/INTRIGUE MOUNTING:
1. Turn off Power.
2. Loosen SET SCREWS with ALLEN WRENCH provided, and open front of fixture as shown in fig. 7.
3. Remove REFLECTOR by unscrewing Reflector FINIALS as shown in FIG. 8.
4. Remove FACE by depressing one of the HINGE PINS, and tilting FACE forward as shown in FIG. 9.
FIG.8 –REFLECTOR DISASSEMBLY
MOUNTING
PLATE
FIG.7 –SET SCREW REMOVAL AND ROTATE FROM FRONT SIDE
SCREWS
2 PLCS
CANOPY
SET
SCREWS
REFLECTOR
FINIALS
FIG.9 –FACE / DOOR DISASSEMBLY
HINGE PIN
FACE REMOVED

ALLURE_NEWPORT_INTRIGUE-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 5
Rev date: 14 APR 2021
Sensitivity: Internal & Restricted

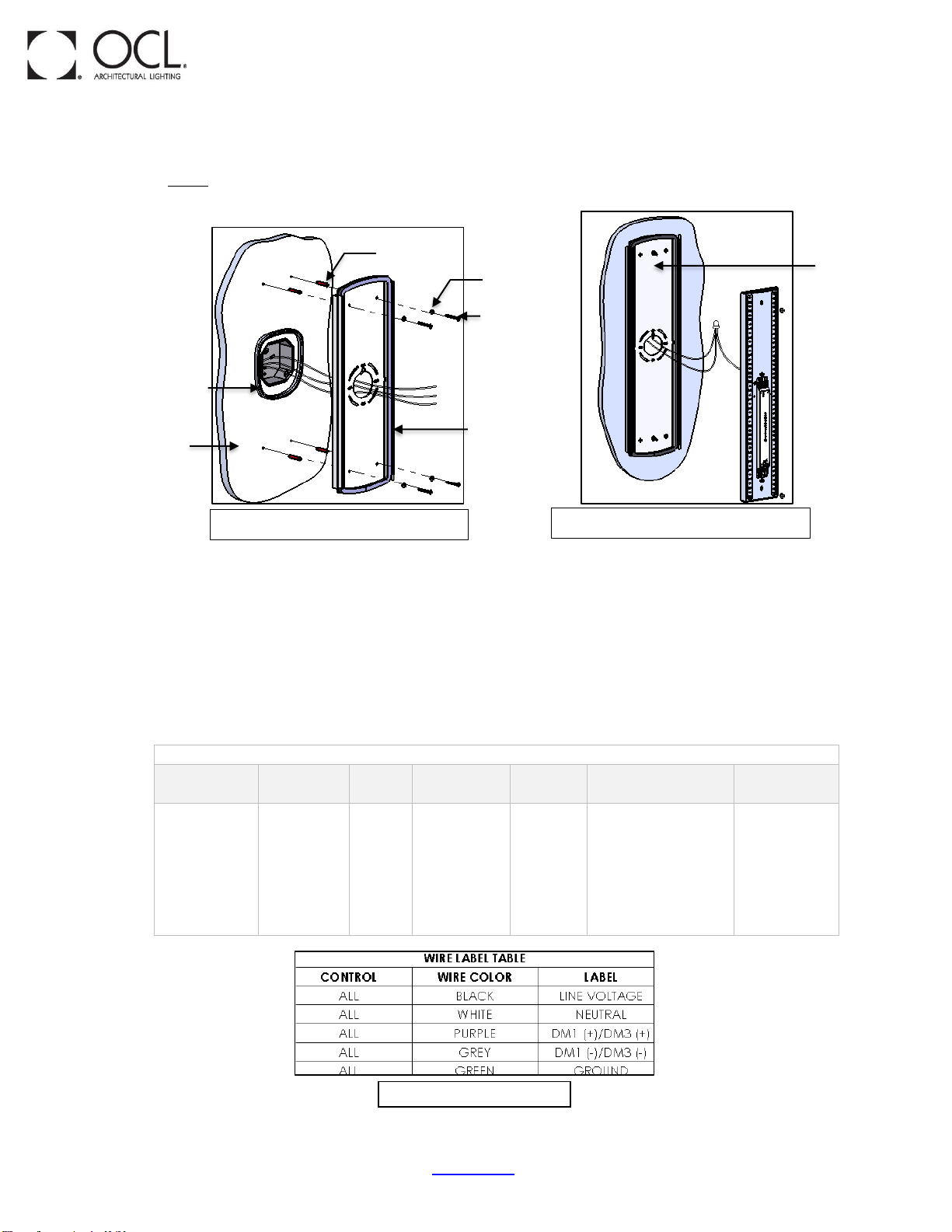

5. Mark ANCHOR HOLE locations on wall using BACKPLATE. Drill 3/16" dia. holes, and insert provided
ANCHORS as shown in FIG. 10.
NOTE: Apply Thick Bead of Silicone around J-BOX. Failure to do so will void all warranties. Make sure
that Bead is completely outside of fixture mounting hole location.
6. Pull Black, White & Green supply wires through center hole of BACKPLATE as shown in FIG. 11. For
Vertical Mounted fixtures, make sure the GASKET SEAM is on the bottom. Mount BACKPLATE directly to J-
BOX and secure to wall using provided ANCHOR SCREWS and SEALING WASHERS.
7. Attach the provided Black and White conductors to the Building Supply conductors. Make all wire
connections in accordance with NATIONAL ELECTRICAL LOCAL AND STATE CODES. Push the wire
connections back into the J-BOX. Make a THREE-WAY CONNECTION using the PIG TAILED GREEN
CONDUCTORS from the REFLECTOR to the Green conductor on the BACK PLATE, and the Building Supply
Ground. Push wire connections back into box SEE WIRE LABEL TABLE as shown in FIG. 12 for wire
connection.
WIRE DIAGRAM TABLE
SERIES
HANGING
SYSTEM
BODY
SIZE
BODYLIGHT
SOURCE
LED
OUTPUT
CONTROL
WIRE LABEL
TABLE
1. ALLURE
(AU1)
2. NEWPORT
(NP1)
3. INTRIGUE
(IN1 & IN2)
O1OA:
OUTDOOR
SCONCE
18”
24”
36”
48”
STATIC
WHITE
LED1
LED2
DM1: 0-10V DIM 1%
WIRE LABEL
TABLE ON
PAGE 5
GASKET SEAM
ANCHOR
SCREWS
SEALING
WASHER
WALL
SILICONE
BEAD
ANCHORS
FIG.10 –BACK PLATE ASSEMBLY TO J-BOX
FIG.11 –WIRE CONNECTION INFORMATION
3 WAY GROUND
CONNECTION
FIG. 12 –WIRE LABEL TABLE

ALLURE_NEWPORT_INTRIGUE-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 6
Rev date: 14 APR 2021
Sensitivity: Internal & Restricted

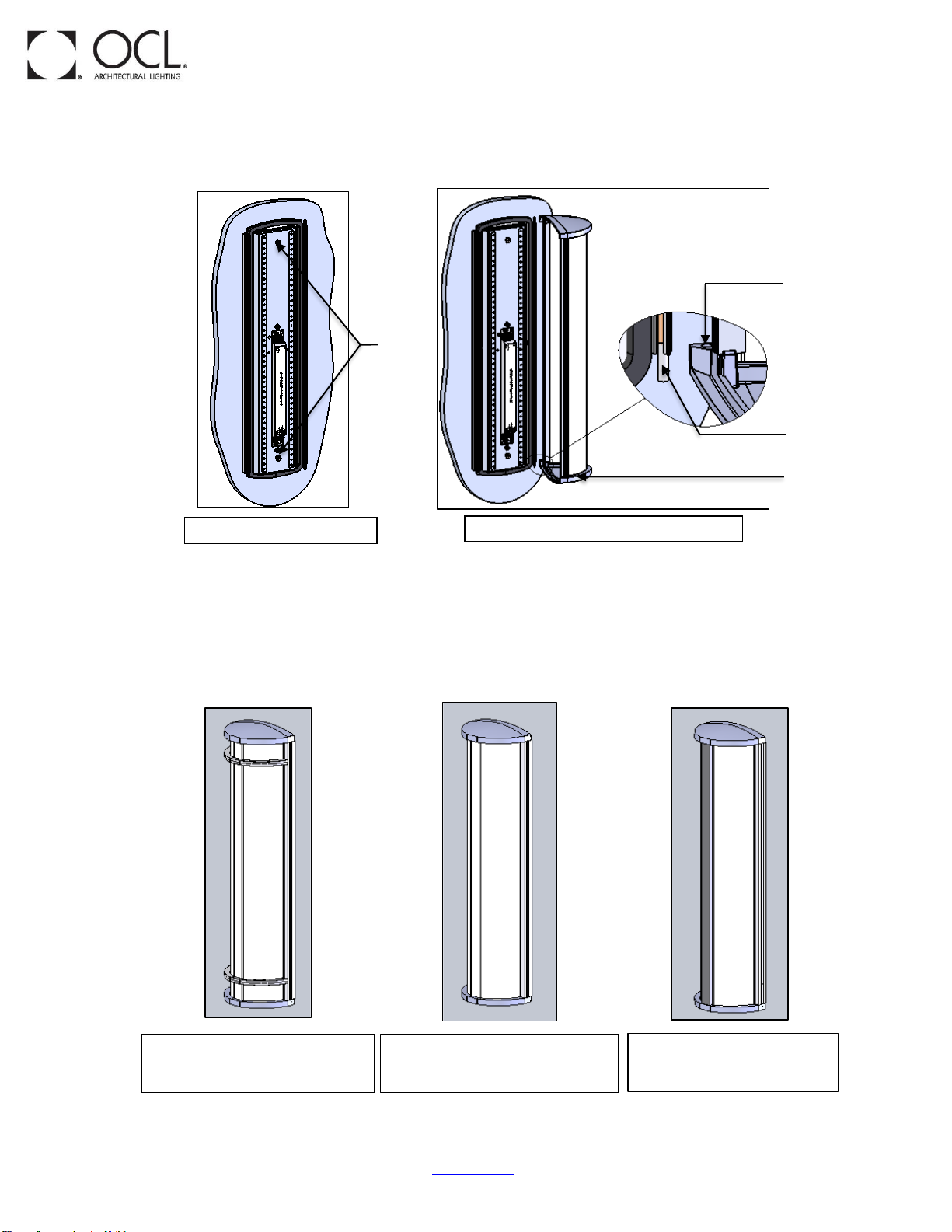

8. Reattach REFLECTOR using REFLECTOR FINIALS provided as shown in FIG.13.
9. Re-attach HINGED FACE by inserting HINGE PINS into holes in FACE CAPS. Make sure PINS are fully
engaged before letting go of FACE as shown in FIG.14.
10. Close the FACE and apply Pressure towards WALL and tighten SET SCREWS. Restore power to circuit the
series is connected to.
a. Test to see that the luminaire turns on after power is restored.
b. Contact OCL for any luminaire troubleshooting if a problem occurs.
FIG. 15 - AU1-O1OA-24-XX-PTD-
LEDX_XXK-UNV-DM1-XXX (AS SHOWN)
FIG. 16 –NP1-O1OA-24-XX-PTD-
LEDX_XXK-UNV-DM1-XXX (AS SHOWN)
FIG. 17 –INX-O1OA-24-XX-PTD-
LEDX_XXK-UNV-DM1-XXX (AS
SHOWN)
FIG. 14 –FACE ASSEMBLED BACK TO HINGE PIN
HOLE IN
FACE CAP
HINGE
PIN
FACE
PLATE
REFLECTOR
FINIALS
FIG. 13 –REFLECTOR ASSEMBLY
