INSTALLATION INSTRUCTIONS
ARMET OUTDOOR SCONCE WITH O1OA HANGING SYSTEM
These Instructions cover the ARMET luminaire with the following options:
GENERAL NOTES:
1. PLEASE COMPLETELY READ THE INSTALLATION INSTRUCTIONS BEFORE STARTING INSTALLATION.
2. TURN OFF POWER TO CIRCUIT FIXTURE WHILE IT IS BEING INSTALLED.
3. INSTALL IN ACCORDANCE WITH ALL LOCAL, STATE AND NATIONAL CODES CONSULT WITH A QUALIFIED
ELECTRICIAN FOR PROPER INSTALLATION.
4. CAREFULLY UNPACK ALL CONTENTS; SOME COMPONENTS MAY HAVE BEEN SHIPPED IN SEPARATE BOXES
MOST FIXTURES ARE SHIPPED PARTIALLY ASSEMBLED. SOME UNASSEMBLY MAY BE REQUIRED FOR
INSTALLATION.
5. DO NOT LET THE LUMINAIRE HANG FROM THE WIRE CONNECTIONS.
6. DUE TO A CHANGE IN NEC SECTION 410.69 EFFECTIVE IN 2022, THE COLOR PINK WILL BE USED IN PLACE
OF GRAY FOR 0-10V CONTROL. NOTE THAT EXISTING SYSTEMS AND FIXTURES MANUFACTURED PRIOR TO
2022 MAY STILL USE GRAY WIRE AS AN UNGROUNDED CONDUCTOR FOR 0-10V CONTROL. CARE SHOULD
BE TAKEN WHEN WORKING ON EXISTING SYSTEMS.
SERIES
HANGING
SYSTEM
SIZE
LIGHT
SOURCE
CONTROL
WIRE LABEL
TABLE
1. ARMET
(AT1)
O1OA:
OUTDOOR
SCONCE ADA
COMPLIANT
SCONCE
24”
36”
48’’
60’’
STATIC
WHITE
DM1: 0-10V DIM 1%
WIRE LABEL
TABLE ON
PAGE 6
FIG. 1-AT1-O1OA-XX-XX-XXX-LEDX_XXK-
UNV-DM~

ARMET-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 2
Rev date: 17 JUN 2021
Sensitivity: Internal & Restricted
Table of Contents
GENERAL INFORMATION:................................................................................................................................... 3
MOUNTING:....................................................................................................................................................... 4
ARMET MOUNTING: ...................................................................................................................................... 4

ARMET-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 3
Rev date: 17 JUN 2021
Sensitivity: Internal & Restricted
GENERAL INFORMATION:
You will receive the following with each ARMET O1OA Series fixture:
1. ARMET OUTDOOR SCONCE LUMINAIRE. (as shown in FIG. 2)
2. INSTALLATION INSTRUCTION MANUAL (shown in FIG. 3) - Please completely read the install instructions
before starting installation.
3. RED BAG (shown in FIG. 3)
i. TWO (2) ANCHOR BODY (shown in FIG. 4)
ii. TWO (2) ANCHOR SCREWS (shown in FIG. 4)
iii. TWO (2) SEALING WASHERS (shown in FIG. 4)
WARNING: Examine all components for any damage before beginning installation.
WARNING: This fixture should be installed by a licensed electrician only.
WARNING: Be careful not to scratch or damage any finished parts.
INSTALLATION
INSTRUCTION
FIG.3 - RED BAG AND INSTALLATION
INSTRUCTION MANUAL
FIG.4 –MOUNTING HARDWARE
ANCHOR SCREWS
2 QTY
SEALING WASHER
2 QTY
ANCHOR BODY
2 QTY
RED BAG
FIG.2 –ARMET LUMINAIRE (AS
SHOWN)

ARMET-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 4
Rev date: 17 JUN 2021
Sensitivity: Internal & Restricted
MOUNTING:
ARMET MOUNTING:
1. Turn off Power.
2. Remove the DECORATIVE FACE by unscrewing the SCREW on each end as shown in FIG. 5.
3. Remove the END CAPS by unscrewing the CAP SCREWS and remove the DIFFUSER by sliding it outwards as
shown in FIG. 6.
FIG.6 –DIFFUSER DISASSEMBLY
DIFFUSER
END CAPS
CAP SCREWS (2 PLCS)
DECORATIVE
FACE
COUNTER SUNK
SCREWS (2PLCS)
FIG. 5 –DECORATIVE PLATE DISASSEMBLY

ARMET-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 5
Rev date: 17 JUN 2021
Sensitivity: Internal & Restricted

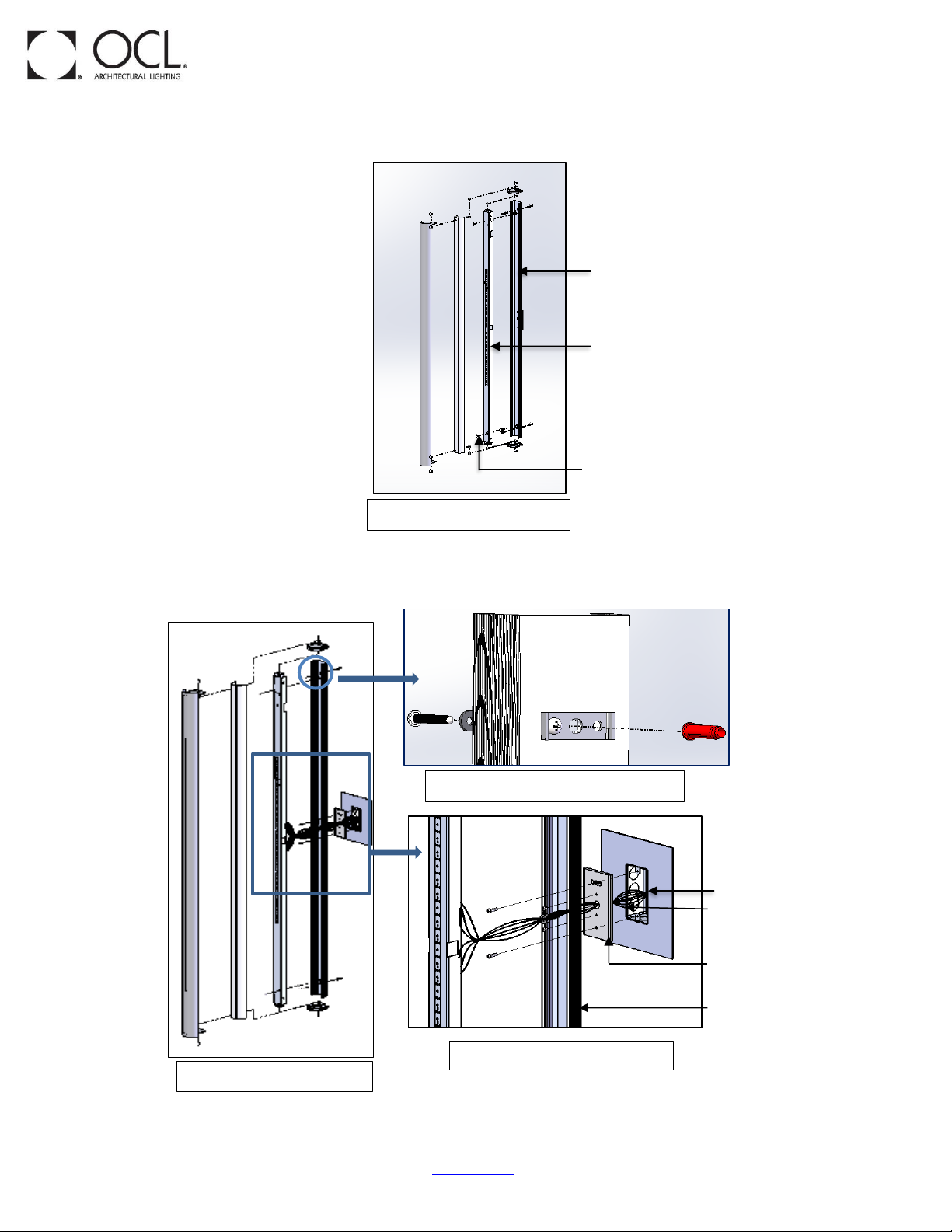

4. Unscrew the two #8-32 HEX NUTS and remove the REFLECTOR ASSEMBLY from the EXTRUDED BACK
HOUSING as shown in FIG.7.
5. Pull the BUILDING SUPPLY WIRES through the BACK HOUSING ASSEMBLY and mount the BACK HOUSING
ASSEMBLY to the JUNCTION BOX. Mark the placement for the provided wall ANCHORS through the holes
near the top and bottom of the BACK HOUSING as shown in FIG.8,9 &10.
EXTRUDED BACK
HOUSING
REFLCTOR ASSEMBLY
HEX NUTS
FIG.7- DISASSEMBLY OF REFLCTOR
J-BOX
J-BOX COVER
BUILDING SUPPLY
WIRES
BACK HOUSING
ASSEMBLY
FIG.8 –JUNCTION BOX ASSEMBLY
FIG.9–PLACEMENT OF ANCHORS
FIG.10 –WIRING CONNECTION

ARMET-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 6
Rev date: 17 JUN 2021
Sensitivity: Internal & Restricted
6. Mark ANCHOR HOLE locations on wall using BACK-CHANNEL. Drill 3/16" dia. holes and insert provided
ANCHORS as shown in FIG. 11.
NOTE: Apply Thick Bead of Silicone around J-BOX. Failure to do so will void all warranties. Make sure
that Bead is completely outside of fixture mounting hole location.
7. Make all wire connections between the REFLECTOR ASSEMBLY and BUILDING SUPPLY WIRES in
accordance with NATIONAL ELECTRICAL CODE and applicable LOCAL AND STATE CODES. Push the wire
connections back into the J-BOX.SEE WIRE LABEL TABLE as shown in FIG.12 for wire connections.
WIRE DIAGRAM TABLE
SERIES
HANGING
SYSTEM
BODY
SIZE
BODYLIGHT
SOURCE
LED
OUTPUT
CONTROL
WIRE LABEL
TABLE
1. ARMET (AT1)
O1OA:
OUTDOOR
SCONCE ADA
COMPLIANT
SCONCE
24”
36”
48”
60’’
STATIC
WHITE
LED1
LED2
DM1: 0-10V
DIM 1%
WIRE LABEL
TABLE ON
PAGE 6
SEE GENERAL NOTE 6 ON PAGE 1
FIG. 12 –WIRE LABEL TABLE
FIG.11 –BACK-CHANNEL ASSEMBLY TO J-BOX
SILICONE
BEAD
WALL
ANCHORS
ANCHOR SCREWS
SEALING WASHERS

ARMET-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 7
Rev date: 17 JUN 2021
Sensitivity: Internal & Restricted

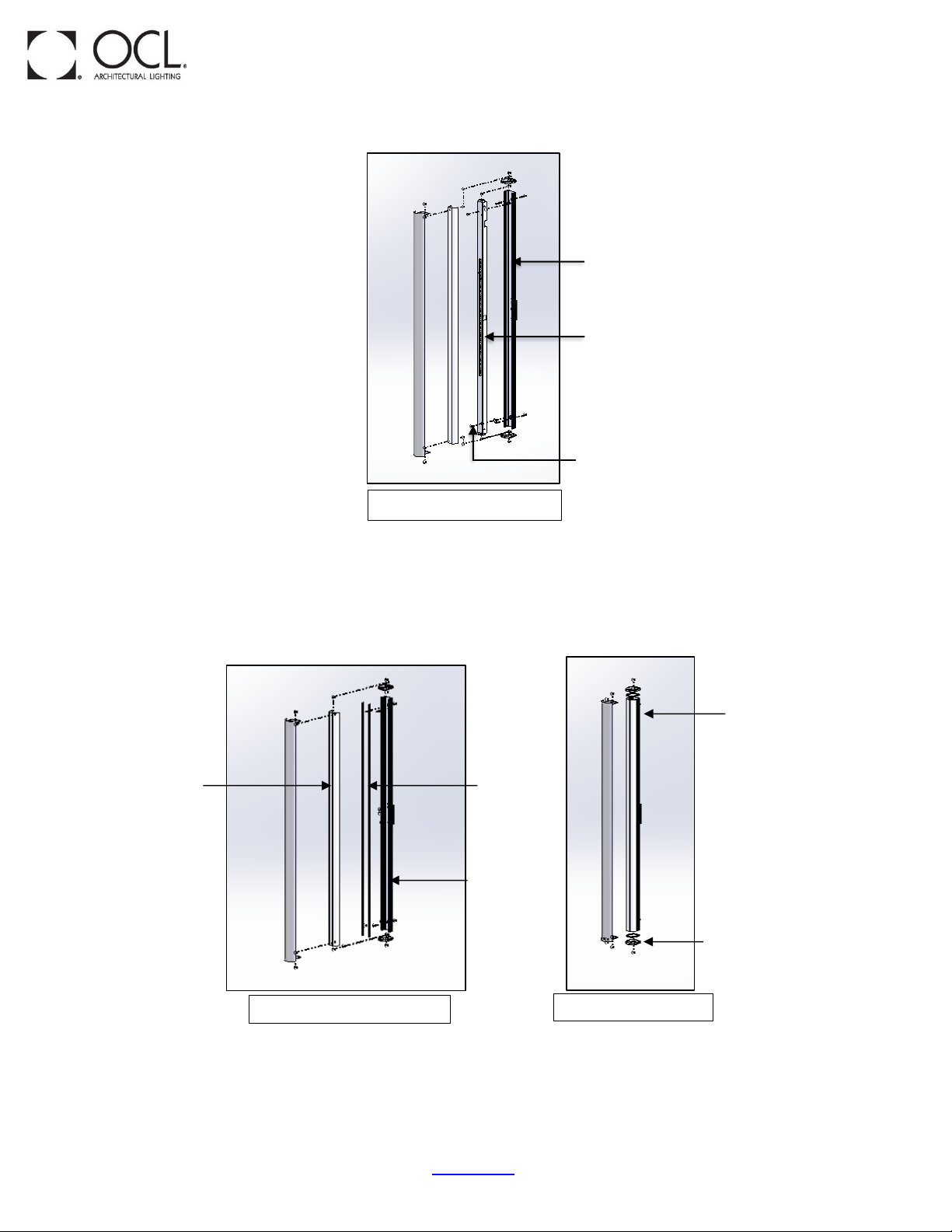

8. Reattach the REFLECTOR to the BACK CHANNEL using the #8-32 HEX NUTS provided as shown in FIG.13.
9. Reattach DIFFUSER by pushing the legs into the SIDE CHANNELS. Make sure top and bottom are flush with
the ends of the EXTRUDED BACK CHANEL provided as shown in FIG.14.
10. Reattach the CAST ALUMINIUM CAPS and secure with the COUNTER SUNK SCREWS provided as shown in
FIG.15.
EXTRUDED BACK
HOUSING
REFLCTOR ASSEMBLY
HEX NUTS
FIG.13- ASSEMBLY OF REFLCTOR
SIDE CHANNELS
DIFFUSER
FIG.14 –DIFFUSER ASSEMBLY
EXTRUDED BACK
CHANNEL
CAST ALUMINIUM
CAPS (2 PLCS)
COUNTER SUNK
SCREWS (2PLCS)
FIG. 15 –CAPS ASSEMBLY

ARMET-O1OA-LED-INSTALLATION_INSTRUCTIONS
OCL Architectural Lighting
Phone: [phone]
Fax: [phone]
www.ocl.com Page 8
Rev date: 17 JUN 2021
Sensitivity: Internal & Restricted

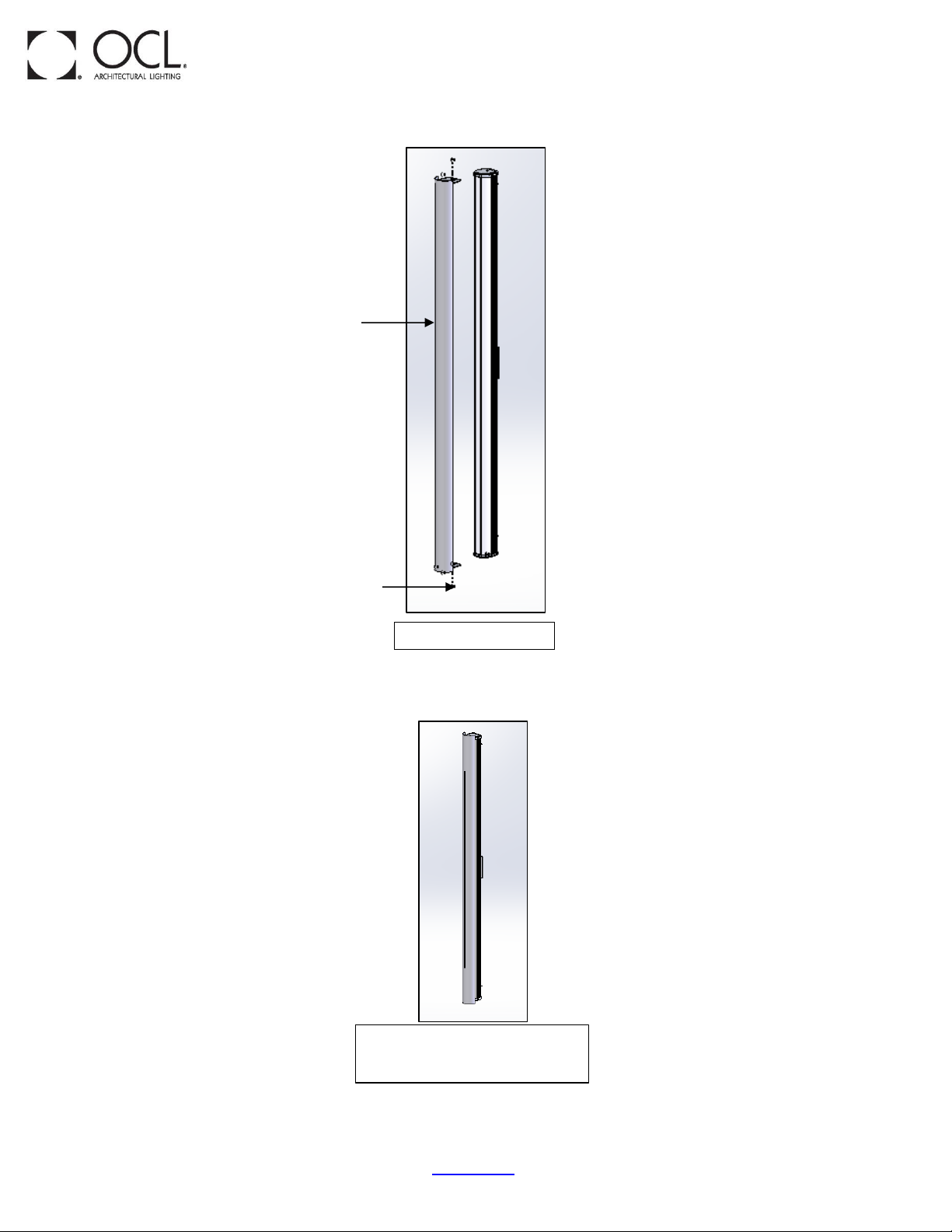

11. Reattach the DECORATIVE FACE to the FIXTURE with the HARDWARE provided as shown in FIG.16.
12. Restore power to circuit the series is connected to.
a. Test to see that the luminaire turns on after power is restored.
b. Contact OCL for any luminaire troubleshooting if a problem occurs.
FIG. 17-AT1-O1OA-XX-XX-XXX-LEDX_XXK-
UNV-DM~
DECORATIVE
FACE
COUNTER SUNK
SCREWS (2PLCS)
FIG. 16 –FINAL ASSEMBLY
