Octane Fitness BC1000 User manual

SURGE
CYCLE BIKE
OWNER’S
MANUAL
MODEL BC1000
REV 1-2-23

2

3
IMPORTANT!
All products shown are prototype. Actual product delivered may vary.
Product specications, features, and software are subject to change without notice.
For the current owner’s manual and documents in additional languages please visit
https://octanetness.com/resources/manuals-software/
IMPORTANTE!
Todos los productos mostrados son prototipos. La realidad el producto suministrado puede diferir. Especicaciones de
productos, características y software están sujetas a cambios sin previo aviso.
Para la más actualizada de este manual del propietario y para los documentos en otros idiomas, por favor visite
https://octanetness.com/resources/manuals-software/
IMPORTANT! Tous les produits présentés sont prototype. Le produit réel livré peut varier. Spécications du produit,
caractéristiques et logiciels sont sujettes à modication sans préavis. Pour la plus à jour le manuel du propriétaire et pour
documents dans des langues supplémentaires, veuillez https://truetness.com/support/user-manuals/ de visite
重要提示!
显示所有产品的原型。实际交付的产品可能有所不同产品规格，功能和软件如有更改，恕不另行通知迄今为止对于大多数的使
用说明书， 和对于其他语言的文档，请访问https://octanetness.com/resources/manuals-software/
ھام!
جمیع المنتجات المعروضة ھي النموذج. قد تختلف المنتج الفعلي تسلیمھا.
مواصفات المنتج، والمیزات والبرامج قابلة للتغییر دون إشعار.
لمعظم ما یصل حتى الآن دلیل المالك یرجى زیارة https://octanetness.com/resources/manuals-software/
للمستندات في لغات إضافیة، یرجى زیارة https://octanetness.com/resources/manuals-software/
WICHTIG!
Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt-
Spezikationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern. In den meisten Fällen bis zu
Bedienungsanleitung Bisher besuchen und für Dokumente in weiteren Sprachen nden Sie unter https://octanetness.
com/resources/manuals-software/
BELANGRIJK!
Alle getoonde producten zijn prototype. Daadwerkelijke product geleverd kan verschillen. Product specicaties,
eigenschappen & software zijn onderhevig aan verandering zonder kennisgeving. Voor de meest actuele handleiding van
de eigenaar & voor documenten in andere talen kunt u terecht op https://octanetness.com/resources/manuals-software/
ВАЖНО!
Все товары указаны прототипа. Фактический продукт, поставляемый могут отличаться. Технические
характеристики, особенности и программного обеспечения могут быть изменены без предварительного
уведомления. Для получения самой последней на сегодняшний день руководство по эксплуатации и
Для документов на другие языки, пожалуйста, посетите https://octanetness.com/resources/manuals-software/

4
Thank you for choosing Octane!
Over twenty years ago, Octane changed how people view ellipticals with innovations and unique modalities. This laid the
foundation for what Octane is today with a portfolio of dynamic and high-performance cardio products built to help facilities
and people fuel their lives. Now, as part of the TRUE Fitness family, Octane continues to evolve and fuel hundreds of
thousands of exercisers while nding new and innovative ways to provide exercise options. Whether you are adding to
your workout facility or purchasing a machine for home use, we are here as a trusted partner to help you reach your goals.
Contacting Our Support Team
Before you contact us, we recommend gathering the serial number, model number, and a brief description of the reason
for your request. After you have all the pertinent information, we suggest you contact your selling dealer or local service
company to set up an appointment. If you are not familiar with who is in your area, you may visit our website at
https://shop.octanetness.com/store-locator/ and use our dealer locator to obtain the contact information for the closest
dealer.
If you still need help, please contact our product support team.
Address TRUE Fitness
Attn: Product Support
865 Ho󰀨 Road
St. Louis, MO 63366
Phone [phone]
Email customerservice@octanetness.com
Hours of Operation Monday - Thursday 8:30am - 6:00pm (CST)
Friday 8:30am - 5:00pm (CST)
Interested in owning more Octane products? Please contact us with any product inquires so that we may direct you to the
appropriate sales representative to help answer your questions.
Address TRUE Fitness
Attn: Sales Department
865 Ho󰀨 Road
St. Louis, MO 63366
Phone [phone]
Email sales@octanetness.com
Hours of Operation Monday - Friday 8:30am - 5:00pm (CST)
Contacting Our Sales Team

5
Reporting Freight Claims or Parts Damage
Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please
follow the guidelines below to determine the appropriate process for you to follow.
Severe Damage—Obvious damage to external packaging and internal product.
Please refuse the shipment and it will be returned to Octane by the carrier. Contact Octane product support by calling
800.726.9662 or sales support by calling 888.628.2634 Monday-Friday during normal business hours to notify us that the
shipment has been refused. Once we have received the damaged shipment, a replacement shipment will be sent to you.
If the shipment comes in multiple boxes, only refuse boxes with damage.
Slight Damage—Minimal damage to external packaging with unknown internal damage to product.
If the shipment has minimal damages and you are not sure if the actual product is damaged, you must sign the bill of
lading as damaged when accepting the shipment. Once you have opened the box and you have determined something is
indeed damaged, please gather the serial number, model number, description of damage, and photos of damage. Please
make sure the photos include the damaged product as well as the damaged box the product arrived in. Contact Octane
product support (customerservice@octanetness.com // 800.726.9662) or Octane sales support (sales@octanetness.
com // 888.628.2634) Monday-Friday during normal business hours.
Concealed Damage—No damage to external packaging but internal damage to product.
You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages.
Please notify the carrier immediately. Octane will not be able to le a claim if the carrier is not notied in a timely manner.
Once you have called the carrier you will need to gather the serial number, model number, description of damage, and
photos of damage. Contact Octane product support (customerservice@octanetness.com // 800.726.9662) or Octane
sales support (sales@octanetness.com // 888.628.2634) Monday-Friday during normal business hours.

6
CHAPTER 1—SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS...........................................................................7
RESIDENTIAL/COMMERCIAL USE—IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS...........8
SPACE REQUIREMENTS......................................................................................................................................................9
SPECIFICATIONS..................................................................................................................................................................9
WARNING DECALS.............................................................................................................................................................10
COMPLIANCES....................................................................................................................................................................10
PROPER TRAINING POSITION..........................................................................................................................................10
CHAPTER 2—ASSEMBLY INSTRUCTIONS
PRE-ASSEMBLY CHECKLIST..............................................................................................................................................11
ASSEMBLY STEPS..............................................................................................................................................................13
CHAPTER 3—PRODUCT OVERVIEW
PRODUCT FEATURES........................................................................................................................................................20
CONSOLE FEATURES.........................................................................................................................................................21
KEYPAD BUTTONS..............................................................................................................................................................23
SOFTWARE MANAGEMENT...............................................................................................................................................24
CHAPTER 4—CARE AND MAINTENANCE
ROUTINE MAINTENANCE...................................................................................................................................................26
INSPECTION........................................................................................................................................................................26
CLEANING THE EQUIPMENT.............................................................................................................................................26
LEVELING THE MACHINE...................................................................................................................................................26
PREVENTATIVE MAINTENANCE........................................................................................................................................27
LONG TERM STORAGE......................................................................................................................................................27
STORING THE CHEST STRAP............................................................................................................................................27
CHAPTER 5—ADDITIONAL INFORMATION
BC1000 WIRING DIAGRAM.................................................................................................................................................28
CHAPTER 6—WARRANTY INFORMATION
BC1000 SURGE CYCLE BIKE COMMERCIAL LIMITED WARRANTY................................................................................30
BC1000 SURGE CYCLE BIKE RESIDENTIAL LIMITED WARRANTY.................................................................................33
TABLE OF CONTENTS

7
CHAPTER 1—SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS
This equipment is intended for a commercial or institutional setting. This owner’s manual should be accessible to all
personal trainers, faculty, and members.
!
WARNING:
+ALL EXERCISERS MUST READ ALL INSTRUCTIONS BEFORE USING THE EQUIPMENT.
+ Heart rate monitoring systems may be inaccurate. Over-exercising may result in serious injury or death. If you feel
faint, stop exercising immediately.
+ Health related injuries may result from incorrect or excessive use of exercise equipment.
+ OCTANE STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise
program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of
45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year. Additionally, Octane
recommends consulting a tness professional on the correct use of this product. If at any time while exercising the
user experiences faintness, dizziness, pain or shortness of breath, he or she must stop immediately.
+ Equipment should be immediately taken out of use if it fails to work properly or when a warning is presented
electronically.
+ Do not move the equipment by lifting the console. Do not use the console as a handlebar during a workout.
+ This product can expose you to chemicals including Toluene and Acrylamide which are known to the State of
California to cause Cancer and birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov.
+ Keep equipment stable on at ground.
+ Ensure the Flywheel is free from any obstructions that would hinder mechanical movement. Maintain a safe distance
between the ywheel and all body parts (e.g. ngers) and clothing to help prevent serious injury.
+ Ensure the equipment is used in a monitored environment.
+ When pedaling the equipment, foot straps must be used to help prevent serious injury or death.
+ Risk of personal injury-crushing hazard when equipment is in operation - Keep feet, hands, and ngers away from
moving parts.
+ The Seat Mount Assembly must always meet the minimum insertion depth notated on the shaft to help prevent
serious injury or death.
+ Replace warning labels that may be worn, damaged, or missing.
+ Replace any non-working or damaged components, remove the unit from service until repair is performed.
!
DANGER: To reduce the risk of burns, re, and electric shock or injury to persons, do not operate the equipment
while being covered with a blanket, pillow, plastic, or anything that insulates or stops airow.
!
CAUTION:
+ Do not use typing or web surng features at excessive speeds. Always stabilize yourself by holding a stationary
handle when using typing or web surng features (varies by console option).
+ Do not use the contact heart rate grips as a handlebar during a workout.
+ Any changes or modications to this equipment could void the product warranty.
+ The BC1000 SURGE Cycle Bike bike is self-generated and does not require the use of an electrical outlet with the
LCD console.
+ The batteries within self-generated equipment contain materials that are considered hazardous to the environment.
Federal law requires proper disposal of these batteries.
+ Do not use this product in areas where aerosol spray products are being used or where oxygen is being administered.
Such substances create the danger of combustion and explosion.
+ Always follow the console instructions for proper operation. Close supervision is necessary when used near children
under the age of 14, or disabled persons.
+ Do not use this product outdoors, near water, while wet, or in areas if high humidity including extreme temperature
changes.
+ Never operate an Octane product with the air openings blocked. Keep air openings free of lint, hair or any obstructing
material.

8
RESIDENTIAL/COMMERCIAL USE—IMPORTANT SAFETY INSTRUCTIONS—
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
!
WARNING:
+ Risk of personal injury - keep children under the age of 14 away from the machine.
+ This appliance is not intended for use by people with reduced physical, sensory, or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
+ Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by
the manufacturer.
+ Never drop or insert any object into any opening.
+ Do not use outdoors.
+ Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
+ Keep children away from extended feet pedals.
+ Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy, or
experience pain, stop and consult your physician.
+ Inspect the unit for incorrect, worn, or loose components and do not use until corrected, replaced, or tightened prior to
use.
+ Do not wear loose or dangling clothing while using the unit.
+ Care should be used when mounting or dismounting the unit.
+ Do not exceed maximum user weight of 350 lbs.
+ Keep children and animals away.
+ Use caution when moving and assembling unit.
+ All exercise equipment is potentially hazardous. If attention is not paid to the conditions of equipment usage, death or
serious injury could occur.
+ Never place liquids of any type directly on the unit except in the accessory tray or bottle holders. Containers with lids
are recommended.
+ Wear shoes with rubber or high traction soles. Do not use shoes with heels or leather soles. Make sure no stones are
embedded in the soles. Do not use this product in bare feet. Keep all loose clothing, shoelaces and towels away from
moving parts.
+ Speed and power specications determined during testing for this product exist within a range of plus or minus ten
percent of the stated values.
+ Do not use gasoline or other organic solvents for normal cleaning, wiping, and maintenance of labels. Only use water
for cleaning.
+ Do not reach into or underneath the unit, or tip it on its side during operation.
+ Use correct ergonomic positioning while operating the bike.
+ Do not allow animals on or near the equipment while in operation.
+ Do not exceed maximum user weight of 350 lbs (160 kg).
+ Avoid exiting bike while the pedals are still in motion.
+ When using this exercise machine, basic precautions should always be followed.
+ Use this bike only for its intended use as described in this manual.
+ Do not use attachments not recommended by the manufacturer.
+ Allow only trained personnel to service this equipment.
+ Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they are out of
reach of the bike while it is in motion.
+ Allow only one person at a time on the bike while it’s operating.
+ It is the sole responsibility of the owner/operator to ensure regular and scheduled maintenance is performed.
+ Children shall not play with the appliance.
+ Cleaning and user maintenance shall not be made by children without supervision.
+ The braking system is speed-independent.
!
CAUTION:

9
SPACE REQUIREMENTS

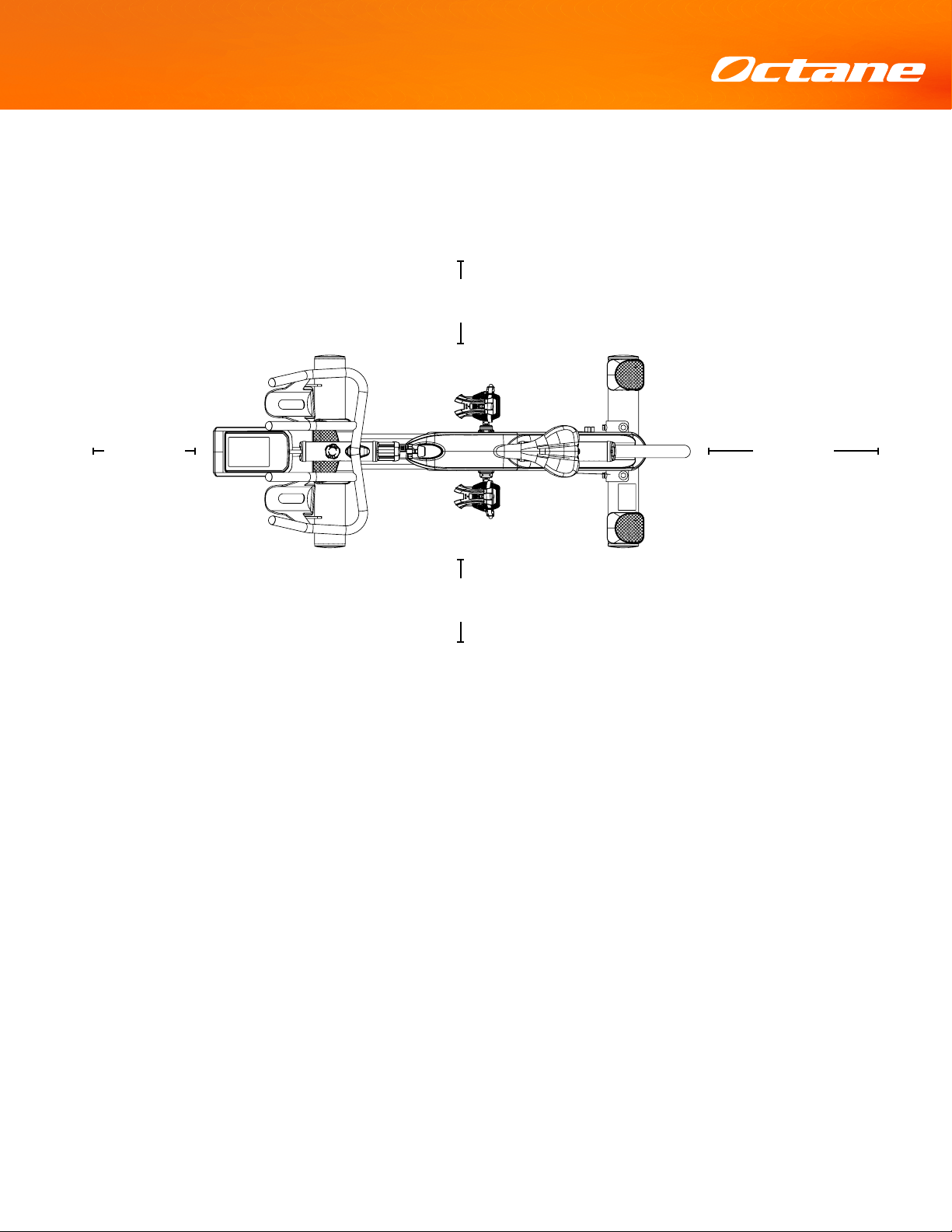

TRUE/Octane’s recommendation is to leave a 39” (991mm) safety zone at rear of bike. The sides of the bike should be at
least 24” (610mm) away from the wall or obstructions.
SPECIFICATIONS
+DIMENSIONS (L X W X H)
58.74″ (1492 mm) x 23.77″(604 mm) x 43.89″ (1115 mm)
+PRODUCT WEIGHT
112.5 lbs (51 kg)
24”
(610mm)
24”
(610mm)
24”
(610mm)
39”
(991mm)

10
WARNING DECALS
!
WARNING: Replace warning labels that may be worn, damaged, or missing.
To replace any worn or missing decals contact product support (customerservice@octanetness.com // 800.726.9662).
COMPLIANCES
This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit
www.octanetness.com.
PROPER TRAINING POSITION
+ Once seated, users should place their feet on the pedals (A).
+ When pedaling, the user should be able to extend their legs fully
while pedaling; if users do not have enough room to fully extend
their legs, they should adjust their seat position (B) until their legs
are able to comfortably extend. Additionally, if users legs feel
overly stretched when they’re extended, the seat needs a lower
adjustment.
+ During a workout, the user’s hands must grasp the handlebars
(C).
+ To brake during a workout, toggle down the Red Brake Lever
located on the Handlebar Mount Assembly.
+ To safely exit, conrm the workout has ended and the console has
returned to the Home screen in addition to the pedals coming to
a complete stop. While rmly grasping the handlebars to maintain
balance, slowly slide your body o󰀨 the seat and feet from the
pedals to transition to a standing position free from the bike.
C
B
A
NOTE: The two numbers before the “-” refers to the year of manufacturing.
SAMPLE
P/N BC10800
P/N 00709000

11
CHAPTER 2—ASSEMBLY INSTRUCTIONS
Use caution when assembling the treadmill.
Unpacking and assembling of this treadmill is a
two person task.
IMPORTANT! Please verify box contents. If you have questions,
or if there are any missing parts, contact product support at
800.726.9662 or customerservice@octanetness.com.
TOOLS NEEDED FOR
ASSEMBLY
INCLUDED
IN BOX
3mm, 4mm, and 6mm
Allen Wrenches YES
13mm (qty 2), 15mm,
and 16mm Wrenches NO
#2 Phillips Screwdriver NO
!
CAUTION:

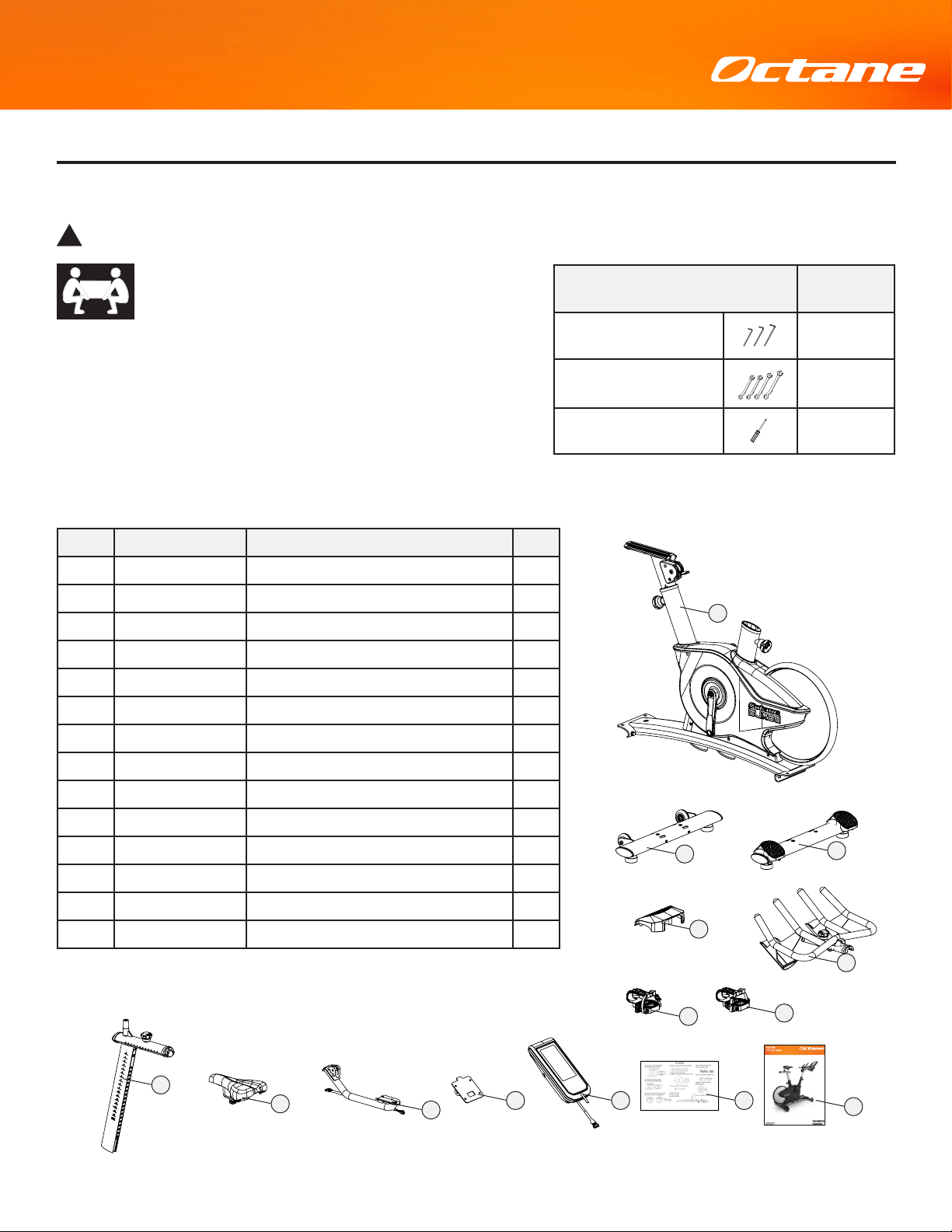

BOX CONTENTS
VERIFY BOX CONTENTS
PRE-ASSEMBLY CHECKLIST
ITEM PART NUMBER DESCRIPTION QTY
1 BC10100 MAINFRAME ASSEMBLY 1
2BC10200 FRONT STABILIZER ASSEMBLY 1
3 BC10300 REAR STABILIZER ASSEMBLY 1
4 BC10220 FRONT COVER ASSEMBLY 1
5BC10420 HANDLEBAR ASSEMBLY 1
6BC1013014R RIGHT PEDAL 1
7BC1013014L LEFT PEDAL 1
8BC10510 SEAT FRAME ASSEMBLY 1
9BC10520 SEAT PAD 1
10 BC10610 CONSOLE ARM ASSEMBLY 1
11 BC10620 CONSOLE BRACKET 1
12 BC10900 CONSOLE 1
13 BC1000HW HARDWARE PACK, BC1000 1
14 MAN-BC1000 MANUAL, BC1000 1
14
131211
10
9
8
7
6
5
4
3
2
1

12

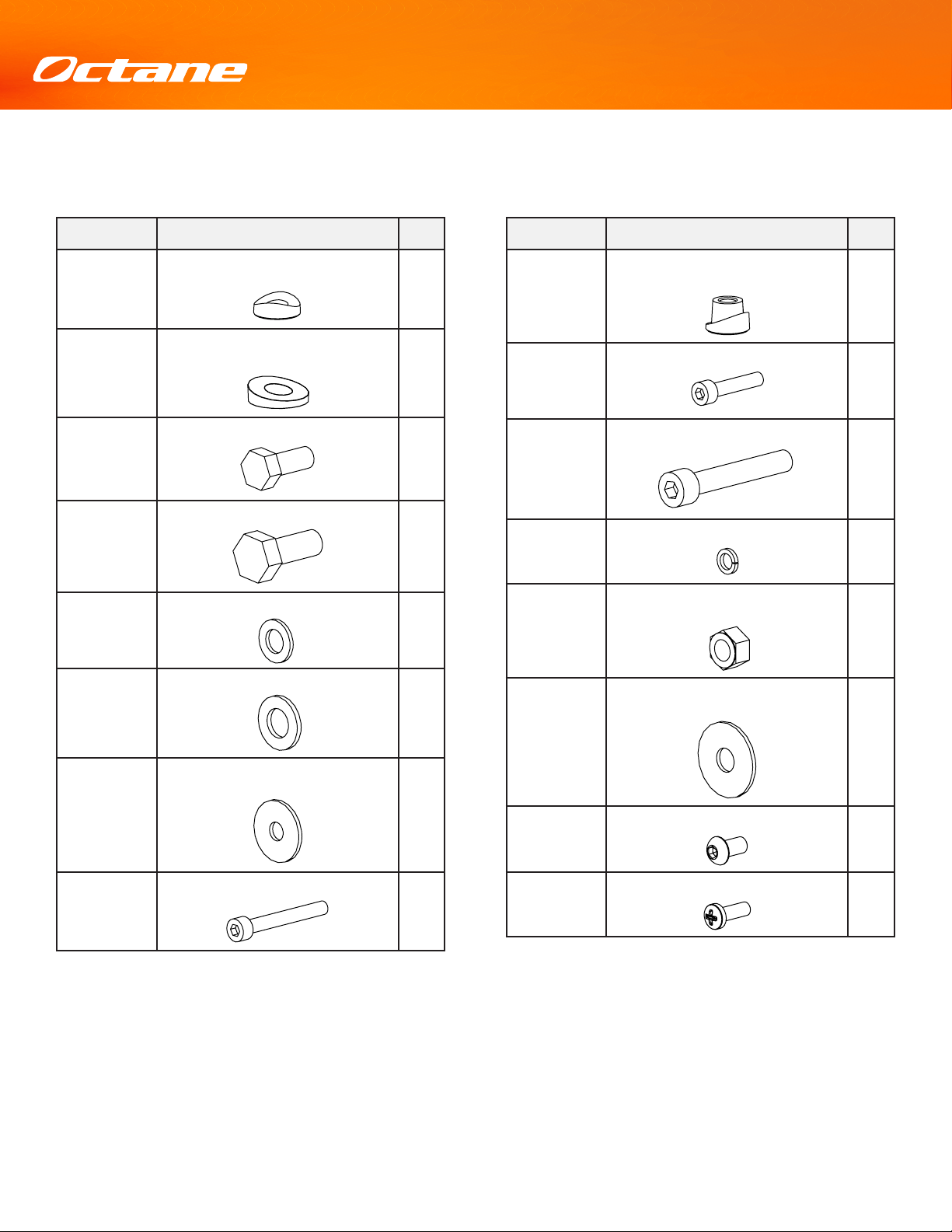

HARDWARE CONTENTS
BC1000HW Hardware Pack
ITEM DESCRIPTION QTY
BC1011019 WASHER, CURVED, 18 X 8.5 X
6.5MM
4
BC1011002 WASHER, CURVED, 23.5 X
10.5 X 7.1MM
1
C2000 HHS, M8 X 20MM, SS 4
C 507A HHS, M10 X 25MM, SS 4
C1093C WASHER, FLAT, M8, SS 4
C 997A WASHER, FLAT, M10, SS 4
CC-36-011B WASHER, FLAT, M6 X 23MM
OD, BLK ZP
1
C2002 SHCS, M5X40MM, BLK ZP 1
ITEM DESCRIPTION QTY
BC10230 WASHER, CURVED, 16 X 6 X
11MM 2
C2003 SHCS, M5X25MM, BLK ZP 2
SM0025A SHCS, M8 X 50MM, BLK ZP 1
SD0077 WASHER, LOCK M6 BLK ZP 4
SM0033A LOCK NUT, M8, NYL INS JAM
NUT BLK ZP
1
C1093B WASHER, FLAT, M8 X 28MM
OD, BLK ZP 2
C1301A BHCS, M6 X 12MM, BLK ZP 4
C1003A PHCS, M5 X 15MM, BLK ZP 4

13
ASSEMBLY STEPS
1. Line up the front and rear stabilizer assemblies with the mainframe assembly.
2. To help with alignment, insert and nger tight all fasteners. DO NOT fully tighten yet.
3. Once all fasteners are nger tight:
+ Use a 16mm wrench to fully tighten the M10 bolts.
+ Use a 13mm wrench to fully tighten the M8 bolts.
Item Part Number Description Qty
1C 507A HHS, M10 X 25MM, SS 4
2 C 997 WASHER, FLAT, M10, SS 4
3 BC10200 FRONT STABILIZER ASSEMBLY 1
4 BC1011019 WASHER, CURVED, 18 X 8.5 X 6.5MM 4
5C1093C WASHER, FLAT, M8, SS 4
6 C2000 HHS, M8 X 20MM, SS 4
7BC10100 MAINFRAME ASSEMBLY 1
8BC10300 REAR STABILIZER ASSEMBLY 1
Tools Used in this Step
16mm Wrench
13mm Wrench
Step 1—Attach Front and Rear Stabilizer Assemblies
8
7
6
5
4
3
2
1

14
Item Part Number Description Qty
1 BC10220 FRONT COVER ASSEMBLY 1
2BC1011002 WASHER, CURVED, 23.5 X 10.5 X 7.1MM 1
3 CC-36-011B WASHER, FLAT, M6 X 23MM OD, BLK ZP 1
4C2002 SHCS, M5X40MM, BLK ZP 1
5BC10230 WASHER, CURVED, 16 X 6 X 11MM 2
6C2003 SHCS, M5X25MM, BLK ZP 2
Tools Used in this Step
4mm Allen Wrench
Step 2—Attach Front Cover Assembly
6
5
4
3
2
1
1. Line up the front cover assembly with the front stabilizer assembly.
2. To help with alignment, insert and nger tight all fasteners. DO NOT fully tighten yet.
3. Once all fasteners are nger tight: use a 4mm allen wrench to fully tighten the M5 screws.

15
R
L
Tools Used in this Step
15mm Wrench
Step 3—Attach Right and Left Pedals
1
2
when using a torque wrench
when using a torque wrench
= 100 N-M (74 FT-LB)
= 100 N-M (74 FT-LB)
Item Part Number Description Qty
1 BC1013014L LEFT PEDAL 1
2BC1013014R RIGHT PEDAL 1
crank arm
assembly
1. Attach the left and right pedals to the left and right crank arm assemblies by lining up the pedal threads inside the
corresponding holes on the crank arm assemblies.
NOTE:
+ The left pedal is threaded into the left crank arm assembly hole counter-clockwise.
+ The right pedal is threaded into the right crank arm assembly hole clockwise.
2. Securely fasten the pedals to the crank arm assemblies. It is strongly recommended to torque each pedal to 100 N-M
(74 FT-LB).

16

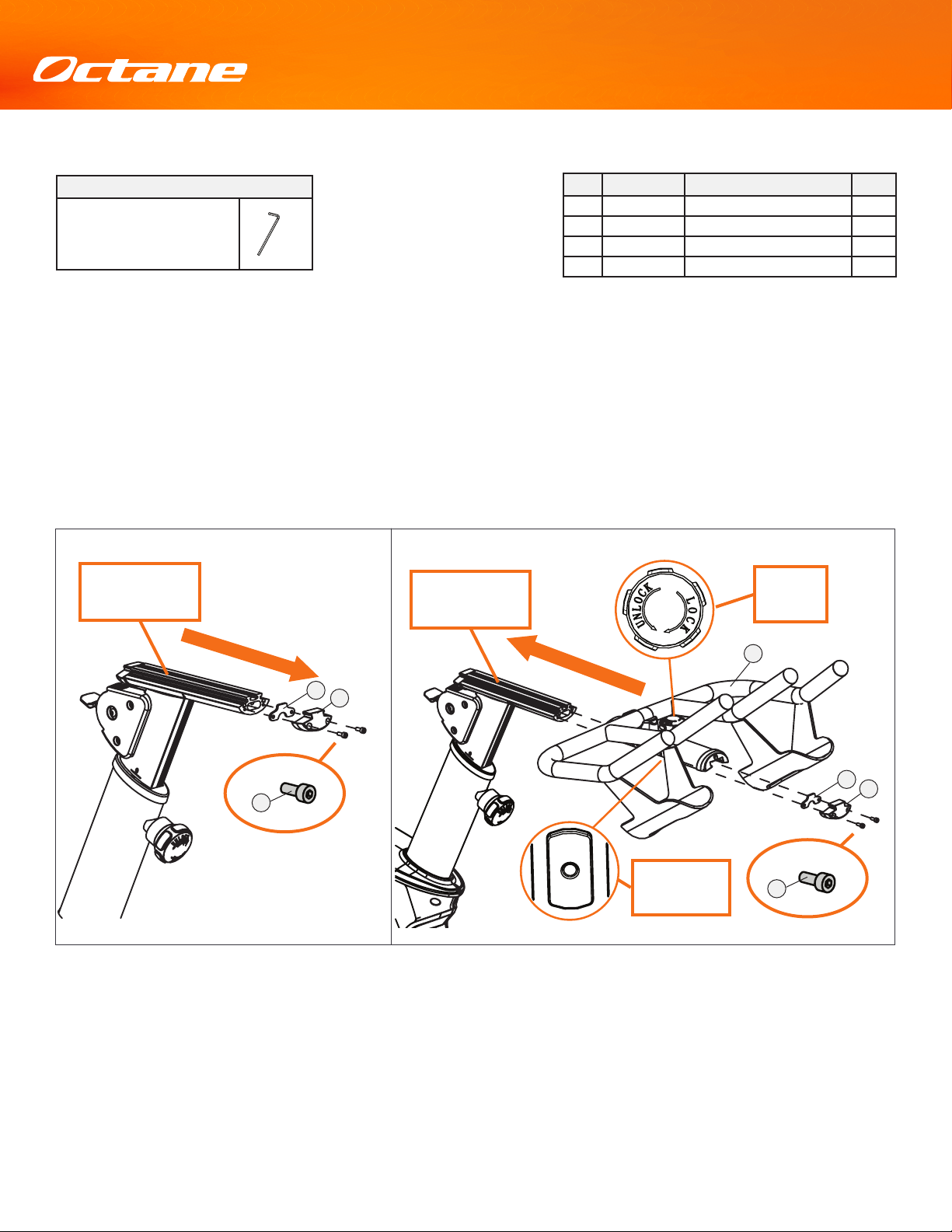

1. Use a 3mm allen wrench to remove and set aside the M4 screws, lower end cap, and slide bracket from the handlebar
neck assembly.
2. Rotate the locking knob counter-clockwise to the unlocked position and make sure the locking knob tab is parallel to
the handlebar neck assembly.
3. Pull up on the locking knob as you slide the handlebar assembly onto the handlebar neck assembly.
4. Rotate the locking knob clockwise to the locked position.
5. Use a 3mm allen wench to reattach the slide bracket, lower end cap, and M4 screws to the handlebar neck assembly.
Tools Used in this Step
3mm Allen Wrench
Step 4—Attach Handlebar Assembly
Item Part Number Description Qty
1 BC1041020 SLIDE BRACKET 1
2BC1041030 LOWER END CAP 1
3 C2004 SHCS, M4 X 10MM, SS 2
4 BC10420 HANDLEBAR ASSEMBLY 1
12
3
3
1
4
2
handlebar
neck assembly handlebar
neck assembly
locking
knob
locking
knob tab

17
2
1
seat forward/
backward
adjustment
locking knob
lock nuts
seat up/down
adjustment
locking knob
1. Turn and pull the seat up/down adjustment locking knob out to slide the seat frame assembly into the mainframe
assembly.
1. Slide the seat frame assembly into the mainframe assembly.
2. Release the seat up/down adjustment locking knob after achieving the desired seat height. Verify the locking pin is
fully seated in the tube of the lower seat frame assembly.
3. Place the seat pad onto the seat frame assembly as shown below. Secure the seat pad in place using the two lock
nuts.
4. Turn and pull the seat forward/backward adjustment locking knob to adjust the position of the seat.
5. Release the seat forward/backward adjustment locking knob after achieving the desired seat placement. Verify the
locking pin is fully seated in the tube of the upper seat frame assembly.
Tools Used in this Step
13mm Wrench (Qty 2)
Step 5—Attach Seat
Item Part Number Description Qty
1 BC10520 SEAT PAD 1
2BC10510 SEAT FRAME ASSEMBLY 1

18

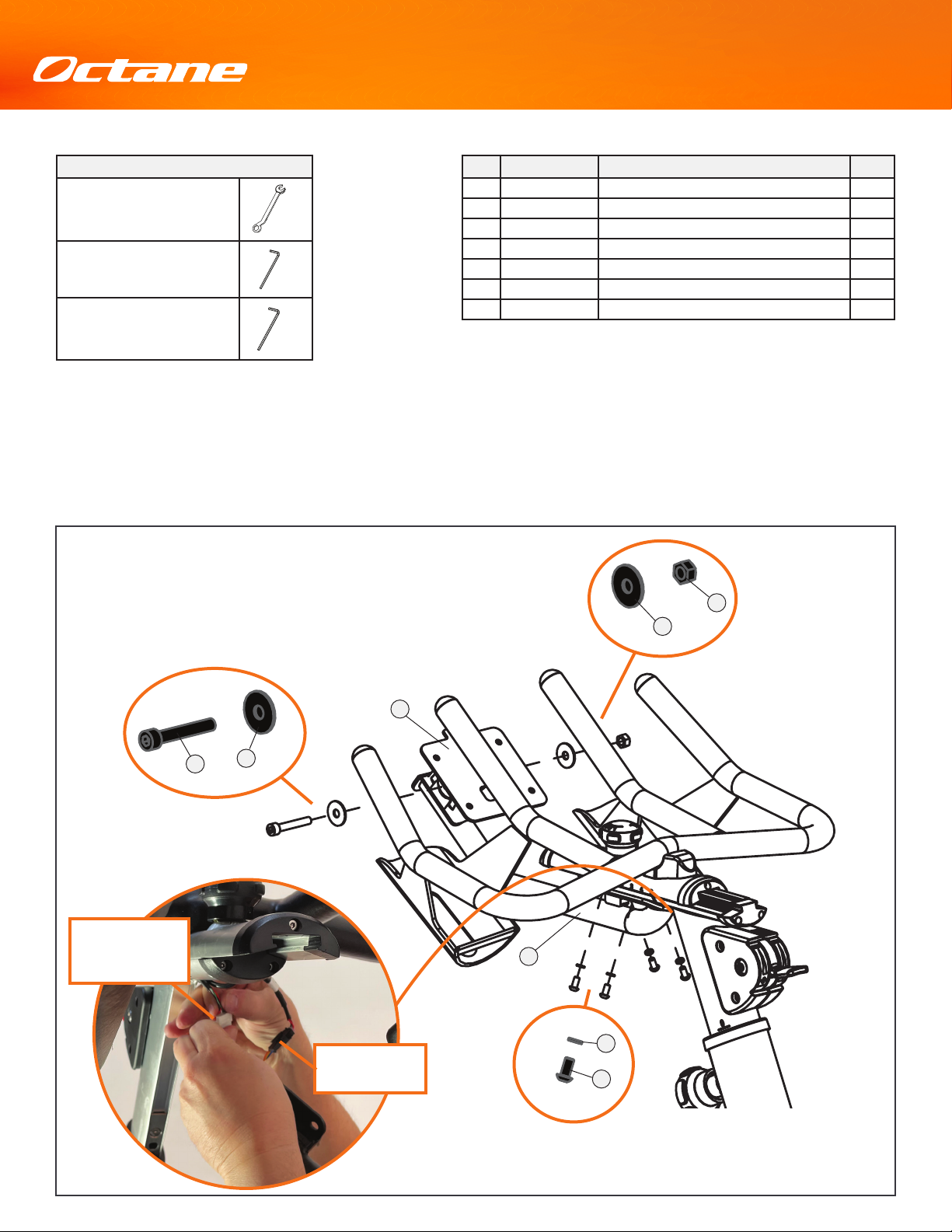

1. Connect the cables from the console arm assembly to the cables from the handlebar neck assembly:
+ Black 3-pin potentiometer cables (BC10003 and BC10005)
+ White 7-pin power/communication cables (BC10003 and BC10005)
2. Carefully tuck the cables into the handlebar neck assembly so they do not get pinched.
3. Finger tight the four M6 screws/washers to attach the console arm assembly to the handlebar neck assembly. When
all four screws are seated, use a 4mm wrench to fully tighten.
4. Use a 6mm wrench and 13mm wrench to attach the console bracket to the console arm assembly.
Item Part Number Description Qty
1 SM0025A SHCS, M8 X 50MM, BLK ZP 1
2C1093C WASHER, FLAT, M8, SS 2
3 BC10620 CONSOLE BRACKET 1
4 SM0033A LOCK NUT, M8, NYL INS JAM NUT BLK ZP 1
5BC10610 CONSOLE ARM ASSEMBLY 1
6C1301A BHCS, M6 X 12MM, BLK ZP 4
7SD0077 WASHER, LOCK M6 BLK ZP 4
Tools Used in this Step
13mm Wrench
4mm Wrench
6mm Allen Wrench
Step 6—Attach Console Bracket and Arm Assembly
6
7
5
4
3
2
2
1
potentiometer
cables
power/
communication
cables

19
2
1
1. Connect the cable from the console to the cable from the console arm assembly: 10-pin power/communication cable
(BC100014 and BC10003).
2. Carefully tuck cable inside the console arm assembly so it does not get pinched.
3. Seat the tab on the console bracket inside the notch on the console.
4. Use a #2 Phillips screwdriver to attach the console to the console bracket.
Step 7—Attach Console
Tools Used in this Step
#2 Phillips Screwdriver
Item Part Number Description Qty
1 BC10900 CONSOLE 1
2C10003A PHCS, M5 X 15MM, BLK ZP 4
power/
communication
cables

20
Seat
A place for users to sit during a workout.
Handlebars
A place for users to put their hands during a workout and
helps provide balance.
Console
Allows the user to set up a workout program and control
the bike during a workout.
Seat Adjustment Knobs
Allows adjustment to the vertical and horizontal positions
of the seat to t the size of the user.
Bottle Holders
Holds average size drink bottles for convenient use
during a workout.
Console
Bottle Holders
Seat
Pedals
Leveling Feet
Handlebar Vertical
Adjustment Knob
Seat Vertical
Adjustment Knob
Seat Horizontal
Adjustment Knob
Handlebar Horizontal
Adjustment Knob
Resistance
Lever

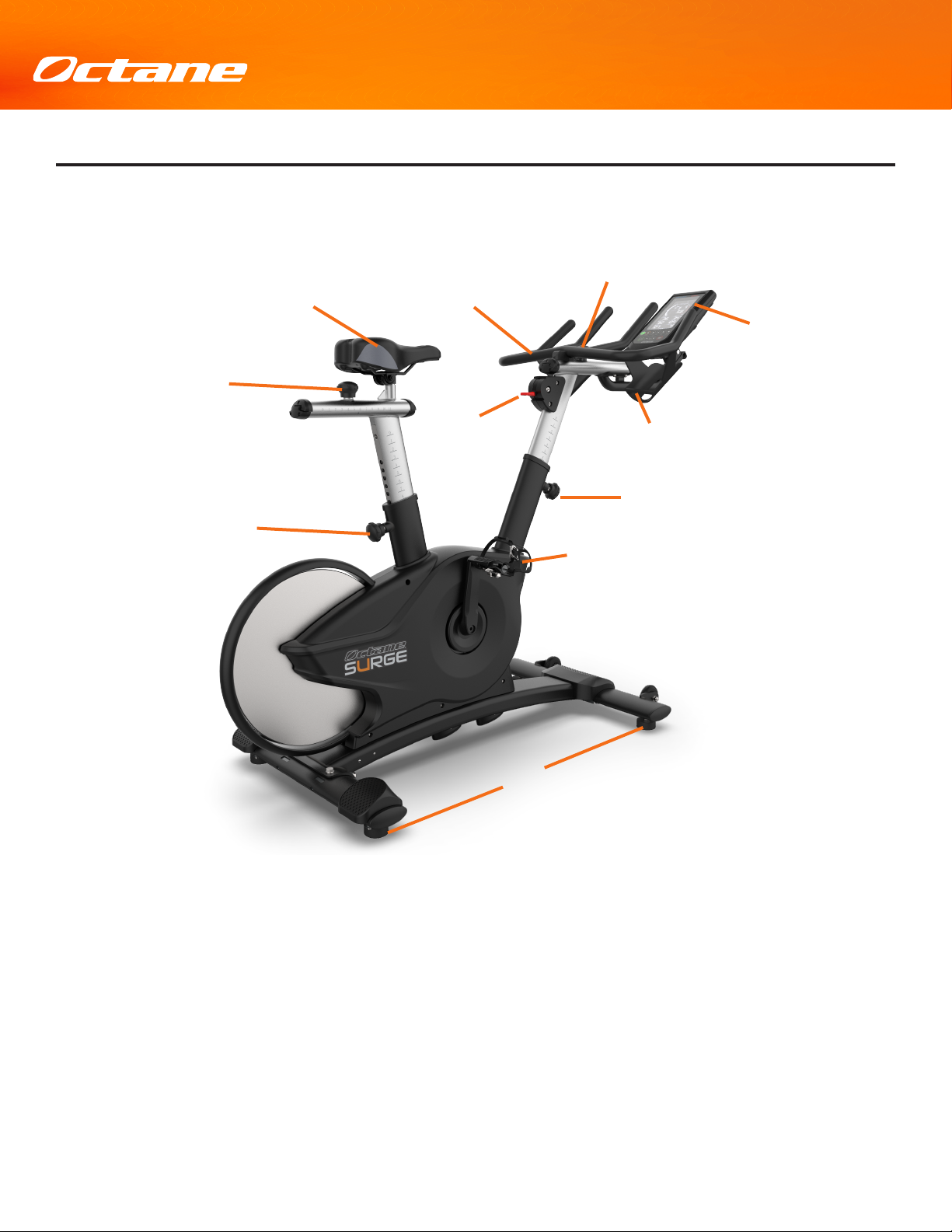

PRODUCT FEATURES
CHAPTER 3—PRODUCT OVERVIEW
Handlebars
Handlebar Adjustment Knobs
Allows adjustment to the vertical and horizontal positions
of the handlebar to t the size of the user.
Pedals
Moving part of the bike that provides resistance to the
lower body during a workout.
Leveling Feet
An adjustable system used to aid in the leveling of the
bike.
Resistance Lever
Allows the user to adjust the resistance level during the
workout.
