OCTOMINER X8 ULTRA User manual

X8 ULTRA
OCTOMINER™
System Quick Start Guide
Welcome
Thank you for purchasing the OCTOMINER™ X8 ULTRA™ mining system.
This guide will help you set up the system and troubleshoot the most common
issues you might encounter.
Initial testing and set up
The system has been pre assembled and tested to be in working condition. There are
a few simple steps to inserting your graphics cards, connecting IO and power.
1.

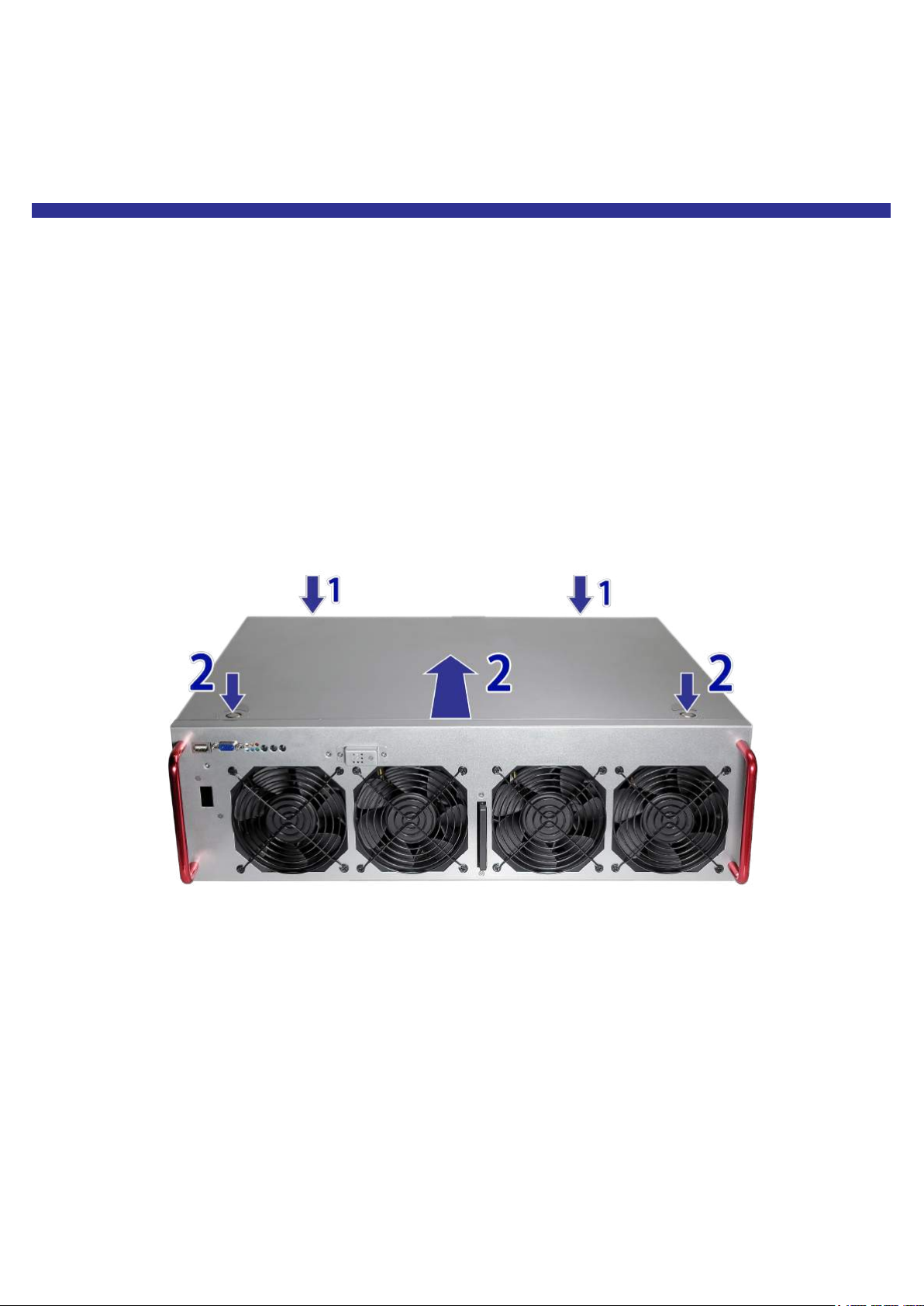

Open the lid by unscrewing 2 on the back, then press down on the quick release buttons on the
front top of the case and slide the lid in the direction shown by the arrow.
2.
Inspect visually that there are no obstructions in the front panel fans, e.g. cables.
3.
Insert a CR3032 CMOS battery to the motherboard.
4.
Connect the rear panel VGA to a monitor, a LAN cable to the ethernet port and
optionally a usb device like a keyboard to the rear or front panel USB port. Lastly connect the
provided power cable to the C14 port of the power supply to boot the system. Turn on the power
from the PDU (Power Delivery Unit in order to make sure that the power supplies power up at the
same time.

5.
Wait for the system to initialize, until you see the OCTOMINER™ boot logo.
Make sure the OLED display works, test the usb port by typing on the keyboard
(for example hit DEL key to enter the system BIOS), see that the wired ethernet lights turn
on and there is video out on your monitor. Try resetting the system from the middle button,
then try rebooting the system from the top button and the bottom button to CLEAR CMOS.
6.
Make sure that the PCIE connectors are firmly connected to the motherboard.
Start inserting your graphics cards and using the supplied M3 screws to fasten the
graphics card bracket to the chassis.

OCTOMINER™
www.octominer.com
[email protected]
X8 ULTRA is a trademark of OCTOMINER™
8.
Manage the cables and make sure once more that there is nothing obstructing the system
fans on the front. Close the lid and connect power, VGA, LAN and any pheripherals.
Boot the system by pressing the power button on the front or rear.
9.
Our system comes installed with HiveOs by default. For any questions on using HiveOS,
refer to HiveOS quick start guide found here:
https://hiveos.farm/getting_started-quick_install/
For OCTOMINER HiveOS integration, look for the HiveOS integration manual on our
manuals page.
Congratulations!
You are off and running! OCTOMINER™ Support Engineers are always available by email to assist
you in any way we can.
7.
Every cable has a DIFFERENT LENGHT.
After the graphics cards are firmly connected and fastened take the bundle of the black
tip PCIE cables and stretch them out. Start from the shortest cable and connect it to the
backplane in the port labeled as “1”. Continue with the next longest in order from right
to left and bottom to top. Cable labeled as “8” is the longest.
