Odiseimusic Travel Sax User manual
Travel Sax
User Manual
Please read this manual carefully before operating
your set and retain it for future reference.
www.odiseimusic.com
English
SPECIAL MESSAGE SECTION
This product utilizes rechargeable batteries. DO NOT connect this product to any
power supply or adapter dierent than one described in the manual or specically
recommended by OdiseiMusic.
This product should be used only with the components supplied or in case is used
a non-ocial accessory, please observe that the specications are the same as the
ocial ones.
IMPORTANT: Don’t try to open or disassembly the Travel Sax. For any technical
problem it may have, please contact Odisei Music for further information.
SPECIFICATIONS SUBJECT TO CHANGE:
The information contained in this manual is believed to be correct at the time
of printing. However, Odisei Music reserves the right to change or modify
any of the specications without notice or obligation to update existing units.
This product, with an amplier and headphones or speaker/s, may be capable of
producing sound levels that could cause permanent hearing loss. DO NOT operate
for long periods of time at a high-volume level or at a level that is uncomfortable. If you
experience any hearing loss or ringing in the ears, you should consult an audiologist.
IMPORTANT: The louder the sound, the shorter the time period before damage
occurs.
ENVIRONMENTAL ISSUES:
Odisei Music strives to produce products that are both user safe and environmentally
friendly. We sincerely believe that our products and the production methods used to
produce them, meet these goals. In keeping with both the letter and the spirit of the
law, we want you to be aware of the following:
This product is classified as Radio Equipment.
Battery Notice
This product incorporates a Li-Po type Battery.
Disposal Notice
Should this product become damaged beyond repair, or for some reason its useful life
is considered to be at an end, please observe all local, state, and federal regulations
that relate to the disposal of products that contain lead, batteries, plastics, etc. If your
dealer is unable to assist you, please contact Odisei Music directly.
SERIAL NUMBER LOCATION:
The serial number is located on the instrument body, below the low keys.
Please nd other laguages of the User Manual in the following link:
www.odiseimusic.com/get-started
Languages available: English, Spanish, French, German, Japanese, Chinese.
FCC INFORMATION (U.S.A)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product meets FCC requirements once it is produced and assembled.
Modications not expressly approved by Odisei Music may void your authority,
granted by the FCC, to use the product.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Contains FCC ID: SH6MDBT40
2. IMPORTANT
When connecting this product to accessories and/or another product use only high-
quality shielded cables. Cable/s supplied with this product MUST be used. Follow all
installation instructions. Failure to follow instructions could void your FCC authorization
to use this product in the USA.
3. NOTE
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not noccur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.devices.
DECLARATION OF CONFORMITY
The full text of the US declaration of conformity is available at the following internet
address: www.odiseimusic.com/get-started
* This applies only to products distributed by ODISEI MUSIC.
Industry Canada Regulatory Information
* This applies only to products distributed by ODISEI MUSIC.
This product meets the applicable Innovation, Science and Economic Development
Canada technical specications.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
This host device contains a Raytac MDBT40 Transceiver Certied Bluetooth Module
with IC: 8017A-MDBT40
The wireless product complies with IC radiation exposure limits for portable devices.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS
102 and compliance with RSS102 RF exposure, users can obtain Canadian information
on RF exposure and compliance.
This device includes a Li-Po Battery in conformity with IEC/EN 62133-2:2017.
IMPORTANT
IC Radiation Exposure Statement
Li-Po Battery Information
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
* Please keep these precautions in a safe place for future reference.
WARNING
CAUTION
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from
electrical shock, short-circuiting, damages, re or other hazards. These precautions include, but are not limited
to, the following:
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or
damage to the instrument or other property. These precautions include, but are not limited to, the following:
• Do not open the instrument or attempt to disassemble the internal parts or modify
them in any way. The instrument contains no user-serviceable parts. If it should
appear to be malfunctioning, discontinue use immediately and have it inspected
by qualied Odisei Music service personnel.
• Do not expose the instrument to rain, use it near water or in damp or wet cond
tions, or place containers on it containing liquids which might spill into any openings.
• Use the specified adaptor recommended by Odisei Music only (or another one
with same specifications). Using the wrong adaptor can result in damage to the ins-
trument or overheating.
• Before cleaning the instrument, always remove the electric plug from the outlet.
Never insert or remove an electric plug with wet hands.
• Check the electric plug periodically and remove any dirt or dust which may have
accumulated on it.
• Keep this product always out of reach of children. It is not a toy.
• Do not place the product and the cable charger near heat sources such as heaters
or radiators, and do not excessively bend or otherwise damage the cord, place heavy
objects on it, or place it in a position where anyone could walk on, trip over, or roll
anything over it.
• When removing the cable charger from the instrument or an outlet, always hold the
plug itself and not the cord.
• Do not expose the instrument to excessive dust or vibrations, or extreme cold
orheat (such as in direct sunlight, near a heater, or in a car during the day) to prevent
the possibility of damage to the internal components.
• Do not place the instrument in an unstable position where it might accidentally fall
over.
• Before moving the instrument, remove all connected adaptor and other cables.
• When cleaning the instrument, use the Odisei Music cloth included or a soft and dry
cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated
wiping cloths. Also, do not place vinyl or plastic objects on the instrument, since this
might discolor the keyboard.
• Do not rest your weight on, or place heavy objects on the instrument, and do not
use excessive force on the buttons, switches or connectors.
• Do not operate the instrument for a long period of time at a high or uncomfortable
volume level, since this can cause permanent hearing loss. If you experience any
hearing loss or ringing in the ears, consult a physician.
• Always turn the power off when the instrument is not in use.
• The Travel Sax should not be exposed to water (dripping or splashing) and no
objects filled with liquids, such as vases, should be placed on the apparatus.
• Do not use the Travel Sax and the in conditions with extremely low air pressure.
Odisei Music cannot be held responsible for damage caused by improper use or
modications to the instrument, or data that is lost or destroyed.
EU SIMPLIFIED DECLARATION OF CONFORMITY
Hereby, Odisei Music declares that the radio equipment type TravelSax Model TS-01
is in compliance with Directive 2014/53/EU &Directive 2011/65/EU. The full text of
the EU declaration of conformity is available at the following internet address:
www.odiseimusic.com/get-started
11
Contents
Features
Packing List
Get Started
Maintenance
Troubleshooting
Dimensions
Specications
Contact Us
Terms of Warranty
8
10
11
14
15
16
17
18
19
This User Manual is intended to give you a brief overview
and the necessary information of the Travel Sax – the
smallest and lightest electronic saxophone in the world!
The Travel Sax takes wind MIDI control to new levels of
performance and playability.
This small MIDI controller works with your smartphone and
your PC.
It uses a standard saxophone mouthpiece and the position
of the keys as well as the pressure needed to play them
mimic a conventional saxophone.
From now on you will be able to practice anytime anywhere
without disturbing other enabling to improve your
saxophone skills much faster.
You will also have access to our Travel Sax app for free,
available on Apple Store and Google Store.
With the app you will be able to practice and learn in a
faster and easier way.
TRAVEL SAX
1312
Features
Travel Sax is the smallest and lightest electronic saxophone in
the world! What does it make the best electronic saxophone in
the market?
DESIGN
Realistic electronic saxophone with incredibly playability and
expressive control.
It has 22 keys and all of them have been designed to emulate
the position and the pressure of a standard saxophone to ll as
comfortable as possible when playing it.
CONECTIVITY
You can connect your Travel Sax to a computer or a smartphone
using Bluetooth or USB connection. Playing quietly is also
possible if you connect your headsets to the Smartphone or PC.
TRAVEL SAX APP
The Travel Sax app will allow you to play dierent saxophone
sounds by simply swiping from one to another. You will also be
able to play with dierent sound eects such as: Reverb, Delay,
Key sounds, Humanisation among others.
MOUTHPIECE ADAPTOR
Travel Sax has been designed to be used with a Standard
Alto mouthpice but it includes 3 dierent adaptors so you can
also play it using your own Soprano, Tenor or even Baritone
saxophone mouthpiece.
EXPRESSIVENESS
The High-resolution wind sensor achieves precise breath
response for smooth, natural velocity/volume control.
1514
Packing List
Once you open the Travel Sax packaging, make sure that it
includes all of the items listed below.
Travel Sax case
A rigid case to give full protection to your Travel Sax and keep
safe all of your accessories.
Travel Sax
A fully functional and playable electronic saxophone to play
anywhere anytime.
Alto mouthpiece
An Odisei Music alto mouthpiece with the reed included. This
regular mouthpiece can be used without any adaptor.
x3 Mouthpiece adaptors
Three mouthpiece adaptors for every dierent saxophone
mouthpiece (Baritone, Tenor and Soprano).
USB-C cable
Don’t let your Travel Sax run out of battery with your charger. This
USB-C cable will let you play your saxophone with no latency by
plugging it directly to your smartphone.
Microber cloth
Remember to always keep your Travel Sax clean by removing the
dust and saliva after and before you play.
Drawstring bag
Keep safe all the accessories in this velvet drawstring bag.
Get Started
Travel Sax app1.
Here you can nd a quick review of how to get started with your
Travel Sax and learn how to set it up.
You can nd all the getting started videos on our webpage:
www.odiseimusic.com/get-started or by scanning each QR
code with your smartphone.
Download for free the Travel Sax
app from the Apple Store or Google
Play.
Taking your Travel Sax2.
To pull out your Travel Sax from the
case, grab it carefully by the key
pillars indicated in the picture.
You can also scan the following QR
code to watch a quick start video
tutorial with all the rst steps in
one unique video.
1716
Power ON/OFF
Bluetooth connection
Mouthpiece position
3.
4.
5.
Turn on your Travel Sax by
pressing one time the power
button. For turning it o, double
press the button.
Single PRESS - Turn On
Double PRESS - Turn O
QR code
Travel Sax Bluetooth is always
ON. To connect it with the app,
press the “Connect my Travel
Sax” button on the main page
and then nd your Travel Sax.
Press it to link both devices.
Slide down a little bit the reed
of your mouthpiece for a
better playability of the Travel
Sax and avoid blowing noises.
To facilitate the placement,
we recommend adding some
lubricant or oil in the O-rings
of the Travel Sax for a smooth
connection.
¿How to charge your Travel Sax?8.
Mouthpiece adaptor (optional)
Use of the Travel Sax App
6.
7.
To charge your Travel Sax, rst
make sure that it is ON. Then
connect it with your USB-C cable
to the connection below the
power button.
Make sure that the LED lights
blink to know that it is charging.
On the main page of the app
swipe left or right to choose the
saxophone you want to play. You
can use some eects to make
your playability more real! You
will also be able to modify some
parameters of the Travel Sax to
improve your experience.
Adjust your mouthpiece to the
adaptor in case you don’t use an
Alto mouthpiece.
Mount your mouthpiece on by
rotating on it. If it is hard to plug
it, you can also use some oil or
lubricant to make it easier.
1918
Maintenance
You can nd the video in the following link of our webpage or by scanning the
QR code with your smartphone: www.odiseimusic.com/get-started
We have designed the Travel Sax to be durable and easy to use,
but regular cleaning and mantainance will ensure that it stays in
good condition. It will also give you the best possible experience
while playing it.
• After playing, take o the mouthpiece and blow the Travel
Sax without it to remove all the saliva that hasn’t been
removed from the inside.
• When not in use, keep the mouthpiece and the reed dry and
clean. For a better cleaning use some water and a cloth for
drying.
• Make sure that both adaptor and Travel Sax connection are
completely clean after you play.
• For a better hygiene always clean the saliva in the inner
side of the blowing tube of the Travel Sax by trying to use a
cleaning cloth. Also remember to clean the bottom of the
Travel Sax, where the saliva comes out.
• Use the Odisei Music microber cloth to remove the dust
carefully from the Travel Sax.
• Never apply water directly to the Travel Sax.
Troubleshooting
Problem Cause & Correction
No power
• The Travel Sax ran out of battery.
• Plug in the charging cable.
• Check whether electricity failed.
• Check the condition by operating other electronic devices.
No sound
• The Travel Sax is not connected to the device. Plug in the USB
cable to a device or connect it via Bluetooth through the app.
• The unit or your smart device’s volume is set to minimum.
Check and adjust the volume of the speaker or your device’s
volume.
Bluetooth pairing
does not work
well
• Switch Bluetooth o and on again on your Bluetooth device,
then try pairing again.
• Be sure your Bluetooth device is on.
• Remove the obstacle in the path of the Bluetooth device and
the unit.
• Make sure the distance between both devices is less than 6m.
The app doesn’t
work properly
• Make sure that your smart device is compatible with the app.
• Make sure that the application is the latest version.
The sound has
delay
• Make sure that you are not using two Bluetooth connections
at the same time (ex. Travel Sax to phone device and also
phone device to Bluetooth headphones). It will increase the
latency in your Bluetooth, so the sound will have a huge delay.
• In the app settings try to adjust the “Latency” parameter to
see which works better (Low, Mid or High) for your phone.
Usually Mid works for every phone, but in case you have a
low performance phone, try to use High. If you have a high
performance device, and with Mid it doesn’t work as expected,
try to use Low.
The Travel Sax
doesn’t charge
• Make sure to turn ON the Travel Sax before pluging in the
USB-C cable.
2120

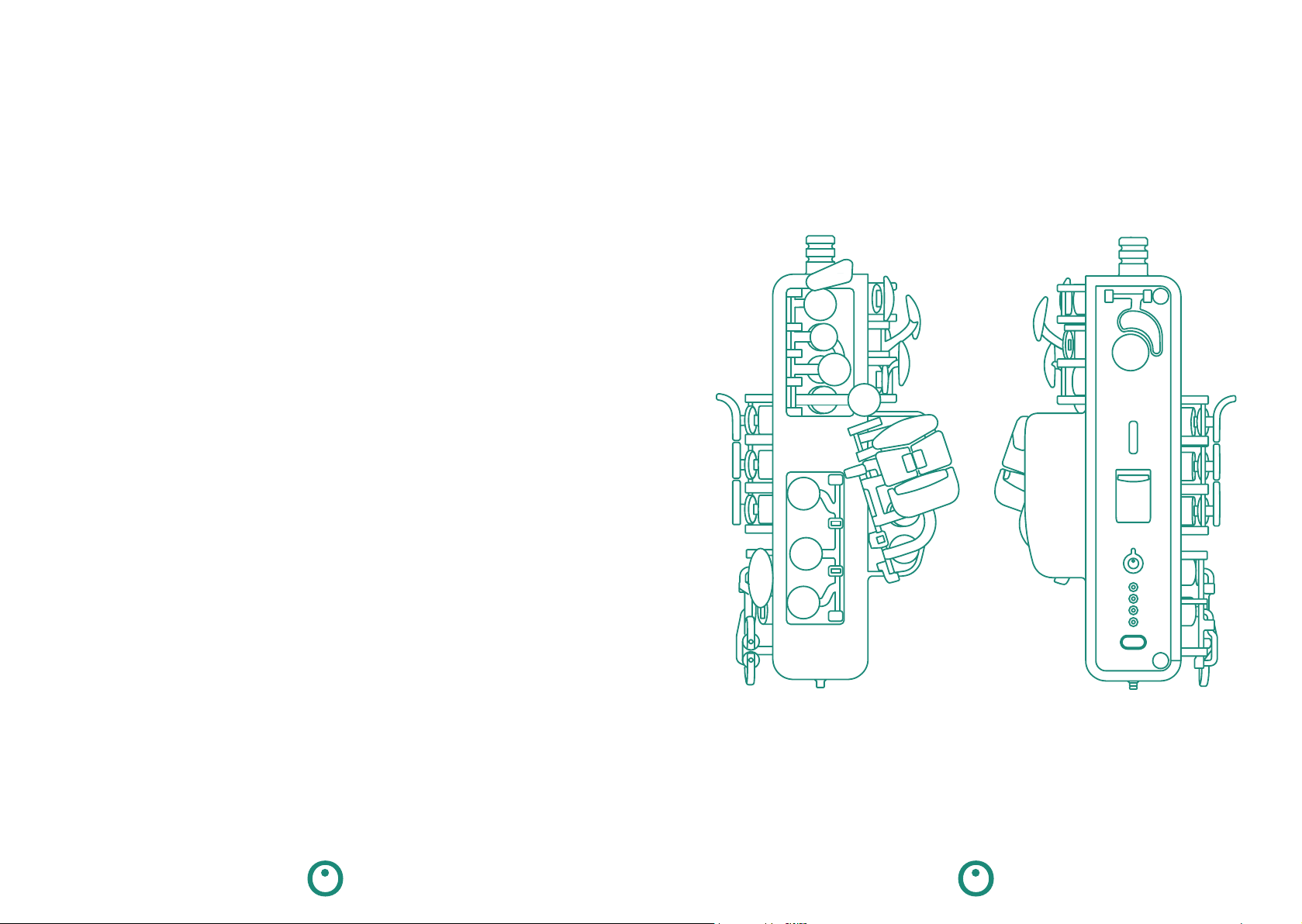

Dimensions
22 cm 8 cm
12.5 cm
Specications
Dimensions
8.66 x 4.96 x 3.34 in / 22 x 12.5 x 8 cm
Weight
7.4 oz / 225 g.
Power Consumption
5V (USB Type C)
Operating temperature
10 ºC to 36 ºC / 50 ºF to 97 ºF
Operating humidity
20% to 80%
Material composition
PA12 (polyamide)
Bluetooth Module
Module MDBT40-P
2.4GHZ Bluetooth transceiver
TX Max Power: 4 dBm
Lithium Battery
800mAH Li-Po Battery
Input Voltage: 5V (USB Type C)
Model
TS-01
Hardware Version
v1.0
Software Version
v1.0
22
Contact Us
BASIC INFORMATION
1. Brand
2. Date of manual publication:
April 2020
For details or questions regarding the product use, technical
troubleshooting or warranty please contact us:
ODISEI MUSIC S.L
Calle Doctor Murillo 10, Sant Cugat del Vallés, 08172, Spain
Tel: +34 649 108 959
www.odiseimusic.com
Terms of warranty
REFUND POLICY (only in European Union)
The consumer has a total of 14 days from the acquisition of the Travel Sax to
be able to return the product thus receiving a full refund of the price of the it.
The product must be in the same state and with the all the original content in
order to receive a full refund.
Shipping costs will be paid by the customer.
WARRANTY
OdiseiMusic warrants the included hardware product and accessories against
defects in materials and workmanship for two years from the date of original
purchase. Unless proven otherwise, it will be presumed that the breaches of
conformity manifested in a period of six months from the delivery of the good
already existed on that date.
The warranty will not cover the repairing costs of the following cases:
- Misuse of Travel Sax, whether subject to extreme conditions,
as using it incorrectly.
- Improper handling of the product.
- Normal wear and tear, nor damage caused by accident or abuse.
- Malfunction due to the use of accessories not authorized by
OdiseiMusic.
CONTACT INFORMATION
The contact information is provided below in case of requesting a return or
replacement as long as it is covered by the warranty.
Manufacturer: Odisei Music S.L
Shipping Address: Calle Doctor Murillo 10, Sant Cugat del Valles, 08172, Spain
Contact Number: +34 649 108 959
®
© 2020 Odisei Music S.L. All rights reserved. Travel Sax and the Odisei Music logo are
registered trademarks of Odisei Music in the UE and registered in other many countries.
Travel Sax is a trademark of Odisei Music. The Bluetooth® word mark and logos are
owned by the Bluetooth SIG, Inc. and any use of such marks by Odisei Music are under
license. Design and specications subject to change without notice. The Travel Sax may
not be authorised for use in some countries.
