Odys DVD-DE250806 User manual

DEENFRNLPTESIT
LCD-TV 17" DVD
BENUTZERHANDBUCH
USER MANUAL
MANUEL D’UTILISATION
GEBRUIKSHANDLEIDING
MANUAL DE INSTRUÇÕES
MANUAL DEL USUARIO
MANUALE PER L'UTENTE

ODYS LCD-TV 17” DVD
1
EN
Table of Contents
1 Safety instructions........................................................................... 2
2 Characteristic Features and Contents of package .......................... 5
3 Controls and connections................................................................ 7
3.1 Front view/ Front View...........................................................................................7
3.2 Rear View ..............................................................................................................9
3.3 Remote Control ...................................................................................................10
4 System Connections ..................................................................... 13
4.1 Connecting To External AV Signal Source........................................................... 13

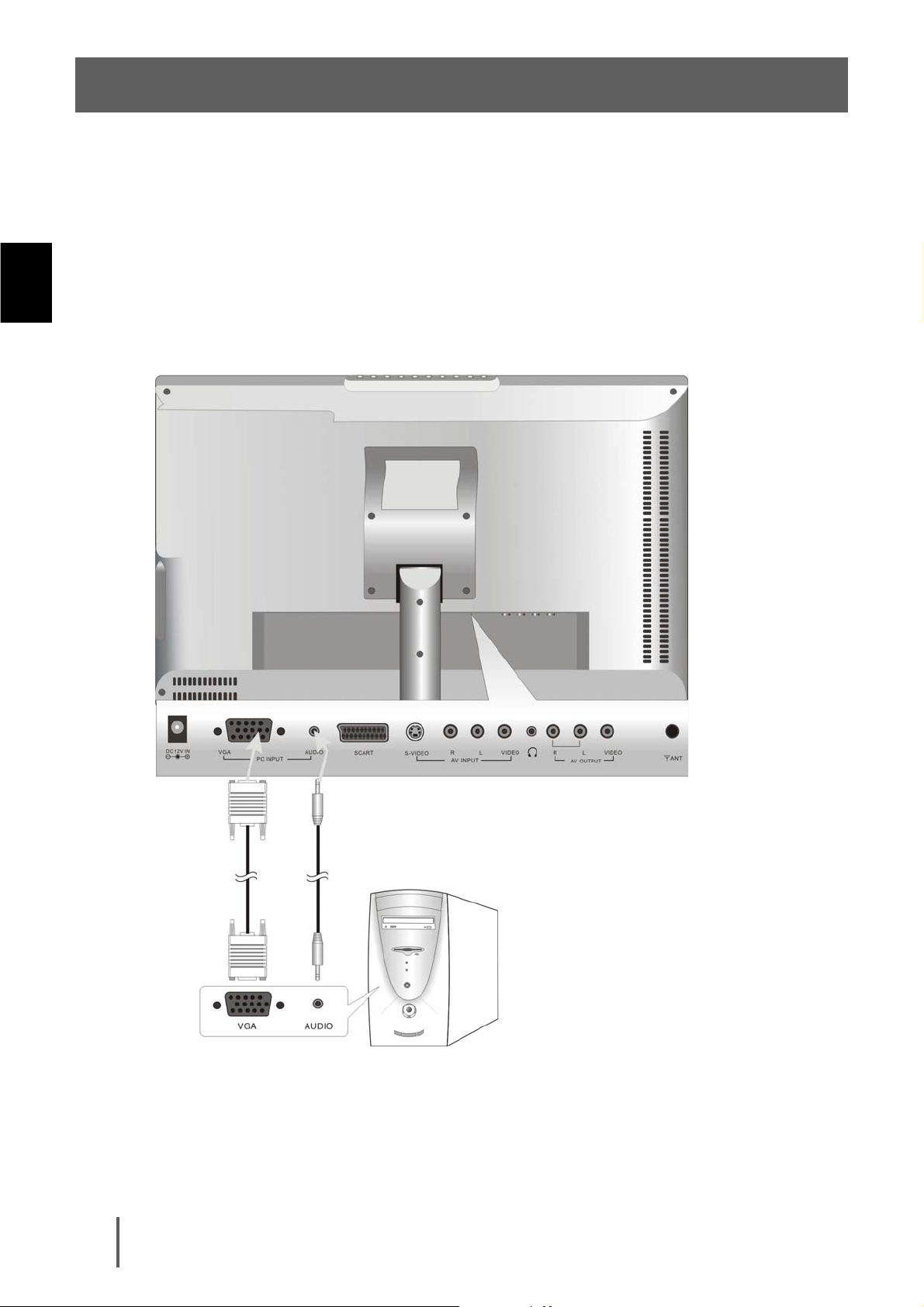

4.2 Connecting to PC ................................................................................................ 14

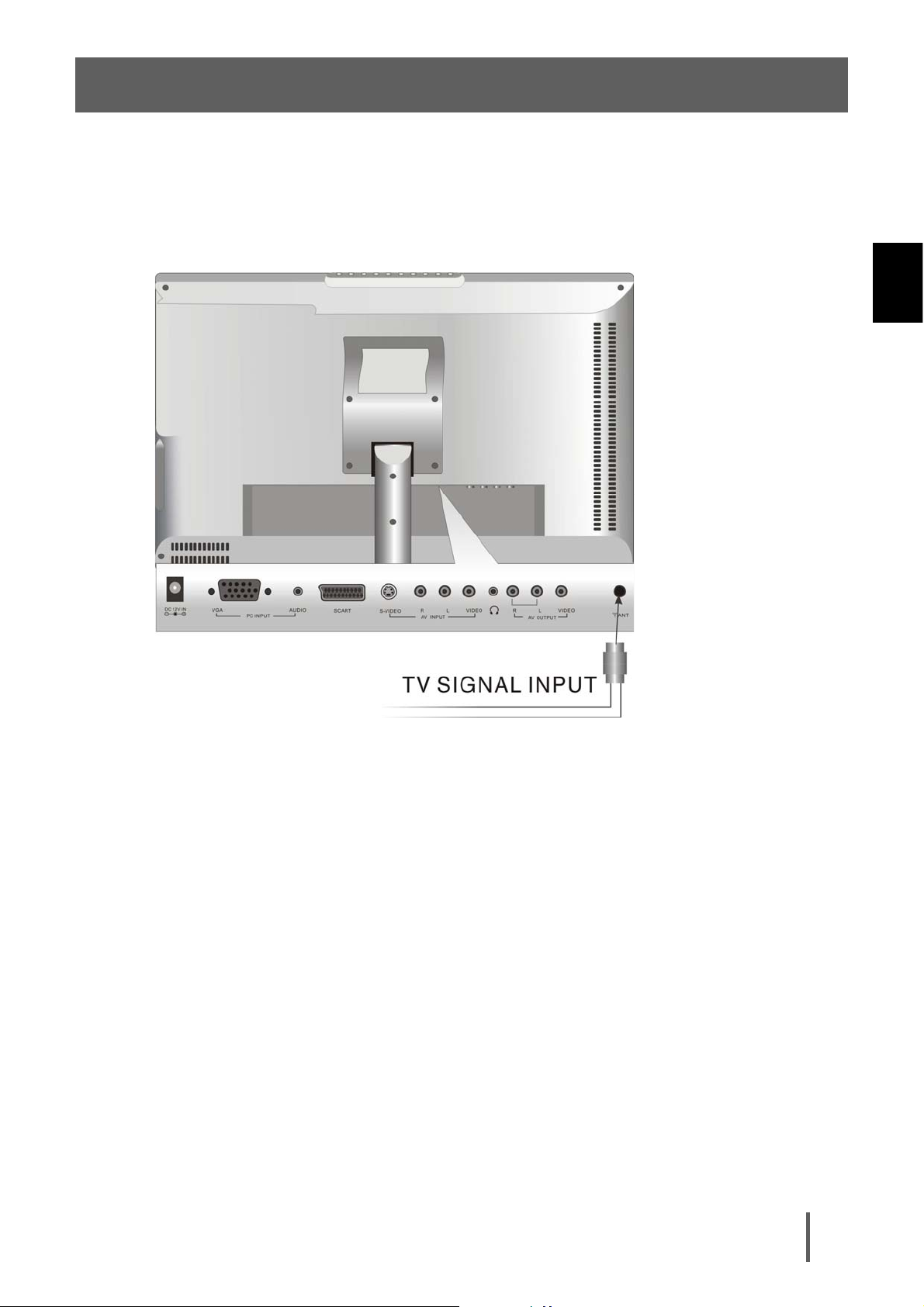

4.3 Connecting to TV-Signal Input ............................................................................. 15

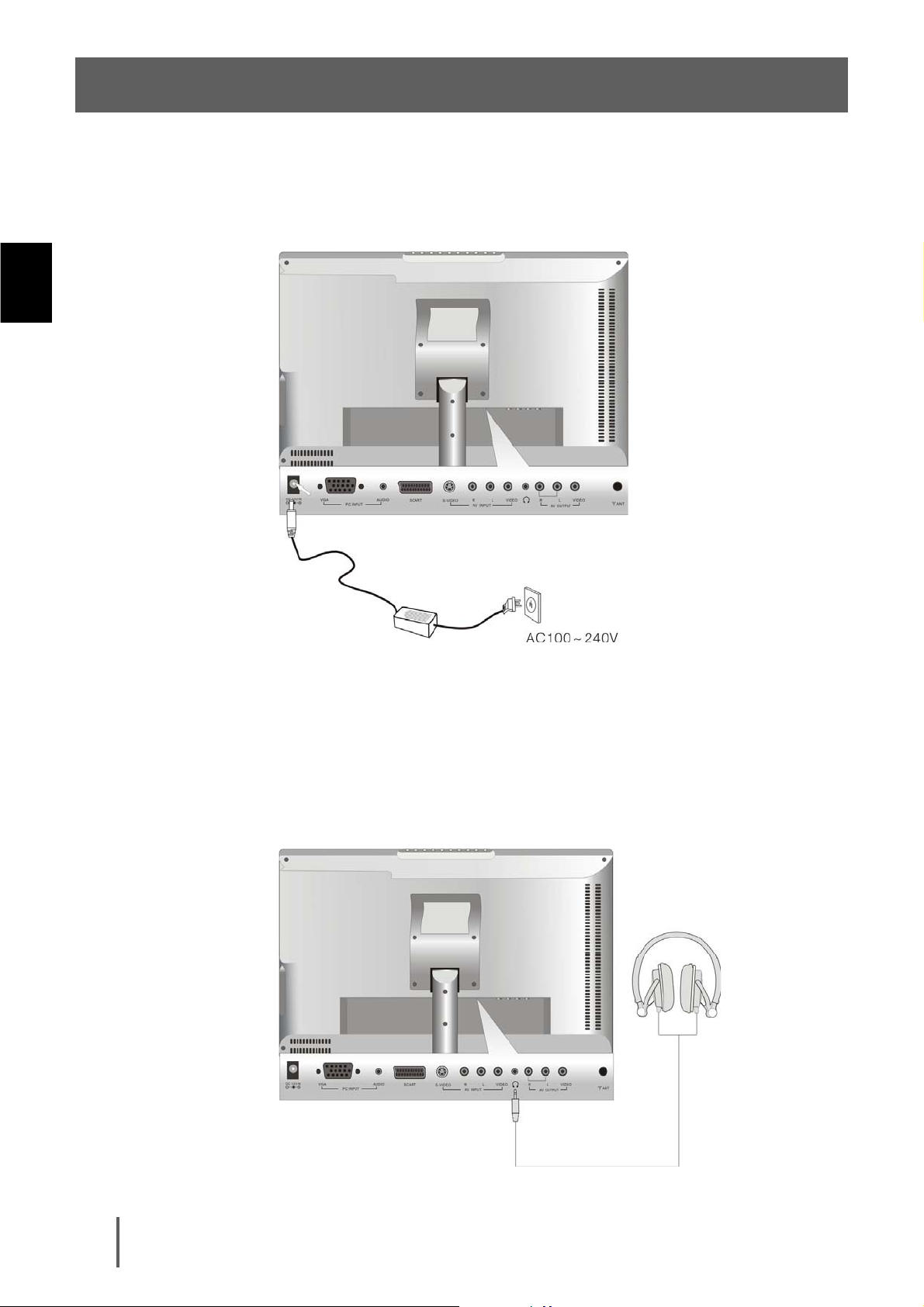

4.4 Connecting to Power Adapter..............................................................................16
4.5 Connecting to Earphones .................................................................................... 16

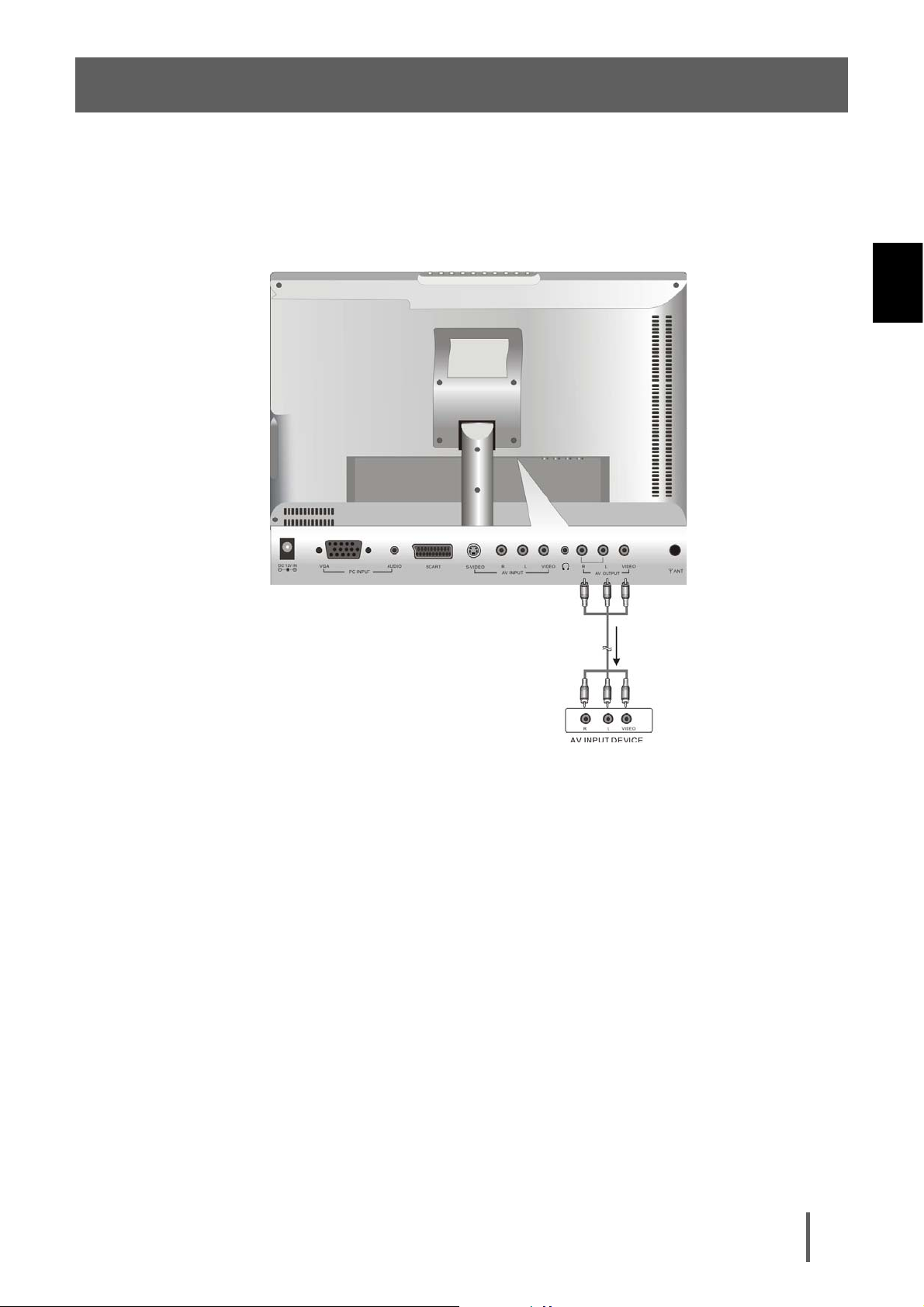

4.6 Connecting to an External Unit (AV Input) ........................................................... 17
5 System Setup and Operation ........................................................ 18

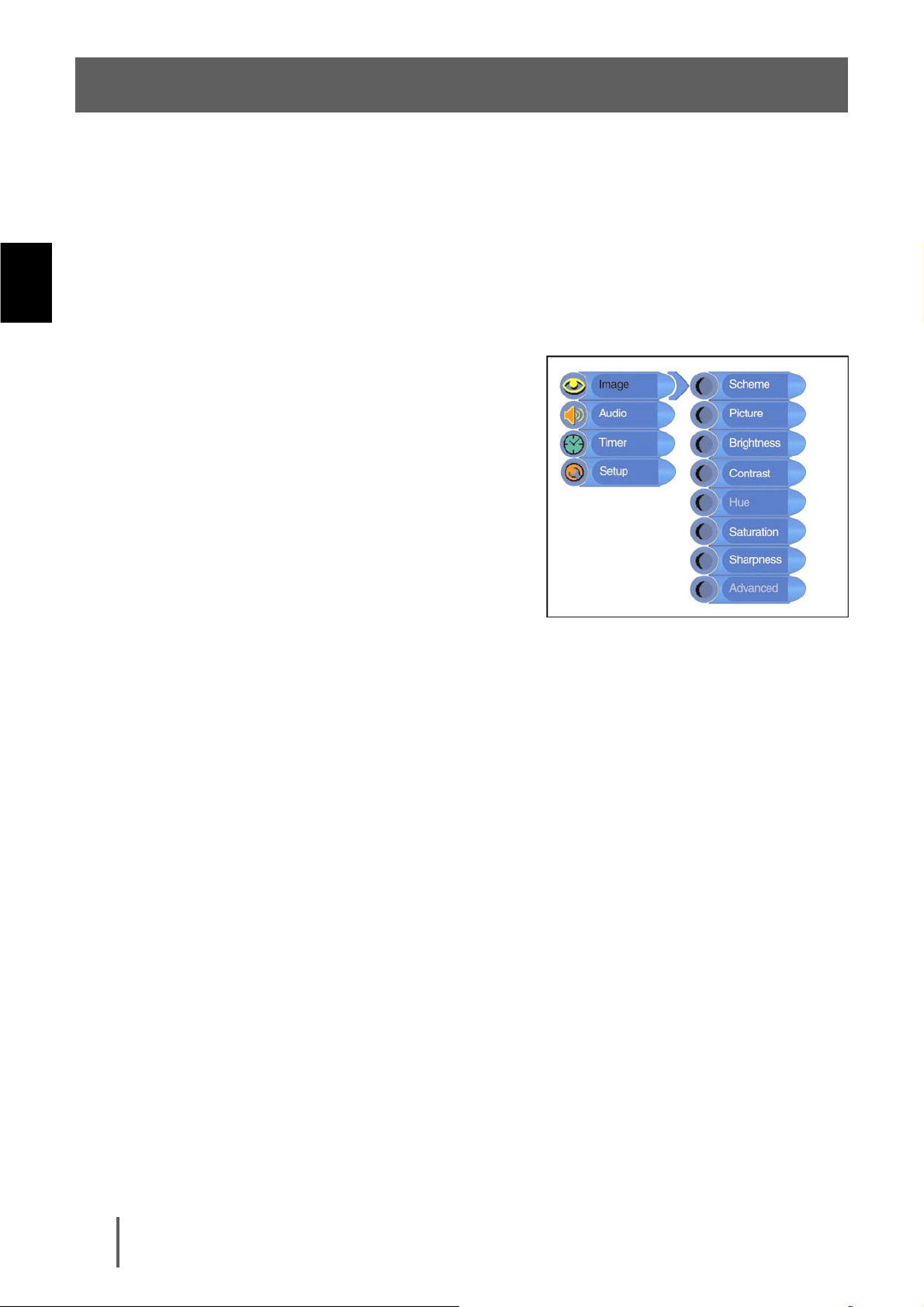

5.1 Image Setting ...................................................................................................... 18

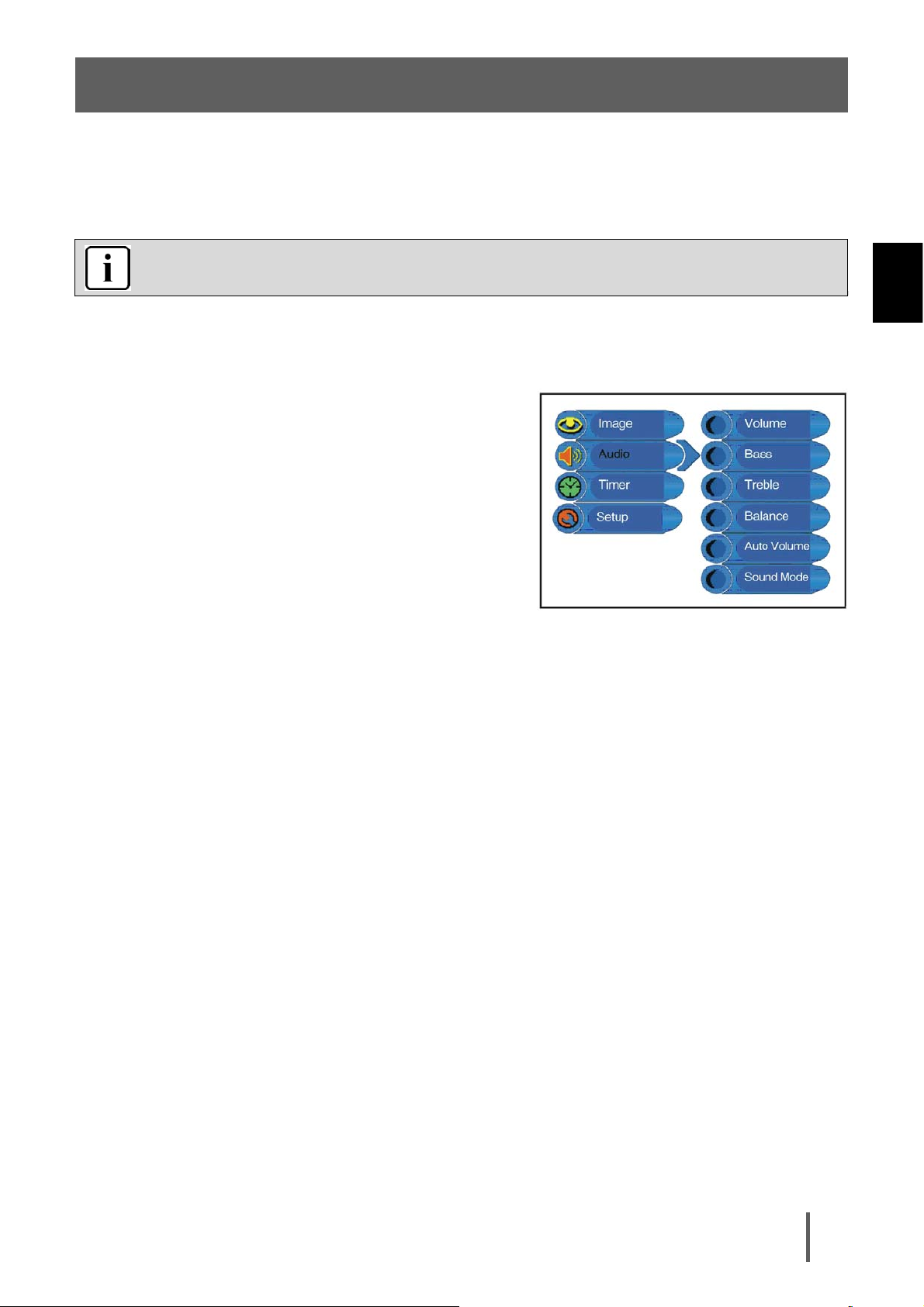

5.2 Audio Setting .......................................................................................................19
5.3 Timer Setting ....................................................................................................... 20
5.4 Setup Setting .......................................................................................................20
6 Playback operation........................................................................ 23
6.1 Switching Standby Operation On and Off............................................................ 23
6.2 DVD Playback ..................................................................................................... 24
6.3 CD Playback........................................................................................................25
6.4 JPEG Playback....................................................................................................26
7 DVD Setup Menu .......................................................................... 27
7.1 Setup Menu .........................................................................................................27
7.2 General Setup Page ............................................................................................ 27
7.3 Audio Setup Page................................................................................................ 27
7.4 Video Setup Page................................................................................................ 28
7.5 Preference Page.................................................................................................. 28
8 Troubleshooting............................................................................. 29
9 Specifications ................................................................................ 30
Warranty conditions....................................................................... 31

ODYS LCD-TV 17” DVD
2
EN
1 Safety instructions
Thank you for choosing our product. Please read this manual carefully and observe all
safety and operating instructions. Store the manual in a safe place for later reference.
The information symbol in the documentation indicates useful information and tips for
using and maintaining the device.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION:
1. The product contains a low-power laser device. In order to ensure the safety of the laser device,
do not remove any cover and attempt to repair the unit. If any service is needed, please contact
the distributor or its authorized service center.
2. To reduce the risk of electric shock, do not remove the cover (or back). No user-serviceable
parts inside. Refer servicing to qualified service personnel. Unplug the product from the wall
outlet before servicing or when it is unused for a long period of time.
3. The manufacturer should not hold responsibility for the damage caused by any substitutions
and modifications of the product without authorization from the manufacturer or authorized unit.

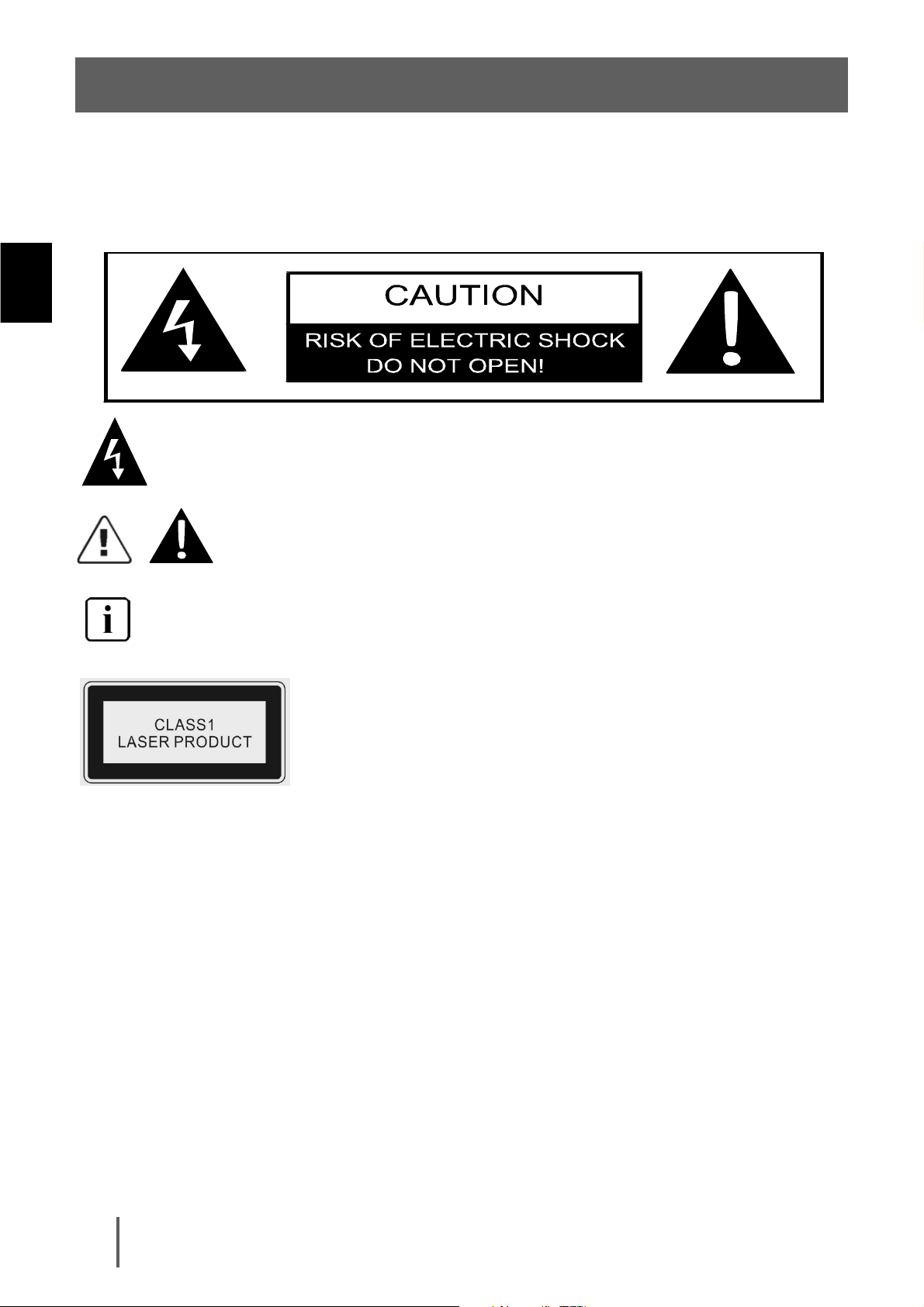

The flash symbol displayed in a triangle warns the user of dangerous electrical voltages
inside the device that could lead to electrical shocks with harmful effects to health if the
device is used incorrectly.
The exclamation point displayed in a triangle in the documentation indicates
dangers when using and maintaining the device.
CAUTION
Laser radiation when open. Do not stare into beam.

ODYS LCD-TV 17” DVD
3
EN
WARNING
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
NOTES
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near
water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Maintain well ventilated conditions around the product.
Do not put product on bed, sofa or anything that blocks ventilation. Install according to the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Read, heed and follow all instructions to ensure correct and safe installation and interconnection
of the apparatus.
10. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
11. The mains socket-outlet shall be installed near the apparatus and the mains plug shall remain
readily operable.
12. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
13. Only use attachments/accessories specified by the manufacturer.
14. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
15. Unplug the apparatus during lightning storms or when unused for long periods of time.
16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
17. The apparatus shall be connected to a mains socket outlet with a protective earthing connection.
Do not touch the color TFT LCD screen by hand directly.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to
beam.
3. CAUTION: Do not open the top cover. There are no
user serviceable parts inside the unit. Leave all servicing
to qualified service personnel.

ODYS LCD-TV 17” DVD
4
EN
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is prohibited.

ODYS LCD-TV 17” DVD
5
EN
2 Characteristic Features and Contents of
package
This product incorporates DVD player, LCD display and TV receiver in one system.
Multiple Mode
DVD mode VGA mode
TV mode SCART mode
CVBS mode S-VIDEO mode
Qualitätseigenschaften
High Resolution (DVD mode): Adopt an MPEG2 decoding format to achieve horizontal resolution
more than 500 lines.
Superior sound (DVD mode): Built-in Dolby Digital decoder to output high quality sound effects.
Special playback: Support multi-angle, multi-language and multi-subtitle playback.
LCD (Liquid Crystal Display): Designed with 17" color TFT liquid crystal display clearly shows the data.
Stereo amplifier: Built-in 2 x 5 W speakers provide high quality sound.
Teletext: Supports teletext and several teletext functions are available.
Advanced Playing Features
Compatibility: DVD, CD, CD-R, CD-RW and JPEG discs compatible.
All Playback Functions: Fast forward and reverse, slow playback, repeat playback.
Search By Time: Ability to search for a certain track of a disc by selected time.
Saving the playback position (resume): Resumes playback of the DVD from where it was
previously stopped (unit must stay switched on).
It is normal for a TFT screen to experience some light or dark spots appearing on the LCD
screen.

ODYS LCD-TV 17” DVD
6
EN
Contents of package
1 x LCD-TV 17“ DVD 1 x mains cable with power supply unit
1 x remote control with batteries 1 x a/v cable
1 x audio cable 1 x operating manual
Disc Information
Discs Formats Supported By This Player
DISC LOGO CONTENTS SIZE MAXIMUM TIME
(Side - Layer)
133 min (SS-SL)
242 min (SS-DL)
266 min (DS-SL)
DVD Audio + Video
(active picture) 12 cm
484 min (DS-DL)
CD Audio 12 cm 74 min
JPEG Still high resolution 12 cm
zThe operating method of some DVD discs is specified by the software maker. Please refer to the
instruction manual of the disc.
zThe DVD Player will play most recordable (CD-R) or erasable (CD-RW) CDs, but playback of
CD-R or CD-RW discs created on a computer requires proper formatting and finalization of the
disc for audio playback. Some computers and/or software programs may not be capable of
creating compatible discs.
About Disc Terms
Title
Generally, pictures or music compressed on a DVD are divided into several sections, “title”.
Chapter
The smaller section unit of picture or music in a DVD under the title, usually one title is comprised of
one or more chapters and each of them is numbered for easy searching. But some discs may not
have a recording chapter.
Track
A segment of picture or music on a CD. Each track is numbered for searching.

ODYS LCD-TV 17” DVD
7
EN
3 Controls and connections

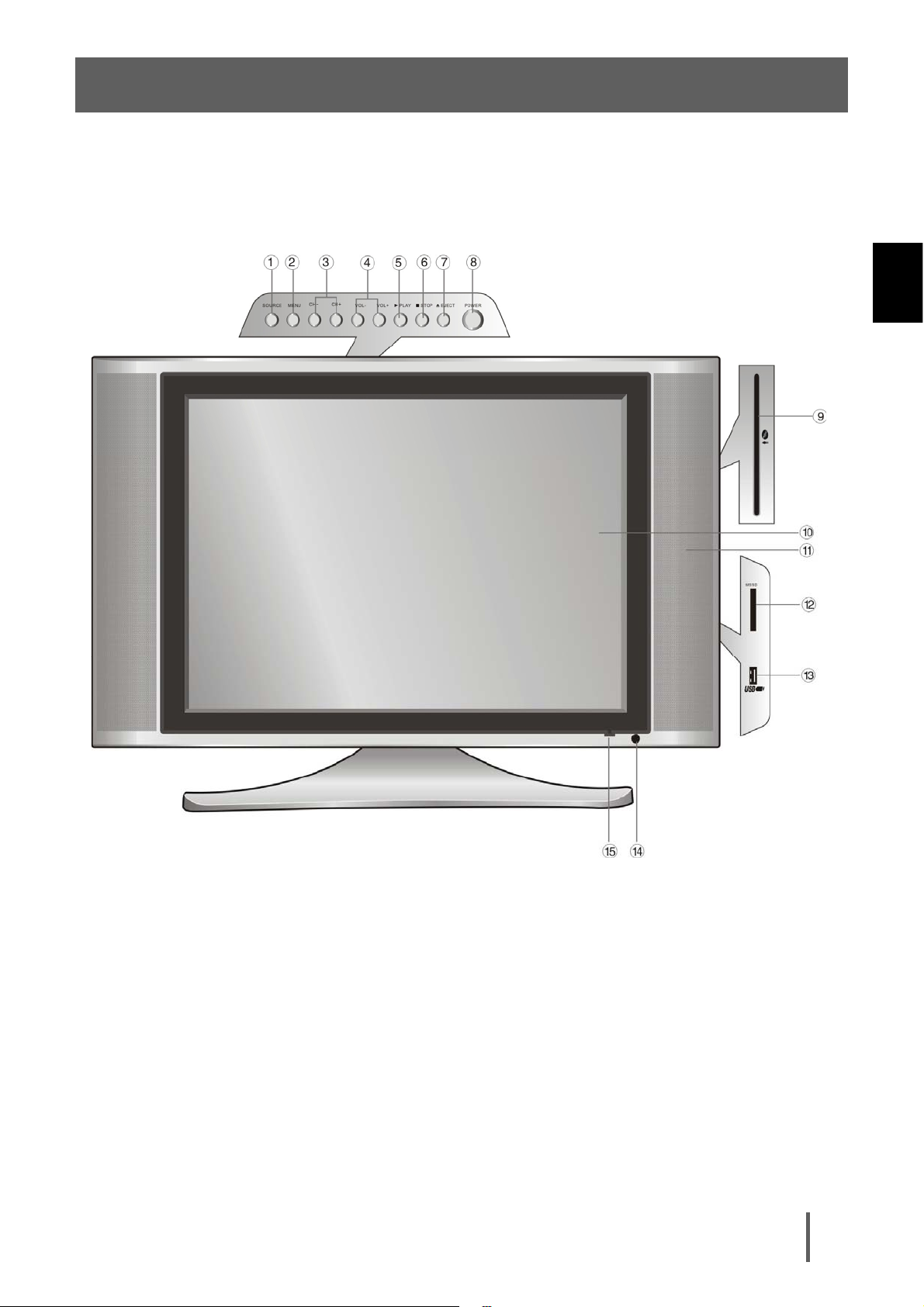

3.1 Front view/ Front View
1. SOURCE button
Press to select the modes: DVD, VGA, TV, SCART, CVBS, S-VIDEO
2. MENU button
Press to enter or exit setup menu.
3. CH +/- button
Press in TV mode to page up or down through channels.
4. VOL+/- button
Press to decrease or increase the volume.
5.

PLAY button
Press to play the disc under DVD mode.

ODYS LCD-TV 17” DVD
8
EN
6. ŶSTOP button
Press to stop playback, then press the PLAY button to resume normal playback under DVD
mode.
Press the STOP button twice repeatedly to stop completely.
7. Eject button
Press to eject the disc out.
8. Power button
Press to switch on or off the device (enter or exit the standby mode).
9. Disc Tray Slot
Used to load disc.
10. 17 inch color TFT screen
Presents high resolution picture.
11. Speakers
Two speakers output high quality stereo sound.
12. CARD Input Slot
Insert SD or MS card into this slot.
13. USB terminal
USB connection to USB mass storage/Sticks
14. Remote Sensor
Remote sensor window for the remote control.
15. Power Indicator
In active mode, it is green; in standby mode, it turns red.

ODYS LCD-TV 17” DVD
9
EN
3.2 Rear View
1. DC 12V In Jack
Connected to power adapter.
2. VGA Input Jack
Connected to the VGA output jack on a
personal computer.
3. PC Audio Input Jack
Connected to the audio output jack on a
personal computer.
4. SCART Jack
Connecting for SCART signal.
5. S-VIDEO Input Jack
Connecting for S-VIDEO signal input.
6. L/R Audio Input Jack
Connecting for the external audio input.
7. VIDEO Input Jack
Connecting for the external video signal
input.
8. Earphone Jack
When connected to earphone, the internal
speakers will automatically turn off.
9. Video- and Audio Output Jack
10. Antenna Input Jack
Connected to external antenna to receive
the TV program in TV mode.

ODYS LCD-TV 17” DVD
10
EN

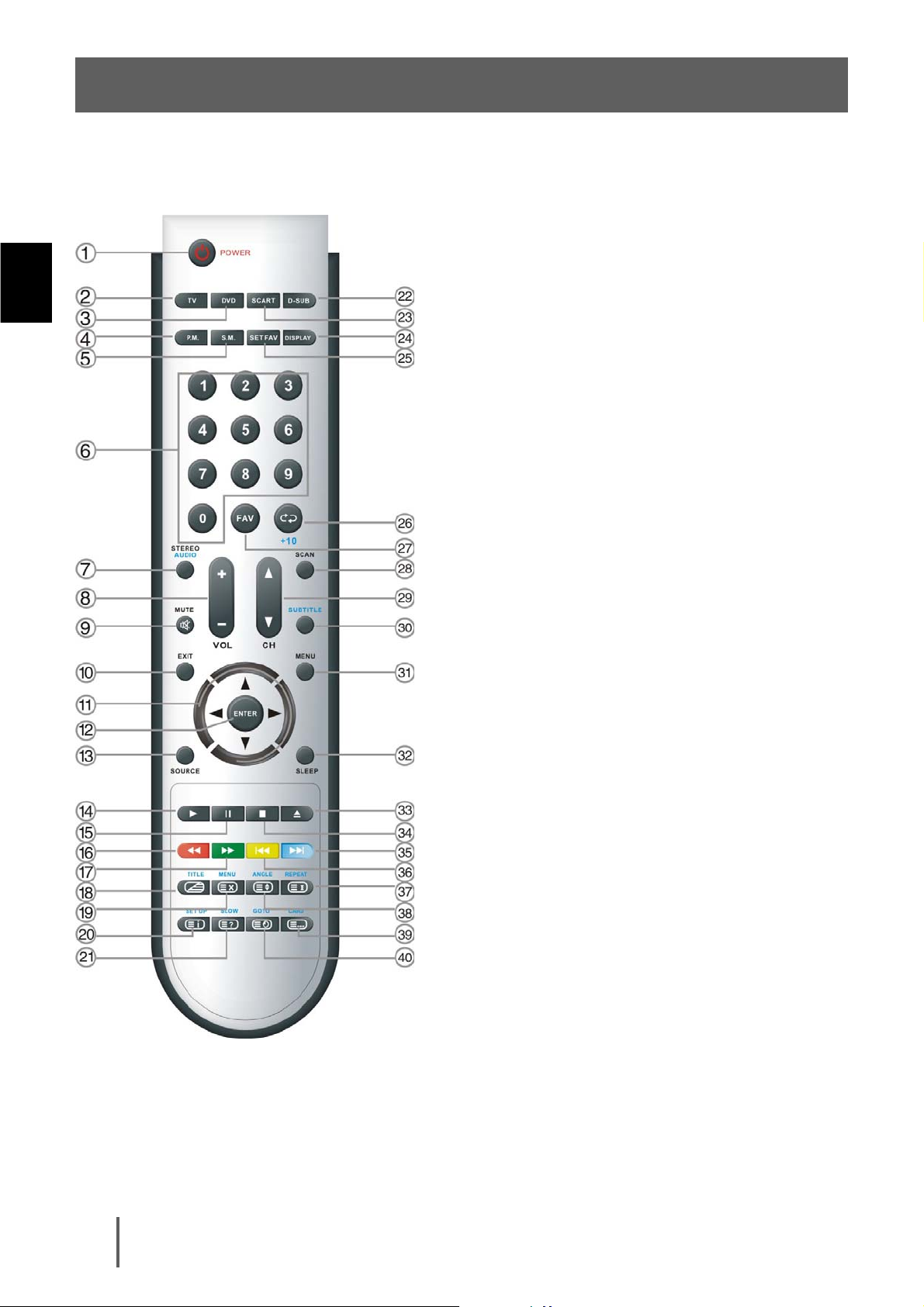

3.3 Remote Control
1. POWER button
Press to enter or exit the standby mode.
2. TV button
Press to enter TV mode.
3. DVD button
Press to enter DVD mode.
4. P.M. button
Press to select picture mode.
5. S.M. button
Press to select audio mode.
6. 0~9 Number buttons
Press to select numbers.
7. STEREO/AUDIO button
Press to select stereo mode in TV mode.
Press to select audio language in DVD
mode.
8. VOL+/- button
Press to increase or decrease the volume.
9. MUTE button
Press to turn on or off the audio output.
10. EXIT button
Press to close all the OSD menu.
11. Direction buttons
᧤
ŸźŻŹ
᧥
Press the direction buttons to select menu
options or settings.
12. ENTER button
Press to confirm selection in the setup menu.
13. SOURCE button
Press to select the modes: DVD, VGA, TV,
SCART, CVBS, und S-VIDEO.
14.

PLAY button
Press to play the disc under DVD mode.
15.

PAUSE button
Press to pause the playback.
Press the

PLAY button to resume normal
playback.
16.

button
Press to search backward under DVD mode.
17.

button
Press to search forward under DVD mode.
18. TITLE
EXWWRQ
When a DVD disc is playing, press to go to
title menu if the disc contains.
19. MENU button (in DVD mode)
Press to access the disc menu in DVD mode.
20. SETUP button
Press to enter DVD setup menu.
21. SLOW button
Press to activate slow playback under DVD
mode.

ODYS LCD-TV 17” DVD
11
EN
22. D-SUB button
Press to change to VGA mode.
23. SCART button
Press to enter SCART mode.
24. DISPLAY button
Press to display the information about
current status on the screen.
25. SET FAV button
Press to set current channel as favorite
channel.
26. /+10 button
In the TV mode, press to return to the
channel last viewed.
In DVD mode, press to select number
greater than 10.
27. FAV button
Press to select the favorite channel.
28. SCAN button
Press to start or stop scanning channels in
TV mode.
29. CH
Ⴃ
/
Ⴍ
button
In TV mode, press to select channel upwards
and downwards.
30. SUBTITLE button
Press this button in DVD mode to select the
subtitle language or to turn off subtitles.
31. MENU button
Press to enter the setup menu.
32. SLEEP button
Press to select the sleep time. After the sleep
time has run out, the unit shuts off
automatically.
33. Eject button
Press to eject the disc out.
34. ŶSTOP button
Press to stop playback. Then press the
PLAY button to resume normal playback
under DVD mode.
Press the button twice to stop playback
completely.
35. Next Skip button
Press to skip to the next chapter/track for
some discs under DVD mode.
36. Previous Skip button
Press once to skip to the beginning of the
current chapter/track.
Press twice repeatedly to skip to the previous
chapter/track for some discs under DVD
mode.
37. REPEAT
EXWWRQ
Press to repeat a chapter, track, title, or all
content under DVD mode.
Press this button in teletext mode to display
page 100.
38. ANGLE button
Press to access various camera angles (if the
DVD disc contains multiple camera angles).
Under Teletext mode, press to select four
groups 3-digit numbers that displayed in
different colors at the bottom of the screen.
Press the colored buttons on the below of the
remote control to select, then use the number
buttons to input the corresponding number to
display the page.
Repeat the above procedures for each page to
be stored, using a different colored button
accordingly each time.
39. CARD button
In DVD mode, press to enter SD or MS card
mode.
40. GOTO button
Press to access or exit from the search menu
under DVD mode.

ODYS LCD-TV 17” DVD
12
EN
Preparation of Remote Control
Place the remote control on an even surface
and insert the supplied batteries into the
remote control as follows.
1. Softly push the back cover to open the
battery compartment and remove the
empty battery holder. Remove packaging
used for shipment from the batteries.
2. Place the batteries in the holder according
to the correct polarity and replace the back
cover of the battery compartment of the
remote.
3. Softly press the back cover to close it.
Under normal use the battery will last
for six months.
Take out battery when the remote is
not in use for a long time.
Using of Remote control
Point the remote control unit from no more than
about 7 m from the remote control sensor and
within about 60 degrees of the front of the unit.
The operating distance may vary depending to
the brightness around.
Do not point bright lights directly at
the remote control sensor.
Do not place objects between the
remote control unit and the remote
control sensor.
Do not use this remote control unit
while simultaneously operating the
remote control unit of any other
equipment.

ODYS LCD-TV 17” DVD
13
EN
4 System Connections
4.1 Connecting To External AV Signal Source
Use the audio and video cable to connect the input jacks on the rear panel of the unit to the external
AV signal source.
Connect the unit and the external AV signal source to the respective jacks with the S-video or
SCART cable.
Ensure that you observe the color cord when connecting audio and video cables.
After connection, turn on the power of the unit and the external AV signal source. Then press the
SOURCE button to change to SCART or S-video mode so that the AV signal can be shown.

ODYS LCD-TV 17” DVD
14
EN
4.2 Connecting to PC
This unit can be used as a PC monitor when connected to a PC.
Follow the figure below to connect:
1. Connect one end of the VGA cable to the VGA input jack on the rear panel of the unit.
2. Connect the other end to the PC.
3. Connect one end of the audio cable to the PC audio input jack on the rear panel of the unit.
4. Connect the other end to the PC audio output jack.
After connection, turn on the unit and the PC, press the SOURCE button to shift to VGA mode. Set
the screen resolution on your PC to 1280x1024 @ 60 Hz..

ODYS LCD-TV 17” DVD
15
EN
4.3 Connecting to TV-Signal Input
Connect the TV signal cable (the antenna cable, for example) to ANT INPUT on the back of the unit
so that you can receive television programmes.
After connection, turn on the power of the unit, press the SOURCE button to shift to TV mode.

ODYS LCD-TV 17” DVD
16
EN
4.4 Connecting to Power Adapter
Power is supplied through the provided appropriative power adapter, one end is connected to the
DC 12V IN jack on the rear panel of the unit, the other end to the AC100~240V wall outlet.
4.5 Connecting to Earphones
This unit can be connected to an earphone for listening music privately. See the below figure for
details.
Insert the headphone plug in the headphone jack on the back of the unit. After connecting to the
earphone, the internal speakers output will turn off automatically.

ODYS LCD-TV 17” DVD
17
EN
4.6 Connecting to an External Unit (AV Input)
The unit supports the AV signal output function so that it can also be used as an external screen for
playback. See the below figure for details.

ODYS LCD-TV 17” DVD
18
EN
5 System Setup and Operation
Preparations
1. After connection, press the POWER button to turn on the power.
2. Press the SOURCE button to change to other modes.
You can go on with the following operations.
5.1 Image Setting
Scheme Setup
Press the Ÿź button to select Scheme, press the ENTER button to confirm and enter. Press the
Ÿź button to select item, press the ENTER button to confirm selection. Press the MENU button to
return to the previous menu.
Picture Setup
Press the Ÿź button to select Picture, press the Ÿź button to select item, press the ENTER
button to confirm selection. Press the MENU button to return to the previous menu.
Brightness Setup
Press the Ÿź button to select Brightness, press the ŻŹ button to adjust the value. Press the
MENU button to return to the previous menu.
Contrast Setup
Press the Ÿź button to select Contrast, press the ŻŹ button to adjust the value. Press the
MENU button to return to the previous menu.
Saturation Setup
Press the Ÿź button to select Saturation, press the ŻŹ button to adjust the value, press the
MENU button to return to the previous menu.
Sharpness Setup
Press the Ÿź button to select Sharpness, Press theŻŹbutton to adjust the value, press the
MENU button to return to the previous menu.
Press the MENU button once to enter the setup menu,
as shown on the right.
In the setup menu, press the Ÿź button to select the
option Image and press the ENTER button to confirm
selection. Press the Ÿź buttons to select the desired
items and press the ENTER button. Press the MENU
button to return to the previous menu, press the EXIT
button to exit the setup menu.

ODYS LCD-TV 17” DVD
19
EN
Advanced Setup
Press the Ÿź button to select Advanced and press the ENTER button to enter.
In Advanced menu, press the Ÿź and ENTER button to adjust or set the desired item. Press the
MENU button to return to the previous menu and press the EXIT button to exit the setup menu.
This option is only available when a signal is present.
5.2 Audio Setting
Volume Setup
Press the Ÿź button to select Volume, press the ŻŹ button to adjust the level, press the MENU
button to return to the previous menu.
Bass Setup
Press the Ÿź button to select Bass, press the ŻŹ button to adjust the level, press the MENU
button to return to the previous menu.
Treble Setup
Press the Ÿź button to select Treble, press the ŻŹ button to adjust the level, press the MENU
button to return to the previous menu.
Balance Setup
Press the Ÿź button to select Balance, press the ŻŹ button to adjust the level, press the MENU
button to return to the previous menu.
Auto Volume Setup
Press the Ÿź button to select Auto Volume, press the ENTER button to enter, press the Ÿź
button to select items, press the ENTER button to confirm. Press the MENU button to return to the
previous menu.
Sound Mode Setup
Press the Ÿź button to select Sound Mode, press the ENTER button to enter, press the Ÿź
button to select item, press the ENTER button to confirm. Press the MENU button to return to the
previous menu.
Press the MENU button to enter the setup menu, then
press the Ÿź button to select Audio, press the ENTER
button to confirm and enter the menu shown on the right.
In the Audio setup menu, press the Ÿź button to select
the desired items, press the ENTER button to enter.
Press the MENU button to return to the previous menu,
press the EXIT button to exit the setup menu.
