UNPACKING
After unpacking unit, inspect carefully for any damage that
may have occurred during transit. Check for loose, missing, or
damaged parts. If any damage is observed, a shipping damage
claim must be filed with carrier. Do not use the OEMTOOLS
Impact Wrench if broken, bent, cracked or damaged parts
(including labels) are noted. Any Impact Wrench that appears
damaged in any way, operates abnormally or is missing parts
should be removed from service immediately. If you suspect
that the Impact Wrench was subjected to shock load (a load
that was dropped suddenly, unexpectedly, etc.) immediately
discontinue use until it has been checked by a factory
authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all
safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please
retain instructions for future reference.
The following safety information is provided as a guideline to help you operate your Impact Wrench under the safest possible conditions. Any tool or piece of
equipment can be potentially dangerous to use when safety or safe handling instructions are not known or not followed. The following safety instructions are to
provide the user with the information necessary for safe use and operation. Please read and retain these instructions for the continued safe use of your service
system. Failure to follow instructions listed below may result in serious injury. In addition, make certain that anyone that uses the equipment understands and
follows these safety instructions as well.
Operating Instructions and Parts Manual 24418
06/16
2016 OEMTOOLS
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]
1/2” AIR IMPACT
WRENCH
Thank you very much for choosing an OEMTOOLS Product!
For future reference, please complete the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin
using it. This product is designed for certain applications only. OEMTOOLS cannot be responsible for issues arising from modification. We strongly
recommend this product is not modified and/or used for any application other than that for which it was designed. If you have any questions
relative to a particular application, DO NOT use the product until you have first contacted OEMTOOLS to determine if it can or should be
performed on the product.
Explanation of Safety Signal Words
CAUTION
: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.
: Provide clarity and helpful information.
WARNING
CAUTION
NOTES
WARNING

2
Operating Instructions and Parts Manual 24418
1/2” AIR IMPACT
WRENCH
06/16
2016 OEMTOOLS
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn the tool’s
applications and limitations, as well as, potential hazards specific
to it.
2. Keep work area clean and well lit. Cluttered or dark work areas
invite accidents.
3. Keep children away. All children should be kept away from the work
area. Never let a child handle a tool without strict adult supervision.
4. Do not operate this tool if under the influence of alcohol or drugs.
Read warning labels on prescriptions to determine if your judgment
or reflexes are impaired while taking drugs. If there is any doubt, do
not attempt to operate.
5. Use safety equipment. Eye protection should be worn at all times
when operating this tool. Use ANSI approved safety glasses.
Everyday eyeglasses are NOT safety glasses. Dust mask, non-skid
safety shoes, hard hat or hearing protection should be used in
appropriate conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-ties, rings,
bracelets or other jewelry may present a potential hazard when
operating this tool. Keep all apparel clear of the tool.
7. Don’t overreach. Keep proper footing and balance at all times when
operating this tool.
8. Check for damage. Check your tool regularly. If part of the tool is
damaged it should be carefully inspected to make sure that it can
perform its intended function correctly. If in doubt, the part should
be repaired. Refer all servicing to a qualified technician. Consult
your dealer for advice.
9. Keep away from flammables. Do not attempt to operate this tool
near flammable materials or combustibles. Failure to comply may
cause serious injury or death.
10. Store idle tools out of the reach of children and untrained persons.
Tools may be dangerous in the hands of untrained users.
11. Maintain tools with care.
12. Keep tools dry and clean.
13. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.
14. Use only accessories that are recommended by the manufacturer
for your model. Accessories that may be suitable for one tool may
become hazardous when used on another tool.
15. Tool service must be performed only by qualified repair personnel.
Service or maintenance performed by unqualified personnel could
result in a risk of injury.
16. When servicing a tool, use only identical replacement parts. Use of
unauthorized parts or failure to follow maintenance instructions may
create a risk of injury.
17. Maintain a safe working environment. Keep the work area well lit.
Make sure there is adequate surrounding workspace. Keep the
work area free of obstructions, grease, oil, trash, and other debris.
Do not use this product in a damp or wet location.
18. Maintain labels and nameplates on this product. These carry
important information. If unreadable or missing, contact OEMTOOLS
for a replacement.
19. Before use, read and understand all warnings, safety precautions,
and instructions as outlined in the vehicle manufacturer’s service
manual. It is beyond the scope of this manual to properly describe
the correct procedure and test data for each vehicle.
20. Always perform vehicle service in a properly ventilated area. Never
run an engine without proper ventilation for its exhaust. Stop work
and take necessary steps to improve ventilation in the work area
if you develop momentary eye, nose, or throat irritation as this
indicates inadequate ventilation.
WARNING
• Disconnect from air supply before changing accessories or
servicing.
• Check correct air pressure is maintained and not exceeded.
• Due to possible presences of asbestos dust from brake linings,
when working around vehicle brake systems, we recommend you
wear suitable respiratory protection.
NOTE: The manufacturer declines any and all responsibility for damage
to vehicles or components if said damage is the result of unskillful
handling by the operator or of failure to observe the basic safety rules set
forth in the instruction manual.
WARNING
Read Rules for Safe Operation and Instructions Carefully.
IMPORTANT SAFETY INSTRUCTIONS
The warnings, precautions, and instructions discussed in this manual
cannot cover all possible conditions and situations that may occur. The
operator must understand that common sense and caution are factors
which cannot be built into this product, but must be supplied by the
operator.
WARNING
1. Use only attachments recommended or sold by manufacturer.
2. Do not disassemble the Impact Wrench. Take it to a qualified
professional when service or repair is required. Incorrect reassembly
may result in electric shock or fire.
3. Keep air hose away from heat, oil and sharp edges. Check air
hose for wear before each use and ensure that all connections are
secure.
4. Only use impact sockets which are specifically designed for use
with an Impact Wrench.
5. Wear approved safety eye/face shield, ear defenders and hand
protection.
6. When not in use disconnect from air supply and store in a safe dry,
childproof location.
7. DO NOT use the Impact Wrench for tasks it is not designed to
perform.
8. DO NOT carry the Impact Wrench by the air hose, or yank the hose
from the air supply.
9. DO NOT operate Impact Wrench if you are tired or under the
influence of alcohol, drugs or intoxicating medication.
10. DO NOT direct air from the tool’s exhaust at yourself or others.

3
Operating Instructions and Parts Manual 24418
1/2” AIR IMPACT
WRENCH
06/16
2016 OEMTOOLS

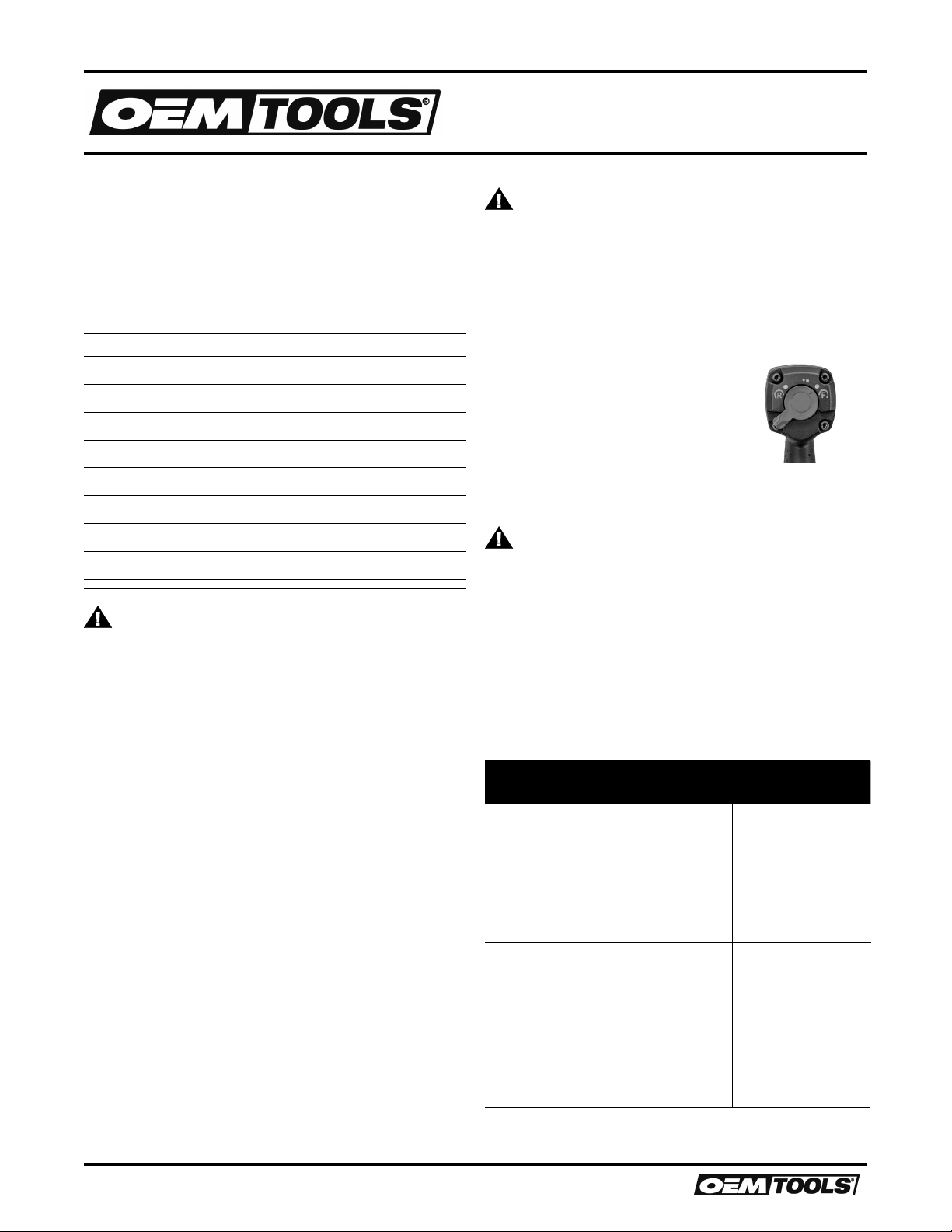

DISPOSAL
At the end of the useful life of the OEMTOOLS Impact Wrench, dispose of
the components according to all state, federal, and local regulations.
PURPOSE
The OEMTOOLS 1/2 In. Drive Air Impact Wrench is designed with a unique
compact body allowing it to fit in spaces regular impact wrenches do not.
It is great for working in areas such as transmissions and for other engine
work. Despite its compact size, it has a powerful 900 Ft/Lbs. of torque to
get the job done.
PRODUCT SPECIFICATIONS
Driver Size: 1/2”
Free Speed: 10,000 RPM
Max Torque: 900 Ft/Lbs.
Clutch Type: Jumbo Hammer
Air Consumption: 4.0 CFM @ 90 PSI
Weight: 2.98 Lbs.
Length (Front - Back): 4-1/2”
Inlet (NPT): 1/4”
WARNING
Ensure the air supply is clean and does not exceed 90 PSI while operating
the Impact Wrench. Excessive wear will result if air pressure is too high
and/or you use unclean air. This can shorten the product life and may be
dangerous causing damage and/or personal injury.
PREPARING IMPACT WRENCH FOR USE
Air Supply
Ensure the Impact Wrench air valve (or trigger) is in the “off” position
before connecting to the air supply. According to specifications your
Impact Wrench requires an air pressure of 90 PSI.
• Drain the compressor air tank daily as water in the air line will damage
the Impact Wrench.
• Clean compressor air inlet filter weekly.
• Line pressure should be increased to compensate for unusually long
air hoses (over 8 meters).
• The minimum hose diameter should be 3/8”.
• Keep hose away from heat, oil and sharp edges.
• Check hose for wear and make certain that all connections are secure.
Couplings
Vibration may cause failure if a quick-change coupling is connected
directly to the Impact Wrench. To overcome this, connect a leader hose
to the Impact Wrench. A quick-change coupling may then be used to
connect the leader hose to the air line recoil hose.
OPERATING INSTRUCTIONS
WARNING
Ensure you read, understand and apply safety instructions before use.
1. Only use impact sockets which are specifically designed for use
with an Impact Wrench.
2. Connect the Impact Wrench to the air hose.
3. Place the socket over the fastener nut and depress the trigger to
operate the Impact Wrench.
4. The Forward Reverse Valve is located on the back of the Impact
Wrench. Simply move the valve right or left
to change direction.
DO NOT allow Impact Wrench to free run for an
extended period of time as this will reduce bearing life.
MAINTENANCE
WARNING
Disconnect the Impact Wrench from air supply before changing
accessories, servicing or performing maintenance.
1. Replace or repair damaged parts. Use genuine parts only.
Unauthorized parts may be dangerous and will invalidate the
warranty.
2. If the air system does not have an oiler then lubricate the Impact
Wrench daily with a few drops of air tool oil into the air inlet.
3. Clean the Impact Wrench after use.
4. DO NOT use worn or damaged sockets.
TROUBLESHOOTING
Problem Cause Remedies
Loss of
power or
erratic action
Reduced
performance
a. Excessive drain on
the air line
b. Moisture or
restriction in the air
pipe
c. Incorrect size or type
of hose connectors
Grit or gum deposits in
the Impact Wrench
Check the air supply
and follow the Preparing
Impact Wrench for Use
section of this manual
If your model has an
air strainer (located in
the area of the air inlet),
remove the strainer and
clean it. Flush the Impact
Wrench out with gum
solvent oil or an equal
mixture of SAE No. 10 oil
and paraffin. Allow to dry
before use.

4
Operating Instructions and Parts Manual 24418
1/2” AIR IMPACT
WRENCH
06/16
2016 OEMTOOLS
NOTE:
Not all components of the Impact Wrench are replacement items, but are illustrated as a convenient reference for location
and position in the assembly sequence.
OEMTOOLS®ONE YEAR WARRANTY
If for up to one year from the date of purchase of this OEMTOOLS product you find any defect in material or
workmanship, through normal usage, return it to the place of purchase, or to OEMTOOLS for repair or replacement
at our discretion. In order to obtain this service send your tool and proof of purchase, transportation pre-paid, to
OEMTOOLS Q.A. Dept, 3580 E. Raines Road #3, Memphis, TN 38118. We will not be responsible for lost or damaged
goods during transportation, please insure your package. If our inspection verifies the defect, we will either repair
or replace the product at our election, or we may elect to refund the purchase price if we cannot readily and quickly
provide you with a replacement. We will return repaired products at our expense, but if we determine there is no
defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of
returning the product.
OEMTOOLS does not provide warranty for products labeled other than OEM or OEMTOOLS. OEMTOOLS will not
provide any warranty for products subjected to abnormal use. Abnormal use includes, but is not limited to, abuse,
accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not cover bits,
blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace blades,
bits, files, and batteries as necessary. OEMTOOLS reserves the right to makes any changes in construction or design
at any time without any obligation in incorporating such changes to tools or equipment previously sold.
OEMTOOLS makes every effort to assure that its products meet high quality and durability standards, and warrants
to the original purchaser that this product is free from defects in materials and workmanship for the period of one
year from the date of purchase. This warranty does not apply to damage due directly or indirectly to misuse, abuse,
negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal
wear and tear or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY
IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: [phone]
www.oem-tools.com
Item # Part Name Qty.
1Motor Housing Assembly 1
2 Backhead 1
3 Ball Bearing 1
4 Rear End Plate 1
5 Front End Plate 1
6 Ball Bearing 1
7 Rotor 1
8 Rotor Blade 6
9 Cylinder 1
10 Air Inlet 1
11 Spacer 1
12 O-Ring 1
13 Exhaust Deflector 1
14 O-Ring 2
15 Throttle Valve Seat 1
16 Throttle Valve Assembly 1
16-1 Throttle Valve Pin 1
16-2 Throttle Valve 1
17 O-Ring 1
18 Spring 1
19 Spring 1
20 Reverse Valve Knob 1
21 Pin 1
22 Gasket 1
23 Screw 1
24 Screw 4
25 Reverse Valve 1
26 Hammer Frame 1
27 Hammer 1
28 Hammer Pin 2
29 Standard Anvil 1
30 O-Ring 1
31 Socket Retainer 1
32 Bushing 1
33 Spring Pin 1
34 Spring Pin 1
35 Gasket 1
36 Trigger Assembly 1
36-1 Trigger 1
36-2 Trigger Pin 1
36-3 O-Ring 1
37 Spring Pin 1
38 O-Ring 1
39 O-Ring 1
40 Hammer Case 1
41 Spring Pin 1
42 Muffler Element 1
43 Bushing 1
Parts List Parts Diagram
