Officeworks STILFORD STDMDFWE User manual

ASSEMBLY INSTRUCTIONS
This design and instruction booklet is subject to copyright.
3 Carton
www.officeworks.com.au
STILFORD DUAL MOTOR ELECTRIC HEIGHT ADJUSTABLE
RADIUS CORNER WORKSTATION
For spare parts or hardware call 1300 OFFICE 1/18
WEIGHT
CAPACITY
120
FRAME: STDMDFWE/ STDMDFBK/ STDMRFWE/ STDMRFBK
DESKTOP: S2RCDT18 WE, WO, WB, OA, WN

Furniture Assem bly Ins c
Estimated Assembly Time:
Assembly Video
•To view an assembly video, go to https://www.officeworks.com.au/
•Search the product by item code or name:
•Click on the icon to watch the video.
70minutes
Furniture Assem bly Ins c
Estimated Assembly Time: 50minutes
2/18
Customer Service Contact Details
Spare Parts & Hardware
1300 OFFICE
People Required
General Advice

2 of 62 of 6
2 of 72 of 72 of 7
3/18
Tools Required
CAUTION: Do not use tools other than those required, as this
can damage your new item.
Officeworks Ltd. | 236-262 East Boundary Road | Bentleigh East VIC 3165 | AUSTRALIA
NOTE
•Please check you have all hardware before assembling.
•If you are missing any hardware, please contact 1300 OFFICE.
Please ensure you have the name of the item, required hardware part and quantity.
Please retain your receipt as proof of purchase to validate your warranty.
•
•
CAUTION
•Do not tighten screws before all screws are in the right place.
•Do not use this product unless all bolts and screws are firmly secured.
•Check that all bolts and screws are securely tightened at least every 4 months.
WARNING
•If parts are missing, broken, damaged or worn, stop using the product until all repairs
are made using manufacturer authorised parts.
•Failure to follow these warnings could result in serious injury.
DANGER
•CHILDREN MUST BE SUPERVISED.

Safety and Warnings
•Thistablecomplieswiththeprescribedsafetyregulations.Inappropriateusemaycausedamage to personsand
table.
•Pleasereadtheoperationmanualprior to startusingthetable. It providesyouwithimportantinformation
aboutsafety,use,installation and maintenance of thetable,andthusprotectingyouandyourchildrenandavoiding
damage on thetable.
•Pleaseguardthisoperationmanualandpass it on to anyfutureowner!
•70kgweightneed uniformdistribution on thetop.
•Do notplaceanyobjectsabove cm underneaththetable.
•In memoryfunctionsetting, 1 cm errors is allowablewiththemeasurements.
•
•Theappliance is only to be usedwiththeunitprovided(Powersupply).
Usage
Theelectromotive,height-adjustabletablesaredesignedforworkstations in dryworkenvironmentsonly.Thetableheight is infinitely
adjustable, so that it can be set to themostergonomicallysuitableworkinglevel.
Theyhavenotbeendesignedforotherpurposesthanthoseincluded in thismanual,e.g.theyarenot to be used in areas of highhumidity
or dampness, norforliftingpeople.
Anyotheruse is at one’sownrisk!
Liability:Themanufactureracceptsunder no circumstanceswarrantyclaims or liabilityclaimsfordamagesarisingfromimproperuse or
handling of thetableframeotherthanthatdescribed in thisoperationmanual.
Do not crawl, lie or move around under the table frame, and do not sit or stand on the table frame.
62
120
4/18

5/18
This Assembly instruction covers both 1500mm and 1800mm sizes
1
2pcs
7
2pcs 1pc 1pc
73756
74

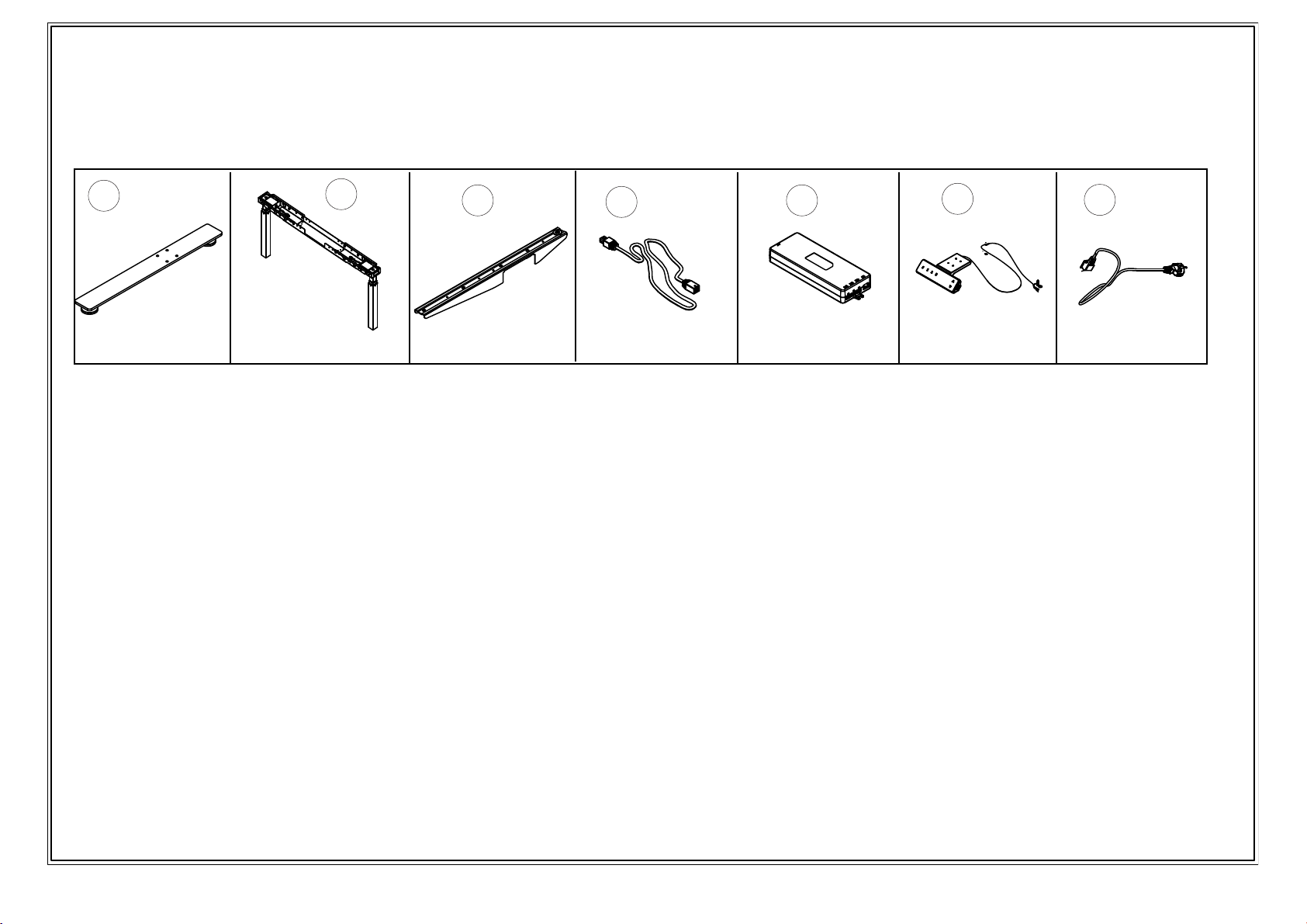

Parts Located in Carton -
1pc
77
1pc
72
2pcs
STDMDFWE,STDMDFBK
Attention:
Do not tighten the screws before all of
the screws are in the correct place.

6/18
This Assembly instruction covers both 1500mm and 1800mm sizes
1pc
797
10 11
78
Parts Located in Carton -
1pc
1pc
STDMRFWE,STDMRFBK
1pc
Parts Located in Carton
1pc
Attention:
Do not tighten the screws before all of
the screws are in the correct place.
- S2RCDT18 WE,WO,OA,WB,WN

7/18
Hardware located in carton-STDMDFWE,STDMDFBK

8/18
Hardware located in carton-STDMRFWE,STDMRFBK

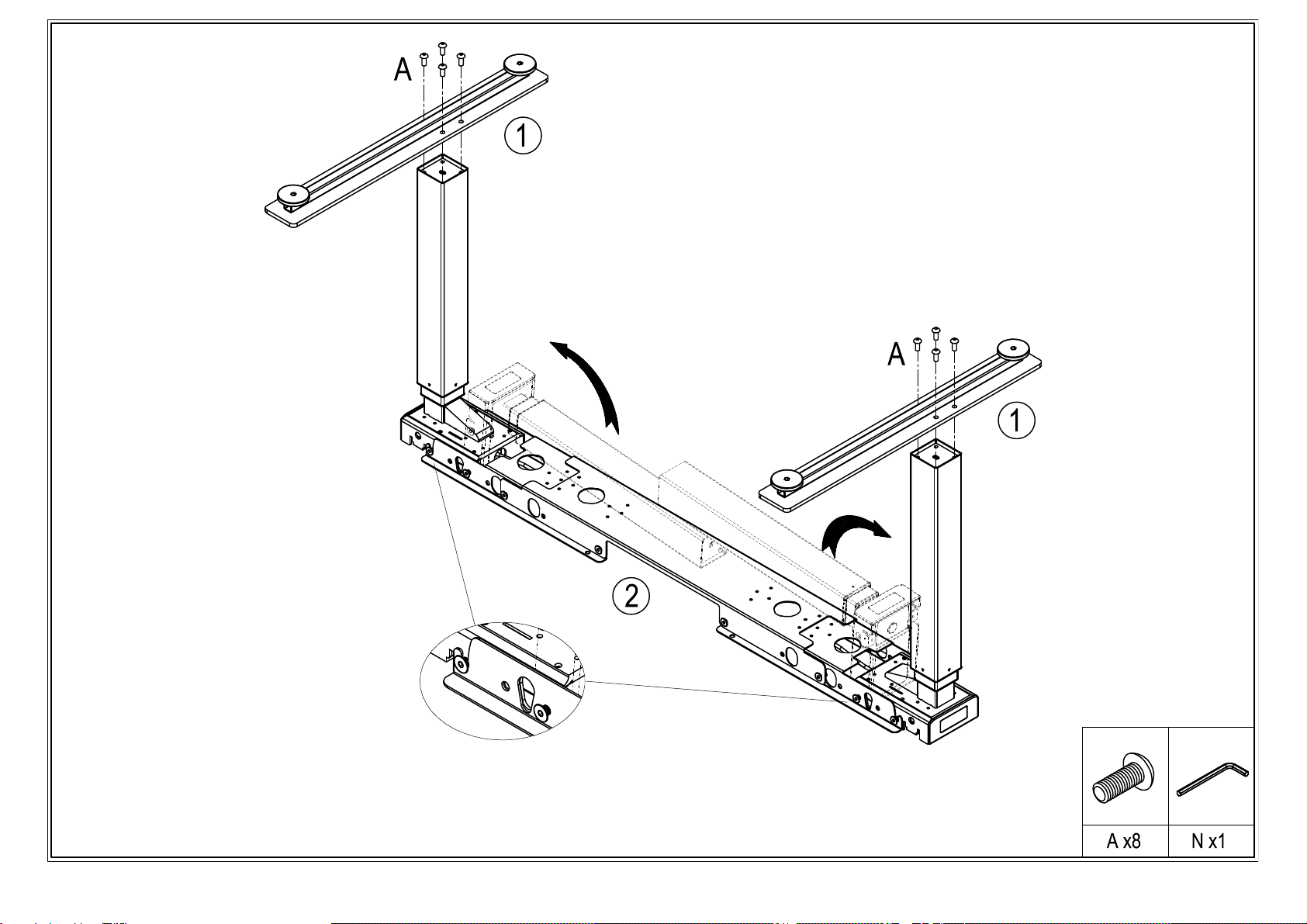

Step 1
9/18
The longer side of part 1 faces the front of the desk.

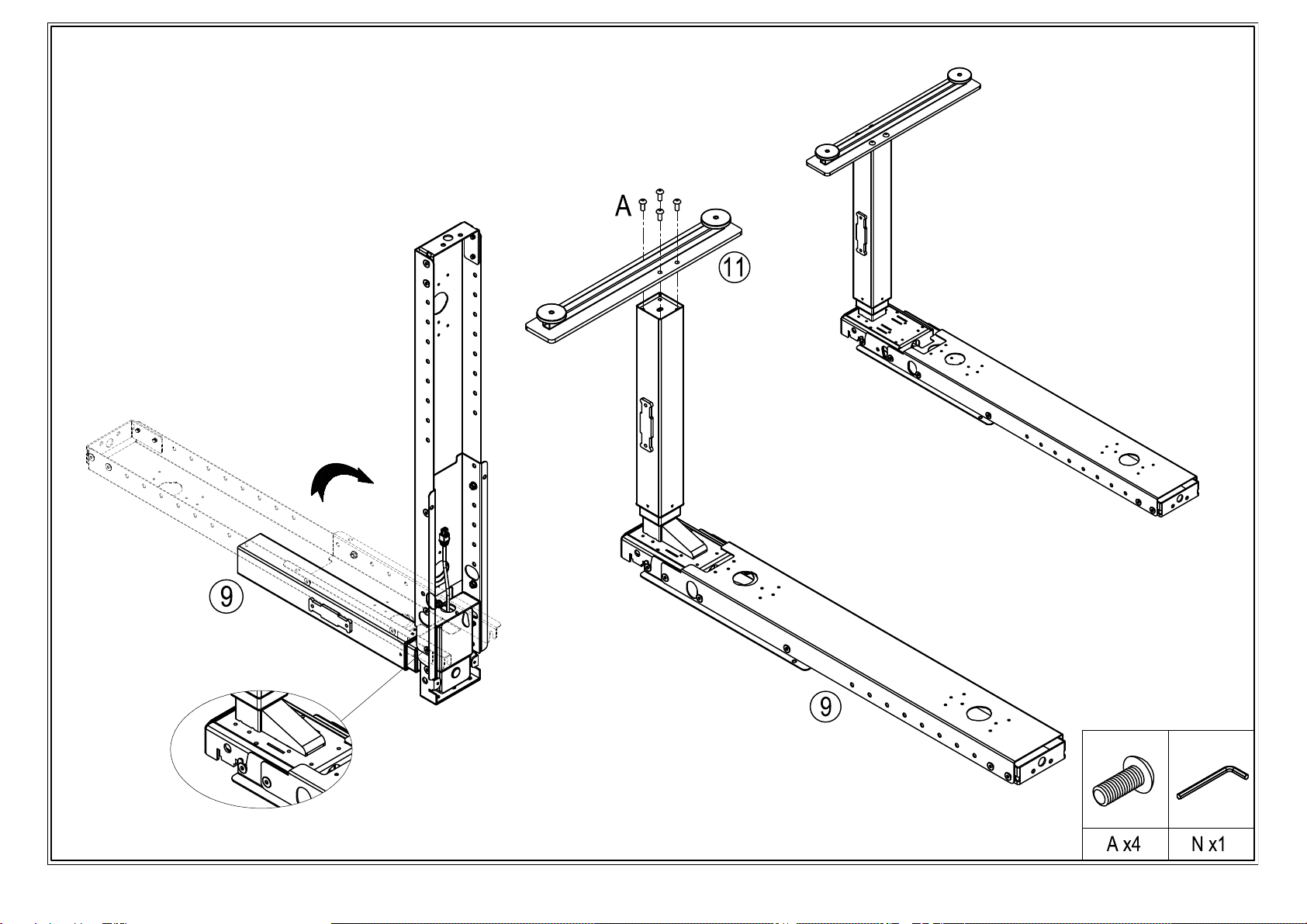

Loosen the screws before unfolding the legs.
Fasten once legs are unfolded.

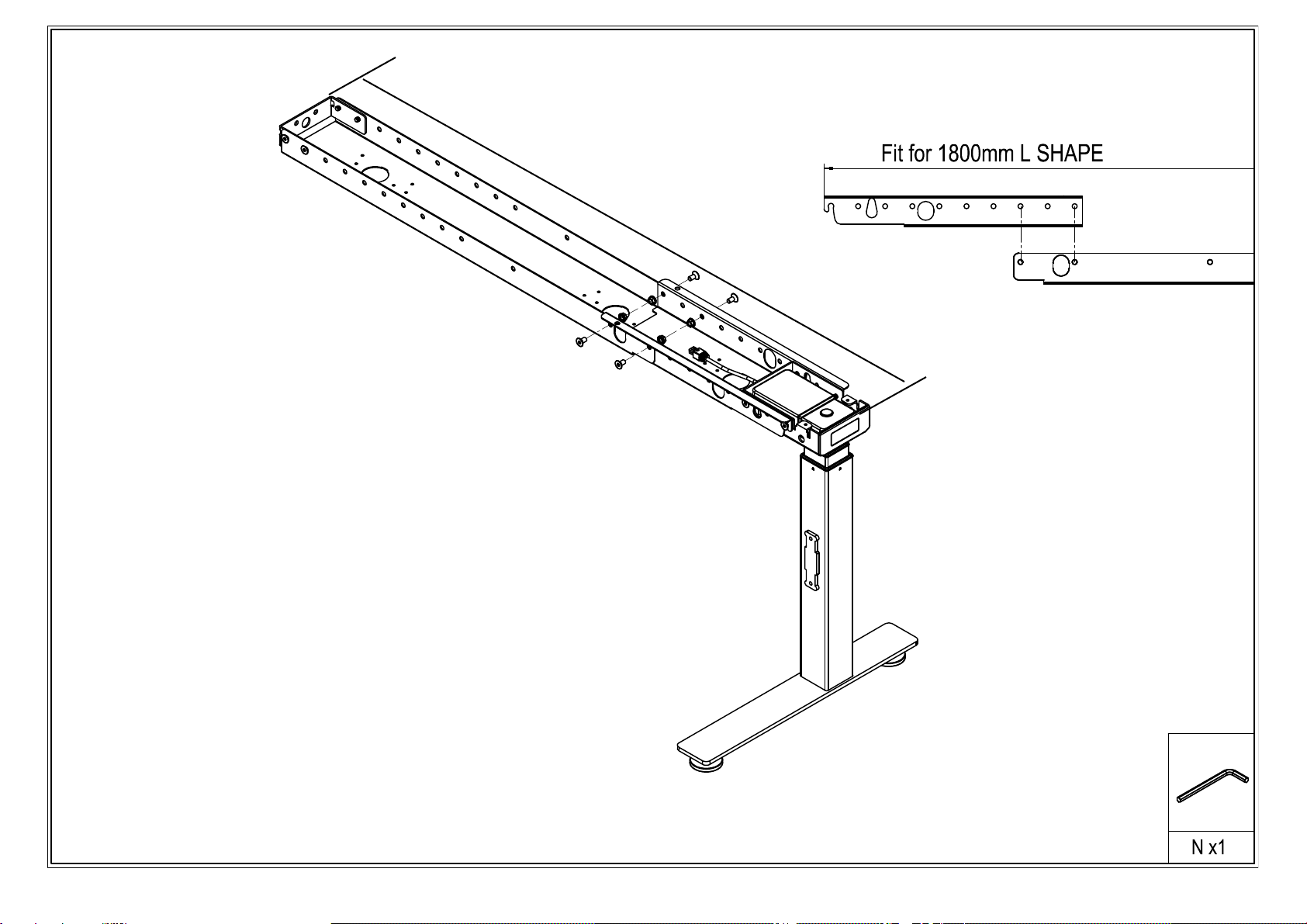

Step 2 Beam adjustment for 1800mm
10/18
PRE Assembled L=1400 for L shape 1500mm desk.
L=1700 for L shape 1800mm desk.
L
corner workstation as follow:
