Officine Gullo FE8 User manual

INSTRUCTIONS
FOR INSTALLATION AND USE
FE8 / FE10
ELECTRIC OVEN FOR RESIDENTIAL AND PROFESSIONAL USE

Ofcine Gullo2
CAUTION
1. These safety directions apply to different kinds of appliances. Please identify correctly the specic appliance in
your possession (check the tag showing the characteristics).
2. Before using the appliance, read the instruction manual carefully, as it contains important safety information on
the proper installation, use and maintenance of the appliance. Please keep the instruction manual for further
reference.
3. The appliance’s electrical safety is guaranteed only if the electrical system is earthed in accordance with
the relevant regulations. It is of the utmost importance to follow such regulations; when in doubt, please
consult a qualied electrician to have the electrical system thoroughly checked. The manufacturer declines all
responsibility for damage caused by a badly-earthed electrical system
4. Before connecting the appliance, make sure that the appliance’s technical characteristics shown on the tag
correspond to those of the electrical system and gas distribution network.
5. Make sure that the electrical system and sockets can handle the appliance’s maximum power consumption as
shown on the tag. When in doubt, please consult a qualied electrician.
6. The appliance should be connected to the electric supply line by means of an omnipolar switch with a minimum
contact opening of 3 mm
7. If the power socket is not compatible with the plug, replace the socket with a proper one and consult a qualied
electrician to make sure that the cable size can handle the appliance’s maximum power consumption. The use
of adapters, multiple power boards and extension cords is not recommended.
8. When not in use, switch off the general power supply to the appliance and close the gas supply valve.
9. Do not obstruct the appliance’s cooling or heat dissipation vents.
10. In case of damage to the appliance’s power cord, it must be replaced exclusively by the manufacturer’s
authorized service center.
11. The appliance must be used only for the purposes for which it has been expressly designed (cooking).All other
uses (such as the heating of a room) are considered inappropriate and therefore dangerous. The manufacturer
declines all responsibility for damage resulting from improper use of the appliance.
12. The use of any electric appliance implies the observance of some basic rules. More specically.
• Do not touch the appliance with wet or damp hands or feet;
• Do not use the appliance with bare feet;
• Avoid the use of extension cords and, if necessary, take all precautions;
• Do not pull the power cord to disconnect the plug from the power socket;
• Do not leave the appliance exposed to atmospheric agents (rain, sun, etc.);
• Do not allow children or untrained persons to use the appliance.
13. Before cleaning the appliance or performing maintenance work, disconnect the appliance by pulling the plug
out of the power socket or turning off the main switch.
14. In case of failure or malfunction, turn the appliance off, close the gas supply valve and do not attempt to carry
out any repairs, which must be done exclusively by an authorized service center.
Request the use of original spare parts only. Failure to comply with the above recommendations may compromise
the appliance’s safety.
3
Ofcine Gullo
INDEX
INSTALLATION MANUAL
DECLARATION OF COMPLIANCE ..........................................................................................7
INSTRUCTIONS FOR INSTALLATION.......................................................................................7
INSTALLATION.....................................................................................................................7
LAWS, TECHNICAL RULES AND NORMS ................................................................................7
ELECTRIC CONNECTION.....................................................................................................8
EQUIPOTENTIAL ..................................................................................................................8
TECHNICAL ELECTRICAL DATA TABLE ......................................................................................8
USER MANUAL
INSTRUCTIONS FOR USE .....................................................................................................9
TURNING ON AND ADJUSTING THE MULTIFUNCTION OVEN .................................................9
OVEN ILLUMINATION ..........................................................................................................10
REPLACING THE OVEN LIGHT...............................................................................................10
CLEANING AND MAINTENANCE.........................................................................................10
WHAT TO DO IN THE EVENT OF A BREAKDOWN..................................................................11
PROCEDURE TO FOLLOW IF THE APPLIANCE IS NOT ..............................................................11
GOING TO BE USED FOR SOME TIME ..................................................................................11
MAINTENANCE (only for qualied personnel)...........................................................................11

3
Ofcine Gullo
INDEX
INSTALLATION MANUAL
DECLARATION OF COMPLIANCE ..........................................................................................7
INSTRUCTIONS FOR INSTALLATION.......................................................................................7
INSTALLATION.....................................................................................................................7
LAWS, TECHNICAL RULES AND NORMS ................................................................................7
ELECTRIC CONNECTION.....................................................................................................8
EQUIPOTENTIAL ..................................................................................................................8
TECHNICAL ELECTRICAL DATA TABLE ......................................................................................8
USER MANUAL
INSTRUCTIONS FOR USE .....................................................................................................9
TURNING ON AND ADJUSTING THE MULTIFUNCTION OVEN .................................................9
OVEN ILLUMINATION ..........................................................................................................10
REPLACING THE OVEN LIGHT...............................................................................................10
CLEANING AND MAINTENANCE.........................................................................................10
WHAT TO DO IN THE EVENT OF A BREAKDOWN..................................................................11
PROCEDURE TO FOLLOW IF THE APPLIANCE IS NOT ..............................................................11
GOING TO BE USED FOR SOME TIME ..................................................................................11
MAINTENANCE (only for qualied personnel)...........................................................................11

Ofcine Gullo4
INSTALLATION MANUAL

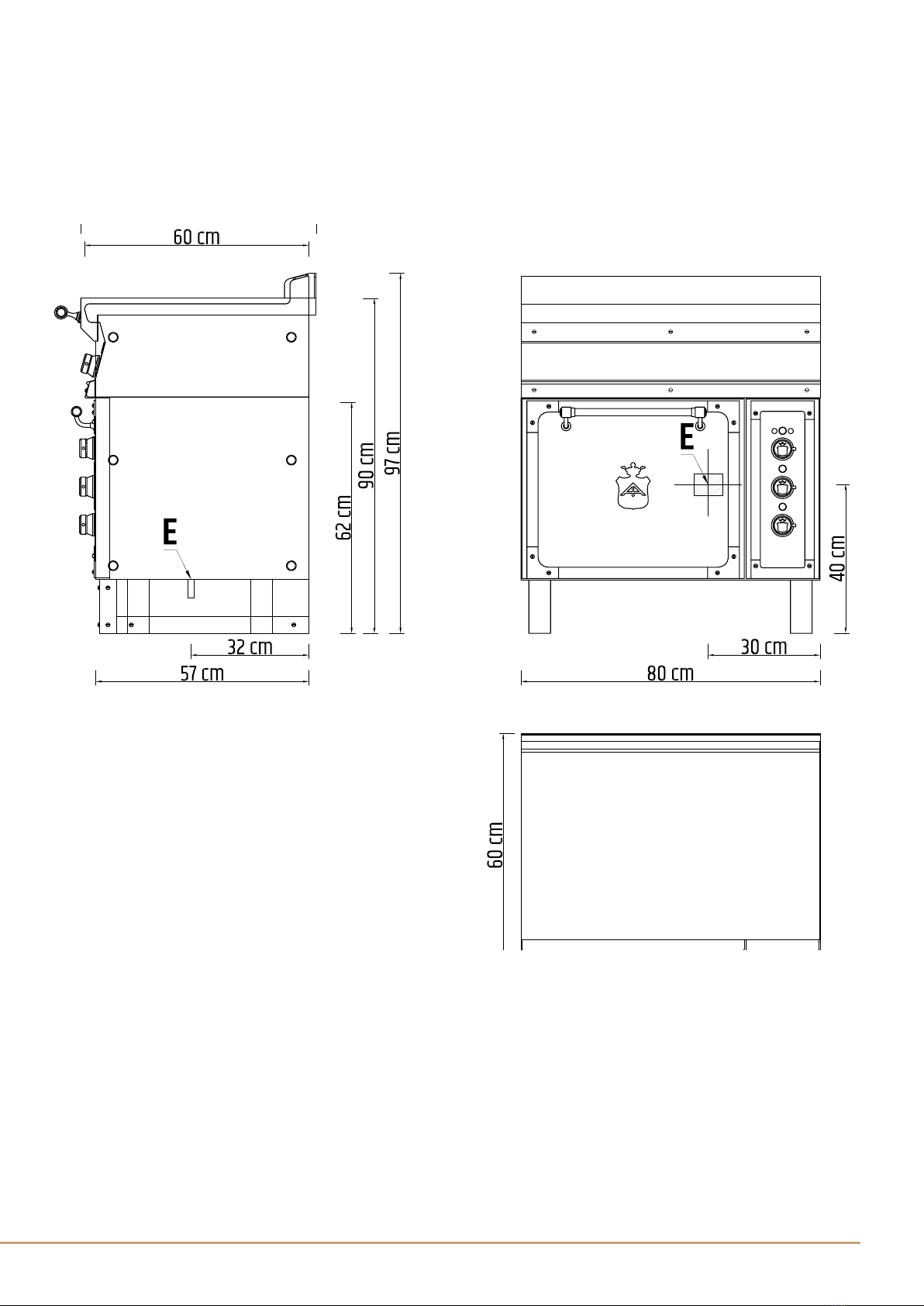

Fig. A/1
FE8
E. Electrical connection
5
Ofcine Gullo
Fig. A/2
FE10
E. Electrical connection

5
Ofcine Gullo
Fig. A/2
FE10
E. Electrical connection

Ofcine Gullo6
3
SCHEMA ELETTRICO FORNO ELETTRICO MULTIFUNZIONALE
SCHALTPLAN MULTIFUNKTIONS-ELEKTROOFEN
SCHEMA ELECTRIQUE FOUR ÉLECTRIQUE A FONCTIONS MULTIPLES
MULTIFUNCTIONS ELECTRIC OVEN WIRING DIAGRAM
ESQUEMA ELÉCTRICO HORNO ELÉCTRICO MULTIFUNCIONAL
1
Selettore Umschalter Commuateur Commutator Conmutador
2
Lampada forno Backofen-Beleuchtung Ampoule four Oven light Luz horno
3
Morsettiera Klemm-leiste Bornier Junction-box Tablero de bornes
4
Motoventilatore Ventilator Motoventilateur Fan Ventilador
5 RS
Resistenza superiore Ober-Heizkörper
Backofen Résistance supérieure Upper heating element Resistencia superior
5 RG
Resistenza (grill) Heizkörper Grill
Backofen Résistance (grill) Element (grill) Resistencia (grill)
5 RI
Resistenza inferiore Unter-Heizkörper
Backofen Résistance inférieure Bottom heating element Resistencia inferior
5 RC
Resistenza circolare Spiral-Heizkörper Résistance circulaire Round heating element Resistencia crcular
6
Spia bianca weiße Kontroll-Leuchte Témoin blanc White light Luz indicadora blanca
7
Spia verde grüne Kontroll-Leuchte Témoin vert Green light Luz indicadora verde
8
Timer Timer Timer Timer Timer
9
Termostato Thermostat Thermostat Thermostat Termostato
1. Commutator
2. Oven light
3. Junction box
4. Fan
5. RS-Upper Heating element / RG -
Element grill / RI - Bottom heating
element / RC - Round Heating
element
6. White light
7. Green light
8. Timer
9. Thermostat
Fig. B
ELECTRIC OVEN WIRING DIAGRAM
7
Ofcine Gullo
DECLARATION OF COMPLIANCE
This appliance is manufactured by OFFICINE GULLO S.r.l
Headquarters and factory
Via Della Torricella 29, Antella, Bagno a Ripoli
50012 Florence - Italy
Tel. [phone]
[phone]
ofcinegullo.com | info@ofcinegullo.com
The manufacturer declines any responsibility for direct or indirect damage caused by improper or incorrect
installation, alterations, maintenance or use of the appliance, as in all the other cases considered in the items of our
sales conditions.
INSTRUCTIONS FOR INSTALLATION
The data plate is on the front of the side (see diagram in electric connection item) and has all the data necessary
for the connection.
INSTALLATION
When tting, the appliance must be levelled using a spirit level; slight differences of level can be adjusted by
screwing or unscrewing the adjustable feet. The main switch or the socket must be near the appliance and easily
accessible. It is advisable to place the appliance under an extractor hood so that steam is extracted rapidly. If the
appliance is placed near walls, dividing panels, kitchen furniture, decorative nishing, etc. , these should be in
ameproof material; otherwise it is necessary to cover them with non-ammable material. Above all, it is necessary
to ensure that the re prevention norms are observed.
Attention! This appliance has been produced for use as part of a battery. If used singly, it will be necessary to keep
it at least 10cm away from the adjacent walls.
The manufacturer declines all responsibility in the event of incorrect functioning due to wrong installation or installation
which does not comply with the norms.
LAWS, TECHNICAL RULES AND NORMS
Installation must be carried out observing the following norms:
- Safety prescription in force
- Installation prescription, in force.
The installation, starting up and maintenance of the appliance must be carried out by qualied personnel. All
operations done when installing must be carried out observing the norms in force. The manufacturer declines all
responsibility in the event of incorrect functioning due to wrong installation or installation which does not comply
with the norms.
Attention! In accordance with international rules, when connecting the appliance, an automatic device enabling the
disconnection of all contacts from the mains, must be installed above it; this device must have a contacts opening
of at least 3 mm.

7
Ofcine Gullo
DECLARATION OF COMPLIANCE
This appliance is manufactured by OFFICINE GULLO S.r.l
Headquarters and factory
Via Della Torricella 29, Antella, Bagno a Ripoli
50012 Florence - Italy
Tel. [phone]
[phone]
ofcinegullo.com | info@ofcinegullo.com
The manufacturer declines any responsibility for direct or indirect damage caused by improper or incorrect
installation, alterations, maintenance or use of the appliance, as in all the other cases considered in the items of our
sales conditions.
INSTRUCTIONS FOR INSTALLATION
The data plate is on the front of the side (see diagram in electric connection item) and has all the data necessary
for the connection.
INSTALLATION
When tting, the appliance must be levelled using a spirit level; slight differences of level can be adjusted by
screwing or unscrewing the adjustable feet. The main switch or the socket must be near the appliance and easily
accessible. It is advisable to place the appliance under an extractor hood so that steam is extracted rapidly. If the
appliance is placed near walls, dividing panels, kitchen furniture, decorative nishing, etc. , these should be in
ameproof material; otherwise it is necessary to cover them with non-ammable material. Above all, it is necessary
to ensure that the re prevention norms are observed.
Attention! This appliance has been produced for use as part of a battery. If used singly, it will be necessary to keep
it at least 10cm away from the adjacent walls.
The manufacturer declines all responsibility in the event of incorrect functioning due to wrong installation or installation
which does not comply with the norms.
LAWS, TECHNICAL RULES AND NORMS
Installation must be carried out observing the following norms:
- Safety prescription in force
- Installation prescription, in force.
The installation, starting up and maintenance of the appliance must be carried out by qualied personnel. All
operations done when installing must be carried out observing the norms in force. The manufacturer declines all
responsibility in the event of incorrect functioning due to wrong installation or installation which does not comply
with the norms.
Attention! In accordance with international rules, when connecting the appliance, an automatic device enabling the
disconnection of all contacts from the mains, must be installed above it; this device must have a contacts opening
of at least 3 mm.

Ofcine Gullo8
TECHNICAL ELECTRICAL DATA TABLE
MODELS Dimensions
cm Power supply Power max kW Absorb.max A Power supply cable
FE8 80x57,5x57h 230Vac 50/60 Hz 3,05 13,3 3 x 2.5 mm²
FE10 100x57,5x57h 230Vac 50/60 Hz 3,05 13,3 3 x 2.5 mm²
ELECTRIC CONNECTION
The appliance is supplied without the connection cable.
In the event that it has to be substituted, proceed as follows:
• Disconnect the power supply.
• Remove the back panel.
• Disconnect the cable from the junction-box situated at the back.
• Loosen the cable blocker and pull out the cable.
• Push the connection cable through the cable blocker, connect the conductor wires to the corresponding terminals in
the junction box and x them into place.
• Block the cable with the cable blocker, and reassemble the back panel. The earth wire must be longer than the others
so that if the cable blocker should break, it will disconnect after the tension wires.
N.B. The connection cable must have the following characteristics: it must be at least type H05 RN-F (resistant to a
temperature of at least 150°), and must have an adequate section for the power of the appliance (see technical data
table).
EQUIPOTENTIAL
The appliance must be connected to an equipotential system. The connection screw is positioned at the back of the
appliance and is identied by the symbol

.
Attention: The manufacturer will neither be held responsible for, nor will give any compensation during the guarantee
period for any damage caused, and which is due to inadequate installations not compliant with the instructions.
9
Ofcine Gullo
USER MANUAL
INSTRUCTIONS FOR USE
Attention!
• Use the appliance only under surveillance
TURNING ON AND ADJUSTING THE MULTIFUNCTION OVEN

Oven:
The hot air made to circulate by the fan is distributed in all parts of the oven chamber to
ensure even cooking results. Since the oven chamber is heated evenly, different foods
can be cooked together on different rungs. Turn the knob round to the hot air and set
the temperature wanted.
The oven does not have to be preheated because the hot air heats it up very quickly.
To turn the oven on, turn the selector knob (see gure) to the right or left into one of the
following positions

Top + bottom heating element W 2600

Bottom heating element W 1600

Top heating element W 1000

Grill heating element W 2000

Grill heating element + fan W 2036

Top + bottom heating element + fan W 2636

Fan Oven W 3036

Fast defrost W 36
The green pilot light turns on to indicate the oven is powered.
After having selected the cooking type, turn the timer knob (see gure) to the left on
the manual position or to the right, positioning it on the time chosen, ranging between
0 and 120 minutes. In this last position, once the time set has elapsed, the acoustic
signal sounds and the oven turns itself off at the same time.
After having set the cooking time, turn the thermostat knob (see gure) to the right,
positioning it on the temperature wanted.
Caution: when the oven is on, the door must be kept shut otherwise the knobs and
protection sheet could get hot and be damaged.
Grill:
When using the grill the oven door must be closed and position the thermostat knob
on position
200°C

9
Ofcine Gullo
USER MANUAL
INSTRUCTIONS FOR USE
Attention!
• Use the appliance only under surveillance
TURNING ON AND ADJUSTING THE MULTIFUNCTION OVEN

Oven:
The hot air made to circulate by the fan is distributed in all parts of the oven chamber to
ensure even cooking results. Since the oven chamber is heated evenly, different foods
can be cooked together on different rungs. Turn the knob round to the hot air and set
the temperature wanted.
The oven does not have to be preheated because the hot air heats it up very quickly.
To turn the oven on, turn the selector knob (see gure) to the right or left into one of the
following positions

Top + bottom heating element W 2600

Bottom heating element W 1600

Top heating element W 1000

Grill heating element W 2000

Grill heating element + fan W 2036

Top + bottom heating element + fan W 2636

Fan Oven W 3036

Fast defrost W 36
The green pilot light turns on to indicate the oven is powered.
After having selected the cooking type, turn the timer knob (see gure) to the left on
the manual position or to the right, positioning it on the time chosen, ranging between
0 and 120 minutes. In this last position, once the time set has elapsed, the acoustic
signal sounds and the oven turns itself off at the same time.
After having set the cooking time, turn the thermostat knob (see gure) to the right,
positioning it on the temperature wanted.
Caution: when the oven is on, the door must be kept shut otherwise the knobs and
protection sheet could get hot and be damaged.
Grill:
When using the grill the oven door must be closed and position the thermostat knob
on position
200°C

Ofcine Gullo10
OVEN ILLUMINATION
To turn the light on inside the oven press the button with the symbol.

With the light on inside the oven you can keep a check on the food while it is cooking through the glass door without
having to open it.
REPLACING THE OVEN LIGHT
• Switch off the appliance.
• Remove the glass light cover.
• Unscrew the light bulb.
• Replace with a bulb having the following characteristics:
• Heat resistant up to 300°C.
• Wattage 15 W.
• Volts: according to model.
CLEANING AND MAINTENANCE
Attention! During cleaning, do not wash the external parts of the appliance with direct sprays of water or with
high pressure.
After every use, clean the appliance thoroughly. Daily cleaning after switching off the appliance ensures the perfect
functioning and long life of the appliance.
Before starting to clean the appliance, disconnect the power supply. The parts in steel must be washed with hot water
and neutral detergent, then rinsed thoroughly in order to eliminate all traces of detergent; after which, dried with a
dry cloth. Do not use abrasive or corrosive detergents.
Cleaning burnished brass surfaces
No synthetic protective varnishes have been used to obtain the special burnishing effect on the burnished brass
details in order to avoid spoiling the beauty of the brass with an articial patina. The antique nish of the surface
is the result of natural oxidation that has simply been accelerated. All the natural antique nish brass surfaces can
be cleaned with any kitchen degreasing detergent, accompanied by the use of an abrasive scouring pad (the
green colored type used for washing dishes). It is recommended that the metal be rubbed, uniformly applying light
pressure, until the desired effect is achieved.
The brass details should then be dried.
Do not use polish as this is suitable for maintaining the gloss but not the antique nish and could result in an effect
that is not compliant with our products. Any spots that may appear over time on the burnished brass surfaces should
be considered as a desirable and particular characteristic of our craft metal working processes.
Cleaning chromium-plated brass surfaces
No synthetic varnishes have been used to obtain the special polish on the chromium-plated brass details in order to
avoid spoiling the beauty of the chromium plating with an articial patina. All the chromium-plated surfaces should
be cleaned, where necessary, with a soft, possibly micro-ber cloth, combined with metal polishing products, if
required. Do not use abrasive pads.
Cleaning satin nish nickel-plated brass surfaces
No synthetic varnishes have been used to obtain the special nickel-plating on the satin nish nickel-plated brass
details in order to avoid spoiling the beauty of the nickel-plated, satin nished solid brass with an articial patina. All
the nickel-plated and satin nished brass surfaces should be cleaned, where necessary, with a soft, possibly micro-
ber cloth, combined with a neutral detergent, if required. Do not use abrasive pads.
11
Ofcine Gullo
Cleaning the varnished surfaces
All the varnished surfaces should be cleaned using a neutral detergent and, where necessary, a soft, possibly micro-
ber cloth. Do not use abrasive pads or any other chemical products.
Cleaning brushed steel surfaces
All the brushed steel surfaces should be cleaned using degreasing products or products specically designed to be
used on steel and, where necessary, extra-ne steel wool or extra-thin sandpaper.
WHAT TO DO IN THE EVENT OF A BREAKDOWN
In the event of breakdown, turn off the appliance, disconnect the power supply by using the device situated above
the appliance and notify the after sales service.
PROCEDURE TO FOLLOW IF THE APPLIANCE IS NOT
GOING TO BE USED FOR SOME TIME
Turn off the appliance, disconnect the power supply and clean the appliance as specied above.
MAINTENANCE (only for qualied personnel)
Any kind of maintenance must only be done by qualied personnel. Before carrying out maintenance,remove the
plug or switch off the switch above the appliance.

11
Ofcine Gullo
Cleaning the varnished surfaces
All the varnished surfaces should be cleaned using a neutral detergent and, where necessary, a soft, possibly micro-
ber cloth. Do not use abrasive pads or any other chemical products.
Cleaning brushed steel surfaces
All the brushed steel surfaces should be cleaned using degreasing products or products specically designed to be
used on steel and, where necessary, extra-ne steel wool or extra-thin sandpaper.
WHAT TO DO IN THE EVENT OF A BREAKDOWN
In the event of breakdown, turn off the appliance, disconnect the power supply by using the device situated above
the appliance and notify the after sales service.
PROCEDURE TO FOLLOW IF THE APPLIANCE IS NOT
GOING TO BE USED FOR SOME TIME
Turn off the appliance, disconnect the power supply and clean the appliance as specied above.
MAINTENANCE (only for qualied personnel)
Any kind of maintenance must only be done by qualied personnel. Before carrying out maintenance,remove the
plug or switch off the switch above the appliance.

Tel. [phone] | info@ofcinegullo.com
Via Della Torricella 29, Antella, Bagno a Ripoli - 50012 Florence - Italy
OFFICINEGULLO.COM
en
international
V 2.4 - 8.20
