Officine Gullo FES10 User manual

FES10
ELECTRIC OVEN FOR RESIDENTIAL AND PROFESSIONAL USE
INSTRUCTIONS
FOR INSTALLATION AND USE

Ofcine Gullo2
CAUTION
1. These safety directions apply to different kinds of appliances. Please identify correctly the specic appliance in
your possession (check the tag showing the characteristics).
2. Before using the appliance, read the instruction manual carefully, as it contains important safety information on
the proper installation, use and maintenance of the appliance. Please keep the instruction manual for further
reference.
3. The appliance’s electrical safety is guaranteed only if the electrical system is earthed in accordance with
the relevant regulations. It is of the utmost importance to follow such regulations; when in doubt, please
consult a qualied electrician to have the electrical system thoroughly checked. The manufacturer declines all
responsibility for damage caused by a badly-earthed electrical system
4. Before connecting the appliance, make sure that the appliance’s technical characteristics shown on the tag
correspond to those of the electrical system and gas distribution network.
5. Make sure that the electrical system and sockets can handle the appliance’s maximum power consumption as
shown on the tag. When in doubt, please consult a qualied electrician.
6. The appliance should be connected to the electric supply line by means of an omnipolar switch with a minimum
contact opening of 3 mm
7. If the power socket is not compatible with the plug, replace the socket with a proper one and consult a qualied
electrician to make sure that the cable size can handle the appliance’s maximum power consumption. The use
of adapters, multiple power boards and extension cords is not recommended.
8. When not in use, switch off the general power supply to the appliance and close the gas supply valve.
9. Do not obstruct the appliance’s cooling or heat dissipation vents.
10. In case of damage to the appliance’s power cord, it must be replaced exclusively by the manufacturer’s
authorized service center.
11. The appliance must be used only for the purposes for which it has been expressly designed (cooking).All other
uses (such as the heating of a room) are considered inappropriate and therefore dangerous. The manufacturer
declines all responsibility for damage resulting from improper use of the appliance.
12. The use of any electric appliance implies the observance of some basic rules. More specically.
• Do not touch the appliance with wet or damp hands or feet;
• Do not use the appliance with bare feet;
• Avoid the use of extension cords and, if necessary, take all precautions;
• Do not pull the power cord to disconnect the plug from the power socket;
• Do not leave the appliance exposed to atmospheric agents (rain, sun, etc.);
• Do not allow children or untrained persons to use the appliance.
13. Before cleaning the appliance or performing maintenance work, disconnect the appliance by pulling the plug
out of the power socket or turning off the main switch.
14. In case of failure or malfunction, turn the appliance off, close the gas supply valve and do not attempt to carry
out any repairs, which must be done exclusively by an authorized service center.
Request the use of original spare parts only. Failure to comply with the above recommendations may compromise
the appliance’s safety.
3
Ofcine Gullo
INDEX
INSTALLATION MANUAL
DECLARATION OF COMPLIANCE ..........................................................................................6
ELECTRIC TECHNICAL DATA TABLE .........................................................................................6
INSTALLATION.....................................................................................................................6
ELECTRIC CONNECTION.....................................................................................................6
EQUIPOTENTIAL ..................................................................................................................6
USER MANUAL
INSTRUCTIONS FOR USE .....................................................................................................7
LIGHTING AND REGULATING THE ELECTRIC OVEN.................................................................7
CLEANING AND MAINTENANCE.........................................................................................7
WHAT TO DO IN THE EVENT OF A BREAKDOWN..................................................................8
PROCEDURE TO FOLLOW IF THE APPLIANCE IS NOT GOING TO BE USED FOR SOME TIME........8
MAINTENANCE (only for qualied personnel)...........................................................................8

3
Ofcine Gullo
INDEX
INSTALLATION MANUAL
DECLARATION OF COMPLIANCE ..........................................................................................6
ELECTRIC TECHNICAL DATA TABLE .........................................................................................6
INSTALLATION.....................................................................................................................6
ELECTRIC CONNECTION.....................................................................................................6
EQUIPOTENTIAL ..................................................................................................................6
USER MANUAL
INSTRUCTIONS FOR USE .....................................................................................................7
LIGHTING AND REGULATING THE ELECTRIC OVEN.................................................................7
CLEANING AND MAINTENANCE.........................................................................................7
WHAT TO DO IN THE EVENT OF A BREAKDOWN..................................................................8
PROCEDURE TO FOLLOW IF THE APPLIANCE IS NOT GOING TO BE USED FOR SOME TIME........8
MAINTENANCE (only for qualied personnel)...........................................................................8

Ofcine Gullo4
Non posizionare l'induzione sopra
il forno
Do not place induction above
the oven
67 cm
97 cm
90 cm
63 cm
FES10
E
LEGEND
Electric connection/Connessione Elettrica
100 cm
30 cm
E
40 cm
70 cm
100 cm
INSTALLATION MANUAL
Fig. A
FES10
5
Ofcine Gullo
Fig. B

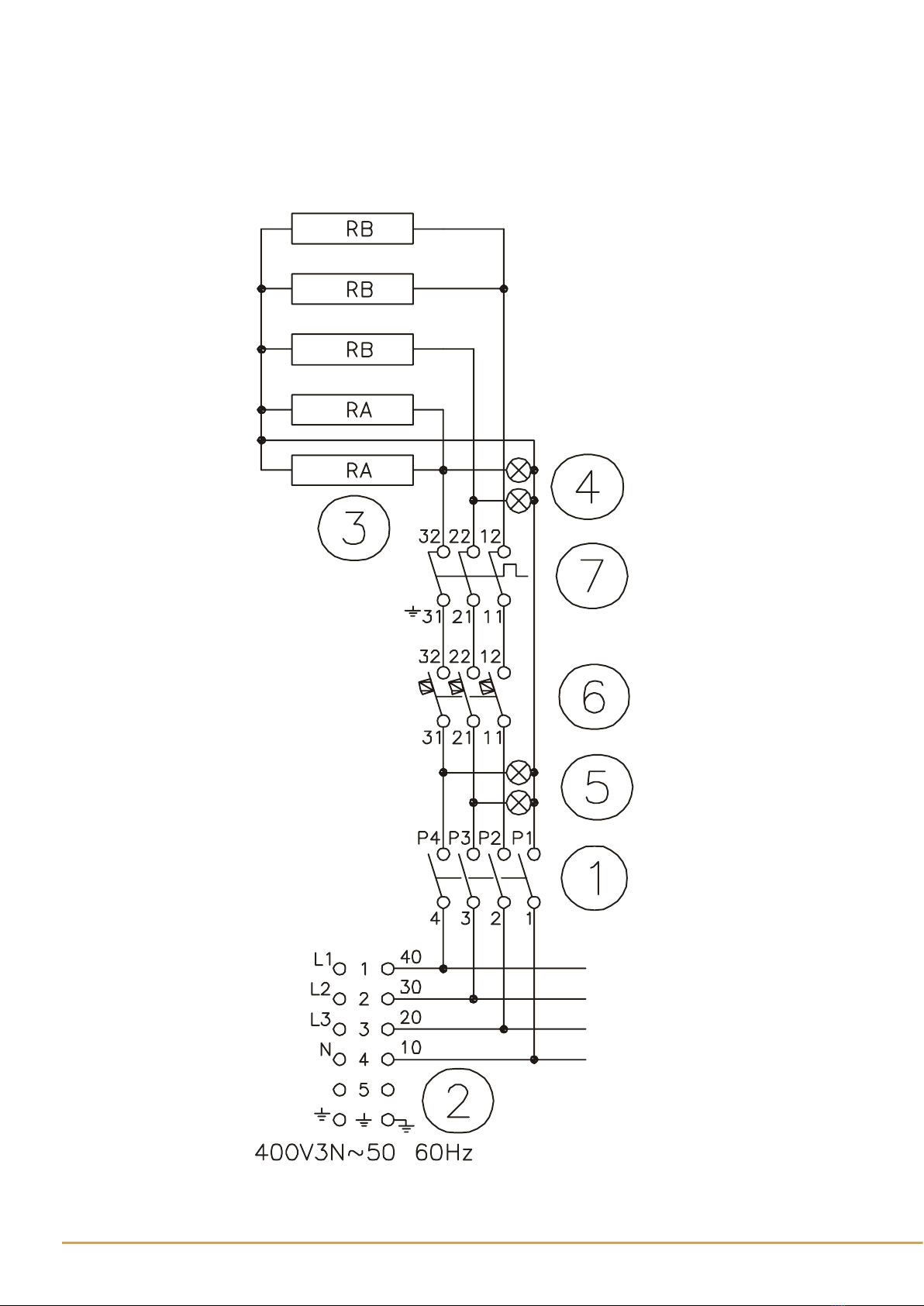

WIRING DIAGRAM STATIC OVEN GN2/1
1. Commutator
2. Junction-box
3. Element
4. White light
5. Green light
6. Thermostat
7. Safety thermostat

5
Ofcine Gullo
Fig. B
WIRING DIAGRAM STATIC OVEN GN2/1
1. Commutator
2. Junction-box
3. Element
4. White light
5. Green light
6. Thermostat
7. Safety thermostat

Ofcine Gullo6
DECLARATION OF COMPLIANCE
This appliance is manufactured by OFFICINE GULLO S.r.l
Headquarters and factory
Via Della Torricella 29, Antella, Bagno a Ripoli
50012 Florence - Italy
Tel. [phone]
[phone]
ofcinegullo.com | info@ofcinegullo.com
The manufacturer declares that the appliances are compliant with the prescriptions of the 2004/108/CE norm for
the electric part. The installation must be done observing the norms in force.
N.B.: The manufacturer declines any responsibility for direct or indirect damage caused by improper or incorrect
installation, alterations, maintenance or use of the appliance, as in all the other cases considered in the items of our
sales conditions.
ELECTRIC TECHNICAL DATA TABLE
MODEL Dimensions
cm Power Supply
Tot.
power
(KW)
Max.
absorb
A
Power
supply
cable mm²
FES 10 100x63x57h 400V~3N 50/60 Hz 5 10,4 5x1,5
INSTALLATION
The installation, start-up and maintenance of this appliance must be carried out only by qualied tters. All installation
operations must be in accordance with current regulations. The manufacturer declines all responsibility for
malfunctioning due to bad or faulty installation.
Attention: In accordance with international rules, when connecting the appliance, an automatic device enabling the
disconnection of all contacts from the mains, must be installed above it; this device must have a contacts opening
of at least 3 mm.
ELECTRIC CONNECTION
The terminal board is situated behind the front panel. The electrical wiring must be no less than HO5 RN F and have
a section suitable for the appliance. Secure the wiring with the wiring clips. Connect the wire ends to their terminals
on the terminal board. The earthing wire must be longer than the other wires so that it will disconnect after the live
wires in the event of the fastener breaking.
EQUIPOTENTIAL
The appliance must be connected to an equipotential system.
The connection screw is positioned at the back of the appliance and is identied by the symbol .
Attention! The manufacturer will neither be held responsible for, nor will give any compensation during the guarantee
period for any damage caused, and which is due to inadequate installations not compliant with the instructions.
7
Ofcine Gullo
USER MANUAL
INSTRUCTIONS FOR USE
Attention! The appliance must only be used under surveillance.
LIGHTING AND REGULATING THE ELECTRIC OVEN
Before turning the oven on, make sure the oven racks are in the desired position.
Turn the control knob to the right and set the temperature wanted.
To turn the oven off, turn the knob to the left to position 0.
To turn the oven on, turn the selector knob (see gure) to the right or left into one of the
following positions
Top + bottom heating element
Bottom heating element
Top heating element
Preheating the oven is essential for baking. It is recommended to pre-heat the oven
slightly warmer than the cooking set point fot at least 30 minutes. All cooking times are
based on a preheated oven unless otherwise stated in the recipe.
Caution: when the oven is on the door must be kept shut otherwise the knobs and
protection sheet could get hot and be damaged.
CLEANING AND MAINTENANCE
Attention! During cleaning, do not wash the external parts of the appliance with direct sprays of water or with high
pressure.
After every use, clean the appliance thoroughly. Daily cleaning after switching off the appliance ensures the perfect
functioning and long life of the appliance.
Before starting to clean the appliance, disconnect the power supply. The parts in steel must be washed with hot water
and neutral detergent, then rinsed thoroughly in order to eliminate all traces of detergent; after which, dried with a
dry cloth. Do not use abrasive or corrosive detergents.
The enamelled parts should be washed with soapy water.
Oven: Cleaning the oven is made easier by removing the support grill.
Important: As well as ordinary cleaning and maintenance, it is advisable to have the installation checked by an
installer at least once a year.
It is therefore suggested to draw up an after-sales assistance contract.

7
Ofcine Gullo
USER MANUAL
INSTRUCTIONS FOR USE
Attention! The appliance must only be used under surveillance.
LIGHTING AND REGULATING THE ELECTRIC OVEN
Before turning the oven on, make sure the oven racks are in the desired position.
Turn the control knob to the right and set the temperature wanted.
To turn the oven off, turn the knob to the left to position 0.
To turn the oven on, turn the selector knob (see gure) to the right or left into one of the
following positions
Top + bottom heating element
Bottom heating element
Top heating element
Preheating the oven is essential for baking. It is recommended to pre-heat the oven
slightly warmer than the cooking set point fot at least 30 minutes. All cooking times are
based on a preheated oven unless otherwise stated in the recipe.
Caution: when the oven is on the door must be kept shut otherwise the knobs and
protection sheet could get hot and be damaged.
CLEANING AND MAINTENANCE
Attention! During cleaning, do not wash the external parts of the appliance with direct sprays of water or with high
pressure.
After every use, clean the appliance thoroughly. Daily cleaning after switching off the appliance ensures the perfect
functioning and long life of the appliance.
Before starting to clean the appliance, disconnect the power supply. The parts in steel must be washed with hot water
and neutral detergent, then rinsed thoroughly in order to eliminate all traces of detergent; after which, dried with a
dry cloth. Do not use abrasive or corrosive detergents.
The enamelled parts should be washed with soapy water.
Oven: Cleaning the oven is made easier by removing the support grill.
Important: As well as ordinary cleaning and maintenance, it is advisable to have the installation checked by an
installer at least once a year.
It is therefore suggested to draw up an after-sales assistance contract.

Ofcine Gullo8
Cleaning burnished brass surfaces
No synthetic protective varnishes have been used to obtain the special burnishing effect on the burnished brass
details in order to avoid spoiling the beauty of the brass with an articial patina. The antique nish of the surface
is the result of natural oxidation that has simply been accelerated. All the natural antique nish brass surfaces can
be cleaned with any kitchen degreasing detergent, accompanied by the use of an abrasive scouring pad (the
green colored type used for washing dishes). It is recommended that the metal be rubbed, uniformly applying light
pressure, until the desired effect is achieved.
The brass details should then be dried.
Do not use polish as this is suitable for maintaining the gloss but not the antique nish and could result in an effect
that is not compliant with our products. Any spots that may appear over time on the burnished brass surfaces should
be considered as a desirable and particular characteristic of our craft metal working processes.
Cleaning chromium-plated brass surfaces
No synthetic varnishes have been used to obtain the special polish on the chromium-plated brass details in order to
avoid spoiling the beauty of the chromium plating with an articial patina. All the chromium-plated surfaces should
be cleaned, where necessary, with a soft, possibly micro-ber cloth, combined with metal polishing products, if
required. Do not use abrasive pads.
Cleaning satin nish nickel-plated brass surfaces
No synthetic varnishes have been used to obtain the special nickel-plating on the satin nish nickel-plated brass
details in order to avoid spoiling the beauty of the nickel-plated, satin nished solid brass with an articial patina. All
the nickel-plated and satin nished brass surfaces should be cleaned, where necessary, with a soft, possibly micro-
ber cloth, combined with a neutral detergent, if required. Do not use abrasive pads.
Cleaning the varnished surfaces
All the varnished surfaces should be cleaned using a neutral detergent and, where necessary, a soft, possibly micro-
ber cloth. Do not use abrasive pads or any other chemical products.
Cleaning brushed steel surfaces
All the brushed steel surfaces should be cleaned using degreasing products or products specically designed to be
used on steel and, where necessary, extra-ne steel wool or extra-thin sandpaper.
WHAT TO DO IN THE EVENT OF A BREAKDOWN
If a fault develops, turn off the appliance, switch off at the mains and call the technical assistance service.
PROCEDURE TO FOLLOW IF THE APPLIANCE IS NOT GOING TO BE USED FOR SOME TIME
Thoroughly clean and dry the appliance as per instructions, switch off at the mains.
MAINTENANCE (only for qualied personnel)
Any kind of maintenance must only be done by qualied personnel. Before carrying out maintenance,remove the
plug or switch off the switch above the appliance.
9
Ofcine Gullo

9
Ofcine Gullo

Ofcine Gullo10
11
Ofcine Gullo

11
Ofcine Gullo

Tel. [phone] | info@ofcinegullo.com
Via Della Torricella 29, Antella, Bagno a Ripoli - 50012 Florence - Italy
OFFICINEGULLO.COM
en
international
V 1.0 - 8.20
