OHM CRED Mark 2 2-4 User manual

USER MANUAL
CRED MARK 2
2-4 & 2-6

2
WARNING! RISK OF HAZARDOUS ENERGY!
TO REDUCE RISK OF ELECTRIC SHOCK OR FIRE DO NOT
EXPOSE TO RAIN OR MOISTURE.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
UNIT MUST BE EARTHED AND CORRECTLY FUSED.
Magnetic Field - Caution
If an equipment rack is to be used, we would
recommend mounting the amplifiers in the bottom of
the rack and mounting pre-amplifier and other
sensitive equipment such as the Cred Mk2 at the top
of the rack.
Do not locate sensitive high-gain equipment such as
pre- amplifier or tape decks directly above or below
amplifiers.
Because amplifiers have a high power density there is
a strong magnetic field which can induce hum into
unshielded devices that are located nearby. The field
is strongest just above and below the unit.
Features
!
!
!
!
Linea Research minimal signal path design
Sonically superb ADC/DAC combination; a
carefully matched pairing of the best devices from
Burr Brown and Wolfson
Newly released family of Analogue Devices SHARC
DSP
Extended bandwidth; 96kHz sampling frequency
provides for a nominally flat response to 40kHz.
USER MANUAL
CRED MARK 2
The information contained within this manual does not include all of the details of design, production or
variations of the equipment. Nor does it cover every possible situation that may arise during installation,
operation or maintenance. If you need particular assistance beyond the scope of this manual please contact our
technical staff.
Wellington Close • Parkgate • Knutsford
Cheshire • WA16 8XL • England
Tel: [phone] • Fax: [phone]
Email: [email protected] • Website: www.ohm.co.uk
CE Conformity
This equipment has been tested and found to conform
to the requirements of the EMC Directive 89/336/EEC,
the requirements of the Low Voltage Directive
73/23/EEC, amended by 93/68/EEC and to the
following standards:
EMC Emission EN55103-1 (1996)
EMC Immunity EN55103-2 (1996)
Electrical Safety EN60065 (1998)
The lightning bolt triangle is used to alert
the user to the presence of un-insulated
“dangerous voltage” within the unit that
may constitute a risk of electric shock.
The exclamation mark triangle is used to
alert the user to important operating or
maintenance instructions in the
literature accompanying the product.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION

CRED Mark 2 2-4/2-6
3
Quick Reference Guide
Display
Channel Select Buttons
Edit Select Buttons
Parameter Knobs
Mute Buttons
Store Buttons
Recall Button
The User Guide
Front Panel
Input Signal Indicators
Preset Store and Recall
Channel Select Buttons
Edit Select Buttons
Text Display
Parameter Knobs
Output Signal and Limiter Indication
Mute Buttons and Status LED’s
Secure Button (on the Rear)
Rear Panel
Power Inlet
Network Expansion Port
Audio Input Connectors
Output Connectors
Communications Port Connector
Operation
Starting Up
Selecting a Factory Preset
Creating a Crossover
Navigation and Viewing Parameters
Navigation
Preset Store and Recall
Preset Recall
Preset Store
Output DSP block diagram
Stereo / Mono Formats
DSP processin
Input Channels
Output Channels
Utilities
Factory Presets
EQ and Filter Response Graphs
Technical Specification
General
Processing
Connectors
5
5
5
5
5
5
5
6
6
6
6
6
6
6
7
7
7
8
8
8
8
8
8
9
9
9
9
9
10
10
10
5
11
12
12
13
13
15
17
18
19
20
20
20
20

Congratulations on having purchased an
Please read this manual and familiarize yourself with the operation of your
before you attempt to power up the unit. For your own safety we recommend you take the time to
read all the warnings and precautions on the page opposite and study the connection details to
ensure correct usage and avoid any misuse which may invalidate your warranty.
Every has been rigorously tested and inspected before being carefully packaged,
prior to shipping. If any damage has occurred to the packaging or the unit during transit, please
notify the delivery company as soon as possible. Only the consignee can file a claim against the
carrier for shipping damage. Be sure to save the carton and all packing materials for the carriers
inspection.
We recommend that you retain the original carton and packing materials for use should you transport
or ship the unit in future.
OHM CRED Mark 2
OHM CRED Mark 2
OHM CRED Mark 2
Record the serial number, found on the back of the unit, in the spaces designated on the warranty
card, and in the space provided below. Refer to the model and serial numbers whenever you call
your dealer for information or service on this product.
The OHM CRED mark 2 series of loudspeaker management systems represent the current state-of-
the-art. Taking advantages of the latest advances in analogue to digital conversion and digital signal
processing technologies the units achieve performance levels that have only recently been made
possible.
This modern design is combined with OHM Factory Presets to deliver the optimal match for OHM
cabinets and systems. These presets allow the user to simply achieve the best possible
Carefully open the shipping carton and check for any noticeable damage.
Unpacking
INTRODUCTION
Model Serial Number
Precautions
!
!
!
!
!
!
!
!
!
!
Retain this manual for future reference.
Do not stand the unit vertically on it’s rear.
Always check the correctly rated power is supplied to your unit.
Avoid direct contact of your with water or other liquids.
Do not operate while standing in liquid.
When cleaning the unit, wipe with a soft, dry cloth. If more heavy duty cleaning is required,
disconnect from the mains and use a damp cloth, ensuring the unit is completely dry before
reconnecting to the mains.
Do not use solvents or chemicals on the exterior of the unit as they cause the surface to discolour
or peel.
Do not use if the power cord is frayed or broken.
If you experience continuous problems disconnect from the mains and refer to a qualified service
engineer.
This unit is only intended for qualified personnel to operate and install. Do not attempt to repair or
service yourself. Please refer to qualified technical service department. The user must have
sufficent electrical contact to earth. Electrostatic charges may effect the operation of the .
CRED
CRED
4

CRED Mark 2 2-4/2-6

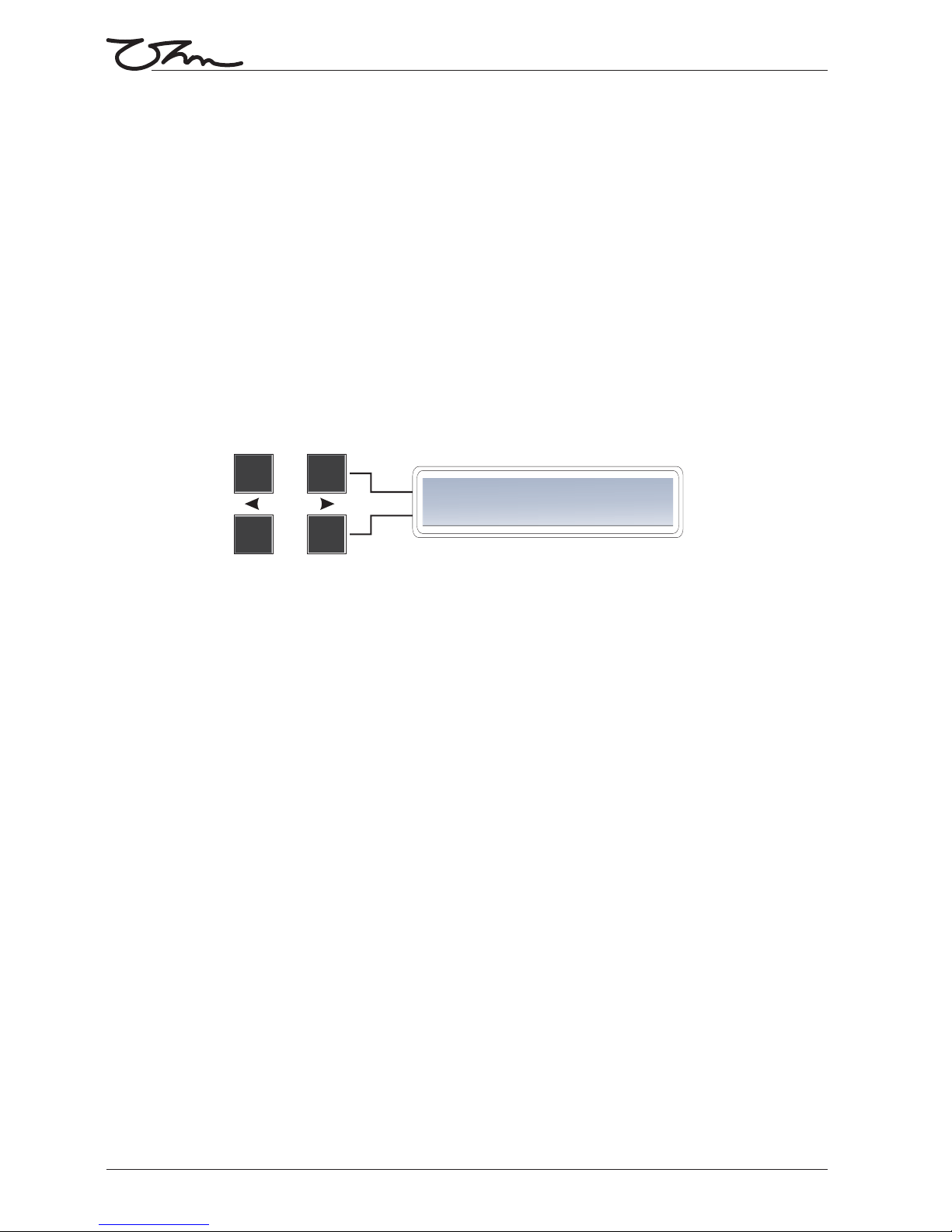

Channel Select Buttons
The currently selected input or output channel is shown in the top left corner of the display. Pressing
the channel select buttons scrolls through the available inputs and outputs. If operating stereo linked
the channel pair is shown. For example ‘CH A+B’ means both input A and B parameters.
Display
The LCD Displays preset and parameter information. The default screen is shown after start up and
displays the number of the current preset on the lower line of text. When navigating around the
adjustable parameters, other information is shown.
Edit Select Buttons
The name of the edit parameter page is displayed in the bottom left portion of the LCD. Pressing the
edit select buttons moves through the available parameter pages for the current input or output.
Mute Buttons
The LEDs next to the mute buttons indicate their current status. Pressing a mute button toggles
between the mute on and off.

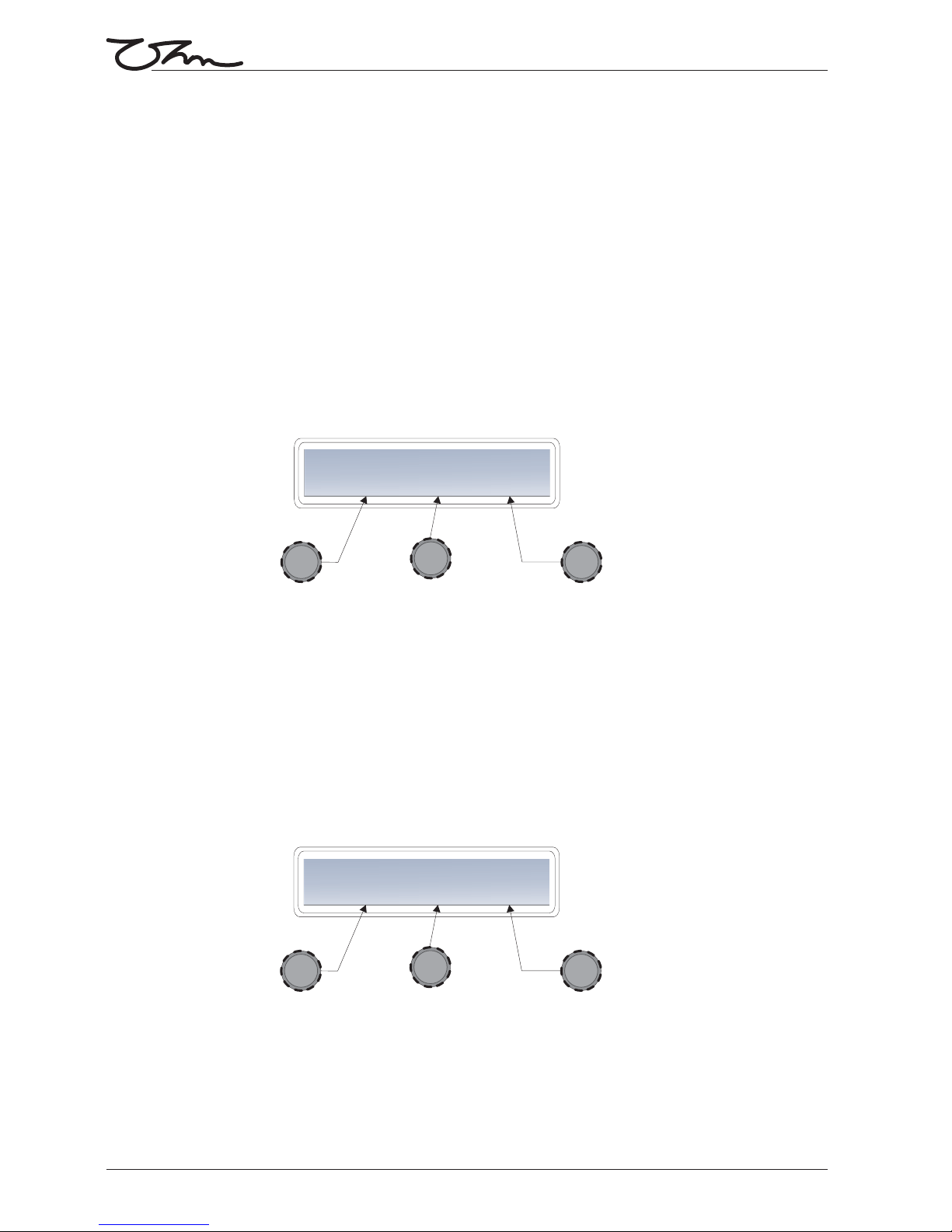

Parameter Knobs
Up to three parameters are shown on the display. The parameter name is shown with its' current
value below. Where appropriate, parameters are grouped according to function. For example the
parametric equalisation page shows centre frequency, width and gain. Turning a parameter knob
clockwise will increase the value of a parameter, turning anti-clockwise will decrease it. Turning a
knob rapidly will cause the action to 'accelerate', so the value changes more rapidly.

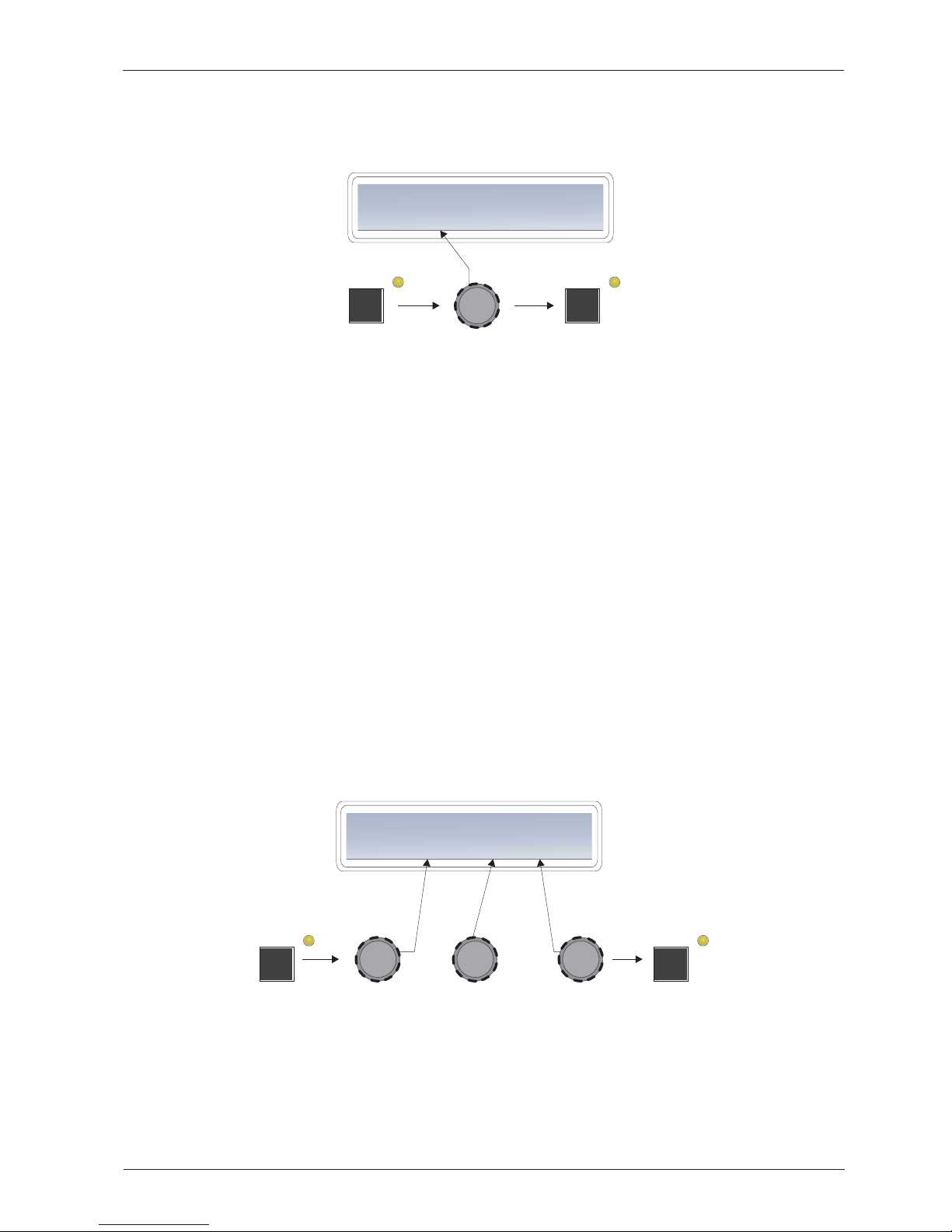

Store Button
The unit has 45 preset locations. To store a preset in a location, press the store button and use the
parameter knobs to select the preset location and name the preset. Pressing the store button again
completes the task. Pressing any button other than store during the process cancels the procedure.
Recall Button
To recall a preset, press the recall button and use parameter knob A to select the required preset.
Pressing the recall button again will activate the preset. You will then be asked to confirm by pressing
recall once more. As with the store function, pressing any button other will cancel the process.
Quick Reference
5

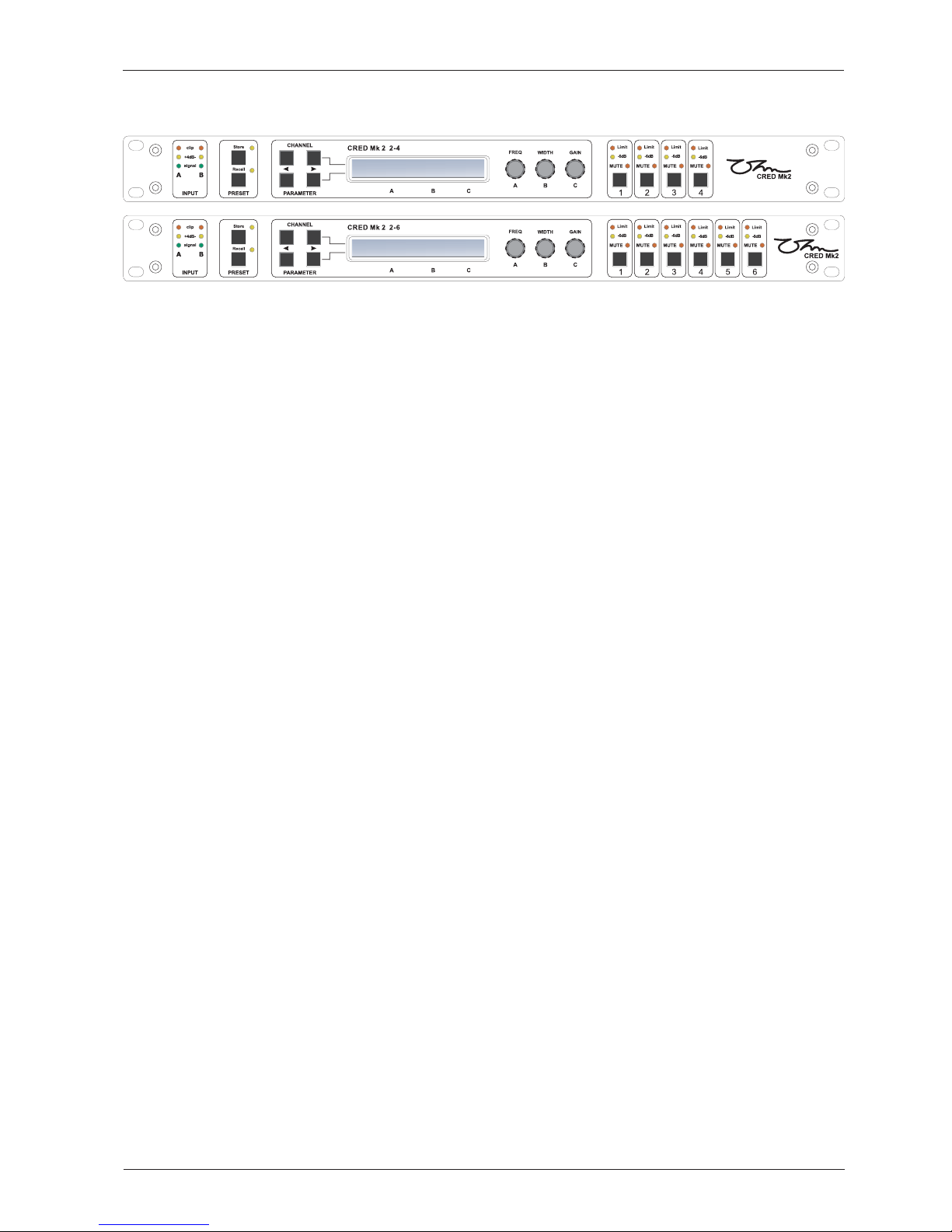

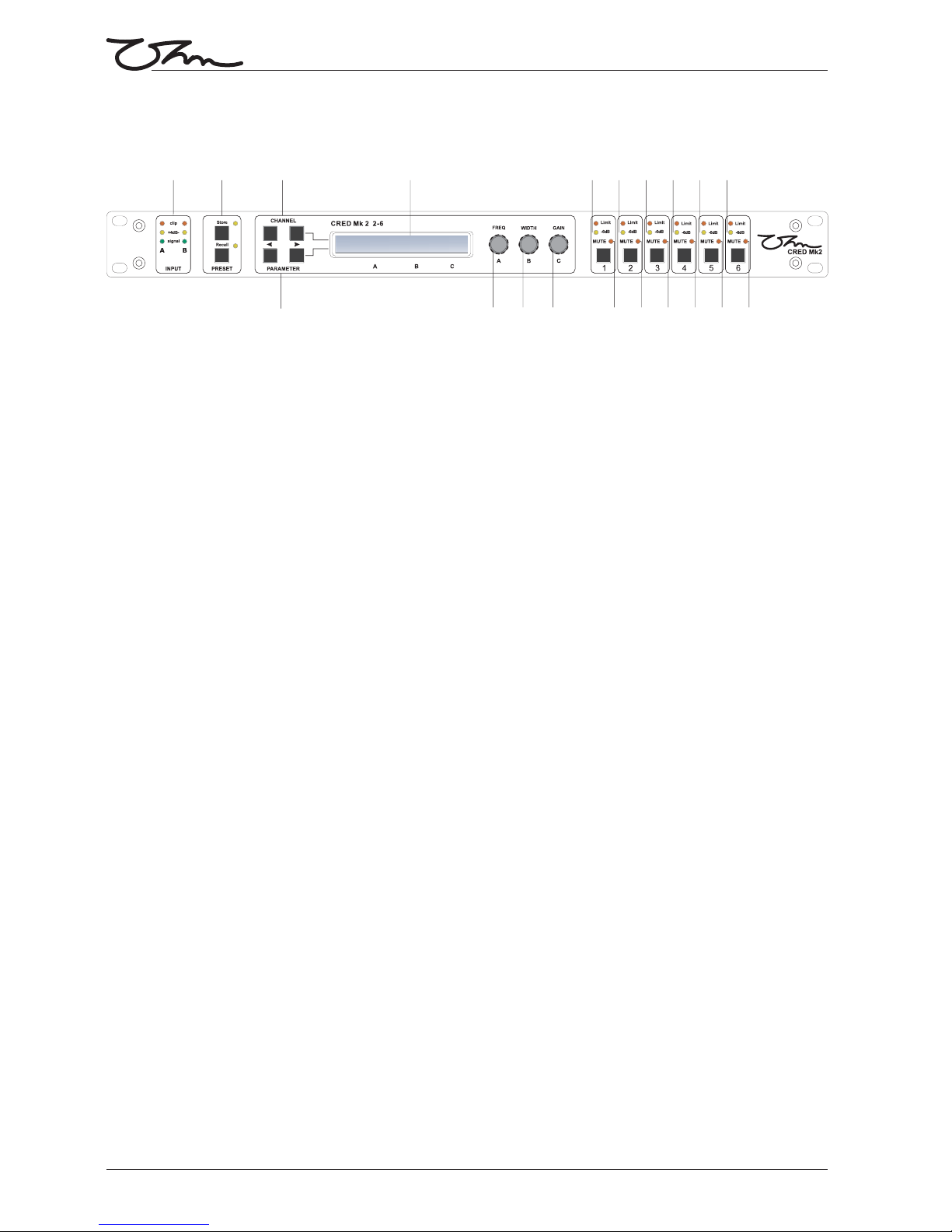

Front Panel
1 Input Signal Indicators
A set of three pairs of LEDs indicate signal present, +4dBu and input clip for each channel. The signal
present LEDs operate at approximately 40 dBu, giving a useful indication of even relatively low input
signal levels. The +4 dBu LEDs are intended to show nominal operating level and can also be useful
for setting system gain structure. Clip LEDs warn the user of input overload and operate at +19 dBu.
2 Preset Store and Recall
These controls provide access to the 45 presets stored within the device. Pressing the store button
allows the user to name a preset and choose which memory location it will be held in. Pressing store
button again completes the process. The Recall function operates in a similar way, pressing the recall
button allows the user to select which preset they require, pressing the button for a second time, then
confirming, recalls the new DSP settings.
Note that presets cannot be stored or recalled when Secure mode is activated.
3 Channel Select Buttons
The currently selected channel is displayed on the top left hand corner of the LCD. Pressing the
channel buttons scrolls through the available input and output channels and finally through the utility
functions and back to the default screen. If operating a stereo linked preset, the channel name will
indicate the channel pairing. For example 'A+B' means both input A and B parameters. The name of
the output will be shown briefly at the top of the display when stepping onto an output.
4 Edit Select Buttons
The currently selected edit parameter page is displayed on the bottom left corner of the LCD.
Pressing the edit select buttons moves through the available parameters for the current input or
output.
5 Text Display
Preset, channel, parameter and status information is shown on the 2x 24-character text display. In
most screens the currently selected channel is displayed on the upper line and the edit parameter on
the lower line. To simplify the display and enhance security, some parameters or parameter pages
are omitted when not relevant.
666
123
4
57777
88 88
77
88

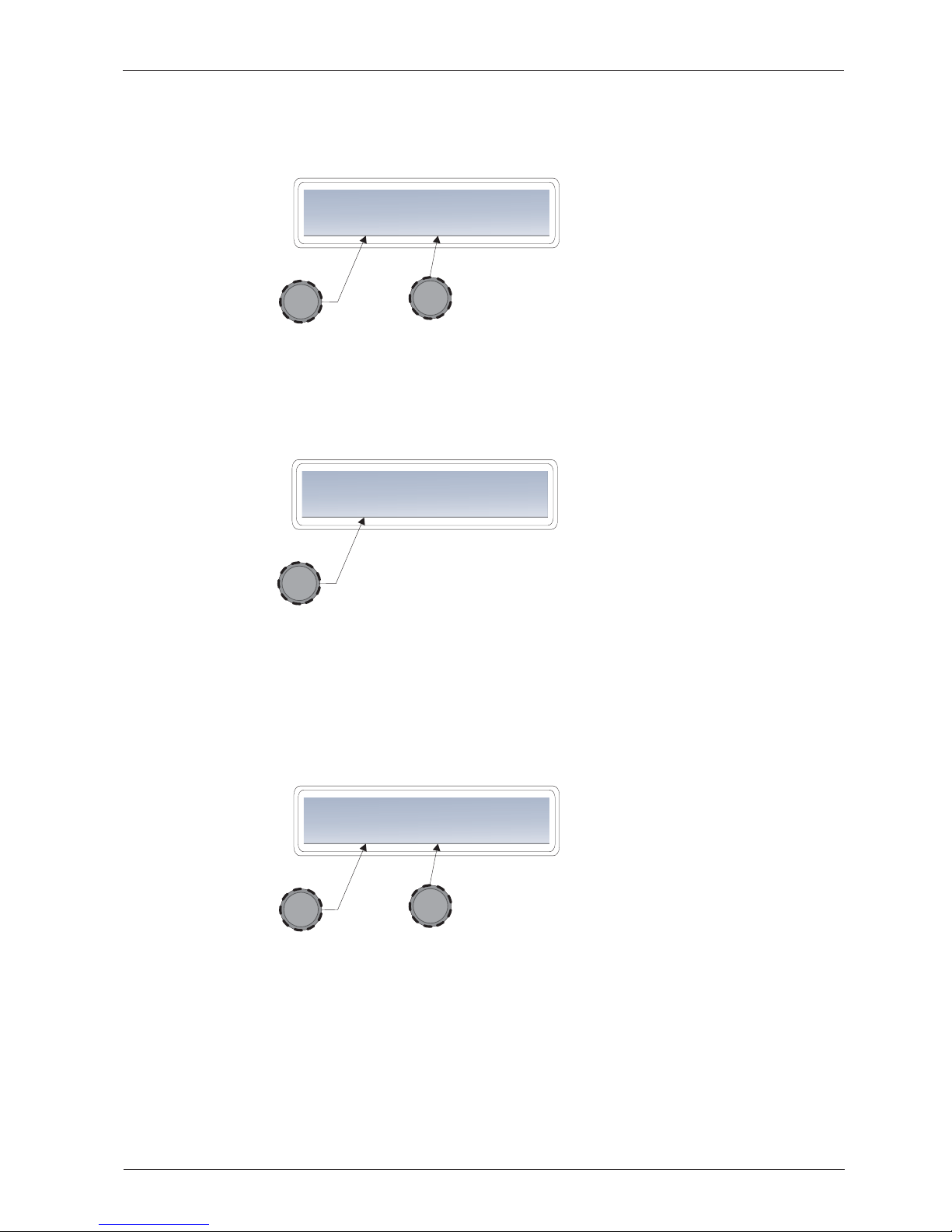

6 Parameter Knobs
Three velocity sensitive parameter knobs are used to adjust parameters shown on the display. Up to
three parameters at a time are displayed on the screen. The parameter name is shown above the
parameter value in each of the three screen sections. The parameter knobs have a fixed association
with the screen sections; the rightmost parameter knob adjusts the rightmost parameter and so on.
6

7 Output Signal / Limiter Indication
Two LEDs are provided for each output channel. These show the signal level relative to the limiter
threshold. The yellow LED will light when the signal is 6dB below the threshold and the red
8 Mute Buttons and Status LEDs
Each output has a mute button and associated status LED. Pressing the button toggles the mute on
and off. Note that the mute buttons do not function when the Secure mode is activated.
9 Secure Button (on the rear)
A momentary button is fitted behind the rear panel, between the output XLRs and the RS232 port.
When activated, this will disable all the front panel controls so they cannot affect the signal path,
making the unit secure against tampering. When in secure mode, the indicators still operate
normally. Note that the communications port is still active in secure mode.
666
123
4
5 7777
8888
7
CRED Mark 2 2-4/2-6

1 Power Inlet
The OHM CRED series unit should be connected to a suitable mains electricity supply using the cable
supplied. The processor has a switch mode power supply that is capable of operating with a nominal
mains voltage of 85V to 240V, 50/60Hz without re-configuration.
2 Network Expansion Port
This allows for a network card to be fitted.
3 Audio Input Connectors
All audio connections are fully balanced and wired pin-1 ground, pin-2 hot & pin-3 cold. The two
inputs have pin-1 connected directly to the chassis and feed the signal processing chains. If an
unbalanced source is used, a connection should be made between the pin-3 'cold' signal and the
4 Audio Output Connectors
The processed outputs are impedance balanced, and wired pin-1 ground, pin-2 hot and pin-3 cold. An
unbalanced input may be driven by connecting pin-3 'cold' signal to the ground connection of the
unbalanced destination input. Note that output pin-1's are ground lifted at audio frequencies but
connected to ground at RF for good EMC performance. The intention being that the amplifiers the
processor is driving should be responsible for the grounding of their input cable shields.
5 Communications Port Connector
A CRED processor may be controlled entirely from another controller, typically a Personal Computer,
running an application that is compliant with the ObCom standard. Connection will normally be made
to the controller via this serial port connector. This port is also used for updating the firmware in the
unit.
Note that the communications port is NOT disabled when the front panel is made secure using the
secure button.
8
153
4
153
4 44444
3
4443
PUSH PUSH
PUSH PUSH
2
2
9
9
Rear Panel

CRED Mark 2 2-4/2-6
Operation
Starting up
The unit will energise as soon as power is applied to the IEC inlet; there is no power switch. During the
start up process the firmware application model number and version numbers are displayed and the
outputs are muted until the unit has completed its internal checks. Once the start-up routines are
complete and the unit is ready to pass audio. The DSP signal path will be restored to the current
settings when it was last powered down and the audio signal is gradually ramped up to its correct
level.
Selecting a Factory Preset
The CRED series processors have a library of designed to suit a range of OHM
enclosures.
contain some parameters that are fixed and hidden from view; the remainder of the
DSP parameters are available for user manipulation. The number and type of hidden parameters is
dependant on the , typically crossover frequencies, output delay and some EQ's are
hidden; those settings that are a function of the loudspeaker cabinet design and should not require
adjustment for different applications.
To recall a for a particular cabinet or system, press Recall and use the left hand
parameter knob A to scroll through the available factory preset locations (as indicated by a box
symbol after the preset number). Once the appropriate preset has been selected press recall again,
at which point you will be asked to confirm the action by pressing recall for a third time. This is to
guard against accidental recall of Presets.
Factory Presets are locked so they cannot be over-written. The user can, however, store an edited
version of a Factory Preset in any free preset location.
Factory Presets
Factory Presets
Factory Preset
Factory Preset
Details of all the Factory Presets including output designations can be found in Appendix A.
Creating a Crossover
In addition to the the unit has two further ; mono and stereo. These
are stored in locations 1 and 2 respectively, they can be used to develop settings for any
loudspeaker combination and are recalled in the same way as the described above.
These Presets are also locked but the user can name and store their own edited versions in any free
preset location.
Factory Presets 'Base Presets'
Base Presets
Factory Presets
Navigation and Viewing Parameters
Many of the processing elements in each input and output path have features that may be controlled
by the user, such as gain, frequency or limiter threshold. We call these adjustable features
parameters
ABC
ABC
Gain
0.0dB
12dB
Slope
Freq
100HzEQ1
A
In
39

Gain
0.0dB
Width
Freq
100HzEQ1
Out1
1.4Q
CHANNEL
PARAMETER
ABC
A parameter may be adjusted when it is displayed by turning one of the three-parameter knobs. Each
of the three-parameter knobs is associated with a zone on the display. Adjusting the leftmost
parameter knob will change the value of the parameter showing in the leftmost zone of the display
and so on. Turn a knob clockwise to increase the value of a parameter, or anti-clockwise to decrease
it. The knobs are velocity-sensitive so turning a knob rapidly will cause the action to 'accelerate', so
the value changes more rapidly.
Navigation
The DSP parameters are organised by channel. The currently selected channel is shown in the top left
hand corner of the display. You can navigate between the channels by pressing the channel buttons.
Pressing the channel buttons will scroll through the channels, utilities and back to the default screen.
When using a Preset that is stereo linked, the channel selection will reflect this. For example '1&4'
indicates outputs 1 and 4. When navigating onto an output channel, the usage of the output, as
define in the factory preset, will be shown briefly at the top of the screen.
Pressing the edit navigation buttons gives access to the various pages of parameters available for
each channel. The currently selected page is shown in the bottom left hand corner of the display, this
is omitted on some pages where the function is obvious. The screen shows up to three (normally
related) parameters for a given part of the processing functions on a given channel.
The edit buttons allow you to scroll, in either direction, through the different processing pages for a
given Channel. When you go past the last page, you will be returned to the default page.
The channel buttons allow you to scroll, in either direction, through the input and output channels,
whilst trying to maintain the currently viewed processing block. If the channel you scroll to does not
have the currently viewed processing block, the next one will be shown instead.
NB. When the unit powers-up, the settings will be the same as those when the unit was last switched
off.
Presets
The device contains a total of 45 user and . The user cannot overwrite the basic mono,
basic stereo or programs.
Factory Presets
Factory Preset
Preset Recall
To select an existing Preset, press the Recall Button so the indicator above it illuminates. Turn
parameter knob A until the required Preset number is shown on the display. Factory presets are
indicated by a box symbol appearing after the preset number. Press the Recall Button again to
activate the Preset. Pressing any other button will cancel the operation.
10

ABC
Recall 32
Preset Name
My System
Recall Recall
A
SELECT PRESET
TO RECALL
Users can develop their own Preset based on one of the basic or stored within the
device. Once a basic or user Preset has been recalled, a user has complete freedom to adjust any or
all of the parameters. can be used as the basis for user Presets but they have some
parameters that are predefined as a function of the loudspeaker system. These parameters are
'hidden' from the user, as they should be constant regardless of application.
Factory Presets
Factory Presets
Preset Store
To store the current Preset in a user location, press the Preset Store Button so the indicator above it
illuminates. Turn the first parameter knob until the required Preset location number is show on the
display. A Preset name of up to 12 characters in length can be entered using parameter knobs B and
C. Pressing the Store Button again completes the process and stores the Preset. As with Preset
Recall, pressing any other button cancels the operation.
ABC
Recall 32
Preset Name
My System
NAME
PRESET
A
BC
Store Store
SELECT STORE
LOCATION
The user can overwrite non-protected Presets only; if an attempt is made to save a Preset in a
location already occupied by a basic or a 'LOCKED PRESET' message is displayed.Factory Preset
CRED Mark 2 2-4/2-6
11

Routing
Delay 8 Order
HPF
th 8 Order
LPF
th Low
Shelf EQ
Six Band
PEQ
High
Shelf EQ
Output
Gain Mute Limiter
Metering
Output DSP block diagram
Routing
Input DSP block diagram
NB. Channel B processing is
Identical to Channel A but for
clarity it is not shown
Routing
Input
Gain Delay
Sum -6dB
Six Band
PEQ
High
Shelf EQ
Input A
Input B
Input
LED’s
4 Order
HPF
th Low
Shelf EQ
DSP Processing layout
Stereo / Mono Formats
Stereo / Mono Formats
There is only one 'standard' layout of the processing blocks, but flexible routing and control linking
allows this layout to be adapted to a wide variety of applications.
There are two 'Formats', Mono or Stereo. With the Mono format, all outputs have unique parameter
settings, and all outputs are identical in terms of processing functions and routing capability. This is
the most flexible Format.
Stereo format pairs the inputs and outputs for stereo operation, the parameters of each member of
the pair being identical. The routing of inputs to outputs is fixed. This format is intended for
symmetrical stereo operation, eliminating the need to make identical parameter adjustments for
each channel.
!
!
!
!
Left and Right Inputs
Outputs 1 (routed from L input) and 3 (routed from R input) [1 and 4 for CRED 2-6]
Outputs 2 (routed from L input) and 4 (routed from R input) [2 and 5 for CRED 2-6]
[Outputs 3 (routed from L input) and 6 (routed from R input) - CRED 2-6 only]
The channel pairing is:
12

CRED Mark 2 2-4/2-6
Gain
0.0dB
In A
A
Delay
1.50ms
In A
DSP processing
Input Channels
Gain
Delay
!Knob A: Gain, adjustable in 0.2dB steps from -80dB to +20dB
!Knob A: Delay, adjustable in variable steps from 0 to 400ms
The delay parameter is adjustable in fine steps at low values; the adjustment becomes progressively
coarser as the value increases. The velocity sensitive Parameter Knobs therefore provide accurate
setting of driver offset delays (typically below 10ms) and rapid setting of longer system alignment
delays.
Freq
20.0Hz
In A
High Pass Filter
B
HPF
Shape
LR24
ABC
ABC
ABC
A
A
!Knob A: Gain, adjustable in 0.2dB steps from -80dB to +20dB
Knob B: High Pass Filter type!
313

System high pass filtering is provided for the input signal. This is the preferred location for high pass
filtering as it affects all outputs and can therefore improve inter-band phase relationships. Filter type
is selectable from Butterworth, Bessel, Linkwitz-Riley and Hardman. Filter slopes of up to 4th order or
24dB / octave are provided. Not all filter types are available in all slopes. For example 18dB / octave
Linkwitz-Riley filters do not exist.
The Hardman type filter is always described by its' order as the filter becomes progressively steeper
rather than following a linear slope so a dB/octave description is not accurate.
Parametric Equalisation
Eight sections of equalisation are provided, two shelving filters and six fully variable parametric
sections. define in the factory preset, will be shown briefly at the top of the screen.
High and Low shelving filters
ABC
ABC
Gain
0.0dB
12dB
Slope
Freq
100HzEQ1
A
In
!
!
!
Knob A: Frequency, 10.0Hz to 25.6kHz in variable steps
Knob B: Slope, 6 to 12dB / octave in 1dB steps
Knob C: Gain, +/-15dB in 0.2dB steps
The frequency is specified as point where the filter deviates by 3dB from the gain value.
Parametric Filters
ABC
ABC
Gain
0.0dB
1.4q
Slope
Freq
100HzEQ1
A
In
!
!
!
Knob A: Centre Frequency, 10.0Hz to 25.6kHz in variable steps
Knob B: Width, display selectable, Q or BW (Bandwidth)
BW adjustable from 0.05 to 5 octaves in variable steps
Q adjustable from 14.2 to 0.2 in variable steps
Knob C: Gain, +/-15dB in 0.2dB steps
14

CRED Mark 2 2-4/2-6
Gain and Polarity
Output Channels
ABC
AB
Rev
Pol
Gain
0.0dB
Out1
!Knob A:
Knob B: Changes polarity from Norm/Rev
Gain, +/-15dB in 0.2dB steps
!
Delay
ABC
A
Delay
1.5ms
Out1
!Knob A: Adjustable in variable steps from 0 to 80ms
As for input delay, velocity sensitive Parameter Knobs provide finer adjustments at low levels and
rapid selection of higher values.
High and Low Pass Filters
ABC
AB
LR24
Shape
Freq
2.50k
Out1
LPF
!
!
Knob A: Frequency,<<out, 10.0Hz to 25.6kHz,out>>
Knob B: Filter type
Filter type is selectable from Butterworth, Bessel, Linkwitz-Riley and Hardman. Filter slopes of up to
8th order or 48dB / octave are provided. Not all filter types are available in all slopes. For example
18dB / octave Linkwitz-Riley filters do not exist.
The Hardman type filter is always described by its' order as the filter becomes progressively steeper
rather than following a linear slope so a dB/octave description is not accurate.
15

Parametric Equalisation
Eight sections of equalisation are provided in a similar format to the input channel equalisation; two
shelving filters and six parametric.
ABC
ABC
Gain
0.0dB
12dB
Slope
Freq
100Hz
EQ>-
Out1
!
!
!
Knob A: Frequency, 10.0Hz to 25.6kHz in variable steps
Knob B: Slope, 6 to 12dB / octave in 1dB steps
Knob C: Gain, +/-15dB in 0.2dB steps
The frequency is specified as point where the filter deviates by 3dB from the gain value.
ABC
A
Thresh
4.0dB
LIM
Out1
!
!
!
Knob A: Centre Frequency, 10.0Hz to 25.6kHz in variable steps
Knob B: Width, display selectable, Q or BW (Bandwidth)
BW adjustable from 0.05 to 5 octaves in variable steps
Q adjustable from 14.2 to 0.2 in variable steps
Knob C: Gain, +/-15dB in 0.2dB steps
Limiters
ABC
ABC
Gain
0.0dB
1.4q
Slope
Freq
100HzEQ1
Out1
!Knob A: Threshold, -40Bu to 20Bu in 0.2dB steps
A high performance, low distortion limiter is provided on each output. Threshold is user adjustable;
all other parameters are carefully calculated dependant on configuration to provide clean and
effective control of signal dynamics.
16

CRED Mark 2 2-4/2-6
ABC
A
Source
Inp A
Out1
Routing
!Knob A: Output source, selectable; Input A, Input B or Sum A+B
Configures the routing from input to output. This function is only available in mono format Presets.
Utilities
Two utility functions are provided to adjust screen contrast and the display units used for parametric
equalisation bandwidth.
The device automatically adjusts for the variations in display contrast as the temperature of the LCD
changes. The screen contrast utility control sets the base contrast of the screen and also allows
optimization for a given viewing angle.
Parametric equalisation width parameters can be displayed in either 'Q' or bandwidth, expressed in
octaves.
ABC
BW=Q
ParaEQ
Screen
100%1..
Util
17

Factory Presets CRED 2-4
18
Location
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
Preset Name
Basic Stereo
Basic Mono
TRS-218 + TRS-212
TRS-218 + TRS-115
TRS-218 + TRS-112
TRS Showroom
BR-8 + BR18B
BR-10 + BR-18B
BR-12 + BR-18B
BR-10 + BR-218B
BR-12 + BR-218B
BR-15 + BR-218B
HD-FR*
HD-MH + HD-BB*
TRS-212 MONITOR
SATURN FULL
SATURN + BR-218B*
MOON FULL
MOON CUT
MOON + MOONSUB
MOON + BR-18B
LUNARAY FULL
LUNARAY CUT
LUNx6+BR-18x4
LUNx6+BR-18x4No2
Out 1
20~5K
Full Range
<90.6
<90.6
<100
32.0~90.6
<111
<111
<111
<111
<111
<100
<100
34.1~116
<811
<100
50>
100>
<125
<125
50>
100>
32~100
32~100
<604
Out 2
5K>
Full range
96.6>
96.6>
100>
96.6>
103>
93.1>
93.1>
93.1>
93.1>
100>
50.8~732
106~1K
811>
89.7~604
OFF
OFF
125>
125>
OFF
OFF
100>
100>
849>
1.02K~6.58K
Out 3
20~5K
Full Range
780>
849>
<90.6
<90.6
<100
32.0~90.6
<111
<111
<111
<111
<111
<100
<811
50>
100>
<125
<125
50>
100>
32~100
32~100
<604
Out 4
5K
Full Range
6.58K>
96.6>
96.6>
100>
96.6>
103>
93.1>
93.1>
93.1>
93.1>
100>
811>
OFF
OFF
125>
125>
OFF
OFF
100>
100>
849>
* MONO
OFF
OFF

Factory Presets 2-6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
Basic Stereo
Basic Mono
TRS-218 + TRS-212
TRS-218 + TRS-115
TRS-218 + TRS-112
TRS Showroom
BR-8 + BR18B
BR-10 + BR-18B
BR-12 + BR-18B
BR-10 + BR-218B
BR-12 + BR-218B
BR-15 + BR-218B
HD-FR
HD-MH + HD-BB*
TRS-212 MONITOR
SATURN FULL
SATURN + BR-218B
MOON FULL
MOON CUT
MOON + MOONSUB
MOON + BR-18B
LUNARAY FULL
LUNARAY CUT
LUN x 6 + BR-18 x 4
LUN x 6 + BR-18 x 4 No 2
20~250
Full Range
<90.6
<90.6
<100
32.0~90.6
<111
<111
<111
<111
<111
<100
<100
34.1~116
<811
OFF
<100
50>
100>
<125
<125
50>
100>
32~100
32~100
250~5K
Full range
96.6>
96.6>
100>
96.6>
103>
93.1>
93.1>
93.1>
93.1>
100>
50.8~732
106~1K
811>
<604
89.7~604
OFF
OFF
125>
125>
OFF
OFF
100>
100>
5K>
Full Range
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
780>
1.02K~6.58K
OFF
849>
849>
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
20~250
Full Range
<90.6
<90.6
<100
32.0~90.6
<111
<111
<111
<111
<111
<100
<100
6.58K>
<811
OFF
<100
50>
100>
<125
<125
50>
100>
32~100
32~100
250~5K
Full Range
96.6>
96.6>
100>
96.6>
103>
93.1>
93.1>
93.1>
93.1>
100>
50.8~732
OFF
811>
<604
89.7~604
OFF
OFF
125>
125>
OFF
OFF
100>
100>
5K>
Full Range
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
780>
OFF
OFF
849>
849>
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Preset Preset Name Out 1 Out 2 Out 3 Out 4 Out 5
Out 6
19
* MONO
CRED Mark 2 2-4/2-6

Information
20
With the exception of HD and Lunaray Systems all settings are based on a 1:1 ratio and for use with
CFU-A3 amplifiers with gain sensitivity set at 1.1v.
Delays are set for “flush fronts”.
Note: Delays are linked so care should be taken to address the system especially in 3 and
4 way systems IE: Saturn and HD when any adjustments are made.
“LUNARAY 1” is set up for a “soft” mid/high sound,
“LUNARAY 2” is set up for a “linear” sound
HD set up is based on 2 stacks each side.
Any room adjustments should be made on the input EQ only.
NOT whole
