Adjustable BED BASE
Owner’s Manual
CONTENTS
Advisory
Setup and Installation
Wireless Hand Control
- 3 Individual Motors for Head-Tilt, Back Incline & foot Incline
- Wall Hugger / Dual Massage / USB Ports / Bluetooth / UnderBed Lighting

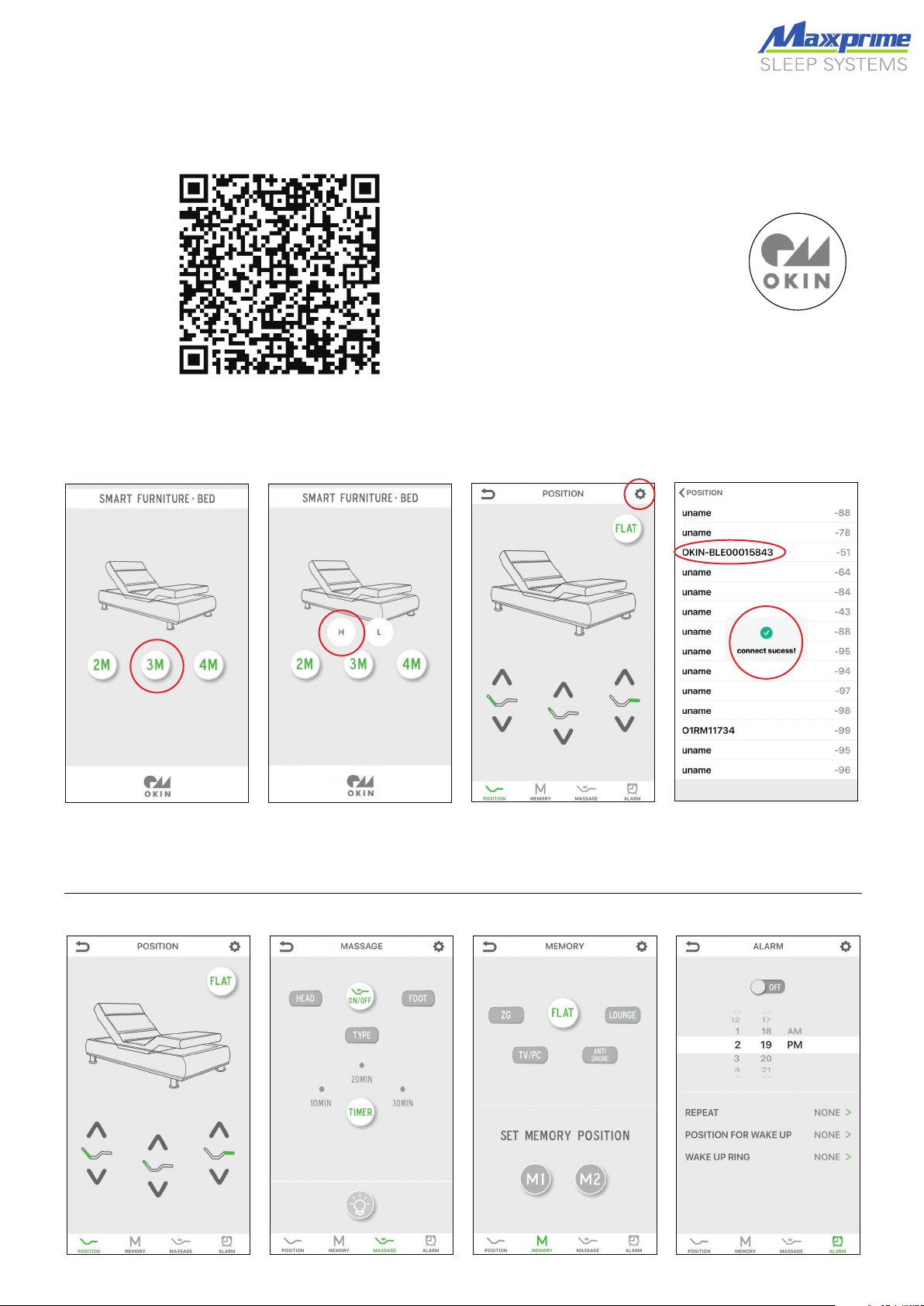

- Free APP for Bluetooth Smart Device Controlling ( IOS & Android )
#WN7029 OKIN Motor
Wall Hugging
4 Massage for QUEEN SIZE
2 Massage for Twin XL Size
GERMAN
Technology
1 - 16
ADVISORY
Attention: Read the following information
before using this product . Failure to use a
surge protection device could compromise
safety or cause product malfunction could void
the electrical portion of your warranty.
- Electrical surges are by far the biggest cause of problems with electrical circuits.
In order to help protect your investment in case of a power surge or outage, use
an electrical surge protection device (not included).
WARRANTY WARNING!
Do not open or tamper with the transformer, control box, motors, or remote control
(with the exception of battery compartments). The product warranty will be void if
these components are tampered with.
SMALL CHILDREN AND PETS:
Immediately dispose of all packing materials as it can smother small children and
pets. Do not allow any person or pets under the bed. Children, convalescents and
disabled person should not operate the bed without adult supervision.
HOSPITAL OR CONVALESCENT USE DISCLAIMER:
Adjustable beds are designed and engineered for a life style of in-home comfort
and are not intended for hospital use or for a bed-ridden patient on an extended
recovery. Adjustable beds are not equipped with bars to help patients get safely in
and out of bed and are not intended to be used around tent type oxygen therapy or
explosive gases.
2 - 16
PACEMAKER WARNING:
The massagers in this bed produce mechanical vibrations that may activate a special
sensor in your pacemaker that detects motion. This can fool the pacemaker into
“thinking” you are engaged in some sort of physical activity and require a faster heart
rate and you may experience a sensation similar to when you are exercising. Consult
your physician for further information.
PRODUCT RATINGS:
PRODUCT RATINGS: The product’s lift motors are not designed for continuous use of
more than 2 minutes in an 18 minute period, or approximately 10% duty cycle.
For every 30 minutes the massage motor is used, the massage motor needs 30
minutes of rest. The massage function should be used for a maximum of 2 hours in a
12 hour period. Any attempt to circumvent or exceed this rating will shorten the life
expectancy of the product and may void the warranty.
WEIGHT UNITS:
The limitation for this adjustable bed is 750 lbs. The bed will structurally support these
weights, provided it is evenly distributed across the head and foot sections. This
product is not designed to support or lift this amount in the head or foot section alone.
Exceeding this weight restriction could damage the bed and/or cause injury and void
the warranty. Enter or exit the bed in a at position and do not sit on the head or foot
sections while in the raised position.
LIFTING AND LOWERING MECHANISMS AND MASSAGE UNITS:
It is normal for the raising and lowering feature on this bed will emit a minimal humming
sound during operation. The massage feature creates a vibrating hum during operation
and the resonance will increase accordingly with a higher intensity motor setting.
LOCATION ENVIRONMENT:
The level of sound experienced in a room is directly related to the environment within
that location. In a room with hardwood oors and the massagers turned on, a
vibrating noise can be noticeable. To reduce the resonance, place a piece of carpet
or rubber casters cups under the legs. The rubber caster cups also prevent the bed
sliding when located on smooth or hard surface ooring.
3 - 16
TO REDUCE THE RISK OF SHOCK, BURNS, FIRE OR INJURY:
Make sure the base is in a at position, the vibrating motors are off before unplug
from power source. Always unplug the base from the electrical outlet before cleaning
or servicing the base. If the cord or plug is damaged, discontinue use of the bed
base and contact qualied service personnel for examination and repair.
FCC COMPLIANCE:
This device complies with part 15 of the FCC Rules for residential use.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Radio Frequency: 2.4 GHz
EMERGENCY BATTERY BACKUP:
In the event that the base is stuck in an articulated position during a power outage-the
battery backup in the transformer will return the base to at position. Batteries are not
to be used for normal operation of the base. Install two 9 volt alkaline batteries into the
battery backing transformer. Use the reset button on the control box or the extension
cord from the control box to the transformer to return the base to a at position.
4 - 16
SETUP & INSTALLATION
Important: We strongly recommend
Two able-bodied adults setup and
assemble this product.
Step 1:

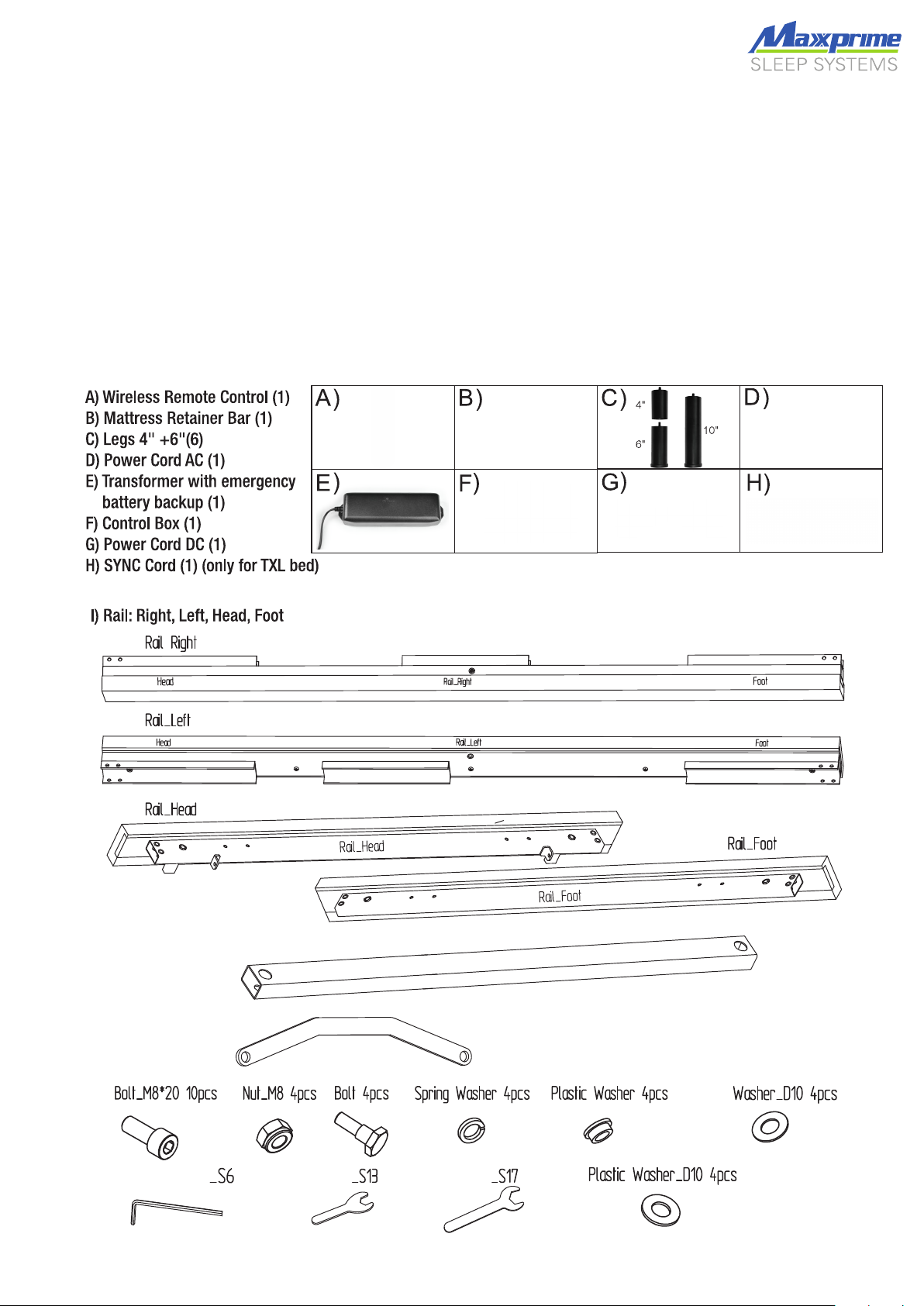

Check and verify all parts are included before discarding any packing
materials.
All electronics and components that need to be installed are located
in boxes under the base or attached to the frame.
J) Connecting Rod
K) Pull Rod x 2pcs
Steel
L)
WrenchWrenchAllen Wrench
5 - 16
Step 2:
With the help of your able-bodied assistant, place carton on oor
with arrows point downwards.
Step 3: Install diagram, Overview
Please follow Step 3-1 to Stpe 3-5, do not disturb the Steps.
Overview
6 - 16
Step 3-1
Step 3-2
Open the Outer Cartons and Place the Rail_Right & Rail_Left to the
right side like below
Install the Connecting Rod.
Allen Wrench
7 - 16
Step 3-3
Step 3-4
Install the Rail_Head & Rail_Foot.
Install Pull Rod
Allen Wrench
Wrench
Wrench
8 - 16
Step 3-5

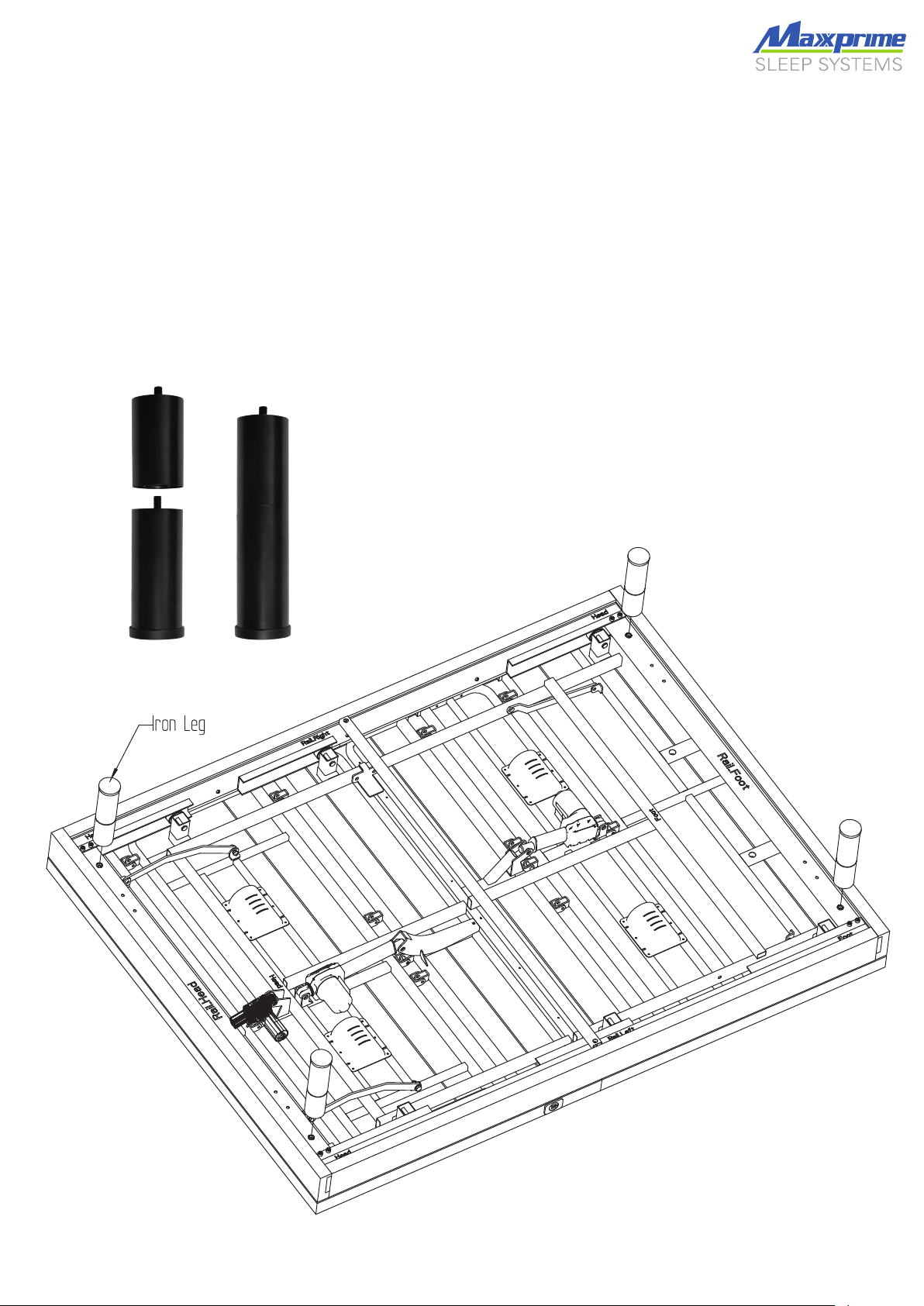

- Install the four legs rmly into the base of the frame.
The four legs screw into the threaded holes in each
corner of the adjustable base frame.
The legs are stackable. The combination give you a set of six 4", 6" or 10" legs.
- Note: The minimum leg height:4", The warranty is void if the minimum leg
height is not used.
- Do not over tighten.
4"
6"
10"
+
9 - 16
Step 4:
Step 6:
Note: The Mattress Retaining Bar is tied to the underside of the base for shipping.
Install the Mattress Retaining Bar upright by carefully aligning and pushing the bar into
place. Insert the Mattress Retaining Bar into the holders at the foot of the bed.(Figure 3,4)
The Mattress Retaining Bar prevents the mattress from slipping off the base and should
not be used as a handle of the base. Using as a handle will damage the retaining bar
holders. Screws come out from the retainer bar holders will be considered as a damaged
part and not a defective part and is not covered by the warranty.
Step 5:
With the help of your able-bodied assistant , carefully lift the adjustable bed frame and
set it in place upright on its legs . Excessive pressure may damage the legs. Remove
all protective plastic covering. Note: check and make sure that all power cords clear
and do not interfere with any Adjustable Bed Mechanisms;
Dispose of covering property to avoid injury.
gure 3 & 4
10 - 16
