SMART-20 INCUBATOR
INSTRUCTION MANUAL
INDEX
Index ........................................................................................................................................................................................1
1. Introduction.......................................................................................................................................................................2
2. Description........................................................................................................................................................................2
3. Unpacking .........................................................................................................................................................................2
4. Usage...................................................................................................................................................................................2
5. Temperature setting and calibration..........................................................................................................................3
6. Humidity & ventilation.................................................................................................................................................3
7. Placing eggs......................................................................................................................................................................4
8. Egg turning........................................................................................................................................................................4
9. Hatching.............................................................................................................................................................................4
10. Egg candling...................................................................................................................................................................5
11. Maintenance...................................................................................................................................................................5
12. Cleaning...........................................................................................................................................................................6
13. Warranty..........................................................................................................................................................................6
14. Technical specifications .............................................................................................................................................6
15. Troubleshooting............................................................................................................................................................7

2
1. INTRODUCTION
Please read this instruction manual First before starting using this product.
The SMART-20 model incubator has been developed to be easy in use and to give the best
incubation results. The transparent PVC lid allows you to take a good look inside of the
device. A proportional band thermostat with a decimal sensor assures an automatic regulation
and constant keeping of the temperature inside of the machine. The warmth is dispersed by a
silicone heating cable and can easily be measured precisely by a thermometer in degrees
Fahrenheit. The SMART-20 incubator is completely made of synthetic material, wears
therefore less and is easily to be cleaned.
2. DESCRIPTION
1 - Analogical thermostat in proport.band
2 - Trimmer for calibration
3 - Mercury thermometer (°F)
4 - Egg turning wire tray
5 - Bottom wire net
6 - Ventilation holes
7 - Heating and ventilation parts
8 - Manual egg turning rod
3. UNPACKING
Take the incubator and the inside component, which are anchored with adhesive tape, out of
the box.
The packing should contain the following:
-1 Instructions manual
-1 Thermometer
-1 Egg wire tray
-1 Egg turning grid
-1 Automatic egg turner (if the machine is equipped)
The incubator has a cable of approximately 1,5m length and is suitable for AC power with
220V/230V, 50-60 Hz.
This information can also be found on a label on the backside of the incubator.
ATTENTION: check the mercury thermometer for cracks and correct working.
4. USAGE
Place the incubator on a even, horizontal surface in a dry, well ventilated room with a constant
temperature of - C.
Make sure the incubator is placed near to a suitable, earthed socket.
Fasten the thermometer with the plastic clip above the egg turning wire tray. Make sure that
the middle of it is aligned with the middle egg row.
Before first usage we advise to clean carefully the whole incubator as described in section 12.

3
5. TEMPERATURE SETTING AND CALIBRATION
In the upper part of the incubator there is an electronic thermostat mounted. When you connect
the incubator to the main power the two LED indicators on the upper part of the case will
lighten up.
The green light indicates that the incubator is on. The red light indicates that the heating is on.
As soon as the good temperature has been reached, the red light will start to blink slowly. The
heating element is being automatically pulsed, switched on and off, to keep the temperature
steady.
We advise to keep an eye on the analogue thermometer: this has to indicate precisely the
temperature of 100°F(37.7°C). In case that the thermometer does NOT indicate the correct
temperature, you have to adjust the temperature settings of the thermostat as follows:
-Adjust the temperature by turning the temperature screw with a screw driver. Turn the
screw to the right side accordingly if you want to increase or reduce the temperature.
TIP: if a power loss or a power cut occurs during the incubation period, you can keep the
temperature steady by laying a hot water jug into the incubator and by opening the ventilator
wholes totally.
6. HUMIDITY &VENTILATION
It is important to know that there are no fixed rules for getting the right relative humidity in
incubators, because it depends on several different factors:
The air humidity in the room where the incubator is placed
The egg species (chicken, turkey, etc.)
The porosity of the egg shell
The season
A good way to check if the relative humidity in the incubator is good is weighing the eggs on
a regular basis. An egg should lose 13-15% of its initial weight during the incubation period.
You can also candle the eggs. The air chamber should then be, on the moment of hatching,
approximately 1/3 of the whole egg.
General guidelines for filling of the water reservoirs
Species
Incubation period
Hatching period
Chicken, Turkey, Guinea
fowl
2 reservoir
4 reservoirs
Pheasant, Partridge
1 reservoir
4reservoirs
Quail
2 reservoirs
4 reservoirs
Goose, Duck
1 reservoir
4 reservoirs
To ensure the right humidity level in the incubator, fill only 2 reservoir of the base with a layer
water of 1-2cm height. Refill only when the base is empty again.
During the hatching period fill all 4 reservoirs of the base with water to obtain maximum
humidity.
Based on the experience with your first incubation in the Smart 20, you may (in case of doubt)
increase or reduce the humidity level during the subsequent incubation.
It is better to add less water than too much during the incubation period. A too high
humidity level may cause greater losses of eggs.
To ensure that eggs are ventilated well and continuously in the incubator, we recommend to
switch the eggs of place amongst themselves on a regular basis.

4
7. PLACING EGGS
For better results we recommend to collect fresh laid eggs every day to avoid they get
damaged.
Very dirty eggs can be wiped clean with a soft damp cloth.
After collecting, cleaning and placing of the eggs into the incubator, we advise to wash your
hands thoroughly.
In case you mark the eggs use a pencil and not a marker as it may contain toxic substances that
may penetrate the egg through its shell.
Before you place the eggs into the incubator, verify that it has reached the correct temperature
(100°F / 37.7°C)). Lay the eggs carefully in the egg tray.
Don’t use eggs that are younger than 3 and older than 7-8 days. Keep eggs at a
temperature of 14 –16°C in a humid environment.
General guidelines incubation period
Species
Incubation (days)
Species
Incubation(days)
Chicken
21
White duck
27-28
Quail
16-17
Wild duck
25-26
Turkey
28
Muscovy duck
34-35
Guinea fowl
26
Red paw partridge
23-24
Partridge
23-24
Pheasant
24-25
Goose
30
Bob White quail
22-23
8. EGG TURNING
The automatic egg turning system ensures that the eggs are being turned with a slow
horizontal motion of the turning grid over the egg grid. Place the turning engine and cover it
with the appurtenant case lid. Plug the power supply of the turning engine in a socket and look
if it starts turning. The movement that the turning system makes is 360°/1RPM per hour.

period. Just remove the plug from the socket.
ATTENTION: the turning engine is under tension. If you ever want to inspect it, please
don’t forget to unplug it from the main power.
If egg turning is done manually, turn the eggs twice a day (on the morning and in the evening)
by using the turning rod.
9. HATCHING
As soon as the hatching period has expired (max.2 days), you can leave the young chicks for
one more day in the incubator to dry. After this you can move the younglings to another
breeding facility or place them under a heat lamp. Make sure that the temperature is C
during the first week.

5
10. EGG CANDLING
Bad breeding results are frustrating and may be caused by several different factors. The most
common causes are illustrated below.
Gather for this purpose as much information as you can about the incubation in order to be
able to analyze the problem thoroughly. Register all relevant information regarding the placing
of the eggs, de incubator settings, the hatching dates, the weight losses, the number of
younglings and their condition.
After 8-10 days from the start of the incubation period it is advisable to candle the eggs in
order to be able to remove the unfertilized eggs. Candling should be done preferably in a dark
room. You can get good candling lamps at your suppli

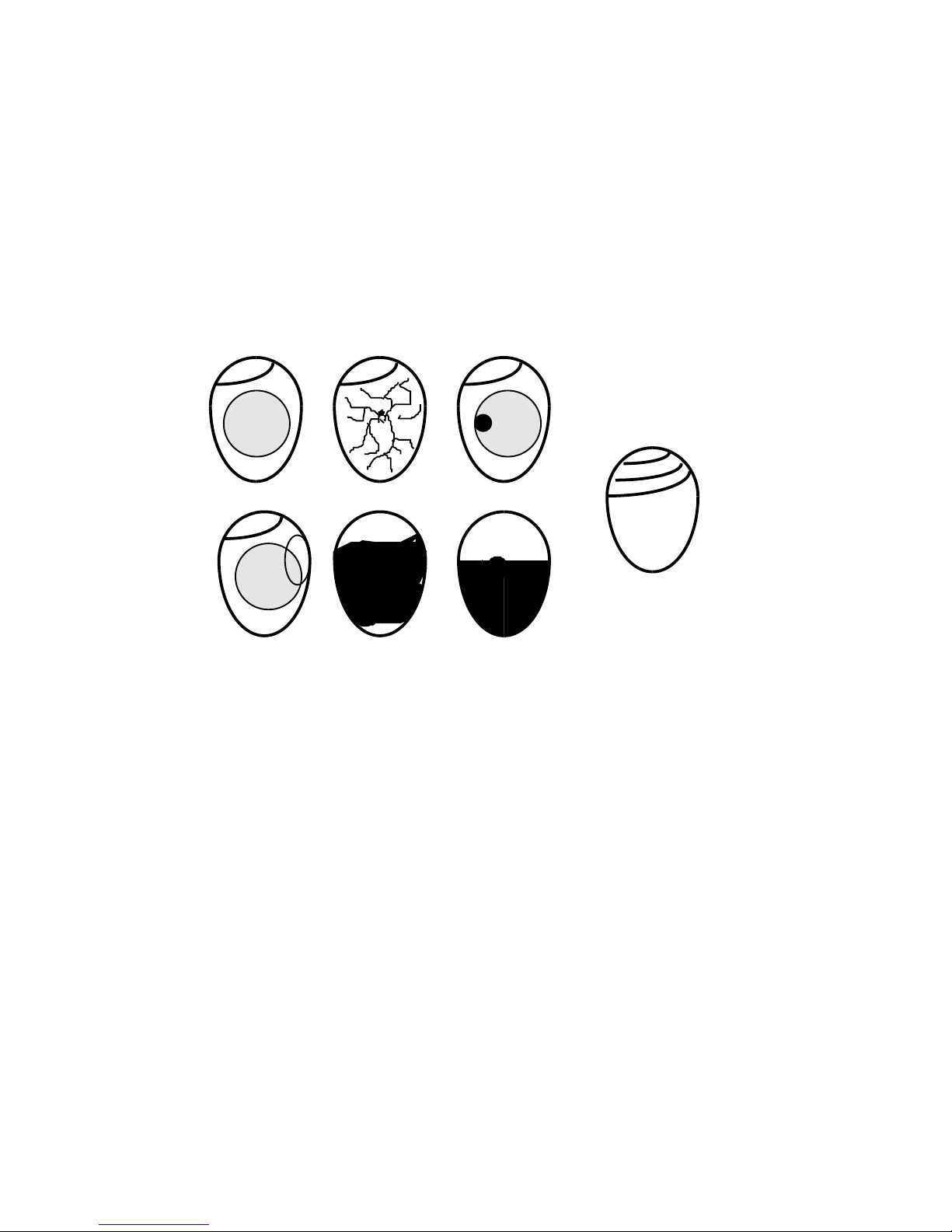

1) Clear when candled - probably infertile (or very early death)
when candled at 8 days
2) Fertile with red blood vessels - after 8 days
3) Red or black staining - early death when candled at 8 days
- early death when candled at 8 days
5) Dark outline with ill defined detail - late death (10-16 days)
6) Live embryo with bill in air sack - due to hatch in 24-48 hours
7) Normal development of the air pocket according to number of days
11. MAINTENANCE
To ensure a good functioning of this machine, please take the following into account:

warm or cold rooms.

does not get damaged or pinched.
Take the incubator from the main power supply before starting cleaning it.
1 2 3
4 5 6
1
10
20
7

6
12. CLEANING
To ensure that your device is hygienically clean, we advice to clean it before as well as after
every breeding.
To do so, you may use a soft damp cloth and a bland disinfectant like alcohol.
Make sure that also the bottom of the base of the incubator is cleaned properly. For this
purpose you may use a common all purpose cleaner.
NEVER USE AGRESSIVE CLEANSERS OR SOLVENTS.
Make sure that the main power supply is unplugged before starting with cleaning the
incubator.
After cleaning/disinfecting switch the incubator on and let it work for at least 2 hours without
adding water in order to let it dry. Remains of water or disinfectant solution will evaporate and
in this way you will also be able to verify if your incubator is working properly.
13. WARRANTY
This product is already tested at works by the producer.
The producer cannot be held responsible for direct or indirect damages as result of
transportation, wrong use and/or wrong connection to main power.
The warranty applies to all parts of this product and lasts 24 calendar months (12 months at
works and 12 months at supplier) starting from the date of purchase.
The end-user has to communicate any defect to supplier within 8 calendar days from the initial
insurgence of the defect.
This warranty applies only to production defects and not to errors due to an incorrect usage of
the product, wrong deployment, wrong connection to main power or repair by unauthorized
personnel or the end-user himself.
Delivery costs for reparation of the product or for replacement of parts are at charge of the
end-user, as well as the reparation costs. You can send your product or parts to OLBA N.V.
This warranty does not cover any losses regarding fertility of the eggs or breeding results.
ATTENTION: All reparations have to be done by authorized personnel of the supplier.
In case of reparations done by third parties, this warranty will be cancelled immediately.
14. TECHNICAL SPECIFICATIONS
Power supply
V/Hz
220 / 50
Power usage
Watt
100
Dimensions
Mm
400 x 325 x 260
Net weight
Kg
2.3
Number of eggs
Chicken, turkey, duck
22 24
Pheasant, Guinea fowl
27
Partridge, quail
45
West-European partridge
33
Goose
12
*Please note that this numbers are based on average sizes of medium eggs.

7
15. TROUBLESHOOTING
If your incubator shows a malfunction please try to solve the problem first using the table
below before contacting your supplier.
PROBLEM
CAUSE
SOLUTION
The incubator does not work.
No power.
Verify if plug is properly connected.
Power supply unplugged.
Connect the plug to main power.
None of above two mentioned causes.
Contact your supplier.
Temperature too low.
Malfunctioning of the heating element.
Contact your supplier.
Not good calibrated thermostat.
Read instructions manual for calibration thermostat.
No or malfunctioning thermostat.
Contact your supplier.
Room temperature below 18°C.
Place the incubator in a warmer environment.
Thermometer broken.
Falling or bumping.
Try to expose thermometer to low temperatures and
dip it after that into solve
the problem, the thermometer needs to be replaced.
Automatic egg turning
system does not work.
No power.
Verify if plug is properly connected.
Defect turning motor.
Contact your supplier.
Insufficient ventilation.
Ventilation motor defect.
Contact your supplier.
IMPORTER/ SUPPLIER FOR THE NETHERLANDS AND BELGIUM:
OLBA B.V.
Pasteurweg 3,
7741 LB Coevorden
The Netherlands
Tel: [phone]
Fax: [phone]
Website: www.olba.nl
E-mail: [email protected]
