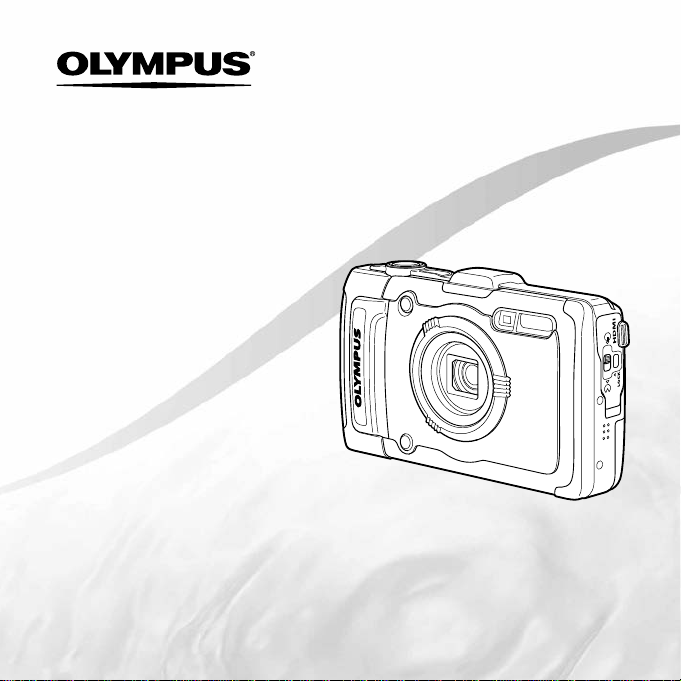

Olympus TG-1 User manual

DIGITAL CAMERA
Instruction Manual
TG-1
●Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these
instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for
future reference.
●We recommend that you take test shots to get accustomed to your camera before taking important photographs.
●The screen and camera illustrations shown in this manual may differ from the actual product.

2
EN
Checking the contents of the box
Digital camera Strap Lithium Ion
Battery
(LI-90B)
USB-AC
adapter
(F-2AC)
USB cable
(CB-USB8) AV cable (CB-AVC3) OLYMPUS Setup CD-ROM

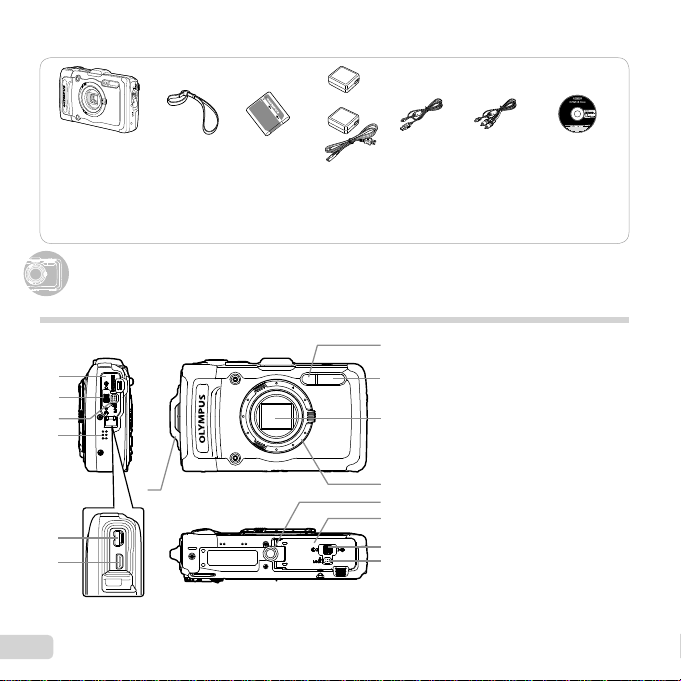

Names of Parts
Names of Parts
Camera unit
1
2
3
5
4
6
7
8
10
9
12
13
11
14
3
1Connector cover
2 Connector cover lock
3 LOCK knob
4 Speaker
5Multi-connector
6HDMI micro connector
7Strap eyelet
8Self-timer lamp/LED Illuminator/
AF illuminator
9Flash
10Lens
11 Lens ring
12 Tripod socket

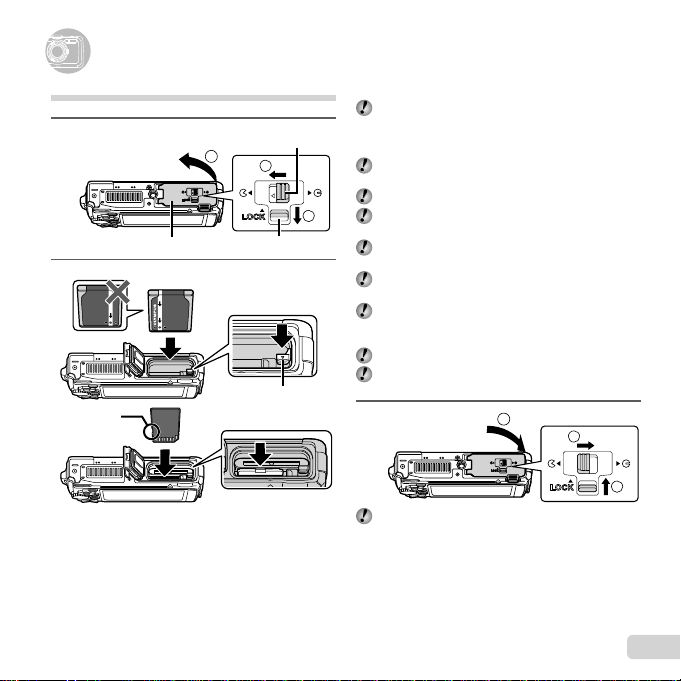

13Battery/card compartment cover
14 Battery/card compartment lock
Other accessories not shown: Warranty card
Contents may vary depending on purchase location.
or

3
EN
14
5
2
6
7
8
3
12
11
9
10
1Stereo microphone
2Monitor
3 Shutter button
4Indicator lamp
5 nbutton
6 Zoom buttons
7Rbutton (shooting movies)
8 Mode dial
9 qbutton (switching between
shooting and playback)
10Arrow pad
INFO (changing information display)
(erase)
11 Abutton (OK)
12 button
Attaching the camera strap
Attaching the camera strap
123
Pull the strap tight so that it does not come loose.

4
EN

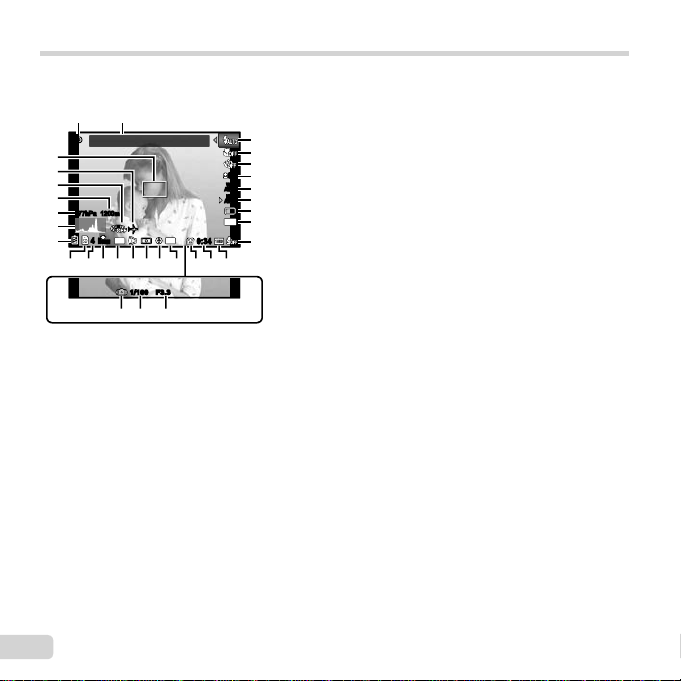

Monitor
Shooting mode display
Shooting mode display
F3.3F3.31/1001/100
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
12 M
zz
44
N ORM
0:340:34
Date
GPS
PP
877hPa877hPa 1200m1200m
1
3
4
5
6
7
8
9
10
11
172021
22 19 1218 1516 14
23
26
24
25
27
28
30
3132
13
29
2
1 Shooting mode.......p. 17, 24
2 Landmark .....................p. 43
3 Flash.............................p. 20
Flash standby/Flash charge
....................................p. 59
4 Macro/super macro/
S-Macro LED..............p. 29
5 Self-timer......................p. 29
6 Exposure compensation
....................................p. 30
7 White balance...............p. 30
8 ISO...............................p. 31
9 Drive.............................p. 31
10 Image size (still images)
..............................p. 32, 66
11 Recording with sound
(movies)/
Wind noise reduction/
Recording Volume ......p. 40
12 Image size (movies)
..............................p. 40, 67
13 Recording length(movies)
....................................p. 18
14 Movie recording icon....p. 18
15 GPS icon......................p. 16
: Searching GPS signal
: Receiving GPS signal
16 Direction information
17 Metering .......................p. 37
18 Conversion Lens ....p. 38, 68
19 Date stamp...................p. 39
20 Compression (still images)
..............................p. 36, 66
21 Number of storable still
pictures (still images)
....................................p. 17
22 Current memory ...........p. 65
23 Battery check..........p. 13, 60

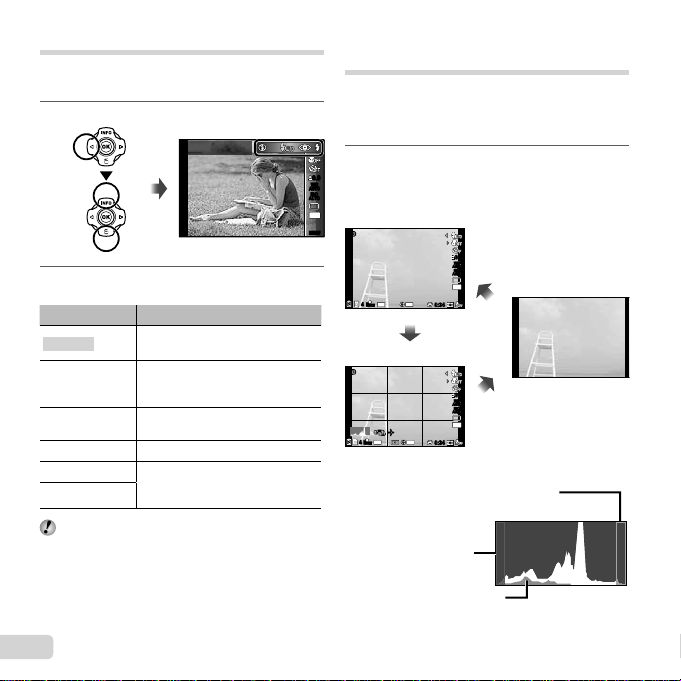

24 Histogram.....................p. 20
25 Atmospheric/
Hydraulic pressure......p. 16
26 Altitude/Water depth.....p. 16
27 Image stabilization
(still images)................p. 37
28 World time ....................p. 51
29 AF target mark..............p. 18
30 Aperture value..............p. 18
31 Shutter speed...............p. 18
32 Camera shake warning

5
EN
Playback mode display
Playback mode display
●Standard display 1Battery check..........p. 13, 60
23D image......................p. 35
3Eye-Fi transferred.........p. 45
4Protect..........................p. 44
5Adding sound ...............p. 42
6Upload order.................p. 44
7Print reservation/number of
prints..................p. 57/p. 56
8Landmark .....................p. 43
9Current memory ...........p. 65
10Frame number/total number
of images (still images)
....................................p. 21
Elapsed time/total shooting
time (movies)..............p. 22
11 Direction information
12 Shutter speed...............p. 18
13 Shooting mode.......p. 17, 24
14 Atmospheric/
Hydraulic pressure......p. 16
15 ISO...............................p. 31
16 Aperture value..............p. 18
17 Altitude/Water depth.....p. 16
12:30’12/02/26’12/02/26 12:30 0:12/0:340:12/0:34
1010
4/304/30
3D3D
11092 1
24
28
10
34 75 6
26
Still image Movie
●Advanced display
4/304/30
’12/02/26 12:30
10103D3D
12 M
2.02.01/10001/1000
100-0004
100-0004
AUTO
WB
AUTO
WB
100
ISO
100
ISO
N ORM
1
MAGICMAGIC
F3.3F3.3
1200m
877hpa877hpa 1200m
’12/02/26 12:30
12 M
2.02.01/10001/1000
100-0004
100-0004
AUTO
WB
AUTO
WB
100
ISO
100
ISO
N ORM
1
MAGICMAGIC
F3.3F3.3
1200m
877hpa877hpa 1200m
10 1191714
25
81312 15 16
24
23
2627
12 34 65
19
22
21
20
7
18
18 Histogram.....................p. 20
19 Exposure compensation
....................................p. 30
20 Shadow Adjustment
Technology..................p. 36
21 White balance...............p. 30
22 File number
23 Compression (still images)
..............................p. 36, 66
24 Date and time.........p. 15, 50
25 Image size
..................p. 32, 40, 66, 67
26 Grouped image.............p. 34
27 Pmode..................p. 28
28 Volume ...................p. 21, 46

6
EN
Camera Settings
Camera Settings
UsingtheButtons
UsingtheButtons
Frequently used functions can be accessed using the buttons.
Arrow pad
H(left)
G(down) /
(erase) (p. 22, 44)
F(up) /INFO (changing information
display) (p. 20, 23)
I(right)
Abutton

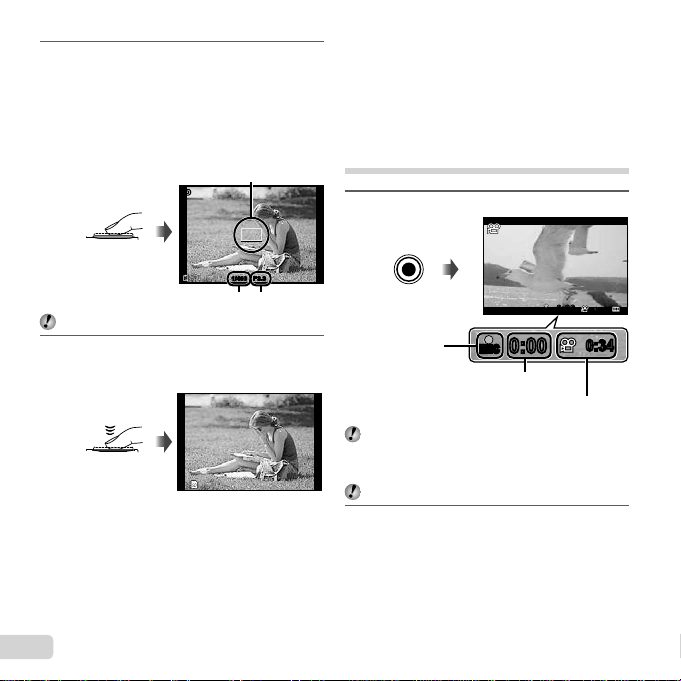

Shutter button (p. 18, 59)

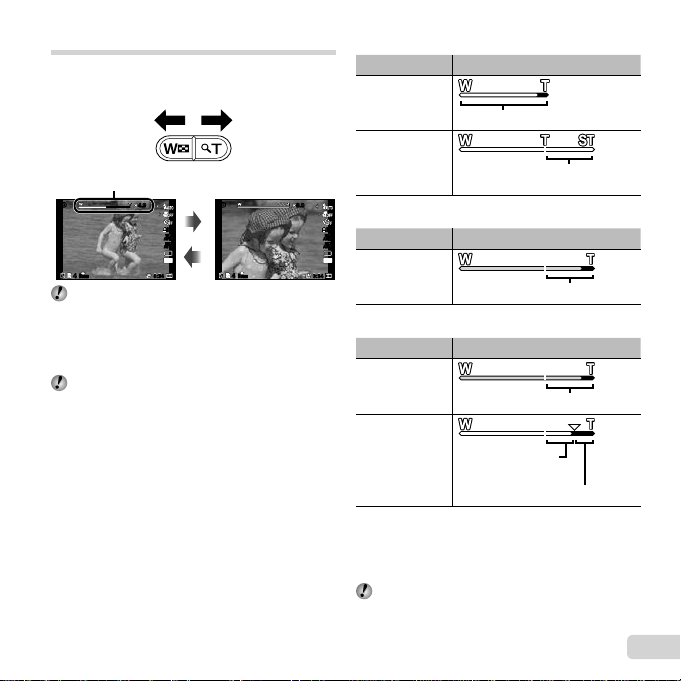

Zoom buttons (p. 19, 23)
Rbutton (shooting movies) (p. 18)

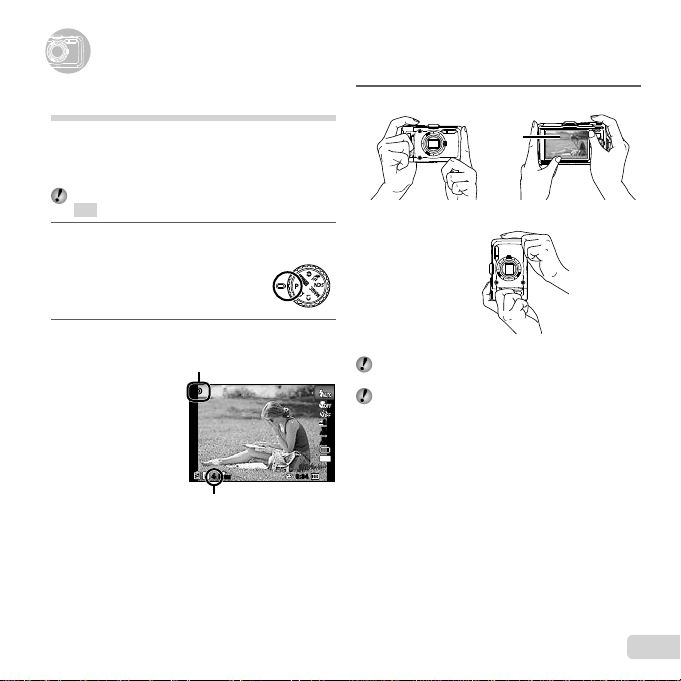

Mode dial (p. 17, 24)
qbutton (switching between shooting
and playback) (p. 18, 21, 46)
button (p. 9)

7
EN

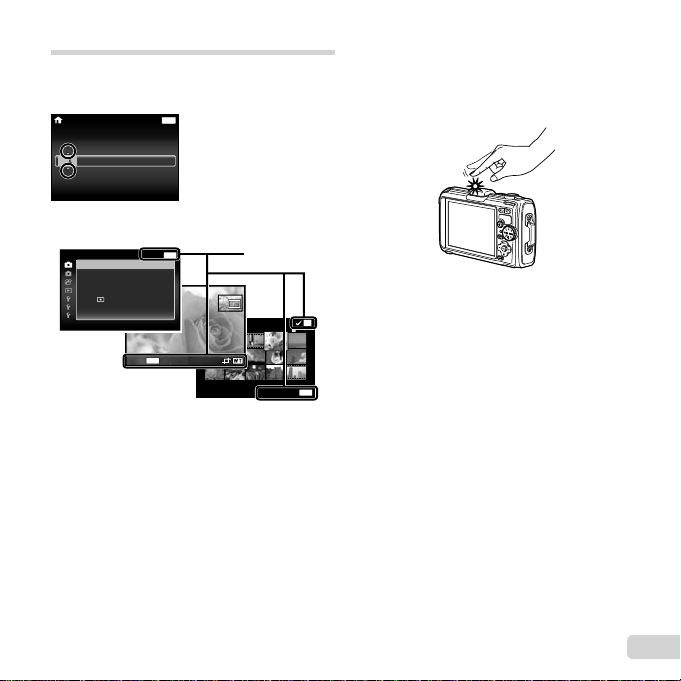

Operation guide
The symbols FGHI displayed for image selections
and settings indicate that the arrow pad shown on the
right is to be used.
02 26 12 30 :..
MENU
2012
MENU
XBack
Y/M/D
YMDTime
Operation guides displayed on the screen indicate that the
button, Abutton, or zoom buttons can be used.
4/30
MENU
On
Camera Menu 1
Image Stabilizer
ResetReset
Compression
AF Mode
Digital Zoom
Normal
Face/iESP
Off
Back
MENU
Back
Shadow Adjust Auto
ESP/ ESP
OK
4/30
MENU
Erase/Cancel
Operation guide
Operatingthecamerabytappingthe
body
You can operate the camera by tapping the body when
[Tap Control] (p. 52) is [On].

8
EN
UsingtheMenu
UsingtheMenu

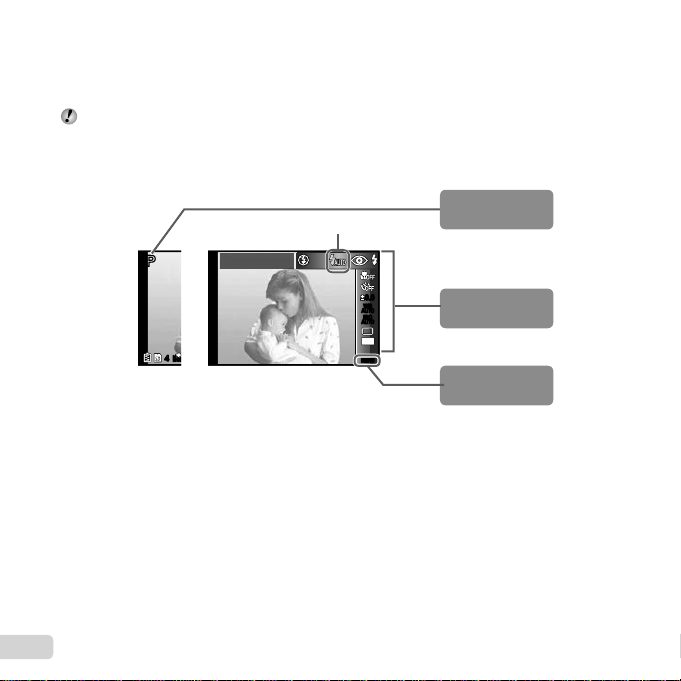

Use the menu to change camera settings.
There may be menus that are unavailable depending on other related settings or the shooting mode (p. 24).
Function menu
Function menu
Press Hduring shooting to display the function menu. The function menu provides access to frequently used
shooting settings.
44
N
O
R
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
MENUMENU
12 M
Program Auto
To select the function menu
Use FG to select a menu and use HI to select a menu option. Press the Abutton
to set the function menu.
Shooting
Selected option
Setup menu
Function menu
Shooting mode

9
EN
1Press the button.
●The setup menu is displayed.
MENU
On
Camera Menu 1
Image Stabilizer
ResetReset
Compression
AF Mode
Digital Zoom
Normal
Face/iESP
Off
Back
Shadow Adjust Auto
ESP/ ESP
2Press Hto select the page tabs. Use FG
to select the desired page tab and press I.
Pixel Mapping
Info Off
Power SavePower Save Off
10sec
TV Out
English
File Name Reset
MENU
Settings Menu 2 Back
Page tab
File Name Reset
Pixel Mapping
Info Off
Power SavePower Save Off
10sec
TV Out
English
MENU
Settings Menu 2 Back
Submenu 1
3Use FG to select the desired submenu 1
and then press the Abutton.
Power SavePower Save Off
Pixel Mapping
Info Off 10sec
TV Out
English
File Name Reset
MENU
Settings Menu 2 Back
Power SavePower Save
Pixel Mapping
Info Off
TV Out
File Name
MENU
Settings Menu 2 Back
On
Off
Submenu 2
4Use FG to select the desired submenu 2
and then press the Abutton.
●Once a setting is selected, the display returns to
the Submenu 1.
There may be additional operations. “Menu
Settings” (p. 36 to 54)
Power SavePower Save On
Pixel Mapping
Info Off 10sec
TV Out
English
File Name Reset
MENU
Settings Menu 2 Back
5Press the button to complete the
setting.
Setup menu
Setup menu
Press the button during shooting or playback to display the setup menu. The setup menu provides access
to a variety of camera settings, including options not listed in the function menu, display options, and the time and
date.

10
EN

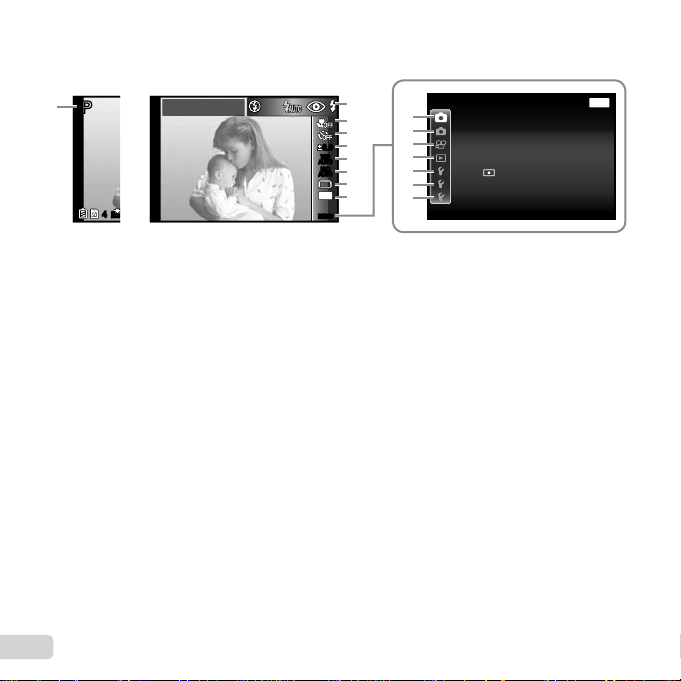

Menu Index
1Shooting mode...........p.17, 24
P(Program Auto)
M(iAUTO)
(Low Light)
(Super Sport)
(Scene Mode)
P(Magic Filter)
C1 (Custom Mode 1)
C2 (Custom Mode 2)
2Flash.................................p.20
3Macro ...............................p.29
4Self-timer..........................p.29
5Exposure compensation...p.30
6White balance...................p.30
7ISO...................................p.31
8Drive.................................p.31
9Image Size .......................p.32
0z(Camera Menu 1)........p.36
Reset
Compression
Shadow Adjust
AF Mode
ESP/n
Digital Zoom
Image Stabilizer
az(Camera Menu 2)........p.38
Accessory Settings
AF Illuminat.
Rec View
Pic Orientation
Icon Guide
Date Stamp
Super-Res Zoom
bA(Movie Menu)..............p.37
Image Size
IS Movie Mode
R(Movie sound recording)
Wind Noise Reduction
Recording Volume
cq(Playback Menu) ........p.41
Slideshow
Photo Surfing
Edit
Erase
Print Order
R(Protect)
Upload Order
dd(Settings Menu 1).......p.45
Memory Format/Format
Backup
Eye-Fi
Custom Mode Setup
USB Connection
qPower On
Sound Settings
ed(Settings Menu 2)......p.47
File Name
Pixel Mapping
s(Monitor)
Info Off
TV Out
Power Save
l(Language)
fd(Settings Menu 3)......p.51

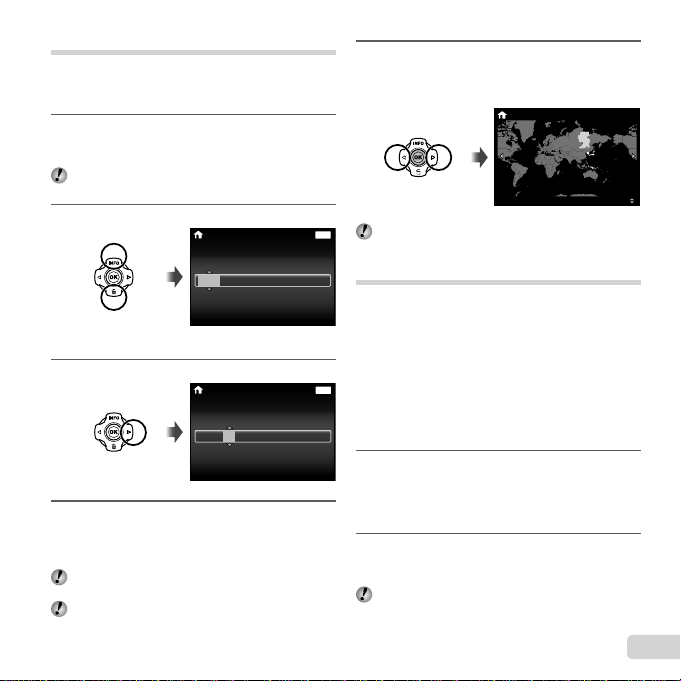

X(Date/time)
World Time
Reset Database
Beauty Settings
Tough Settings
GPS Settings
44
N
O
R
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
MENUMENU
12 M
Program Auto
6
7
3
2
5
4
8
9
MENU
On
Camera Menu 1
Image Stabilizer
ResetReset
Compression
AF Mode
Digital Zoom
Normal
Face/iESP
Off
Back
Shadow Adjust Auto
ESP/ ESP
d
e
a
0
c
b
f
