Olympus DP23 User manual

Instruction Manual
DP23 / DP28
Microscope Digital Camera
Optical Microscope Accessory English

Contents
1 Safety 4
1.1 Intended use 4
1.2 Avoiding personal injury and device damage 4
1.3 Explanation of the symbols used 6
2 The DP23 / DP28 camera 7
2.1 Scope of supply 7
2.2 System diagram 8
2.3 LED status indication 9
2.4 Specifications 10
2.5 Operating and storage conditions 12
3 System environment 13
3.1 Microscope and camera adapter 13
3.2 Recommended computer and monitor configuration 14
3.3 Restrictions on use 14
4 Assembly 17

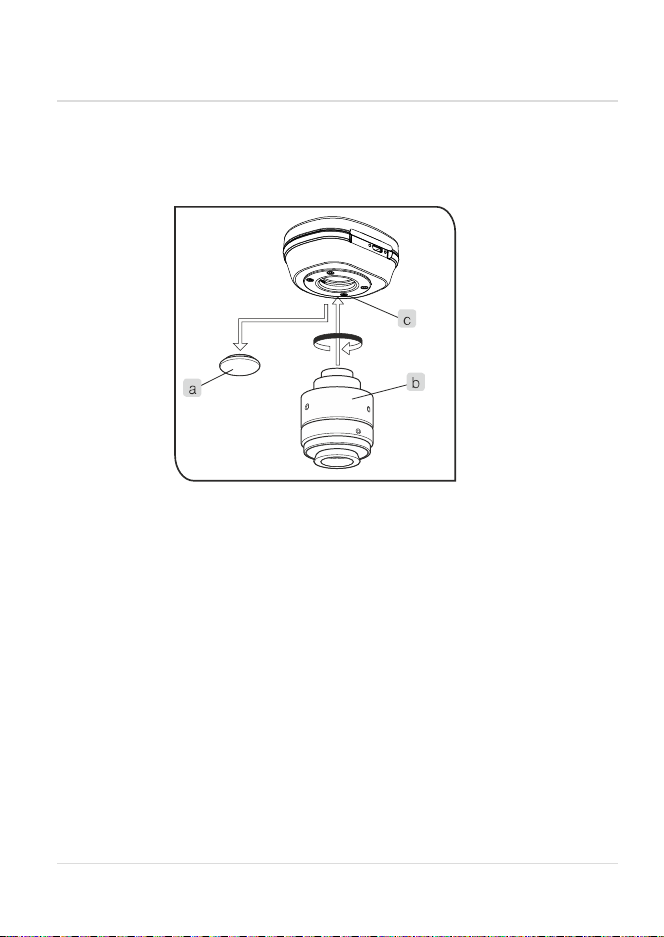

4.1 Attaching the camera 17

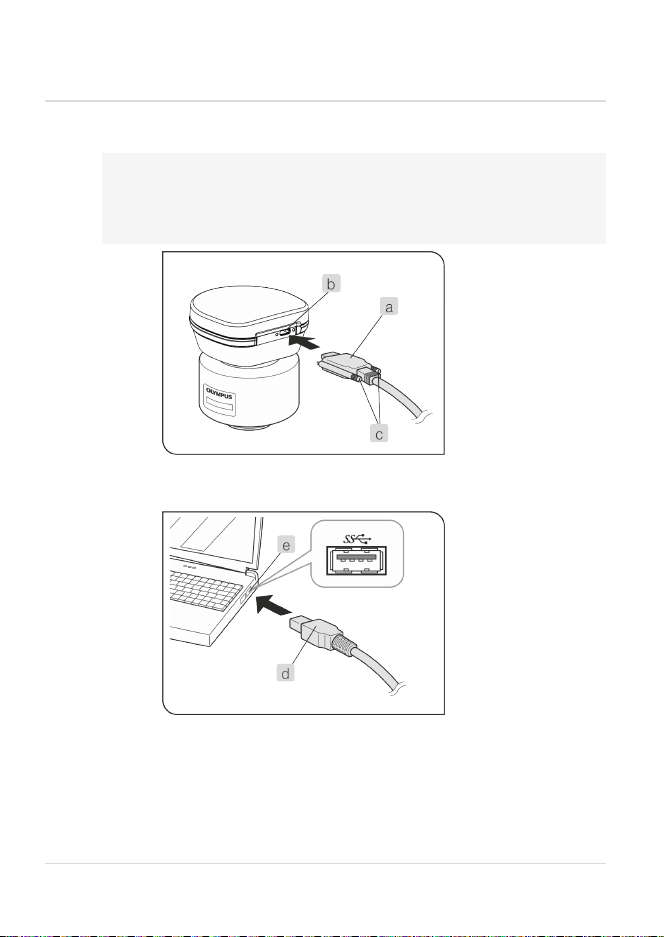

4.2 Connecting the USB camera cable 18
4.3 Installing the software 19
5 Acquiring images 20
6 Cleaning the camera 21
7 Troubleshooting 22
7.1 Possible problems 22
7.2 Contacting Customer Service 26
8 Notes on conformity and disposal 27

About the DP23 / DP28 camera
The DP23 /DP28 cameras are CMOS color cameras with a high frame
rate. They were specially developed for acquisitions using light
microscopy. The cameras can be connected to all common types of
light microscope by a C-mount.
About this instruction manual
This instruction manual applies to the DP23 and DP28 microscope
digital cameras.
Information about the operation of the microscope, computer or
software can be found in the instruction manuals for the
corresponding device or software.
Trademark
Microsoft and Windows are registered trademarks of Microsoft
Corporation, USA. All other brand names and product names
mentioned in this manualare registered trademarks or trademarks of
their respective owners.
3

1 Safety
The camera has been developed and produced in conformity with
recognized safety regulations. However, it is not possible to entirely
rule out possible hazards for the user, damage to the camera or
microscope, or impairments of the camera's functionality. For this
reason, always read and follow the general safety instructions and
warnings before and during installation.
1.1 Intended use
This camera is intended to be used for the acquisition of digital
images, but not for medical diagnosticpurposes.
1.2 Avoiding personal injury and device damage
WARNING - Avoiding personal injury
Electric shock due to damaged cable
Whena cable is frayed or damaged, a person touching it risks
receiving an electric shock. Shut off the hardware and replace the
cable immediately.
Poisoning due to toxic gases
In the event of a fire, the material of the camera can give off toxic
gases. When these are inhaled, it can cause irritation or damage to
the respiratory tract. Wear respiratory protection when fighting the
fire.
DP23 / DP28
4

CAUTION - Avoiding personal injury
Tripping hazard
Cables laid across a room can be a dangerous tripping hazard. This
cancause injuries to people and damage to equipment. Wherever
possible, laycables along the wallor behind furniture. Fix and label
cables that run across the room.
ATTENTION - Avoiding device damage
Never open the camera
The camera's CMOS chip is extremely sensitive. Electrostatic
discharge can permanently damage the camera. Therefore, never
open the camera housing.
Use only the supplied USB camera cable
Operate the camera onlywith the supplied USB camera cable. Only
then will the functionalityof the camera and compliance with the EMC
basic standards be ensured.
Don't touch the protective glass
The protective glass over the CMOS chip is extremelysensitive and
must not come into contact with bare hands or any other objects,
otherwise the acquired images will be impaired by fingerprints or
scratches.
Avoid vibration shocks
Mechanical shocks and strong vibrations can damage the camera.
Don't drop the camera during assembly. Make sure the camera is
securely mounted on the microscope. When the camera is not in use,
store it in a safe place.
1 Safety
5

Observe the operating and storage conditions
Exposure to high temperatures or humidity can damage component
parts of the camera. Always observe the operating and storage
conditions (see page 12).
1.3 Explanation of the symbols used
WARNING Indicates a potentially hazardous situation which, if not
avoided, may result in major injury.
CAUTION Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
ATTENTION Indicates a situation which, if not avoided, may damage
the equipment or other property.
DP23 / DP28
6

2 The DP23 / DP28 camera

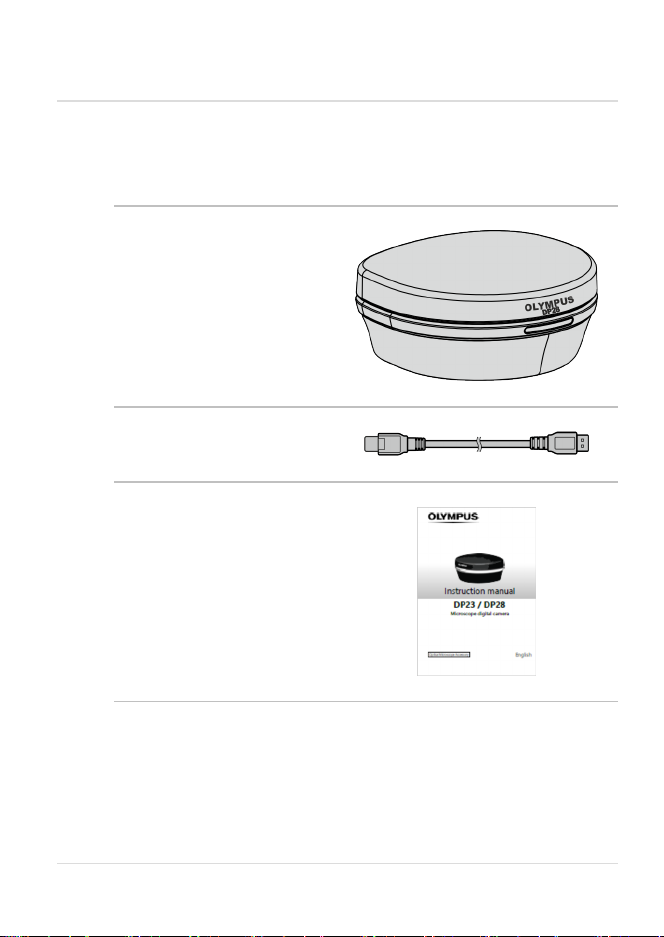

2.1 Scope of supply
Camera
USB camera cable
Instruction manual
2 The DP23 /DP28 camera
7

2.2 System diagram
To use the camera with a light microscope, you need suitable
software and a computer as wellas a monitor. For the recommended
computer and monitor configuration, refer to page 14.
You can use the following Olympus software applications:
Software application Minimum
version
cellSens Life science image analysis software 3.1.1.
OLYMPUS
Stream Materials solutions image analysis software 2.4.4.
DP2-TWAIN Free image acquisition software 9.1
DP2-TWAIN is available only as a download from the
Olympus Internet site.
DP23 / DP28
8

DP23/ DP28/ with DP2-AOU
Alternatively, Olympus provides a special control unit, DP2-AOU, for
DP23 / DP28. DP2-AOU replaces a computer. The software for
controlling DP23 /DP28 is pre-installed on DP2-AOU.
2.3 LED status indication
A blue LED is located on the front of the camera. After starting the
software, the LED indicates the following statuses:
LED Status
The LED flashes. The camera is being initialized.
The LED flashes continuously. There is a camera error. Contact
Customer Service (see page 26).
The LED lights up continuously. The camera is ready.
The LED doesn’t light up.
The camera is not connected to the
computer or DP2-AOU port.
The camera is not connected to the
USB 3.1 port.
2 The DP23 /DP28 camera
9

2.4 Specifications
The DP23 /DP28 cameras are CMOS color cameras with a high frame
rate. Theywere speciallydeveloped to acquire images from light
microscopes. The cameras can be connected to allcommon types of
light microscopes by a C-mount adapter.
Specifications - DP23
Chip type C-mount CMOS camera
Chip size 1/1.8 Inch
Recording area 7.41 mm x 4.98 mm
8.92 mm diagonal
Maximum resolution 3088 x 2076 pixels
6.41 million pixels
Camera port of the microscope C-Mount
Input / output
On the camera:USB 3.1 type C (with
lock screws)
On the computer or DP2-AOU : USB
3.1 type A
Resolution Frame rate* Exposure
time
3088 x 2076 Full resolution 45 fps
13 µs - 15 s
2072 x 2072 Square 59 fps
1544 x 1038 High speed 59 fps
1544 x 1038 High sensitivity 59 fps
1920 x 1080 Full HD 60 fps
* The maximum achievable frame rate is listed. The frame rate depends,
among other things, on the performance of the computer being used.
DP23 / DP28
10

Specifications - DP28
Chip type C-mount CMOS camera
Chip size 1 Inch
Recording area 14.158 mm x 7.5 mm
16.02 mm diagonal
Maximum resolution 4104 x 2174 pixels
8.92 million pixels
Camera port of the microscope C-Mount
Input / output
On the camera:USB 3.1 type C (with
lock screws)
On the computer or DP2-AOU : USB
3.1 type A
Resolution Frame rate* Exposure
time
4104 x 2174 Full resolution 32 fps
27 µs - 15 s
2168 x 2168 Square 33 fps
2052 x 1086 High speed 64 fps
2052 x 1086 High sensitivity 32 fps
3840 x 2160 4K 33 fps
1920 x 1080 Full HD 64 fps
* The maximum achievable frame rate is listed. The frame rate depends,
among other things, on the performance of the computer being used.
The frame rate corresponds to the maximum display speed of the
live-image (frame rate in frames/second (fps)).
2 The DP23 / DP28 camera
11

2.5 Operating and storage conditions
Always meet the operating and storage conditions.
Operating environment
Ambient temperature +5 °C - +40°C
Relative humidity 5% - 85% (without condensation)
Altitude Up to 2000 m
Storage conditions
Ambient temperature -20°C - +60°C
Relative humidity 10% - 90%
DP23 / DP28
12

3 System environment
3.1 Microscope and camera adapter
Connectable Microscope
Upright microscopes
BX43/ BX53/ BX46/ BX63
CX23/ CX33/ CX43
MX63 / BX53M
Inverted microscopes
IX73/IX83
GX53/ GKX53
Macro zoom microscope
MVX10
Stereo microscopes
SZX7/ SZX10/ SZX16/
SZ61TR
Connectable Camera
Adapter DP23 DP28
U-TV1XC /
U-TV1X+U-CMAD3 O O
U-TV0.63XC O (-)*
U-TV0.5XC-3 O -
U-TV0.35XC-2 (-)* -
MVX-TV1XC O O
MVX-TV0.63XC O -
GX-TV0.7XC O -
GX-TV0.5XC O -
GX-TV0.5XC-DP O -
0.5XC (integrated in SZ61TR) O -
O Compatible
( - ) Limited compatible. This camera adapter may lead to shading effects
towards the edges of the image.
- Not compatible as optical performance would be affected.
*
Only use in combination with objectives/microscopes that support
FN26.5. Otherwiseshading effects towards the edges of the image may
occur.
3 System environment
13

3.2 Recommended computer and monitor
configuration
Whenyou connect the DP23 / DP28 to a computer, the following
system requirements must be met.
CPU Intel® Core i5, Intel® Core i7, Intel® Core i9
Intel® Xeon (or equivalent)
RAM Recommendation: 8 GB or more
Monitor Resolution 1920 x 1080 or higher
Communication port USB-3.1 type A
Removable media drive Optical drive (double-layer capable)
Computer input device
Recommendation: 3-button mouse with
wheel.
Keyboard
Operating system Microsoft® Windows® 10 (64 Bit)
3.3 Restrictions on use
DP23 /DP28 with other microscopes
DP23 / DP28 can be used in combination with many available
microscopes. However, the performance of the camera canonly be
guaranteed for the microscopes listed inthe "Microscope and
camera adapter" chapter on page 13.
The performance of the DP23 / DP28 when used with a non-Olympus
microscope has not been evaluated.
DP23 / DP28
14

Brightness fluctuations in the camera image
With very high illumination intensities and short exposure times, the
following phenomena can occur:
nFlickering inthe image displayed
nExposure fluctuation
If possible, reduce the illumination light level or use an attenuation
filter to increase the exposure time to 20 ms or longer.
Obscured periphery of the field of view due to long intermediate
tubelength
If the intermediate tubelength is long (see examples below), the
periphery of the field of view may be obscured depending on the
observation tube and objective used together.
Examples when the intermediate tubelength is long:
n2 or more intermediate tubes are used ina stack.
nBX3 series: The reflected light illuminator and the
intermediate adapter are combined.
nIX3 series: IX73P2F or IX83P2ZF is used as a microscope
frame.
nAll reflected microscopes when a brightfield or polarization
observationmethod is used. Exceptions are the BX53MRF-S
and BX53MTRF-S microscope frames when the reflected
light illuminator BX3M-KMA-S is used.
3 System environment
15

Spot flare with a small diameter of the aperture diaphragm (AS)
A spot flare may be noticeable, ifthe aperture diaphragm (AS) is
almost completelyclosed. This flare becomes less noticeable if you
open the aperture diaphragm (AS).
No support of simultaneous image acquisition using several cameras
You canconnect several DP23 / DP28 cameras to one microscope.
However, it isn’t possible to simultaneously operate several cameras
with one computer.
DP23 / DP28
16

4 Assembly
4.1 Attaching the camera
1. Remove the cap of the C-mount port (a).
2. Screw the C-mount camera adapter (b) into the C-mount
thread (c)at the bottom of the camera head.
3. Attach the C-mount camera adapter to the camera port of
the microscope.
Checking the camera’s orientation
If the camera is not attached in the correct orientation, the camera
image does not matchthe image visible through the eyepieces.
1. After attaching the camera, compare the eyepiece image
with the live image on the monitor.
2. Rotate the camera adapter so that the alignment of these
images matches.
4 Assembly
17

4.2 Connecting the USB camera cable
ATTENTION
Use only the supplied USB camera cable
Operate the camera only with the supplied USB camera
cable. Only then will the functionality of the camera and
compliance with the EMC basic standards be ensured.
1. Connect the USB type C plug (a) to the camera’s USB type C
socket (b) and secure it with the two screws (c).
2. Connect the USB camera cable's USB type A plug (d) to the
USB 3.1 port (e) of the computer or the DP2-AOU.
Depending on the computer, the USB 3.1 port is either
colored blue or labeled "SS".
The camera can’t be operated using a USB 2.0 port.
DP23 / DP28
18

4.3 Installing the software
cellSens/OLYMPUS Stream software
Read the cellSens/OLYMPUS Stream installation manual before
installing the software. When you purchase DP2-AOU, the required
software is pre-installed.
TWAIN Driver DP2-TWAIN
DP2-TWAIN is available only as a download from the Olympus
Internet site.
4 Assembly
19

5 Acquiring images
You can find detailed instructions in the instruction manual or in the
Help of the software you are using.
Example of the acquisition process for brightfield images
DP23 / DP28
20
