Instruction Manual
VR-360/D-760
VR-360/D-760
VR-350/D-755
VR-350/D-755
VR-340/D-750
VR-340/D-750
DIGITAL CAMERA
●Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these
instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for
future reference.
●We recommend that you take test shots to get accustomed to your camera before taking important photographs.
●In the interest of continually improving our products, Olympus reserves the right to update or modify information
contained in this manual.
●The screen and camera illustrations shown in this manual were produced during the development stages and may
differ from the actual product. Unless otherwise specified, the explanation about these illustrations is provided for
VR-360/D-760.

2
EN
Other accessories not shown: warranty card
Contents may vary depending on purchase location.
Checking the contents of the box
Checking the contents of the box
LI-50B Lithium
Ion Battery
USB cable
(CB-USB7)
OLYMPUS
Setup
CD-ROM
Strap AV cable
(CB-AVC5)
F-2AC
USB-AC adapter
or
Digital camera
Camera unit
5
6
2
1
3
4
11
12
10
8
7
9
1Connector cover*1
2HDMI mini connector*1
3Strap eyelet
4Multi-connector
5Battery/card compartment
cover
6Battery/card compartment
lock
7Flash
8Self-timer lamp
AF illuminator
9Lens
10 Microphone
11 Tripod socket
12 Speaker
Names of Parts
Names of Parts
*1 VR-360/D-760 only

3
EN
3
2
1 4
7
5
6
8
10
9
11
1nbutton
2 Shutter button
3Monitor
4Zoom lever
5Rbutton (shooting movies)
6qbutton (switch between
shooting and playback)
7Indicator lamp
8Arrow pad
INFO button (change
information display)
button (erase)
9Qbutton (OK)
10
Ebutton (camera guide)
11 button
Attaching the camera strap
Attaching the camera strap
Pull the strap tight so that it does not come loose.

4
EN
Monitor
Shooting mode display
Shooting mode display
F3.0F3.01/1001/100
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16 M
zz
PP
0:00:340:00:34
Date
44
N
ORM
1
2
3
4
5
6
7
8
9
10
151718
19 16 1114 13
20
21
222324
12
1Shooting mode ....... p.16, 24
2Flash..............................p.19
Flash standby/flash charge
.................................... p. 55
3Macro ........................... p. 30
4Self-timer ...................... p. 30
5Exposure compensation
.................................... p. 31
6White balance............... p. 31
7ISO ............................... p. 32
8Drive ............................. p. 32
9 Image size
(still images)................ p. 33
10 Recording with sound
(movies) ...................... p. 36
11 Image size (movies) ..... p.34
12 Recording length
(movies) ...................... p. 63
13 Movie recording icon .... p. 17
14 World time .................... p. 48
15 Image Stabilizer
(still images)................ p. 35
16 Date stamp ................... p. 37
17 Compression
(still images)................ p. 34
18 Number of storable pictures
(still images)................ p. 16
19 Current memory ........... p. 61
20 Battery check................ p. 12
21 AF target mark.............. p. 17
22 Aperture value .............. p. 17
23 Shutter speed ............... p. 17
24 Camera shake warning

5
EN

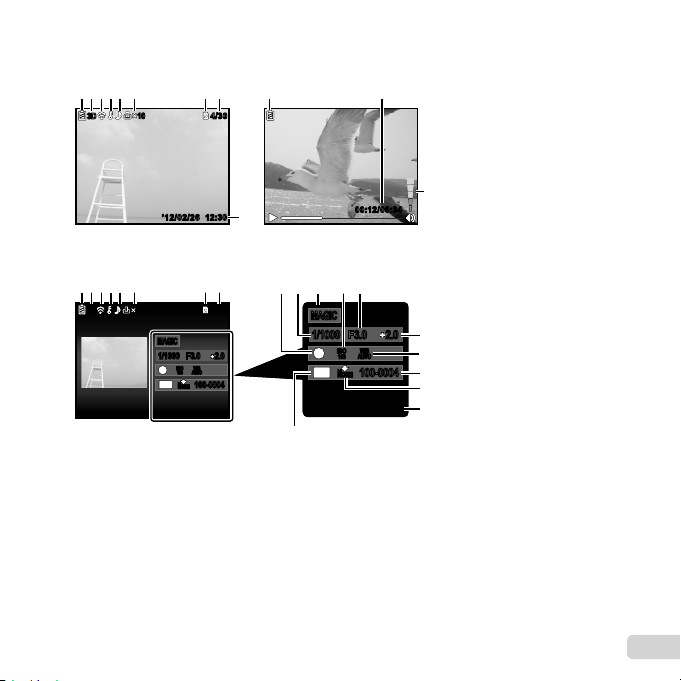

Playback mode display
Playback mode display
●Normal display 1Battery check................ p. 12
23D image*1 .................... p. 23
3Eye-Fi transferred......... p. 42
4Protect .......................... p. 41
5Adding sound ............... p. 39
6Print reservation/number of
prints ...................p. 53/p. 52
7Current memory ........... p. 61
8Frame number/
total number of images
.................................... p. 20
Elapsed time/
total shooting time
(movies) ...................... p. 21
9P............................ p. 27
10 Shutter speed ............... p. 17
11 Shooting mode ....... p. 16, 24
12 ISO ............................... p. 32
13 Aperture value .............. p. 17
14 Exposure compensation
.................................... p. 31
15 White balance............... p. 31
16 File number
17 Compression
(still images)................ p. 34
Frame rate
(movies) ...................... p. 34
18 Date and time ............... p. 15
19 Image size .................... p. 33
20 Volume ......................... p. 44
12:30’12/02/26’12/02/26 12:30
1010
4/304/30
3D3D
1 8732 4 5 6
18
Still image Movie
00:12/00:3400:12/00:34
1
20
8
●Detailed display
4/304/30
1010
16 M
2.02.0F3.0F3.01/10001/1000
100-0004
100-0004
AUTO
WB
AUTO
WB
100
ISO
100
ISO
N
ORM
1
MAGICMAGIC
’12/02/26 12:30
3D
3D
16 M
2.02.0F3.0F3.01/10001/1000
100-0004
100-0004
AUTO
WB
AUTO
WB
100
ISO
100
ISO
1
MAGICMAGIC
’12/02/26 12:30
N
ORM
32 4 5 61 87 1110 12913
14
16
18
19
15
1
7
*1 VR-360/D-760 only

6
EN
Camera Settings
Camera Settings
Using the Direct Buttons
Using the Direct Buttons
Frequently used functions can be accessed using the direct buttons.
H(left)
G(down) /
button (erase) (p. 21)
F(up) /
INFO button (change information
display) (p. 19, 22)
I(right)
Qbutton
Arrow pad
Zoom lever (p. 18, 22)
Shutter button (p. 17)
Rbutton (shooting movies) (p. 17)
qbutton (switch between shooting and
playback) (p. 20)
button (p. 9)
Ebutton (camera guide) (p. 23)

7
EN
The symbols FGHI displayed for image selections
and settings indicate that the arrow pad is to be used.
N
ORM
‘12/02/26 12:30
N
ORM
16M
‘12/02/26 12:30
MENU
Sel. Image Back
Single Print More
4/30
100-0004
4/30
100-0004
02 26 12 30:..
MENU
2012
XBack
Y/M/D
Y M D Time
Operation guides displayed on the screen indicate that the
button, Qbutton, or zoom lever can be used.
Sel. Image
Erase/Cancel
OK
MENU
(1)
4/30
Operation guide
MENU
Back
MENU
On
On
On
Camera Menu 1
Image Stabilizer
ResetReset
Compression
AF Mode
Digital Zoom
AF Illuminat.
Icon Guide
Normal
Face/iESP
Off
Back
Operation guide

8
EN
Using the Menu
Using the Menu
Use the menu to change camera settings such as the shooting mode.
There may be menus that are unavailable depending on other related settings or the mode (p. 26).
Function menu
Function menu
Press Hduring shooting to display the function menu. The function menu is used to choose the shooting mode and
provides access to frequently used shooting settings.
To select the shooting mode
Use HI to select a shooting mode and press the Qbutton.
To select the function menu
Use FG to select a menu and use HI to select a menu option. Press the Q
button to set the function menu.
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
MENUMENU
Program Auto
16 M
Shooting
Function menu
Shooting mode
PP
Selected option
Setup menu

9
EN
1 Press the button.
●The setup menu is displayed.
MENU
Camera Menu 1 Back
ResetReset
On
On
On
Compression
AF Mode
Digital Zoom
Normal
Face/iESP
Off
Image Stabilizer
AF Illuminat.
Icon Guide
2Press Hto highlight the page tabs. Use FG
to select the desired page tab and press I.
MENU
Settings Menu 2
Pixel Mapping
Back
Power SavePower Save
World TimeWorld Time
TV Out
Bright
English
Off
X’12.02.26 12:30
Page tab
Pixel Mapping
MENU
Settings Menu 2
Power SavePower Save
World TimeWorld Time
TV Out
Back
Bright
English
Off
X’12.02.26 12:30
Submenu 1
3Use FG to select the desired submenu 1 and
then press the Qbutton.
Power SavePower Save Off
MENU
Settings Menu 2
Pixel Mapping
Back
World TimeWorld Time
TV Out
Bright
English
X’12.02.26 12:30
Power SavePower Save
Pixel Mapping
MENU
Settings Menu 2 Back
World TimeWorld Time
TV Out
X
On
Off
Submenu 2
4Use FG to select the desired submenu 2 and
then press the Qbutton.
●Once a setting is selected, the display returns to
the previous screen.
There may be additional operations.
“Menu Settings” (p. 34 to 49)
Power SavePower Save On
MENU
Settings Menu 2
Pixel Mapping
Back
World TimeWorld Time
TV Out
Bright
English
X’12.02.26 12:30
5Press the button to complete the setting.
Setup menu
Setup menu
Press the button during shooting or playback to display the setup menu. The setup menu provides access to a
variety of camera settings, including options not listed in the function menu, display options, and the time and date.

10
EN
Menu Index
1Shooting mode ...........p.16, 24
P(Program Auto)
M(iAUTO)
Q(Beauty)
(Scene Mode)
P(Magic Filter)
~(Panorama)
2Flash.................................p. 19
3Macro ...............................p. 30
4Self-timer ..........................p. 30
5Exposure compensation ...p. 31
6White balance...................p. 31
7ISO ...................................p. 32
8Drive .................................p. 32
9Image Size .......................p. 33
0K(Camera Menu 1) .......p.34
Reset
Compression
AF Mode
Digital Zoom
Image Stabilizer
AF Illuminat.
Icon Guide
aK(Camera Menu 2) .......p.37
Date Stamp
bA(Movie menu) ..............p. 34
Frame Rate
IS Movie Mode
R(Movie sound recording)
cq(Playback menu) ........p. 38
Slideshow
Edit
Erase
Print Order
R(Protect)
y(Rotate)
dd(Settings Menu 1)..........p.42
Memory Format/Format
Backup
Eye-Fi
USB Connection
qPower On
Keep KSettings
Sound Settings
ed(Settings Menu 2)..........p.44
Pixel Mapping
s(Monitor)
TV Out*1
NTSC/PAL*2
Power Save
W(Language)
X(Date/time)
World Time
fd(Settings Menu 3)..........p.49
Beauty Settings
*1 VR-360/D-760 only
*2 VR-350/D-755 and VR-340/D-750 only
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
MENUMENU
Program Auto
16 M
MENU
On
On
On
Camera Menu 1
Image Stabilizer
ResetReset
Compression
AF Mode
Digital Zoom
AF Illuminat.
Icon Guide
Normal
Face/iESP
Off
Back
6
7
2
1
5
4
8
9
30
a
b
c
d
e
f

11
EN
Preparing the Camera
Preparing the Camera
Inserting the battery and card
1
12
Battery/card
compartment cover
Battery/card compartment lock
2
Write-protect switch
Battery lock
knob
Insert the battery as illustrated with the Cmark
toward the battery lock knob.
Damage to the battery exterior (scratches, etc.) may
produce heat or an explosion.
Insert the battery while sliding the battery lock knob in
the direction of the arrow.
Insert the card straight until it clicks into place.
When using the camera, be sure to close the battery/
card compartment cover.
Slide the battery lock knob in the direction of the
arrow to unlock, and then remove the battery.
Turn off the camera before opening the battery/card
compartment cover.
Always use SD/SDHC/SDXC cards or Eye-Fi card
with this camera. Do not insert other types of memory
cards. “Using the card” (p. 61)
Do not touch the contact area of the card directly.
This camera can be used without a card by storing
images in its internal memory.
2
311
“Number of storable pictures (still images)/Recording
length (movies) in the internal memory and cards”
(p. 62)
To remove the card
To remove the card
21
Press the card in until it clicks and comes out slightly,
then grab the card and pull it out.
Charging the battery with the
included USB-AC adapter
The included F-2AC USB-AC adapter (hereafter referred
to as USB-AC adapter) differs depending on the region
where you purchased the camera. If you received a plug-
in type USB-AC adapter, plug it directly into AC outlet.

12
EN
The included USB-AC adapter has been designed
to be used for charging and playback. Do not take
pictures while the AC adapter is connected to the
camera.
Be sure to unplug the power plug of the USB-AC
adapter from the wall outlet when the charging is
complete or the playback ends.
The battery can be charged while the camera is
connected to the computer. Charging time varies
depending on the performance of a computer. (There
may be cases in which it takes approx. 10 hours.)
Connecting the camera
Connecting the camera
AC outlet USB connector
(supplied)
Multi-connector
or
Indicator lamp
Indicator lamp
Indicator lamp
On: Charging
Off: Charged
The battery is not fully charged at the time of
purchase. Before use, be sure to charge the battery
until the indicator lamp turns off (up to 4 hours).
If the indicator lamp does not light, the camera is not
correctly connected or the battery, camera, or USB-
AC adapter may not be functioning as expected.
When to charge the batteries
When to charge the batteries
Charge the battery when the error message shown below
appears.
Flashes in red
Battery Empty
Setting up using the supplied CD
Installation of [ib] computer software using the
supplied CD is available on Windows computers only.
Windows
Windows
1Insert the supplied CD in a CD-ROM drive.

13
EN
Windows XP
●A “Setup” dialog will be displayed.
Windows Vista/Windows 7
●An Autorun dialog will be displayed. Click
“OLYMPUS Setup” to display the “Setup” dialog.
If the “Setup” dialog is not displayed, select “My
Computer” (Windows XP) or “Computer” (Windows
Vista/Windows 7) from the start menu. Double-click
the CD-ROM (OLYMPUS Setup) icon to open the
“OLYMPUS Setup” window and then double-click
“Launcher.exe”.
If a “User Account Control” dialog is displayed, click
“Yes” or “Continue”.
2Register your Olympus product.
●Click the “Registration” button and follow the on-
screen instructions.
To register the camera, it must be connected to the
computer. “Connecting the camera” (p. 12)
If nothing is displayed on the camera screen even
after connecting the camera to the computer, the
battery may be exhausted. Leave the camera
connected to the computer until the battery has
charged, then disconnect and reconnect the camera.
3Install OLYMPUS Viewer 2 and [ib] computer
software.
●Check the system requirements before beginning
installation.
●Click the “OLYMPUS Viewer 2” or “OLYMPUS ib”
button and follow the on-screen instructions to
install the software.
OLYMPUS Viewer 2
Operating
System
Windows XP (Service Pack 2 or later)/
Windows Vista/ Windows 7
Processor Pentium 4 1.3 GHz or better
RAM 1 GB or more (2 GB or more
recommended)
Free Hard
Drive Space 1 GB or more
Monitor
Settings
1024 × 768 pixels or more
Minimum 65,536 colors
(16,770,000 colors recommended)
[ib]
Operating
System
Windows XP (Service Pack 2 or later)/
Windows Vista/ Windows 7
Processor
Pentium 4 1.3 GHz or better
(Pentium D 3.0 GHz or better required
for movies)
RAM
512 MB or more (1 GB or more
recommended)
(1 GB or more required for movies —2 GB
or more recommended)
Free Hard
Drive Space 1 GB or more
Monitor
Settings
1024 × 768 pixels or more
Minimum 65,536 colors (16,770,000
colors recommended)
Graphics A minimum of 64 MB video RAM with
DirectX 9 or later.
* See online help for information on using the software.
4Install the camera manual.
●Click the “Camera Instruction Manual” button and
follow the on-screen instructions.

14
EN
Macintosh
Macintosh
1Insert the supplied CD in a CD-ROM drive.
●Double-click the CD (OLYMPUS Setup) icon on
the desktop.
●Double-click the “Setup” icon to display the “Setup”
dialog.
2Install OLYMPUS Viewer 2.
●Check the system requirements before beginning
installation.
●Click the “OLYMPUS Viewer 2” button and follow
the on-screen instructions to install the software.
You can register via “Registration” in OLYMPUS
Viewer 2 “Help”.
OLYMPUS Viewer 2
Operating
System Mac OS X v10.4.11–v10.6
Processor Intel Core Solo/Duo 1.5 GHz or better
RAM 1 GB or more (2 GB or more
recommended)
Free Hard
Drive Space 1 GB or more
Monitor
Settings
1024 × 768 pixels or more
Minimum 32,000 colors (16,770,000
colors recommended)
* Other languages can be selected from the language
combo box. For information on using the software, see
online help.
3Copy the camera manual.
●Click the “Camera Instruction Manual” button to
open the folder containing the camera manuals.
Copy the manual for your language to the
computer.

15
EN
Language, date, time, and time zone
You can choose the language for the menus and
messages displayed in the monitor. Also, the date and
time set here are saved to image file names, date prints,
and other data.
1Press the nbutton to turn on the
camera. Then, use FGHI to select your
language and press the Abutton.
The menus can be used to change the selected
language. [W] (Language) (p. 48)
2Use FG to select the year for [Y] on the date
and time setting screen.
X
MENU
Back
Y/M/D
Y M D Time
-- -- -- --
:..2012
3Press Ito save the setting for [Y].
X
MENU
Back
Y/M/D
Y M D Time
-- -- -- --
:..2012
4As in Steps 2 and 3, use FGHI to set
[M] (month), [D] (day), [Time] (hours and
minutes), and [Y/M/D] (date order), and then
press the Abutton.
For a more accurate setting, press the Qbutton
when the time signal hits 00 seconds while setting the
minutes.
The menus can be used to change the selected date
and time. [X] (Date/time) (p. 48)
5Use HI to select your home time zone and
press the Qbutton.
●Use FG to turn daylight saving time ([Summer])
on or off.
MENU
Back
Summer
Seoul
Tokyo
’12.02.26 12:30
The menus can be used to change the selected time
zone. [World Time] (p. 48)

16
EN
Shooting, Viewing, and Erasing
Shooting, Viewing, and Erasing
Shooting with the optimum aperture
value and shutter speed
[Program Auto]
In this mode, automatic shooting settings are activated
while also allowing changes to a wide range of
other shooting menu functions, such as exposure
compensation, white balance, etc. as needed.
The default settings of the function are highlighted in
.
1 Press the nbutton to turn on the
camera.
[Program Auto] indicator
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16 M
44
N
ORM
0:00:340:00:34
Number of storable still pictures (p. 62)
Monitor (standby mode screen)
If the [Program Auto] indicator is not displayed, press
Hto display the function menu and then set the
shooting mode to P. “Using the Menu” (p. 8)
Current shooting mode display
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
MENUMENU
Program Auto
16 M
Press the nbutton again to turn off the camera.
2Hold the camera and compose the shot.
Horizontal grip
Vertical grip
Monitor
When holding the camera, take care not to cover the
flash and the microphone with your fingers, etc.

17
EN
3 Press the shutter button halfway down to
focus on the subject.
●When the camera focuses on the subject, the
exposure is locked (shutter speed and aperture
value are displayed), and the AF target mark
changes to green.
●The camera was unable to focus if the AF target
mark flashes red. Try focusing again.
PP
F3.0F3.01/4001/400
AF target mark
Press halfway
Shutter speed Aperture value
“Focusing” (p. 57)
4To take the picture, gently press the shutter
button all the way down while being careful
not to shake the camera.
Image review screen
Press fully
To view images during shooting
To view images during shooting
Pressing the qbutton enables playback of images. To
return to shooting, either press the qbutton or press the
shutter button halfway down.
Shooting movies
1 Press the Rbutton to start recording.
0:00
RECREC
0:00
0:00:340:00:34
0:00:340:00:34
0:000:00
RECREC
Lights up red
when recording
Current length
Continuous recording length
Sound will also be recorded.
The shooting mode selected for still photography
applies to movies (some shooting modes have no
effect).
2Press the Rbutton again to end recording.

18
EN
Using the zoom
Turning the zoom lever adjusts the shooting range.
W side T side
PP PP
5.05.0
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16 M
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16 M
12.512.5
0:00:340:00:34
44
N
ORM
0:00:340:00:34
44
N
ORM
Zoom bar
Model No. Optical zoom Digital zoom
VR-360/D-760 12.5 × 4 ×
VR-350/D-755 10 × 4 ×
VR-340/D-750 10 × 4 ×
To take larger images [Digital Zoom]
To take larger images [Digital Zoom]
The type and amount of zoom can be identified from
the appearance of the zoom bar. The display differs
depending on the options selected for [Digital Zoom]
(p. 36) and [Image Size] (p. 33).
[Off] selected for [Digital Zoom]:
Image size Zoom bar
16M
Optical zoom range
Other
Image zoomed and cropped.*1
[On] selected for [Digital Zoom]:
Image size Zoom bar
16M
Digital zoom range
Other Image zoomed and
cropped.*1
Digital zoom range
*1 If an image size is less than the full resolution after
reaching the maximum optical zoom, the camera will
automatically resize and crop the image to the selected
image size and enter the digital zoom range if [Digital
Zoom] is [On].
Photographs taken with the zoom bar displayed in
red may appear “grainy.”

19
EN
Using the flash
The flash functions can be selected to best match the
shooting conditions.
1Select the flash option in the shooting
function menu.
PP
0.00.0
MENUMENU
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
Flash Auto
16 M
2Use HI to select the setting option, and
press the Qbutton to set.
Option Description
Flash Auto The flash fires automatically in low-
light or backlight conditions.
Redeye Pre-flashes are emitted to reduce the
occurrence of red eye in your photos.
Fill In The flash fires regardless of the
available light.
Flash Off The flash does not fire.
Changing the shooting information
display
The display of the screen information can be changed to
best match the situation, for example, the need for a clear
view of the screen or for making a precise composition by
using the grid display.
1 Press F(INFO).
●The displayed shooting information changes in
the order shown below each time the button is
pressed. “Shooting mode display” (p. 4)
PP
N
ORM
PP
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16 M
44
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
16 M
N
ORM
44
0:00:340:00:34
0:00:340:00:34
Normal
Detailed
No information

20
EN
Viewing images
1 Press the q button.
Number of frames/Total number of images
12:30’12/02/26’12/02/26 12:30
4/30
4/30
Playback image
Pictures taken using Qmode are displayed as a
group. Turn the zoom lever to the T side to play back
the image in the group.
2Use HI to select an image.
Displays
previous image
Displays next
Hold Ito fast forward and hold Hto reverse.
The display size of the images can be changed.
“Index view and close-up view” (p. 22)
To play sound recordings
To play sound recordings
To play sound recorded with an image, select the image
and press the Qbutton. A icon appears on images with
which sound has been recorded.
[R] (still images) (p. 39)
During audio playback
Press FG to adjust volume.
To play back movies
To play back movies
Select a movie, and press the Qbutton.
’12/02/26 12:30’12/02/26 12:30
4/30
4/30
OK
Movie PlayMovie Play
Movie
