Omcan RS-CN-0120-4D User manual

Refrigerated Showcases
Models RS-CN-0120-4D, 0160-4D, 0202-4D, 0252-4D
Items 47560, 48887, 47561, 47562
Instruction Manual
Revised - 11/10/2022
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com

2
Page
-------------------------------------------------------------------------------------------- 3
--------------------------------------------------------------------------- 4 - 5
--------------------------------------------------------------------------- 5 - 7
-------------------------------------------------------------------------- 8
----------------------------------------------------------------------------------------- 8 - 9
----------------------------------------------------------------------------------- 9 - 10
----------------------------------------------------------------------------- 10 - 11
---------------------------------------------------------------------------- 12 - 19
---------------------------------------------------------------------------- 20
------------------------------------------------------------------------------------------- 21 - 22
---------------------------------------------------------------------------- 23
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Troubleshooting

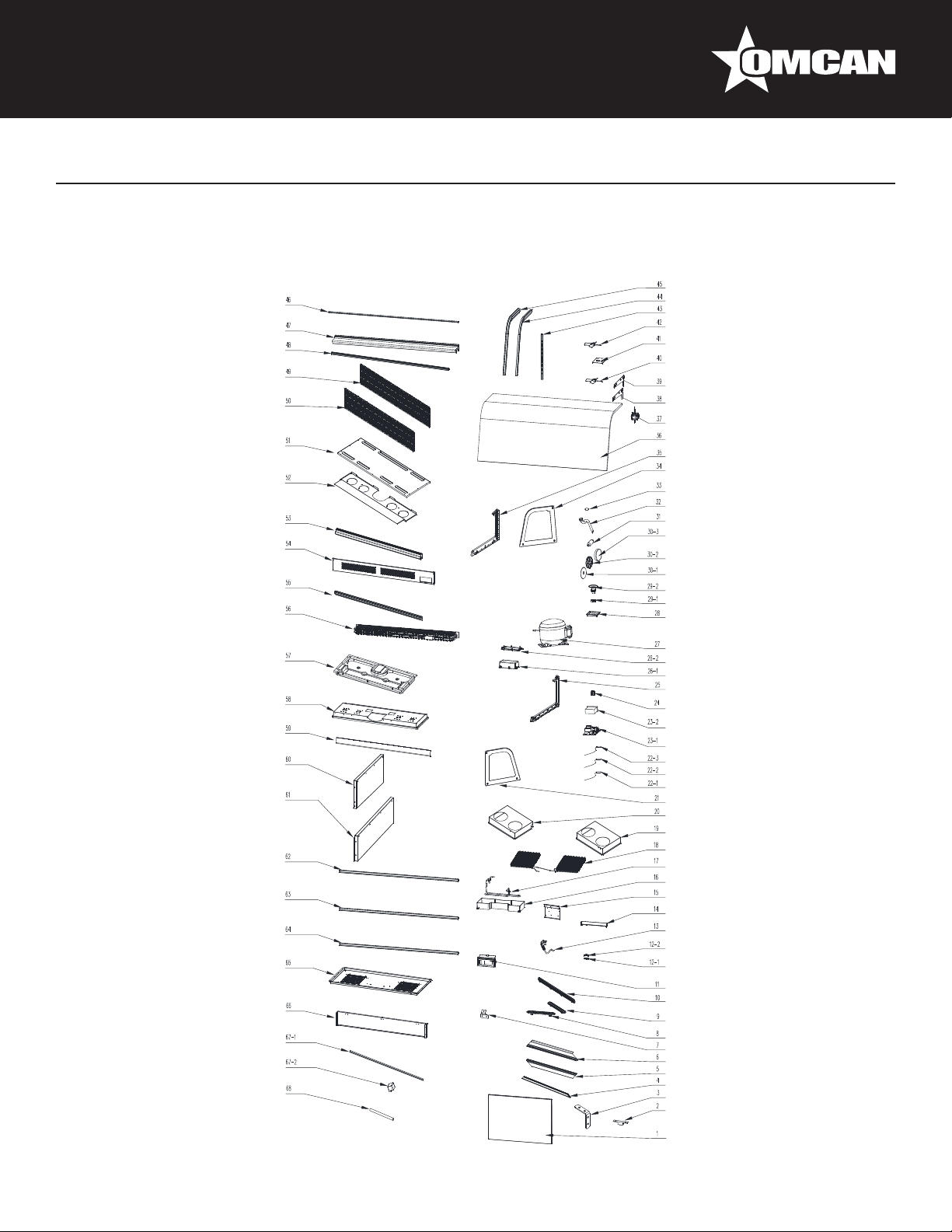

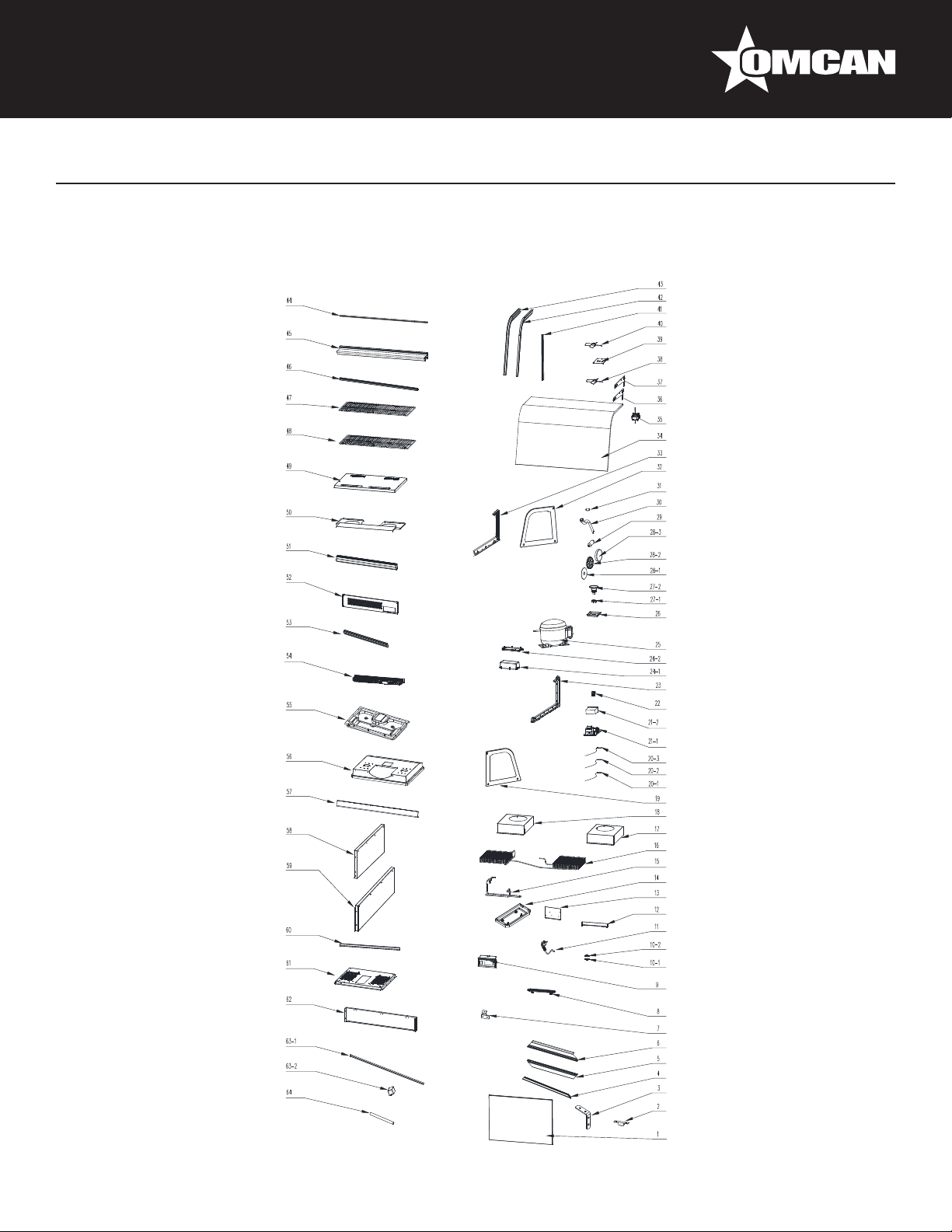

Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model RS-CN-0120-4D / Model RS-CN-0160-4D
Model RS-CN-0202-4D / Model RS-CN-0252-4D

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR
ANY DAMAGES DUE TO WATER LEAKS.
WARRANTY FOR WATER LEAKS IS VOID
IF THE AMBIENT ROOM TEMPERATURE
EXCEEDS 75°F AND 55% RELATIVE
HUMIDITY, AND THE APPLIANCE DRAIN IS
NOT CONNECTED DIRECTLY TO A FLOOR
DRAIN.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
HANDLING AND INSTALLATION
Handle with care
Unplug from the wall socket before moving. Never tilt
the refrigerator over 45 degrees during handling.
Storage
Always store the refrigerator in a dry place.

6
Safety and Warranty
Su󰀩cient space
To allow for proper air circulation and increased
refrigeration capabilities, the refrigerator must have at
least 4”/10cm of space between wall/ceiling and the
machine.
Proper ventilation
Always place the refrigerator in an area with good
ventilation. For rst time use, set in location and wait
at least 2 hours before plugging into wall socket.
Away from heat source
Never place the refrigerator near any type of heat
source or in direct sunlight, as it reduces refrigeration
capabilities.
No heavy load
Never put heavy items on top of the refrigerator.
No altercations/tampering
Never tamper with or make changes to the
refrigerator. Changes and add-ons should not be
installed to the inside or outside of the refrigerator.
Stable location
Unpack and place the refrigerator on at, solid
ground.
PREPARATION AND POWER SUPPLY
Exclusive power outlet
Power supply should be 110V, single phase AC with
exclusive single phase three pin outlet (125V/15A).
The power outlet must be in close proximity to the
ground.
No shared power outlets
Refrigerator cable should never share the power
outlet with any other appliance, as cable will overheat
and may result in a re.
Protect cables
Extra caution should be used when handling cables,
as broken or damaged cables can cause sparking
and may result in a re.
No water ushing
Never ush the refrigerator surface. This can cause
leakage, which may result in electrical damage or re.
Never store ammables and explosives
No explosives or ammables should be stored in,
or in proximity to, the refrigerator, such as gasoline,
alcohol, and adhesives.
No spray
Never spray ammables such as paint or coating
near the refrigerator. This may cause re or
malfunction.
After power outage
After a power outage or the unplugging of the
refrigerator, wait at least 5 minutes before plugging it
back in.
No medicine
Medicine should not be stored inside of the
refrigerator.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.

7
Safety and Warranty
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

8
Technical Specications
Operation
Model RS-CN-0120-4D RS-CN-0160-4D RS-CN-0202-4D RS-CN-0252-4D
Temperature Range 0 - 12°C / 32 - 53.6°F
Refrigerant R290
Max Ambient Temp
Rating 23.9°C / 75°F
Net Volume 88 L / 3.1 cu.ft. 112 L / 3.95 cu.ft. 157 L / 5.54 cu.ft. 198 L / 6.99 cu.ft.
Electrical 110-120V / 60Hz / 1
Current 2.8A 3.2A 3.6A 4.9A
Power 2/7 HP
BTU/hr 1261
Defrosting Automatic Defrost
Temperature
Controller Digital Thermostat
Exterior Material Stainless steel / Tempered Glass / Plastic
Interior Material Stainless Steel / Plastic
Door Type Sliding Door
Insulation Material EPS
Shelf Dimensions
25” x 13.2”
636 x 335mm
32” x 13.2”
813 x 335mm
45.5” x 13.2”
1156 x 335mm
57.4” x 12.6”
1457 x 320mm
57.4” x 14.4” / 1457 x 367mm
Shelf Material Chrome Plated
Shelf Load Capacity 44 lbs. / 20 kgs.
Exterior Dimensions 27.6” x 22.6” x 27.4”
702 x 575 x 696mm
34.6” x 22.6” x 27.4”
880 x 575 x 696mm
48” x 22.6” x 27.4”
1219 x 575 x 696mm
60” x 22.6” x 27.4”
1524 x 575 x 696mm
Interior Dimensions 26.2” x 19.3” x 16.2”
665 x 490 x 412mm
33.2” x 19.3” x 16.2”
843 x 490 x 412mm
46.5” x 19.3” x 16.2”
1182 x 490 x 412mm
58.5” x 19.3” x 16.2”
1487 x 490 x 412mm
Packaging
Dimensions
30.4 x 24.7 x 28.9”
773 x 627 x 735mm
37.4 x 24.7 x 28.9”
951 x 627 x 735mm
50.8 x 24.7 x 28.9”
1290 x 627 x 850mm
62.8 x 24.7 x 29.4”
1595 x 627 x 860mm
Weight 132.3 lbs. / 60 kgs. 153.3 lbs. / 69.5 kgs. 206.2 lbs. / 93.5 kgs. 267.9 lbs. / 121.5 kgs.
Packaging Weight 138.9 lbs. / 63 kgs. 161 lbs. / 73 kgs. 233.7 lbs. / 106 kgs. 309.8 lbs. / 140.5 kgs.
Item Number 47560 48887 47561 47562
BEFORE USE
• Plug refrigerator into the 110V exclusive socket.
• After the refrigerator is running, conrm that air suction/ltration is in working order and that it is su󰀩ciently

9
Operation
Maintenance
cold. After checking to make sure the refrigerator is working properly, it may be used.
FEATURES OF FUNCTION
• Small, integrated digital controller, which is applicable to the compressor of 1 Hp. Located behind the front
grill.
• Main functions are: Temperature Display/Temperature Control/Manual-Automatic /Light Control/Value
Storing/Self-Testing/Parameter Locking.
FRONT PANEL OPERATION
1. Set temperature: Press button; set temperature will be displayed. Press or button to modify and
store the displayed value. Press button to exit the adjustment and display the cold-room temperature.
2. If no button is pressed within 10 seconds, the cold-room temperature will be displayed.
3. Lighting: Press button to activate light in refrigerator; press again to turn o󰀨. Manual start/stop defrost:
Press button and hold for 6 seconds to either defrost or to stop defrost.
4. Refrigeration LED: During refrigeration, the LED is on. When the cold room temperature is constant, the
LED is o󰀨. During delay start, the LED ashes.
5. Defrost LED: During defrosting, the LED is on. When it stops defrosting, the LED is o󰀨. During the delay of
defrost, the LED ashed.
CAUTION
• Never block the air outlet and suction to keep the air circulation and refrigeration capability constant.
• Do not overll refrigerator with food, as it will inuence the cooling e󰀨ect. If needed, adjust the rack height
for proper food storage.
• Cool down hot food to room temperature before placing inside the refrigerator.
• When power supply has been cut o󰀨, reduce opening times and maintain cool temperature in refrigerator.
• To avoid scalding, never touch the compressor.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly
qualied persons in order to avoid hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
1. Cabinet Cleaning:
a. The product should be maintained and cleaned periodically with power supply disconnected. In cleaning,
please use mild-rinsing water or non-corrosive products. Do not wash directly with water faucet.
b. Clean outside of unit using a soft cloth with neutral detergent, and dry with a separate soft cloth.

10
Maintenance
Troubleshooting
c. Clean inside racks by removing them from the unit and clean with water.
2. When shutting down unit for a long period of time, take out all food and unplug wall socket. Clean inside
and outside thoroughly, and keep door open to su󰀩ciently dry.
3. As glass breaks easily, keep far away from children.
4. Frequently observe the operation of the product. In case of any abnormal noise or smell, cut o󰀨 the power
supply immediately and call professionals. Do not restart the product before source of trouble is found.
5. We will not be responsible for any accidents acquired through failure to follow previous notices.
Trouble Causes Solutions
Strange noise under the
bottom shelf.
Fan blade broken. Power o󰀨 and x the blade.
Non-refrigerating in spite of
normal operation.
Unit o󰀨. Power on.
Melting process. Stop melting.
Refrigerant leaking. Patch the leak and rell refrigerant.
Unit failure. Call Omcan.
Weak air from air curtain,
and higher cabinet
temperature.
Evaporator blocked by frost. Increase melting frequency.
Inside fan damaged. Replace the fan.
Too low point of temperature
controller.
Adjust the set point.
Vent blocked by storage. Remove the storage.
Normal air curtain, but
higher cabinet temperature.
Insu󰀩cient refrigerant. Rell the refrigerant.
Too high set point of temperature
controllers.
Adjust the set point for the
temperature controller.
The wind curtain disturbed by strong
air ow.
Removing the disturbing factors.
Ambient temperature or humidity
beyond standards.
Improve the conditions.
Melting water overows. Heating pipe for melting water
damaged.
Replace the heating pipe.
Water level controller failure. Replace the water level controller.
Ambient temperature or humidity
beyond standards.
Improve the conditions.

11
Troubleshooting
Normal air curtain, but
periodical uctuation of
cabinet temperature.
Condenser contaminated. Clean the condenser.
Poor venting of the unit. Improve the venting conditions.
Heat protection of compressor failure. Replace the heat protection.
Capillary is blocked by ice. Replace the drying lter.
Temperature controller failure. Replace the temperature controller.
NOTE
Following occurrences are not problems:
• The murmur of water is heard when the refrigerator is working. It is a normal occurrence as the coolant is
circulating in the system.
• When the weather is damp, condensation might be found on the outside of the refrigerator. It is caused by
high humidity. Simply use cloth to wipe it o󰀨.

12
Parts Breakdown
Model RS-CN-0120-4D 47560

13
Parts Breakdown
Model RS-CN-0120-4D 47560
Item No. Description Position Item No. Description Position Item No. Description Position
AL564 Door Glass for 47560 1 60119 Switch for 47560 22 30797 Left Seal for 47560 43
71639 Door Wheel for 47560 2 AL575 Left Panel for 47560 23 30754 Decorative Board for 47560 44
AK105 Door Frame Square Connector for 47560 3 AA050 Control Box for 47560 24-1 30755 Top Panel for 47560 45
AL565 Upper and Lower Door Frame for 47560 4 AA051 Control Box Cover for 47560 24-2 AL580 Top Insert Board for 47560 46
AK107 Left and Right Door Frame for 47560 5 60534 Compressor for 47560 25 30757 Shelf 2 for 47560 47
AK108 Door Frame with Handle for 47560 6 AA083 Backing Plate for 47560 26 30756 Shelf 1 for 47560 48
AL566 Front Frame Support for 47560 7 71518 Nut for 47560 27-1 AL581 Vent Tray for 47560 49
30776 Cover for Air Outlet for 47560 8 AL576 Drainage Pipe Joint for 47560 27-2 AL582 Evaporator Protect Board for 47560 50
68298 Switch Base for 47560 9 79314 Decoration Nut Gasket for 47560 28-1 AL583 Rear Middle Pillar for 47560 51
61246 Wire Clip Holder for 47560 10-1 79313 Nut Gasket for 47560 28-2 AL584 Rear Base Panel for 47560 52
61245 Wire Clip Cover for 47560 10-2 79312 Nut Decoration for 47560 28-3 AL585 Front Middle Pillar for 47560 53
AA062 Power Cord for 47560 11 30624 Dry Filter for 47560 29 AL586 Evaporator for 47560 54
AL567 Condenser Limiting Plate for 47560 12 AL309 Drain Pipe for 47560 30 AL587 Foam Base of Evaporator for 47560 55
AL568 Fixed Board of PCB Box for 47560 13 AL376 Pipe Clip for 47560 31 AL588 Plastic Base for Pillar for 47560 56
AL569 Water Receiver for 47560 14 AL577 Right Glass for 47560 32 AL589 Front Decorative Board for 47560 57
AL570 Tray of Heater for 47560 15 AL578 Right Panel for 47560 33 AL590 Left Frame for 47560 58
AL571 Condensator for 47560 16 30746 Front Curved Glass for 47560 34 AL591 Right Frame for 47560 59
AL572 Right Condensator Cushion for 47560 17 68336 Fan for 47560 35 AL592 Front Middle Pillar Lining for 47560 60
AL573 Left Condensator Cushion for 47560 18 67313 Bottom Shelf Bracket Left for 47560 36 AL593 Bottom Base of Compressor for 47560 61
AL574 Left Glass for 47560 19 67314 Bottom Shelf Bracket Right for 47560 37 AL594 Front Frame for 47560 62
68332 Temperature Sensor for 47560 20-1 AH724 Fan Blade for 47560 38 AL595 LED Light for 47560 63-1
AA049 Defrost Probe for 47560 20-2 79662 Metal Base of Fan Motor for 47560 39 68356 Driver for 47560 63-2
AH718 High Temperature Sensor for 47560 20-3 AL579 Fan Blade for 47560 40 30742 Accumulator for 47560 64
AA052 Main Circuit Board for 47560 21-1 30751 Pillar for Bracket for 47560 41
AA082 Digital Controller for 47560 21-2 30798 Right Seal for 47560 42

14
Parts Breakdown
Model RS-CN-0160-4D 48887

15
Parts Breakdown
Model RS-CN-0160-4D 48887
Item No. Description Position Item No. Description Position Item No. Description Position
AL596 Door Glass for 48887 1 AA082 Digital Controller for 48887 22-2 30798 Right Seal for 48887 43
71639 Door Wheel for 48887 2 60119 Switch for 48887 23 30797 Left Seal for 48887 44
AK105 Door Frame Square Connector for 48887 3 AL575 Left Panel for 48887 24 30799 Decorative Board for 48887 45
AL597 Upper and Lower Door Frame for 48887 4 AA050 Control Box for 48887 25-1 30800 Top Panel for 48887 46
AK107 Left and Right Door Frame for 48887 5 AA051 Control Box Cover for 48887 25-2 AL601 Top Insert Board for 48887 47
AK108 Door Frame with Handle for 48887 6 60534 Compressor for 48887 26 71683 Chrome Shelf 1 for 48887 48
AL566 Front Frame Support for 48887 7 AA083 Backing Plate for 48887 27 71684 Chrome Shelf 2 for 48887 49
30776 Cover for Air Outlet for 48887 8 71518 Nut for 48887 28-1 AL602 Vent Tray for 48887 50
AK110 Cover for Air Outlet for 48887 9 AL576 Drainage Pipe Joint for 48887 28-2 AL603 Evaporator Protect Board for 48887 51
68298 Switch Base for 48887 10 79314 Decoration Nut Gasket for 48887 29-1 AL604 Rear Middle Pillar for 48887 52
61246 Wire Clip Holder for 48887 11-1 79313 Nut Gasket for 48887 29-2 AL605 Rear Base Panel for 48887 53
61245 Wire Clip Cover for 48887 11-2 79312 Nut Decoration for 48887 29-3 AL606 Front Middle Pillar for 48887 54
AA062 Power Cord for 48887 12 30624 Dry Filter for 48887 30 AL607 Evaporator for 48887 55
AL567 Condenser Limiting Plate for 48887 13 AL309 Drain Pipe for 48887 31 AL608 Foam Base of Evaporator for 48887 56
AL568 Fixed Board of PCB Box for 48887 14 AL376 Pipe Clip for 48887 32 AL609 Plastic Base for Pillar for 48887 57
AL569 Water Receiver for 48887 15 AL577 Right Glass for 48887 33 AL610 Front Decorative Board for 48887 58
AL570 Tray of Heater for 48887 16 AL578 Right Panel for 48887 34 AL590 Left Frame for 48887 59
AL571 Condensator for 48887 17 30791 Front Curved Glass for 48887 35 AL591 Right Frame for 48887 60
AL598 Right Condensator Cushion for 48887 18 AL600 Motor Fan for 48887 36 AL611 Front Middle Pillar Lining for 48887 61
AL599 Left Condensator Cushion for 48887 19 67313 Bottom Shelf Bracket Left for 48887 37 AL612 Bottom Base of Compressor for 48887 62
AL574 Left Glass for 48887 20 67314 Bottom Shelf Bracket Right for 48887 38 AL613 Front Frame for 48887 63
68332 Temperature Sensor for 48887 21-1 AH724 Fan Blade for 48887 39 AL614 LED Light for 48887 64-1
AA049 Defrost Probe for 48887 21-2 79662 Metal Base of Fan Motor for 48887 40 68356 Driver for 48887 64-2
AH718 High Temperature Sensor for 48887 21-3 AL579 Fan Blade for 48887 41 30742 Accumulator for 48887 65
AA052 Main Circuit Board for 48887 22-1 30751 Pillar for Bracket for 48887 42

16
Parts Breakdown
Model RS-CN-0202-4D 47561

17
Parts Breakdown
Model RS-CN-0202-4D 47561
Item No. Description Position Item No. Description Position Item No. Description Position
AL615 Door Glass for 47561 1 AA082 Digital Controller for 47561 23-2 30797 Left Seal for 47561 45
71639 Door Wheel for 47561 2 60119 Switch for 47561 24 AA089 Decorative Board for 47561 46
AK105 Door Frame Square Connector for 47561 3 AL575 Left Panel for 47561 25 AA090 Top Panel for 47561 47
AL616 Upper and Lower Door Frame for 47561 4 AA050 Control Box for 47561 26-1 AL620 Top Insert Board for 47561 48
AK107 Left and Right Door Frame for 47561 5 AA051 Control Box Cover for 47561 26-2 AA091 Shelf 1 for 47561 49
AK108 Door Frame with Handle for 47561 6 60534 Compressor for 47561 27 AA092 Shelf 2 for 47561 50
AL566 Front Frame Support for 47561 7 AA083 Backing Plate for 47561 28 AL621 Vent Tray for 47561 51
30776 Cover for Air Outlet for 47561 8 71518 Nut for 47561 29-1 AA094 Evaporator Protect Board for 47561 52
AK110 Cover for Air Outlet for 47561 9 AL576 Drainage Pipe Joint for 47561 29-2 AL622 Rear Middle Pillar for 47561 53
AA072 Cover for Air Suction for 47561 10 79314 Decoration Nut Gasket for 47561 30-1 AL623 Rear Base Panel for 47561 54
68298 Switch Base for 47561 11 79313 Nut Gasket for 47561 30-2 AL624 Front Middle Pillar for 47561 55
61246 Wire Clip Holder for 47561 12-1 79312 Nut Decoration for 47561 30-3 AL625 Evaporator for 47561 56
61245 Wire Clip Cover for 47561 12-2 30624 Dry Filter for 47561 31 AL626 Foam Base of Evaporator for 47561 57
AA062 Power Cord for 47561 13 AL309 Drain Pipe for 47561 32 AL627 Plastic Base for Pillar for 47561 58
AA073 Condenser Limiting Plate for 47561 14 AL376 Pipe Clip for 47561 33 AL628 Front Decorative Board for 47561 59
AL617 Fixed Board of PCB Box for 47561 15 AL577 Right Glass for 47561 34 AL590 Left Frame for 47561 60
60948 Water Receiver for 47561 16 AL578 Right Panel for 47561 35 AL591 Right Frame for 47561 61
AA075 Tray of Heater for 47561 17 AA085 Curved Front Glass for 47561 36 AL629 Rear Middle Pillar Lining for 47561 62
AA076 Condensator for 47561 18 AK118 Motor Fan for 47561 37 AL630 Upper Plate Lining for 47561 63
AL618 Right Condensator Cushion for 47561 19 67313 Bottom Shelf Bracket Left for 47561 38 AL631 Front Middle Pillar Lining for 47561 64
AL619 Left Condensator Cushion for 47561 20 67314 Bottom Shelf Bracket Right for 47561 39 AL632 Bottom Base of Compressor for 47561 65
AL574 Left Glass for 47561 21 AA087 Fan Blade for 47561 40 AL633 Front Frame for 47561 66
68332 Temperature Sensor for 47561 22-1 AK119 Fan Motor Stand for 47561 41 AL634 LED Light for 47561 67-1
AA049 Defrost Probe for 47561 22-2 AH740 Fan Blade for 47561 42 68356 Driver for 47561 67-2
AH718 High Temperature Sensor for 47561 22-3 30751 Pillar for Bracket for 47561 43 30742 Accumulator for 47561 68
AA052 Main Circuit Board for 47561 23-1 30798 Right Seal for 47561 44

18
Parts Breakdown
Model RS-CN-0252-4D 47562

19
Parts Breakdown
Model RS-CN-0252-4D 47562
Item No. Description Position Item No. Description Position Item No. Description Position
AK104 Door Glass for 47562 1 AA082 Digital Controller for 47562 23-2 30797 Left Seal for 47562 45
71639 Door Wheel for 47562 2 60119 Switch for 47562 24 AK120 Decorative Board for 47562 46
AK105 Door Frame Square Connector for 47562 3 AL575 Left Panel for 47562 25 AK121 Top Panel for 47562 47
AK106 Upper and Lower Door Frame for 47562 4 AA050 Control Box for 47562 26-1 AK122 Top Insert Board for 47562 48
AK107 Left and Right Door Frame for 47562 5 AA051 Control Box Cover for 47562 26-2 AK123 Shelf 1 for 47562 49
AK108 Door Frame with Handle for 47562 6 60534 Compressor for 47562 27 AK124 Shelf 2 50
AL566 Front Frame Support for 47562 7 AA083 Backing Plate for 47562 28 AK125 Vent Tray for 47562 51
30776 Cover for Air Outlet for 47562 8 71518 Nut for 47562 29-1 AK126 Evaporator Protect Board for 47562 52
AK110 Cover for Air Outlet for 47562 9 AL576 Drainage Pipe Joint for 47562 29-2 AL638 Rear Middle Pillar for 47562 53
30777 Cover for Air Suction for 47562 10 79314 Decoration Nut Gasket for 47562 30-1 AL639 Rear Base Panel for 47562 54
68298 Switch Base for 47562 11 79313 Nut Gasket for 47562 30-2 AL640 Front Middle Pillar for 47562 55
61246 Wire Clip Holder for 47562 12-1 79312 Nut Decoration for 47562 30-3 AK130 Evaporator for 47562 56
61245 Wire Clip Cover for 47562 12-2 79319 Dry Filter for 47562 31 AL641 Foam Base of Evaporator for 47562 57
AA062 Power Cord for 47562 13 AL309 Drain Pipe for 47562 32 AL642 Plastic Base for Pillar for 47562 58
AK111 Condenser Limiting Plate for 47562 14 AL376 Pipe Clip for 47562 33 AL643 Front Decorative Board for 47562 59
AL617 Fixed Board of PCB Box for 47562 15 AL577 Right Glass for 47562 34 AL590 Left Frame for 47562 60
60948 Water Receiver for 47562 16 AL578 Right Panel for 47562 35 AL591 Right Frame for 47562 61
AA075 Tray of Heater for 47562 17 AL637 Curved Front Glass for 47562 36 AL644 Rear Middle Pillar Lining for 47562 62
AK112 Condensator for 47562 18 AK118 Motor Fan for 47562 37 AL645 Upper Plate Lining for 47562 63
AL635 Right Condensator Cushion for 47562 19 67313 Bottom Shelf Bracket Left for 47562 38 AL646 Front Middle Pillar Lining for 47562 64
AL636 Left Condensator Cushion for 47562 20 67314 Bottom Shelf Bracket Right for 47562 39 AL647 Bottom Base of Compressor for 47562 65
AL574 Left Glass for 47562 21 AA087 Fan Blade for 47562 40 AL648 Front Frame for 47562 66
60666 Temperature Probe for 47562 22-1 AK119 Fan Motor Stand for 47562 41 AK143 LED Light for 47562 67-1
AA049 Defrost Probe for 47562 22-2 AH740 Fan Blade for 47562 42 60595 LED Transformer for 47562 67-2
AH718 High Temperature Sensor for 47562 22-3 30751 Pillar for Bracket for 47562 43 30742 Accumulator for 47562 68
AA052 Main Circuit Board for 47562 23-1 30798 Right Seal for 47562 44

20
Electrical Schematics
Model RS-CN-0120-4D 47560
Model RS-CN-0160-4D 48887
Model RS-CN-0202-4D 47561
Model RS-CN-0252-4D 47562
