Omcan CE-CN-0005 User manual

Revised - 07/08/2016
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com

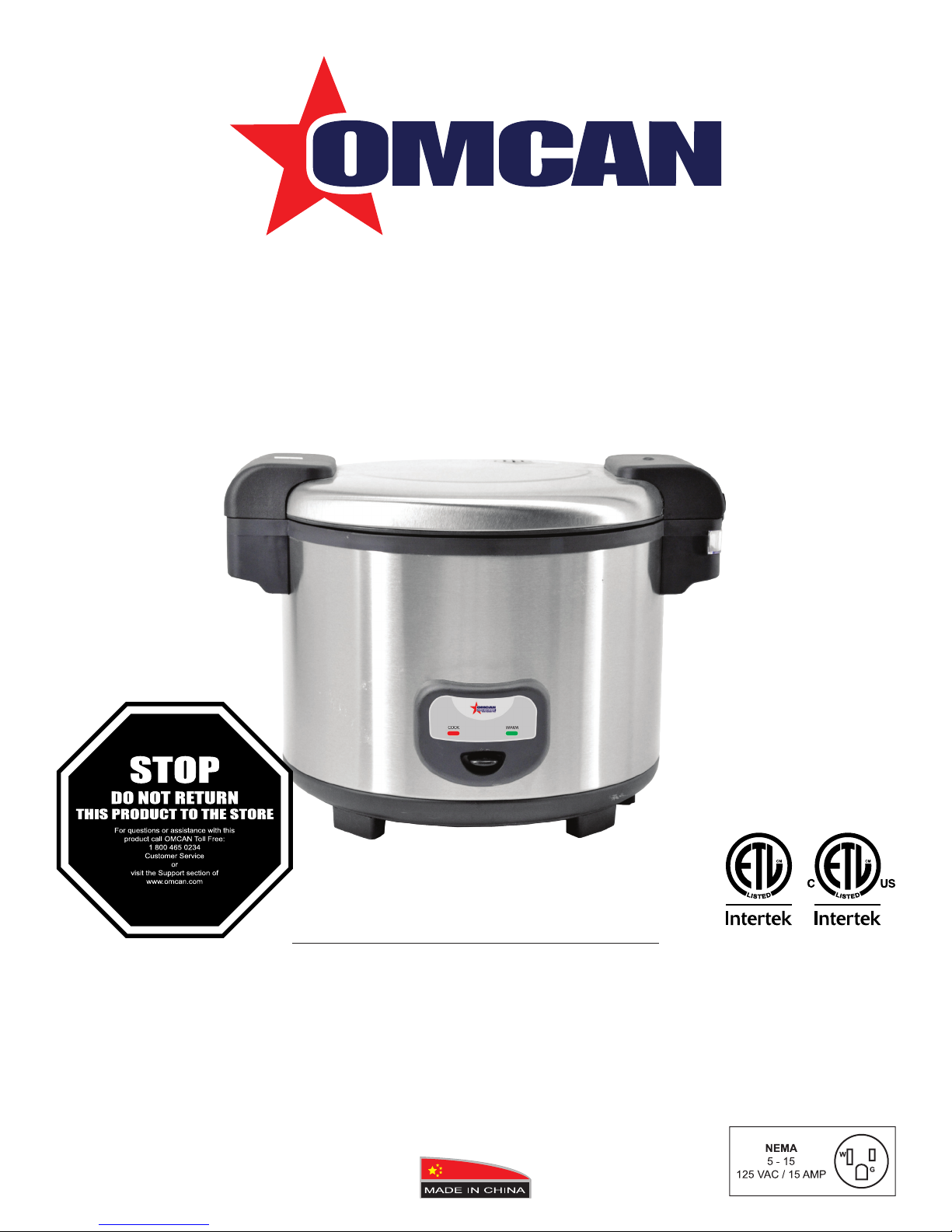

Rice Cooker
Model CE-CN-0005
Item 39454
Instruction Manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 6
----------------------------------------------------------------------------------------- 6 - 7
----------------------------------------------------------------------------------------- 7
------------------------------------------------------------------------------- 8 - 9
---------------------------------------------------------------------------- 10
---------------------------------------------------------------------------- 11
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Parts Breakdown
Electrical Schematics
Warranty Registration
Model CE-CN-0005

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
Safety and Warranty
General Information
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precaution should always be followed, including the following:
1. Read all instruction carefully.
2. Before using the unit, check if the voltage indicated in this unit corresponds with the convenience outlet
(110V.a.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5
Safety and Warranty
the same type and size or bring the unit to the nearest authorized service center.
4. In case of malfunctions, please bring the Rice Cooker to nearest Customer Service Center.
5. The power cord must be closely plugged into the outlet. Do not plug into multi-sockets with other
appliances.
6. The appliance is not intended for use by person (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliances by the person responsible for their safety.
7. Children should be supervised to ensure that they do not play with the appliances.
8. Keep curtains, furniture, ammable materials, etc. away from the Rice Cooker.
9. Do not place on or near gas stove or electric stove.
10. Use the rice cooker only with the supplied inner pot. Do not use the inner pot for other purpose.
11. Do not use the Inner pot on direct re.
12. The steam vent is very hot while cooking; keep face and hands away from the steam vent.
13. Do not allow cord to touch hot surface of the Rice Cooker.
14. Do not loop the cord around the Rice Cooker after use.
15. Keep the Rice Cooker in a dry and cool place.
16. Save this instruction manual for future reference.
1 YEAR PARTS AND LABOR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see http://www.omcan.com/warranty.html for complete information.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

6
Operation
HOW TO USE
1. Put the rice into the inner pot, measure the desired amount of rice using the measuring cup supplied with
the unit.
2. Wash the rice several times until the water in the bowl is relatively clear.
3. Measure water on rice for cooking.
● One cup of rice measure.
● Use waterline inside the pot as cooking guide. The right line corresponds to liters of water, and the left
line corresponds to cups of rice.
● Never add water higher than the maximum waterline.
4. Wipe the bottom part of the inner pot, put the inner pot inside the unit, and turn it slightly from left to right to
ensure that the pot is properly tted into the heater plate, level the rice.
● Do not heat the inner pot on top of the gas stove or electric stove, it will cause the pot to be deformed by
the high temperature.
● Never use a different inner pot than the type supplied.
5. Close the Lid until it locks.
6. When ready to cook. Plug the unit into the convenience outlet (110Va.c.).
7. Press down the switch knob. The “cook” light will turn ON and rice will start to cook.
● If the switch knob failed to push down, the “warm” light will turn ON, the rice will not be cooked.
8. When cooking is nished the switch knob will pop-up and a click sound will be heard, and the light will turn
to “warm” position.
● After the cooking cycle ends, keep the cover closed for about 15 minutes. The rice will be ufer.
The inner pot of this Rice Cooker has a non-stick coating to avoid scratches. Use only the spatula supplied
with this unit.
TIPS TO KEEP COOKED RICE WARM AND TASTY
1. Rice Bran may give an unpleasant odor to cooked rice. To prevent this, thoroughly wash rice prior to
cooking.
2. To prevent dry, discolored and unpleasant effect of the cooked rice, keep lid tightly closed.
Technical Specications
Model CE-CN-0005
Capacity 13 L / 13.7 QT cooked rice
Cups of Rice 60 cups cooked (30 cups uncooked)
Electrical 110V / 60Hz / 1
Dimensions 19.25” x 15” x 13.5” / 489 x 381 x 343mm
Weight 17.6 lbs. / 8 lbs.
Item Number 39454

7
Maintenance
Operation
HOW TO REMOVE THE DEW COLLECTOR
CLEANING AND MAINTENANCE
1. Always unplug the unit from the electrical outlet before cleaning.
2. Allow the unit to cool before cleaning. Never clean when the rice cooker is still hot.
3. Dew collector, inner lid, spatula, and inner pot are washable with soap and water.
4. Wipe the body with damp cloth.
5. Do not immerse the unit in water or in any other liquid.
6. Always keep the bottom part of the inner pot and the heater plate clean.
7. The inner pot of this unit is coated to avoid scratches. Do not use abrasive materials and use only the
supplied spatula.
3. Do not leave the rice spatula or anything inside the inner pot during keep warm cycle.

8

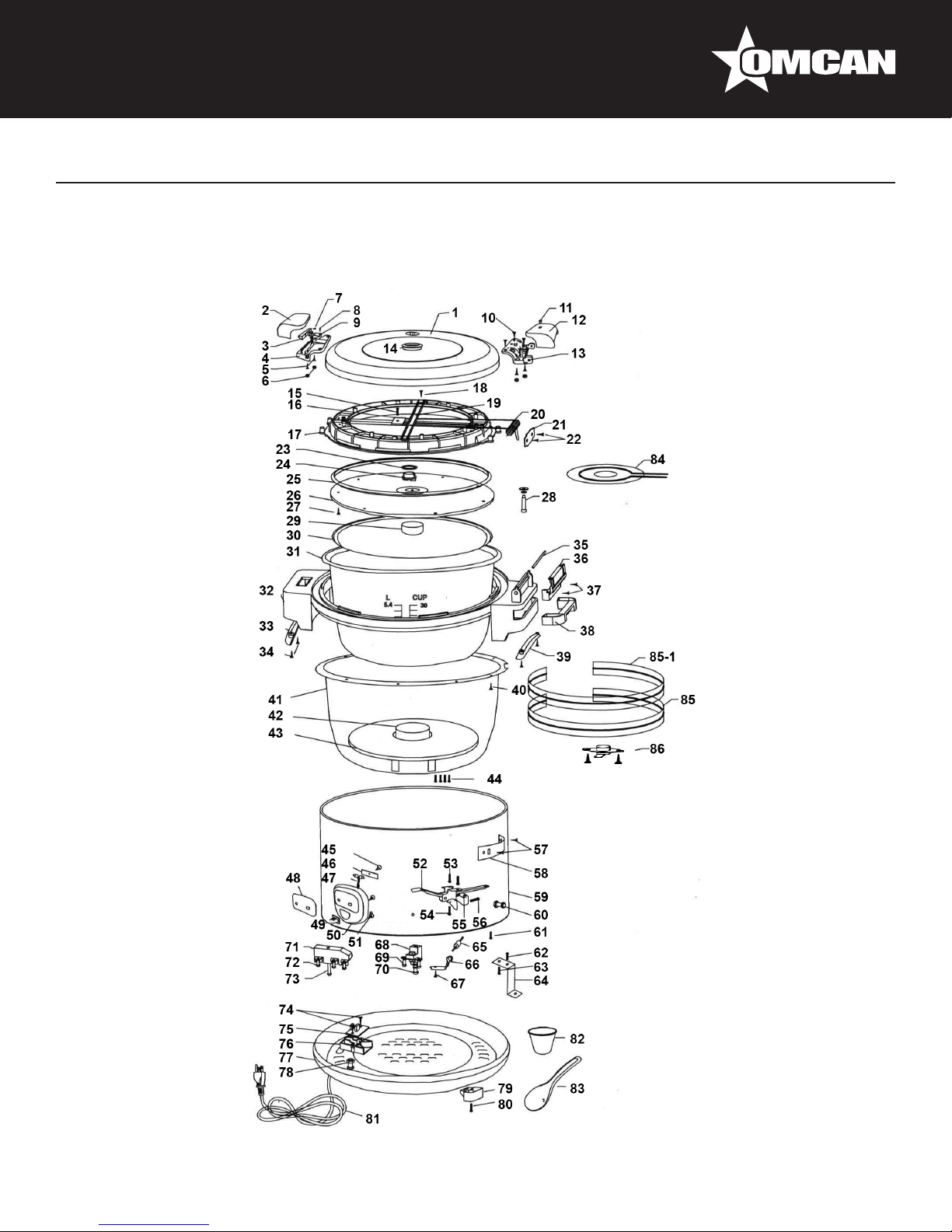

Parts Breakdown
Model CE-CN-0005 39454

9
Parts Breakdown
Item No. Description Position Item No. Description Position Item No. Description Position
76181 Top Cover for SV-8154 1 76207 Nail for SV-8154 27 76233 Screw for SV-8154 53
76182 Top Cover Left Outer Plastic Handle for
SV-8154 2 76208 Rivet for SV-8154 28 76234 Screw for SV-8154 54
76183 Top Cover Button for SV-8154 3 76209 Silicon Cup for SV-8154 29 76235 Ceramics Base for SV-8154 68
76184 Top Cover Left Inside Plastic Handle for
SV-8154 4 76210 Aluminum Cover for SV-8154 30 76236 Spring Washer for SV-8154 69
76185 Screw for SV-8154 5 40579 Inner Pot for SV-8154 31 76237 Screw for SV-8154 70
76186 Screw Shelter for SV-8154 6 76212 Middle Ring for SV-8154 32 76238 Ceramics Base for SV-8154 71
76187 Screw for SV-8154 7 76213 Middle Ring Left Handle for SV-8154 33 76239 Screw for SV-8154 72
76188 Nut for SV-8154 8 76214 Screw for SV-8154 34 76240 Spring Washer for SV-8154 73
76189 Covering Fixing Buckle for SV-8154 9 76215 Middle Ring Dowelled Fixing for SV-8154 35 76241 Screw for SV-8154 74
76190 Screw for SV-8154 10 76216 Spring Bracket for SV-8154 36 76242 Electric Wire Fixer for SV-8154 75
76191 Keep Warm Lamp Cover for SV-8154 11 76217 Screw for SV-8154 37 76243 Electric Wire Fixing Base for SV-8154 76
76192 Cover Right Outer Plastic Handle for
SV-8154 12 76218 Water Collect Cup for SV-8154 38 76244 Bottom Cover for SV-8154 77
76193 Cover Right Inside Plastic Handle for
SV-8154 13 76219 Middle Handle Right Handle for SV-8154 39 76245 Spring Washer for SV-8154 78
76194 Inside Cover Steamer Vent Silicone Ring
for SV-8154 14 76220 Screw for SV-8154 40 76246 Cover Leg for SV-8154 79
76195 Nut for SV-8154 15 76221 Iron Middle Lever for SV-8154 41 76247 Screw for SV-8154 80
76196 Spring Bracket for SV-8154 16 40577 Thermo-Limiter for SV-8154 42 76248 Electric Wire for SV-8154 81
76197 Plastic Insider Cover for SV-8154 17 40580 Heating Element for SV-8154 43 76249 Measureing Cup for SV-8154 82
76198 Screw for SV-8154 18 76224 Screw for SV-8154 44 76250 Rice Spoon for SV-8154 83
76199 Cover Fixing Bracket for SV-8154 19 76225 Screw for SV-8154 45 76251 Top Cover Heating Wire for SV-8154 84
76200 Spring for SV-8154 20 76226 Lamp Plate Fixing Board for SV-8154 46 76252 Body Heating Wire for SV-8154 85
76201 Spring Board for SV-8154 21 76227 Indication Lamp for SV-8154 47 40575 Thermostat for SV-8154 86
76202 Screw for SV-8154 22 76228 Panel Sticker for SV-8154 48 14805 Foam for SV-8154
76203 Steamer Vent Sealing Ring for SV-8154 23 76229 Panel Button for SV-8154 49 40536 Fuse for SV-8154
76204 Steamer Vent for SV-8154 24 76230 Panel for SV-8154 50 14802 Gift Box for SV-8154
76205 Cover Sealing Ring for SV-8154 25 76231 Screw for SV-8154 51 14806 Plastic Bag for SV-8154
76206 Inside Aluminum Cover for SV-8154 26 40578 Switch Set for SV-8154 52
Model CE-CN-0005 39454

10
Electrical Schematics
Model CE-CN-0005 39454

11
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
www.omcan.com/warrantyregistration.html
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour diffusion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 3,500 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 3,500 productos con origen a nivel mundial.
