Omega SOLID STATE RELAYS SBG22445 User manual

UNPACKING
Remove the Packing List and verify that you have received all equipment. If
you have any questions about the shipment, please call the OMEGA
CustomerServiceDepartmentat1-800-622-2378or(203)359-1660. When
youreceivetheshipment,inspect the container and equipmentforanysigns
of damage. Note any evidence of rough handling in transit. Immediately
report any damage to the shipping agent.
NOTE
Thecarrier will not honor any claims unless all shippingmaterial issaved for
their examination. After examining and removing contents, save packaging
material and carton in the event reshipment is necessary.

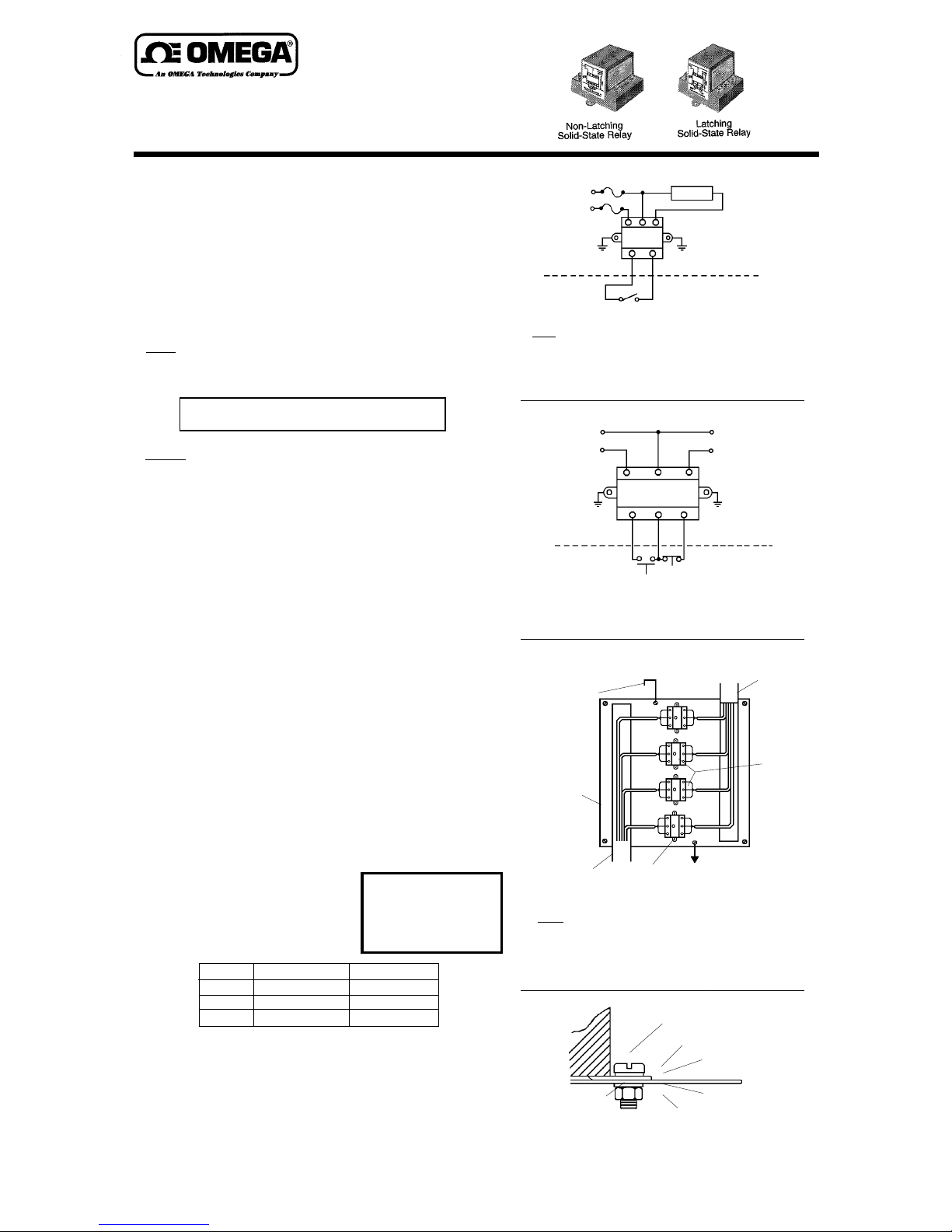

Fig. 2. Connection Diagram: Model SBG41705
Hazardous Location
Note: For 120V application, only one fuse is
required in the ungrounded circuit of the input line.
Fig. 1. Connection Diagram
(All Models Except SBG41705)
Note: All intrinsically safe wiring must be segregated
from non-intrinsically safe wiring.
Fig. 3. Multiple units grouped on a common,
earth-grounded mounting plate.
Important: Read carefully and completely before
installing or connecting the solid-state relays.
• Whenever possible, the actual measured parameters should be
used in making the determination of allowable length.
•Shielded cable is not required, but if used in the application, the
shield must be returned to ground, the same point at mounting
tab.
GROUP
A & B
C
D
CAPACITANCE
0.1 µF
0.2 µF
0.3 µF
INDUCTANCE
3 mH
10mH
20mH
Example: Typical values of capacitance for a twisted
pair of copper wires is between 20 and 60 pF per foot.
Using the maximum value of 60pF/ft, Groups A & B
couldhavearunof1500+feetwithsafety. Inductance
of a typical twisted pair is between 0.10 and 0.20 µH/
ft, thus making a cable run in this example essentially
determined by the capacitance.
The OMEGA® SBG22445, SBG25872, SBG25873 and SBG41705 Solid-
State Relays are used as "intrinsically safe switching circuits in hazardous
locations, with non-voltage- producing sensors. When installed in accor-
dance with this manual, these field sensors are suitable for Class I, Division
1, 2, Groups A, B, C and D, and Class II, Division 2, Groups E, F and G as
defined by Article 500 of the National Electric Code.
DESCRIPTION
SBG22445, SBG25872, SBG25873 (Non-Latching),
SBG41705 (Latching) Solid-State Relays
for Intrinsic Safety Use
Instruction Sheet M1773/0794
*(Lockwashers to be internal or external tooth type)
Fig. 4. Unit Mounting Detail
ASSOCIATED EQUIPMENT
Caution: The intrinsically safe relays can be installed in panel assem-
blies in Class I, Div.2, Groups A, B, C and D or in a non-hazardous
location. Only the sensor's terminals provide an intrinsically safe switch
circuit (Fig. 1, 2). (Exia) means associated equipment "Appareilage
connexe", located in safe area.
MOUNTING AND ENCLOSURE CONSIDERATION
• Field wiring of intrinsically safe circuits is to be segregated from
non-intrinsically safe wiring by use of suitable barriers, separate
wireways or trays (see Fig. 3).
•Intrinsically safe and non-intrinsically safe connection points should
be located sufficiently apart to prevent any possibility of bypassing
or miswiring during installation or servicing of equipment.
•The enclosure shall contain a cautionary statement as follows:
"CAUTION: ANY SUBSTITUTION OF COMPONENTS MAY
IMPAIR INTRINSIC SAFETY".
•The mounting plate must be grounded to ensure intrinsic safety.
Resistance between the plate and earth ground should be less than
one ohm. (See Figs. 4 and 5 for recommended selection of
grounding hardware and refer to Article 250 of the National
Electrical Code for methods and practice.)
INSTALLATION OF SENSOR SWITCH AND ASSOCIATED
FIELD WIRING
•The nature of the sensor switch must be that it is a non-voltage-
producing, essentially resistive termination or other device
specifically examined and approved for use with the intrinsically
safe solid-state relay.
•The conductors of the intrinsically safe circuit should be sealed in a
rigid metal conduit at the point where the wiring enters the hazardous
area. The wiring and sensor switch should be such that conductive
dusts in the hazardous area will not close the circuit.
•Hazardous area field wiring will store energy due to distributed
capacitance and inductance in proportion to its length. It is
therefore recommended that the characteristics of the cable be
known and judged against the length of
run and atmosphere of exposure. The
following chart is presented as a guideline
in determining the limits of reactance for
signal loops in the hazardous area wiring
for the intrinsically safe solid-state relays.
WARNING
Product must be maintained
and installed in strict accor-
dance with the National Elec-
tricalCode. Failuretoobserve
this warning could result in
serious injuries or damages.
Input
VAC
(EXIA)
Load
Fuse F1
Fuse
F1
Non-Hazardous
Location
Hazardous Location
Sensor Switch
Sensor Switch
LOAD
VAC
AC Load
Latching Solid-State
Relay SBG41705
On COff Non-Hazardous
Location
Earth
Ground
(2 Places)
Common
Earth-
Grounded
Mounting
Plate
Intrinsically
Safe Wiring
To Sensors
Non-Intrinsically
Safe Wiring
Multiple
Units
Resistance to ground must be from bracket to
earthing member to insure integrity of system.
(Must be below one ohm.)
Mounting
Plate #10
Nut
Intrinsically Safe
Solid-State Relays
#10 Screw
#10 Lockwasher*
#10 Lockwasher*

• Non-intrinsically safe wiring cannot be run in conduit or open
raceways together with intrinsically safe wiring.**
•Refer to Fig 6 for detailed connection to terminal studs. All
hardware, including terminal lugs, is supplied with unit.
•Fusing of the solid-state relays to be in accordance with
Fig. 1. Fuse F1 to be 6 amps slo-blo, 120 VAC for 120V
line voltage; 250 VAC for 240 V application.
**Note: All intrinsically safe wiring to intrinsically safe solid-state
relays must be segregated from non-intrinsically safe wiring.
Nylon
Stud Nuts
Stud Cover
Terminals
Stud
Cover Nylon
Stud Nuts
Terminals

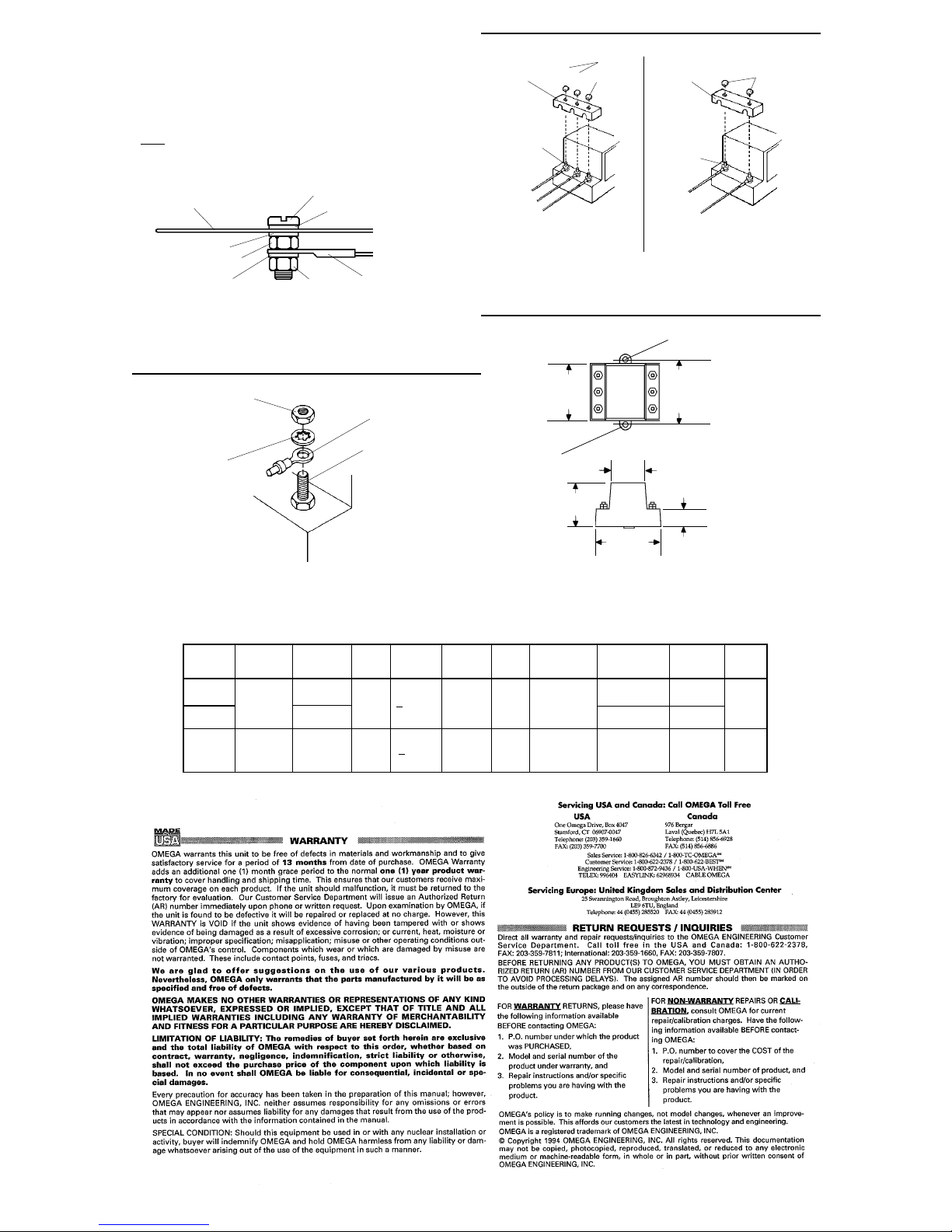

Fig. 7. Mounting of protective cover over
sensor-connected terminals of unit.
Latching
Solid-State Relay Non-Latching
Solid-State Relay
Notes:
1. *(Lockwasher to be internal or external tooth type)
2. Grounding hardwre to be #8 or larger and S.S.
Fig. 5. Mounting Plate Grounding Detail
Fig. 6
Recommended method of connection to electrical
terminals. All terminal hardware, including lug,
supplied with unit.
Mounting
Tab
3-1/8"
(79mm)
7/32" Dia.
(5.5 mm)
2-5/8"
(66.6 mm)
2-1/4"
(55mm)
3"
(76 mm)
1-5/8"
(41.3mm)
13/16"
(20.7mm)
Fig. 8.
Dimensions
P/N 158350
Mounting
Plate Screw
Lockwasher*
Lockwasher*
Nut
Lockwasher* Nut Terminal Lug
HEX Nut
Anti-Vibrational
Lockwasher
Terminal Lug
(Closed Ring Type)
Terminal Stud
(Tighten assembly to
between 3 and 5 in-lbs.)
Line & Load
Voltage
Range
Load
Current
Max
Turn-On
Sensitivity
(Typical)
Turn-Off
Sensitivity
(Typical)
Voltage
Loss
Operating
Temperature
Range
Switching
Operation Weight
SBG22445
SBG25872
SBG25873
95 to
135 VAC
SBG41705
5A
Latching SSR
for Intrinsic
Safety
0.3 A
Steady
State
200 to
250 VAC
105 to
125 VAC
1 meg. Ω2 VAC
2 VAC
0° to +120°F
+32° to +120°F
6mA @
120 VAC
12 mA @
250 VAC
3 mA @
120 VAC
SPST N.O.
SPST N.C.
SPST N.O.
SPST N.O.
425g
425g
All AC voltage and current specifications are RMS values unless otherwise stated. Housing material is Polysulfone.
Table 1. Specifications
SSR for
Intrinsic
Safety
Output
Leakage
Current Max.
Model
Number Description
<25 KΩ1 meg. Ω
< 400 KΩ
