Omegalink OL-MDB-ALL User manual

REVISION DATE
20150115
DOCUMENT NUMBER
NOTICE The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
U.S. Patent No. 8,856,780
INSTALL GUIDE
COLALRSTL1OLMDBALLEN
HARDWARE
OLMDBALL
ACCESSORIES
OLLOADER REQUIRED
OMEGACARLINKGPS OPTIONAL
FIRMWARE
COLALRSTL1OLMDBALL
Automotive Data Solutions Inc. © 2015
19944
Alarms & Remote Start

U.S. Patent No. 8,856,780
VEHICLE LIST - 1 OF 1
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS 3X LOCK START/STANDALONE MOD. PUSH TO START CTRL ARM OEM ALARM DISARM OEM ALARM DOOR LOCK DOOR UNLOCK TRUNK/HATCH RELEASE TAILGATE WINDOW RELEASE TACHOMETER OUTPUT BRAKE PEDAL STATUS OUTPUT E-BRAKE OUTPUT DOOR STATUS OUTPUT TRUNK STATUS OUTPUT HOOD STATUS OUTPUT*
LEXUS
ES350 PTS AT 07-11 3 • • • • • • • • • • • • • •
TOYOTA
Camry PTS AT 07-11 3 • • • • • • • • • • • • • •
Camry Hybrid PTS AT 07-11 3 • • • • • • • • • • • • • •
Corolla PTS AT 09-13 2 • • • • • • • • • • • • • •
Highlander PTS AT 08-13 3 • • • • • • • • • • • • • •
Highlander Hybrid PTS AT 08-13 3 • • • • • • • • • • • • • •
Rav4 PTS AT 09-12 2 • • • • • • • • • • • • •
* Available only if vehicle is equipped with factory hood switch.
NOTE
I Keyless and smartkey systems will
remain functional during remote start.
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 2 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 3 OF 17
• 20150115

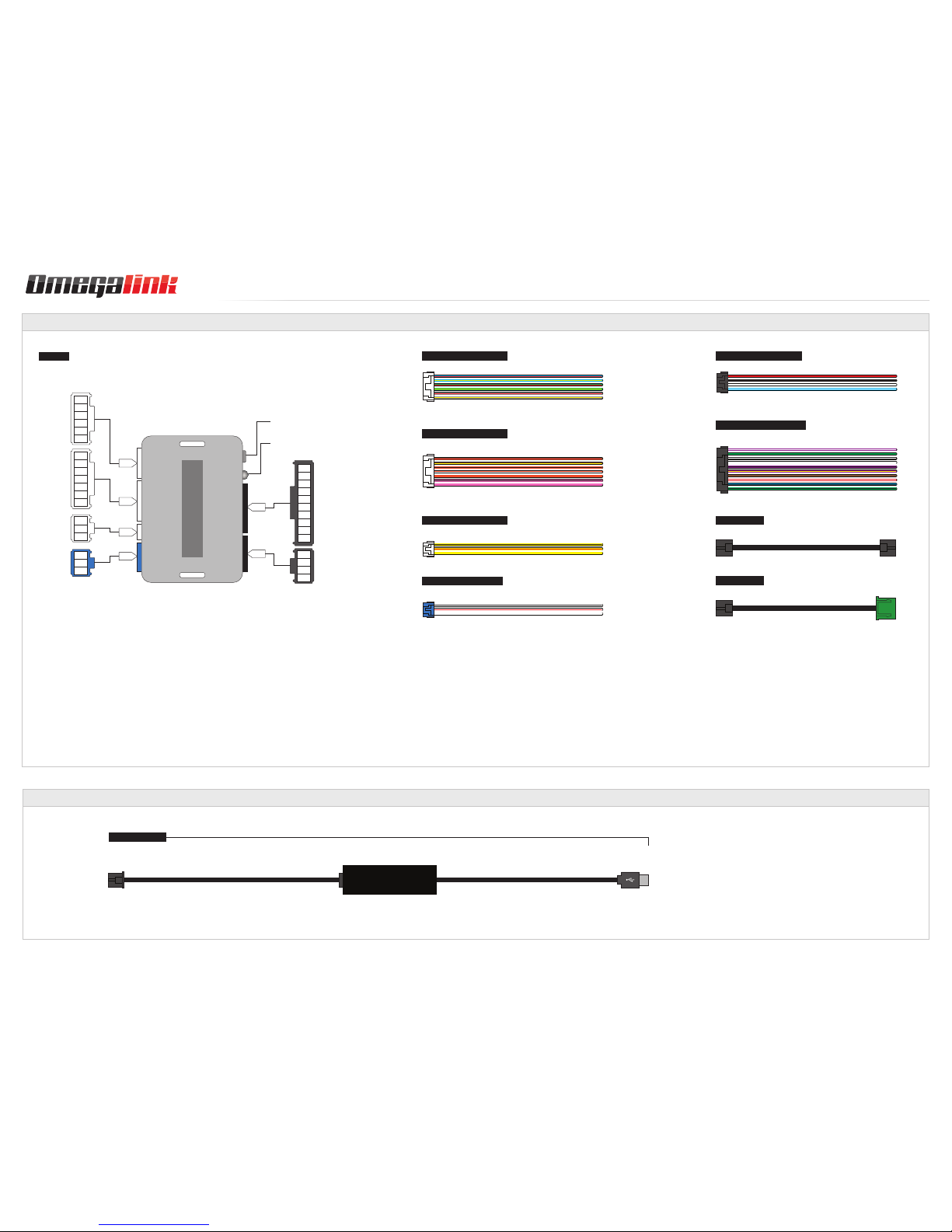

BOX CONTENTS - 1 OF 1
2
1
3
3
4
2
1
7
6
9
5
4
3
2
1
10
8
4
5
2
6
7
1
3
4
5
2
6
1
3
D
C
B
A
F
E
2
1
3
PROGRAMMING
BUTTON
LED 1
BLACK
DATA PORT
(WEBLINK, RF, TELEMATIC)
BLUE
WHITE
WHITE
WHITE
BLACK
6 PIN WHITE CONNECTOR
7 PIN WHITE CONNECTOR
MODULE 4 PIN BLACK CONNECTOR
10 PIN BLACK CONNECTOR
DATA CABLE 1
DATA CABLE 2
3 PIN WHITE CONNECTOR
3 PIN BLUE CONNECTOR
BOX CONTENTS
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
DATA PORT
DOC.: #19944

U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 4 OF 17
• 20150115
COMPATIBLE ACCESSORIES - 1 OF 1
5 AMPS
TELEMATIC KIT (accessories sold separately)
(NC)
CARLINK
MODULE
DATA PORT
RED
BLUE
BLACK
BROWN
12V (+)
DATA CABLE 1
RED
BLUE
BLACK
WHITE
DOC.: #19944

U.S. Patent No. 8,856,780
A

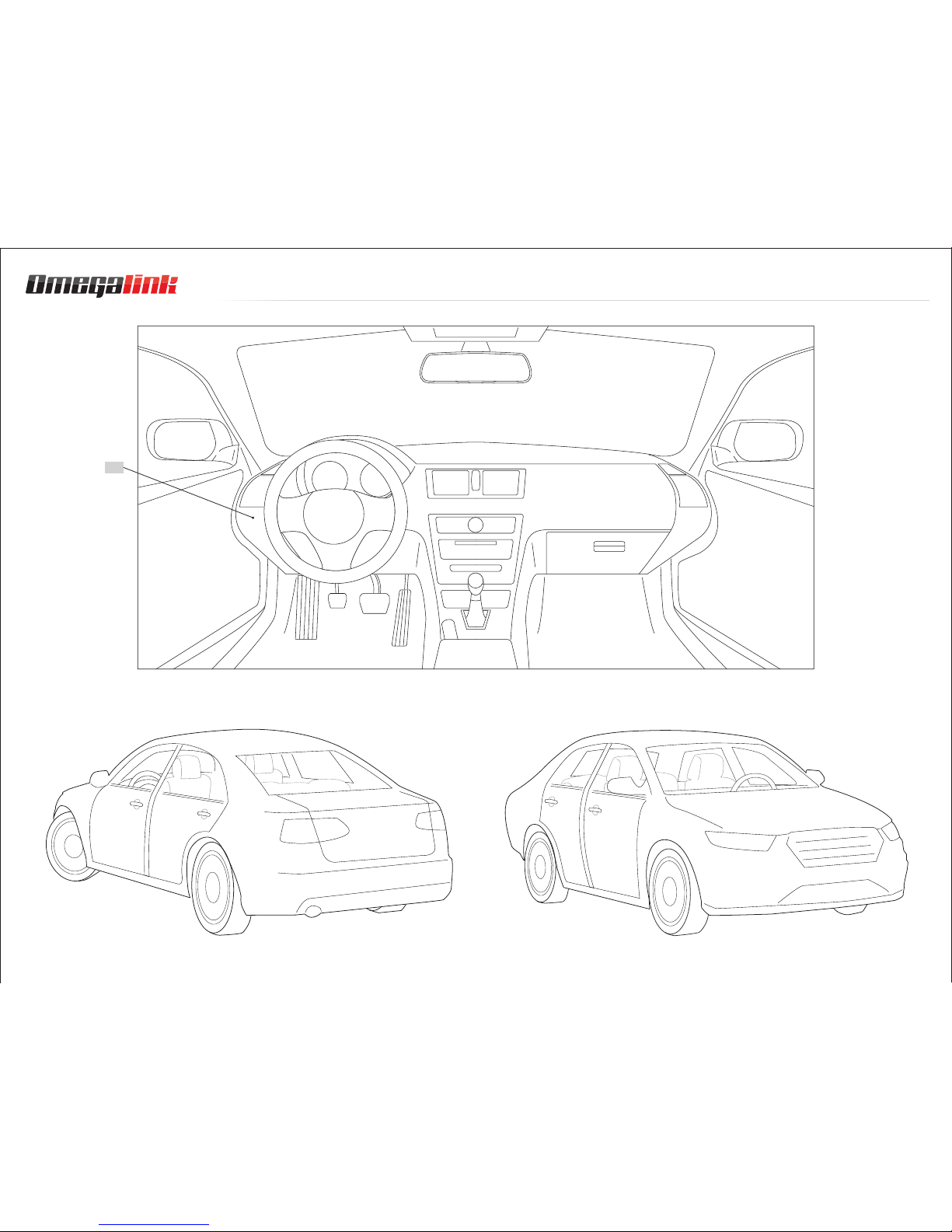

COMPONENT LOCATOR - 1 OF 1
INTERIOR VIEW
DRIVER SIDE VIEW PASSENGER SIDE VIEW
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 5 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
TYPE 2 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
TOYOTA
Corolla TMMC
PTS
AT
09-13
Ignition 2F ~ 8 pin 4 Yellow (+) ECU ~
STSW E52 ~ 19 pin 4 Black (+) ECU ~
PTS ~ ~ 14 pin 7 White (-) Push button ~
Parking Light E8 White 20 pin 18 Brown (-) Parking light switch ~
CanH OBDII ~ 16 pin 6 LtGreen (DATA) OBDII ~
CanL OBDII ~ 16 pin 14 White (DATA) OBDII ~
Corolla NUMMI
PTS
AT
09-13
Ignition 2F ~ 8 pin 4 Red (+) ECU ~
STSW E52 ~ 19 pin 4 White (+) ECU ~
PTS ~ ~ 14 pin 7 White (-) Push button ~
Parking Light E8 White 20 pin 18 Brown (-) Parking light switch ~
CanH OBDII ~ 16 pin 6 LtGreen (DATA) OBDII ~
CanL OBDII ~ 16 pin 14 White (DATA) OBDII ~
Rav4
PTS
AT
09-12
Ignition 2F ~ 8 pin 4 Yellow (+) ECU ~
STSW E17 ~ 19 pin 4 Red (+) ECU ~
PTS ~ ~ 14 pin 7 White (-) Push button ~
Parking Light E12 White 20 pin 18 Brown (-) Parking light switch ~
CanH OBDII ~ 16 pin 6 Black (DATA) OBDII ~
CanL OBDII ~ 16 pin 14 White (DATA) OBDII ~
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 6 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
PTS
OBDII
A
B
C
AA
BB
12345 6 7
8 9 10 11 12 13 14
15 16 17 18 19
87654
3 2 1
11121314151617181920
12345678910
10 11 12 13 14 15 16
1234567 8
9
1234567
8 9 10 11 12 13 14
AA
BB
A
B
C
D
F
2
1
3
4
2
1
3
2
1
3
5
6
7
8
9
10
2
1
3
4
5
6
7
2
1
3
4
5
6
F
A
B
C
DE DATA
E
2
1
3
4
2
1
3
4
7.5 A
PTS SWITCH
OBDII CONNECTOR
PARKING LIGHT SWITCH
MAIN BODY ECU

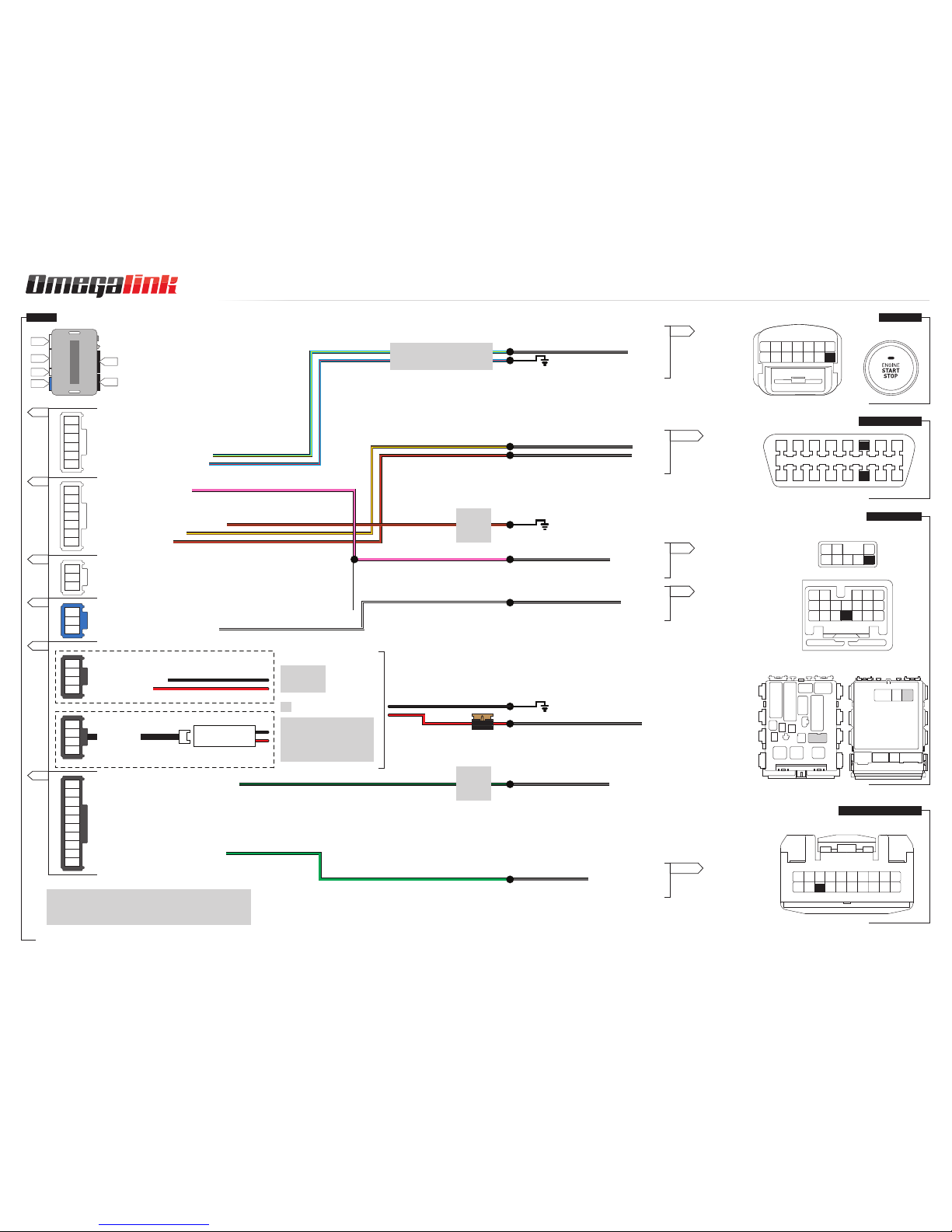

TYPE 2 - WIRING DIAGRAM - 1 OF 1
GRAY/YELLOW (NC)01 GRAY/YELLOW (NC)
02 GRAY/RED (NC)
GREEN/YELLOW (NC)03 GREEN/YELLOW (NC)
04 GREEN/RED (NC)
- PTS (-) OUTPUT
05 BLUE/YELLOW - PTS (-) OUTPUT
INPUT
06 BLUE/RED - GROUND (-) INPUT
PINK - IGNITION (+) INPUT01 PINK - IGNITION (+) INPUT
PINK/BLACK (NC)
02 PINK/BLACK (NC)
03 ORANGE (NC)
- GROUND (-) INPUT
05 ORANGE/BLACK - GROUND (-) INPUT
BROWN/YELLOW - CANL06 BROWN/YELLOW - CANL
WHITE/BLACK - STSW (+) OUTPUT03 WHITE/BLACK - STSW (+) OUTPUT
- IGNITION (+) INPUT
01 WHITE - IGNITION (+) INPUT
BROWN/RED - CANH07 BROWN/RED - CANH
04 ORANGE/WHITE (NC)
PTS (-) - 07
01 GREEN/BLACK - HOOD STATUS (-) INPUT
03 RED/WHITE (NC)
02 BLUE/BLACK (NC)
04 BROWN (NC)
06 PURPLE/BLACK (NC)
05 PURPLE/YELLOW (NC)
WHITE
07 WHITE (NC)
08 BLACK/WHITE (NC)
10 PURPLE/WHITE (NC)
02 YELLOW/RED (NC)
03 YELLOW/BLACK (NC)
01 YELLOW (NC)
CANL - 14
HOOD STATUS (-)
IGNITION (+) - 04
STSW (+) - 04
CANH - 06
PARKING LIGHT (-) - 18
02 WHITE/RED (NC)
GREEN
09 GREEN - PARKING LIGHT (-) OUTPUT
C - WHITE
FRONT SIDE BACK SIDE
IMPORTANT:
1- NO TAKEOVER AVAILABLE.
UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN.
2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE.
WITHOUT
OEM HOOD
STATUS
ONLY
WITHOUT
OEM HOOD
STATUS
ONLY
CONNECTIONS ARE REQUIRED
ONLY IF IDLE MODE
IS DESIRED
MODULE
DATA CABLE
OR
02 WHITE (NC)
03 BLACK - GROUND
04 RED - 12V (+)
01 BLUE/WHITE (NC)
WITHOUT A
COMPATIBLE
ACCESSORY
WITH A COMPATIBLE
ACCESSORY.
IMPORTANT: SEE THE
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.
COMPATIBLE
ACCESSORY
12V (+)
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 7 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
TYPE 3 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
LEXUS
ES350
PTS
AT 07-12
Ignition 1I ~ 10 pin 07 Black (+) ECU ~
STSW E61 ~ 10 pin 04 Red (+) ECU ~
PTS ~ ~ 14 pin 07 Blue (-) Push button ~
Parking Light E27 White 20 pin 18 Black (-) Parking light switch ~
CanH OBDII ~ 16 pin 06 LtGreen (DATA) OBDII ~
CanL OBDII ~ 16 pin 14 Pink (DATA) OBDII ~
TOYOTA
Camry
PTS
AT 07-11
Ignition 1I ~ 10 pin 07 Brown (+) ECU ~
STSW E9 ~ 10 pin 04 Gray (+) ECU ~
PTS ~ ~ 14 pin 07 Blue (-) Push button ~
Parking Light E21 White 20 pin 18 Black (-) Parking light switch ~
CanH OBDII ~ 16 pin 06 Black (DATA) OBDII ~
CanL OBDII ~ 16 pin 14 White (DATA) OBDII ~
Camry Hybrid
PTS
AT 07-11
Ignition 1I ~ 10 pin 07 Brown (+) ECU ~
STSW E9 ~ 10 pin 04 Gray (+) ECU ~
PTS ~ ~ 14 pin 07 Blue (-) Push button ~
Parking Light E21 White 20 pin 18 Black (-) Parking light switch ~
CanH ~ ~ 16 pin 06 Black (DATA) OBDII ~
CanL ~ ~ 16 pin 14 White (DATA) OBDII ~
Highlander
PTS
AT 08-13
Ignition 1I ~ 10 pin 07 White (+) ECU ~
STSW D10 ~ 10 pin 04 Pink (+) ECU ~
PTS ~ ~ 14 pin 07 Pink (-) Push button ~
Parking Light D13 White 20 pin 18 LtBlue (-) Parking light switch ~
CanH OBDII ~ 16 pin 06 Blue (DATA) OBDII ~
CanL OBDII ~ 16 pin 14 White (DATA) OBDII ~
Highlander Hybrid
PTS
AT 08-13
Ignition 1I ~ 10 pin 07 White (+) ECU ~
STSW D10 ~ 10 pin 04 Yellow (+) ECU ~
PTS ~ ~ 14 pin 07 Pink (-) Push button ~
Parking Light D13 White 20 pin 18 LtBlue (-) Parking light switch ~
CanH OBDII ~ 16 pin 06 Black (DATA) OBDII ~
CanL OBDII ~ 16 pin 14 White (DATA) OBDII ~
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 8 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
PTS
OBDII
A
B
AA
BB
11121314151617181920
12345678910
10 11 12 13 14 15 16
1234567 8
9
1234567
8 9 10 11 12 13 14
1 2
345 6
7 8 9 10
12345
678 9 10
C
BB
AA
A
B
C
D
F
2
1
3
4
2
1
3
2
1
3
5
6
7
8
9
10
2
1
3
4
5
6
7
2
1
3
4
5
6
F
A
B
C
DE DATA
E
2
1
3
4
2
1
3
4
7.5 A
PTS SWITCH
OBDII CONNECTOR
PARKING LIGHT SWITCH
MAIN BODY ECU

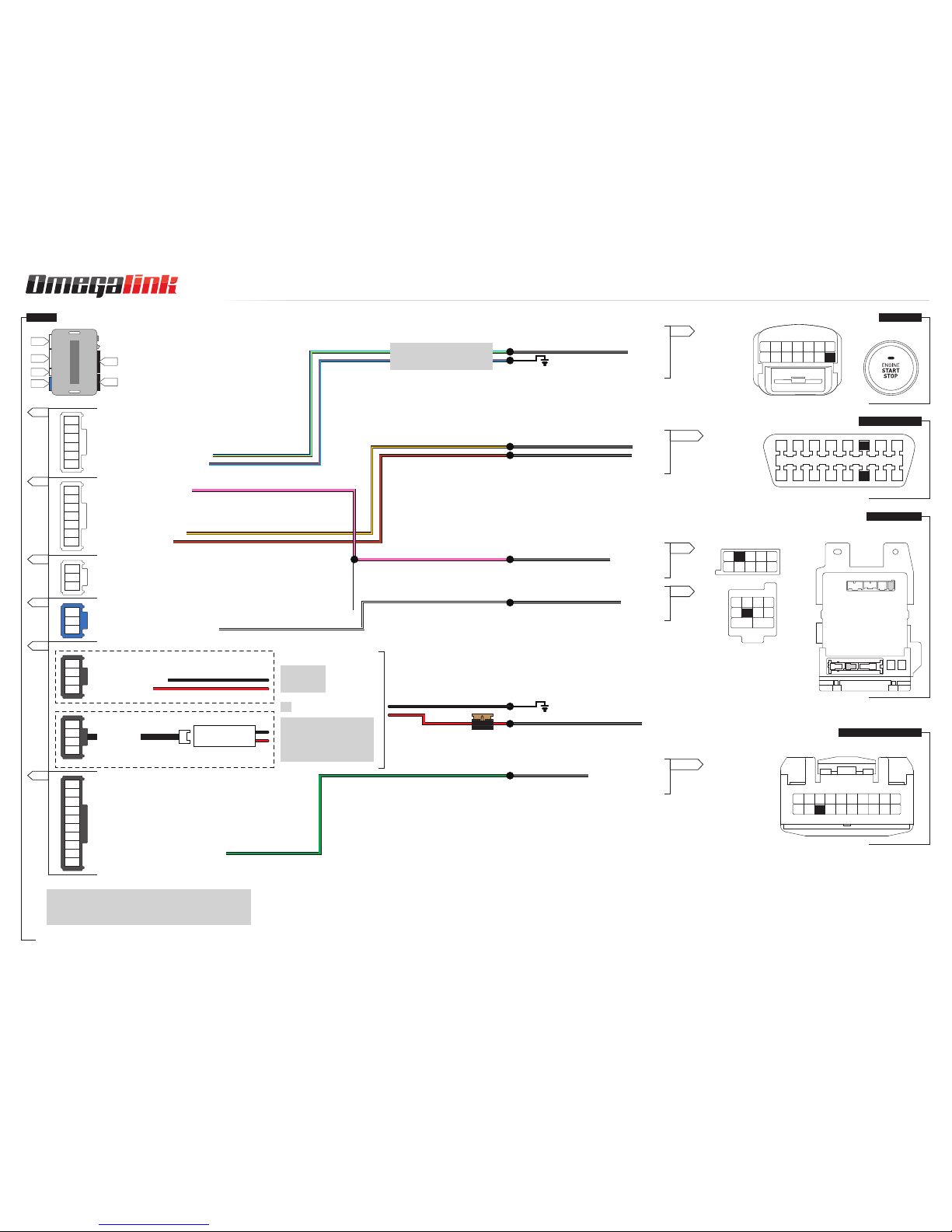

TYPE 3 - WIRING DIAGRAM - 1 OF 1
GRAY/YELLOW (NC)01 GRAY/YELLOW (NC)
02 GRAY/RED (NC)
GREEN/YELLOW (NC)03 GREEN/YELLOW (NC)
04 GREEN/RED (NC)
- PTS (-) OUTPUT
05 BLUE/YELLOW - PTS (-) OUTPUT
INPUT
06 BLUE/RED - GROUND (-) INPUT
PINK - IGNITION (+) INPUT01 PINK - IGNITION (+) INPUT
PINK/BLACK (NC)
02 PINK/BLACK (NC)
03 ORANGE (NC)
05 ORANGE/BLACK (NC)
BROWN/YELLOW - CANL
06 BROWN/YELLOW - CANL
WHITE/BLACK - STSW (+) OUTPUT03 WHITE/BLACK - STSW (+) OUTPUT
- IGNITION (+) INPUT
01 WHITE - IGNITION (+) INPUT
BROWN/RED - CANH07 BROWN/RED - CANH
04 ORANGE/WHITE (NC)
PTS (-) - 07
01 GREEN/BLACK (NC)
03 RED/WHITE (NC)
02 BLUE/BLACK (NC)
04 BROWN (NC)
06 PURPLE/BLACK (NC)
05 PURPLE/YELLOW (NC)
WHITE
07 WHITE (NC)
08 BLACK/WHITE (NC)
10 PURPLE/WHITE (NC)
02 YELLOW/RED (NC)
03 YELLOW/BLACK (NC)
01 YELLOW (NC)
CANL - 14
IGNITION (+) - 07
STSW (+) - 04
CANH - 06
02 WHITE/RED (NC)
GREEN
09 GREEN - PARKING LIGHT (-) OUTPUT
BACK SIDE
IMPORTANT:
1- NO TAKEOVER AVAILABLE.
UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN.
2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE.
CONNECTIONS ARE REQUIRED
ONLY IF IDLE MODE
IS DESIRED
PARKING LIGHT (-) - 18
C - WHITE
MODULE
DATA CABLE
OR
02 WHITE (NC)
03 BLACK - GROUND
04 RED - 12V (+)
01 BLUE/WHITE (NC)
WITHOUT A
COMPATIBLE
ACCESSORY
WITH A COMPATIBLE
ACCESSORY.
IMPORTANT: SEE THE
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.
COMPATIBLE
ACCESSORY
12V (+)
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 9 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
>>
01
ENGINE
START
STOP
STOP ACC ON START
ON
02
03
ENGINE
START
STOP
STOP ACC ON START
STOP
04
MODULE PROGRAMMING PROCEDURE - 1 OF 1
Between each step, LED will turn solid RED,
this is the default standby mode.
Push start button twice [2x] to ON position.
Wait, LED will turn solid GREEN then will turn
OFF.
Push start button once [1x] to OFF position.
Module Programming Procedure completed.
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 10 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
>>
01
02
ENGINE
START
STOP
OFF ACC ON START
ON
03
04
ENGINE
START
STOP
OFF ACC ON STARTOFF
05
>>
VALET MODE PROGRAMMING PROCEDURE - 1 OF 1
NOTE: In Valet Mode, the Remote starter is not
functional. Keyless entry, Lock and Unlock will
remain functional. See RF kit user manual for
alternate valet mode programming.
Time restriction. Complete next step within 7
seconds.
Cycle ignition ON five times [5x OFF/ON]
rapidly.
Wait, LED 1 will turn solid RED for 2 seconds.
Set ignition to OFF position.
Valet Mode Programming Procedure
completed.
To exit valet mode: repeat steps 1 to 5.
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 11 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
>>
>>
>>
01
ENGINE
START
STOP
OFF ACC ON STARTOFF
02
03 [X]
04
05 [Y]
06
07 [Z]
08 [Z]
09
10
11 [Y]
12
13
14
>>
MODULE NAVIGATION PROCEDURE - 1 OF 1
It is mandatory to exit the Module Navigation
at the end of this procedure. Failure to exit the
Module Navigation will drain vehicle battery.
To exit the Module Navigation at any time:
Follow STEP 13.
Module must be programmed to the vehicle.
Use the Module Navigation Chart on the next
page.
Set ignition to OFF position.
TO ACCESS THE MENUS: Press and hold
programming button until LED 1 turns solid
GREEN.
IN THE MENUS: Press the programming
button as many times as the menu number
indicates. LED 1 will flash GREEN an equal
amount of times continuously.
TO ACCESS THE OPTIONS: Press and hold
programming button until LED 1 turns solid
RED.
IN THE OPTIONS: Press the programming
button as many times as the option number
indicates. LED 1 will flash RED an equal
amount of times continuously.
TO ACCESS THE SETTINGS: Press and hold
programming button until LED 1 turns solid
GREEN.
LED 1 will flash GREEN as many times as
the current (or default) setting number,
continuously.
IN THE SETTINGS: Press the programming
button as many times as necessary to access
your setting. LED 1 will flash GREEN an equal
amount of times continuously.
To return to the MENUS: exit the Module
Navigation and redo the Module Navigation
Procedure.
To save and return to the OPTIONS: Press and
hold programming button until LED 1 turns
solid RED.
LED 1 will flash RED as many times as the
current option number continuously.
Configure every other setting and proceed to
step 13.
MANDATORY: EXIT MODULE NAVIGATION.
Press and hold programming button for 7
seconds. LED 1 will flash RED rapidly. Release
programming button. LED 1 will turn OFF.
Module navigation completed.
Failure to exit the Module Navigation will drain
vehicle battery.
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 12 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
MODULE NAVIGATION CHART - 1 OF 1
MODULE NAVIGATION CHART:
NOTES
[X] MENUS [Y] OPTIONS [Z] SETTINGS
I Default settings are listed in bold.
01 CONFIGURATION
01 DISARM/UNLOCK BEFORE START 01 OFF
II Make sure the option is covered on the vehicle before
attempting to change the setting.
02 ON
02 RELOCK AFTER START 01 OFF
02 ON
03 RELOCK AFTER SHUTDOWN 01 OFF
02 ON
04 FORCE UNLOCK ALL ON FIRST PRESS 01 OFF
02 ON
05 N/A 01 N/A
06 N/A 01 N/A
07 FACTORY KEYLESS RS SEQUENCE
01 DISABLE
02 N/A
03 LOCK + UNLOCK + LOCK
04 LOCK + LOCK + LOCK
08 MODULE RUN TIME
01 03 MIN
02 05 MIN
03 10 MIN
04 15 MIN
05 25 MIN
06 30 MIN
07 35 MIN
08 15 MIN
09 WAIT TO START DELAY
01 02 SEC
02 05 SEC
03 08 SEC
04 10 SEC
05 15 SEC
06 20 SEC
07 25 SEC
08 30 SEC
10-12 N/A 01 N/A
02-07 Technical Support only 01 N/A 01 N/A
*Vehicle will shutdown when a door is opened.
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 13 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
REMOTE STARTER ERROR CODES - 1 OF 1
REMOTE STARTER ERROR CODES:
NOTES
[X] NUMBER OF PARKING LIGHT FLASHES DIAGNOSTIC
I WARNING: The following applies only when the parking
lights are connected and supported by the system.
03 Foot brake is ON.
04 Hood is open.
II After a remote starter failure, the parking lights will fl ash
[X] number times to indicate an error code. See table.
05 Engine tach signal is lost.
06 System is in Valet Mode.
07 Vehicle is moving (VSS).
08 Glow plug timeout error.
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 14 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
MODULE DIAGNOSTICS - 1 OF 1
TEST MODULE
LED 1 STATUS DIAGNOSTIC
I DURING PROGRAMMING
Flashing RED Missing/wrong information from firmware or vehicle.
Solid RED Module waiting for more vehicle information.
Flashing GREEN Additional steps required to complete module programming.
Solid GREEN then OFF Module correctly programmed.
OFF No activity or module already programmed.
II DURING REMOTE START
Flashing RED Module incorrectly programmed.
Solid RED Module incorrectly programmed.
Flashing GREEN Module correctly programmed and operational.
Solid GREEN then OFF Reset in progress.
OFF Invalid ground when running status from remote starter.
III WITH IGNITION OFF
Flashing RED Module incorrectly programmed or connected.
Solid RED Module not programmed. Waiting for more vehicle information.
Flashing GREEN False ground when running status from remote starter.
Solid GREEN then OFF Reset in progress.
OFF Module at rest and ready for a remote start sequence.
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 15 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
01
02
03
04
05
06
07
08
>>
MODULE RESET PROCEDURE - 1 OF 1
Disconnect all connectors from module except
the BLACK 4-PIN connector.
Disconnect the BLACK 4-PIN connector.
PRESS AND HOLD programming button while
connecting the BLACK 4-PIN connector.
Wait, LED 1 will flash RED. RELEASE
programming button.
LED 1 will turn RED for 2 seconds.
Module RESET completed.
Reconnect all connectors.
Repeat programming procedure.
Failure to follow procedure may result with a
DTC or a CHECK ENGINE error message.
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 16 OF 17
• 20150115
DOC.: #19944

U.S. Patent No. 8,856,780
INSTALLATION CHECKLIST - 1 OF 1
1 WARNING: Vehicle engine will start many times. Test in a well ventilated area.
2 Close all vehicle doors, hood and trunk.
3Press the LOCK button once [1x] on the aftermarket keyfob.
¨
Question 1: Do the doors lock?
YES: Go to next step.
¨
NO: Verify the remote programming, the RF connections and the wired door lock/unlock
connections as illustrated in the wiring diagram, if applicable. Repeat the test and call
technical support, if the problem persists.
4Press the UNLOCK button once [1x] on the aftermarket keyfob.
¨
Question 2: Do the doors unlock?
YES: Go to next step.
¨
NO: Verify the remote programming, the RF connections and the wired door lock/unlock
connections as illustrated in the wiring diagram, if applicable. Repeat the test and call
technical support, if the problem persists.
5Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.
¨
Question 3: Does the trunk or hatch open/unlock?
YES: Close trunk or hatch and go to next step.
¨
NO: Verify the remote programming, the RF connections and the wired trunk/hatch
connections as illustrated in the wiring diagram, if applicable. Repeat the test and call
technical support, if the problem persists.
6Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.
¨
Question 4: Does the driver side sliding door open?
YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.
¨NO: Verify the remote programming and the RF connections. Repeat the test and call
technical support, if the problem persists.
7Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.
¨
Question 5: Does the passenger side sliding door open?
YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.
¨NO: Verify the remote programming and the RF connections. Repeat the test and call
technical support, if the problem persists.
8Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.
¨
Question 6: Does the vehicle remote start?
YES: Go to next step.
¨NO: Verify the remote programming, the RF connections and check the remote start error
codes. Repeat the test and call technical support, if the problem persists.
9Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.
¨
Question 7: Does the vehicle shut down?
YES: Go to next step.
¨NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle
and call technical support.
10 RAP and auto light shutdown test
¨
Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after
remote start shutdown?
YES: Go to next step.
¨NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the
test and call technical support if the problem persists.
11 Open hood.
12 If not already installed, affi x the mandatory orange warning sticker under the hood and
proceed to next step.
13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.
¨
Question 9: Does the vehicle remote start?
YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood
switch, then repeat the test.
¨NO: Go to next step.
14 Close hood.
15 Enter vehicle and close the doors.
16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.
17 Wait for the vehicle to start.
18 Press brake pedal.
¨
Question 10: Does the vehicle shut down?
YES: Go to next step.
¨
NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once
[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the
wiring diagram, if applicable, and call technical support.
19 Exit vehicle.
20 Installation checklist completed.
CHECKLIST
Automotive Data Solutions Inc. © 2015 COLALRSTL1OLMDBALLEN
PAGE 17 OF 17
• 20150115
DOC.: #19944
