OMEZ LIGHTING titanbeam 7R User manual

TitanBeam™ 7R
User Manual
230W Moving Head
Beam
Introduction
Thank you for purchasing the OMEZ TitanBeam™ 7R. This moving head
fixture characterized by its exceptional bright light beam is a new product
in the Titan Line. This light weight fixture is CE compliant and has a
perfect combination of advanced electronic controlling technology with
standard DMX 512 control. Programing is a breeze on the fixture’s touch
screen panel.
OMEZ TitanBeam™ 7R has a 230 watt discharge lamp with reflector that
projects a high quality long range beam of light. With 5 high quality step
motors you can pan, tilt, and focus with fast Smooth precision.
OMEZ TitanBeam™ 7R features; one color wheel with 14 colors plus
open and one gobo wheel with 17 static patterns. Added to the 7R is the
pulse feature a steady, longer, and smoother shutter effect. This small
light weight fixture is designed for easy transport for mobile DJ’s, VJ’s,
KJ’s, and Production companies.
OMEZ TitanBeam™ 7R is the industry standard in T.V. reality shows,
Arenas, Concert halls, Banquet halls, Performing arts theaters,
Nightclubs, and Entertainment venues.
Omez Guaranty
This TitanBeam™ 7R has met all quality control requirements when tested
in our factory and is known to be in perfect condition when shipped to our
warehouse in El Monte California. In order to ensure the safe operation of
this TitanBeam™ 7R it is absolutely necessary for the end user to follow
the safety instructions and warnings notes written in this user manual.

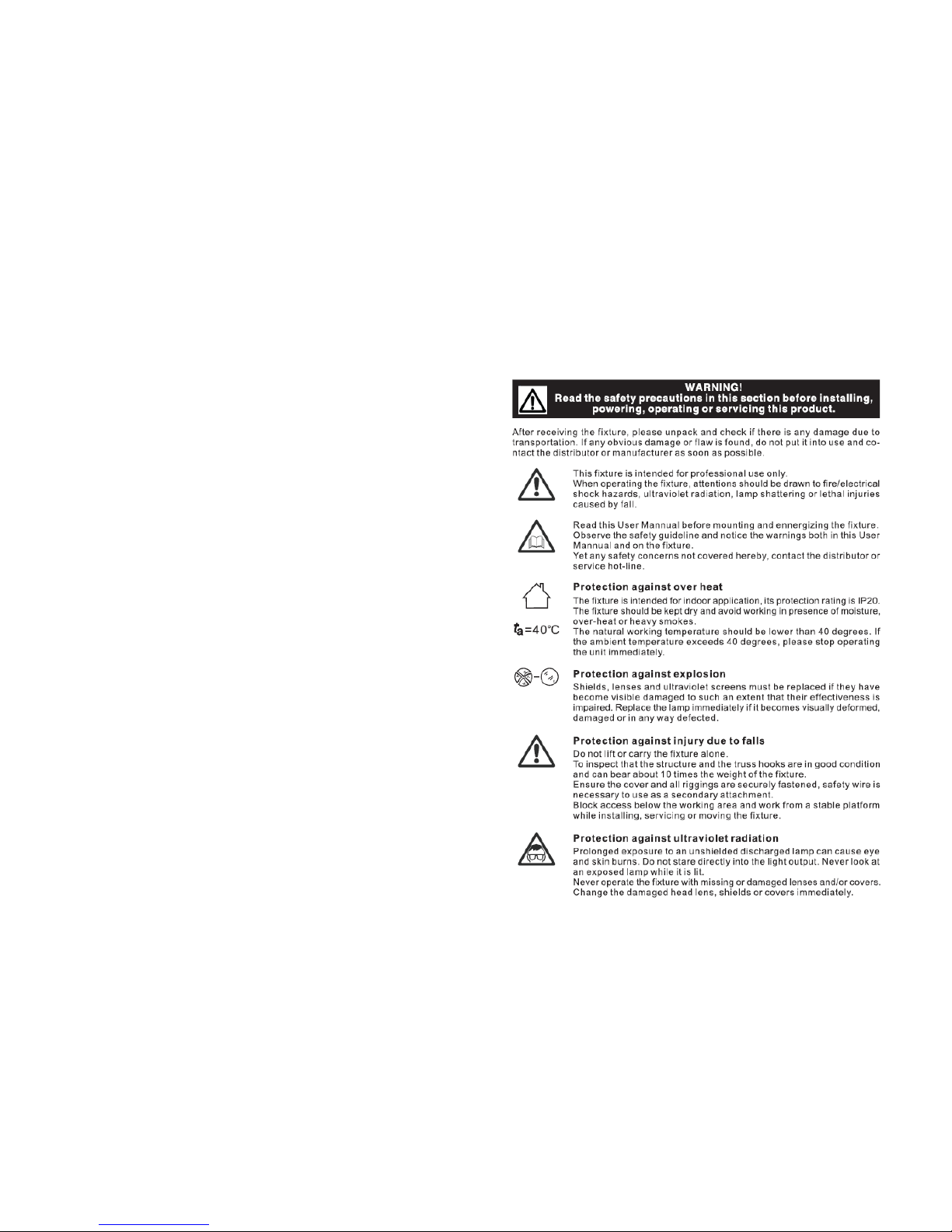

2 Safety Information
Contents
Introduction/Omez Promise …... ……….………………..1
Safety information …………………….………..2
Included in package ………………………………3
Features ..…………………….……….4
Control panel ……………………………….5
DMX Channels .………………………………6
Installation ...…………………………….7
Cleaning & maintenance .……………………………….8
(Before plugging in fixture, Please read manual)

3. Included InPackage
This box includes items listed below
Accessories
QTY
UNIT
User manual
1
PCS
Warranty card
1
PCS
Suspension fasteners
2
SET
DMX cable
1
PCS
4. Features

Modes: 16/20 Channels
Lamp Type: 230w YODN Bulb
Color Temperature: 8000K
Luminance: 63900 @ 20m
Beam Angle: 4°
0-100% Linear Dimming
Strobe Speed: 1-13 FPS
14 Dichroic Colors
17 Static Gobos
8 Facet Rotating Prism
Pan/Tilt 540°,630°/270°
8 bit/16 bit
LED Touch Screen Display
Power Supply: 100-240V ~,50/60Hz
Heat Emission: 0.08kw/h
Power Consumption: 335W
Size: 336*315*512mm
Net weight: 20.5kg
CE & RoHS Compliant

5.2 Home Screen
The top 2 right tabs on the screen are used for language and
screen rotation.
5.3 Settings Tab
Option
Instruction
Operation
Mode
DMX
(slave mode) Receive a DMX signal from
controller or master fixture
Auto
(master mode) Auto run1-2-3-4, send DMX signal
to slave
Note: You must let the fixture cycle on before
entering auto mode
DMX
Address
1~512
Press the "OK" button to enter DMX address
mode, use the “Up”& “Down”arrows to scroll
through DMX channels, press ok to save new
value
Channel
Mode
16
CH17~20 No function
20
CH17~20 Speed control (See the channel table）
Pan Revers
Off
On
Tilt Revers
Off
On
Pan/Tilt
Swap
Off
On
Swap faders
XY coder
On
Pan & tilt motor correction
Off
NO DMX
Retain
Display keep
5. Control panel
5.1 PanelInstructions
Functions
Left arrow and Right arrow: exit current screen, push twice it
will take you back to home screen
“Up” & “Down” arrows: always you to scroll through current
screen
“OK” button: enter or save
Example below:
1. If the current display is not on the main screen, press the
"left arrow" or “right arrow” button twice to get back to the
home screen
2. In the main screen, press the "up arrow” or "Down arrow”
to scroll through the tabs on the screen to make a
selection
3. Press the "OK" button, to enter selected page
4. In the "Settings" tab, press the "up arrow or "down arrow"
button to select "DMX address"
5. Press the "OK" button to enter dmx addressing
6. Press the "up arrow" or "down arrow" to modify the DMX
address
7. Press the "OK" button to save change
A quicker process would be to use the touch screen

On the home screen touch the manual tab scroll up and down
to get to your desired field press ok to enter and make
changes. It is always a good idea to reset fixture before using
the settings in this manual mode.
5.4 Information Tab
5.5 Manuel Tab
Display
On/Off
On turns off display after 60 sec.
Lamp On
On
Light turns on with fixture
Off
Bulb turns on through DMX controller
Linear Color
Off
On
Default
Settings
Click "OK" button and confirm load default
settings
Option
Instruction
Reset
Touch the manual tab, press the “Up” or
“Down” arrow scroll to reset press ok and
confirm
Press the “OK” button, confirm reset
Color
0~255
Press the manual tab, use the “Up” or
“Down” arrows to scroll to desired
field press the “Ok” make changes
then press “Ok” once more to store
new changes.
Shutter/Strobe
0~255
Dimmer
0~255
Gobo
0~255
Prism
0~255
Prism Rotate
0~255
Macro Function
0~255
Frost
0~255
Focus
0~255
Pan
0~255
Pan Fine
0~255
Tilt
0~255
Tilt Fine
0~255
Pan/Tilt Speed
0~255
Gobo speed
0~255
Manual
Lamp control
On
Off
Option
Instruction
Firmware
Version
Current software version
Total Fixture
Hours
Touch the system tab use the “Up & Down” arrows
scroll to total fixture hours
Partial Fixture
Hours
Touch the system tab use the “Up & Down” arrows
scroll to partial fixture hours
Total Lamp Hours
Touch the system tab use the “Up & Down” arrows
scroll to total lamp hours
System Error
If the red ERR led turns on, there is an operational
error, The details on the error can be viewed in the
systems error field under the systems tab.

5.6 Advance Tab 6. DMXChannels
Channel
Standard mode(16CH)
16Bit mode(20CH)
1CH
Color Wheel
Color Wheel
2CH
Shutter/Strobe
Shutter/Strobe
3CH
Dimmer
Dimmer
4CH
Gobo
Gobo
5CH
Prism
Prism
6CH
Prism Rotate
Prism Rotate
7CH
Prism Macro
Prism Macro
8CH
Frost
Frost
9CH
Focus
Focus
10CH
Pan
Pan
11CH
Pan Fine
Pan Fine
12CH
Tilt
Tilt
13CH
Tilt Fine
Tilt Fine
14CH
Pan/Tilt Speed
Pan/Tilt Speed
15CH
Reset
Reset
16CH
Lamp Control
Lamp Control
17CH
-
Pan-Tilt Time
18CH
-
Color Time
19CH
-
Beam Time
20CH
-
Gobo Time
Option
Instruction
Sensor Monitor
Scroll “Up” or “Down” press ok to
enter field
Reset Calibration
Scroll “Up” or “Down” press ok to
enter field
Zero Point Correction
Scroll “Up” or “Down” press ok to
enter field
Lamp Life Hours
Scroll “Up” or “Down” press ok to
enter field
Clear lamp Hours
Scroll “Up” or “Down” press ok to
enter field
On the home screen touch on the advance tab, press the
up and down tab continues twice then ok.

6.2Strobe
Standard
mode
16Bit
mode
Channel
function
Value
Function
1
1
Color
0-9
Open
10-19
red
20-29
Yellow
30-39
Blue
40-49
Green
50-59
Hot Pink
60-69
Aqua Marine
70-79
Orange
80-89
Electric White
90-99
Warm White
100-109
Pink
110-119
Lime Green
120-129
Ivory
130-139
Cool White
140-149
Purple
150-159
Color Scroll Fast
196-199
Color Scroll Medium
200-202
Color Scroll Slow
Standard
mode
16Bit
mode
Channel
function
Value
Function
2
2
Strobe
0-3
Close
2
2
Strobe
4-103
Strobe Slow-Fast
104-107
Open
108-207
Pulse Slow-Fast
208-212
Open
213-225
Random Strobe Slow
226-238
Random Strobe Medium
239-251
Random Strobe Fast
252-255
Open
Standard
mode
16Bit
mode
Channel
function
Value
Function
3
3
Dimmer
0-255
0%-100%
6.1 Colors
6.3 Dimmer

Standard
mode
16Bit
mode
Channel
function
Value
Function
Standard
mode
16Bit
mode
Channel
function
Value
Function
4
4
Static Gobo
0-4
Open
5-9
Gobo 1
10-14
Gobo 2
15-19
Gobo 3
20-24
Gobo 4
25-29
Gobo 5
30-34
Gobo 6
35-39
Gobo 7
40-44
Gobo 8
45-49
Gobo 9
50-54
Gobo 10
55-59
Gobo 11
60-64
Gobo 12
65-69
Gobo 13
70-74
Gobo 14
75-79
Gobo 15
80-84
Gobo 16
85-89
Gobo 17
90
Gobo Rotate Fast
…..
……
129
Gobo Rotate Slow
130-134
STOP
135
Gobo Rotate Slow
ROTATION
…..
……
170
Gobo Rotate Fast
ROTATION
171
Gobo Shake, Slow
Speed
…..
……………
4
4
Static Gobo
175
Gobo 1 Shake Fast
176
Gobo 2 Shake Slow
……
……………
180
Gobo 2 Shake Fast
……..
……………
246
Gobo 16 Shake Slow
…
…………..
250
Gobo 16 Shake Fast
251
Gobo 17 Shake Slow
…..
…………..
255
Gobo 17 Shake Fast
5
5
Prism
0-127
No Prism
128-255
Prism
6
6
Rotating
prism
0-127
No Rotation
128
Fast Rotation
….
……
190
Slow Rotation
191-192
STOP
193
Slow Rotation
….
…..
255
Fast Rotation
7
7
Effect
0-255
Prism Macro
6.4 DMX Channels & Values

Mounting the fixture in areas away from reach by unauthorized
personal is always recommended. Before mounting the fixture
make sure that the area you are using can hold a minimum
load of 5x the Fixtures weight. You must always use a
secondary safety attachment, such as a safety cable. The
TitanBeam™ 7R is fully operational in two install positions,
hanging upside down on a truss or by setting it on a flat level
surface. Always make sure that all fixture are kept at least
0.5m away from any flammable materials.
For best results TitanBeam™ 7R requires routine cleaning and
maintenance. Excessive dust, smoke fluid, and particulate buildup
will degrade the performance and will cause the fixture to overheat.
The damage from this is not is not covered in the manufacture
warranty. Always make sure you unplug the fixture before opening
any covers for cleaning. Optical components should be cleaned
carefully and do not use any harmful solvents to avoid damage.
Remember to keep all air vents clean and free from clutter that will
prevents constant air flow.
7. Installation
8. Cleaning & Maintanance
Standard
mode
16Bit
mode
Channel
function
Value
Function
8
8
Frost
0-127
No Frost
128-255
Frost
9
9
Focus
0
Focus 0%
…
….
255
Focus 100%
10
10
Pan
0-255
0-540°
11
11
Pan Fine
0-255
Adjustment
12
12
Tilt
0-255
0-270°
13
13
Tilt fine
0-255
Adjustment
14
14
Motor Speed
0-255
Pan/Tilt Speed
15
15
Reset
0-25
Unused Range
26-76
Effect Reset
77-127
Pan/Tilt Reset
128-255
Complete Reset
16
16
Lamp control
0-9
Lamp On
10-100
Lamp Off
101-255
Unused
-
17
Pan/tilt
Time
0-255
Fast-slow
-
18
Color time
0-255
Fast
-
19
Beam time
0-255
Fast
-
20
Gobo time
0-255
Fast
When resetting fixture please allow an average of 20 sec. for the fixture to reset all
sensors and motors. Fixture will continue where it left off. The lamp will stay on so
there is no cool off wait time. Always remember if the light bulb turns of at any time
during operation there is a 5-10 minute cool down period before bulb ignites.

Omez Lighting reserves the right to make changes and/or improvements in
design upon its products without any obligation to include these changes to
any products theretofore manufactured.
OMEZ
