OMEZ TitanBeam 10R User manual

TitanBeam™ 10R
User Manual
280W Moving Head
Beam
Introduction
Thank you for purchasing the OMEZ TitanBeam™ 10R. This moving head
fixture, characterized by its exceptional bright light beam, is a new product
in the Titan Line. This fixture is CE compliant and has a perfect
combination of advanced electronic controlling technology with standard
DMX 512 control. Programing is a breeze on the fixture’s LED touch
screen menu display panel.
OMEZ TitanBeam™ 10R has a 280 watt discharge lamp with reflector
that projects a high quality long range beam of light. With 5 high quality
step motors you can pan, tilt, and focus with fast, smooth precision.
OMEZ TitanBeam™ 10R features one color wheel with 13 colors plus
open and two gobo wheels with 14 static and 9 rotating gobos. Added to
the 10R is the pulse strobe feature; a steady, longer, and smoother
shutter effect. This fixture is designed for easy transport for mobile
Production companies.
The OMEZ TitanBeam™ 10R is the industry standard in T.V. reality
shows, arena’s, concert halls, banquet halls, performing art centers,
theaters, nightclubs, and entertainment venues.
Omez Guarantee
ThisTitanBeam™ 10Rhasmet all quality control requirements when tested
in our factory and is known to be in perfect condition when shipped to our
warehouse in El Monte, California. Final quality control inspections are
conducted upon arrival at our facility. In order to ensure the safe operation
of this TitanBeam™ 10R it is absolutely necessaryfor the end user to follow
the safety instructions and warnings notes written in this user manual.

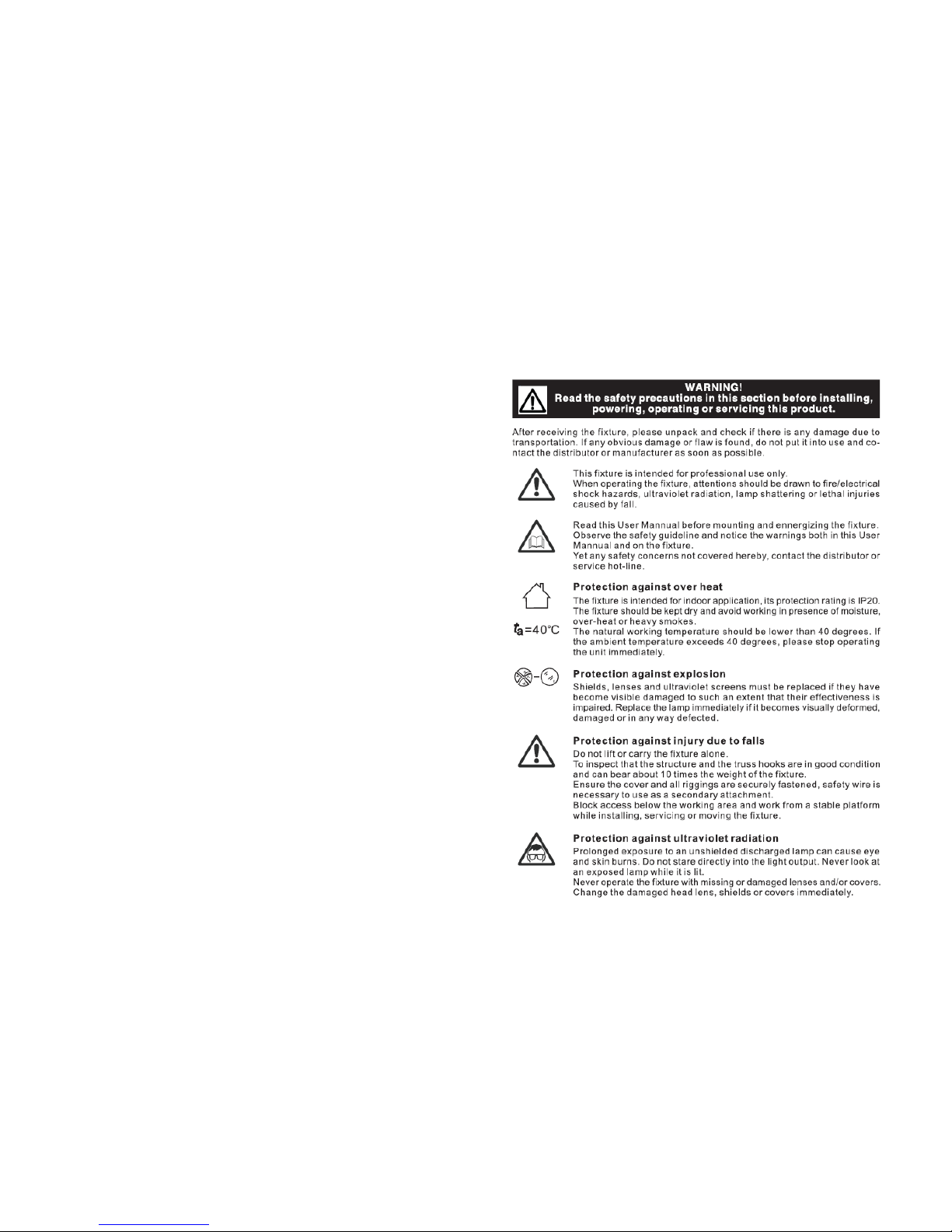

2 Safety Information
Contents
Introduction/Omez Guarantee ... ……….………………..1
Safety information …………………….………..2
Included in package ………………………………3
Features ..…………………….……….4
Control panel ……………………………….5
DMX Channels .………………………………6
Installation ...…………………………….7
Cleaning & maintenance .……………………………….8
(Before plugging in this fixture, Please read manual)

3. Included InPackage
This box includes items listed below
Accessories
QTY
UNIT
User manual
1
PCS
Warranty card
1
PCS
Suspension fasteners
2
SET
DMX cable
1
PCS
4. Features

Modes: 13/16/20 Channels
Lamp Type: 280w Discharge Lamp
Color Temperature: 9300K
0-100% Linear Dimming
Strobe Speed: 1-13 FPS
13 Dichroic Colors
14 Static Gobos Plus Open
9 Rotating Glass Gobos
8 Facet Rotating Prism
6 Linear Prism
Pan/Tilt 540°,630°/270°
LED Touch Screen Display
Power Supply: 100-240V ~,50/60H
Power Consumption: 470W 6 amp
Size: 15”x14.4”x23”(385x365x589mm)
Net weight: 45.2 lbs. (20.5kg)
CE & RoHS Compliant

5. Control panel
5.1 Panel
This fixture has 4 corresponding buttons esc, up, down, and
menu/enter. Press the menu button once, use the up & down
buttons to scroll through the menu, Press enter for sub menu
to make changes or touch the icon on the screen
5.2 Home Screen
Home screen has 8 icons to choose from, Feature Settings,
Manual, System Settings, Display Settings, Lamp Settings,
Display Reverse, Language Setting, Back to Home.
The top 2 right tabs on the screen are used for language and screen
rotation.
5.3 Settings Tab
5.4 Manual Tab
Option
Instruction
Run Mode
DMX / Wire (slave) / Auto
DMX, Wire, Auto
Chan Mode
Defe13ch./Small 16ch./Standard 20ch.
X Revers
On, Off
Y Revers
On, Off
X Angle
540-360
XY Fback
Off –On
Signal Clear
Off - On
Full Color
Off - On
Short Cut
Off - On
ESC
Back To Start Menu
Option
Instruction
Reset
Reset all working motors in the fixture
Test Run
Auto or sound active mode
Simulate DMX
Add value to the dmx channel
5.5 System Info Tab
Option
Instruction
DMX Value
Current value
Other Info
Fixture info
Error Info
Current fixture error
5.6 Display Settings Tab
Option
Instruction
Brightness
Display back light 1-7
Light Delay
On/10sec/20sec/30sec
Menu Back
Off/10sec/20sec/30sec
Flicker
Off/On
ESC
Back to menu

5.7 Lamp Setting Tab 6. DMXChannels
5.8 Display Revers Tab
5.9 Language Tab
Option
Instruction
Default
On or Off
Manuel
On or Off
Electronic
On or Off
Channel
Defe 13ch.
Small 16ch.
Standard 20ch.
1
Color Wheel
Pan
Pan
2
Shutter/Strobe
Tilt
Pan Fine
3
Dimmer
Pan Tilt Speed
Tilt
4
Gobo
Function
Tilt Fine
5
Prism
Color Wheel
Pan Tilt Speed
6
Prism Adjust
Empty
Function
7
Glass Gobo
Static Gobo
Color Wheel
8
Frost
Rotating Gobo
Empty
9
Focus
Gobo Rotate
Empty
10
Pan
Prism
Static Gobo
11
Pan Fine
Prism Rotate
Rotating Gobo
12
Tilt
Frost
Gobo Rotate
13
Tilt Fine
Zoom
Empty
14
Focus
Prism
15
Strobe/Shutter
Prism Rotate
16
Dimmer
Frost
17
-
Zoom
18
-
Zoom Fine
19
-
Focus
20
-
Zoom Fine 2
21
Empty
22
Strobe
23
Dimmer
24
Empty
Option
Instruction
Display Tab
Press the revers tab once to
turn the screen upside down
Option
Instruction
Language
Press the language tab once
to change languages

6.2Strobe(DEFE)
Ch.
Function
Value
Description
1
Color
0-8
Open
09-17
Deep Red
18-26
Deep Blue
27-35
Yellow
36-44
Green
45-53
Magenta
54-62
Light Blue
63-71
Red Orange
72-80
Deep Green
81-89
Light Yellow
90-98
Blue
99-107
Amber
108-116
White
117-127
Purple
128-129
CTO
130-134
Deep Red
135-138
Deep Blue
139-143
Yellow
144-147
Green
148-152
Magenta
153-157
Light Blue
158-161
Red Orange
162-166
Deep Green
167-171
Light Yellow
172-176
Blue
177-180
Amber
181-185
White
186-189
Purple
190-220
Color Scroll Rev.
221-250
Color Scroll Fwd.
251-255
Sound Active
Ch.
Function
Value
Description
2
Strobe
0-31
Shutter Close
2
Strobe
32-63
Shutter Open
64-95
Strobe Slow To Fast
96-127
Shutter Open
128-143
Pules Fast To Slow
144-159
Pules Slow To Fast
160-191
Shutter Open
192-223
Random Strobe
224-255
Open
Channel
Functio
n
Value
Description
3
Dimmer
0-255
0%-100%
6.3 Dimmer (DEFE)
6.1 Colors (DEFE)

Ch.
Function
Value
Description
4
4
Static Gobo
Static Gobo
0-3
Open
4-9
Gobo 1
10-15
Gobo 2
16-21
Gobo 3
22-27
Gobo 4
28-33
Gobo 5
34-39
Gobo 6
40-45
Gobo 7
46-51
Gobo 8
52-57
Gobo 9
58-63
Gobo 10
64-69
Gobo 11
70-75
Gobo 12
76-87
Gobo 13
Ch.
Function
Value
Description
5
Prism
0-19
No Prism
20-75
6 Linear Prism
76-255
8 Facet Prism
6
Prism Adjust
0-255
Adjust Position
Channel
Function
Value
Function
7
4
Glass Gobo
Static Gobo
0-8
Open
5-7
Gobo 1
8-10
Gobo 2
11-13
Gobo 3
14-16
Gobo 4
17-19
Gobo 5
20-22
Gobo 6
23-25
Gobo 7
26-28
Gobo 8
29-31
Gobo 9
32-34
Gobo 10
35-37
Gobo 11
38-40
Gobo 12
41-43
Gobo 13
44-46
Gobo 14
47-49
Gobo 15
50-52
Gobo 16
53-55
Gobo 17
56-59
Gobo 18
60-67
Gobo Shake 1
68-75
Gobo Shake 2
…….
………
……..
………..
Channel
Function
Value
Description
4
4
Gobo Shake
Static Gobo
88-95
Gobo1
96-103
Gobo 2
104-111
Gobo 3
112-1119
Gobo 4
120-127
Gobo 5
128-135
Gobo 6
136-143
Gobo 7
144-151
Gobo 8
152-159
Gobo 9
160-167
Gobo 10
168-175
Gobo 11
176-183
Gobo 12
184-199
Gobo 13
200-225
Gobo Scroll
6.4 Gobo’s (DEFE)
6.5 Prism (DEFE)
6.6 Glass Gobo’s (DEFE)

6.6 Frost & Focus (DEFE)
6.7 Pan & Tilt (DEFE)
Ch.
Function
Value
Description
8
Frost
65-255
Linear Frost
9
Focus
0-255
Focus
Ch.
Function
Value
Description
10
Pan
0-255
Pan
11
Pan Fine
0-255
Pan Fine
12
Tilt
0-255
Tilt
13
Tilt Fine
0-255
Tilt Fine

6.3 Colors
6.0 DMX Small & Standard Mode
16 Ch.
Mode
24 Ch.
Mode
Function
Value
Description
5
Color
0-8
Open
09-17
Deep Red
18-26
Deep Blue
27-35
Yellow
36-44
Green
45-53
Magenta
54-62
Light Blue
63-71
Red Orange
72-80
Deep Green
81-89
Light Yellow
90-98
Blue
99-107
Amber
108-116
White
7
117-127
Purple
128-129
CTO
130-134
Deep Red
135-138
Deep Blue
139-143
Yellow
144-147
Green
148-152
Magenta
153-157
Light Blue
158-161
Red Orange
162-166
Deep Green
167-171
Light Yellow
172-176
Blue
177-180
Amber
181-185
White
186-189
Purple
190-220
Color Scroll Rev.
221-250
Color Scroll Fwd.
251-255
Sound Active
16 Ch.
Mode
24 Ch.
Mode
Value
Description
4
6
0-19
No Action
20-24
Energy Saving Mode (230w)
25-129
No Action
130-139
Lamp On
140-149
Pan Tilt Reset
150-159
No Action
160-169
Motor Reset
170-199
No Action
200-209
Fixture Reset
210-229
No Action
230-239
Lamp Off
240-255
No Action
6.1 Pan & Tilt
16 Ch.
Mode
24 Ch.
Mode
Function
Value
Description
1
1
Pan
0-255
Pan
*
2
Pan Fine
0-255
Pan Fine
2
3
Tilt
0-255
Tilt
*
4
Tilt Fine
0-255
Tilt Fine
3
5
Speed
0-255
Pan Tilt Speed
6.2 Function

6.5 Glass Gobo’s
16 Ch.
Mode
24 Ch.
Mode
Function
Value
Function
8
11
Glass Gobo
Static Gobo
0-8
Open
5-7
Gobo 1
8-10
Gobo 2
11-13
Gobo 3
14-16
Gobo 4
17-19
Gobo 5
20-22
Gobo 6
23-25
Gobo 7
26-28
Gobo 8
29-31
Gobo 9
32-34
Gobo 10
35-37
Gobo 11
38-40
Gobo 12
41-43
Gobo 13
44-46
Gobo 14
47-49
Gobo 15
50-52
Gobo 16
53-55
Gobo 17
56-59
Gobo 18
60-67
Gobo Shake 1
68-75
Gobo Shake 2
…….
………
……..
………..
……….
………….
16Ch.
Mode
24 Ch.
Mode
Function
Value
Description
7
4
10
Static Gobo
Static Gobo
0-3
Open
4-9
Gobo 1
10-15
Gobo 2
16-21
Gobo 3
22-27
Gobo 4
28-33
Gobo 5
34-39
Gobo 6
40-45
Gobo 7
46-51
Gobo 8
52-57
Gobo 9
58-63
Gobo 10
64-69
Gobo 11
70-75
Gobo 12
76-87
Gobo 13
16Ch.
Mode
24 Ch.
Mode
Function
Value
Description
7
10
Gobo Shake
Static Gobo
88-95
Gobo1
96-103
Gobo 2
104-111
Gobo 3
112-1119
Gobo 4
120-127
Gobo 5
128-135
Gobo 6
136-143
Gobo 7
144-151
Gobo 8
152-159
Gobo 9
160-167
Gobo 10
168-175
Gobo 11
176-183
Gobo 12
184-199
Gobo 13
200-225
Gobo Scroll
6.4 Static Gobo’s

6.7 Prism
6.8 Prism Rotate
16 Ch.
Mode
24 Ch.
Mode
Value
Description
9
12
0-127
Index
128-177
Slow To Fast
178-203
Stop
204-255
Fast To Slow
16 Ch.
Mode
24 Ch.
Mode
Value
Description
10
14
0-19
No Action
128-177
Slow To Fast
20-75
6 Linear Prism
76-255
8 Facet Prism
16 Ch.
Mode
24 Ch.
Mode
Value
Description
11
15
0-127
Index
128-191
Fast To Slow
192-193
No Action
194-255
Slow To Fast
6.6 Gobo Rotation
6.9 Frost Zoom Focus
16 Ch.
Mode
24 Ch.
Mode
Value
Description
12
16
0-64
No Action
65-255
Linear Frost
13
17
0-255
Linear Zoom
*
18
0-255
Zoom Fine
14
19
0-255
Focus
*
20
0-255
Zoom Fine 2
*
21
0-255
No Action
16 Ch.
Mode
24 Ch.
Mode
Value
Description
15
22
0-31
Shutter Closed
32-63
Shutter Open
64-95
Strobe Slow To Fast
96-127
Shutter Open
128-143
Strobe Fast To Slow
144-159
Pules Fast To Slow
160-191
Shutter Open
192-223
Random Strobe
224-255
Shutter Open
6.10 Strobe

16Ch.
Mode
24 Ch.
Mode
Value
Description
16
23
0-255
0%-100%
*
24
0-255
No Action
6.3 Dimmer

Mounting the fixture in areas away from reach of unauthorized
personnel is always recommended. Before mounting the fixture,
be sure that the area you intend to use can hold a minimum load
of 5x the fixtures weight. You must always use a secondary safety
attachment, such as a safety cable.The TitanBeam™ 10R is fully
operational in two mounting positions, hanging upside down on a
truss or by setting it on a flat level surface. Always make sure that
all fixtures are kept at least 1.5’(0.5m) away from any flammable
materials.
For best results, TitanBeam™ 10R requires routine cleaning and
maintenance. Excessive dust, smoke fluid, and particulate buildup
will hinder the performance of the fixture and will cause the unit to
overheat. The damage from this is not is not covered in the
manufacturer’s warranty. Always make sure you unplug the fixture
before opening any covers for cleaning. Optical components
should be cleaned carefully. Do not use any harmful solvents to
when cleaning to avoid damage. Remember to keep all air vents
clean and free from debris that can prevent constant air flow.
7. Installation
8. Cleaning & Maintanance
When resetting fixture please allow an average of 20 sec. for the fixture to reset all
sensors and motors. Fixture will continue where it left off. The lamp will stay on so
there is no cool off wait time. Always remember if the light bulb turns of at any time
during operation there is a 5-10 minute cool down period before bulb ignites.

Omez Lighting reserves the right to make changes and/or improvements in
design upon its products without any obligation to include these changes to
any products theretofore manufactured.
Warranty
Omez Lighting is dedicated to providing quality, affordable lighting products around the world. We
stand behind all of our products and offer a 3 year warranty. Please read below for the terms and
conditions of our warranty.
Omez Lighting, hereby warrants that this products shall be free of manufacturing defects in
material and workmanship for a period of 3 years from the date of purchase. This warranty shall
be valid only if the product is purchased from an authorized Omez Lighting dealer. Please contact
OMEZ Lighting directly for all warranties. It is the purchaser’s responsibility to provide acceptable
proof of purchase that includes date and location of purchase.
For Warranty service please contact OMEZ lighting to obtain a Return Merchandise Authorization
number (RMA#). You must include the RMA# when shipping product back to Omez. To contact
the Omez Lighting Service Department, please email [e-mail] or call 888-683-
OMEZ. All shipping charges must be prepaid. If the requested repairs or services (including parts
replacement) are within the terms of this warranty, Omez Lighting will pay return shipping charges
(within the United States). Products must be shipped in the original package. It is recommended
that accessories not be shipped with the product. Should any accessories arrive with the product,
Omez Lighting is not liable for loss of or damage.
The warranty will be considered void if:
•There appears to be any tampering, altering, or removal of the original serial number;
• The product is modified or altered in any way, including the removal or covering of the Omez
Branding;
• Any modifications are made that affects the reliability of the product;
• The product has been repaired or serviced by anyone other than Omez (unless prior written
authorization by Omez);
• Or if the product is damaged because improper maintenance as set forth in the instruction
manual.
Omez Lighting will replace or repair defective parts with new or refurbished parts, and will cover
expenses for warranty services and repair caused by defects in material or workmanship. The
responsibility of Omez Lighting under this warranty shall be limited to the repair or replacement of
the product, including parts, at the sole discretion of Omez Lighting.
Omez Lighting reserves the right to make changes and/or improvements in design upon its
products without any obligation to include these changes to any products theretofore
manufactured. This warranty is the only written warranty applicable to Omez Lighting Products
and supersedes all prior warranties and written descriptions of warranty terms and conditions
heretofore published.
OMEZ
