OPERATING INSTRUCTIONS
XO-2300
Active crossover
For your own safety, please read this user manual carefully before you initial start-up.
Every person involved with the installation, operation and maintenance of this device has to
- be qualilfied
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- include every supplementay update with the original manual
INTRODUCTION
Thank you for having chosen an OMNITRONIC XO-2300. You have acquired a reliable and powerful device.
If you follow the instructions given in this manual, we can assure you that you will enjoy this device for many
years.
Unpack your OMNITRONIC crossover.
Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C
connection cable or on the casing, do not take the device into operation and immediately consult your local
dealer.
Features
High-quality active stereo crossover
2-way stereo or 3-way mono operation possible • 24 dB octave slope • Without frequency-cards, as
adjustment of the crossover frequency is effected via a rotary control on the front panel • Frequency range of
crossover frequency 100 Hz to 10 kHz • Additional Low Sum output • 19"-dimensions

10304055_EF.DOC
4/20
SAFETY INSTRUCTIONS
CAUTION!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous
electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Always plug in the power plug least. Make sure that the power-switch is set to OFF position before you
connect the device to the mains.
Keep away from heaters and other heating sources!
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it
on immediately. The arising condensation water might damage your device. Leave the device switched off
until it has reached room temperature.
Never put any liquids on the device or close to it. Should any liquid enter the device nevertheless, disconnect
from mains immediately. Please let the device be checked by a qualified service technician before you
operate it again. Any damages caused by liquids having entered the device are not subject to warranty!
This device falls under protection-class I. The power plug must only be plugged into a protection class I
outlet.
Never let the power-cord come into contact with other cables! Handle the power-cord and all connections
with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the AC voltage selector.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the
power-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord.
Before the device is switched on all faders and volume controls have to be set to "0" or "min" position.
CAUTION: Turn the amplifier on last and off first!
Keep away children and amateurs!
CAUTION: High volumes can cause hearing damage!
There are no serviceable parts inside the device. Maintenance and service operations are only to be carried
out by authorized dealers.
OPERATING DETERMINATIONS
This device is a professional crossover. This product is allowed to be operated with an alternating current of
115/230 V, 50/60 Hz and was designed for indoor use only.
Do not shake the device. Avoid brute force when installing or operating the device.

10304055_EF.DOC
5/20
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. There should not be any cables lying around. You endanger your own and the safety of
others!
Do not operate the device in extremely hot (more than 30° C) or extremely cold (less than 5° C)
surroundings. Keep away from direct insulation (particularly in cars) and heaters.
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the result of unprofessional operation!
Never use solvents or aggressive detergents in order to clean the device! Rather use a soft and damp cloth.
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
Never remove the serial barcode from the device as this would make the guarantee void.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, etc.
DESCRIPTION
The OMNITRONIC crossover is designed for professional application. The inputs and outputs are located on
the rear panel, the gain controls on the front panel.
The OMNITRONIC XO-2300 is equipped with ¼“ input and output jacks.
INSTALLATION
RACK MOUNTING
The crossover is built for 19" racks/483mm. The minimum mounting depth is 220 mm. The height is 44 mm
only. You can fix the crossover with four screws M6 in the rack.
When mounting the crossover into a rack, please make sure that there is a proper air circulation.
Please make sure that there is enough space around the device so that the heated air can be passed on.
The rack should be provided with a cooling fan.
Be careful when mounting the crossover into the rack. Put the heaviest devices into the lower part of the
rack. Be aware that fastening the crossover with four screws on the front panel is not enough. In order to
ensure safety, additional fastening by using ground and side bars is necessary.
If racks are to be transported or used for mobile use, additionally fasten the devices by connecting the rear
brackets with the side or ground bars of the rack. In this way, the crossover cannot be pushed backwards.
The front panel alone is not designed to absorb acceleration forces occuring during transportation.
INPUTS
A good cable run improves the sound quality remarkably. Input cables should be short and direct, since high
frequencies will be mostly be absorbed if the cables are unnecessarily long. Besides that a longer cable may
lead to humming and noise trouble. If long cable runs are unavoidable, you should use balanced cables.
The inputs of your OMNITRONIC XO-2300 are equipped with 1/4" jack socket balanced and unbalanced.
OUTPUTS
The high damping factor of your crossover supplies a clear sound reproduction. Unnecessarily long and thin
cables will influence the damping factor and thus the low frequencies in a negative way. In order to
safeguard good sound quality, the damping factor should lie around 50. The longer a cable has to be, the
thicker it should be.
The outputs of your OMNITRONIC XO-2300 are equipped with 1/4" jack socket balanced and unbalanced.

10304055_EF.DOC
6/20
CONNECTION TO THE MAINS
Connect the OMNITRONIC XO-2300 only after having made sure that the right voltage (115/230 V) is
available. This device features a T 0,25 A, 250 V fuse.
STARTING UP
Make sure to power-up before your power amplifier is turned in order to avoid loud transients which could
damage your speakers or annoy your audience.
STARTERS' GUIDE TO CROSSOVERS
With an active crossover, you can separate the output signal of your mixer in different frequency ranges. In
this way you can define which signal portion will go to which amplifier.
The Omnitronic crossover can either be run in 2-way stereo or in 3-way mono mode.
Stereo operation is to be used in medium-sized and larger discotheques.
Mono-operation is to be used for larger PAs and requires 2 crossovers.
The crossover is delivered in 3-way mono mode. If you wish to run the crossover in 2-way stereo mode,
please press the stereo/mono switch.
OPERATION

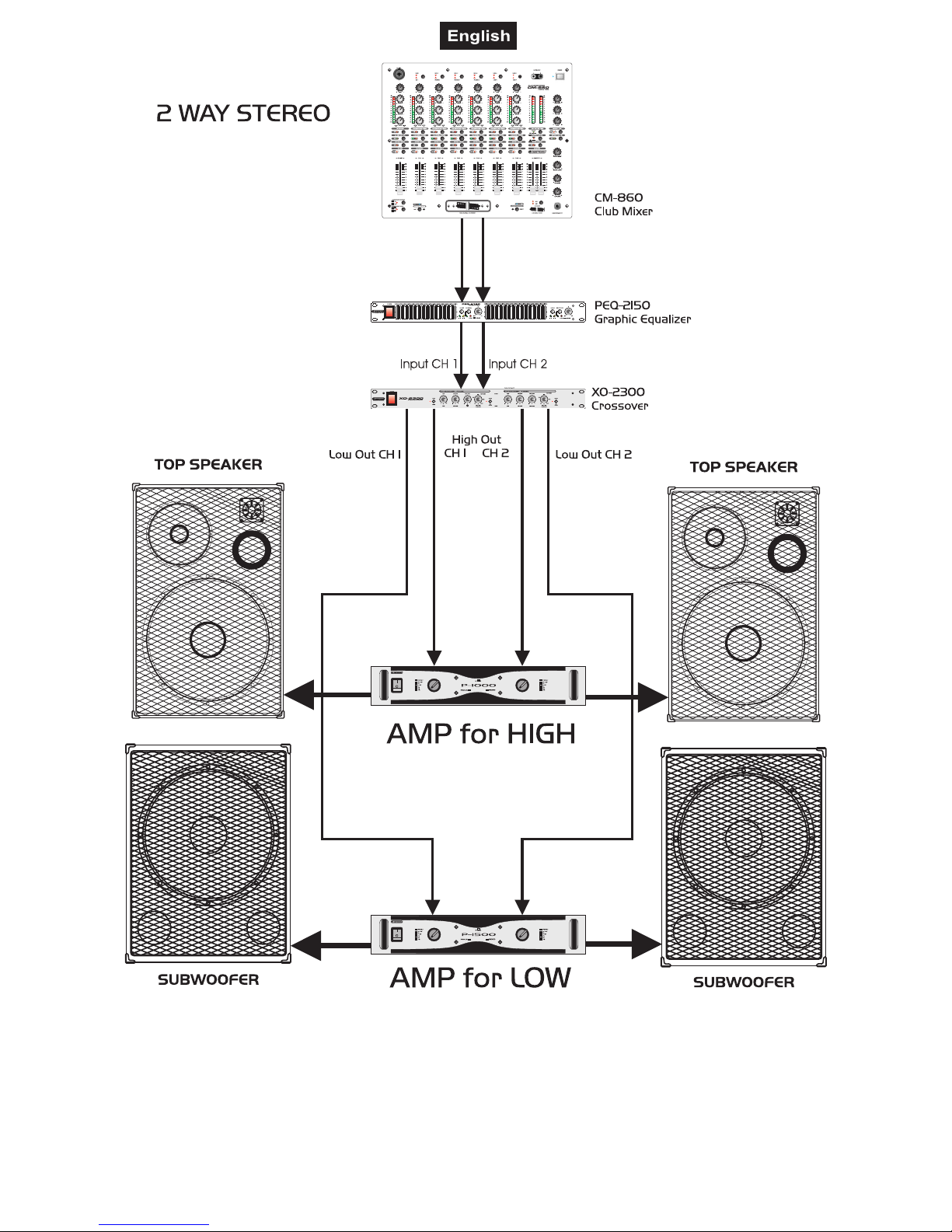

2-way stereo operation
Please switch the stereo/mono switch to 2-way stereo.
The frequency is devided into two sections marked as channel 1 (left) and channel 2 (right). This user guide
will only explain the functions of one section.
Example for setting the frequency ranges (depending on the system and the room):
Bass Highs
100 Hz - 10 kHz 100 Hz - 10 kHz
The frequency can be adjusted via the Frequency-control, depending on the Range-switch between 100 Hz
and 1000 Hz or between 1 kHz or 10 kHz (LED lit).
With the Gain-control, you can boost the incoming signal level by up to 15 dB.
With the Low Level and High Level controls, you can attenuate the respective output level in order to avoid
amplifier distorsion.
In the stero mode, both channels should be adjusted the same way.

10304055_EF.DOC
7/20

10304055_EF.DOC
8/20
2-way stereo operation with mono-subwoofer
Most common setting in discotheque appliances. Phase erasions in the bass-range can be avoided and the
system gains around 3 dB in the bass-range.
Please switch the stereo/mono switch to 2-way stereo.
The frequency is devided into two sections marked as channel 1 (left) and channel 2 (right). This user guide
will only explain the functions of one section.

10304055_EF.DOC
9/20
Example for setting the frequency ranges (depending on the system and the room):
Bass Highs
100 Hz - 10 kHz 100 Hz - 10 kHz
The frequency can be adjusted via the Frequency-control, depending on the Range-switch between 100 Hz
and 1000 Hz or between 1 kHz or 10 kHz (LED lit).
With the Gain-control, you can boost the incoming signal level by up to 15 dB.
With the Low Level and High Level controls, you can attenuate the respective output level in order to avoid
amplifier distorsion.
In the stero mode, both channels should be adjusted the same way.
3-way mono operation
Please switch the stereo/mono switch to 3-way mono.
Please adjust the desired seperation frequency between mids and highs via the Frequency-control mid/high.
Make sure that the range-switch is switched to 1:10. The frequency range ranges from 1 kHz to 10 kHz.
The portion of the mids can then be cut via the Mid Level-control.
The portion of the highs can then be cut via the High Level-control.
Example for setting the frequency ranges (depending on the system and the room):
Bass Mids Highs
20-550 Hz 550-6000 Hz 6000-18000 Hz
Please adjust the desired seperation frequency between lows and mids via the Frequency-control low/mid.
Make sure that the relation-switch is switched to 1:1. The frequency range ranges from 100 Hz to 1000 Hz.
The portion of the bass can then be cut via the Low Level-control.

10304055_EF.DOC
10/20

10304055_EF.DOC
11/20
CLEANING AND MAINTENANCE
Disconnect from mains before starting maintenance operation!
DANGER TO LIFE!
We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use
alcohol or solvents!
There are no servicable parts inside the device except for the fuse. Maintenance and service operations are
only to be carried out by authorized dealers.
Replacing the fuse
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Please note: This fuse is being used for both 115 V and 230 V.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Open the fuseholder on the rearpanel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuseholder.
Step 3: Install the new fuse in the fuseholder.
Step 4: Replace the fuseholder in the housing.
Should you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, it has to be replaced by a special power supply
cable available at your dealer.
Should you have further questions, please contact your dealer.
TECHNICAL SPECIFICATIONS
Power supply: 230 V AC, 50 Hz
Power consumption: 18 W
Slope: 24 dB / octave
Operation-modes: 2-way-stereo or 3-way-mono
Input: Mono/stereo
Input impedance: > 30,000 Ohms
Input jacks: 1/4" jack socket balanced and unbalanced
Output: Mono/stereo
Output impedance: 500 Ohms
Output jacks: 1/4" jack socket balanced and unbalanced
Frequency range: 100 Hz - 10,000 Hz
Control range: - ~ to + 6 dB
Dimensions: 483 x 44 x 160 mm
Weight: 2 kg
Fuse: T 0,25 A, 250 V
Please note: Every information is subject to change without prior notice. 09.01.2003 ©
