Once BioShift 24-0230 User manual

BioShift Pass-Through UV-C Germicidal
Chamber - Instruction Manual
This manual provides user guidelines and additional operation
instructions for the A1 BioShift Pass-Through UV-C Germicidal Chamber.
(Model 24-0230)
For service or parts call your
sales representative, visit our website:
www.once.lighting/uv-c
Or contact us at:
Once Inc.
United States
15255 23rd Ave N
Plymouth, MN 55447
[phone]
[email protected]om
Germany
Am Südfeld 7
49377 Vechta
[phone]
info[email protected]
Poland
Wloclawska 167
87-100 Tourn
[phone]
info[email protected]

TABLE OF CONTENTS
Introduction ................................................................................................................................................ 2
Specications .............................................................................................................................................. 3
Safety ......................................................................................................................................................... 4-5
Installation ................................................................................................................................................... 6
Touchscreen Display ............................................................................................................................ 7-9
Home Screen Components ................................................................................................ 7
Maintenance Screen Components .................................................................................. 8
Settings Screen Components ............................................................................................ 9
Programming ............................................................................................................................................10
Cycle Time .............................................................................................................................. 10
Sleep Timer ............................................................................................................................ 10
Maintenance ...................................................................................................................................... 11-13
Alert Notications / Errors ............................................................................................... 11
Check Lamp Life ................................................................................................................... 12
Order Replacement Lamps and Ballasts ...................................................................... 12
Changing Lamps and Ballasts ........................................................................................ 12
Reset Lamp Life .................................................................................................................... 12
Cleaning .................................................................................................................................. 13
UV-CDoseVerication..........................................................................................................13
Operating .................................................................................................................................................. 14
Contact Information .............................................................................................................................. 15

2
INTRODUCTION
Health and wellbeing is a critical component to sustain an enjoyable life. It’s why the
quality of the air we breathe and cleanliness of the items we touch every day matters.
The germicidal properties featured in the BioShift Pass-Through UV-C Germicidal
Chamber oer a proven and eective way to inactivate harmful micro-organisms. The
BioShift chamber is designed and approved for industrial and commercial uses, and is
not to be used in residential or home settings.
The BioShift chamber is a sanitation tool made easy to use alongside additional cleaning
eorts. It helps meet a wide range of end-user needs by limiting cross contamination
through the import of pathogens on everyday items like cell phones, eye glasses, and
tools.
Veried to inactivate common pathogens by a nationally recognized testing laboratory
specializing in antimicrobial, biocidal and virucidal eectiveness, the BioShift chamber
uses UV-C radiation that has been extensively researched for more than 40 years.
Note: All bacteria and viruses tested to date respond to UV-C radiation, however it is mostit is most
eective on hard surface objects.eective on hard surface objects. It may not inactivate bacteria, viruses and pathogens, in
areas of objects that are not exposed to the proper intensity and duration of UV-C radiation.
Thus,the BioShiftPass-Through UV-CGermicidalChamber ismosteectively usedinaddition
and as a complement to disinfection products and procedures, and NOT as a replacement.

3
SPECIFICATIONS
Dimensions
Outside 25.8” wide x 30.7” deep x 19.7”high (655 x 780 x 500 mm)
Weight 121 lbs (55 kg)
Functional
Operating Power / Current 110V: 137W / 1.3 A, 240V: 140W / 63 mA
Standby Power / Current 110V: 6W / 130 mA, 240V: 9W / 100mA
Input Voltage 110-240VAC, 50/60 Hz (voltage uctuation ±10%)
Transient over voltages allowed up to category II
Temporary over voltages allowed to occur on mains supply
Power Connection Connect to branch circuit rated 20A max
Fuse Protection 5x20mm, Slow Blow, 10A, 250V
Note: Disconnect main power supply before replacing fuse.
Débranchez l’alimentation principale avant de remplacer le
fusible.
Environmental
Operating 41°F (5 °C) to 104 °F (40 °C) temperature
Maximum relative humidity 80% for temperatures up to 88°F
(31°C), decreasing linearly to 50% relative humidity at 104° F (40°C)
Note: Under 41°F (5°C) temperature must run warm-up cycle before
disinfecting. See Operating section.
Storage -20 °F (-28 °C) to 140 °F (60 °C) temperature, 10-95% humidity
Note: Allow unit to reach operating temperature before use.
Pollution Degree 2
UV-C Light Source
Germicidal Lamps 30W UV-C Lamps (4)
Output 254 nm UV-C Light
Chamber Components
Controller See Touchscreen Display section.
Emergency Switch Located on both sides of the machine, buttons turn OFF
chamber in case of emergency (re, smoke, etc.).
Tray / Reective Liner The tray and reective liner rest inside the bottom of the
chamber and are removable for easy cleaning.
Windows The tempered glass windows are opaque to UV-C.
Germicidal Lamps There are four (4) 30W germicidal UV-C lamps.
Magnet Securely holds doors in closed position while running.
Door Gasket Seals chamber during operation to keep light from escaping.

4
RISK OF UV
EXPOSURE CAUTION BIOHAZARD
SAFETY
Definition of Symbols
Warning
• It is possible that emissions from this product may interfere with some sensitive
appliances when placed nearby or in the same circuit as those appliances. The
user should be aware of this potential and take appropriate measures to avoid
interference.
• Not all materials are UV-C safe. UV-C rays can cause physical damage to products.
If products are excessively warm when they are removed after cleaning, they may
have been damaged by the UV-C.
• Do not put humans or live animals in the chamber.
• Do not allow children in or near the chamber.
• Do not place ammable liquid(s) in chamber.
Lamps
The lamps inside emit short wave UV-C radiation. Overexposure to direct or reected
UV-C light can cause severe damage to the eyes and skin. Never look into an illuminated
UV-C lamp without proper eye protection. The chamber windows provide a safe way to
view inside chamber without the risk of UV-C exposure.
Use caution when handling and changing lamps, as they are subject to fracturing. The
lamps contain a small amount of mercury, a chemical known to the state of California
to cause birth defects or other reproductive harm. The mercury is contained inside the
lamp and will not be released unless the lamp is damaged. Use appropriate PPE when
handling.
The lamps are sensitive to the oils in human skin, always handle with gloves.
Disposal and Recycling
All components must be disposed of in accordance with state and local laws. Refer to
lamprecycle.org for more information.
Visit www.once.lighting/bioshift-warnings or scan the QR code for
additional warning information.

5
Note: If the equipment is used in a manner not specied by the manufacturer, the protection
provided by the equipment may be impaired.
SAFETY
Features
Emergency Stop The safety switch can be found on either side of the chamber and
can be used at any time to stop the operation. Pressing EMERGENCY
STOP disconnects all power.
Open Door(s) BioShift chamber will not operate when the doors are open. The
doors cannot be opened during cycle time unless EMERGENCY
STOP is pressed. Both doors cannot be opened at the same time
unless EMERGENCY STOP is pressed.
Interlock Logic The clean (controller side) door will remain locked until a cycle is
complete.When complete, the clean door will remain unlocked until
the dirty (start button side) door is opened, or a new cycle is started.
If a cycle is interrupted, it will start over at the beginning. The dirty
door will remain locked anytime the clean door is open. Pressing the
EMERGENCY STOP will unlock both doors.
Start Button Illuminates blue when ready to start cycle.
Chamber The sealed chamber is meant to protect users from UV-C radiation.
Window The tempered glass windows are opaque to UV-C.
Controller The controller has a countdown timer which allows the user to
monitor Lamp Life, replacement recommended after 1000 cycles,
3000 hours, or after a failed Dose Verication Test (see Maintenance
section).

INSTALLATION

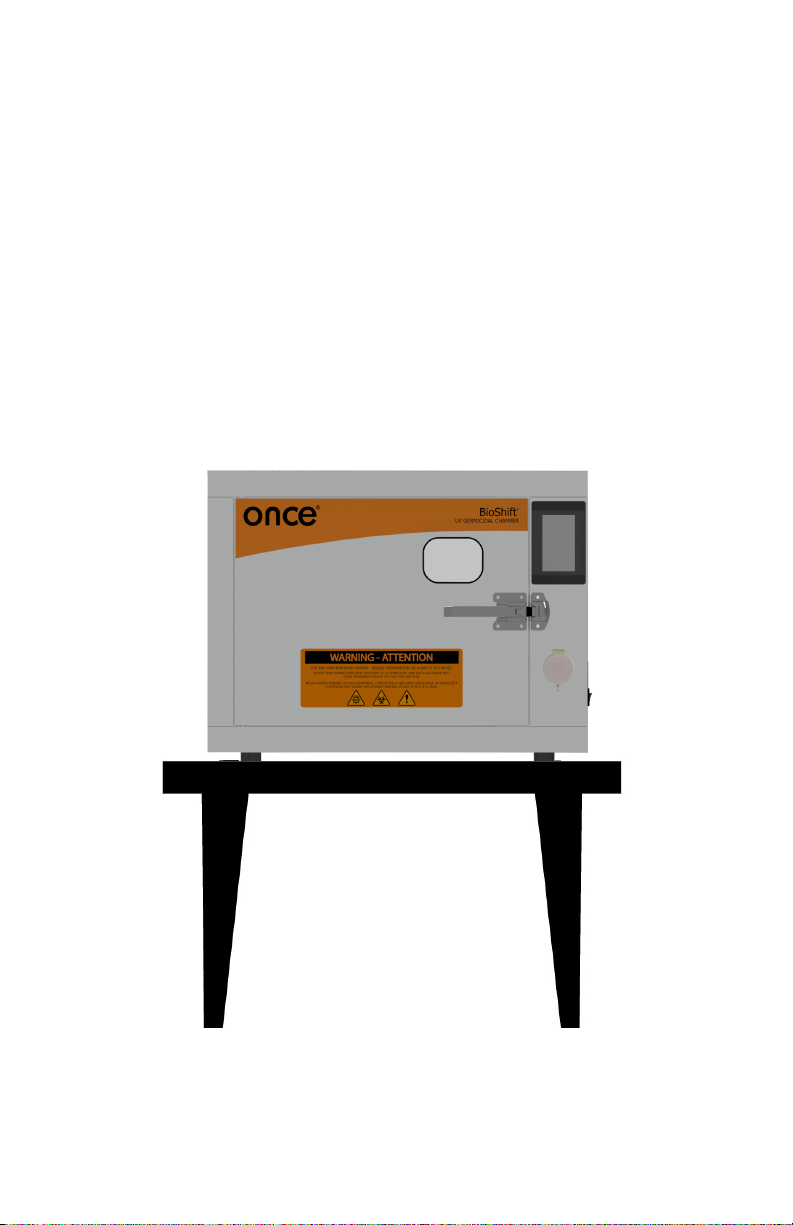

The BioShift chamber comes with four (4) padded feet on each corner to allow for easy
placement on any sturdy and hard, non-moving surface. If installing as a pass-through
unit, a 30”x 20” wall cut-out is recommended. Note: The BioShift chamber can be installed
in dry locations only (Pour emplacements secs seulement). Product is approved for indoor
use at an altitude up to 2000m.
1. Use two people to carefully lift the BioShift chamber into place.
2. Plug supplied power cord into standard electrical outlet. Note: Alternate power
cords not permitted.
Removal
Always de-energize/disconnect power before moving.
6

1
3
4
2
5
7
TOUCHSCREEN DISPLAY
The touchscreen display is located on the clean side of the BioShift chamber.

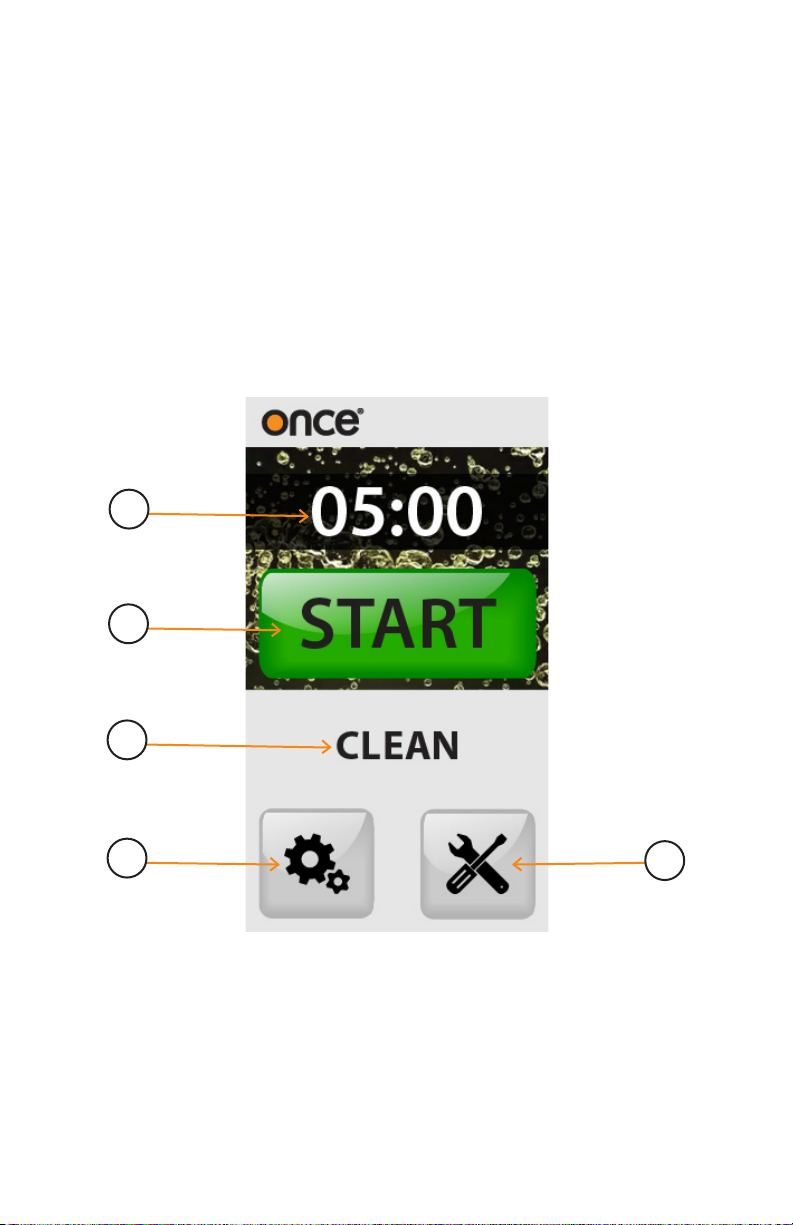

Home Screen Components
(1) Cycle Time Display
(2) Chamber Start / Stop
(3) Chamber Status
(4) Settings
(5) Maintenance

8
TOUCHSCREEN DISPLAY
Located under the Maintenance button.

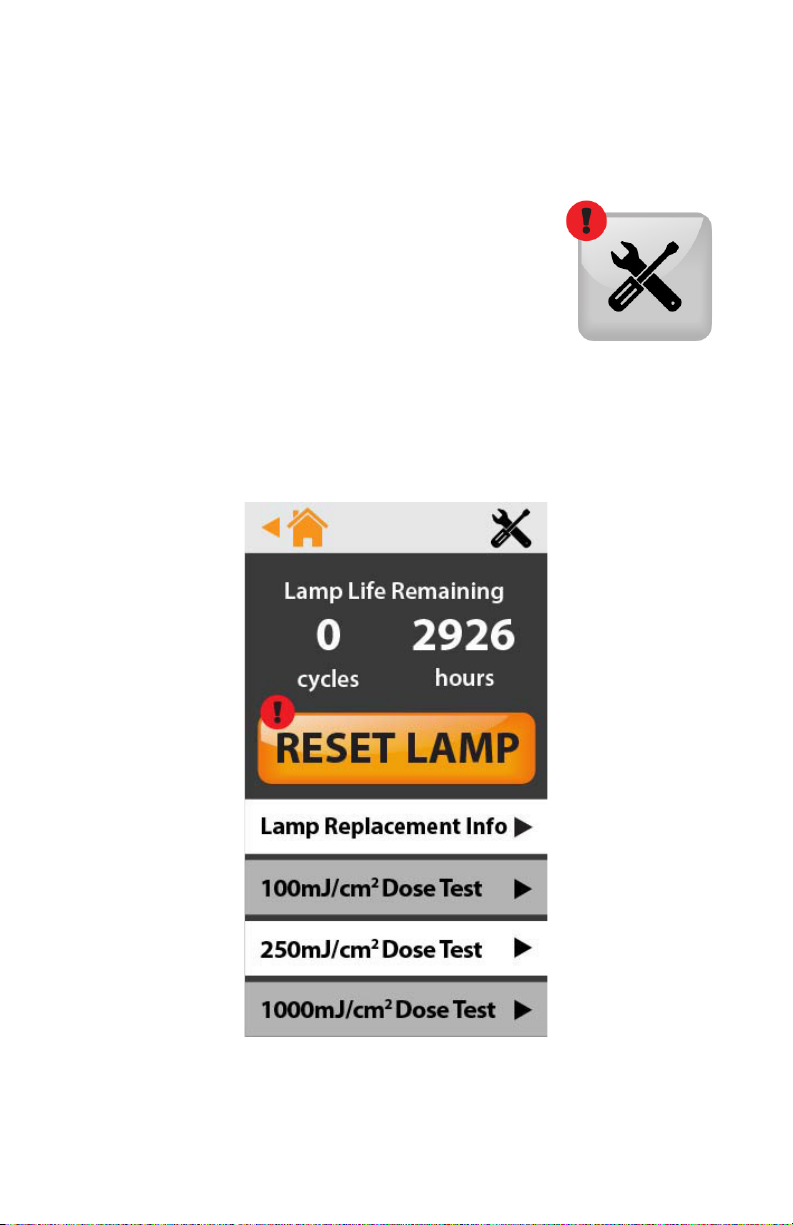

Maintenance Screen Components
(1) View Lamp Life Remaining
(2) Reset Lamp Life
(3) View Lamp Replacement Info
(4) Run 100mJ/cm2Dose Test
(5) Run 250mJ/cm2Dose Test
(6) Run 1000mJ/cm2Dose Test
1
4
2
3
5
6

9
1
4
2
3
TOUCHSCREEN DISPLAY
Located under the Home screen Settings button.
Settings Screen Components
(1) View Set Lamp Cycle
(2) Set Lamp Cycle
(3) Set Sleep Time
(4) Expired Lamp Life
(5) Contact ONCE®

10
PROGRAMMING
Cycle Time
The standard and recommended default disinfection cycle is 5 minutes. However,
the cycle time can be customized to better meet facility protocols. Note: The amount
of inactivation by UV-C radiation is proportional to the amount of exposure time.
TO SET CYCLE TIME:
• From the Home screen, choose the Settings button (see Settings Screen
Components).
• Choose the Set Cycle button. Note: The time is set by arrowing up or down,
programmed in MM:SS.
• Once desired lamp life cycle has been chosen, select the check mark to set.
PROGRAMMING ITEMS TO NOTE:
• Controller cannot be programmed if EMERGENCY STOP button(s) are pressed in.
Pressing EMERGENCY STOP button(s) disconnects all power, even to the controller.
• If disconnected from power, the BioShift chamber does not have to be reprogrammed.
Sleep Timer
In order to ensure the longest life, the BioShift chamber will automatically enter sleep
mode after 30 minutes of inactivity. This setting can be changed by following this path:
• From the Home screen, choose the Settings button (see Settings Screen
Components).
• Choose the Sleep Time option and set to desired time.
• Select the check mark to set.

11
MAINTENANCE
Alert Notifications / Errors
An alert symbol will appear in the upper left corner of the Maintenance button when
one of the following occurs:
• UV-C lamps have reached maximum cycle / hours.
• Replacement lamps have been installed and Lamp Life needs
to be reset.
Simply follow the red exclamation point to the source of the issue.
Note: Lamp life remaining will never go negative. Once it reaches zero, it will remain until
Lamp Life is reset.

12
MAINTENANCE
Note: Chamber must be de-energized and included safety glasses or other UV protective
eyewear should be used at all times when performing maintenance. The chamber must be
energized when performing UV-C Dose Verication.
Check Lamp Life
It is important to monitor Lamp Life and replace when necessary. Even though the
lamps have a long default life, they will lose their power over the course of time and
need to be changed. The remaining lamp life is always prominently displayed at the top
of the Maintenance menu (see Maintenance Screen Components).
Order Replacement Lamps and Ballasts
The information required for ordering new lamps include the lamp part number and
ONCE®contact information. This information can be found from the Maintenance screen
under Lamp Replacement Info.
30W UV-C Replacement Lamps 26-0054
110-240V Replacement Ballast 26-0052 / 929002100325
Changing Lamps and Ballasts
To replace lamps, de-energize the chamber, then simply twist the lamp and pull out
from its housing. Slide the new lamp in and twist to lock it in place. Do not use excessive
force. It is recommended that all lamps are replaced on 1000 cycle or 3000 hour intervals,
whichever comes rst, or after a failed UV-C Dose Verication. After lamps have been
replaced, press the “Reset Lamp” button in the Maintenance menu to reset the lamp life
counter.
Replace ballasts if replacement lamps fail to provide proper intensity, or if lamps fail to
ignite. Ballasts must be installed according to country, state, and local NEC to the same
standard as shipped from the manufacturer. After de-energizing the chamber, ballasts
are accessed via the removable side panel located inside the chamber and must be
securely xed to the bottom of the chamber.
Reset Lamp Life
• From the Home screen, choose the Maintenance button (see Maintenance Screen
Components).
• Choose the RESET LAMP button.
• Lamp Life will be reset to default, unless custom values have been entered in the
Lamp Life Settings menu.

13
MAINTENANCE
Cleaning
• Do not use industrial degreasers or strong solvents such as brake cleaners.
• Do not override safety features during maintenance / cleaning.
• When cleaning all reective aluminum surfaces, do not use abrasives, they will
reduce the reectivity.
• Outside: BioShift chamber can be cleaned with a damp towel. Strong solvents
or detergents are not recommended. A typical household cleaning solvent is
recommended.
• Inside: Clean inside chamber walls with ethanol (reagent grade) and a soft towel.
Be careful not to spray or apply chemicals directly on the UV-C lamps. This may
result in total lamp destruction.
• Inspect the aluminum panels, if they appear to be degrading and reducing
reectivity, consider replacing.
UV-C Dose Verification
It is important to regularly verify the UV-C dose output of the BioShift chamber to
ensure proper disinfection. Every 50 cycles or once per month, whichever comes rst,
the operator shall verify that the UV-C dose exceeds a minimum of 100 mJ/cm2in a
short, programmed test cycle. Before proceeding with the Dose Verication, ensure
the chamber has completed a full cycle within the last 5 minutes so that the lamps are
warmed up. With an empty chamber, place a card (below) face-up at the center of the
bottom tray. On the touchscreen display, select the “100 mJ/cm2Dose Test” button to
start a test cycle. Upon completion of the test cycle, the operator will evaluate the color
development of the center circle. If the center color matches the 100 mJ/cm2region, the
chamber has passed the test. If the color does not match 100 mJ/cm, all the lamps in
the chamber must be replaced. Note: Do not use dose verication as a disinfection cycle.
Replacement 100 mJ/cm2test cards (929002100327) are available from ONCE®
at www.once.lighting/uv-cdosimeter. Do not store cards in direct sunlight.

14
OPERATING
1. Ensure power switch is turned on and all Emergency Stop buttons are released.
2. Place objects in chamber following guidelines below.
• Do not stack items / supplies in the chamber.
• Leave 6” between each product in the chamber with no more than 3 across.
• Place the tallest products in the center.
• It is not recommended to put food through chamber unless it is sealed.
3. Press Start Button. When a cycle is started the timer (located on the clean side
controller) will count down. The chamber will turn OFF automatically after
programmed time (recommended 5 minutes).
4. If the BioShift chamber is kept at a temperature under 41°F (5 °C), a warm-up cycle
must be completed before beginning sanitation.
ADDITIONAL OPERATING FUNCTIONS:
• BioShift chamber doors shall not be opened during radiation cycle.
• BioShift chamber doors cannot be open at the same time under normal operation.
• In case of emergency, EMERGENCY STOP button can be pressed from either side.
• If cycle has been interrupted, the cycle will restart at the beginning of the cycle
when pressing the Start button again.
MONITORING:
• Monitoring of inserted material and lamp functions can be done through the
window on either door. Window is made with glass that blocks UV-C radiation.
• Countdown timer shows how much time in radiation cycle is left.
CONTROLLER (CLEAN SIDE):
A. If a door is open, pressing the Start button will not start the machine.
B. If the rear (dirty side) door is open, the wording REAR DOOR OPEN will appear.
C. Upon disinfection cycle completion, CLEAN will appear on the screen with the
option to Start another cycle.

15
United States
15255 23rd Ave N
Plymouth, MN 55447
[phone]
[email protected]om
Germany
Am Südfeld 7
49377 Vechta
[phone]
info[email protected]
Poland
Wloclawska 167
87-100 Tourn
[phone]
info[email protected]
Conforms to cETLus + LVD + CE (ETL CDR, IEC/
EN/ANSI/UL/CUL 61010-1 & IEC/EN/ANSI/UL/
CUL 61010-2 040 & IEC/EN 61326-1: 2013)
5018010
THANK YOU
Thank you for purchasing the
BioShift Pass-Through UV-C
Germicidal Chamber
Manual valid for all 24-0230 models
Model number can be found on product nameplate
For more information and references
visit us online at www.once.lighting/uv-c
For warranty information visit www.once.lighting/warranties
For service or parts call your
sales representative, visit our website:
www.once.lighting/uv-c
Or contact us at:
Once Inc.
