One Stop Gardens 90099 User manual

SQUARE CANOPY
8’ X 9’
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright © 2003 by Harbor Freight Tools®. All rights reserved. No portion of
this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
90099

Page 2
SKU 90099
Specifications
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using product, basic safety precautions should always be followed
to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this product!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Keep work area well lighted.
3. Keep children away. Children must never be allowed in the work area.
4. Store idle equipment. When not in use, the Canopy must be stored in a dry location
to inhibit rust. Always store the Canopy out of reach of children.
5. Use the right product for the job. Do not attempt to force a small product to do the
work of a larger industrial product. There are certain applications for which this
product was designed. Do not modify this product and do not use this product for a
purpose for which it was not intended.
6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in
parts. Protective, electrically non-conductive clothes and non-skid footwear are
recommended when working. Wear restrictive hair covering to contain long hair.
7. Use eye protection. Always wear ANSI approved impact safety goggles during
assembly.
8. Do not overreach. Keep proper footing and balance at all times.
9. Maintain products with care. Keep products clean for better and safer
performance.
10. Stay alert. Watch what you are doing, use common sense. Do not assemble the
Canopy when you are tired.
Overall Dimensions 8’ x 9’
Cover Thickness 0.025”
Cover Material Green Polyethylene
Ground Pegs Alloy Steel
Tubing White Enamel Coated Alloy Steel

Page 3
SKU 90099
11. Check for damaged parts. Before using any product, any part that appears
damaged should be carefully checked to determine that it will operate properly and
perform its intended function. Check for alignment and binding of parts; any broken
parts or mounting fixtures; and any other condition that may affect proper operation.
Any part that is damaged should be properly repaired or replaced by a qualified
technician.
12. Guard against electric shock. Prevent body contact with grounded surfaces such
as pipes, radiators, ranges, and refrigerator enclosures.
13. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use accessories
intended for use with this tool. Approved accessories are available from Harbor
Freight Tools.
14. Do not assemble if under the influence of alcohol or drugs. Read warning labels
if taking prescription medicine to determine if your judgment or reflexes are impaired
while taking drugs. If there is any doubt, do not assemble the Canopy.
15. Avoid heat sources. Never use a flame or heat source in or near your Canopy.
Situate the Canopy a safe distance from any heat source.
16. Maintenance. For your safety, service and maintenance should be performed
regularly by a qualified technician.
Warning: The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be under-
stood by the operator that common sense and caution are factors which cannot be
built into this product, but must be supplied by the operator.
Unpacking
When unpacking, check to make sure the following parts listed on page 5 are included. If
any parts are missing or broken, please call Harbor Freight Tools at the number on the
cover of this manual as soon as possible.

Page 4
SKU 90099
Assembly
Follow the Assembly Drawing on page 6.
Note: Assemble and use the Canopy on a flat, level surface. Do not situate the Canopy near
any type of heat source. Do not set up the Canopy in windy or snowy conditions. It is
suggested that two people assemble the Canopy.
1. Attach each Top Tube (#1) to the Top Joint (#8).
2. Attach an Upper Tube (#2) to each Top Tube (#1).
3. Attach a Corner Joint (#7) to the end of each Upper Tube (#2).
4. Insert a Cross Tube (#3) on each side of the Corner Joint (#7).
5. Insert and attach a Mid Cross Tube (#4) between each of the Cross Tubes (#3) on each
side, as shown on the Assembly Drawing on page 6.
6. Now that the roof structure is assembled, drape the Canopy over it making sure the leg
sections of the Canopy correspond with each corner. Connect each of the velcro ties on the
Canopy to the Mid Cross Tube (#4) on each side.
7. Put a Base Plate (#11) on the bottom of each Lower Leg (#6).
8. Attach an Upper Leg (#5) to the other side of each Lower Leg (#6).
9. Attach the Upper Leg (#5) to the Corner Joint (#7).
10. Repeat with three other corners. Over each leg, fold down the Canopy leg cover
sections on each corner.
11. In each corner, insert a Ground Peg (#10) through the triangular brace inside the corner
tube of the Canopy, through the “D” ring and then firmly into the ground.
12. Repeat on the other three corners.
Maintenance
1. Check the frame structure for bend, cracks, or breaks. If any are discovered, disassemble
the Canopy and have the affected tubes replaced.
2. Check the Canopy for fraying or tears. If any are discovered, disassemble the Canopy
and have the Canopy repaired.
3. Do not let dirt, leaves, or any debris build up on the Canopy.

Page 5
SKU 90099
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS
MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU-
TOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER
REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List
Part No. Description Qty.
1 Top Tube 4
2 Upper Tube 4
3 Cross Tube 8
4 Mid Cross Tube 4
5 Upper Leg 4
6 Lower Leg 4
7 Corner Joint 4
8 Top Joint 1
9 Polyethelene Cover 1
10 Ground Peg 4
11 Base Plate 4

Page 6
SKU 90099

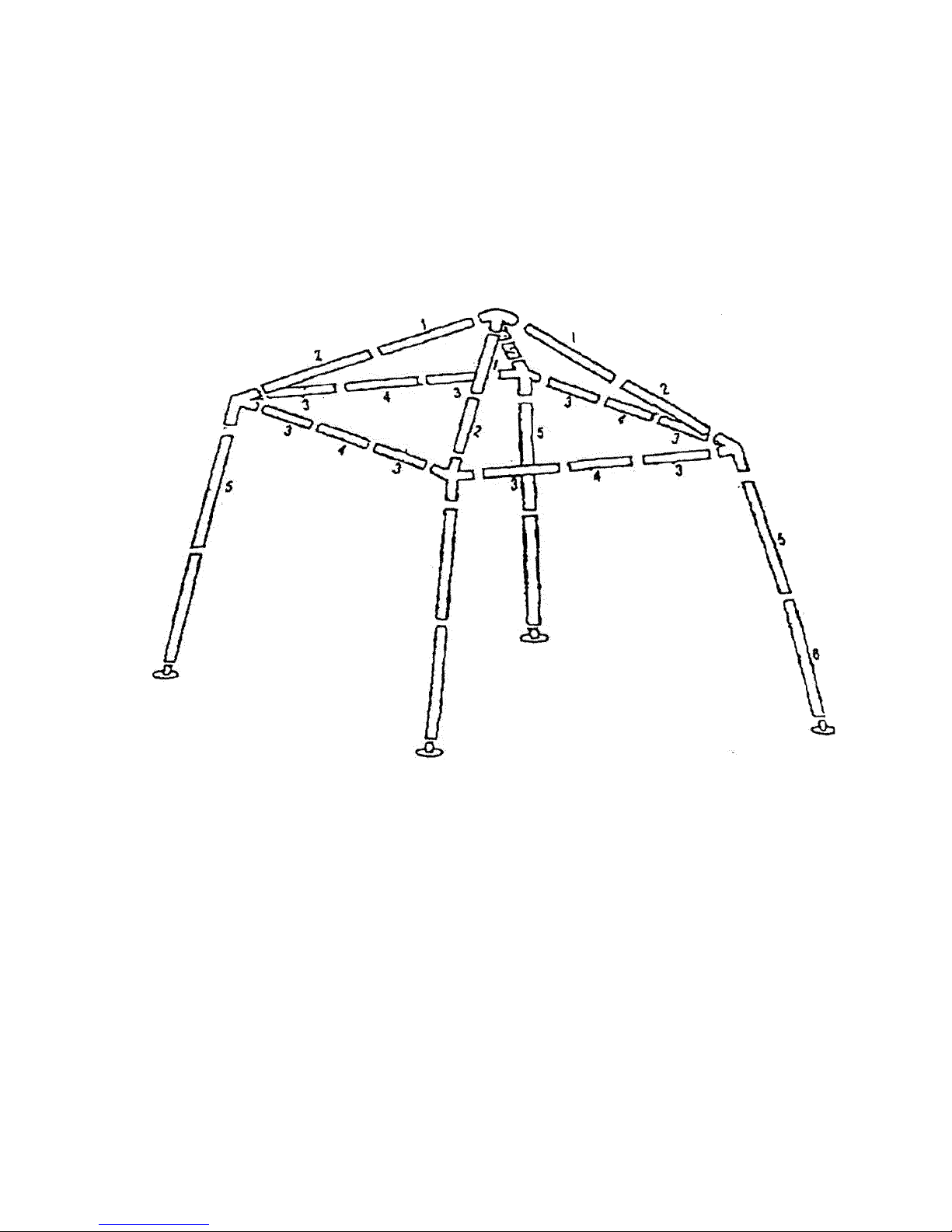

Assembly Drawing
5
11
11
11
11
6
6
6
8
7
7
7
NOTE: Some parts are listed and shown for illustration purposes only and are not available indi-
vidually as replacement parts.
