One Stop Gardens Greenhouse 6 Ft. X 6 Ft. Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 17h
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2017 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 63781
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 3
Assembly Instructions................................. 4
Maintenance .............................................. 13

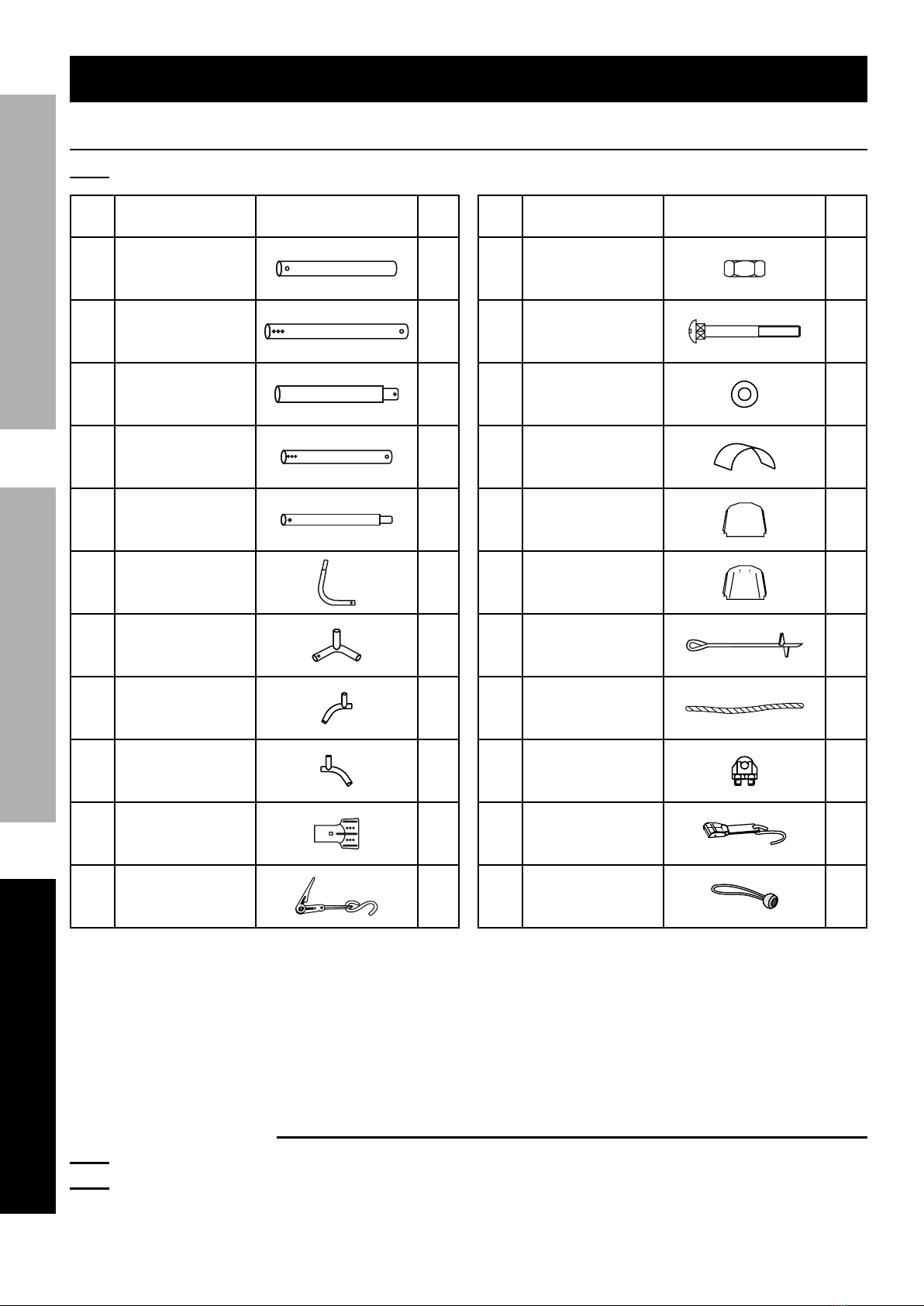

Parts List and Diagram .............................. 14
Warranty .................................................... 16
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
assembly and/or use.
WARNING marking concerning
Risk of Head Injury. Wear hard hat
during assembly and service.
WARNING marking concerning Risk
of Hand Injury. Wear heavy-duty work
gloves during assembly and service.
IMPORTANT SAFETY INFORMATION
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in serious injury.
Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense
and caution are factors which cannot be built into this product, but must be supplied by the operator.
SAFETY ASSEMBLY MAINTENANCE

Page 3For technical questions, please call 1-888-866-5797.Item 63781
Assembly Precautions
1. Do not assemble in windy conditions.
2. Assemble and install only in a flat, level
area that is sheltered from the wind.
3. Assemble and anchor only according to
these instructions. Improper assembly or
inadequate anchoring can create hazards.
4. Check for utility lines, tree branches and
other structures before assembling.
5. Verify that installation surface has no
hidden utility lines before anchoring.
6. Wear ANSI-approved safety goggles and
heavy-duty work gloves during assembly.
7. Keep assembly area clean and well lit.
8. Keep bystanders out of the area during assembly.
9. Do not assemble when tired or when under the
influence of alcohol, drugs or medication.
10. Product capabilities apply to properly and
completely assembled product only.
Use Precautions
1. DO NOT USE IN HIGH WIND. Remove cover
if harsh weather or heavy rain threatens.
2. For temporary use only.
Do not use as a permanent structure.
3. Do not use as tent. Does not meet tent
flammability standards. Do not smoke
or use grill, heater, or ignition sources
inside or near Greenhouse. Risk of fire!
Greenhouse is not flame retardant.
4. Do not operate any fuel burning device inside
the Greenhouse. Asphyxiation hazard!
5. SNOW / DEBRIS ACCUMULATION HAZARD.
Do not allow snow, rainwater or debris
to accumulate or pool on top of the
Greenhouse. DO NOT enter a greenhouse
with accumulated debris on top.
6. This product is not a toy. Do not allow
children to play with or near this item.
7. Use as intended only.
8. Inspect regularly, tighten all loose hardware
and loose ropes, and secure all loosened
anchors. If any parts are damaged, bent, or
stretched, they must be replaced. Hardware
may loosen during normal operation stresses.
Loose hardware or damaged/altered parts will
compromise the structural integrity of this product.
9. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
SAVE THESE INSTRUCTIONS.
Specifications
Overall Dimensions 6' L x 5' 10" W x 6' H
SAFETYASSEMBLYMAINTENANCE

Page 4 For technical questions, please call 1-888-866-5797. Item 63781
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
Note: For additional information regarding the parts listed in the following
pages, refer to Parts List and Diagram on page 14.
TO PREVENT SERIOUS INJURY: Do not leave this product partially assembled.
Assemble this product completely at one time.
Note: At least 3 workers are required for assembly. Before starting assembly, review the instructions and make
sure there is enough time and the proper tools available to properly assemble. Assemble on a flat, level surface.

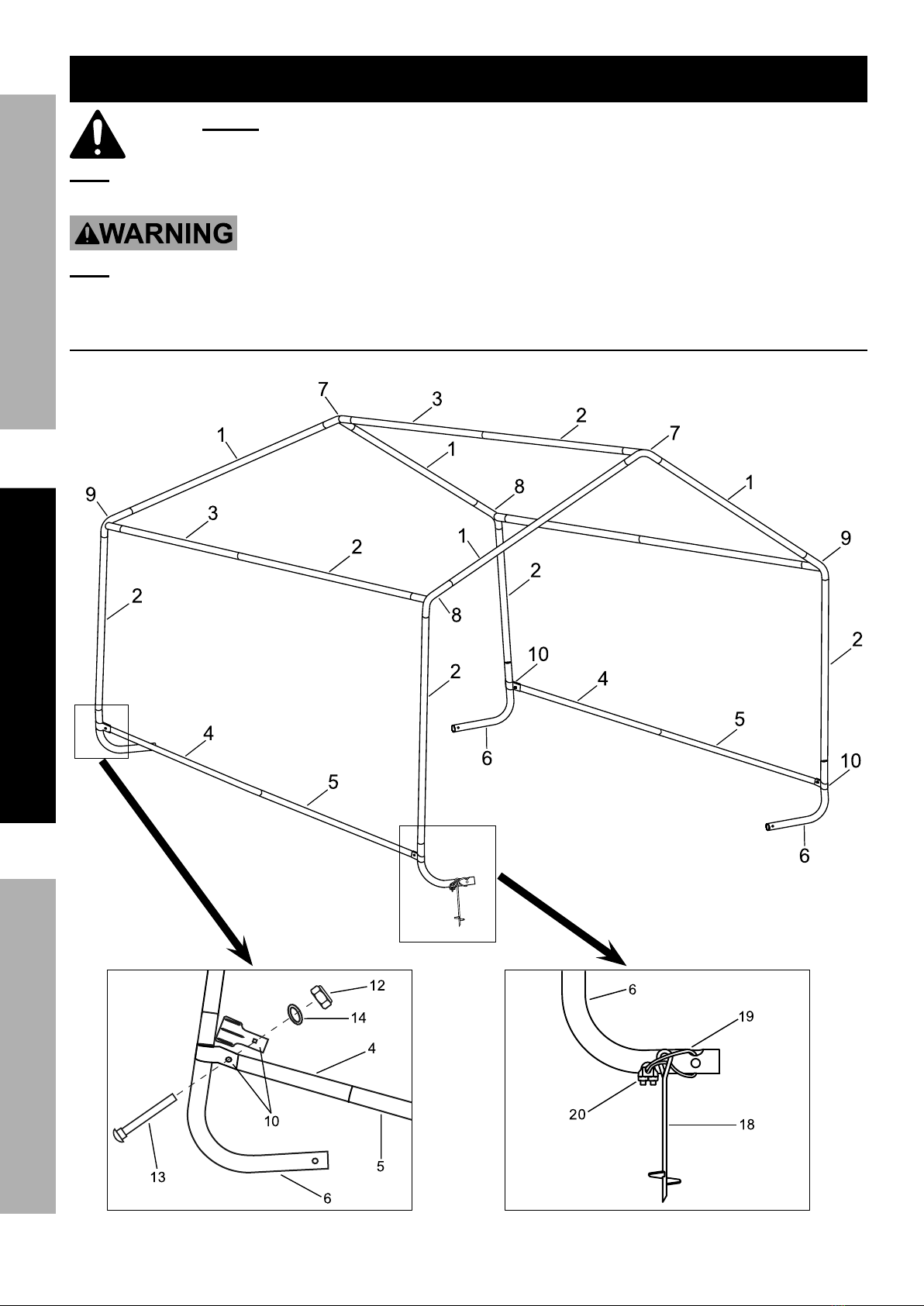

Frame Assembly Overview
SAFETY ASSEMBLY MAINTENANCE

Page 5For technical questions, please call 1-888-866-5797.Item 63781
Roof Frame Assembly
Note: Much of this product’s assembly is done using slip fit construction. Make sure all parts seat completely
and securely. A rubber mallet (sold separately) can be used to gently tap parts in place to ensure a tight fit.
Figure A: Roof Assembly Overview
1. Assemble ridge using an Extension Pole (2) connected to a Joist (3) with a 3-Way Ridge Connector (7)
on each end. The combined Extension Pole / Joist assembly (2, 3) connects to the straight ends
of the Connectors and the curved, free ends of the Connectors are angled down, as shown.
Figure B: Ridge Assembly
2. Connect a Rafter (1) to each free end of the 3-Way Ridge Connectors (7), as shown.
Figure C: Rafter Assembly
SAFETYASSEMBLYMAINTENANCE

Page 6 For technical questions, please call 1-888-866-5797. Item 63781
3. Assemble a roof side rail using a 3-Way Side Connector B (9), an Extension Pole (2) connected to a Joist (3),
and then a 3-Way Side Connector A (8) on the far end.
The combined Extension Pole / Joist assembly (2, 3) connects to the straight ends of the Connectors,
and the curved ends of all Connectors must face up angled the same direction, as shown.
If that is not the case, incorrect Connectors were used, or they were assembled backwards.
Figure D: Roof Side Rail Assembly
4. Assemble a second identical roof side rail by repeating the instructions in step #3.
5. Connect the roof side rail assemblies to the ends of the Rafters (1), as shown below.
Figure E: Roof Side Rail Installation
6. Make sure all parts assembled up to this point are firmly joined together.
Tap parts together gently with a rubber mallet (sold separately) if needed.
Leg Assembly
Assemble an Extension Pole (2) to each of
four Corner Legs (6) as shown.
Figure F: Corner Leg Assembly
SAFETY ASSEMBLY MAINTENANCE

Page 7For technical questions, please call 1-888-866-5797.Item 63781
Leg Assembly Installation
1. Have assistants raise one side of the roof assembly.
2. Install two corner leg assemblies (2, 6) into the 3‑Way Side Connectors A / B (8, 9)
with the Corner Legs (6) facing inward.
Figure G: Leg Assembly Installation
3. After the first two legs (2, 6) are in place, rest that side of the assembly on the ground, and raise the other side.
4. Install two remaining corner leg assemblies (2, 6) on the other side of the roof, as explained in step #2, above.
Figure H: Leg Assemblies Installed on Both Sides
5. Make sure all parts assembled up to this point are firmly joined together.
Tap parts together gently with a rubber mallet (sold separately) if needed.
SAFETYASSEMBLYMAINTENANCE

Page 8 For technical questions, please call 1-888-866-5797. Item 63781

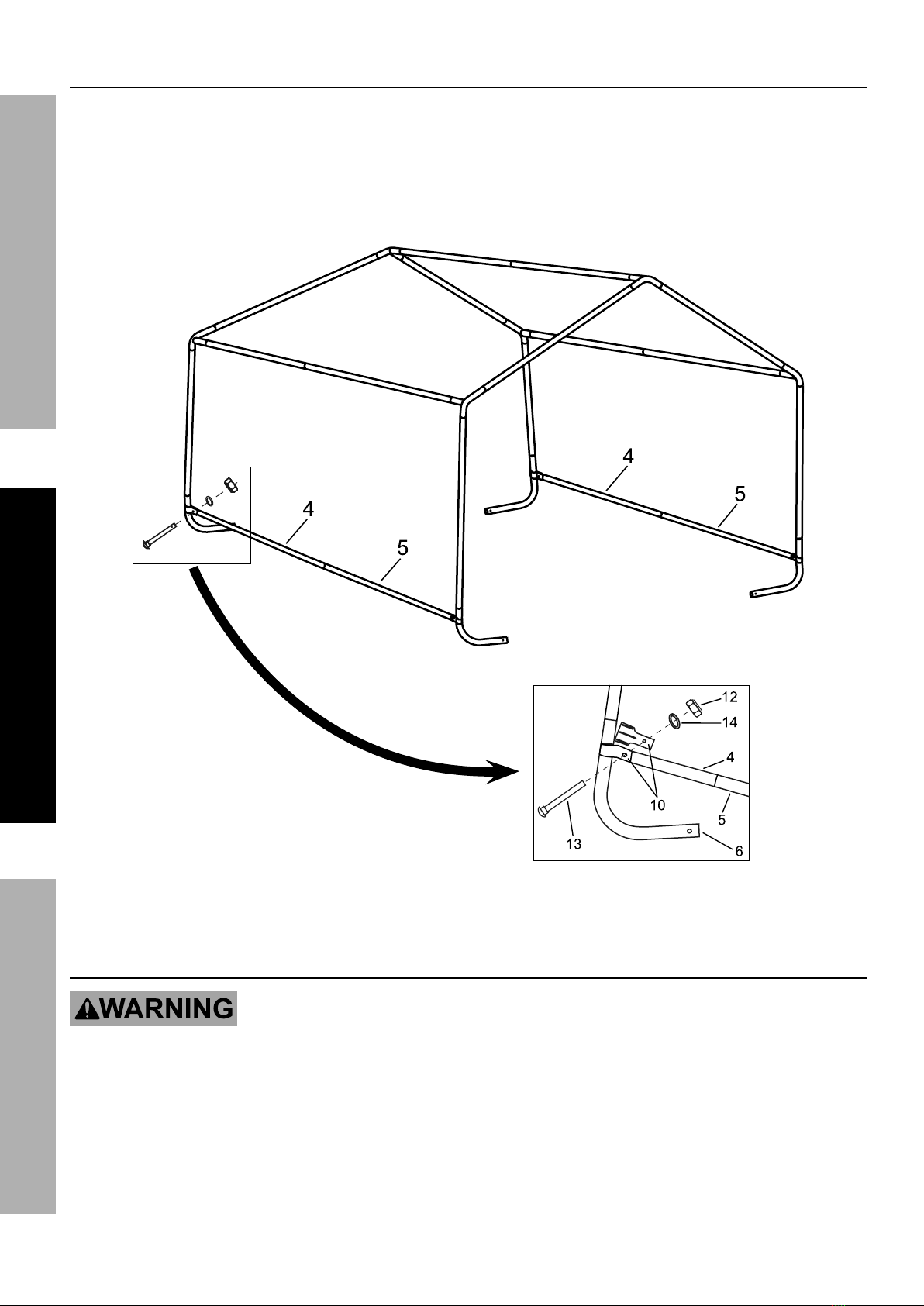

Bottom Rail Assembly
1. Assemble the two bottom cross rails by connecting Bottom Rail A (4) to Bottom Rail B (5).
2. Attach the combined Bottom Cross Rail assemblies (4, 5) to the Corner Legs (6)
using 3‑Way Bottom Rail Clamps (10), M6 Nuts (12), M6 x 40 Bolts (13), and M6
Washers (14), as shown below. Only finger tighten the Nuts at this point.
3. Make sure that both Bottom Rails are of the same height from the ground, then tighten all Nuts.
Figure I: Bottom Rail Installation
Anchoring Frame
TO PREVENT SERIOUS INJURY: Contact local utility companies to ensure that the installation area is
free of pipes, cables, and other hazards BEFORE installing anchors or choosing installation area.
1. Position the frame in the desired installation location.
The location must be flat, level, and stable with good locations for the Anchors (18).
2. Level the frame end-to-end and side-to-side.
SAFETY ASSEMBLY MAINTENANCE

Page 9For technical questions, please call 1-888-866-5797.Item 63781

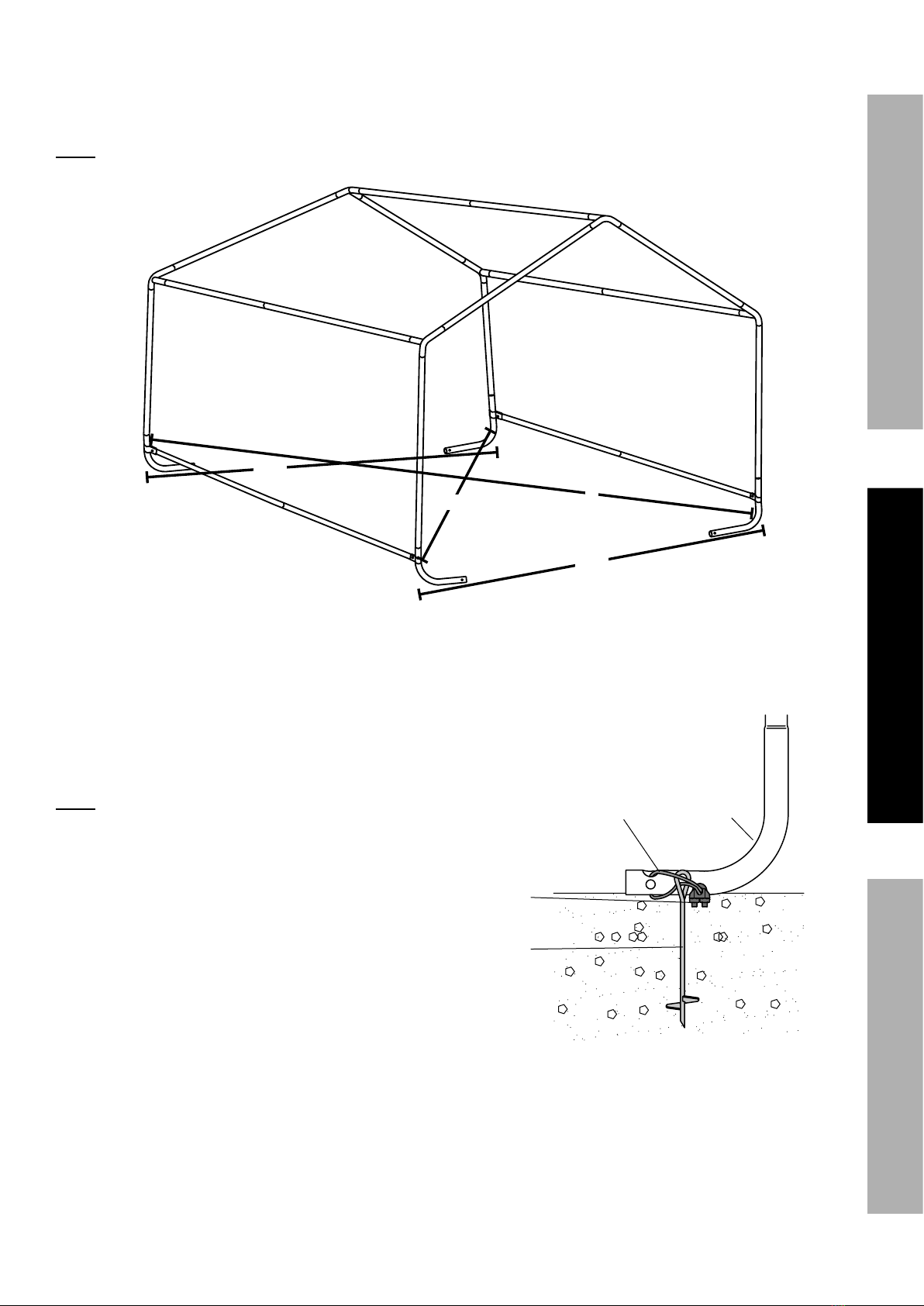

3. Measure the width of the frame at front and back. It should be 6' wide.
The distance diagonally in one direction should be equal to the distance diagonally in the other direction.
If any measurements do not match, adjust the frame and retake measurements
until they are equal within a reasonable tolerance.
Note: If measurements cannot be made correct, then parts may not be seated together properly.
6'
A
B
6'
Figure J: Verify and Adjust Frame Measurements
4. Once the frame is positioned, leveled, and squared,
anchor the four Corner Legs (6) as follows:
a. Thread the Anchor (18) into the ground near
the Corner Leg (6) until the top of the Anchor
only extends about 3" above the ground.
Note: Verify that there are no utility lines
nearby before driving Anchors. If there are rocks
or other obstacles, holes may need to be
drilled first to allow proper anchoring.
b. Insert a Cable (19) through the Anchor and
through the Corner Leg, as shown.
c. Pull the Cable tight and secure it using a
Cable Clamp (20). Make sure both ends of the
Cable go through the Clamp. Tighten the two nuts
on the Cable Clamp evenly to secure the Cable.
d. Repeat for all four Anchors and Corner Legs. Figure K: Anchoring
619
20
18
SAFETYASSEMBLYMAINTENANCE

Page 10 For technical questions, please call 1-888-866-5797. Item 63781
Door and Back Cover Installation
1. Position the Door Cover (17) near where you want the front of the Greenhouse, and turn it so that the zipper
faces the outside of the Greenhouse, and the warning tag faces inside.
2. Locate the webbed strap that runs through the hem on the Cover flaps and around
the perimeter of the Cover. Thread each end of the strap at the bottom of the Cover
through the spindle of a Clasp (21) to keep the strap in place during assembly.
3. From the inside, place the gap at the top center of the Door Cover around the
3-Way Ridge Connector (7) and wrap the Cover flaps around the Rafters (1), as
shown below. Unlock the strap buckle, slip the strap around the 3-Way Ridge
Connector and relock the buckle.
Note that the Door Cover’s flaps wrap around the Rafters, and the strap is positioned inside the frame.
DO NOT ATTEMPT TO INSERT ANY FRAMEWORK TUBING INTO THE HEM ON THE COVER FLAPS.
Zipper
17
7
8
9
7
1
Hem on
Cover flap.
Strap Buckle
Figure L: Door Cover Installation
4. Repeat step #3 for the 3-Way Side Connectors A/B (8, 9) so that the
Door Cover (17) looks as shown in the illustrations above.
5. Use the previously attached Clasps (21) to attach the Cover to the
Corner Legs (6). Insert the S-Hooks on the Clasps into the inside holes on the
Corner Legs. Pull strap to tighten. Refer to Figure M: Securing Door Cover.
NOTICE: Excessive tightening will damage straps, Covers, and Corner Legs.
6. Repeat steps #1 – 5 above to install the Back Cover (16)
to the other end of the Greenhouse.
Clasp
21
6
Figure M: Securing
Door Cover
SAFETY ASSEMBLY MAINTENANCE

Page 11For technical questions, please call 1-888-866-5797.Item 63781

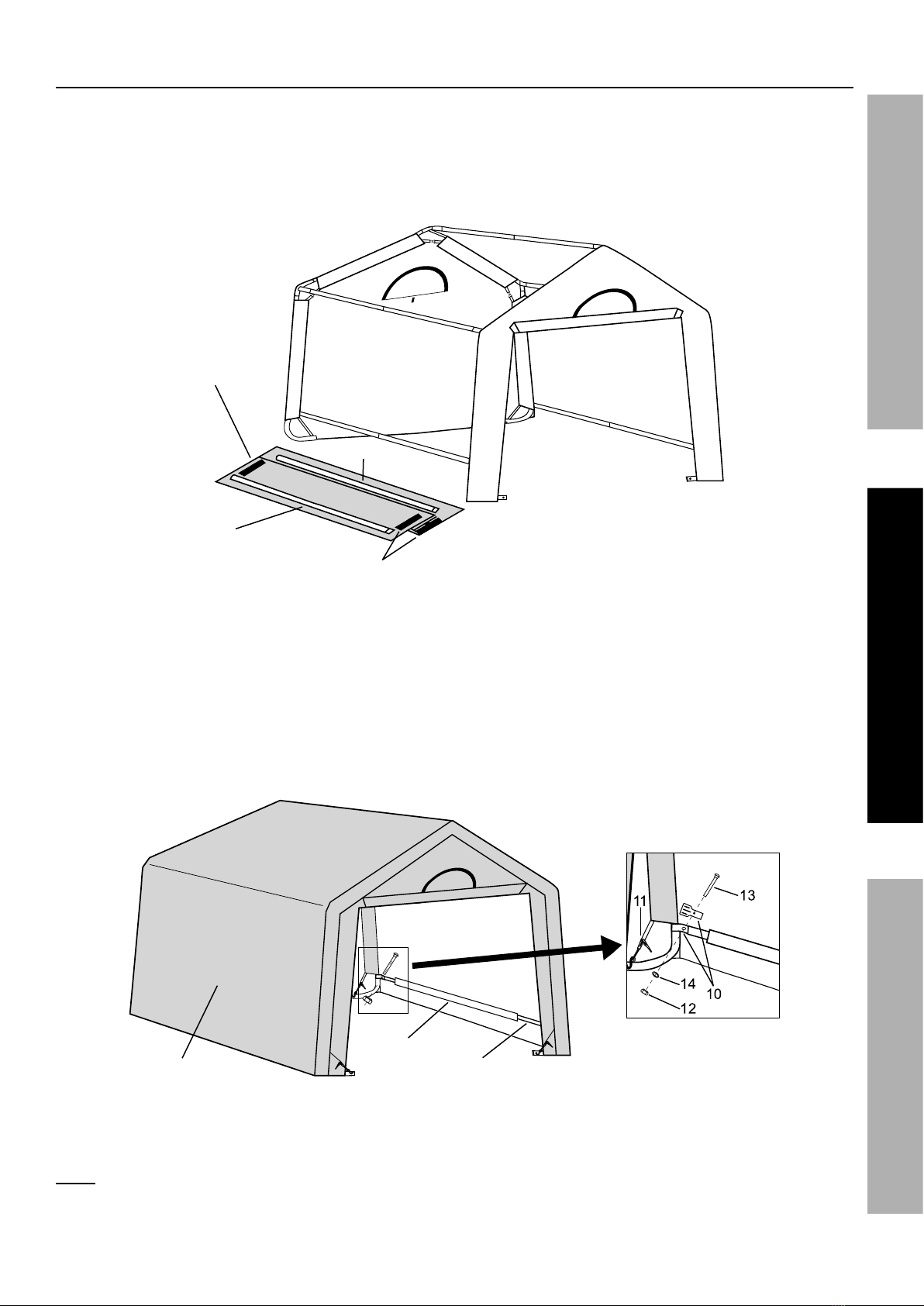

Roof Cover Installation
1. Lay the Roof Cover (15) on the ground next to the frame. Make sure that the edges with black straps are
alongside the Door/Back Covers (16, 17) with the fabric tubes facing upwards. Refer to Figure N: Roof Cover.
2. With assistance, pull the Cover over the frame. Make sure that the Roof Cover is centered on the frame. Use
a ladder if necessary. If small adjustment is needed, two people should pull together from the same end of the
Greenhouse so that the Roof Cover does not become twisted.
Fabric Tube
Black
Straps
15
Fabric
Tube
Figure N: Roof Cover
3. Remove the M6 Nuts (12), M6 x 40 Bolts (13), M6 Washers (14), and 3‑Way Bottom Rail Clamps (10) to detach
one Bottom Rail assemby (4, 5). Insert the Bottom Rail assembly into the fabric tube on one side of the
Roof Cover (15), as shown below. Reattach the Bottom Rail to the Corner Legs (6) using the just-removed
hardware. Only finger tighten the Nuts at this point.
4. Repeat step #3 above for the other side of the Roof Cover.
5. Make sure the Bottom Rails are level, horizontal, and of the same
height from the ground, then tighten all Nuts (12).

Fabric
Tube Bottom
Rail
15
Figure O: Insert Bottom Rails
6. Secure the four corners to the Corner Legs (6) using Ratchet Tie-Downs (11).
Refer to Securing Ratchet Tie-Downs on page 12.
Note: The bottom edges of the Roof Cover below the Bottom Rails may be rolled
up and secured with the Ball Tie-Downs (22) for ventilation if required.
SAFETYASSEMBLYMAINTENANCE

Page 12 For technical questions, please call 1-888-866-5797. Item 63781
Securing Ratchet Tie-Downs
1. Thread the strap through the spindle of the
Ratchet Tie-Down (11) as far as it will go.
2. Insert the S-hook of the Ratchet Tie-Down
into the outside hole in the Corner Leg (6).
3. Lift and lower the Ratchet’s handle to wind
and tighten the strap onto the spindle.
NOTICE: Excessive tightening will damage
straps, Covers, and Corner Legs.
Figure P: Threading Strap Through Spindle
Figure Q: Inserting Hook into Corner Leg
Figure R: Tightening Ratchet
Releasing Ratchet Tie-Downs
1. Depress the spring-loaded bar on the handle.
2. Open ratchet handle completely.
3. Unwind the strap.
Figure S: Releasing Ratchet
SAFETY ASSEMBLY MAINTENANCE

Page 13For technical questions, please call 1-888-866-5797.Item 63781
Maintenance
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM PRODUCT FAILURE:
Do not use damaged products. If damage is noted, have the problem corrected before further use.
Inspection
MONTHLY, inspect the general condition of the Greenhouse. Check for:
• loose ratchet tie downs, anchors, tube connections, and rail clamps (tighten as needed)
• torn or frayed covers, ropes, or cables
• cracked, bent, or broken parts
• any other condition that may affect its safe operation.
Cleaning
1. Immediately remove any accumulated debris from the cover with a broom, mop, or
other soft-sided instrument from the outside. DO NOT use sharp instruments.
2. PERIODICALLY, clean cover with mild soap and water. DO NOT use bleach or harsh abrasive products.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LISTS IN THIS DOCUMENT
AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO
MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS
OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES
THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
SAFETYASSEMBLYMAINTENANCE

Page 14 For technical questions, please call 1-888-866-5797. Item 63781
Parts List and Diagram
Parts List
Note: Individual part illustrations not to scale.
Part Description Illustration Qty
1 Rafter 4
2 Extension Pole 7
3 Joist 3
4 Bottom Rail A 2
5 Bottom Rail B 2
6 Corner Leg 4
73-Way Ridge
Connector 2
83-Way Side
Connector A 2
93-Way Side
Connector B 2
10 3-Way Bottom
Rail Clamp 8
11 Ratchet Tie-Down 4
Part Description Illustration Qty
12 M6 Nut 4
13 M6×40 Bolt 4
14 M6 Washer 4
15 Roof Cover 1
16 Back Cover 1
17 Door Cover 1
18 Anchor 4
19 Cable –1′ (30 cm) 4
20 Cable Clamp 4
21 Clasp 4
22 Ball Tie-Down 4
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
SAFETY ASSEMBLY MAINTENANCE

Page 15For technical questions, please call 1-888-866-5797.Item 63781
Assembly Diagram
SAFETYASSEMBLYMAINTENANCE

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
