ONELAN STB-HD-1 User manual

PRELIMINARYINSTALLATIONMANUAL
STB-HD-1
HD IP Receiver Box
ONELAN Limited
Andersen House, Newtown Road,
Henley-on-Thames, Oxfordshire. UK, RG9 1HG
Tel: [phone] Fax: [phone]
Web site: www.onelan.com

TABLEOFCONTENTS
SAFETYPRECAUTIONS...................................................................................................................................3
PACKAGECONTENTS......................................................................................................................................3
PRODUCTDESCRIPTION.................................................................................................................................4
SPECIFICATIONS.............................................................................................................................................5
UNPACKINGandINSPECTION..........................................................................................................................................................................6
HARDWAREINSTALLATIONandCONNECTIONS....................................................................................................................................6
RemoteControl.............................................................................................................................................7
ProceduretoconnecttotheReceiverBoxviatheIPInputport.....................................................................8
StepstosetupchannellistthroughUSBdiskforIPTV..................................................................................11
SetupchannellistthroughURLforIPTV.......................................................................................................11
∎ PrepareChannelListbyControlCenter........................................................................................................................................................11
∎ StepstoDeployReceiverBoxtoRetrieveChannelList..........................................................................................................................12
SetupchannellistwithoutusingControlCenter...........................................................................................13
HDReceiverBoxNotes................................................................................................................................14

SAFETYPRECAUTIONS
The presence of this symbol is to alert the installer and user to the presence of
uninsulated dangerous voltages within the product’s enclosure that may be of sufficient
magnitude to produce a risk of electric shock.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS DEVICE
TO RAIN OR MOISTURE. DO NOT OPEN THE UNIT. REFER SERVICING TO QUALIFIED
PERSONNEL ONLY.
DO NOT apply power to the unit until all connections have been made, all components have been installed
and all wiring has been properly terminated.
DO NOT terminate, change or uninstall any wiring without first disconnecting the unit’s power adapter from
the device.
This device is supplied with the appropriately rated 12VDC power supply with the center pin positive. The
use of any other power supply could cause damage and invalidate the manufacturer’s warranty.
DO NOT power on the unit until all cables and connections to the device have been properly connected.
The device should be installed in an environment consistent with its operating temperature specifications.
Placement next to heating devices and ducts is to be avoided as doing so may cause damage. The device
should not be placed in areas of high humidity.
DO NOT cover any of the device’s ventilation openings.
If the device has been in a cold environment allow it to warm to room temperature for at least 2 hours
before connecting power.
PACKAGECONTENTS
This package contains:
One STB-HD-1 Receiver Box
One Remote Control
One IR Receiver
One Adaptor
One installation / configuration manual
Inspect the package before starting installation to ensure there is no damage and all supplied contents are
present. Contact your distributor or dealer should the device be damaged or package contents are incomplete.

PRODUCTDESCRIPTION
ONELAN's STB-HD-1 is a cost-effective HD IP Receiver Box which receive high/standard
definition audio/video based on MPEG-2, H.264/AVC content. The receiver box accepts IP
Input and with HDMI and/or Component video output to TV. The compact design saves space
and is easily controlled via a friendly graphical user interface (GUI) for rapid deployment. It
will definitely bring you to the world where you can experience lots of fun and entertainment.
Features:
Video resolution: Up to 1080p
HDMI and/or Component Output
MPEG-2, H.264/AVC HD/SD stream decoding
10/100M Base-T RJ45, Auto MDI/MDIX
IGMP multicasting programs
Support USB2.0 disk FAT format only
Easy installation and use
Web GUI for setup and control
Light weight and compact design

SPECIFICATIONS
*Specifications subject to change without prior notice
Specifications
Audio
Mode Stereo, Dual, Joint Stereo and Mono
Audio Format MEPG-2 Layer 1 and Layer 2, MP3, and Linear PCM (LPCM)
Output Connection 1 Set RCA Jack for Base Band
Volume Control Stepping Adjustment
Video
Video Format
Display Pixel 1080P, 1080i, 720P, 576P, 576i, 480P, 480i
GENERAL
Operating temperature
Storage temperature
Power Supply 12VDC
Languages English
Dimensions 146mm (W) x 26.9mm (H) x 120mm (D)
Weight 450g
MEPG-2 MP@HL decoding
MPEG-4 Supports up to ASP@L5 HD resolution
H.264 Fully compliant with ITU-T H.264,
ISO/IEC14496-10 (main and high profile up to level 4.0)
-20
o
C to 70
o
C
-40
o
C to 85
o
C

It is highly recommended that quality cables and connectors be used for all video and audio
source connections
1. Connect the media source (Satellite STB, Media player, or other media device) to
ONELAN's HD IP Streaming Server, then connect to the Receiver Box IP Input.
2. Connect the Receiver Box HDMI or Component video with Audio R/L to TV.
3. Plug the power adapter to the device and power up
4. Network Setup for IP Input
Limitations:
1. All devices, including the Receiver Box, HDIP Streaming Server, and the controlling PC,
should be located within same network segment/LAN.
2. If a DHCP server is present in the private network, the HDIP Streaming Server,
Receiver Box will use the IP address assigned by the DHCP server.
3. If no DHCP server is present, the Receiver Box should specify the static IP.

Remote Control
1. Power On/Off
2. Mute
3. Color Special Function keys
4. Digits
5. Status / Information
6. List
7. Menu
8. Escape / Exit
9. Channel (Up) ／Select (Up)
10. Volume (Down) ／Select (Left)
11. Volume (Up) ／Select (Right)
12. OK
13. Channel (Down) ／Select (Down)
14. TV／Radio
15. Stereo (Left ／Right Shift)
16. Pause / Play
17. Video
Remote Control Function Keys:
1. Power On/Off: Power on or power off.
2. Mute: Enter Mute mode.
3. Color Special Function Keys: Press Red key to Auto Search of
the channels
4. Digits: 0~9
5. Status / Information: Show Status when it plays digital movie.
6. List: Show Channel list.
7. Menu: Function Menu, description follows.
8. Escape / Exit: Use the key to exit Menu.
9. Channel (Up) / Select (Up): Use the key to select channel at
DTV mode and move at Menu mode.
10. Volume (Down) / Select (Left): Use the key to adjust volume at DTV mode and move at
Menu mode.
11. Volume (Up) / Select (Right): Use the key to adjust volume at DTV mode and move at
Menu mode.
12. OK: Use the key to confirm when setup.
13. Channel (Down) / Select (Down): Use the key to select channel at DTV mode and move
at Menu mode.
14. TV/Radio Shift: Use the key to shift between TV and Radio.
15. Stereo (Left / Right Shift): Use the key to shift between right audio and left audio.
16. Pause / Play.
17. Video: Switch between DVB-T and IP TV.

Procedure to connect to the Receiver Box via the IP Input port
The following procedure will allow the installer to setup the Receiver Box via the GUI
1. After the hardware installation and connection, turn on the TV and power on the Receiver Box.
2. Main Menu – Press menu on the Receiver Box Remote Control for the setting.
3. Preference – for setting up Preference
Preference
Setting
AV
OSD Language
OSD Timeout
OSD Transparency
Setup On Screen Display Language
Setup On Screen Display Timeout
Setup On Screen Display Transparency percentage

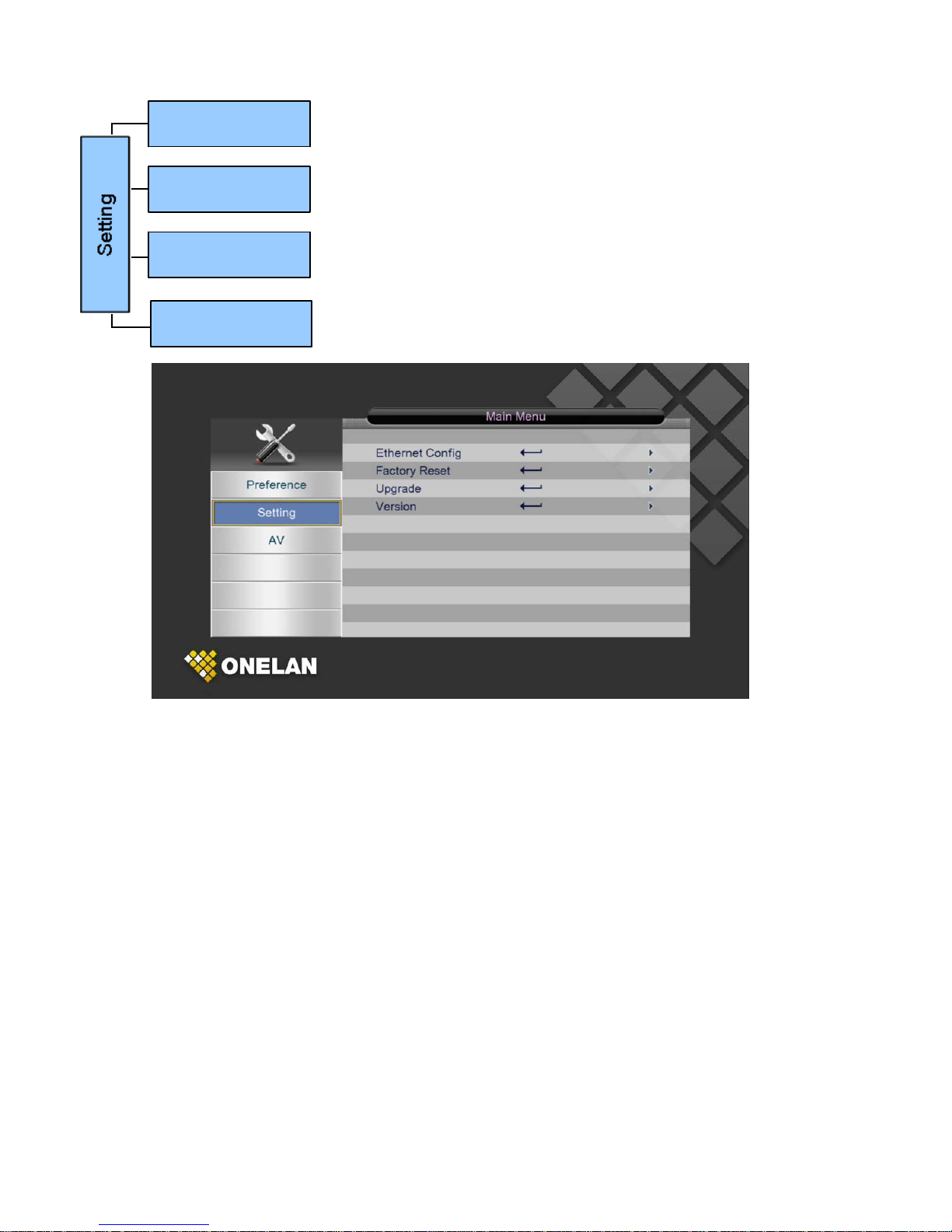

4. Setting – for setting up the IP related parameters
Remark: After setting up Ethernet Config for the IP Input, the message of “Network connection
success” will show up when connecting the network properly. Press the video button on the remote
control to watch the IPTV.
Ethernet Config
Factory Reset
Upgrade
Version
Ethernet Config to setup Link Type,
Config Mode, and Ping Test
Reset to factory Default
USB/Card Upgrade / Upgrade USB Loader / OTA Upgrade
Version information

5. AV
Contrast
Brightness
Saturation
HUE
Setting Video Contrast
Setting Video Brightness
Setting Video Saturation
Setting Video Hue
Setting Video Resolution
Video Resolution

Steps to setup channel list through USB disk for IPTV
(For Single/few Receiver Boxes and Few Channels)
Prepare a USB disk. Create a text file, filename is “tvlist.txt”, under the root folder of the
USB disk.
As the following sample format tvlist.txt, the format of the channel list is one channel per
line, and each line has the “Channel Name” and the “URL” fields separated by a space.
Plug-in the USB disk to the Receiver Box, and power up the unit
Click “menu” button on remote control to setup the network/Ethernet config if needed
Click “video” button on remote control to watch the channel video
Remark:
1. Channelnamesize:Max.100bytes,suggesttohaveless17charactersforbetterdisplay,
2. urlsize:Max.512bytes,
3. buffer:Max.600channels
Setup channel list through URL for IPTV
(For In-room-broadcasting System Deployment)
∎PrepareChannelListbyControlCenter
InstallallHDIPStreamingServersandtheControlCenterinthesamenetworksegment.
ExecutetheControlCentertosearchallconnectedHDIPStreamingServers.
SetupthestreamingmethodandrelatedparametersforallHDIPStreamingServers.
Modify/Editthechannels'nameandchannels'numberforeachHDIPStreamingServeronControl
Center.
PublishthechannellisttoallHDIPStreamingServers.
PS.WithouttheControlCenter,itispossibletoeditthechannellistwithatextfile,namedas
“channels.csv”,anduploadittoonewebserver,whichisaccessiblebyallreceiverbox.Please
referto“SetupchannellistwithoutusingControlCenter”
UDPMC udp://224.1.5.1:1234
RTPMC rtp://224.1.6.1:1234/?localport=1234
UDPUC udp://169.254.22.198:5763
RTPUC rtp://169.254.22.198:5763/?localport=5763
HTTP1 http://192.168.30.101:8888/VideoInput/play.ts
HTTP2 http://192.168.30.102:8888/VideoInput/play.ts
List1:Sam
p
le
f
ormato
f
tvlist.txt

∎StepstoDeployReceiverBoxtoRetrieveChannelList
Createtextfile,named“outip.txt”,intherootfolderoftheUSBdisk.
WritetheURLofthechannellist,forexample“http://192.168.1.123:8888/channels.csv”,tothe
firstlineofthetextfile.(theIPaddressandportnumberiswhereoneHDIPStreamingServer
located)
Plug‐intheUSBdiskintothereceiverbox,andpoweritup.
Waitforthedeviceboot‐up,andcheckthechannellistofIPTV

Setup channel list without using Control Center
1. Createatextfile,namedas“channels.csv”
2. Uploadittoonewebserver,whichisaccessiblebyallreceiverboxes.
3. Createtextfile,named“outip.txt”,intherootfolderofaUSBdisk.
4. WritetheURLofthechannellist,forexample“http://192.168.1.123:8888/channels.csv”,tothe
firstlineofthetextfile.(TheIPaddressandtheportnumberiswheretheserverlocated.)
5. Plug‐intheUSBdiskintothereceiverboxSTB‐HD‐1andpoweritup.
6. Waitforthedeviceboot‐up,andcheckthechannellistofIPTV.
(PS1.Wheneverthereischannelschanged/added/deleted,pleaserepeatpocess1&2andSTB‐HD‐1
needstoberebootedorpresstheremotecontrol“video”buttontorecapturethevideo.
PS2.WheneverwebserverchangingIP,pleaserepeatprocess4~6.)
Example:
Youmake7channelsofthe“channels.csv”fileasfollows:
“ABCNEWS”,udp://224.1.5.1:1234
“Extra”,udp://224.1.5.2:1234
“PLUS7”,udp://224.1.5.3:1234
“7mate”,udp://224.1.5.4:1234
“7TWO”rtp://225.3.4.1:8888/?localport=8888
“GO!”,http://172.21.6.70:8888/VideoInput/play.ts
“Gem”,http://172.21.6.71:8888/VideoInput/play.ts
Uploadittoyourwebserverasfollows:
http://www.xxxx.com/C01/channels.csv
Createthe“outip.txt”inaUSBasfollows:
http://www.xxxx.com/C01/channels.csv
Followprocess5&6tofinishthechannellistsetting.
(Youcanmakeex.40channelsofthechannels.csvforcustomer02tobe
http://www.xxxx.com/C02/channels.csv
Thesameforotherscustomers03,04,05.....)
Youcansetaccesscodeforeachcustomertogettheirownchannellistfromyourwebsite.And,youcan
updatethechannels.csvfileforeachcustomerwheneveradding/changing/deletingchannels.

HDReceiverBoxNotes
PRODUCT NOTES:
ITEM VALUE
DEVICE NAME
PURCHASE DATE
INSTALLATION DATE
SERIAL NUMBER
FIRMWARE VERSION

