Onida 20 Solo Retro Black User manual

SAVE THESE INSTRUCTIONS CAREFULLY
USERMANUAL
20 Solo Retro Black
MODEL:M020SMP13B

(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specifications
2
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
230V~ 50Hz
20 L
255 mm
1050W
700 W
MO20SMP13B
440 x 355 x 259 mm
Approx. 10.3 kg

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
5. Only use utensils that are suitable for use in microwave
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8. When heating food in plastic or paper containers,
IMPORTANT SAFETY INSTRUCTIONS
WARNING
3
.ovens

9. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.
13. Install or locate this oven only in accordance with the
installation instructions provided.
14. Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement
or near a swimming pool.
19. The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep cord away from heated
4
keep an eye on the oven due to the possibility of ignition.

20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
22.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
25.Children should be supervised to ensure that they do
not play with the appliance.
26.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
27.Accessible parts may become hot during use. Young
children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
30.Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use a
5
surface, and do not cover any vents on the oven.

31. WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously
supervised.
32.The microwave oven must be operated with the
decorative door open. (for ovens with a decorative door.)
33.The rear surface of appliance shall be placed against
a wall.
34.The microwave oven must not be placed in a cabinet.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
35.The microwave oven is intended for heating food and
beverages.Drying of food or clothing and heating of
warming pads,slippers,sponges,damp cloth and similar
may lead to risk of injury,ignition or fire.
6
temperature-sensing probe.)
36. Metallic containers for food and beverages are not
allowed during microwave cooking.

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
7

CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
compentent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
8

Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
10

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation

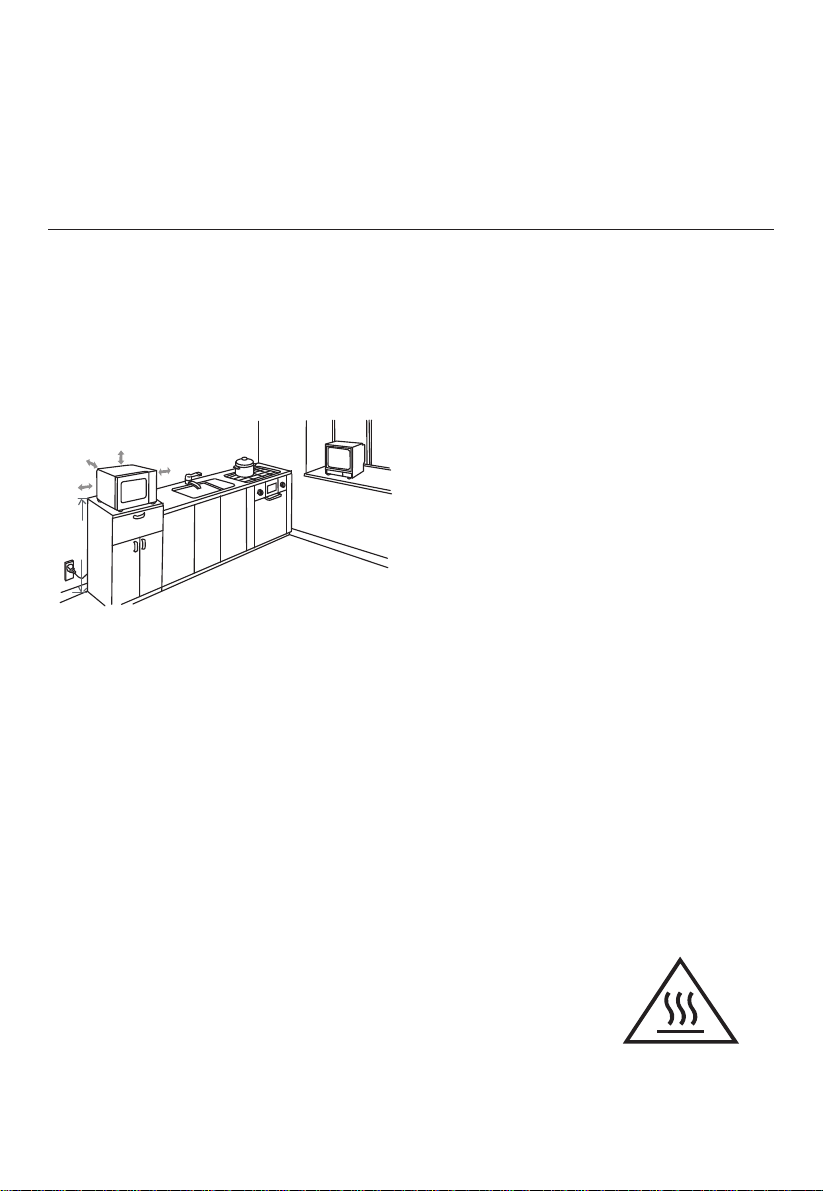

1.Select a level surface that
provide enough open space
for the intake and/or outlet
vents.
(1) The minimum installation
height is 85cm.
(2) The rear surface of
appliance shall be placed
against a wall.
Leave a minimum clearance
of 30cm above the oven, a
minimum clearance of 20cm
is required between the oven
and any adjacent walls.
(3) Do not remove the legs
from the bottom of the oven.
(4) Blocking the intake and/
or outlet openings can
damage the oven.
(5) Place the oven as far
away from radios and TV
as possible. Operation of
microwave oven may
cause interference to your
radio or TV reception.
2. Plug your oven into a
standard household outlet.
Be sure the voltage and
the frequency is the same
as the voltage and the
frequency on the rating
label.
WARNING: Do not install
oven over a range cooktop
or other heat-producing
appliance. If installed near
or over a heat source, the
oven could be damaged
and the warranty would be
void.
20cm
30cm
20cm
min85cm
0cm
The accessible
surface may be
hot during operation.
11

12
Function/Power
Low
M. Low (Defrost)
Med.
M. High
High
Timer
Power
Control Panel and Features
OPERATION
Operation Instructions
Output
17% micro.
33% micro.
55% micro.
77% micro.
100% micro.
Application
Soften ice cream
Soup stew, soften butter or defrost
Stew, fish
Rice, fish, chicken, ground meat
Reheat, milk, boil water, vegetables, beverage
Notice: When removing food from the oven, please ensure that the oven
power is switched off by turning the timer switch to 0 (zero).
Failure to do so, and operating the microwave oven without food in
it, can result in overheating and damage to the magnetron.
1.To set cooking power by turning the
power knob to desired level.
2.To set the time of cooking by turning
the timer knob to desired time per
your food cooking guide.
3.The microwave oven will
automatically start cooking after
power level and time are set.
4.After the cooking time is up, the unit
will " Dong " to stop.
5.If the unit is not in use, always set
time to " 0 " .

Trouble shooting
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.
13

M/S.
ORIGINAL PURCHASER TO BE FREE FROM DEFECTS IN
MATERIALS AND WORKMANSHIP WITHIN ONE YEAR FROM THE DATE OF
PURCHASE AND
ADDITIONALLY 2 YEARS ON MAGNETRON
ONLY
AS PROVIDED IN
THE WARRANTY REGISTRATION CARD.
This
warranty is subject to terms and conditions as mentioned below:
1. This warranty shall be valid only for the said period of 12 months as
specified above, irrespective of whether the said unit has been in use or
not for any reason whatsoever,
or the unit is moved from one location
to another. Warranty does not cover accessories
external to the
equipment. Post expiry of standard 12 months warranty Magnetron of the oven
shall continue be under warranty for period of additional 2 years i.e 24 months only.
2.
The warranty period specified above shall include time taken for repairs,
replacements,break-downs, transit time etc. No notice of expiry period of
warranty will be given by the company.
3.
This warranty shall stand automatically terminated in the event of the
said unit being serviced, repaired, installed, de-installed, re-installed or
otherwise attended to by any person or organization or agency or by
the said purchaser himself other than the authorized representative
of the company.
4.
Parts of the unit replaced or repaired under the terms of this warranty are
warranted only for the remaining period of the original warranty period.
5.
For attending any service call under this warranty beyond the
municipal limits of the locality in which the authorized representative/dealer
is situated (outstation locations), all to and fro travelling and other
incidental expenses as prevailing from time to time incurred in connection
with the visit of the service personnel, technicians, etc shall be borne by
the said purchaser and shall be payable in advance. Additionally, all
expenses incurred by the authorized representative /dealer in collecting
the said unit or any part thereof from such outstation locations and its
return to the original location shall be borne by the said purchaser.
, WARRANTS THIS ONIDA MICROWAVE OVEN TO THE
6. In the event of any change in the location of the unit during the
warranty period, this warranty shall become null and void unless
the fact of the proposed change is communicated in writing to the
authorised service provider & company at least seven (7) days prior to the
said change. in the event of any damage occuring to the unit or to any of
its parts during the course of its transit, repair or replacement,shall be on
chargable basis.
MIRC ELECTRONICS LTD.
14

7. It shall be the absolute discretion of the company to a) effect
the repairs or replacement of parts whether at the site of installation
or at any authorised service centre, and /or b) have the job
attended to either by the Company's service personnel or its
authorised dealer.
8. This warranty is in the nature of and for the purpose of set forth
herein above and in particular the Company shall not in any event be
liable for direct, indirect, incidental or consequential loss or damages
to the said purchaser any third party and /or his or third party’s property.
9. The purchaser should preserve the original invoice for necessary
verification and produce the same, as and when required to enable
authorised service provider to carry out repairs and /or replacenment.
10.
Warranty null and void if:
i.The Microwave Oven is not purchased from the authorized
dealers of the company.
ii.The Service Centre copy of warranty card is not received within
10 days of date of purchase at the nearest Authorised Service
Centre.
iii.Any damage is caused by accident, mishandling, tampering
with installation, or negligence in following instructions of the user
manual issued by Company.
iv.Any damage is caused by
improper electrical circuit outside the
unit or by any defective
electrical supply.
v.At any time, during the warranty period if any part of the unit is
tampered with, altered, repaired or serviced by any unauthorized
person, not being the authorized representative of the company or
its authorized dealers.
vi.The serial number of the unit or any part thereof is damaged
, defaced, altered,obliterated, or tampered with or removal for any
reason whatsoever.
vii. If installed over a range cooktop or other heat-producing
appliance which could lead to damage the Oven .
ix if oven is not used in residence or if used for commercial purpose or
used in commercial premises.
11.
None of the employees and /or Authorized Dealers of the
Company have any authority whatsoever to vary the terms and
conditions of this warranty.
12. This warranty shall be deemed to have been issued at
Mumbai, state of Maharashtra & courts at Mumbai shall have
exclusive jurisdiction on matters covered by or following from this
warranty, and the original purchaser alone shall have cause of
action arising out of the transaction.
13. All kinds of repair and replacement post warranty period shall be on
chargeable basis and subject to availability of spares.
15

16

17

18

OMAN :M/sMohsinHaiderDarwish, P.O.Box:880, PC 112-RUWI,OMAN Tel :[phone] Fax :[phone]
44373876
2456297
KINGDOM OF SAUDI ARABIA:M/s SaidAhmed El-Ajou Trading Corp.LLC,Tel: [phone],Fax:[phone]
Overseas-Middle East Asia
UNITED ARAB EMIRATES : M/s Al FuttaimElectronics,DUBAI.U.A.E.Tel : [phone] Fax: [phone],
BAHRAIN:M/s Kewalram & Sons P.O.Box : 84, Manama BAHRAIN Tel : [phone] Fax : [phone]
KUWAIT: M/s Sefeena Gen Trading & Cont Est, P.O.Box:5610, Safat :13057KUWAIT Tel:[phone] Fax : 965
QATAR: M/s Videohome & ElectronicsCentre, P.O.Box : 4668,DOHA-QATAR,Tel : [phone] Fax:+974
+
+
State Service Number
00098893-040hsedarParhdnA
00098893-110ihleD
00098893-220AOG
00098893-970tarajuG
0098893-2710anayraH
00098893-080akatanraK
0098893-4840alareK
0098893-1370hsedarPayhdaM
00098893-220arthsarahaM
0098893-2710bajnuP
0098893-1410nahtsejaR
00098893-440udanlimaT
0098893-2250hsedarPrattU
00098893-330lagneBW
000990030081rahiB
000990030081hragsittahC
000990030081hsedarPlahcamiH
000990030081dnahkrahJ
000990030
081asirrO
000990030081lahcnarattU
Assam-Guwahati 0361-2413138 / 2413158
8009032-6730tahroJ-massA
Jammu & Kashmir- Jammu0191-2562258
nos.
19

20
