Blu-ray Disc Player
BD-SP807
Quick Start Guide
Basic Connections
Make one of the following connections, depending on the capabilities of your existing device.
AUDIO IN
LR
VIDEO
IN
COMPONENT
VIDEO IN
Y
PB/CB
PR/CR
HDMI IN
VIDEO CONNECTIONAUDIO CONNECTION
RCA audio cable
(supplied)
HDMI cable
(not
supplied)
RCA component
video cable
(not supplied)
or
OR
Method 1 Method 2 Method 3
(Green)
(Blue)
(Red)
TV
this unit
analogue audio standard picture better picture best audio/picture
and
(Red) (Blue)
AUDIO/VIDEO CONNECTION
(Green)
AUDIO OUTPUT
(ANALOG L/R)
VIDEO OUTPUT
(VIDEO)
VIDEO OUTPUT
(COMPONENT)
HDMI OUT
or
RCA video
cable
(supplied)
HDMI Connection
Press [RESOLUTION] to change the resolution of the video signal being output from HDMI OUT jack.
(For BD/AVCHD, press [STOP C]first.)
Note
• You cannot select the video resolutions which are not supported by the connected TV.
• In order to get natural and high quality film reproduction of 24-frame film material, use an HDMI cable (High Speed HDMI Cable is
recommended) and select “1080p24” if the connected TV is compatible with 1080p24 frame input.
• If no sound is output, check “HDMI Audio Out” setting. (Refer to page 41 in the Instruction Manual.)
HDMI OUT
HDMI IN
HDMI IN
HDMI cable (not supplied)
this unit
TV
AV receiver
HDMI cable
(not supplied)
HDMI cable
(not supplied)
or
Connecting an AV receiver
Make one of the following connections, depending on the capabilities of your existing device.
COMPONENT
VIDEO OUT
Y
PB
PR
AUDIO OUT
LR
VIDEO
IN
VIDEO
OUT
COMPONENT
VIDEO IN
Y
PB
PR
AUDIO IN
LR DVI IN
AUDIO IN
LR
($-)
/54
COMPONENT
VIDEO IN
Y
PB/CB
PR/CR
HDMI IN
VIDEO
IN
VIDEO CONNECTIONAUDIO CONNECTION
TV TV or Projector
RCA audio cable
(not supplied) RCA video cable
(not supplied) HDMI-DVI cable
(not supplied)
RCA component
video cable
(not supplied) or
and
or
and
AV receiver
RCA audio cable
(supplied)
RCA video cable
(supplied)
HDMI cable
(not supplied)
RCA component
video cable
(not supplied) or
or
and
AUDIO OUTPUT
(ANALOG L/R)
VIDEO OUTPUT
(VIDEO)
VIDEO OUTPUT
(COMPONENT)
HDMI OUT
(Green)
(Blue)
(Red)
(Red)
(Blue)
(Green)
(Green)
(Blue)
(Red)
(Red)
(Blue)
(Green)
this unit
E5LE0ED_E5LE2ED
1VM332399/
SN 29400308
© Copyright 2009 ONKYO CORPORATION Japan. All rights reserved.
Printed in China

ENEN

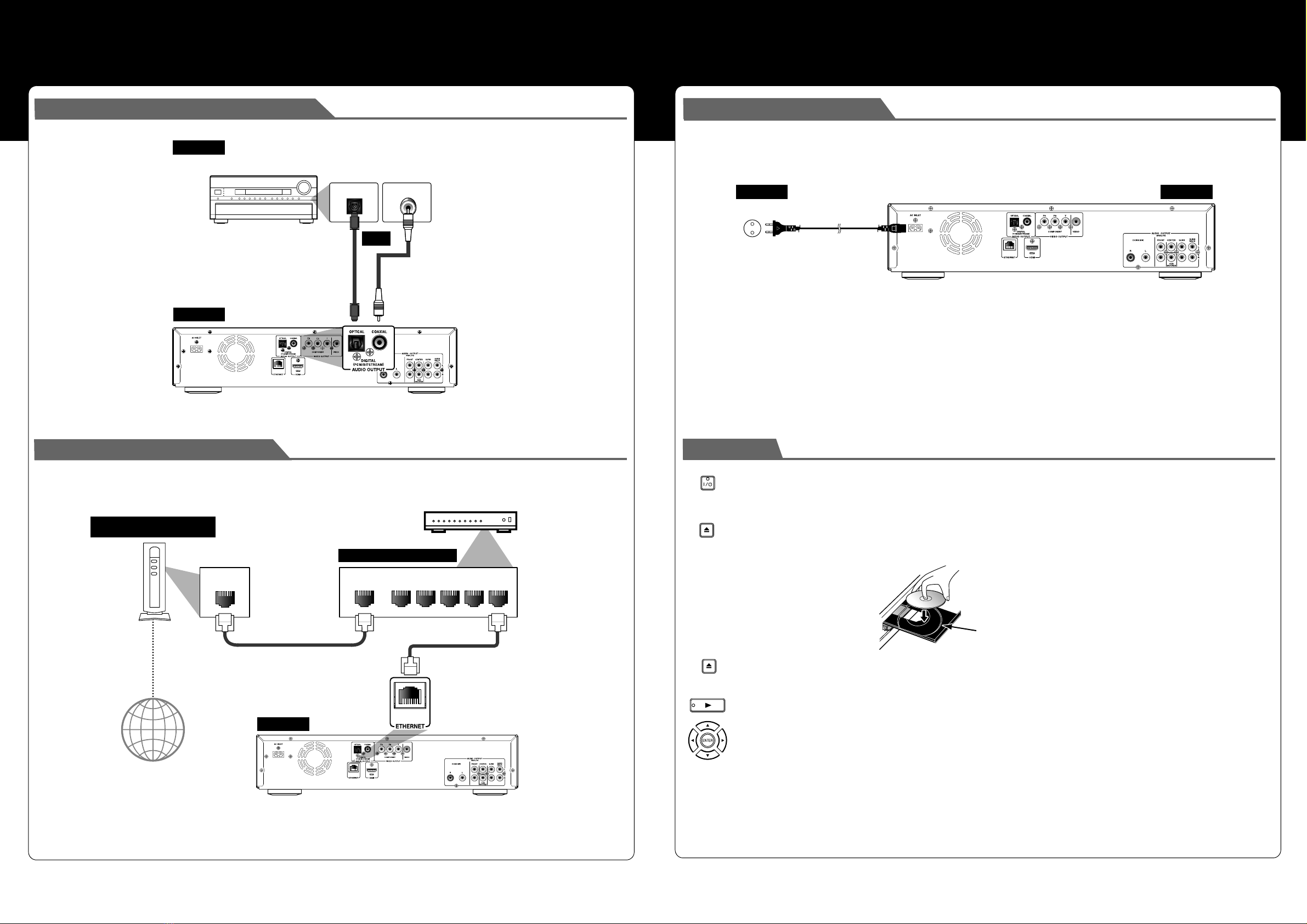

Connecting to a Digital Audio System
Network Connection with LAN
You can use a disc which offers BD-Live function by connecting the unit to the Internet.
(For BD-Live information, please refer to page 32 in the Instruction Manual.)
COAXIAL
DIGITAL AUDIO INPUT
OPTICAL
DIGITAL AUDIO INPUT
digital audio coaxial
input jack
digital audio optical cable
(not supplied)
AV receiver / amplifier
this unit
audio
AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL)
digital audio optical
input jack
digital audio coaxial cable
(not supplied)
or
LAN NALNAW
12345
LAN cable
LAN cable
Telecommunications
equipment (modem, etc.)
Hub or broadband router
this unit
Internet
Connecting the AC Cord
After you made all necessary connections, connect the AC cord to the AC INLET. Then connect the AC cord to the AC outlet.
Insert the plugs securely. Incomplete connections will result in the generation of noise.
Playback
1Press [ON / STANDBY I / Q].
2Turn on the TV and select the appropriate input on the TV to which the unit is connected.
3Press [OPEN/CLOSE A] to open the disc tray.
4Place the disc on the disc tray with its label side facing up.
5Press [OPEN/CLOSE A] to close the disc tray.
It may take a while to load the disc.
• Some discs may start playback automatically.
6Press [PLAY B] to start playback.
• For many of BD-video and DVD-video, a menu screen may appear.
• In this case, use [K/ L/ {/ B]to select the desired item, then press [ENTER].
To pause playback:
Press [PAUSE k].
To return to normal playback:
Press [PLAY B].
To stop playback:
Press [STOP C].
To eject the disc:
Press [OPEN/CLOSE A]to open the disc tray, then remove the
disc before turning off the unit.
this unit
AC outlet
AC110-240V, 50/60Hz
AC cord
ON/STANDBY
OPEN/CLOSE
Align the disc to the disc
tray guide.
OPEN/CLOSE
