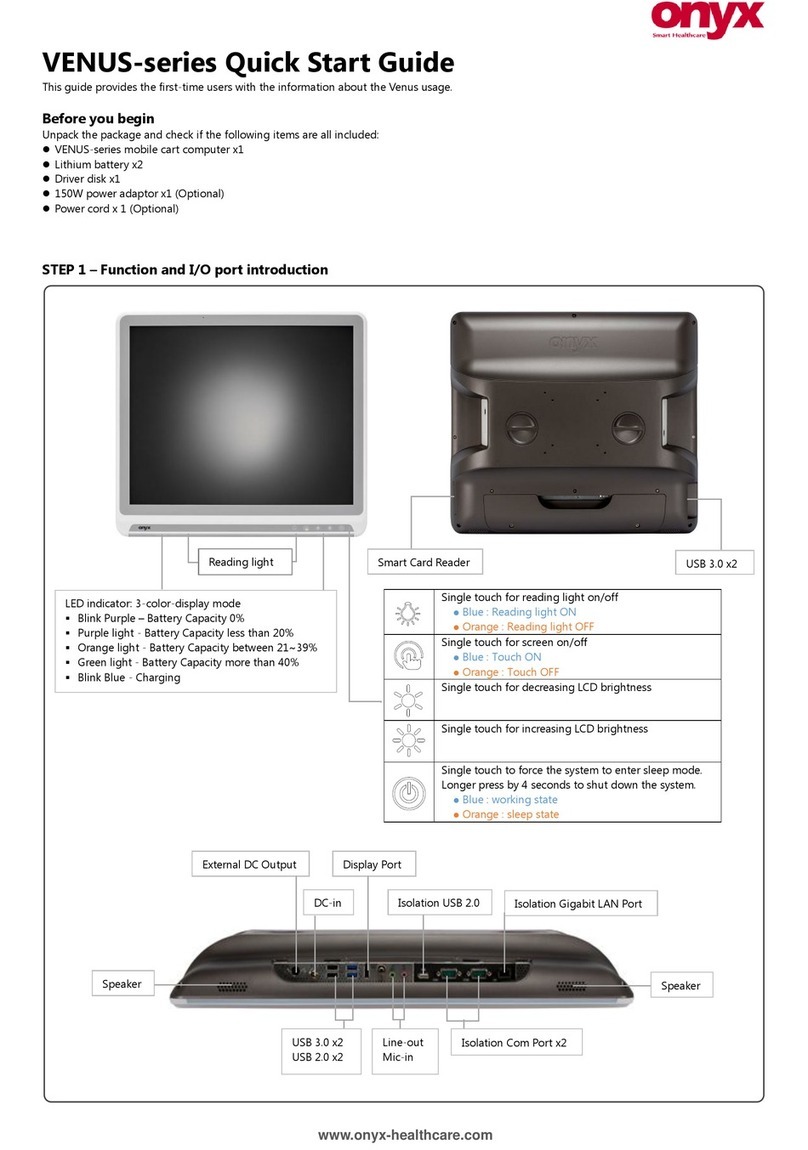

Onyx VENUS-191 User manual

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
VENUS-221/191
22”/19” LCD with LED Backlight
Intel®N2800 Dual Core Processor
Mobile Cart Computer
User Guide
VENUS-221/VENUS-191 Manual 1st Ed
May, 2014

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Copyright Notice
This document is copyrighted, 2013. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties, which may result
from its use.
The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, ONYX Healthcare Inc., assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein
ONYX Healthcare Inc. reserves the right to make changes in the
product design without notice to its users

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Packing List
Before you begin installing your Mobile Cart Computer, please make
sure that the following items have been shipped:
VENUS191/221 Mobile Cart Computer
Medical power adaptor 150W/24V
Lithium batteries x2
If any of these items are missing or damaged, you should contact
your distributor or sales representative immediately.
Headquarters
Onyx Healthcare Inc.
2F, No.135, Lane 235, Pao-Chiao Rd.,
Hsin-Tien City, Taipei 231, Taiwan, R.O.C.
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
http://www.onyx-healthcare.com
Worldwide Offices:
Onyx Healthcare, USA Inc.
324 W. Blueridge Ave.,

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Orange, CA 92865, USA
Tel : [phone]
Fax: [phone]
Email: [e-mail]
usa.onyx-healthcare.com
Onyx Healthcare EUROPE B.V.
Ekkersrijt 4002, 5692 DA Son, The Netherlands
Tel : [phone]
Fax: [phone]
Email: [e-mail]
[e-mail] (RMA)
Onyx Healthcare Technology GmbH
An der Trift65d
63303 Dreieich , Germany
TEL: [phone]
Fax: [phone]
Email: [e-mail]
[e-mail] (RMA)
Onyx Healthcare (SU ZHOU) INC.
Room 12, 2F, Building B, No.5 Xing Han Street, Suzhou Industrial

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Park, Jiang Su Province, China
Tel: [phone]
Fax: [phone]
Email: [e-mail]

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from anyAC outlet before cleaning.
Do not use liquid or spray detergents for cleaning. Use a damp
cloth.
4. For pluggable equipment, the power outlet must be installed
near the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation.
Dropping it or letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect
the equipment from overheating. DO NOT COVER THE
OPENINGS.
8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
9. WARNING: To avoid risk of electric shock, this equipment
must only be connected to a supply mains with protective
earth. (AVERTISSEMENT: Pour éviter tout risque de choc
électrique, cet appareil doit être connecté à une
alimentation secteur avec une prise de terre)
10. Position the power cord so that people cannot step on it. Do
not place anything over the power cord.
11. All cautions and warnings on the equipment should be noted.

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
12. If the equipment is not used for a long time, disconnect it from
the power source to avoid damage by transient over-voltage.
13. Never pour any liquid into an opening. This could cause fire or
electrical shock.
14. Never open the equipment. For safety reasons, only
qualified service personnel should open the equipment.
15. Warning: Do not modify this equipment without
authorization of the manufacturer. (Avertissement: Ne pas
modifier cet équipement sans l'autorisation du fabricant)
16. If any of the following situations arises, get the equipment
checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it
to work according to the users manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
17. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY
DAMAGE THE EQUIPMENT.
18. External equipment intended for connection to signal
input/output or other connectors, shall comply with
relevant UL / IEC standard (e.g. UL 1950 for IT equipment
and ANSI/AAMI ES 60601-1: 2005 AND CAN/CSA-C22.2 No.
60601-1:08 / IEC 60601 series for systems –shall comply

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
with the standard IEC 60601-1-1, Safety requirements for
medical electrical systems. Equipment not complying
with UL 60601-1 shall be kept outside the patient
environment, as defined in the standard.
Caution:
It may cause the danger of explosion if battery is incorrectly
replaced. Replace only with same or equivalent type
recommended by the manufacturer.

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Classification
1. Degree of production against electric shock: not classified
2. Degree of protection against the ingress of water: Front IP65 and
body IPX1
3. Mode of operation: Continuous
4. Type of protection against electric shock: Class I equipment
5. No Applied Part, No AP/APG

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
FCC
This device complies with Part 18 FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not
cause harmful interference, and (2) this
device must accept any interference
received including interference that may
cause undesired operation.

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
UL Module Description
VENUS-191 / 221 modules are developed to
suitable for the Classification Mark
requirement

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Safety Symbol Description
The following safety symbols are the further explanations for your
reference.
Medical equipment with respect to electric
shock, fire and mechanical hazards only in
accordance with ANSI/AAMI ES 60601-1:
2005 AND CAN/CSA-C22.2 No.
60601-1:08
Attention, consult ACCOMPANYING
DOCUMENTS.
Stand-by
Ground wire
Protective Ground wire.

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Contents
Chapter 1 General Information
1.1 Introduction .....................................................................14
1.2 Feature .............................................................................15
1.3 Specification....................................................................16
1.4 Dimension........................................................................20
Chapter 2 Hardware Installation
2.1 Safety Precautions..............................................................
2.2 Quick Tour of the VENUS-191............................................
2.3 Turn On and Boot up into Windows………………………..
2.4 Turn off…………………………………………………………..
Chapter 3 Driver Installation
3.1 Driver installation……………………………………………….
3.2 SBMS introduction……………………………………………...
Appendix A Miscellanea
A.1 General Cleaning Tips........................................................
A.2 Cleaning Tools....................................................................
A.3 Scrap Computer Recycling ..............................................

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
General
Information
Chapter
1

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Chapter 2 Hardware Installation 2-1
1.1 Introduction
The VENUS-191/221 Mobile cart computer are based on Intel®
AtomTM N2800 Dual Core processor, It accommodates one 2.5”
SATAII SSD and 4GB DDRIII SODIMM.
The VENUS series both offer 4:3 (19inch) and 16:9 (22 inch) wide
range size with high brightness backlight LCD display with high
resolutions.
Fan-less and no vent design, both unique features of VENUS-191/
VENUS-221 reduces the risk of cross-infection dramatically and
also makes daily cleaning quickly and safe. Front IP65 and body
IPX1 design provide the most reliable proof against water leakage.
Germs have no corners to hide in while cleaning because of smooth
and seamless surface design.
VENUS-191/221 owns side mount two USB 3.0 ports, and a smart
card reader to support high speed data transfer and ID check by
smart card reader.
Dual hot swappable lithium-ion battery innovation design provides
stable 125W power to system for standing 6 hours of running,
non-stop 24/7 support service in hospital. The VENUS-191/221 is
definitely your perfect choices.

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Chapter 2 Hardware Installation 2-2
1.2 Feature
Intel®N2800 1.86GHz Dual Core Processor
19”1280 x1024 / 22”1366 x 768 LCD with LED backlight.
Dual hot swappable lithium batteries, support non-stop
operation.
Fully cable-less, easy deployment
Smart Battery management system.
Ergonomic illumination reading light bar
Both of LED indicators reminding the state of charge
Fully Cable-less mobile design, easy deployment
5 Smart Function Keys
4KV Medical isolated USB/COM/LAN ports
High Speed USB 3.0 Ports
Water-proof :IP65 Front panel, Rear IPX1
Light weight design with Magnesium / Aluminum alloy rear
cover
Low power solution with fan-less design make VENUS more
reliable..
Total certification solution for medical devices of EN60601-1
standard.

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Chapter 2 Hardware Installation 2-3
1.3 Specification
Hardware Specifications
Display
VENUS-221: 21.5”1366x768 LCD
VENUS-191: 19”1280x1024 LCD
CPU
Intel®N2800 1.86GHz
Disk Drive
2.5” SATA Solid State Drive
Function
Key
Power On/Off, LCD Brightness Up/Down, Touch Screen
On/Off, Reading Light On/Off
Security
Smart Card reader, RFID
I/O
2x Isolated RS-232 port
1x Isolated USB 2.0 port
4x USB 2.0 ports
4x USB 3.0 ports
2x Isolated Gigabit LAN
1x Display Port
Sound:
1 x Line-out
1 x Mic-in
LCD Specifications
Model Name
VENUS-221 series
VENUS-191
Display Type
21.5”LCD
19”LCD
Max. Resolution
1366 x 768
1280 x 1024
Max. Colors
16.7M
16.7M
Dot Size (mm)
0.294 x 0.294
0.297 x 0.297
Luminance (cd/m2)
250(TYP)
250 (TYP)
Back Light Life Time
30,000 Hrs
30,000 Hrs

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Chapter 2 Hardware Installation 2-4
Touch Screen Specification
Type
5-wire Resistive
Interface
USB interface
Light Transmission
> 75%
Life Time
35 million activations
Power Supply Specifications
Model
Hitron HEMP152G-S240060-7(J)
Input Voltage
100-240V AC( 50/60 Hz)
Output Voltage
24V, 6.25A, 150W max.
Battery Specifications
Manufacturer/model
Gallopwire/OPM-P01T-00
Battery Capacity
62.6Wh
Output Voltage
10.8V
Sustaining Time
6 hours
Environmental Specifications
Operating Temperature
10˚C to 40˚C (32˚F ~86˚F)
Storage Temperature
-20˚C to 60˚C (-4˚F ~140˚F)
Storage Humidity
10% to 90%@ 40˚C, non-condensing
Vibration
0.5G / 5 ~ 500Hz (Random) / operation

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Chapter 2 Hardware Installation 2-5
Shock
15G peak acceleration (11 msec. duration) /
operation
Drop
76cm (1 Corner, 3 Edge, 6 Surface)
EMI / Safety
CE / FCC Class B/ANSI AAMI ES60601-1/
EN 60601-1
Note:
All ONYX LCD products are manufactured with High precision technology.
However, there are a small number of defective pixels in all LCD panels
that are not able to change color. This is a normal occurrence for all LCD
displays from all manufacturers and should not be noticeable or
objectionable under normal operation. All LCD panels are qualified for
industry standard conditions in the following: total 7 dead pixels on a
screen or if there are 3 within 1 inch square area of each other on the
display.

Mobile Cart Computer
V E N U S 1 9 1 / 2 2 1
Chapter 2 Hardware Installation 2-6
1.4 Dimension
VENUS-191
