Onyx SW2200XS User manual

SW2200XS
DVD PLAYER

1
SYMBOLS AND IMPORTANT SAFEGUARD 2-3
1. BASIC INFORMATION
1.1 Front and Rear Panel View
1.2 Remote Control View
2 SYSTEM SET UP
2.1 Language Setup
2.2 Screen Setup
2.4
2.5

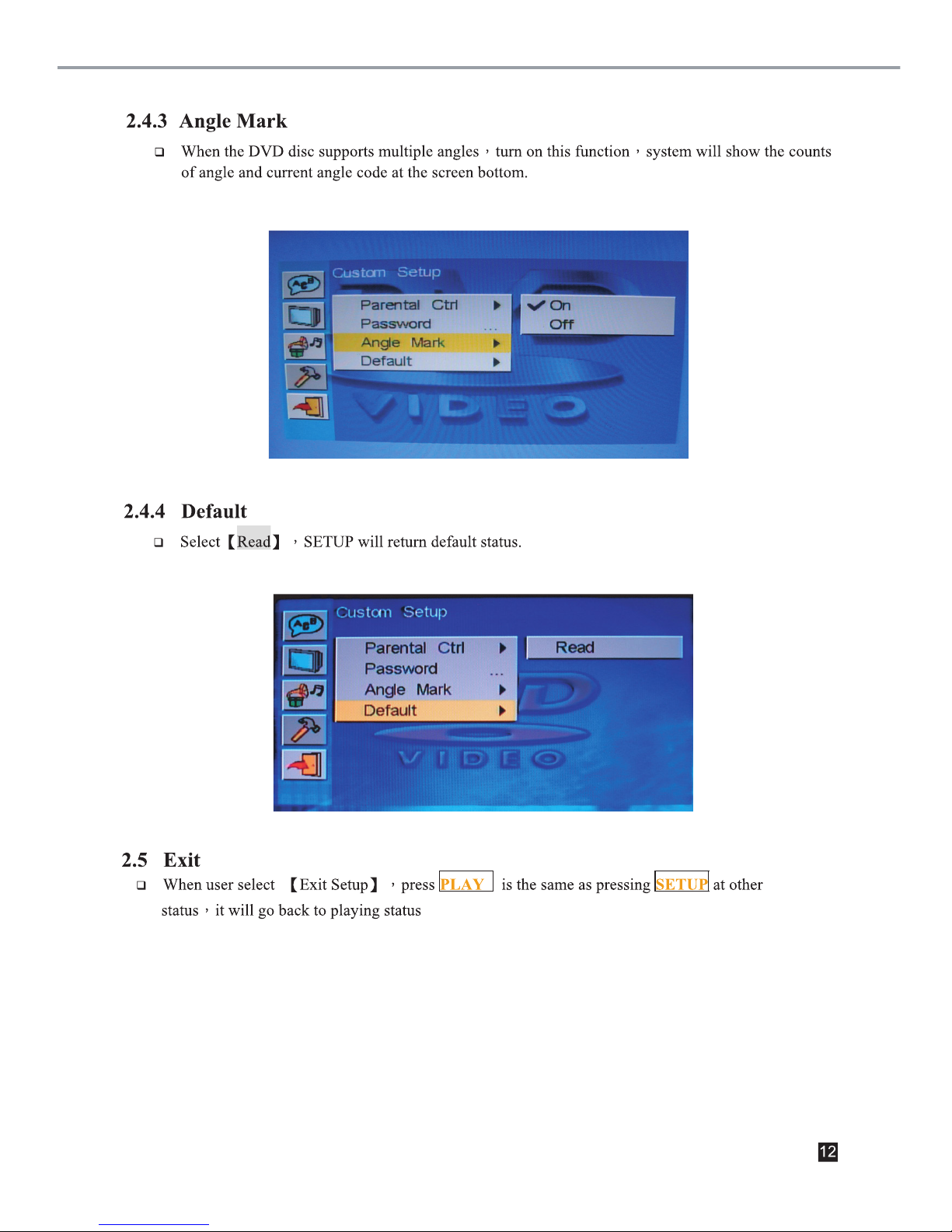

Custom Set up
Exit

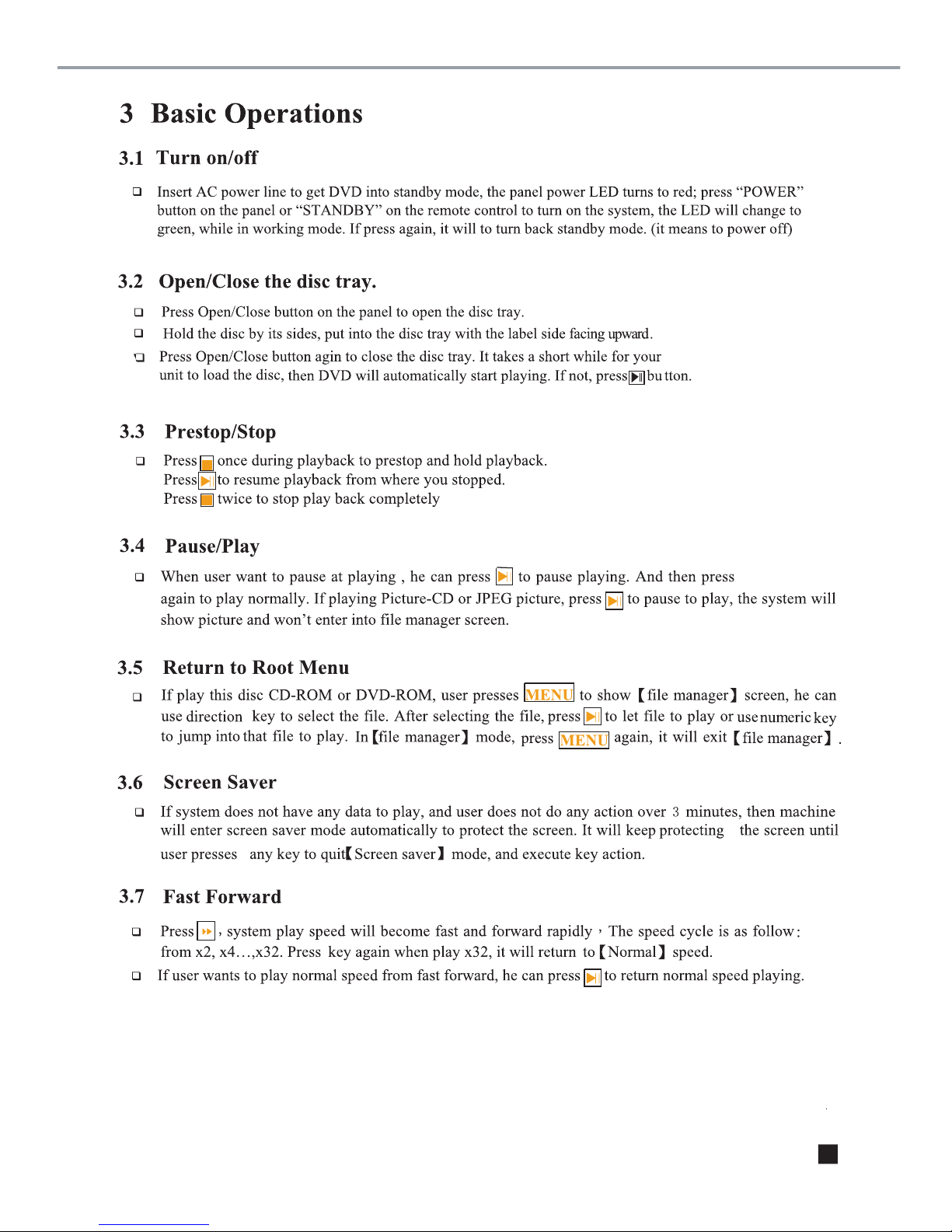

3 BASIC OPERATIONS
3.1 Turn on/off
3.2 Open/ Close the disc tray
3.3 Prestop/Stop
3.4 Pause/ Play
3.5 Return to Root Menu
3.6 Screen Saver
3.7 Fast Forward

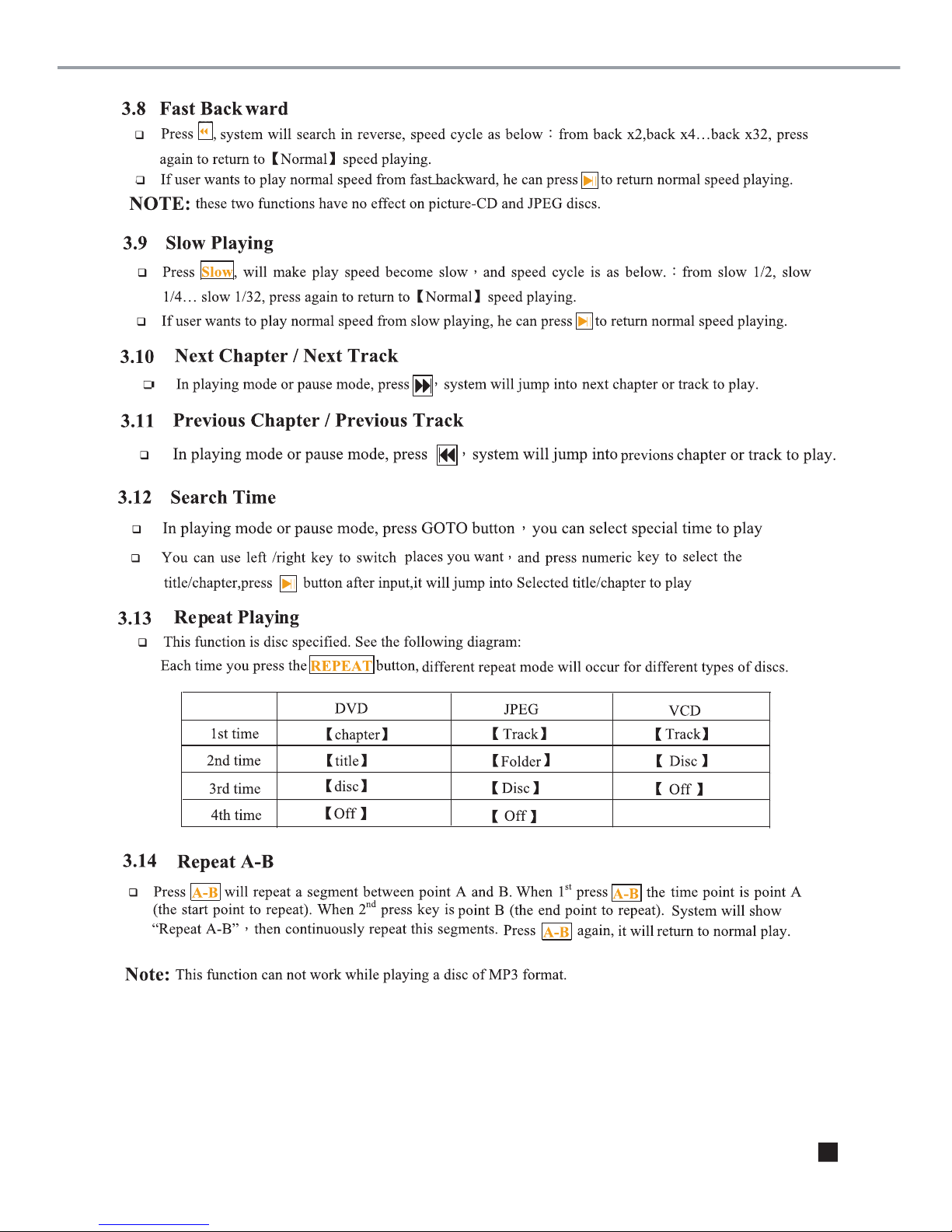

3.8 Fast Backward
3.9 Slow Playing
3.10 Next Chapter/ Next Track
3.11 Previous Chapter/ Previous Track
3.12 Search Time
3.13 Repeat Playing
3.14 Repeat A-B
3.15 Program Play
3.16 Screen Play
3.17 PBC (Play Back Control)
3.18 Zoom
3.19 Title Menu
3.20 Menu

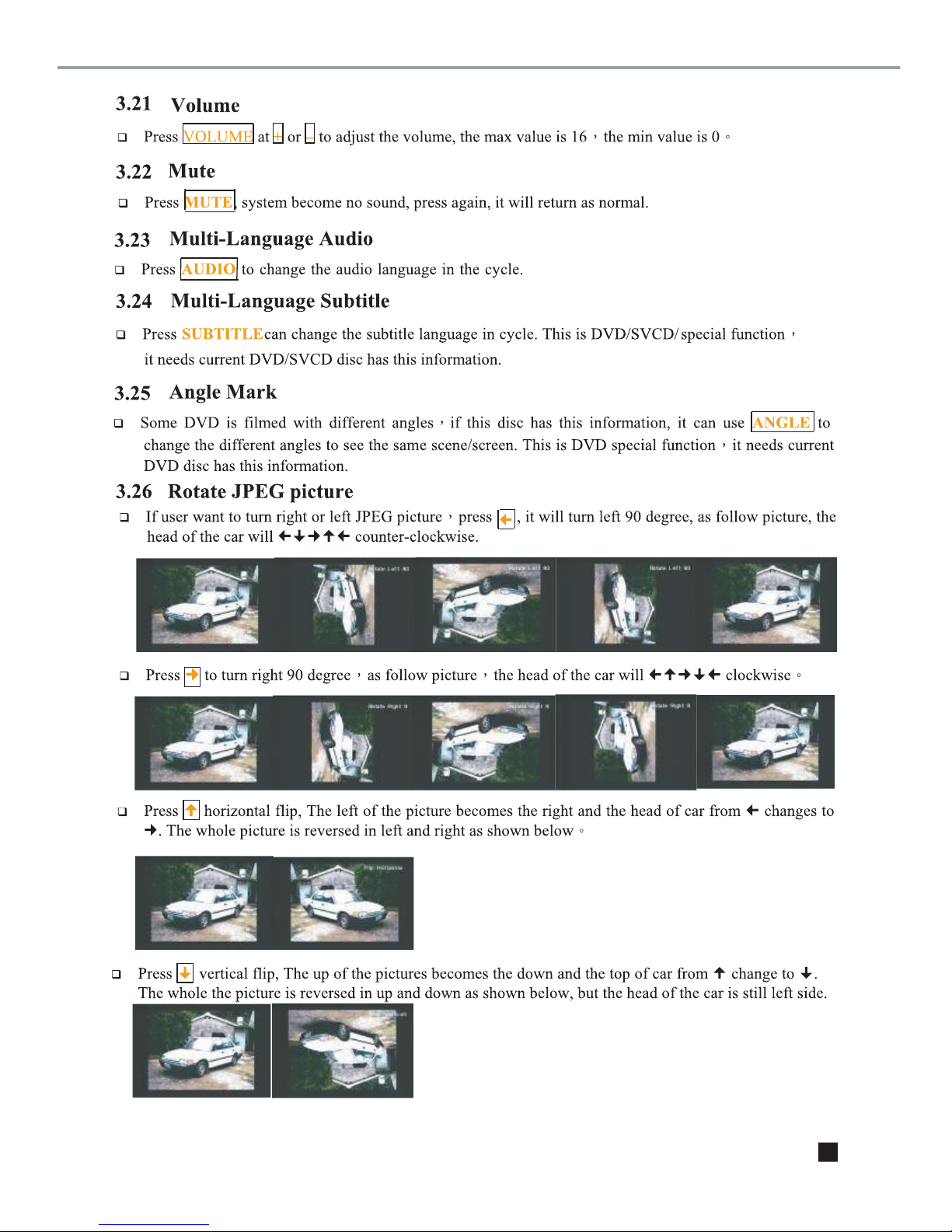

3.21 Volume
3.22 Mute
3.23 Multi-Languange Audio
3.24 Multi-Languange Subtitle
3.25 Angle Mark
3.26 Rotate JPEG Picture
13
4. HELP AND ADVICE
5. TECHNICAL SPECIFICATION
8-10
11-12
13
13
13
13
13
13
14
14
14
14
14
14
14
15-16
17
17
17
17
17
18
18
18
18
18
20
21
4
6-8
2.3 Audio Setup
11
5
12
3.27 Resume
3.28 Clear
3.29 N/P
3.30 Audio
3.31 L/R
3.32 Surround
3.33 Shuffle
3.34 Step
19
19
19
19
19
19
19
19
3.35 Return
19
3.36 P-Scan
18
19
CONTENT

2
Help line
For assistance during normal working hours (9am-5pm, Mon-Fri, New Zealand local time) call
Oriental Pacific International Ltd.
NZ call: 0800 89 85 80
Email: [email protected]
SYMBOLS
The graphic symbols used in this manual or on the back cover of the set
mean the following:
Read this manual in full before use.
Class II Double insulated Appliance
The lightning flash symbol is intended to alert the user to the enclosures that
contain hazardous voltages.
The exclamation symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
CLASS 1
LASER PRODUCT
IMPORTANT SAFEGUARDS
When using any electrical apparatus always observe safety regulations
and use basic safety precautions to reduce the risk of fire, electric
shock and personal injury, including the following
Read, Keep and Follow these instructions, heeding all Warnings.

3
WARNING! Do not remove any cover.
WARNING! No objects filled with liquid, such as vases, shall be placed on this equipment or in any
position where liquid may fall into this equipment or any other electrical apparatus.
WARNING! Do not insert any objects into any openings of this equipment or any other electrical
apparatus.
WARNING! Do not use this apparatus near water. To avoid the risk of fire or electric shock, do not
expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashes
and is strictly for indoor use only.
WARNING! Do not immerse in any liquid whilst in use or cleaning. Clean only with a damp cloth,
dry with a dry towel. Do not use harsh abrasives as these may damage the plastic parts.
WARNING! DO NOT block any ventilation openings. Keep away from curtains, newspapers and
restricted areas. Install in accordance with any specific manufacturer’s instructions. Always allow a
sufficient gap around the apparatus to avoid overheating.
WARNING! Do not install near any heat sources such as radiators, gas heaters, stoves or other
apparatus (including amplifiers) that produce heat. Do not leave in direct sunlight.
WARNING! Do not place any naked flame source, such as lighted candles on any electrical apparatus.
WARNING! Connect to a suitable 230-240V ~ 50 Hz power supply only.
WARNING! Keep out of reach of young children. This apparatus is not suitable for use by young
children or infirm persons without supervision. Young children must be supervised to ensure that they
do not play with the apparatus. Ensure young children have enough knowledge to operate the
equipment safely if they do have access to this equipment.
WARNING! Do not abuse or damage a power cord. If any power cord is damaged, it must be
replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
A replaceable cord must be replaced with an authorised replacement from an authorised service agent
only.
WARNING! Only use attachments/accessories specified by the manufacturer.
WARNING! Unplug completely from the power source this apparatus during lightening storms or
when unused for long periods of time.
WARNING! Attention is drawn to the environmental aspects of disposing of any battery.
WARNING! Refer all servicing to qualified personnel. Servicing is required when the apparatus has
been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
WARNING! For household use only, this apparatus is not intended for commercial use.
WARNING! If this apparatus is to be used by a third party, please supply these instructions with it.
WARNING! Do not prevent easy access to the main wall switch and plug.
WARNING! No liability will be accepted for any personal injury or damage caused by failure to
follow these instructions.

4
1.1 Front and Rear Panel View
S-Video Output
Coaxial Output
Audio Output Right
Audio Output Left
Video Output
Cr/Pr Video Output
Cb/Pb Video Output
Y Video Output
Scart Socket
(Connect to TV)
Power Cord
Remote Control Sensor
Play/Pause
Open/Close PowerStop
Disc Drawer
LED
1 Basic Information

5

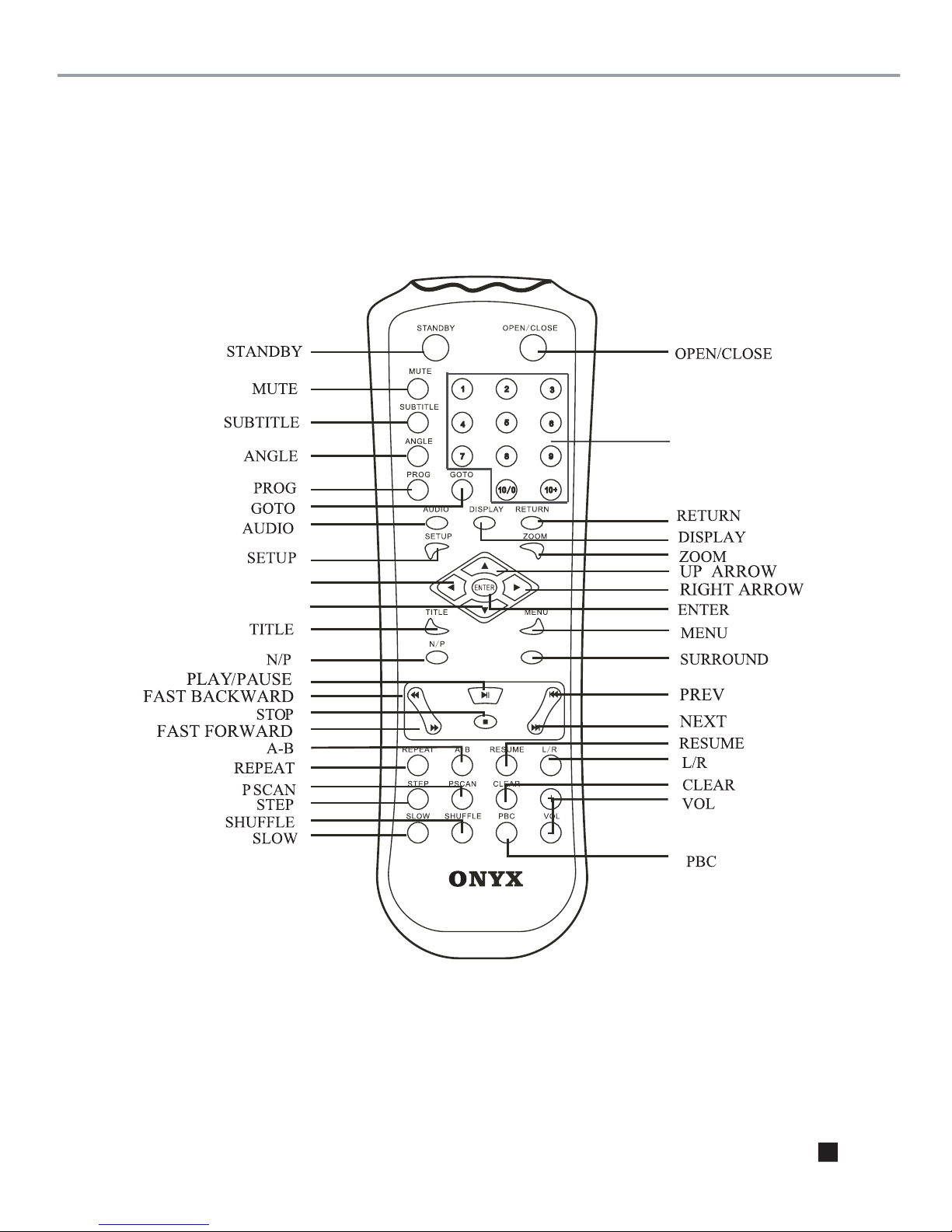

1.2 Remote Control View
SURROUND
NUMERIC KEYS
LEFT ARROW
DOWN ARROW

6

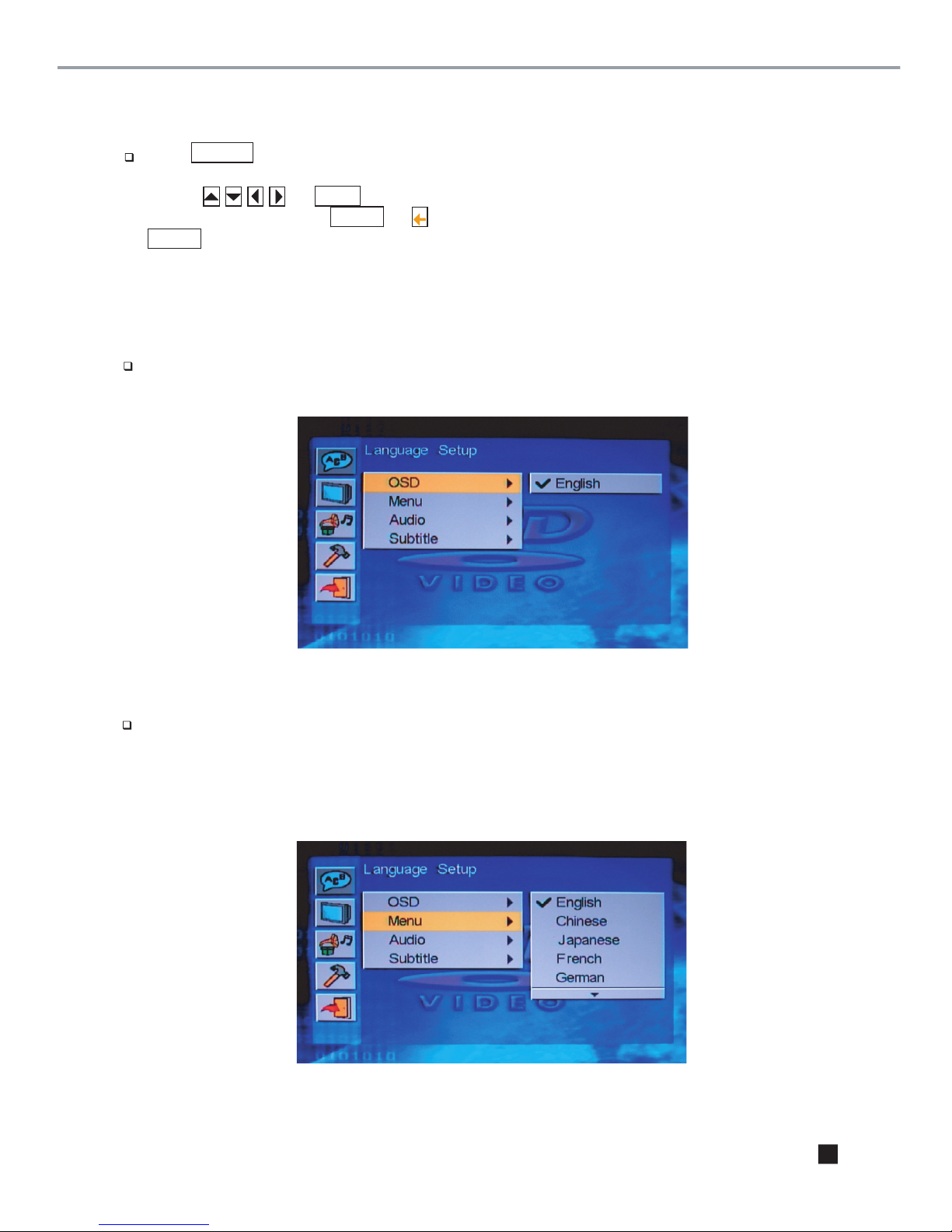

Press SETUP to enter SETUP menu. There are 4 options:
including【Language Setup】、【Screen Setup】、【Audio Setup】、【 Setup】, we
can use and PLAY to modify setting, and set value will refresh directly right now. When
screen show dialog ,press SETUP or will return to parent parental menu；In other status, Press
SETUP will exit SETUP menu.
SETUP menu will be modified as below.
2.1 Language setup
2.1.1 OSD
2.1.2 Menu
This is to select the SETUP DVD menu language.。Menu appear 13 kinds of languages, including
English、Chinese、Japanese 、French、German、Italian 、Spanish、Portuguese、Hindi 、Thai、
Russian、Korean、Others. If the DVD Disc support SETUP audio language, system will play the
corresponding menu language, if DVD disc doesn’t support SETUP menu language，system will select
first menu language in disc automatically.
Custom
The default OSD language is English.
There is a options :English.
2 System Setup

7
2.1.3 Audio
This is to select the SETUP audio language. ”Audio language” appears 13 kinds of languages, including
English、Chinese、Japanese 、French、German、Italian、Spanish、Portuguese、 、Thai、
Russian、Korean、Others. If the DVD Disc supports SETUP audio language, system will play the
corresponding audio language, if DVD disc doesn’t support SETUP audio language, system will select
first audio language in disc automatically.
2.1.4 Subtitle
This is to select the SETUP subtitle language.
including English、Chinese、Japanese、French、German、Italian、Spanish、Portuguese、 、
Thai、Russian、Korean、Others、OFF. If the DVD Disc supports SETUP subtitle language, system
will play the corresponding audio language, if DVD disc doesn’t support SETUP subtitle language,
system
will
select first subtitle language in disc automatically.
14 kinds of languages will appear in “Subtitle Language”,
the
Hindi
Hindi

8
※In 【Menu Language 】 、 【 Audio Language 】 、 【 Subtitle Language 】setup, when we select
【Others】, system will let user input four numbers of language codes, and we can use Reference A language
code table to input the number we want, and then pressing ENTER just to finish the input. As the steps 1、2
below.
Step 1：Select【Others】
Step 2： Input 4 number language code:8888. If input error，system will show “Invalid”
User can press to return parent menu.
[Note] It will right now change only setting in 【OSD】, others as 【Menu】, 【Audio】and【Subtitle】,
it need the disc has these functions support, otherwise it will not have any change after finishing
setting.
2.2 Screen Setup

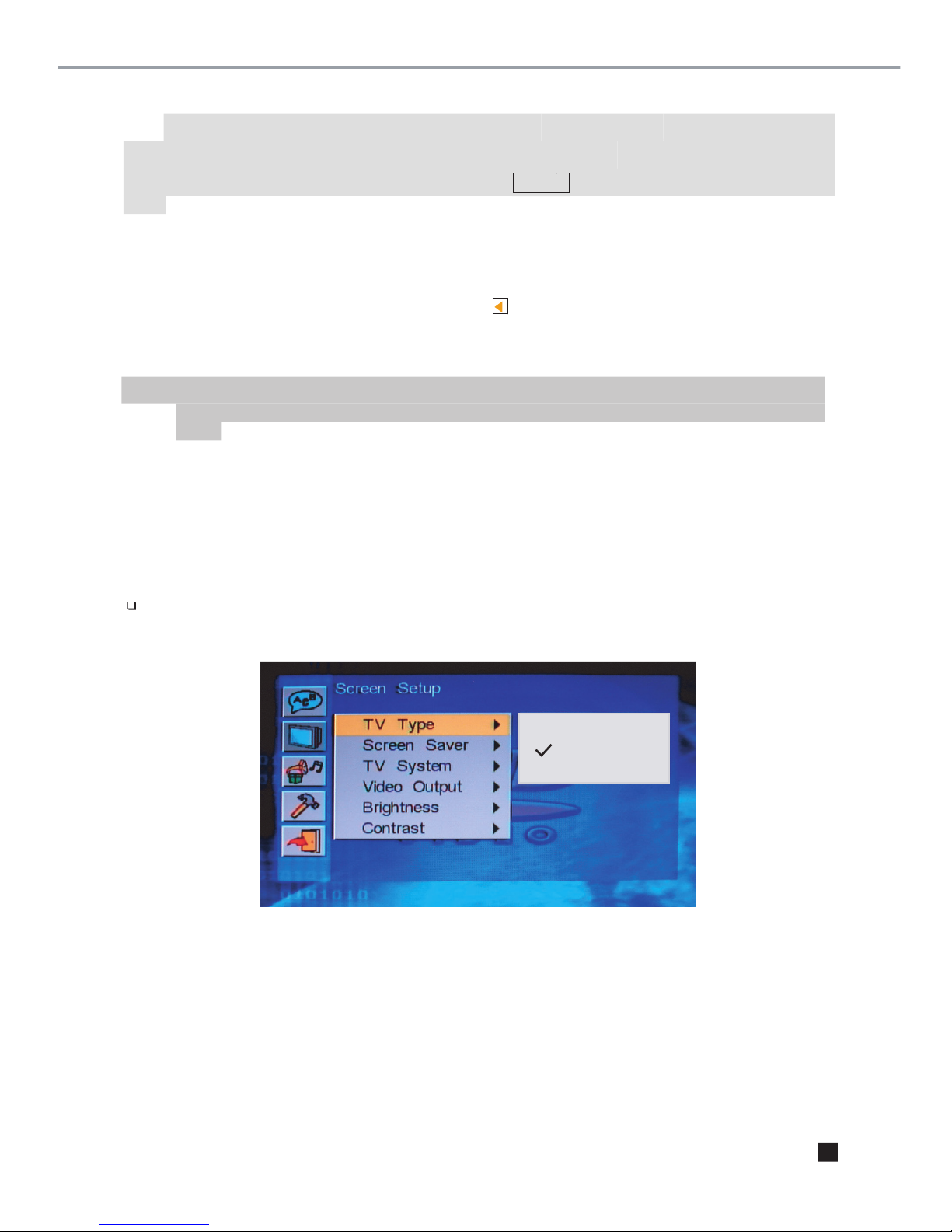

2.2.1 TV Type
TV Type: there are three types , including【4:3 PS】, 【4:3 LB】, 【16:9】.
4:3 PS
4:3 LB
16:9
and let user to input again.

9
2.2.2 Screen Saver
There are two options: ON and OFF, user can set this function On or Off.
TV System
2.2.3 (Color TV)
There are 3 options for TV system: NTSC, PAL and Auto.
2.2.4 Video Output
It supports S-VIDEO、CVBS+YUV、CVBS+RGB、
YUV P-SCAN
If TV support (YUV) input or (RGB) input，we can select the setting, let user get better view
If user enters from NONE-【P-SCAN】 mode to【P-SCAN】 mode，system will appear a dialog, to
let user decide setup p-scan or not.
.

10

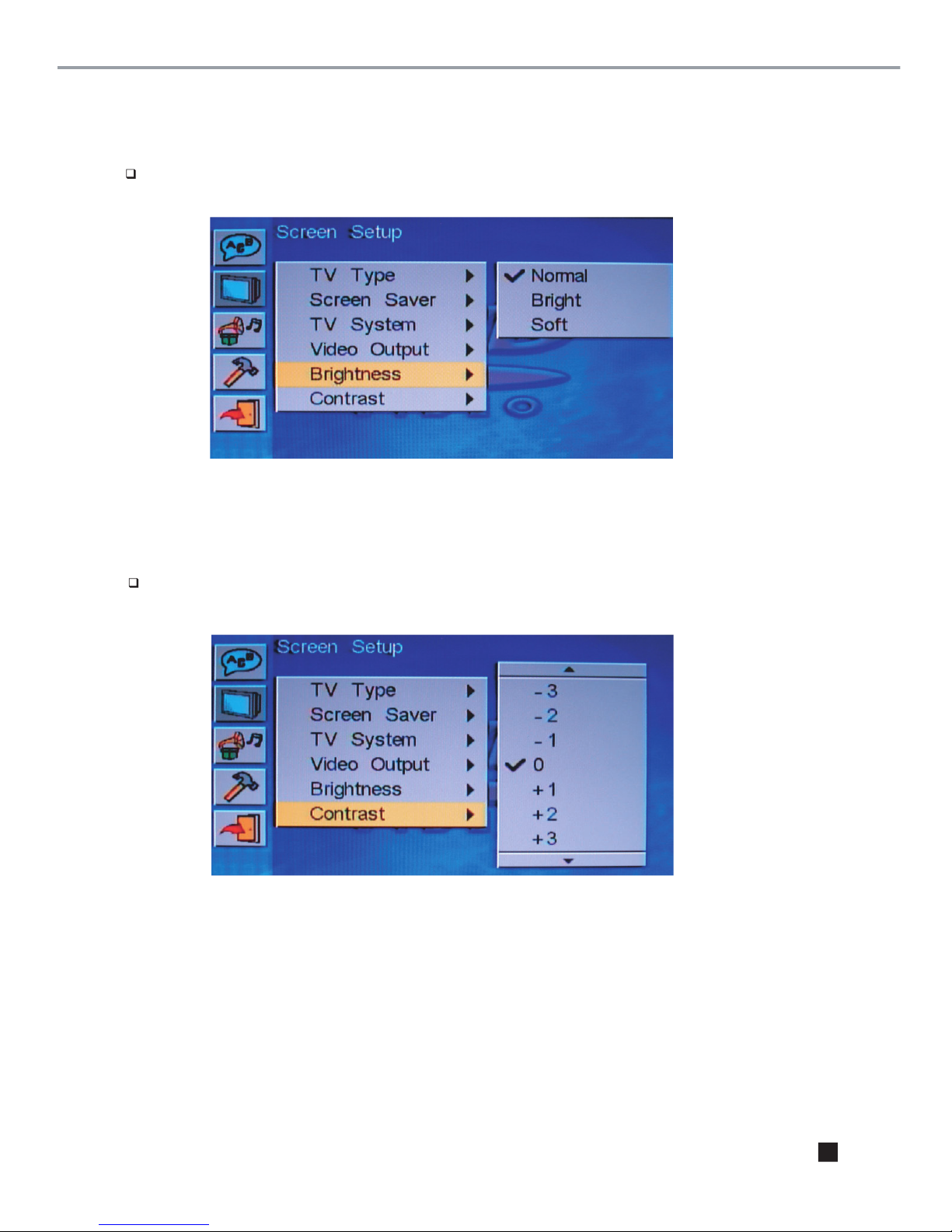

2.2.5 Brightness
There are 3 kinds of brightness, including 【Normal】、【Bright】、【Soft】.
2.2.6 Contrast
From -4 to +4, 0 as normal, user can select by his preference.

11

13

14

15

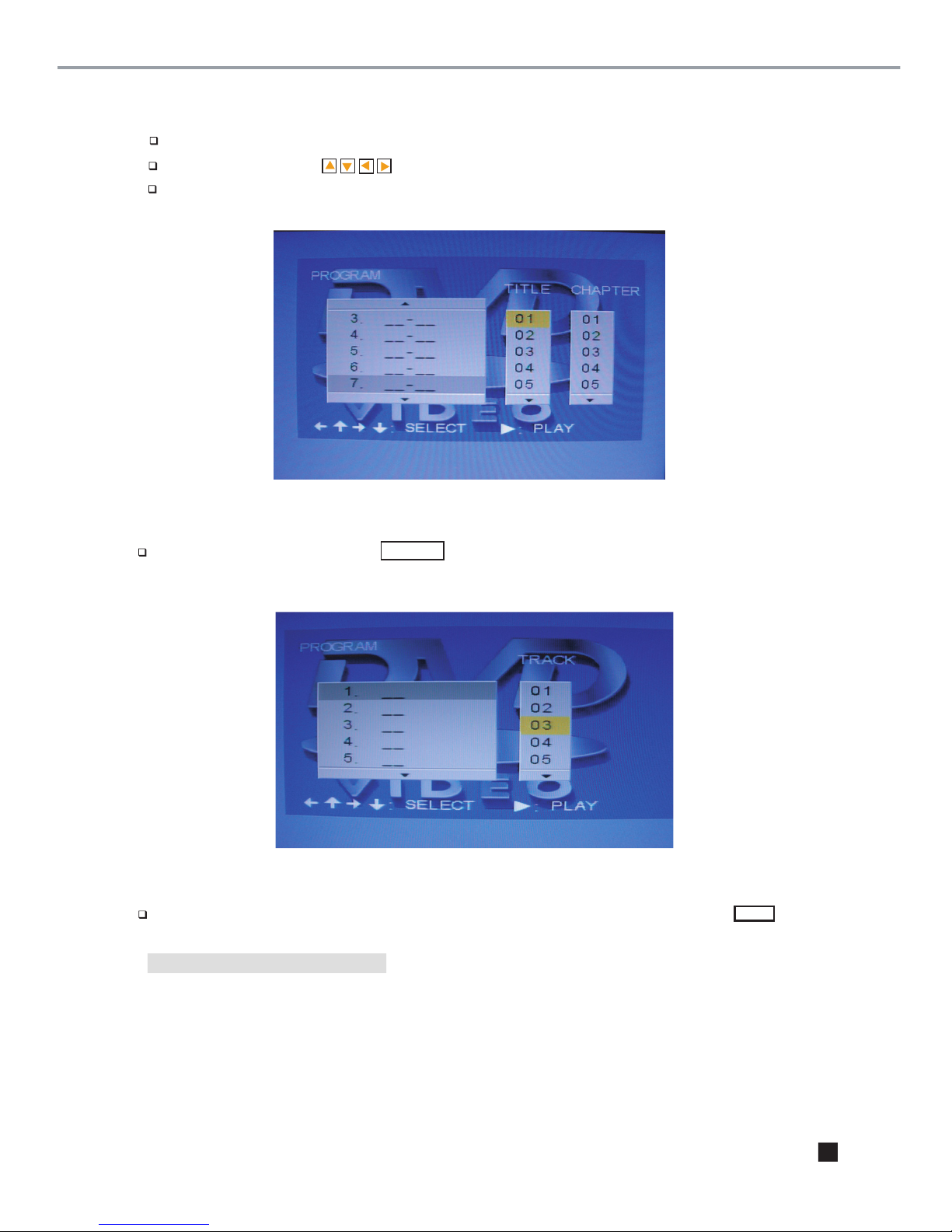

Program Play
3.15
This function can set playing order, when playing DVD, press PROG, the screen will appear the following picture.
Then use numeric key or buttons to select the Title/Chapter you want.
Press PLAY to start playing.
When playing VCD/SVCD, press PROG then show program screen:
Using numeric key or to select the track we want to play, after input and press to start to
play the trace we input.
※The max track of this function is 20.
PLAY
dicection key

16
In【Program】Mode, the selected file will show background and reverse color. User can select
the song or picture he wants，for example, user selects test_5_01、test_5_03, and test_5_06 three files,
it can select over than one folder, even in sub-folder, or sub-sub-folder.
orange
When user wants to play the selected files in【Program】mode, it needs to move the cursor to the
buttons, then press key to play.
In the file of cursor indicated, if the file is not yet to be selected, then user can press to add it to the
program list, system will show red rectangle.
the file we selected, then move the cursor to the place again, press again, this file we select will be cancelled.
If user wants to cancel all the selected files, he just needs to press PROG again to delete all.If user wants to cancel
MP3_ 004

17

18

19
Press Clear to delete selected items in the program list.
Press this button to change system among NTSC, PAL and Auto.
Press this button, user can play the disc step by step, in this way user can catch any picture
on the disc. This function is disc specified.
This function allows user to change audio track while playing VCD discs, there are 3 options:
L/R,L/L and R/R.
this function allows user to change different audio effect by pressing Surround button repeatedly.
there are 3 options available:Live, Therter and No Surround.
By pressing this button, user can set the play order to Oder Play or Random Play.
3.27 Resume
3.29 N/P
3.28 Clear
3.30 Audio
3.31 L/R
3.32 Surround
3.33 Shuffle
3.34 Step
Press this button while playing DVD, to select different kind of output voice language.
This function is disc specified, playing disc must support this function, then user can operate
this step.
3.35 Return
Press this button to return to its title menu while playing VCD discs under the mode of PBC ON.
3.36 P-Scan
This function allows user to transform the video system,there are 4 options:S-Video,CVBS+YUV,
YUV P-SCAN and CVBS+RGB.
This function enables DVD or VCD disc to return back to playback mode and go on playing
after pressing Stop button.
