Onyx Flexible-arm PC Edition User manual

440482-001 Revision A
ONYX™ Flexible-arm PC Edition
User’s Guide
Freedom Scientific, Inc.
April 2010

ii ONYX Flexible-arm PC Edition User’s Guide
PUBLISHED BY
Freedom Scientific
11800 31st Court North
St. Petersburg, Florida 33716-1805
USA
http://www.FreedomScientific.com
Information in this document is subject to change without notice. No part of this publication may
be reproduced or transmitted in any form or by any means electronic or mechanical, for any
purpose, without the express written permission of Freedom Scientific.
© 2010 Freedom Scientific, Inc. All Rights Reserved.
ONYX™ and MAGicEyeMerge™ are trademarks of Freedom Scientific, Inc in the United
States and other countries.

ONYX Flexible-arm PC Edition User’s Guide iii
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Reorient or relocate the receiving antenna.
Consult the dealer or an experienced radio or television technician for help.
Do Not Make Modifications to Remote Control
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

iv ONYX Flexible-arm PC Edition User’s Guide
Table of Contents
Overview............................................................................................................................1
ONYX Flexible-arm PC Edition Components......................................................................2
What’s in the Box................................................................................................................2
Safety and Maintenance .....................................................................................................3
Getting Started..................................................................................................................5
Assembling ONYX ..............................................................................................................5
Clamping the ONYX Flexible-arm PC Edition to a Table Edge ..........................................5
Camera Assembly...............................................................................................................5

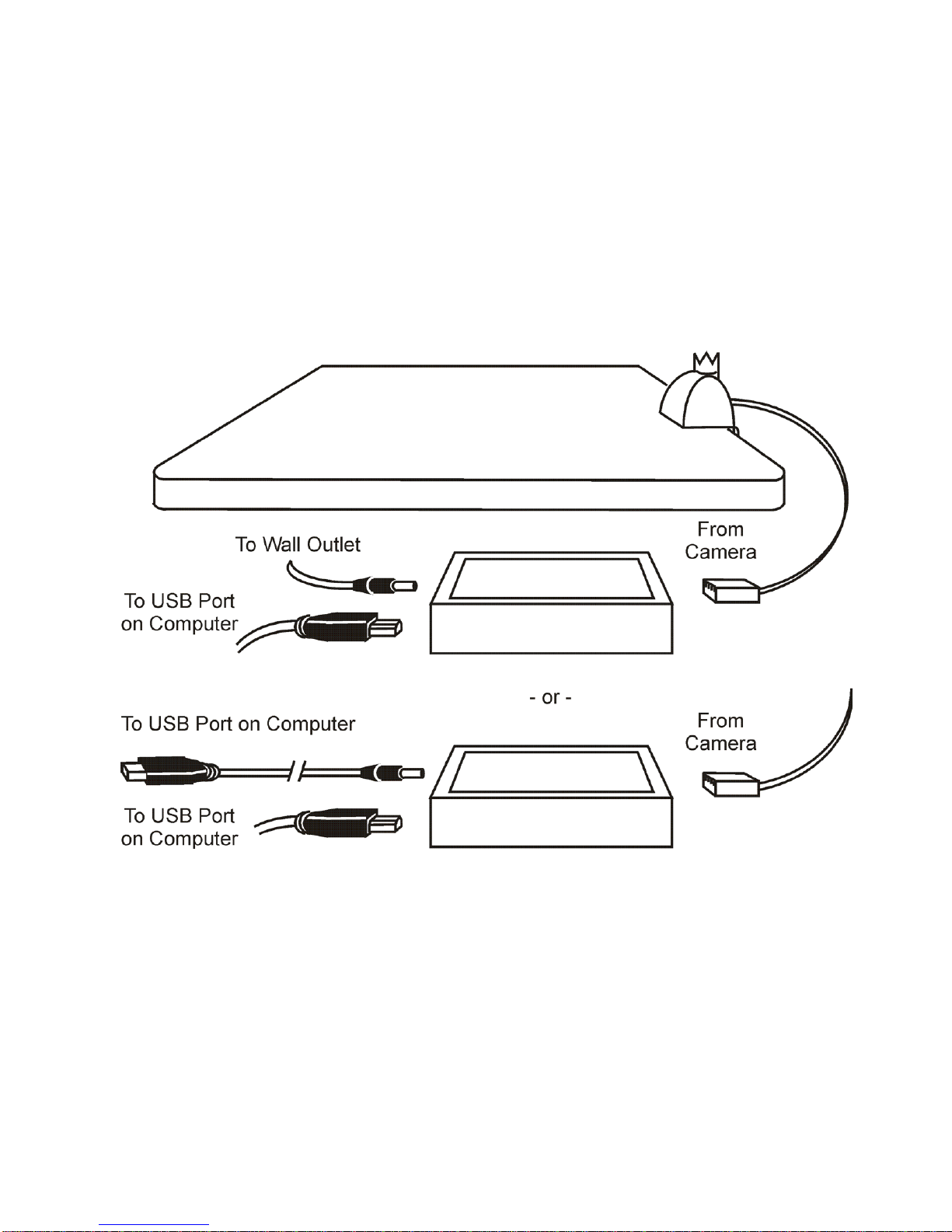

Video and Power Connections............................................................................................8
Connecting Video Cables ...............................................................................................9
Connecting Power Using a Wall Outlet.........................................................................10
Connecting Power Using a Computer’s USB Port........................................................10

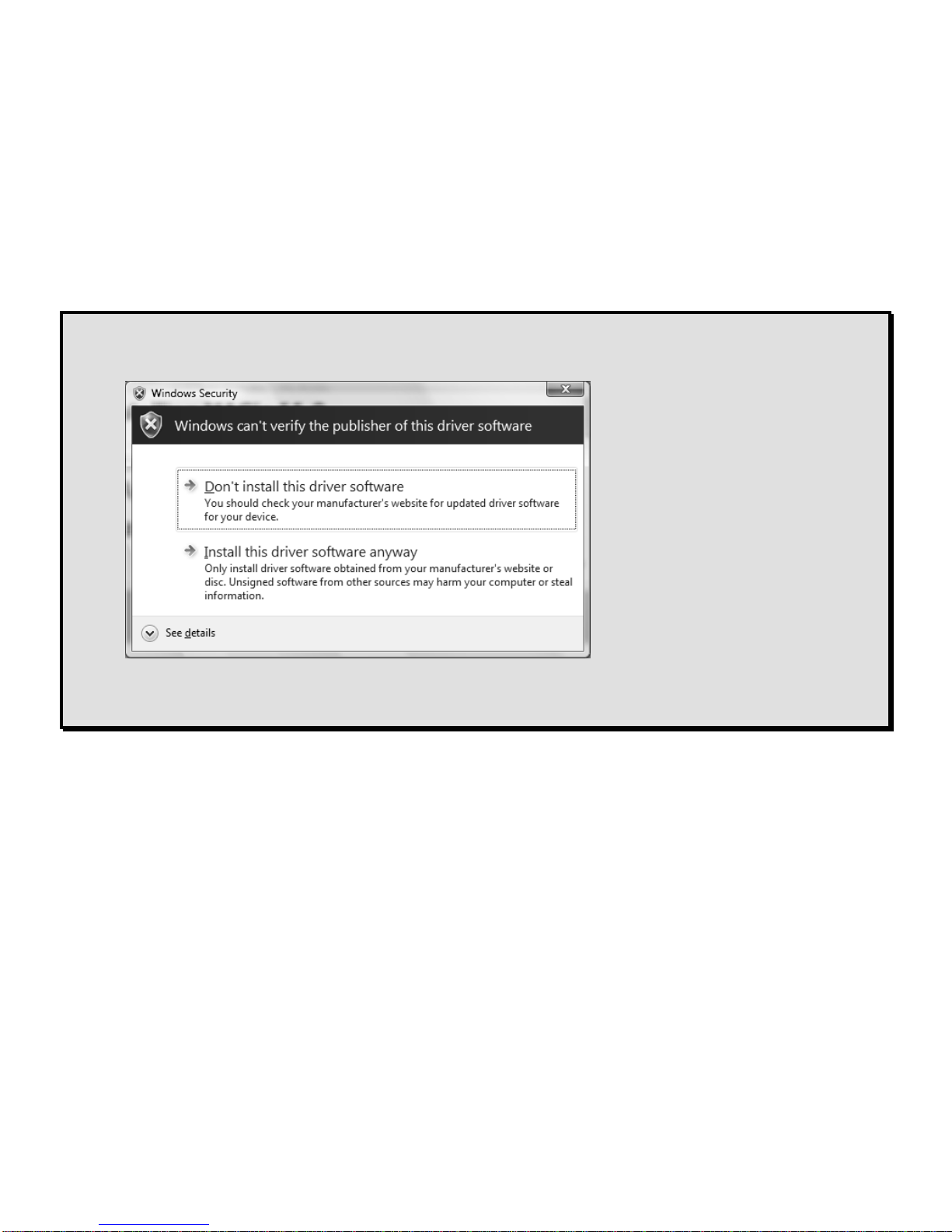

Installing and Starting Magnification Software..................................................................11
Turning ONYX Flexible-arm PC Edition On......................................................................13
Positioning Camera for Long Distance or Close-up Work ................................................14
Basic Operation Using the ONYX Remote Control......................................................16
Turning On and Off the ONYX Flexible-arm PC Edition...................................................16

ONYX Flexible-arm PC Edition User’s Guide v
Removing the Remote Control Button Cover....................................................................17
Changing Magnification ....................................................................................................18
Changing Viewing Modes .................................................................................................18
Aiming the Camera at a Distant Image.............................................................................18
Flipping an Image..............................................................................................................19
Freezing an Image............................................................................................................19
Auto Focus Toggle............................................................................................................20
Masking.............................................................................................................................20
Reading Lines...................................................................................................................21
Saving Camera Settings ...................................................................................................22
ONYX Remote Control Functions..................................................................................23
Power/Function LED (Red)..............................................................................................24
Power (Green) ..................................................................................................................24
Find (Red).........................................................................................................................25
Flip (Light Blue).................................................................................................................25
Video Mode (Blue) ............................................................................................................26
Brightness (Yellow)...........................................................................................................26
Zoom (Black).....................................................................................................................27
Freeze Frame (Red) .........................................................................................................27
Focus Lock (Orange) ........................................................................................................28

vi ONYX Flexible-arm PC Edition User’s Guide
Reading Lines (Black and White)......................................................................................28
Mask (Black and White)....................................................................................................29
Width (White) ....................................................................................................................29
Up and Down (Black)........................................................................................................29
Pairing a Remote Control with a Camera .....................................................................30
MAGic EyeMerge Hot Keys............................................................................................33
Zoom and Focus...............................................................................................................33
Screen View......................................................................................................................34
Video Modes.....................................................................................................................36
Capture Image ..................................................................................................................37
View Image .......................................................................................................................37
Lines and Masks...............................................................................................................39
Camera Control.................................................................................................................40
Picture Adjustment............................................................................................................41
Service and Support.......................................................................................................42
Troubleshooting..............................................................................................................43

ONYX Flexible-arm PC Edition User’s Guide 1
Overview
The ONYX™ Camera makes seeing printed type, pictures, handwriting, and small details
easier than ever before.
The ONYX includes the following features:
Document reading
Distance reading
Self viewing
Auto Focus creates the clearest view without any need to make adjustments.
Adjust pre-set video modes for high contrast text that is most comfortable for your
individual eyesight.
Increase or decrease brightness
Masking using MAGicEyeMerge™ software
Reading Lines using MAGic EyeMerge software
Freeze frame
Find function to easily target distant objects

2ONYX Flexible-arm PC Edition User’s Guide
ONYX Flexible-arm PC Edition Components

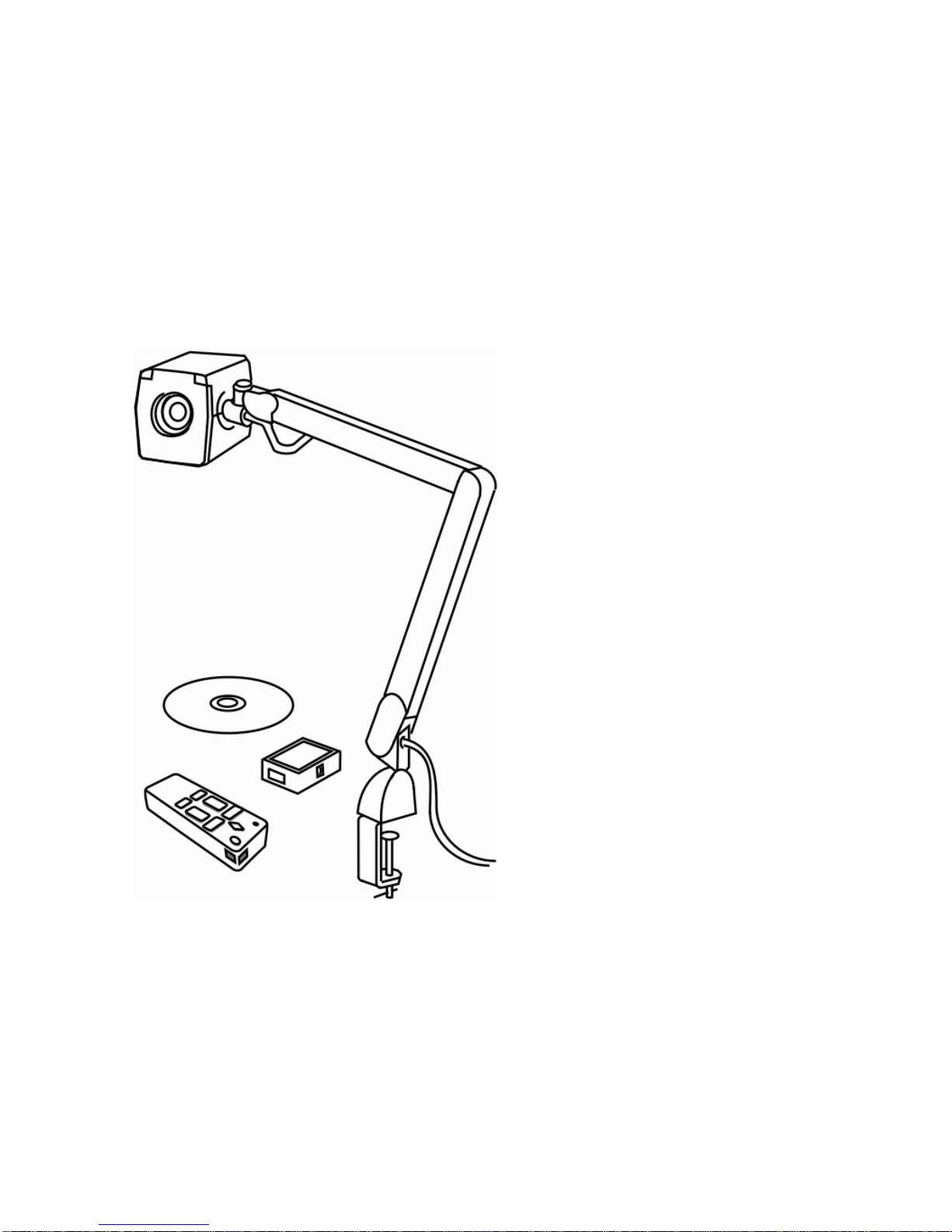

What’s in the Box
ONYX vision camera
Flexible camera arm
Mounting clamp
ONYX USB interconnect
box
Remote control with two
AAA batteries
Power cable and universal
110-240V AC adapter
Power-to-USB cable
USB cable
MAGic software CD

ONYX Flexible-arm PC Edition User’s Guide 3
Safety and Maintenance
To keep the unit in good condition and to ensure safe usage, observe the following guidelines:
Read the instructions in this user’s guide before attempting to use the unit.
Do not attempt to repair the unit or open its case. This product contains no user
serviceable parts.
Do not attempt to modify the remote control. Changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
Keep the unit away from wet areas, rain, and other sources of liquids or high humidity. Do
not submerge the unit.
Always operate the unit in a place where the temperature is between 10° and 40° C (50°
and 104° F).
Always store the unit in a place where the temperature is between -20° and 65° C
(-4° and 149° F). Do not store in a parked car, because the temperature often exceeds
this range.
Always use the unit on a stable, level, hard surface such as a desk or table.
Never force connectors into the unit’s ports. All appropriate connectors should fit easily
into the ports. It the connector does not fit, turn it around, and try again.

4ONYX Flexible-arm PC Edition User’s Guide
Use only the power cable that came with your unit. Other adapters may damage the unit.
When cleaning the unit, use a clean, soft cloth. Do not spray or pour any liquid on the unit.
