OpenEye CM-135 User manual

1
Installation Manual

2
User Information
CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Explanation of Symbols
The lightning flask with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE ON THE BOTTOM OF THE SYSTEM.
“WARNING - TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE”

3
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital devices, pursuant to part 15
of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at their own expense.
WARNING
The manufacturer could void the user’s authority to operate the equipment.
CAUTION - To prevent electric shock and risk of fire hazards:
Do NOT use power sources except for that specified.
Do NOT expose this appliance to rain or moisture.
•
•

4
Contents
Before using this camera, please read this operation manual carefully and keep this manual for future reference.
User Information......................... 2
Contents ..................................... 4
Safety Instructions ..................... 5
Precautions................................. 6
Features...................................... 7
Installation.................................. 8
Camera Operation .................... 12
Troubleshooting ........................ 35
Specifications ........................... 36

5
Safety Instructions
Read Instructions
Read all of the safety and operating instructions
before using the product.
Retain Instructions
Save these instructions for later use.
Cleaning
Unplug this appliance from wall outlet before cleaning.
Do not use liquid leaners or aerosol cleaners. Use a
damp cloth for cleaning.
Water and Moisture
Do not use this product near water or moisture. For
example: near a bathtub, wash bowl, kitchen sink,
laundry tub, in a wet basement, or near swimming
pools.
Installation
Do not place this product on an unstable cart, stand,
or table. The product may fall causing serious injury to
a child or adult, and damage to the product. Mounting
should follow the manufacturer’s instructions and
should use a mounting accessory recommended by
the manufacturer.
Power Source
This product should only be connected to the type
of power source indicated on the packaging. If you
are not sure of the type of power supplied to your
location, consult your dealer or local power company.

6
Precautions
Handling
Do not disassemble the camera.
Never touch the parts inside the camera.
Do not drop the camera or subject it to shocks and
vibrations to avoid possible damage.
When attaching or removing the lens, handle with
care so that moisture and dust do not enter the
camera.
•
•
•
•
Installation and Storage
Do not point the camera at the sun. This could
damage the camera whether or not it is operating.
Do not install the camera where the temperature
could exceed the allowable range.
Be sure the ambient temperature is less than 40ºC
in installations intended for long term continuous
operation.
Avoid installing in a humid or dusty location.
Avoid installing in locations where there are strong
magnetic fields and electric signals.
Avoid installing in locations where the camera would
be subject to strong vibrations.
Never expose the camera to rain or water.
•
•
•
•
•
•
•

7
Features
High Sensitivity 1/3 Inch Sony Super HAD CCD
Min. Illumination (F1.2, 30 IRE): 0.1 Lux (Color)
0.05 Lux (BW, ICR)
0.0 Lux (IR Led On)
Day & Night (Programmable or ICR)
OSD (On Screen Display)
High Performance Menus for Functions
Privacy Zone Selectable (4 Programmable Zones)
Motion Detection Selectable (64 Programmable Zones)
Sharpness Enhanced Adjustable
Flickerless Selectable
Gamma Enhanced Selectable
BLC Zone Selectable (64 Programmable Zones)
•
•
•
•
•
»
»
»
»
»
»

8
Installation

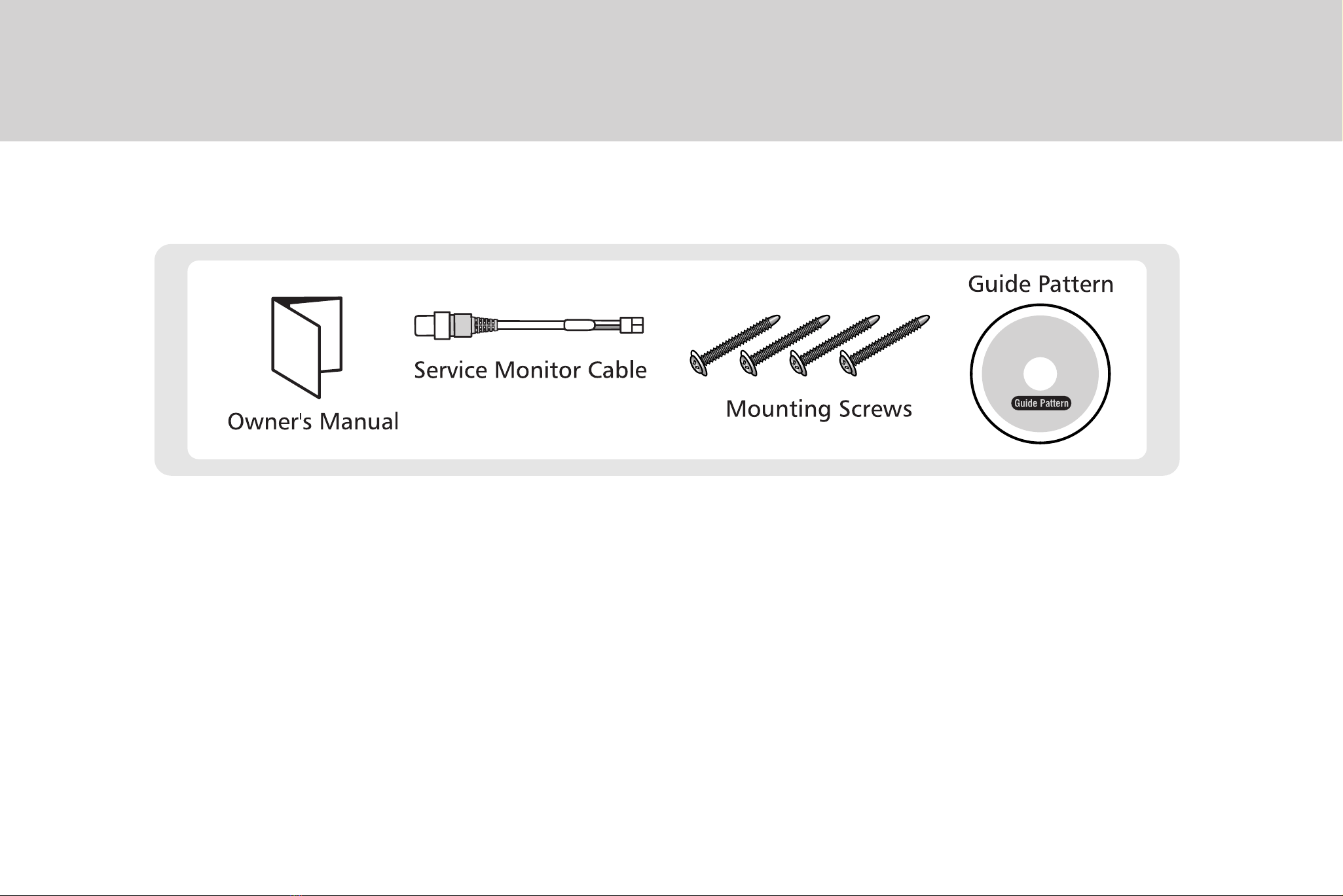

Box Contents:

9
Stick the guide pattern on the wall or ceiling.
Drill four holes according to the guide pattern, then insert
anchors into the holes.
Pull the power / video cables to the installation point and
connect to the camera.
Attach the camera to the ceiling using the included screws.
Adjust the camera view and focus by turning and moving the
3-axis camera by hand.
Place the dome cover over the base and press it into place.
1.
2.
3.
4.
5.
6.
Note Insert a coin in the slot on the side of the camera
and twist to remove the dome cover.
Installing the Dome Camera

10
Camera Lens

11

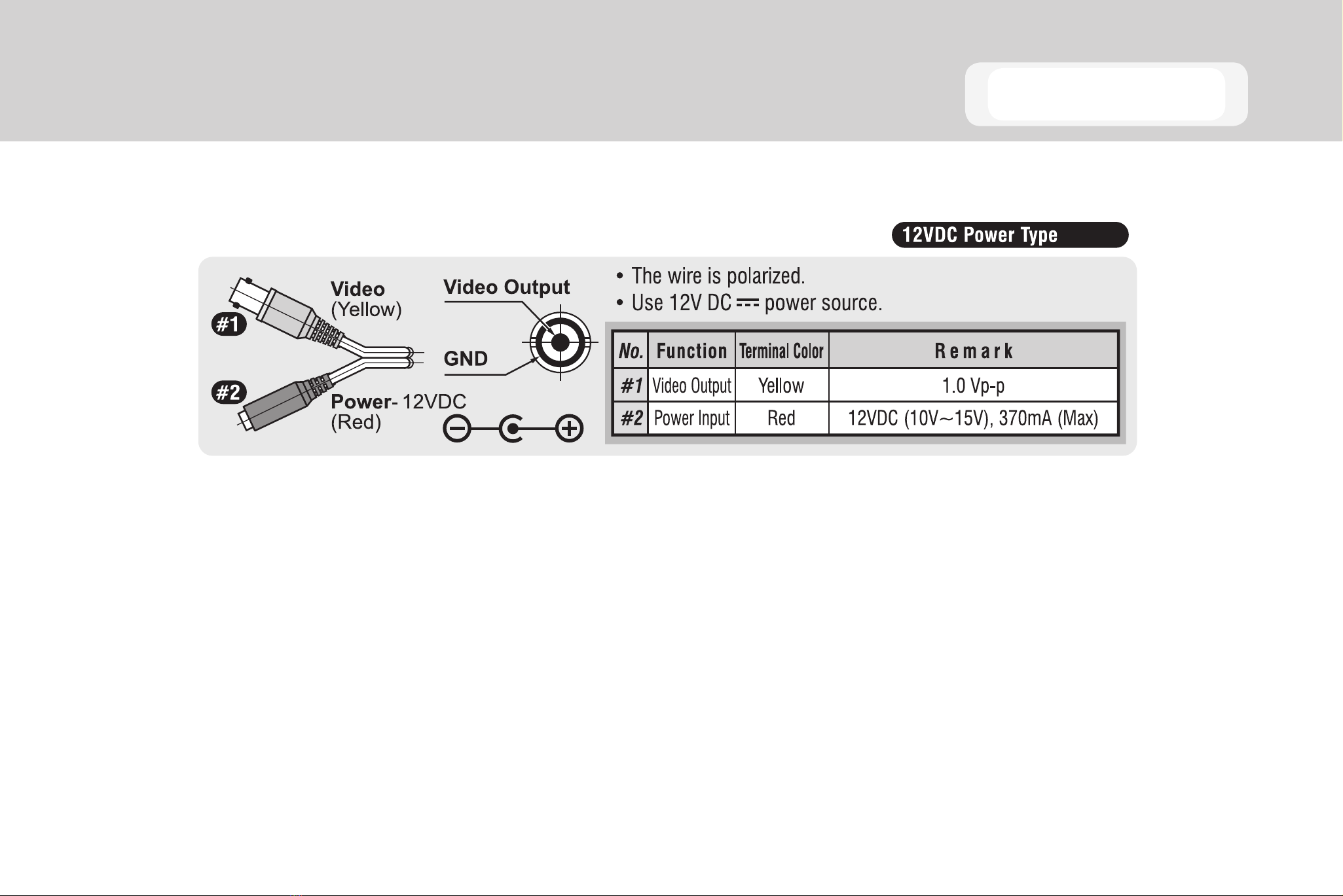

Connections

12
Camera Operation
SETUP MENU
CAMERA ID ON• OFF•
SHUTTER AUTO• FLK• FIXED• MANUAL•
WHITE BAL. ATW• AWB• FIXED• MANUAL•
FUNCTION BLC• AGC• DAY NIGHT• PRIVACY•
MIRROR• GAMMA• MOTION•
ADJUST CONTRAST• SHARPNESS•
CB_GAIN• CR_GAIN•
LANGUAGE ENGLISH• KOREAN• CHINESE1• CHINESE2• JAPANESE•
RESET
EXIT

13
Setting up the Menu
Press the joystick for one second and the OSD
will appear on the screen. Move the joystick up,
down, left & right to control the OSD functions
Setup
Press and hold the joystick 1
second to access the SETUP
mode.
Select menu options using the
joystick. (up, down, left, right)
•
•

14

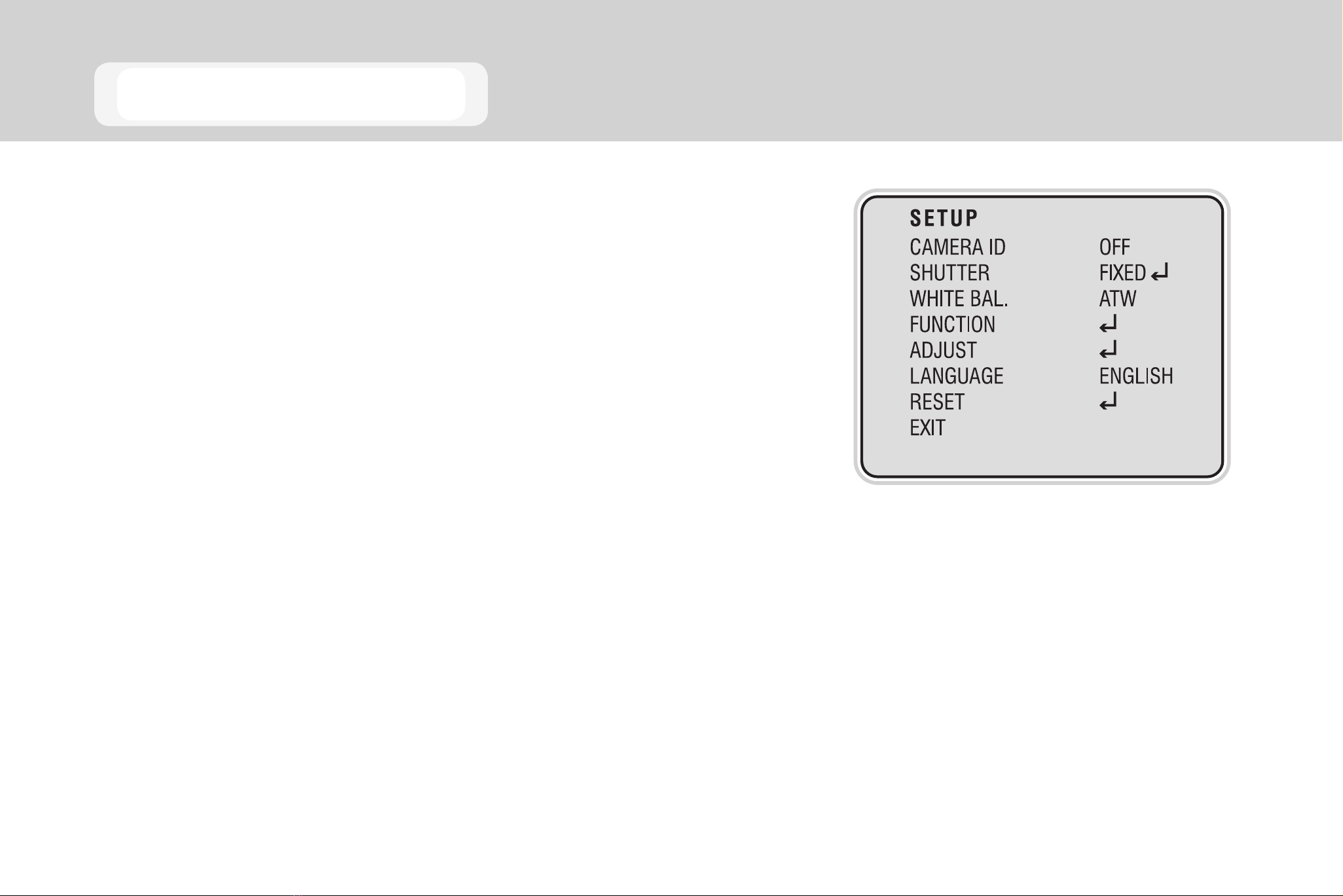

Main Menu - SETUP
Press the joystick to open SETUP mode.
The MAIN SETUP menu is displayed on the monitor.
Select an OSD item using UP, DOWN.
Set details using LEFT, RIGHT.
Select EXIT and then press the MENU button to finish SETUP
(Save and Exit).
1.
2.
3.
4.

15
Main Menu - CAMERA ID
Camera ID setup (default setting OFF)
Select CAMERA ID on the SETUP menu.
Use the joystick (LEFT, RIGHT) to set CAMERA ID to ON .
Press the joystick to open ID SETUP.
Use the joystick to change the character. The camera name
can be up to 63 characters.
Select C and press the joystick to clear the ID.
Select and press the joystick to exit the ID setup mode.
POSITION setup
Select POSITION press the joystick.
Move the camera name using UP, DOWN, LEFT, RIGHT.
Press the joystick to confirm the camera name location.
1.
2.
3.
4.
5.
6.
1.
2.
3.

16
Main Menu - SHUTTER
SHUTTER setup (default setting OFF)
Select SHUTTER on the SETUP menu.
Use the joystick (LEFT, RIGHT) to set the desired SHUTTER
mode: AUTO  FLK FIXEDMANUAL.
1.
2.

17
Menu [SHUTTER] - FIXED
FIXED setup
Select SHUTTER on the SETUP menu.
Use the joystick (LEFT, RIGHT) to set SHUTTER to FIXED .
Use the joystick (LEFT, RIGHT) to set the shutter speed:
1/60 ~ 1/100,000
1.
2.
3.

18
Main Menu - WHITE BALANCE
WHITE BALANCE setup
Select SHUTTER on the SETUP menu.
Use the joystick (LEFT, RIGHT) to set the desired mode:
ATW AWB FIXEDMANUAL.

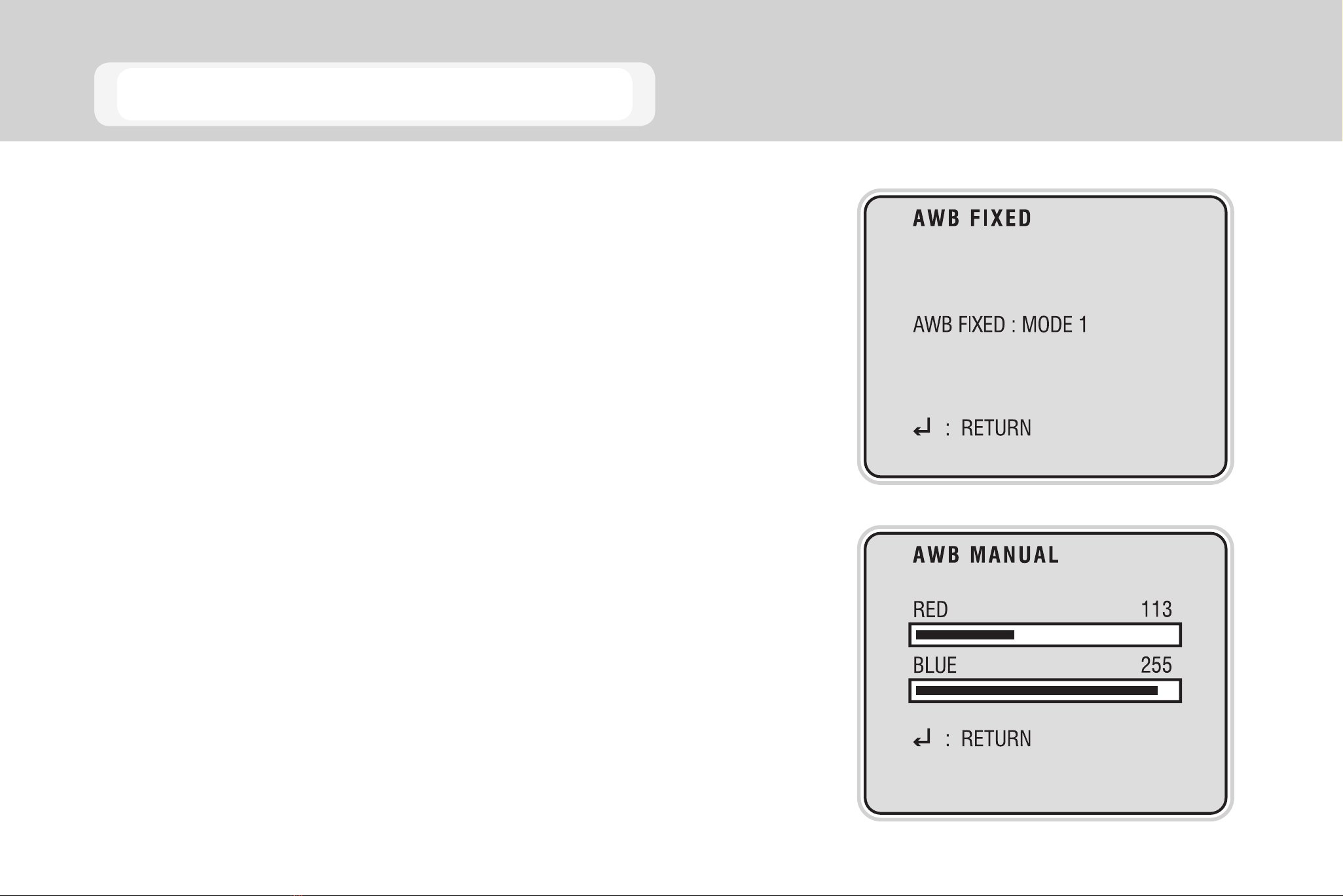

FIXED setup
Set FIXED mode: MODE 1 ~ MODE 4
MANUAL setup
Set the RED and BLUE color value temperature.
1.
2.
1.
1.

19
Main Menu - FUNCTION
FUNCTION setup
Select FUNCTION on the SETUP menu.
Use the joystick (UP, DOWN) to select items.
Use the joystick (LEFT, RIGHT) to set details.
1.
2.
3.

20
Menu [FUNCTION] - Back Light Compensation 1

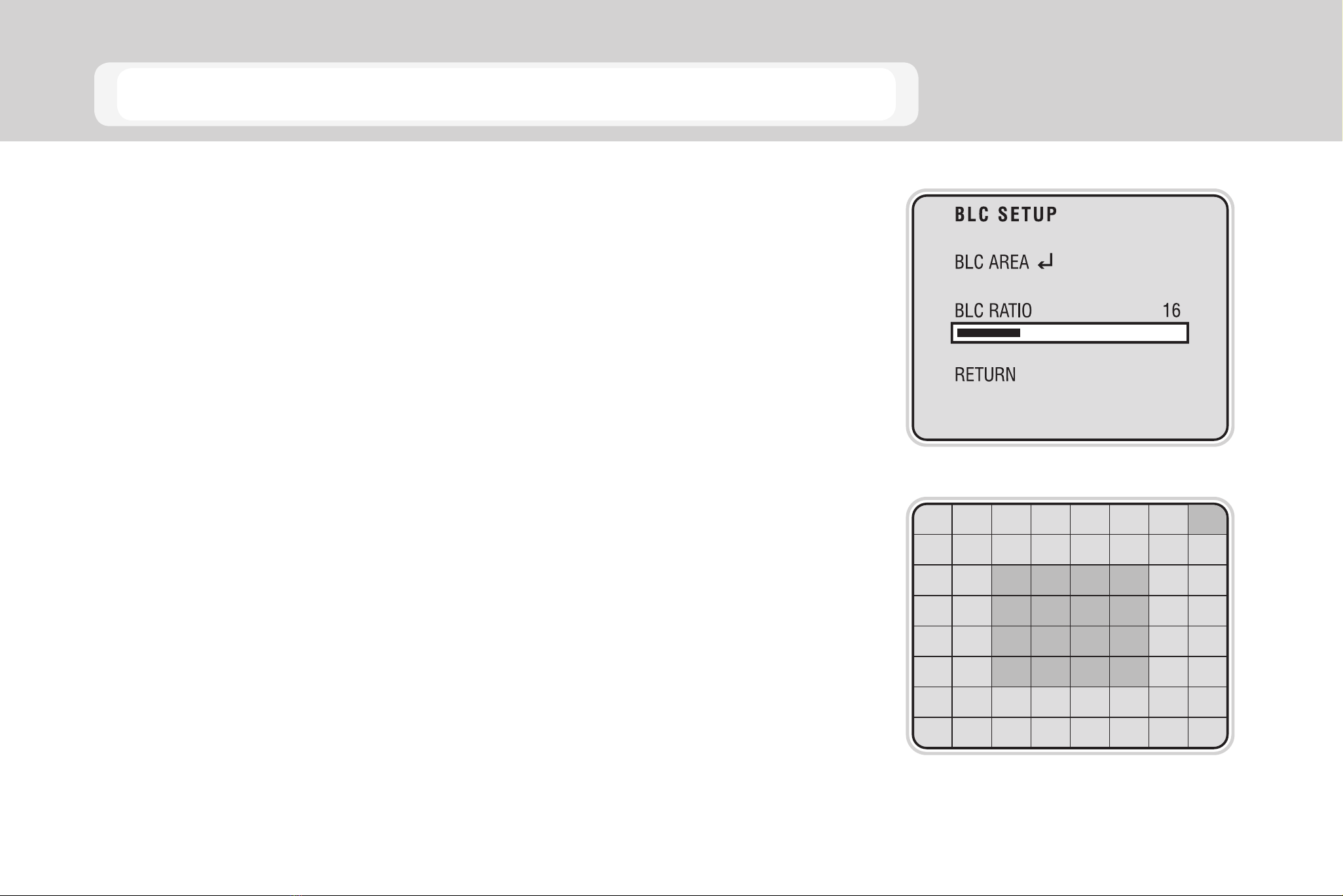

BLC SETUP mode (Back Light Compensation)
Select FUNCTION on the SETUP menu.
Use the joystick (LEFT, RIGHT) to set FUNCTION to BLC ON .
BLC AREA setup
Use the joystick (UP, DOWN, LEFT, RIGHT) to move the AREA
setup position.
Press the joystick to set or release BLC AREA.
Press and hold the joystick to open the BLC AREA MODE
menu.
1.
2.
1.
2.
3.
