Opkon OP-MD3 User manual
Manufacturer:
Terazidere Mah.60.Yil Cad.No:5/3
34035 Bayrampasa/ISTANB L/T RKEY
TEL: 0 212 501 48 63
FAX: 0 212 501 48 83
Email: [email protected]
MODEL OP-MD3
DIGITAL DISPLA
FOR POTENTIOMETRIC
SENSORS OR 0-5V INPUT
Ver 2.0E
USER GUIDE
WARNING!
READ CAREFULL BEFORE POWER ON
1. Complete electrical connections according to the
schematic at the third page.
2. Check Supply Voltage 220V (or 24V optional) AC, or DC, due to
Specifications on the equipment.
3. Use only shielded cable for sensors.
4. Keep away the equipment from direct heat source.
5. MODEL OP-MD3 is not suitable for outdoor use.
6. Keep away the equipment from water or other liquid
drains.
7. Do not open, modify or replace any component in the
equipment, If any problem occurs please contact an authorised
OPKON technical service or OPKON directly.
ELECTRICAL SPECIFICATIONS:
Microcontroller based
10 bit Analog/Digital converter
p to 200 kSPS
Two point calibration
Power supply :220V ± % 20 (or 24V optional) ,50 Hz
Power consumption :<4 VA(protected by fuse 50mA)
Sensor supply voltage :+5V or +12VDC(selectable by jumper)
Sensor supply current :Max.100mA(no fuse)
Input :Potentiometric or 0-5V DC

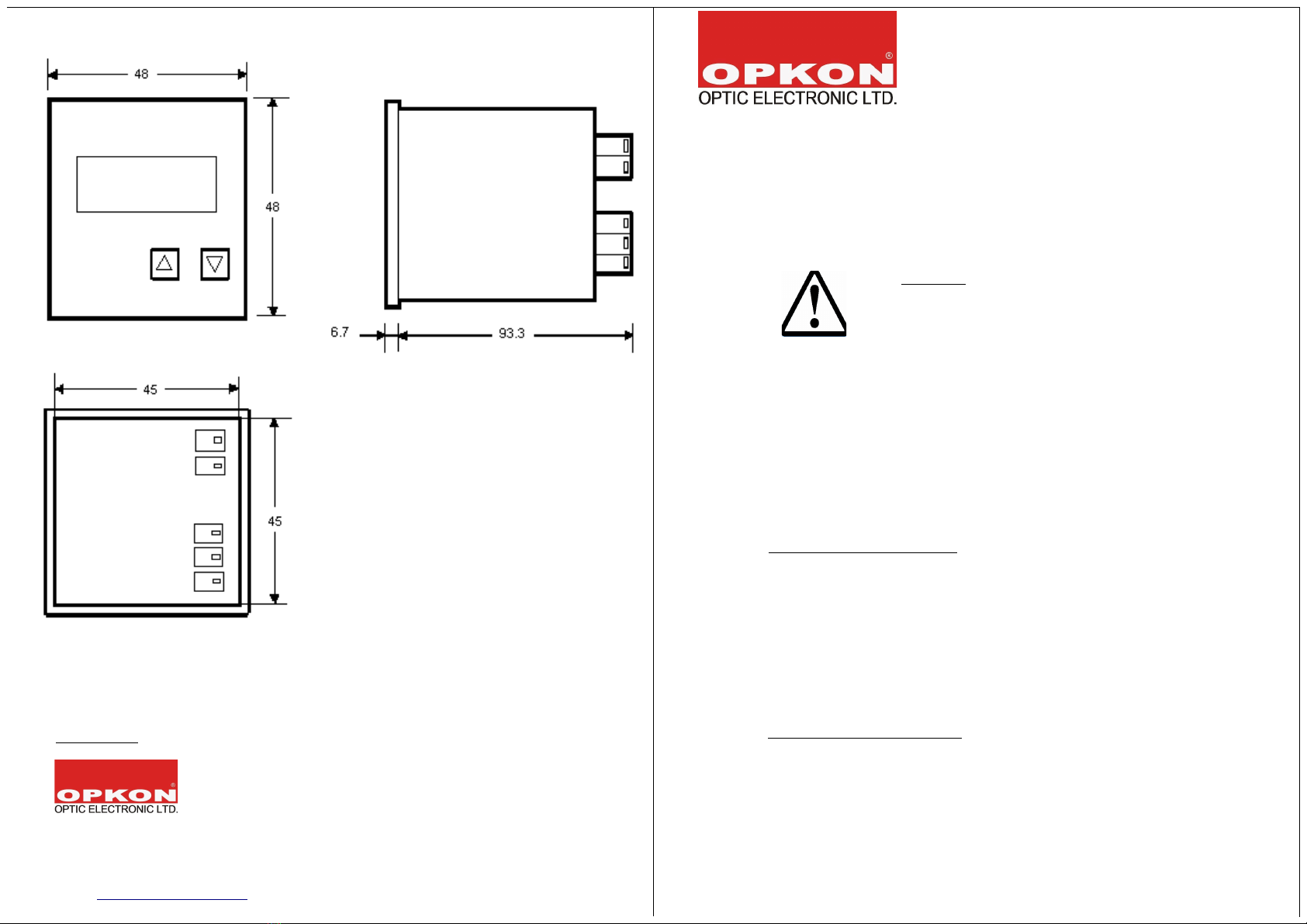

MECHANICAL SPECIFICATIONS:
Dimensions :48x48x100 mm
Panel cut dimensions :45x45mm
Body :ABS plastic
Working temperature :0-60 ºC
Storage temperature :-10ºC …+80ºC
Humidity :<%90 RH
PROGRAMMING MODEL-MD3
1 ) TWO POINT CALIBRATION
Lower Calibration Point :
•Move the Sensor mechanically to the zero position.
1. Press DOWN button continuously, until the word CALL appears on the screen.
2. Press UP / DOWN to set the value on the screen zero or any value desired.
3. Wait 2 second without pressing any button, the last screen appears.
• After this, the equipment goes back to operation mode.So the Lower Calibration Point was defined..
Upper Calibration Point :
• Move the Sensor mechanically to the maximum position.
1. Press UP button continuously, until the word CALH appears on the screen.
2. Press UP / DOWN to set a desired value.
3. Wait 2 second without pressing any button, the last screen appears.
• After this, the equipment goes back to operation mode.So the Upper Calibration Point was defined.
2 ) SETTING THE DECIMAL POINT
1. Press UP/DOWN button at the same time and continuously, until the second screen appears.
2. Press UP/DOWN buttons to select the decimal point.
3. Wait 2 second without pressing any button, the last screen appears.
•After this, the equipment goes back to operation mode.So the Decimal Point was defined.
ELECTRICAL CONNECTIONS
Potentiometric sensor input 0-5 V input
