Oppray ML-BSW300 User manual

ML-BSW300
User Manual
Please read this user manual before using this product.

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
INDEX
STATEMENT 3
ACCESSORIES 3
SAFETY INSTRUCTION 3
GENERAL GUIDELINES 4
INSTALLATION 6
TECHNICAL SPECIFICATION 8
GOBO AND LAMP 11
CONTROL SYSTEM 12
CONTROL PANEL 13
HOW TO SET THE UNIT 14
CHANNEL DESCRIPTION: 22
TROUBELSHOOTING 25
CLEANING AND MAINTENANCE 26

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
STATEMENT
The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also cannot be responsible for any malfunction & problem owing to
ignore the manual.
ACCESSORIES
These items are packed together with the product:
Name
Quantity
Unit
Remark
USER MANUAL
1
PCS
DMX CABLE
1
PCS
OMEGA
2
PCS
CLAMP
2
PCS
SATETY ROPE
1
PCS
SAFETY INSTRUCTION
Pleasekeep this User Guideforfuture consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
GENERAL GUIDELINES
NEVER OPEN THIS FIXTURE WHILE IN USE!
During the initial operation of this fixture, a light smoke or smell may emit
from the interior of the fixture. This is a normal process and is caused by
excess paint in the interior of the casing burning off from the heat
associated with the lamp and will decrease gradually over time.
This fixture is a professional lighting effect designed for INDOOR / DRY
LOCATIONS ONLY on stage, in nightclubs, theatres, etc.

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Please make sure there are NO FLAMMABLE MATERIALS close to the
fixture while operating, to prevent any fire hazard.
The fixture must be installed in a location with adequate ventilation, at least
1.5 feet (.5m) from adjacent surfaces. Be sure no air ventilation slots are
blocked.
DO NOT attempt installation and/or operation without knowledge how to
do so.
DO NOT permit operation by persons who are not qualified to operate this
type of fixture. Most damages are the result of operations by
nonprofessionals. Consistent operational breaks may ensure the fixture will
function properly for many years to come.
DO NOT shake fixture, avoid brute force when installing and/or operating
fixture.
Always install the fixture with an appropriate safety cable. When installing
the fixture in a suspended environment, always use mounting hardware
that is no less than M10 x 25 mm, also be sure the hardware is insert in the
pre-arranged screw holes in the bracket of the fixture.
Use the original packaging and materials to transport the fixture in for
service.
DO NOT TOUCH the housing bare-hand during its operation. Turn OFF
the power and allow approximately 15 minutes for the fixture to cool down
before replacing or serving.

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
INSTALLATION
C A U T I O N S
For added protection, mount the fixture in areas outside walking paths,
seating areas, or in areas were unauthorized personnel might reach the
fixture.
Ambient operating temperature range for this fixture is 5° to 113°F. (-15°
to 45°C) Do not use the fixture under or above this temperature.
Before mounting the fixture to any surface, make sure the installation area
can hold a minimum point load of 10 times the weight of the fixture.
Fixture installation must always be secured with a secondary safety
attachment, such as an appropriate safety cable.
Never stand directly below the device when mounting, removing or
servicing.
The unit should be mounted via its screw holes on the bracket. Always ensure
that the unit is firmly fixed to avoid vibration and slipping while operating. And
make sure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight. Also always use a

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.
Clamp mounting

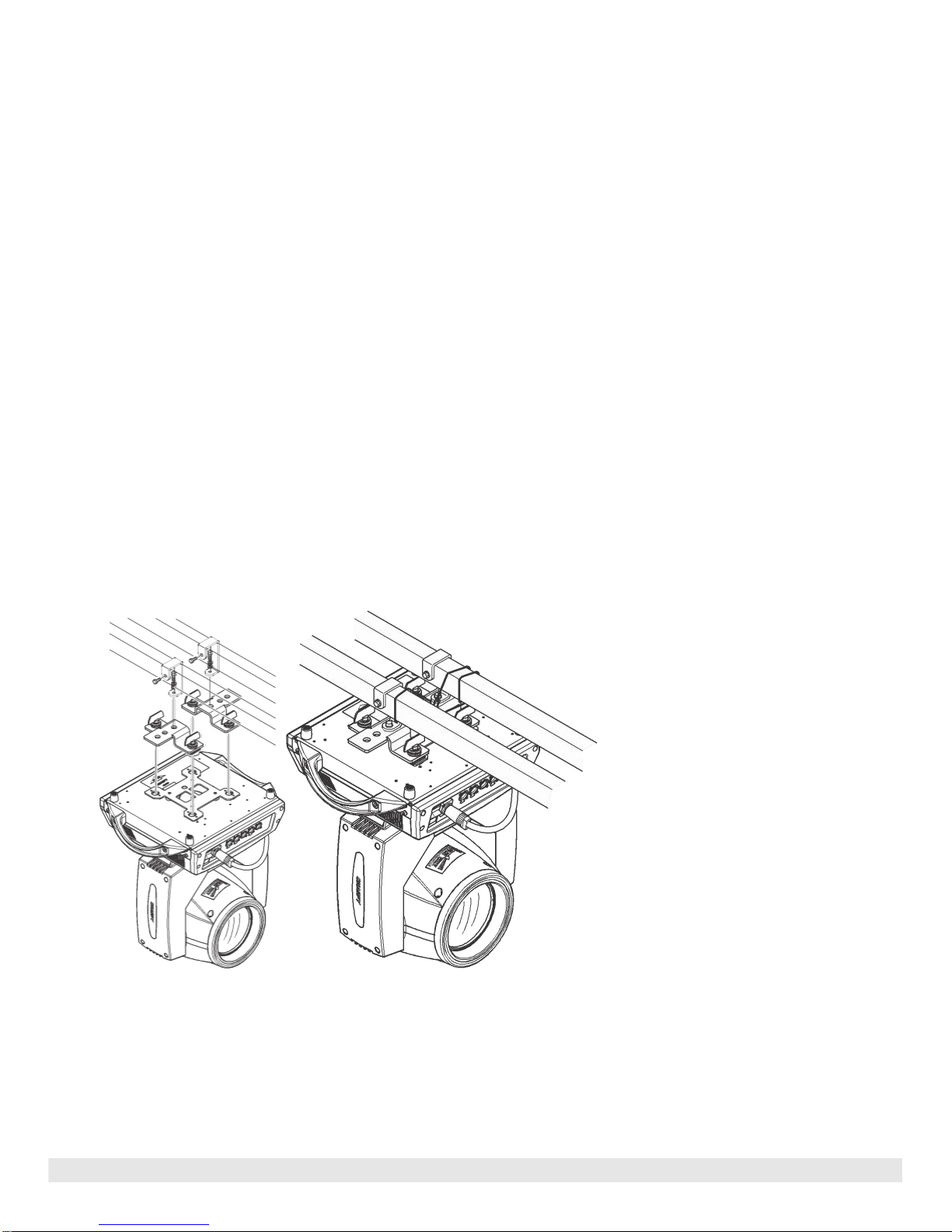

The moving head provides a unique mounting bracket assembly that
integrates the bottom of the base, the included ‘Omega Bracket’ and the
Safety Cable rigging point in one unit (see the illustration below).When
mounting this fixture to truss be sure to sere to secure an appropriately rated
clamp to the included Omega Bracket using a M10 screw fitted through the
center hole of the ‘omega bracket’. As an added safety measure be sure to
attached at least one properly rated Safety Cable to the fixture using one of
the safety cable rigging point integrated in the base assembly.
DMX-512 control connection:

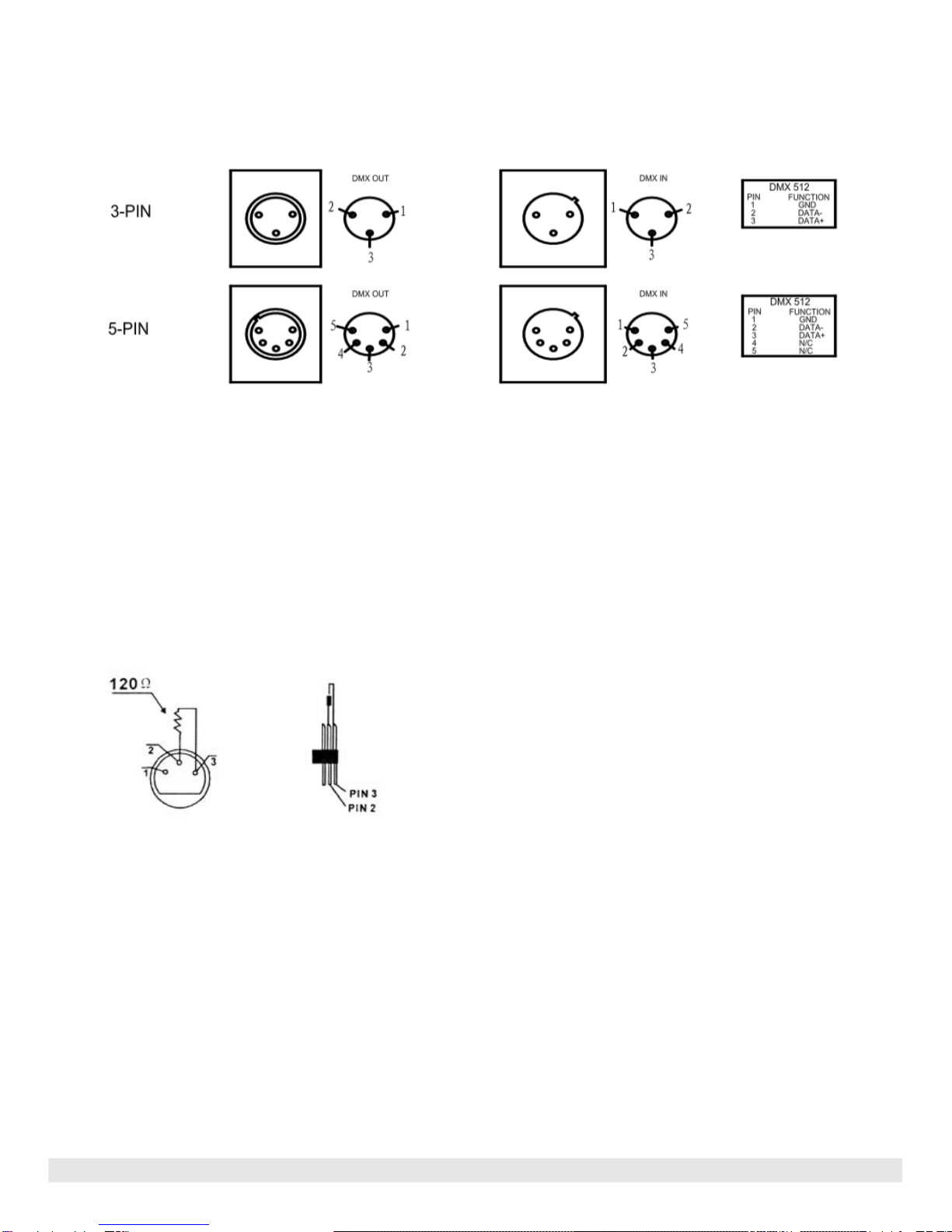

Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving
head together through serial linking. The cable needed should be two core, screened cable

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 resistor connected between pins 2 and 3,which
is then plugged into the output XLR socket of the last fixture in the chain. Please see
illustrations below.
TECHNICAL SPECIFICATION
Power supply
- AC 100~240V 50/60Hz
Power Consumption - 430W
Fuse- T 6.3A

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Light Source
- 300W White LED
Optical system
- High efficiency optical system, delivering extremely powerful output
- High quality dichroic lenses
Movement
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable.
- Automatic Pan/Tilt correction.
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.
Dimmer/Shutter
- Blackout, 0~100% smooth dimming, independent shutter and
various strobe effect.
Color wheel
- Color wheel: 10 fixed colors plus white
- Rainbow effect in both directions.
Gobo wheel
- Gobo Wheel : 1 Static gobo wheel with 11 gobos plus open
1 Rotating gobo wheel with 7 gobos plus open
- Easy calibration and maintenance by magnetic home positioning.
- Module design for easy assembly and service.
Prism
- Prism: 3 facet prism rotating in both directions
Frost
- Variable, separate effect.
Focus
- Independent frost effect

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Zoom
- Motorized linear zoom for smooth adjustment of beam size and
beam sharpness.
Cool
- Fan cooled
Protocols
- DMX 512
- Date input/output: 3/5 Pin XLR socket
Weight
- 21Kg
Dimension
- 408× 293×655mm
Photometric Diagram:
Please Note: Specifications and improvements in the design of this unit and this manual are subject
to change without any prior written notice.

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
GOBO AND LAMP
1.Gobos
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing
will otherwise be opened!
2. 300W White LED
Because of its high internal pressure, there might be a risk that the Discharge
lamp would explode during operation. The lamp emits intense UV radiation which
is harmful to the eyes and skin. The high luminance of the arc can cause severe
damage to the retina if you take a close look at the lamp.
⚫To protect the lamp, always turn off the lamp first (via control panel or DMX
controller) and let the unit run at least five minutes to cool down before

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
switching off the mains supply. Never handle the lamp or luminary when it is
hot.
⚫Do not touch the bulb with bare hands. If this happens, clean the lamp with
denatured alcohol and wipe it with a lint free cloth before installation.
⚫The lamp generates UV radiation. Never operate the lamp without appropriate
shielding.
⚫When lighting up, the lamp operates at high pressure and there is a slight risk
of arc tube rupture. The risk increases with age, temperature and improper
handling of the lamp. Do not use the lamp longer than its lifespan.
⚫Make sure the lamp is located in the center of the reflector for the best
projection.
CONTROL SYSTEM

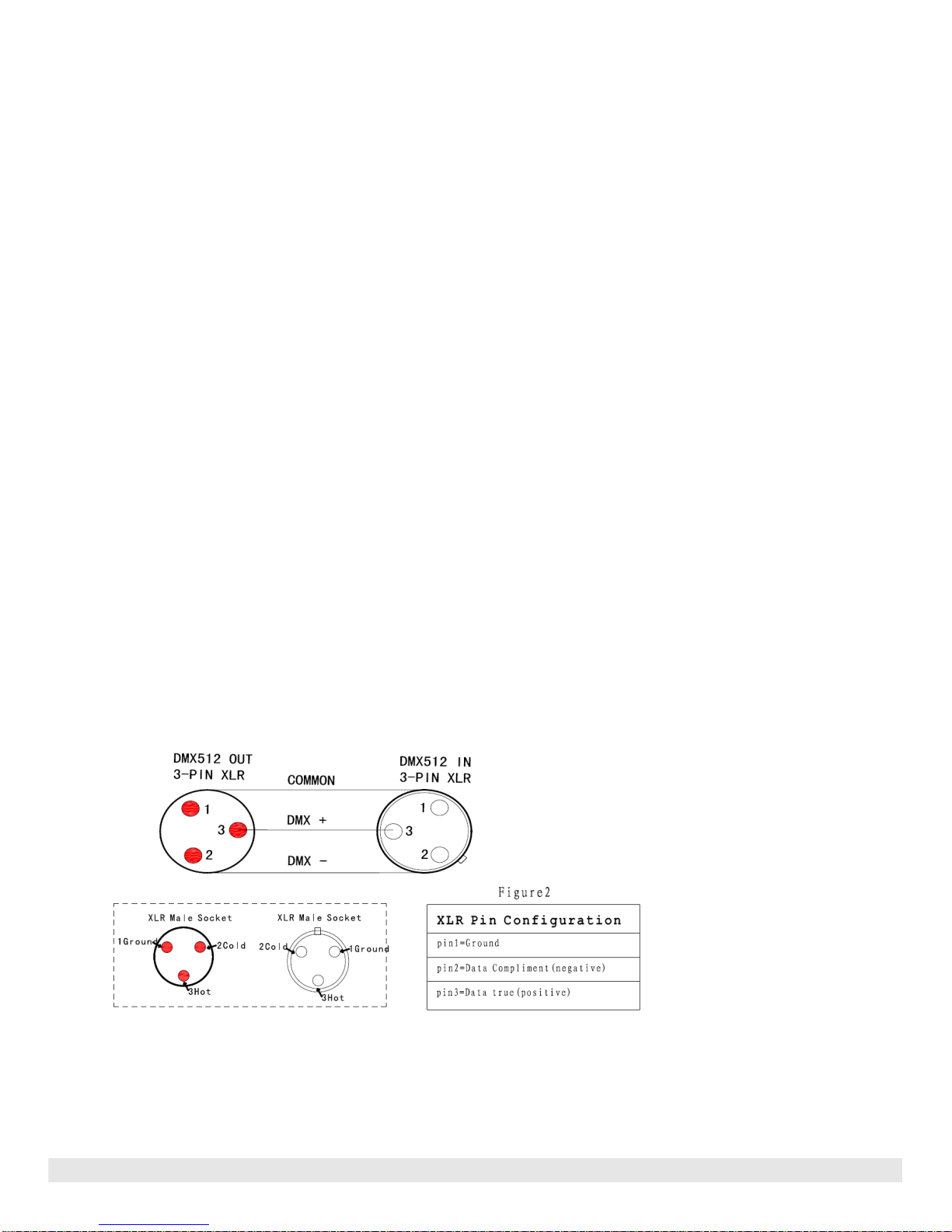

Th e D M X512 is w id ely used in intellig ent ligh ti ng con tr ol, with a DMX 512
controller. Connect several lights together dmx in and dmx out,
3 pin XLR connectors : Pin 1: G ND , Pin 2: Nega tive s ign a l (-), Pin 3: P o s itive s i gna l
(+)

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual

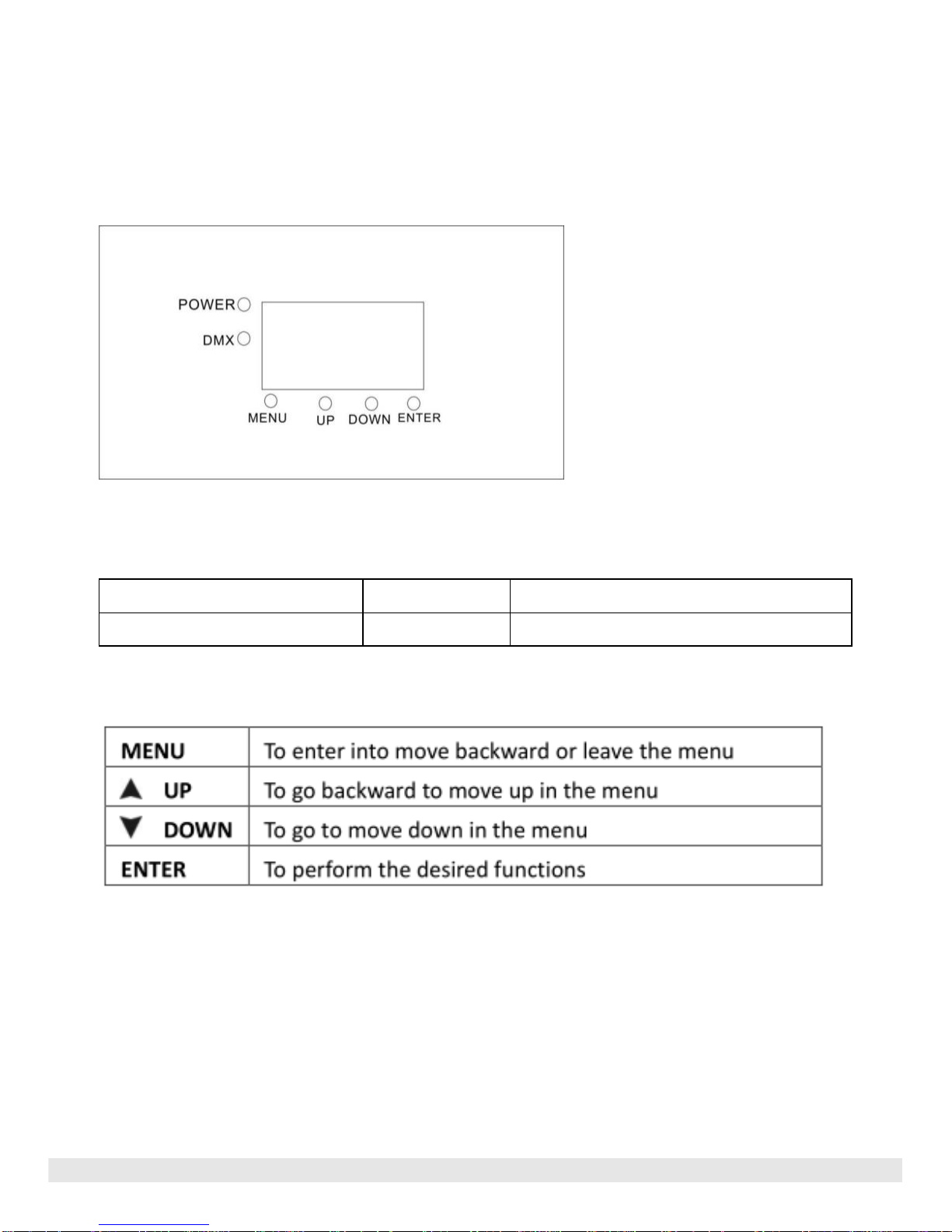

CONTROL PANEL
1. Monitor (Batter Back-up display):
2. LED:
POWER
ON
Power on
DMX
ON
DMX input present
3. Button:
4. DMX input/output:
For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together.
5. Power Cable:
To connect to the mains supply
6. Fuse (T 6.3A):

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Protect the unit from damage of over current.
7. Power Switch: Turns On/Off the power.
HOW TO SET THE UNIT
Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN
button until the required function is shown on the monitor. Select the function by the
ENTER button. Use the UP/DOWN button to choose the submenu, press the
ENTER button to store and automatically return to the last menu. Press the MENU
button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute
to enter into menu mode. Press MENU button or let the unit idle one minute to exit.
First level
Secondary level
Third level
Fourth level
DMX address
DMX address=xxx
Reset
Are You Sure
Display Options
DMX Mode
Display on Always
Display off After Delay
Display Invert
Display Invert off
Display Invert on
Display Dimming
Disp Dim Level Min
Disp Dim Level Min 1
Disp Dim Level Min 2
Disp Dim Level Min 3
Disp Dim Level Min 4
Disp Dim Level Min 5
Disp Dim Level Min 6
Disp Dim Level Min 7
Init User
memory
Reset
User
memory1
Reset User1 Unlock2,3,4(Press
buttons2,3,4,iebuttonsUP/DOWN/ENTER
to execute the function)
1 User
memory
1 has
been
reset
Reset
User
memory2
Reset User2 Unlock2,3,4(Press
buttons2,3,4,iebuttonsUP/DOWN/ENTER
to execute the function)
User
memory
2 has
been
reset
Reset
Static
Scene
Reset Static Scene2,3,4(Press
buttons2,3,4,iebuttonsUP/DOWN/ENTER
to execute the function)
Static
Scene
has been
reset

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Disp Dim Level Min 8
Disp Dim Level Min 9
Display Contrast
Display Contrast xx(1-21)
System options
Loss of DMX
When DMX is Lost
Normal time out
When DMX is Lost
Hold Last Value
Factory Settings
Press button DOWN/
UP/ENTER at the
Same time to enter
This menu)
Pass Code
Option Settings
Pan DMX Invert
Pan DMX Invert off
Pan DMX Invert on
Tilt Invert
Tilt DMX Invert off
Tilt DMX Invert on
Pan Tilt Swap
Pan Tilt Swap off
Pan Tilt Swap on
Dimmer Invert
Dimmer Invert
OFF
Dimmer Invert
ON
Zoom Invert
Zoom Invert
OFF
Zoom Invert
ON
Defaults
OFF
Restore Defaults
Information
Lamp Hours
Lamp Hours =xx
Reset Lamp Hours
Are You Sure(UP/DOWN)

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Total Hours
Total Hours =xx
Temperature
Display Board
Display Board
System=xxx℃
Boot=xxx℃
Driver Board 1
Display Board 1
System=xx℃
Boot=xx℃
Driver Board 2
Display Board 2
System=xx℃
Boot=xx℃
Driver Board 3
Display Board 3
System=xx℃
Boot=xx℃
Pan and Tilt
Pan and Tilt
System=xx℃
Boot=xx℃
LED Driver
Led=℃
View DMX Values
DMX Channel
1=xxx
Electronic SN
Electronic SN=
*****************
RDM Device label
RDM Device Label
ANSI E1.20 RDM
Version X.X
Pan Encoder
Wiring Normal
Pan Err 0
Count 50880
Tilt Encoder
Wiring Normal
Tilt Err 0
Count 28080

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Driver Faults
X Over Temp 0
Y Over Temp 0
X Fault 0
Y Fault 0
Test Modes
Factory Setup
Factory Setup OFF
Factory Setup ON
Self Test
Self Test OFF
Self Test ON
Stand Alone
Operation Mode=
DMX Operation
User Memory 1
User Memory 2
Operation Mode=
Master Mode
User Memory 1
User Memory 2
Operation Mode=
Slave Mode
Operation Mode
Static Scene
First level
Secondary
level
Third
level
Fourth level
Five
level
Six level
User
Memories
Edit User
Memory
User
memory
1
Scene xx
(1-200scenes)
Shutter
Shutter
Xxx
Dimmer
Dimmer
Xxx
Dimmer
low
Dimmer
Low xxx
Color
Wheel
Color Wheel
xxx
Fixed
Fixed Gobo

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Gobo
xxx
R Gobo
Wheel
R Gobo
Wheel XXX
R Gobo
Rotate
R Gobo
Rotate XXX
R Prism
Rotate
R Prism
Rotation XXX
R Prism2
In Out
R Prism 2 In out XXX
Zoom
ZOOM XXX
Focus
Focus XXX
Frost
Frost XXX
Diffuser
Diffuser XXX
Pan
Coarse
Pan xxx
Pan Fine
Pan Fine xxx
Tilt
Coarse
Tilt xxx
Tilt Fine
Tilt Fine xx
M Speed
M-Speed XXX
Delay
（0.25s-
100min）
Link To
Step
XXX(1-200)
User
memory2
Scene XX
(1-200Scenes)
Shutter
Shutter XXX
Dimmer
Dimmer XXX
Slow
Dimmer
Slow Dimmer
xxx
Color
Wheel
Color Wheel
xxx

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Fixed
Gobo
Fixed Gobo
xxx
R Gobo
Wheel
R Gobo
Wheel
XXX
R Gobo
Rotate
R Gobo
Rotate XXX
R Prism
Rotate
R Prism
Rotation XXX
R Prism2
In Out
R Prism 2
In out XXX
Zoom
ZOOM XXX
User
Memories
Edit User
Memory
User
memory2
Scene XX
(1-200Scenes)
Focus
Focus XXX
Frost
Frost XXX
Diffuser
Diffuser XXX
Pan
Coarse
Pan xxx
Pan Fine
Pan Fine
xxx
Tilt
Coarse
Tilt xxx
Tilt Fine
Tilt Fine xx
M Speed
M-Speed XXX
Delay
Delay xx s
(0.25s-100min)
Link To
Step
XXX(1-200)
Static
Scene
Shutter
Shutter
XXX
Dimmer
Dimmer

www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
XXX
Dimmer LOW
Dimmer
Low xxx
Color Wheel
Color
Wheel
XXX
Fixed Gobo
Fixed
Gobo
XXX
R Gobo
Wheel
R Gobo
wheel
XXX
R Gobo
Rotate
R Gobo
Rotate
XXX
R Prism
Rotate
R Prism
Rotation
XXX
R Prism2
In Out
R Prism
2
In out
XXX
Zoom
ZOOM
XXX
Focus
Focus
XXX
Frost
Frost
XXX
