Oppray ML-W0194A User manual

19x15W ZOOM MOVING
User Manual
Please read this user manual before using this product.

2
INDEX
STATEMENT 3
ACCESSORIES 3
SAFETY INSTRUCTION 3
GENERAL GUIDELINES 4
INSTALLATION 6
TECHNICAL SPECIFICATION 8
PHOTOMETRIC DATE 10
CONTROL SYSTEM 11
CHANNEL DESCRIPTION: 12

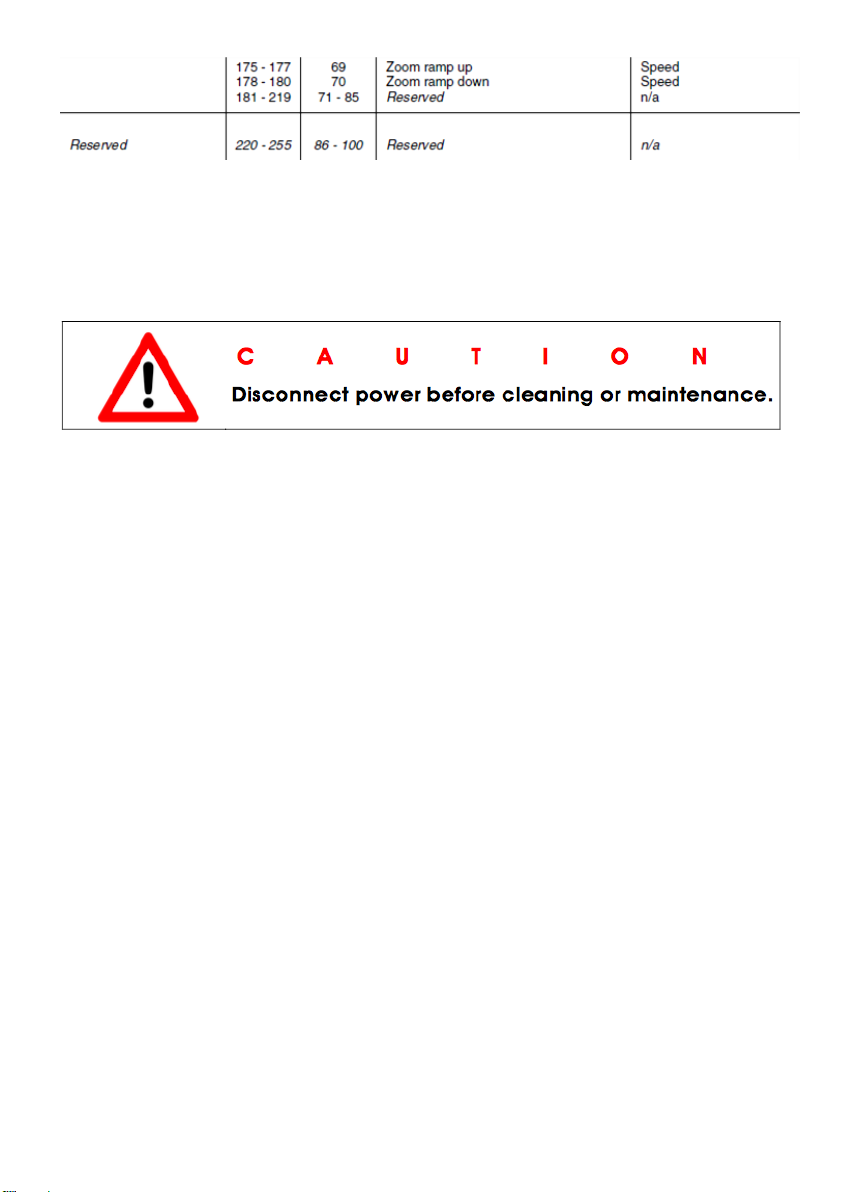

CLEANING AND MAINTENANCE 20
TROUBLESHOOTING 21

3
STATEMENT
The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also cannot be responsible for any malfunction & problem owing to
ignore the manual.
ACCESSORIES
These items are packed together with the product:
Name
Quantity
Unit
Remark
USER MANUAL
1
PCS
DMX CABLE
1
PCS
POWER CABLE
1
PCS
CLAMP
2
PCS
SAFTY CABLE
1
PCS

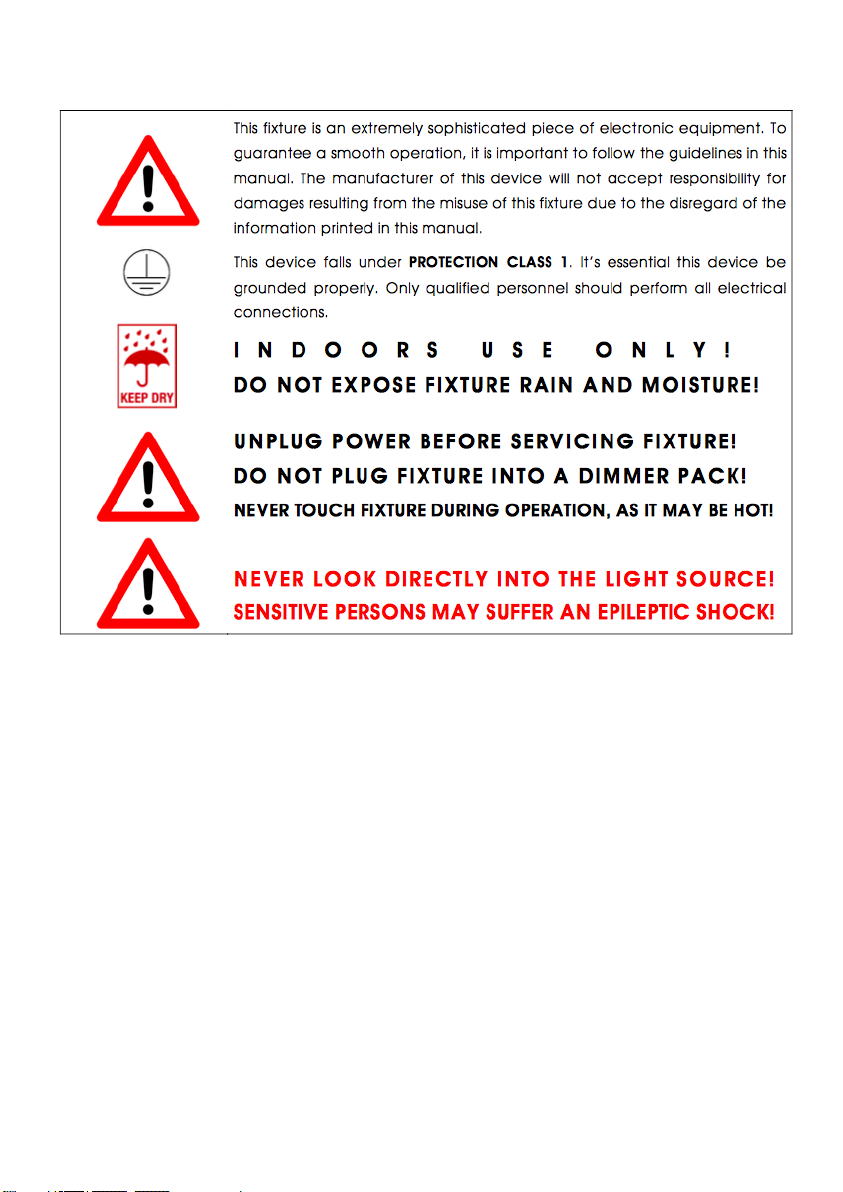

SAFETY INSTRUCTION
Please keep this User Guide forfuture consultation. If you sell the unit toanother
user, be sure that they also receive this instruction booklet.

4
GENERAL GUIDELINES
NEVER OPEN THIS FIXTURE WHILE IN USE!
During the initial operation of this fixture, a light smoke or smell may emit
from the interior of the fixture. This is a normal process and is caused by
excess paint in the interior of the casing burning off from the heat
associated with the lamp and will decrease gradually over time.
This fixture is a professional lighting effect designed for INDOOR / DRY
LOCATIONS ONLY on stage, in nightclubs, theatres, etc.
Please make sure there are NO FLAMMABLE MATERIALS close to the

5
fixture while operating, to prevent any fire hazard.
The fixture must be installed in a location with adequate ventilation, at least
1.5 feet (.5m) from adjacent surfaces. Be sure no air ventilation slots are
blocked.
DO NOT attempt installation and/or operation without knowledge how to
do so.
DO NOT permit operation by persons who are not qualified to operate this
type of fixture. Most damages are the result of operations by
nonprofessionals. Consistent operational breaks may ensure the fixture will
function properly for many years to come.
DO NOT shake fixture, avoid brute force when installing and/or operating
fixture.
Always install the fixture with an appropriate safety cable. When installing
the fixture in a suspended environment, always use mounting hardware
that is no less than M10 x 25 mm, also be sure the hardware is insert in the
pre-arranged screw holes in the bracket of the fixture.
Use the original packaging and materials to transport the fixture in for
service.
DO NOT TOUCH the housing bare-hand during its operation. Turn OFF
the power and allow approximately 15 minutes for the fixture to cool down
before replacing or serving.

6
INSTALLATION
C A U T I O N S
For added protection, mount the fixture in areas outside walking paths,
seating areas, or in areas were unauthorized personnel might reach the
fixture.
Ambient operating temperature range for this fixture is 5° to 113°F. (-15°
to 45°C) Do not use the fixture under or above this temperature.
Before mounting the fixture to any surface, make sure the installation area
can hold a minimum point load of 10 times the weight of the fixture.
Fixture installation must always be secured with a secondary safety
attachment, such as an appropriate safety cable.
Never stand directly below the device when mounting, removing or
servicing.
The unit should be mounted via its screw holes on the bracket. Always ensure
that the unit is firmly fixed to avoid vibration and slipping while operating. And
make sure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight. Also always use a

7
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.
Clamp mounting
The moving head provides a unique mounting bracket assembly that
integrates the bottom of the base, the included ‘Omega Bracket’ and the
Safety Cable rigging point in one unit (see the illustration below).When
mounting this fixture to truss be sure to sere to secure an appropriately rated
clamp to the included Omega Bracket using a M10 screw fitted through the
center hole of the ‘omega bracket’. As an added safety measure be sure to
attached at least one properly rated Safety Cable to the fixture using one of
the safety cable rigging point integrated in the base assembly.

8
DMX-512 control connection:
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving
head together through serial linking. The cable needed should be two core, screened cable
with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 resistor connected between pins 2 and 3,which
is then plugged into the output XLR socket of the last fixture in the chain. Please see
illustrations below.
TECHNICAL SPECIFICATION
Input Voltage: AC90-240V 50/60Hz
LED Quantities: 19pcs 15W 4-IN-1 LEDs (R, G, B, W)

9
Control Signal: DMX512/Master-slave/Auto/Sound
Control Channel: 16/24DMX channels
Power Consumption: 350W
Display: WQERFWSFRF
Working lifetime: 100,000 hours with low power consumption
Strobe: 1-25 times/second
PAN: 540 degree with 16bit rotate
Tilt: 240 degree with 16bit rotate
Beam angle: 8-58 degrees
Color: RGBW infinite mixture
Dimmer: 0-100% linear dimming system
Dimensions: 320(L)*210(W)*380(H)mm
Packing Dimensions:450(D)*370(W)*420(H)mm
Net Weight: 8kg
Gross Weight: 9kg
Key Feature
ZOOM: 3 ZOOM motors work together with the same step
Display:LCD blue display with Chinese and English language.
Protection: Auto temperature control system with big cooling fan.
Quiet, smooth and fast PAN/TILT movement
Low noise and efficient FAN cooling system
Built-in pre-programs with macro effects.
IPOWERCON power connector
45℃ max ambient temperature
IP20 protection rating
3-Pin XLR DMX input/output
Function: With LED shutter, scan position memory and auto reposition.
Perfectly suitable for stage, theatre, TV studio, rental, DISCO and more

10
Please Note: Specifications and improvements in the design of this unit and this manual are subject
to change without any prior written notice
PHOTOMETRIC DATE
LUX Data of 8degree beam angle:
R 7200LUX 1900LUX 1000LUX 620LUX
G 14800LUX 3900LUX 1900LUX 1200LUX
B 14800LUX 3950LUX 1950LUX 1200LUX
W 15200LUX 3850LUX 1950LUX 1200 LUX
RGBW 41100LUX 10000LUX 4600LUX 2550LUX
LUX Data of 45degree beam angle:
R 1150 LUX 310 LUX 200 LUX 110 LUX
G 2450 LUX 100 LUX 350 LUX 180 LUX
B 2450 LUX 710 LUX 350 LUX 200 LUX
W 2350 LUX 700 LUX 320 LUX 200 LUX
RGBW 6600 LUX 2000 LUX 1200 LUX 700 LUX

11
CONTROL SYSTEM
Th e D M X512 is w id ely used in intellig ent ligh ti ng con tr ol, with a DMX 512
controller. Connect several lights together dmx in and dmx out,
3 pin XLR connectors : Pin 1: G ND , Pin 2: Nega tive s ign a l (-), Pin 3: P o s itive s i gna l
(+)
it.

12
CHANNEL DESCRIPTION:
DMX Channel’s functions and values (25 channels):
STD.
EXT
.
Func
.
Values
Description
1
Shutt
er
0 - 19
20 - 24
25 - 64
65 - 69
70 - 84
85 - 89
90 - 104
105 - 109
110 - 124
125 - 129
130 - 144
145 - 149
150 - 164
165 - 169
170 - 184
185 - 189
190 - 204
205 - 209
210 - 224
225 - 229
230 - 244
245 - 255
Shutter closed
Shutter open
Strobe 1 (fast → slow)
Shutter open
Strobe 2: opening pulse (fast → slow)
Shutter open
Strobe 3: closing pulse (fast → slow)
Shutter open
Strobe 4: random strobe (fast → slow)
Shutter open
Strobe 5: random opening pulse (fast → slow)
Shutter open
Strobe 6: random closing pulse (fast → slow)
Shutter open
Strobe 7: burst pulse (fast → slow)
Shutter open
Strobe 8: random burst pulse (fast → slow)
Shutter open
Strobe 9: sine wave (fast → slow)
Shutter open
Strobe 10: burst
2
dimm
er
0-255
0 → 100% intensity

13
3
Zoom
0-255
Wide → narrow
4
Pan
0-255
0° - 540°
5
fine
0-255
Pan fine adjustment
6
Tilt
0-255
Tilt 0° - 240°
7
fine
0-255
Tilt fine adjustment
8
functi
on
0 - 9
10 - 14
15 - 39
40 - 44
45 - 49
50 - 54
55 - 59
60 - 64
65 - 69
70 - 74
75 - 89
90 - 94
95 - 99
100 - 104
105 - 109
110 - 114
115 - 119
120 - 124
125 - 249
250 - 255
No function
Reset entire fixture1
No function
PTSP = NORM2
PTSP = FAST2
PTSP = SLOW2
No function
Fan mode FULL2
No function
Fan mode REGULATED2
No function
Calibrated color output mode COLOR CALIB = ON3
No function
Raw color output mode COLOR CALIB = OFF3
No function
Fast dimming, speed of changes unrestricted2
No function
Smooth dimming, speed of changes restricted slightly2
No function
Illuminate display
9
Marcr
os
0 - 9
10 - 14
15 - 19
20 - 24
25 - 29
Open. RGBW color mixing enabled
LEE 790 - Moroccan pink
LEE 157 - Pink
LEE 332 - Special rose pink
LEE 328 - Follies pink

14
30 - 34
35 - 39
40 - 44
45 - 49
50 - 54
55 - 59
60 - 64
65 - 69
70 - 74
75 - 79
80 - 84
85 - 89
90 - 94
95 - 99
100 - 104
105 - 109
110 - 114
115 - 119
120 - 124
125 - 129
130 - 134
135 - 139
140 - 144
145 - 149
150 - 154
155 - 159
160 - 164
165 - 169
170 - 174
175 - 179
LEE 345 - Fuchsia pink
LEE 194 - Surprise pink
LEE 181 - Congo Blue
LEE 071 - Tokyo Blue
LEE 120 - Deep Blue
LEE 079 - Just Blue
LEE 132 - Medium Blue
LEE 200 - Double CT Blue
LEE 161 - Slate Blue
LEE 201 - Full CT Blue
LEE 202 - Half CT Blue
LEE 117 - Steel Blue
LEE 353 - Lighter Blue
LEE 118 - Light Blue
LEE 116 - Medium Blue Green
LEE 124 - Dark Green
LEE 139 - Primary Green
LEE 089 - Moss Green
LEE 122 - Fern Green
LEE 738 - JAS Green
LEE 088 - Lime Green
LEE 100 - Spring Yellow
LEE 104 - Deep Amber
LEE 179 - Chrome Orange
LEE 105 - Orange
LEE 021 - Gold Amber
LEE 778 - Millennium Gold
LEE 135 - Deep Golden Amber
LEE 164 - Flame Red
Open

15
180 - 201
202 - 207
208 - 229
230 - 234
235 - 239
240 - 244
245 - 249
250 - 255
Color wheel rotation effect
Clockwise, fast → slow
Stop (this will stop wherever the color is at the time)
Counter-clockwise, slow → fast
Open
Fast
Medium
Slow
Open
10
Red
0-255
Red 0 → 100%
11
Gree
n
0-255
Green 0 → 100%
12
Blue
0-255
Blue 0 → 100%
13
White
0-255
White 0 → 100%
14
CTC
0 - 19
20 - 255
CTC disabled
CTC 10 000K → 2 500K
*
15
Pre-
progr
am 1
0-255
Effect selection (FX1)
*
16
spee
d
0-255
Zero → maximum (to CH 15)
*
17
Pre-
progr
am 1
181-244
Effect selection (FX2)
*
18
spee
d
245-255
Zero → maximum (to CH 17)
*
19
Settin
g of
FX
0 - 49
No sync
• FX1 and FX2 run through cycles independently
• Cycle duration is regular
• Channel 16 and channel 18 adjust FX1 and FX2

16
50
51 - 169
170 - 209
210 - 255
independently
Sync
• FX1 and FX2 run through cycles in sync
• Cycle duration is regular
• Channel 16 adjusts overall speed, channel 18 has no effect
Sync shift
• FX1 and FX2 run through cycles in sync
• FX2 is offset (delayed) relative to FX1
• Offset is adjustable from zero → maximum
• Channel 16 adjusts overall speed, channel 18 has no effect
Sync random
• FX1 and FX2 run through cycles in sync
• Cycle duration for synchronized FX1 and FX2 is made
shorter and longer at random.
• Channel 16 adjusts overall speed, channel 18 has no effect
No sync, random
• FX1 and FX2 run through cycles independently
• Cycle duration is for FX1 and FX2 is made shorter and
longer
at random
• Channel 16 and channel 18 adjust FX1 and FX2 speed
independentl
*
20
Aura
shutt
er
and
strob
e
effect
0 - 19
20 - 24
25 - 64
65 - 69
70 - 84
85 - 89
90 - 104
105 - 109
Shutter closed
Shutter open
Strobe 1 (fast → slow)
Shutter open
Strobe 2: opening pulse (fast → slow)
Shutter open
Strobe 3: closing pulse (fast → slow)
Shutter open

17
110 - 124
125 - 129
130 - 144
145 - 149
150 - 164
165 - 169
170 - 184
185 - 189
190 - 204
205 - 209
210 - 224
225 - 229
230 - 244
245 - 255
Strobe 4: random strobe (fast → slow)
Shutter open
Strobe 5: random opening pulse (fast → slow)
Shutter open
Strobe 6: random closing pulse (fast → slow)
Shutter open
Strobe 7: burst pulse (fast → slow)
Shutter open
Strobe 8: random burst pulse (fast → slow)
Shutter open
Strobe 9: sine wave (fast → slow)
Shutter open
Strobe 10: burst (fast → slow)
Shutter open
*
21
Aura
dimm
er
0-255
0 → 100% intensity
*
22
Aura
marcr
o
0 - 9
10 - 14
15 - 19
20 - 24
25 - 29
30 - 34
35 - 39
40 - 44
45 - 49
50 - 54
55 - 59
60 - 64
65 - 69
Open. RGB color mixing enabled
LEE 790 - Moroccan pink
LEE 157 - Pink
LEE 332 - Special rose pink
LEE 328 - Follies pink
LEE 345 - Fuchsia pink
LEE 194 - Surprise pink
LEE 181 - Congo Blue
LEE 071 - Tokyo Blue
LEE 120 - Deep Blue
LEE 079 - Just Blue
LEE 132 - Medium Blue
LEE 200 - Double CT Blue

18
70 - 74
75 - 79
80 - 84
85 - 89
90 - 94
95 - 99
100 - 104
105 - 109
110 - 114
115 - 119
120 - 124
125 - 129
130 - 134
135 - 139
140 - 144
145 - 149
150 - 154
155 - 159
160 - 164
165 - 169
170 - 174
175 - 179
180 - 201
202 - 207
208 - 229
230 - 234
235 - 239
240 - 244
LEE 161 - Slate Blue
LEE 201 - Full CT Blue
LEE 202 - Half CT Blue
LEE 117 - Steel Blue
LEE 353 - Lighter Blue
LEE 118 - Light Blue
LEE 116 - Medium Blue Green
LEE 124 - Dark Green
LEE 139 - Primary Green
LEE 089 - Moss Green
LEE 122 - Fern Green
LEE 738 - JAS Green
LEE 088 - Lime Green
LEE 100 - Spring Yellow
LEE 104 - Deep Amber
LEE 179 - Chrome Orange
LEE 105 - Orange
LEE 021 - Gold Amber
LEE 778 - Millennium Gold
LEE 135 - Deep Golden Amber
LEE 164 - Flame Red
Open
Color wheel rotation effect
Clockwise, fast → slow
Stop (this will stop wherever the color is at the time)
Counter-clockwise, slow → fast
Open
Random color
Fast
Medium

19
245 - 249
250 - 255
Slow
Open
*
23
Aura
red
0-255
Red 0 → 100%
*
24
Aura
green
0-255
Green 0 → 100%
*
25
Aura
blue
0-255
Blue 0 → 100%
FX: pre-programmed effects：

20
CLEANING AND MAINTENANCE
CLEANING
Frequent cleaning is recommended to insure proper function, optimized light
output, and an extended life. The frequency of cleaning depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
environments can cause greater accumulation of dirt on the fixture’s optics.
•Clean the external lens surface at least every 20 days with a soft cloth
to avoid dirt/debris accumulation.
•Never use alcohol, solvents, or ammonia based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended
life. There are no user serviceable parts inside this fixture, please refer all
other service issues to an authorized service technician. Should you need any
spare parts, please order genuine parts from your local dealer.
Please refer to the following points during routine inspections:
