Optima Home Scales VITALIZE User manual

version:1.0
OPTIMA HOME SCALES
User Manual
Body Fat Analyzer VITALIZE
Optima Home Scales
PO Box 1526, Cumming GA 30028, United States
T:888-688-4833 www.optimahomescales.com
Thank you very much for selecting the OHS Body Fat Analyzer VITALIZE.
Please read the user manual carefully and thoroughly to ensure the safe
usage of this product and keep the manual for further reference in case
you have problems.

Table of Contents
Safety Information
Safety and Usage Information
............................................................................................... 2
Tips................................................................................................................................................ 3
Overview
Device Components ...................................................................................................................... 4
List ................................................................................................................................................. 4
LED Display................................................................................................................................... 5
Initial Start-Up
General Instructions ...................................................................................................................... 6
Insert the Batteries ........................................................................................................................ 6
Install App and Pair-up .................................................................................................................. 7
Select Measurement Unit.............................................................................................................. 8
Initializing Your Scale.................................................................................................................... 8
Weight Only Operation.................................................................................................................. 8
Set Up Your Profile
Start Measuring ................................................................................................................. 9

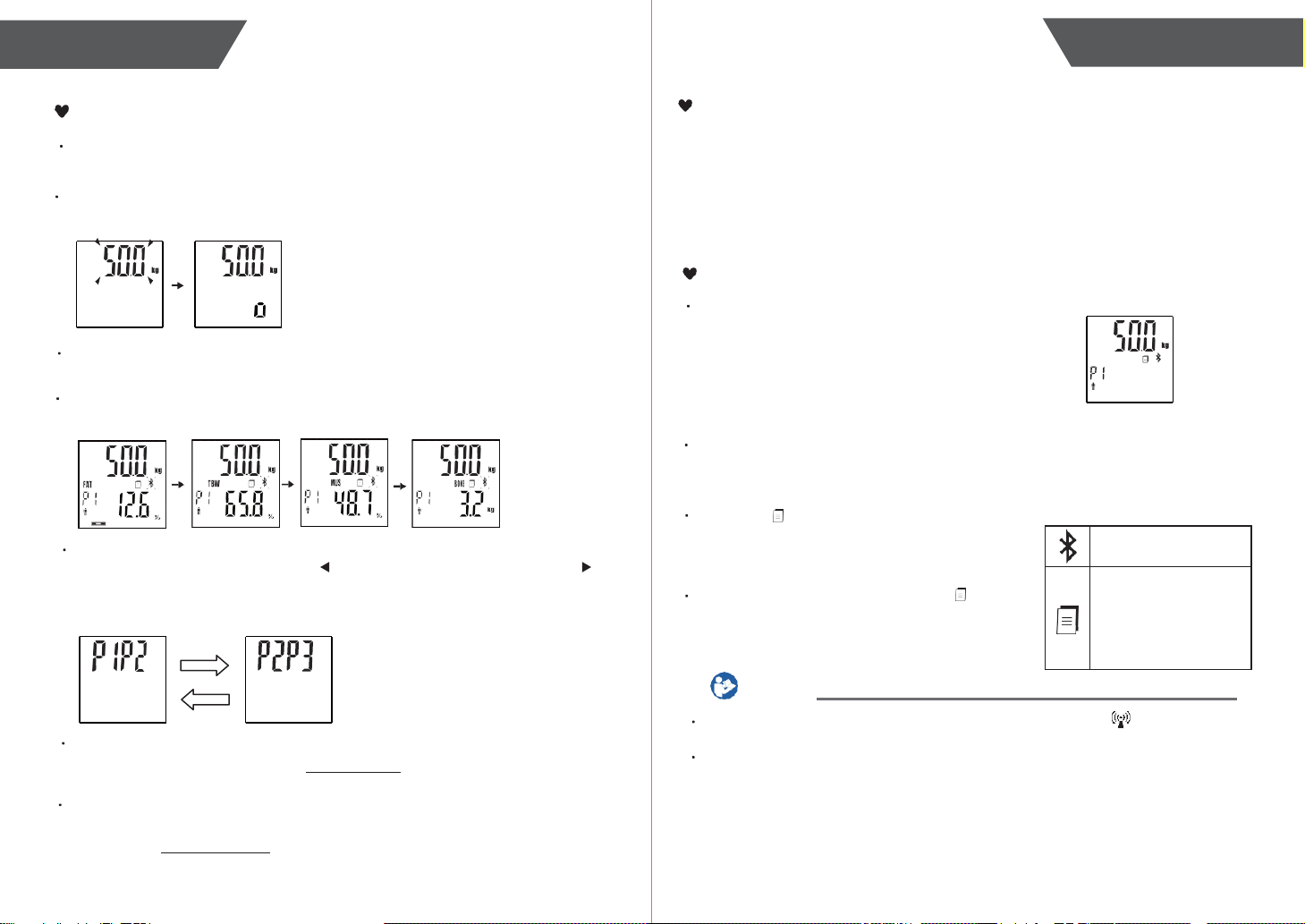

First Measurement......................................................................................................................... 11
Daily Measurement........................................................................................................................ 12
Manage Your Health
Backlight Indicator ......................................................................................................................... 13
Data Transmission......................................................................................................................... 13
Troubleshooting

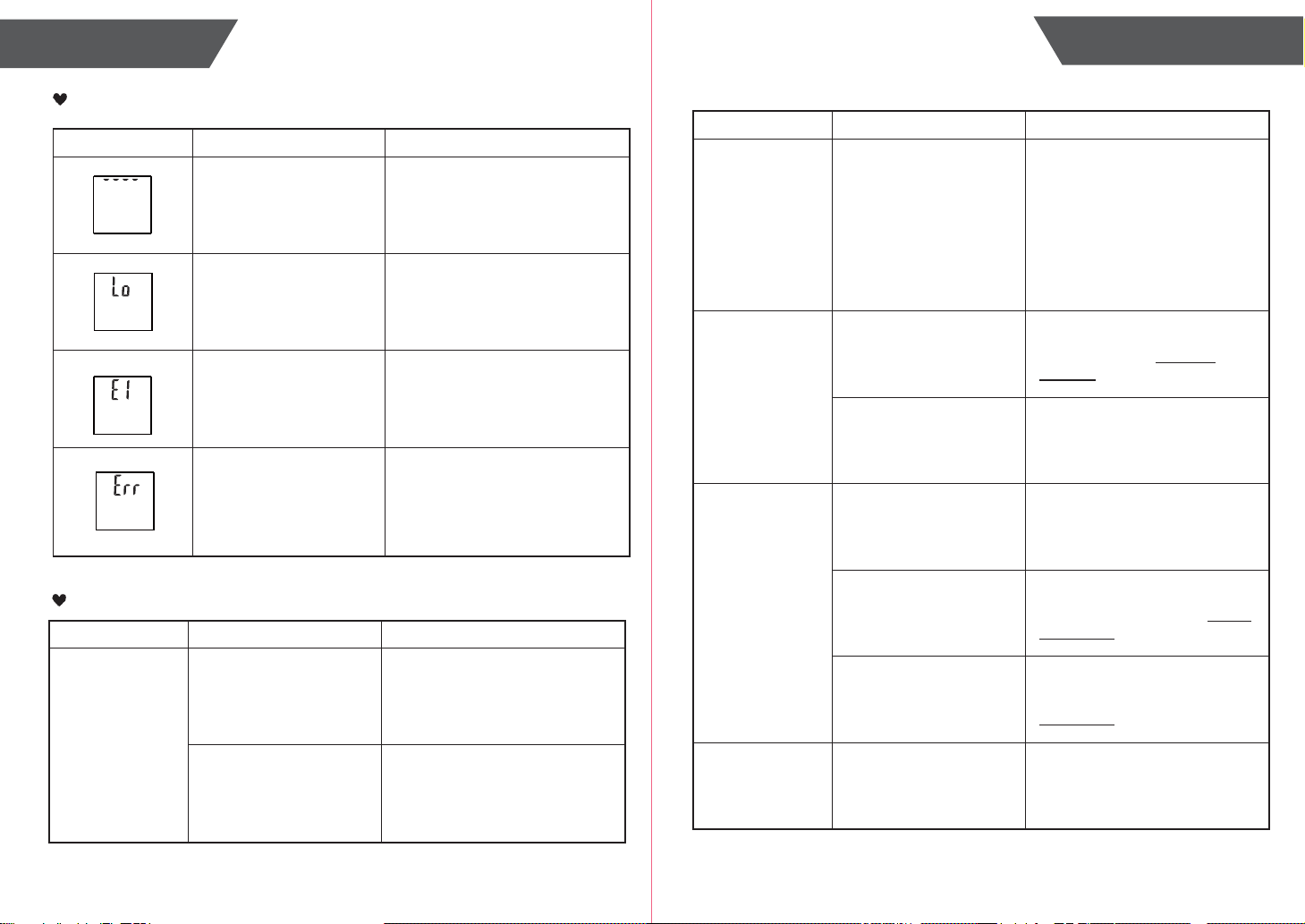

Error Prompt .............................................................................................................................
14
When Measuring ... ..................................................................................................................
14
When Data Transmitting... ........................................................................................................
16
Specifications ............................................................................................................................
17
Maintenance ...............................................................................................................................
18
Warranty ......................................................................................................................................
18
Appendix
Table of Body Fat Level ..........................................................................................................
19
Table of Body Water Level ......................................................................................................
19
Muscle Mass Percentage ..........................................................................................................
20
Bone Mass Percentage..............................................................................................................
20
Health Tips –About Body Fat .................................................................................................
20
EMC Guidance .........................................................................................................................
21
1
Table of Contents

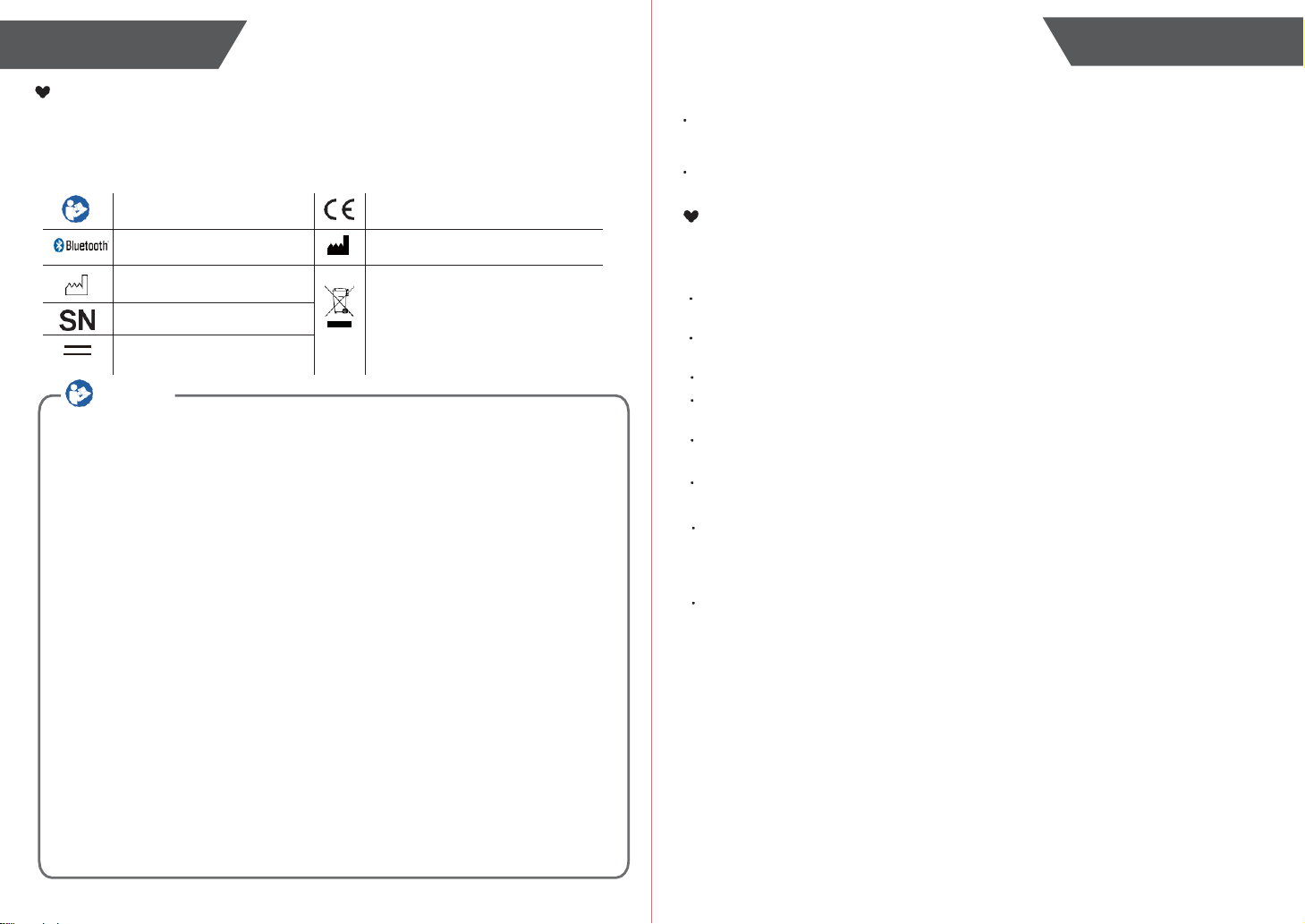

Safety and Usage Information
The warning signs and symbols are essential to ensure your correct and safe use of
this product and protect you and others from injury. Please find the meanings of the
warning signs and symbols, which you may encounter in the label and user manual, as
follows:
Symbol for “THE OPERATION
GUIDE MUST BE READ”
Symbol for “COMPLIES WITH EU
REQUIREMENTS”
The Bluetooth Combination Mark
Symbol for “MANUFACTURER”
Symbol for “MANUFACTURE
DATE”
Symbol for “ENVIRONMENT
PROTECTION –Waste electrical
products should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local
authority or retailer for recycling advice”
Symbol for “SERIAL NUMBER”
Symbol for “DIRECT CURRENT”
INDICATIONS FOR USE
The OHS Body Fat Analyzer measures weight and uses bio-electrical impedance analysis
(BIA) technology to estimate body fat, total body water percentage, bone mass, and muscle
mass in generally healthy children 10-17 years old and healthy adults.
It is intended for use in a domestic setting only.
Tips
To ensure the accuracy of measurement, please follow below instructions when
you start measurement.
Place the scale on a flat, hard surface. Soft surface such as carpet will affect the
performance of the scale.
Step onto the platform with bare feet. Stand still and keep full contact with the electrodes
until the measurement is complete.
Start measurement at least two hours after Getting up or Dining.
Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and
dining.
Always start measurement in the same time slot and on the same scale located on the
same flat, hard surface.
For maximum accuracy and repeatability, it is recommended that you should use the
device in the same time of the day and on the same location.
The condition of the skin on the bottom of your feet can affect the reading. The natural
effects of aging or activity can make this skin hard. Take the reading with clean, slightly
damp feet for best accuracy. If you are having a problem with operating this scale,
please contact customer service.
Body fat percentage estimates will vary with the amount of water in the body, and can
be affected by dehydration or over-hydration due to such factors as alcohol consumption,
menstruation, illness, intense exercise, etc.
2 3
Safety Information
Safety Information
CAUTION
OHS’s Body Fat Analyzer VITALIZE offers you a seamless way to manage your health.
Please be aware that this device is designed for healthy people over 10 years old self-measuring and
self-monitoring body compositions. Any information provided by this device is in no way meant to
treat, cure or prevent any disease or illness from happening. If in doubt, contact your physician.
This device is not recommended for any female subject who may be suspected of or is pregnant.
Otherwise, the effects of this device on the fetus are unknown.
This device is not recommended for any person who is connected to a wearable or implantable
electronic device or instrument such as a pacemaker or defibrillator.
This device should not be used for anyone who is acutely or chronically ill suffering from a disease or
taking medications that affect your water levels. The accuracy of readings for these patients has not
been verified. Specific medical advice should be obtained from a physician.
VITALIZE is equipped with data transmission function. It may emit electromagnetic energy to
perform its intended function. Nearby portable and mobile RF communications equipment can affect
the performance of VITALIZE. The device can interfere with electrical equipment.
Manufacturer will make available on request circuit diagrams, component parts listed.
WARNING: No modifications of this equipment is allowed. This may result in increased
EMISSIONS or decreased IMMUNITY of VITALIZE.
Please use the device according to the user manual. Any misuse can cause electric shock, burns,
fire and other unexpected hazards.
Please use and store the device in the environment which is suggested in the user manual. Don’t
expose the device to extreme temperatures, direct sunlight, moist or corrosive environment.
Do not step on the scale when your body or feet are wet, especially after bathing or showering to
prevent slipping.
Please keep the device out of reach of infants, children or pets, since inhalation or swallowing of small
parts is dangerous or even fatal.
If you have an allergy to stainless steel, please avoid contacting the electrodes of the device.
The patient is an intended operator. The patient can measure, transmit data and charge battery under
normal circumstances and maintain the device and its accessories according to the user manual.

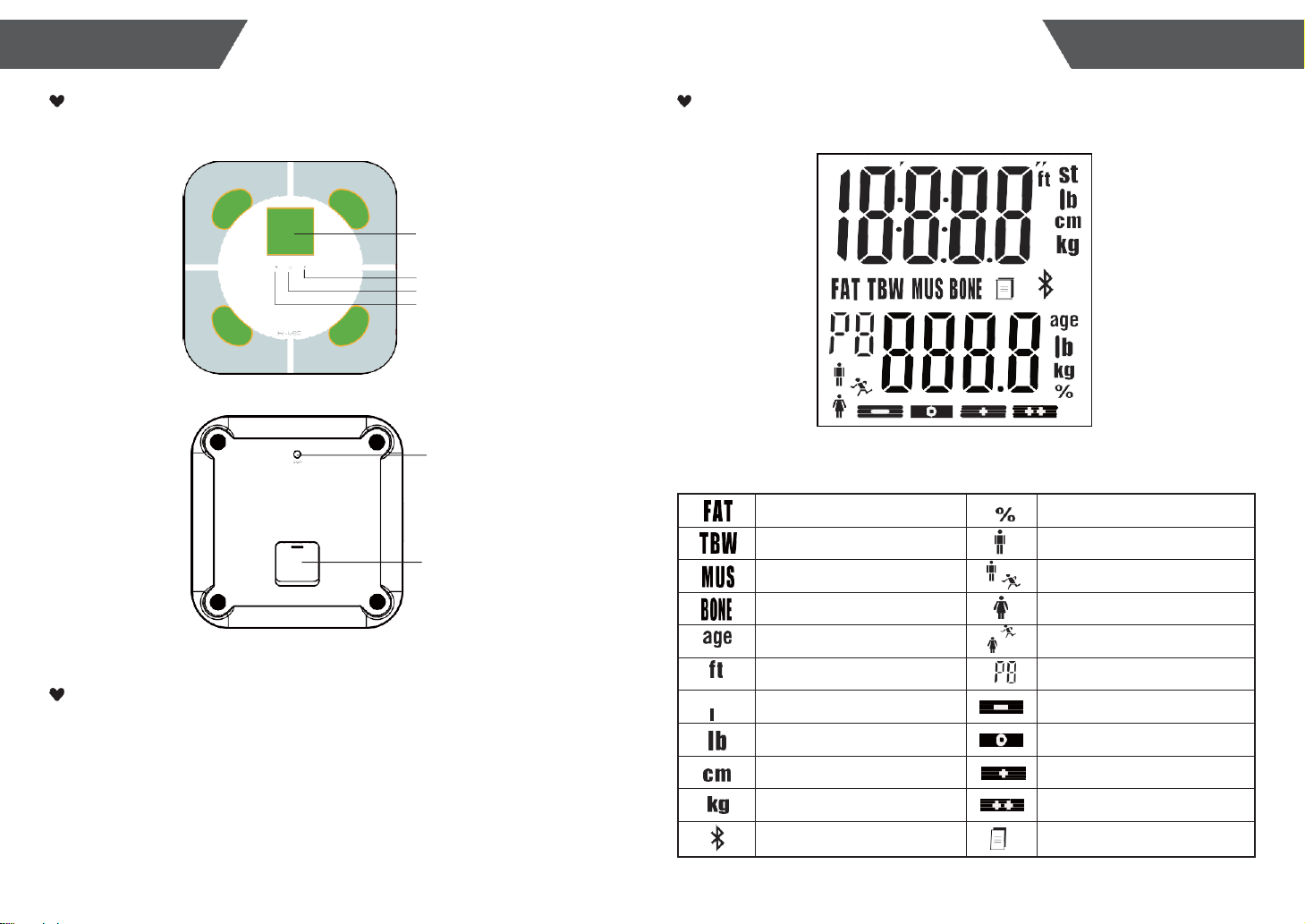

Overview Overview
Device Components LED Display
LED Display
Up Key
Set Key
Down Key
UNIT and activation Button
Battery Compartment
List
1. Body Fat Analyzer VITALIZE
2. Four AAA-size Batteries (1.5V per each)
3. User Manual
4 5
Body Fat Analysis Result
Percentage
Total Body Water Analysis Result
Male
Muscle Mass Analysis Result
Male Athlete
Bone Mass Analysis Result
Female
Age
Female Athlete
Foot
User ID (Range from P1 to P8)
Body Fat Level: Underfat
Pound
Body Fat Level: Healthy
Centimeter
Body Fat Level: Overfat
Kilogram
Body Fat Level: Obese
Successful Bluetooth Connection
Data transmitting / pending to
transmit to wireless wellness system

General Instructions
OHS Body Fat Analyzer VITALIZE applies BIA (Bio-impedance Analysis) technology. A
small amount of weak current flows through the human body to detect the bio-impedance
and estimate body fat, body water, muscle mass and bone mass. The electrical current is
small and may not be felt.
This BIA technology is inexpensive, safe, non-invasive, toxic-free and harmless.
It also possesses the characteristics of simple operation and abundant information.
The current mentioned above is less than 0.5mA. However, please be aware that anyone
with a wearable or implantable medical electronic instrument, such as a pacemaker, must
avoid using this device.
The intended use of this device is for healthy children 10-17 years old and healthy adults.
Insert the Batteries
Open the battery door in the back of the scale.
Remove insulating strip from beneath the battery (if
fitted) or insert batteries (4 x 1.5V AAA) observing the
polarity signs (+ and -) inside the battery compartment.
* The digits “8888” will be shown on the LED.
Close the battery door and wait until the digits “0.0kg”
are shown on the LED.
Install App and Pair-Up
With the advanced Bluetooth 4.0 technology applied, the mobile or portable device,
which are equipped with Bluetooth function in line with BLE Technical Specifications as
well as BLP Protocol established by global organization Bluetooth SIG, are capable to
receive your personal health data.
Just simply install the specially-designed app and pair up your scale with your mobile or
portable device. Then you may enjoy the comprehensive health solution provided by
OHS.
Note: It is only available for a device which supports Bluetooth 4.0 technology.
Our free App “Medm Health” may be downloaded at App Store and Google Play, you
may search and install it in your smartphone or device.
Turn on Bluetooth and the App. Make sure both are ON when pair-up is proceeding.
Press and hold “UNIT” button in the back of the scale to start pair-up.
Symbol and symbol will be shown on the LED alternatively, indicating pair-up
is proceeding.
If SUCCEED, symbol will be shown on the LED.
If FAIL, symbol “E1” will be shown on the LED.
6 7
Initial Start-Up
Initial Start-Up
CAUTION
When the symbol “Lo” appears, the device will power off after about 4s. When this happens, replace with
a new set of batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries
with the new one.
Worn batteries are hazardous waste. Do NOT dispose of them with the household garbage. Please
refer to the local ordinances and recycling instructions regarding disposal of the worn batteries and
scrapped device.
If you do not intend to use this unit for a prolonged period, it is advisable to remove the batteries before
storing.

Select Measurement Unit
With batteries correctly installed, press “UNIT” button in the back of the scale to select
measurement unit. The default measurement unit is “kg”. You may press “UNIT” button to
choose among kilogram and pound.
1. Position the scale on a flat, hard surface. Carpeted or uneven floors may
affect accuracy.
2. Step onto the scale platform and remain still while the scale computes yourweight.
3. The scale will display your weight value.
4. The scale will automatically turn off after a few seconds.
Note: The weight value won’t be saved in the scale, and won’t be transmitted to the APP.
Initializing Your Scale
1. Press the platform center and remove your foot.
2. “0.0” will be displayed.
3. The scale will switch off and is now ready for use.
This initialization process must be repeated if the scale is moved.
At all other times step straight on the scale.
Weight Only Operation
Your OHS Body Fat Analyzer will operate as a conventional weight - reading scale. No
special programming steps are required.
Once the scale is initialized, as previously described, you may simply step on the scale
to measure your current weight. For only weight reading:
8

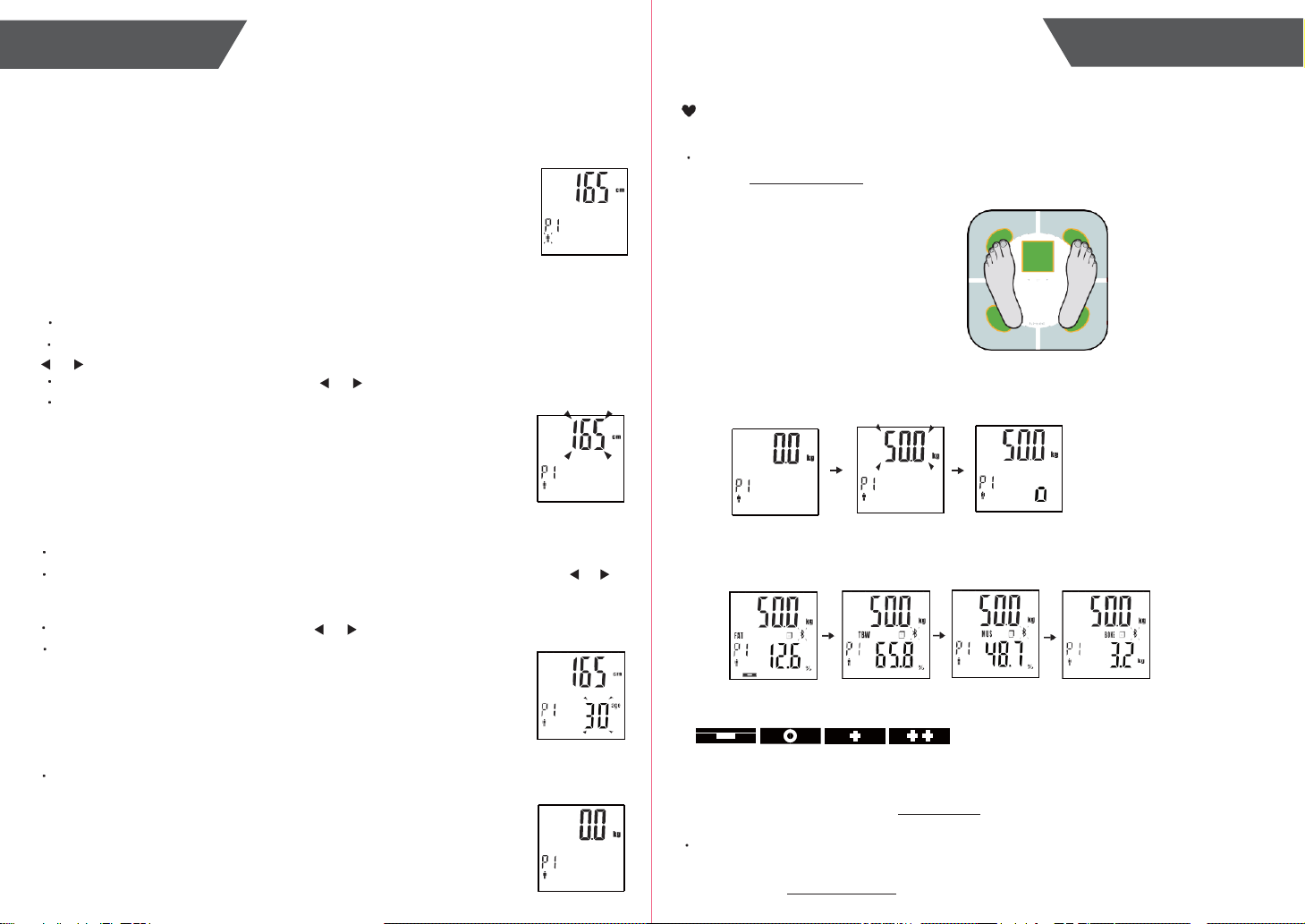

Set Up Your Profile
The body fat analyzer VITALIZE supports multiple users (Up to 8). You may follow
below instructions to assign User ID and set up your own profile, including Gender,
Stature, and Age.
1.Assigning User ID
With batteries correctly installed, press “SET” key to enter setting mode when
the scale is off, or when the LED displays 0.0, press and hold “SET” key to
enter setting mode.
The system will request User ID selection first. As pictured below, “P1” blinks.
The operator may press the function key or to select User ID among P1
to P8.
Press “SET” key to confirm User ID.
2.Setting Gender
After confirming User ID, the system will divert to Gender setting automatically.
As pictured below, the portrait blinks. The operator may press the function key
or to select Gender. (Male/Female/Male Athlete/ Female Athlete).
Press “SET” key to confirm Gender.
9
Initial Start-Up
Initial Start-Up

Athlete Mode:
An athlete is considered as a person who does 10 hours or more per
week of aerobic activity and has a resting heart rate of 60 beats per
minute. These individuals should select Athlete Mode for the most
accurate measurement results. The body fat analyzer is not calibrated
for professional athletes or body builders.
3.Setting Stature
After confirming Gender, the system will divert to Stature setting automatically.
As pictured below, the digits “165” blinks. The operator may press the function key
or to increase or decrease the numeral (Ranges:100cm-220cm/3’3.5” ft - 7’2.5” ft).
You may press and hold the function key or for fast changing the numeral.
Press “SET” key to confirm Stature.
First Measurement
Please process the user setting before your first measurement.
(Refer to Set Up Your Profile for more details)
STEP 1: Step on the platform barefooted
when the LED displays “0.0”.
STEP2: Stand still and the weight data will be locked with the numeral blinks twice.
Keep full contact with the scale until the LED stop displaying moving “o”.
4.Setting Age
After confirming Stature, the system will divert to Age setting.
As pictured below, the digits “30” blinks. The operator may press the function key or to
increase or decrease the numeral (Range for normal mode: 10-85 years old, Range
for athlete mode:15-85 years old).
You may press and hold thefunction key or for fast changing the numeral.
Press “SET” key to confirm Age.
After confirming Age, the LED will show all the settings you have done one by one and
then display “0.0kg” + “User ID” + “Gender”, you can start measuring.
STEP 3: Then the measuring results will be displayed sequentially three times: Body
Fat, Total Body Water, Muscle Mass, Bone Mass.
* When the body fat percentage is displayed, the body fat level also appears on the LCD.
it ranges from Underfat to Obese.
Underfat Healthy Overfat Obese
* If it fails to complete the analysis, the LED will display the icon “Err”.
(To find out the solutions, please refer to Troubleshooting for more details.)
When your scale is successfully paired with your smartphone and the Bluetooth is ON,
VITALIZE will process data transmission instead.
10 (Please refer to Data Transmission for more details.)11
Initial Start-Up
Start Measuring

Daily Measurement
With original SENSE ON patent technology, VITALIZE will switch on as you step on
the platform barefooted.
Stand still and keep full contact with the scale until the LED stops displaying
moving “o”.
Backlight Indicator
The indicator backlight will light with different color when the measuring results are
shown on the LED.
Compared with the last record of the same user ID, when the current weight is
increased over 0.5kg, the red backlight lights; when it is reduced over 0.5kg, the green
backlight lights; when it is the same (in the range of +/-0.5kg), the blue backlight lights.
Note: when it is the first measurement for a User ID, the system default backlight is blue.
After the weight is locked, the system will automatically identify the possible User ID
with most similar history records.
If it identifies one user, it will skip the step about user selection, then display the Body Fat,
Total Body Water, Muscle Mass and Bone Mass data sequentially three times and turn off.
If it identifies two or more users, for example, P1, P2 and P3, The LCD will display these
users alternately twice. you may press key to choose the left User ID or press key to
choose the right User ID. The measuring results will then be sorted into the User ID you
selected and displayed sequentially three times. If you don’t choose the user, it will display
the weight again and turn off after a few seconds.
Data Transmission
Once the Body Fat Analyzer VITALIZE is successfully
paired-up with your smartphone, please open
the “Medm Health” App and turn on your Bluetooth.
Keep smartphone and scale in transmission distance.
Step on the scale and take a measurement. Once the
measurement is finished the data is automatically
transferred to the app.
ONLY when the measuring results are attached to a
specific User ID will it be transmitted to your mobile
after measurement.
The symbol will disappear after successful data
transmission, and you may check your personal
health data stored in your smartphone.
If the data transmission fails, the symbol will
remain. The pending measurement datawill be
temporarily kept in the scale and transmitted to your
smartphone when next measurement is complete.
If it fails to identify the possible User ID, the LED will only display the weight data.
(To find out the solutions, please refer to Troubleshooting for more details.)
When your scale is successfully paired with your smartphone and the Bluetooth is ON,
VITALIZE will process data transmission instead.
(Please refer to Data Transmission for more details.)
12
CAUTION
Interference may occur near equipment marked with the following symbol . And the Analyzer
may interfere with electrical equipment in the vicinity.
To enable the data transmission function, this product should be paired to a Bluetooth 4.0 end.
How to mitigate possible interference?
1. The range between the Analyzer and the Bluetooth end should be reasonably close, from 1
meter to 10 meters. Please ensure no obstacles are between the Analyzer and the Bluetooth
end to obtain quality connection.
2. To avoid interference, other electronic devices (particularly those with Bluetoothtransmission
/ Transmitter) should be kept at least 1 meter away from the Analyzer.
13
Start Measuring
Manage Your Health
Successful Bluetooth
Connection
Data transmitting to
wireless wellness system:
-If SUCCEED, the symbol
disappears;
-If FAIL, the symbol
remains.

Error Prompt
Error
Description
Solution
Overload. The device will
power off.
Stop using this scale for
measurement.
Low Battery. The device
will power off after about
4s.
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
Failure of pairing up your
scale with your
smartphone.
Please check below items:
-Bluetooth is ON.
-App Collector is ON.
-Both devices are within the
transmission distance of Bluetooth.
1. The user profile set up
and the scale fails to
complete the analysis.
2. The weight isunstable.
Step off the platform, and
measure again.
When Measuring ...
Problem
Root Cause
Solution
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between two recent
measurement.
Incorrect posture
Please step on the platform
barefooted and stand still.
The device is located on
the soft ground such as a
carpet OR on a rugged
surface.
Please place the device on a
flat, hard surface.
14 15
Troubleshooting
Troubleshooting
Problem
Root Cause
Solution
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between two recent
measurement.
Your feet are too dry.
Wipe your feet with a damp
cloth, keeping them slightly damp
when starting measurement.
No display on
LED when the
device powers on.
Batteries not yet installed.
Install the batteries.
(Please refer to Insert the
Batteries)
Worn batteries.
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
CANNOT proceed
to analyze body fat,
total body water,
muscle mass and
bone mass.
Step onto the platform
wearing socks or shoes.
Please keep barefooted during
the measurement and keep full
contact with the scale as well.
The system cannot
identify the possible User ID
with most similar data.
Please assign a User ID
following the instruction in Set Up
Your Profile.
The user fails to select
the User ID from what the
system found.
Please assign a User ID
following the instruction in Set Up
Your Profile.
The device
powers off.
Low battery.
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.

Specifications
When Data Transmitting ...
Problem
Root Cause
Solution
Data transmission
failed.
Bluetooth is OFF.
Turn ON the Bluetooth via setting
function of your smartphone.
The App is OFF.
Press the icon to run your App.
Out of range of Bluetooth
transmission.
Place your smartphone closer to
the scale.
None of the user ID is
assigned.
Please assign a User ID following
the instruction in Set Up Your
Profile.
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.
Please refer to the above table for the descriptions on accuracy.
This product is specially designed for body fat analysis as well as weight measurement. It should NOT be used by
anyone during the process of transaction for verification of goods’ weight.
16 17
Troubleshooting
Specifications
Product Name
Body Fat Analyzer (VITALIZE)
Dimension
Scale: 307x307x24mm (Approximately)
Net Weight
Approximately 1.82kg (Excluding the dry cells)
Display
Digital LED
Measurement Unit
Kilogram / Pound
Measurement Range
5kg to 180kg / 11lb to 397lb
Division
0.1kg / 0.2lb
Accuracy
50kg: ±0.3kg; 100kg: ±0.4kg;
150kg: ±0.5kg; 180kg: ±0.7kg
Working Environment
Temperature: 5℃to 40℃Relative Humidity: ≤90% RH
Atmospheric pressure: 86kPa to 106kPa
Storage Environment
Temperature: -20℃to 60℃Relative Humidity: ≤90% RH
Atmospheric pressure: 50kPa to 106kPa
Power Source
6V (Four AAA-size Batteries)
Turn on Method
SENSE ON technology
Auto-OFF
About 10s after the LED display “0.0”;
About 15s when the weight value is unstable.
Accessories
1. Four AAA-size batteries
2. User Manual
Mode of Operation
Continuous Operation

Maintenance
When carrying out usual maintenance, please ensure practice of the following Do’s and
Don’ts:
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a
dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
Table of Body Fat Level (Unit: %)
a) The body fat percentage (%): 5%-60%/0.1%
Standard for Men
Standard for Women
DON’T disassemble this device. If you have any problems, please contact OHS.
(Please refer to Warranty for contact information)
Do not dispose of batteries in fire. Batteries may explode or leak. Remove the batteries if
the scale will not be used for a long period.
Warranty
OHS warrants its products free of defects in materials and workmanship in normal
use for a period of TEN years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse, including but not
limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this user
manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under warranty,
please deliver the original package to OPTIMA HOME SCALES prepaid. Please return
the store receipt (with the retail purchase date) and a note with reasons to return on it
as well.
18
Source: University of Illinois Department of Food Science and Human Nutrition.
Body Fat Percentage Calculator.
Table of Body Water Level (Unit: %)
b) The body water percentage (%): 43%-73%/0.1%
Source: Derived from Wang & Deurenberg: “Hydration of fat-free body mass”. American Journal
Clin Nutr 1999,69833-841.
BF % RANGE
OPTIMAL TBW % RANGE
Men
4 to 14%
70 to 63%
15 to 21%
63 to 57%
22 to 24%
57 to 55%
25 and over
55 to 37%
Women
4 to 20%
70 to 58%
21 to 29%
58 to 52%
30 to 32%
52 to 49%
33 and over
49 to 37%
19
Maintenance
Appendix
Rating
Age
Rating
Age
20-29
30-39
40-49
50-59
60+
20-29
30-39
40-49
50-59
60+
low
<13
<14
<16
<17
<18
low
<19
<20
<21
<22
<23
Normal
13-20
14-21
16-23
17-24
18-25
Normal
19-28
20-29
21-30
22-31
23-32
Moderately High
20.1-23
21.1-24
23.1-26
24.1-27
25.1-28
Moderately High
28.1-31
29.1-32
30.1-33
31.1-34
32.1-35
High
>23
>24
>26
>27
>28
High
>31
>32
>33
>34
>35
OPTIMA HOME SCALES
PO Box 1526, Cumming GA 30028, United States
T: 888-688-4833
www.optimahomescales.com

Muscle Mass Percentage
(Source: International Commission on Radiological Protection,1975)
EMC Guidance
Table 1 Guidance and MANUFACTURER’s declaration – ELECTROMAGNETIC
EMISSIONS- for all ME EQUIPMENT and ME SYSTEMS
Bone Mass Percentage
(Source: Rico et al.1993)
The average bone mass percentage for both men and women is between 4 to 5%.
Health Tips - About Body Fat
Fat is essential for human body. It can not only store energy and protect viscera, but also
regulate body temperature and maintain normal physiological function of human body.
However, too much body fat is harmful to human body and may be accompanied by Fatty
Liver, diabetes, coronary heart disease, etc.
Therefore, self-measuring and self-monitoring body fat level are beneficial to your health.
Since we can’t judge body fat level simply by our weight, this body fat analyzer VITALIZE,
with BIA (Bio-impedance Analysis) technology applied, is an accurate device that offers a
quick and comfortable way to obtain your body fat level.
20 21
Appendix
Appendix
Men
Approximately 40% of total body weight
Women
Approximately 30% of total body weight
Guidance and manufacturer’s declaration – electromagnetic emissions
The device is intended for use in the electromagnetic environment specified
below. The customer or the user of the device should assure that it is used in
such an environment.
Emissions test
Compliance
Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 2
The device must emit electromagnetic
energy to perform its intended
function. Nearby electronic equipment may be
affected.
RF emissions
CISPR 11
Class B
Harmonic emissions
IEC 61000-3-2
Not applicable
Voltage fluctuations/
flicker emissions IEC
61000-3-3
Not applicable

Table 2 Guidance and MANUFACTURER’s declaration –electromagnetic
IMMUNITY –for all ME EQUIPMENT and ME SYSTEMS
Guidance and manufacturer’s declaration – electromagnetic immunity
Thedeviceisintendedforuseintheelectromagneticenvironmentspecifiedbelow.
The customer or the user of the device should assure that it is used in such an
environment
IMMUNITY test
IEC 60601 test level
Compliance level
Electromagnetic
environment - guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood,
concrete or ceramic tile. If
floors are covered with
synthetic material, the
relative humidity should be
at least 30%.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for
power supply lines
±1 kV for
input/output lines
Not applicable
Mains power quality should
be that of a typical
commercial or hospital
environment.
Surge IEC
61000-4-5
±1 kV line(s)
to line(s)
±2 kV line(s)
to earth
Not applicable
Mains power quality should
be that of a typical
commercial or hospital
environment.
<5% UT
Mains power quality should
be that of a typical
commercial or hospital
environment. If the user of
the device requires
continued operation during
power mains interruptions, it
is recommended that the
device be powered from an
uninterruptible power supply
or a battery.
(>95% dip in UT)
Voltage dips,
short interruptions
and voltage
variations on
power supply
input lines
IEC 61000-4-11
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
Not applicable
for 25 cycles
<5% UT
(>95% dip in UT)
for 5 s
Power frequency
(50/60Hz)
magnetic field
IEC 61000-4-8
3A/m
3A/m
Power frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.
NOTE UT is the a.c. mainsvoltage prior to application of the test level.
22
Table 4 Guidance and MANUFACTURER’s declaration – electromagnetic IMMUNITY –
for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
Guidance and manufacturer’s declaration –electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an environment.
IMMUNITY test
IEC 60601
TEST LEVEL
Compliance
level
Electromagnetic environment -
guidance
Portable and mobile RF communications
equipment should be used no closer to
any part of the device, including
cables, then the recommended
separation distance calculated from the
equation applicable to the frequency of
the transmitter.
Conducted RF
IEC 61000-4-6
3 Vrms
150 kHz to
80 MHz
Not applicable
Recommended separation distance
d = [ 3,5] P
V1
Radiated RF
IEC 61000-4-3
3 V/m
80 MHz to
2.5 GHz
3 V/m
d = 1.167 P 80 MHz to 800 MHz
d = 2.333 P 800 MHz to 2,5 GHz
where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in meters (m).
Field strengthsfrom fixed RF
transmitters, as determined by an
electromagnetic site survey, a should be
less than the compliance level in each
frequency range. b
Interference may occur near equipment
marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency rangeapplies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation isaffected by absorption and reflection from structures, objects
and people.
a
Field strengthsfrom fixed transmitters, such as base stations for radio (cellular /
cordless) telephones and land mobile radios, amateur radio, AM and FM radio broad-
cast and TV broadcast cannot be predicted theoretically with accuracy. To assess the
electromagnetic environment due to fixed RF transmitters, an electromagnetic site
survey should be considered. If the measuredfield strength in the location in which
the device is used exceeds the applicable RF compliance level above, the device
should be observed to verify normal operation. If abnormal performance is observed,
additional measures may be necessary, such as re-orienting or relocating the device.
b
Over the frequency range 150 kHz to 80 MHz, field strengths should be less than
[V1] V/m.
23
Appendix
Appendix

Table 6 Recommended separation distances between portable and mobile
RF communications equipment and the ME EQUIPMENT or ME SYSTEM –
for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
Recommended separation distances
between portable and mobile RF communications equipment and the device.
The device is intended for use in an electromagnetic environment in which
radiated RF disturbances are controlled. The customer or the user of the device
can help prevent electromagnetic interference by maintaining a minimum distance
between portable and mobile RF communications equipment (transmitters) and the
device as recommended below, according to the maximum output power of the
communications equipment.
Rated maximum output
power of transmitter
(W)
Separation distance according tofrequency of transmitter (m)
150 kHz to 80 MHz
d = [ 3,5] P
V1
80 MHz to 800 MHz
d = 1.167 P
800 MHz to 2.5 GHz
d = 2.333 P
0.01
Not applicable
0.117
0.233
0.1
Not applicable
0.369
0.738
1
Not applicable
1.167
2.333
10
Not applicable
3.690
7.378
100
Not applicable
11.67
23.33
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in meters (m) can be estimated using the equation applicable to
the frequency of the transmitter, where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80MHz and 800MHz, the separation distance for the higher frequency
range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation
isaffected by absorption and reflection from structures, objects and people.
24
Appendix
