Optoelectronics OPN-3002n User manual

Master Specification
Data Collector with Bluetooth
Model No.
OPN-3002n
Manufacturing
Specification No.
XF2OPN3002
DOC_ID
SS13022
Issue No.
Edition
1st
Issue Date
2013- -
Approved by
Optoel e ctronic s Co., Ltd.
4-12- 17 Tsu ka go sh i Wa r ab i - sh i , S ai t am a
335-0 002 Japan
TEL [phone]
FAX [phone]
営業
営業管理
C S
Q A/QC
照査
作成

OPN-3002n DOC ID：SS13022
Revision History
DOC_ID ：SS13022
Model No. ：OPN-3002n
Edition
Date
Section
Description of Changes
1st
2013- -
-
（Initial Issue）

OPN-3002n DOC ID：SS13022
Index page
1. ABSTRACT ............................................................................................................................... 1
2. OVERVIEW............................................................................................................................... 1
3. BASIC SPECIFICATION ......................................................................................................... 2
4. DETAILED VIEW..................................................................................................................... 5
5. ELECTRICAL SPECIFICATIONS........................................................................................... 6
5.1. ＵＳＢ.............................................................................................................................................6
5.2. Charging Cradle.........................................................................................................................6
6. INTERFACE ............................................................................................................................. 6
6.1. USB .............................................................................................................................................6
6.1.1. Connector....................................................................................................................................... 6
6.1.2. USB Interface Circuit...................................................................................................................... 6
6.2. Bluetooth ....................................................................................................................................7
7. OPTICAL SPECIFICATIONS .................................................................................................. 7
7.1. Basic Optical Specifications ......................................................................................................7
7.2. Aiming Pattern...........................................................................................................................8
7.3. Imaging Range ...........................................................................................................................8
8. TECHNICAL SPECIFICATIONS ............................................................................................ 9
8.1. Bar code Test Sample.................................................................................................................9
8.2. Scan Area and Depth of Field .................................................................................................11
8.3. Printed Contrast Signal (PCS)................................................................................................ 11
8.4. Minimum Resolution..................................................................................................................12
8.5. Wide Barcode............................................................................................................................12
8.6. Petch, Skew and Tilt..................................................................................................................12
8.7. Curvature...................................................................................................................................13
9. ENVIRONMENTAL SPECIFICATIONS ............................................................................... 14
9.1. Temperature .............................................................................................................................14
9.2. Humidity...................................................................................................................................14
9.3. Ambient Light Immunity ........................................................................................................14
9.4. Dust and Drip Proof.................................................................................................................14
9.5. Vibration Strength(without packing) .....................................................................................15
9.6. Vibration Strength (in individual packing)............................................................................15
Drop Impact Strength............................................................................................................................15
9.7. Drop Impact Strength (in individual packaging) ..................................................................15
9.8. Electrical Specifications ..........................................................................................................15
10. REGULATORY COMPLIANCE ............................................................................................. 16
10.1. LED Safety ...............................................................................................................................16
10.2. Product Safety..........................................................................................................................16
10.3. EMC ..........................................................................................................................................16
10.4. Other.........................................................................................................................................17
11. ROHS ...................................................................................................................................... 17
12. MTBF ...................................................................................................................................... 17
13. PRECAUTIONS...................................................................................................................... 17
13.1. Precaution against Laser Light ..............................................................................................17
13.2. Handling ...................................................................................................................................17
13.3. Radio Low .................................................................................................................................18

OPN-3002n DOC ID：SS13022
13.4. Export Administration Regulations........................................................................................18
13.5. Bluetooth ..................................................................................................................................18
13.6. Frequency Band .......................................................................................................................18
14. PRODUCT LABEL ................................................................................................................. 20
15. PACKAGING SPECIFICATIONS .......................................................................................... 21
15.1. Individual Packaging Specification ........................................................................................21
15.2. Collective Packaging Specification .........................................................................................22
16. WARRANTY............................................................................................................................ 23
16.1. Warranty period .......................................................................................................................23
16.2. Delivery.....................................................................................................................................23
16.3. Repair Timeframe ....................................................................................................................23
16.4. Maintenance Period.................................................................................................................23
16.5. Other.........................................................................................................................................23
17. PHYSICAL FEATURES ......................................................................................................... 23
17.1. Dimensions ...............................................................................................................................23
17.2. Weight .......................................................................................................................................23
17.3. Mechanical Drawing................................................................................................................24
18. SUPPORTED SYMBOLOGIES.............................................................................................. 25
18.1. 1D symbologies.........................................................................................................................25
18.2. GS1 Databar, Composite Code................................................................................................26
18.3. 2D codes....................................................................................................................................26

OPN-3002n DOC ID：SS13022
1
1. Abstract
This manual provides specifications for the OPN-3002n 2D Imager Barcode Scanner.
2. Overview
The OPN-3002n scanner enables data transmission of barcode using Bluetooth wireless thechnology.
⚫The OPN-3002n is handy and simple data collector.
Data transmission is performed via a USB or Bluetooth.
⚫The OPN-3002n has SPP and HID profiles.
⚫Power supply is 3.7V, 600mAh(typ.) and Lithium-ion polymer battery is used.
⚫The power supply charging is done via a USB interface or charging cradle.
⚫MFi license agreement approved by Apple Inc.

OPN-3002n DOC ID：SS13022
2
3. Basic Specification
Item
Spedification
Note
Control
Section
CPU
32bit CISC/96MHz
FROM
512Kbyte + 32KByte
SRAM
96Kbyte
FROM(strage)
1Mbyte
For user data
Input
Section
Key type
2 keys: Trigger, Function
Display section
LED
bi-colors(red and green) 2pcs, a blue LED
Beeper
Tone:variable frequency, Volume:3-level
variable
Vibration motor
Amplitude:3-level variable
RTC
Contents
year, month, day, hour, minute and second
Error
≤±90seconds per a month
I /F
Bluetooth
Frequency
2402MHz - 2480MHz
Specification
Bluetooth Ver2.1
Communication
distance
10ｍ
It may shorter
depending on usage
environments
Output level
Class 2
4dBm max.(25℃)
Profile
SPP/HID
USB
・Full-Speed 12Mbps ( HID/COM )
・Hi-Power Bus-powered 対応
Serial interface
2contacts for cradle.
Optical Section
Scanning method
WVGA (0.36 million-pixel) CMOS area sensor
Frame rate: 60 fps
Scanning light source
2 red LEDs
Aiming light source
1 green LED
Effective pixels
0.36 million pixels (H: 752 x V: 480)
View angle
Horizontal: about 40.6°
Vertical: about 26.4°
Supported 1D Symbologies
Symbologies
UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on,
EAN-13, EAN-13 Add-on, EAN-8, EAN-8 Add-on,
JAN-8, JAN-13, Code 39, Tri-Optic, Codabar
(NW-7), Industrial 2 of 5, Interleaved 2 of 5, S-Code,
IATA, Code 93, Code 128, MSI/Plessey,
UK/Plessey, TELEPEN, Matrix 2 of 5, Chinese Post
Matrix 2 of 5, Code 11, Korean Postal Authority
code, Postal Code
Minimum resolution
Code 39 : 0.127 mm
PCS 0.9
Curvature
Radius ≧16 mm (12-digit 0.15mm Codabar)
Radius ≧20 mm (13-digit UPC)
PCS 0.9
Wide Bar Code
Possible to read: Code 39 with 100 mm width and
resolution 0.2mm (DOF: 135 mm)

OPN-3002n DOC ID：SS13022
3
Motion tolerance
Possible to read: UPC 100% moving at 2 m/s (DOF:
100 mm)
Depth of
field (mm)
Code 39
Resolution (0.127)
65 - 105
Resolution (0.254)
45 - 185
Resolution (0.508)
50- 250
Code 128
Resolution (0.2)
65 - 150
UPC
Resolution (0.33)
45 - 175
GS1/Composite
Symbologies
GS1 DataBar, GS1 DataBar Limited, GS1 DataBar
Expanded, Composite GS1-DataBar, Composite
GS1-128, Composite EAN, Composite UPC
GS1 DataBar: formerly
called “RSS”
Minimum resolution
GS1 DataBar : 0.169 mm
Composite Code: 0.169 mm
Supported 2D Symbologies
Symbologies
PDF417, MicroPDF417, Codablock F, QR Code ,
Micro QR Code, DataMatrix (ECC 0 - 140 / ECC
200), MaxiCode (Modes 2 to 5), Aztec Code,
Chinese Sensible Code
Disable Code 128 when
Codablock F is enabled.
Minimum resolution (mm)
PDF417 : 0.169 mm
QR Code : 0.212 mm
DataMatrix : 0.212 mm
PCS 0.9
Depth of field
(mm)
PDF417
Resolution (0.169)
60- 120
PCS 0.9
Resolution (0.254)
45 - 185
QR Code
Resolution (0.212)
70 - 95
Resolution (0.381)
35 - 165
DataMatrix
Resolution (0.254)
65 - 120
Common
Scan angle
Pitch : ±40°
Skew : ±50°
Tilt : ±180°
Minimum PCS
0.3 or more
MRD: 32% or more

OPN-3002n DOC ID：SS13022
4
Item
Specification
Note
Power
Main Battery
Lithium-ion polymer battery 600mAh(typ.)
Up-time
10hours or more
When a barcode is scanned
twice in 10 sec. at 25 deg. C
Range of
Operation(Charging)
Voltage
4.5 - 5.5 V
Current
consump
tion
Charging
<500mA
Environmental Specification
Tempera
ture
Operating
0 - 50 ℃
Storage
-20 - 60 ℃
Humidity
Operating
20%RH - 85%RH
No frost, no condensation.
Storage
20%RH - 85%RH
No frost, no condensation.
Ambient
Light
Immunity
Fluorensc
ent
10,000 lx or less
Sunlight：
100,000 lx or less
Vibration
Increase the frequency of vibration from 10 Hz
to 100 Hz at an accelerated velocity of 19.6
m/s2 (2G) for 6 minutes each in X, Y and
Z-direction. Repeated this test for 10 times.
Drop
Drop 3 times, at each 6 faces (right, left, front,
back and top), from a height of 120 cm onto a
concrete surface.
Dust and drip proof
IP42
Item
Specification
Note
Regulatory
LED safety
IEC 62471-1:2006 Exempt Risk Group
Safety standards
EN60950-1:2005
IEC60950-1:2006
EMC
EN55022
EN55024
FCC Part 15 Subpart C , Subpart B ClassB
VCCI ClassB
For residential, commercial
and light-industrial
environments
Product safety
CE Marking
Other
Bluetooth logo certification
MFi License program
Immunity test
ESD
immunit
y
No
destruction
15kV (Air)
Condition:
IEC61000-4-2 compliant
No
malfunctio
n
8kV (Air)
Physical
Features
Dimensions
83.0(D) × 36.0(W) × 21.5(H) (mm)
Weight
Approx. 57g
Excluding the accessories

OPN-3002n DOC ID：SS13022
5
4. Detailed View
1
2
3
4
5
6
7
8
Figure 1:Detailed View
No.
Name
Description
1
Scanning Window
Laser light is emitted through this window to read bar codes.
2
Scanning Window
The laser light is emitted through this window.
3
Trigger Key
A trigger key used to read bar codes
4
Function Key
A function key that can be configured with application
5
LED
Indicator of operating status, such as bar code reading and
warnings
6
Buzzer Hole
Sound from a built-in buzzer comes out through these holes.
7
Strap Hole
A hole to attach a hand strap
8
Battery Box Cover
A cover is opened to remove battery.

OPN-3002n DOC ID：SS13022
6
5. Electrical Specifications
5.1. ＵＳＢ
・Voltage ：4.5-5.5V
・Bus-Power Class ：Hi-Power ( 500mA max )
・Current consumption ：<500mA
5.2. Charging Cradle
・Voltage ：4.5-5.5V
6. Interface
The OPN-3002n supports USB, Bluetooth and serial interfaces.
6.1. USB
This interface supported FULL Speed USB.
6.1.1. Connector
Signal
Pin No.
VCC
1
Data(-)
2
Data(+)
3
( NC )
4
GND
5
Figure 2 : MINI USB B Connector

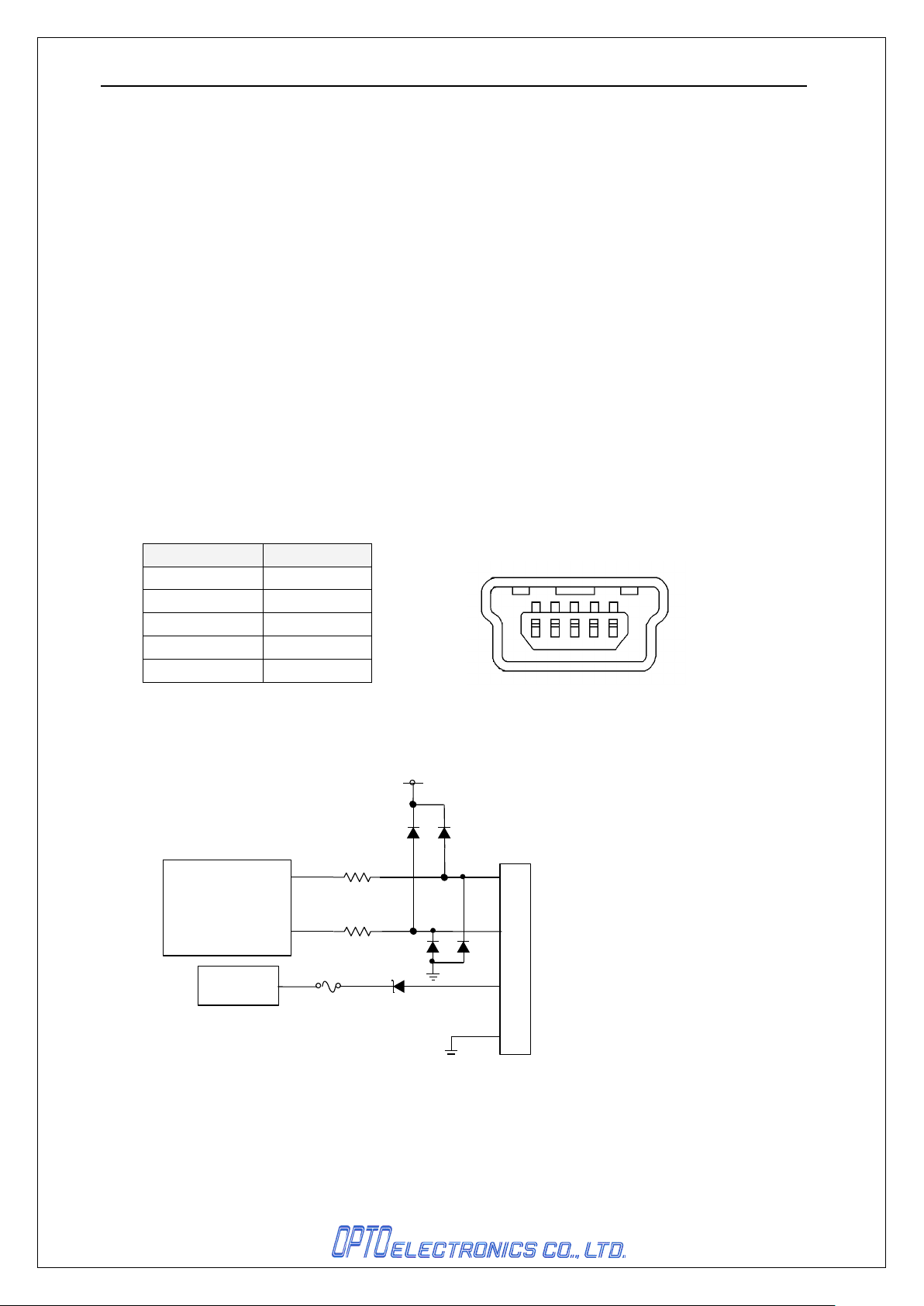

6.1.2. USB Interface Circuit
Figure 3:USBInterface Circuit
3
2
1
4
Microcontroller
Data(+)
Data(-)
VCC
GND
USB connector
+5.0V Power
......
1
5
......
5

OPN-3002n DOC ID：SS13022
7
6.2. Bluetooth
The OPN-3002n supported Bluetooth.
Frequency
: 2402MHz - 2480MHz
Specification
: Bluetooth Ver2.1
Communication
distance
: 10ｍ
Output level
: Class 2 (4dBm Max. (25℃))
Supported profiles
: SPP/HID
Topology of connection
: Point-to-point
Operating mode
: Master or Slave mode
Security mode
: Enabled
Encryption
: Enabled
7. Optical Specifications
7.1. Basic Optical Specifications
Item
Characteristics
Scan method
CMOS area sensor (white / black)
-
Number of effective pixel
(Column) × (Row)
752 × 480 dots
Image capture speed (*1)
Frame rate
60 fps
Focal distance
Distance from the front edge of scanner
104 mm
View angle
Horizontal
Approx. 40.6°
Vertical
Approx. 26.4°
Illumination light source
(LED × 2)
Red LED
-
Peak wavelength
617 nm
Directivity angle: 2Φ 1/2 (*2)
60°
Maximum radiation output (*3)
15000 mcd
Aiming light source
Green LED
-
Peak wavelength
528 nm
Maximum radiation output (*4)
18700 mcd
*1 The fastest seed of image capture
*2 Reference value extracted from the datasheet.
*3, *4 Reference value based on the datasheet (25°C, IF = 140 mA ).

OPN-3002n DOC ID：SS13022
8

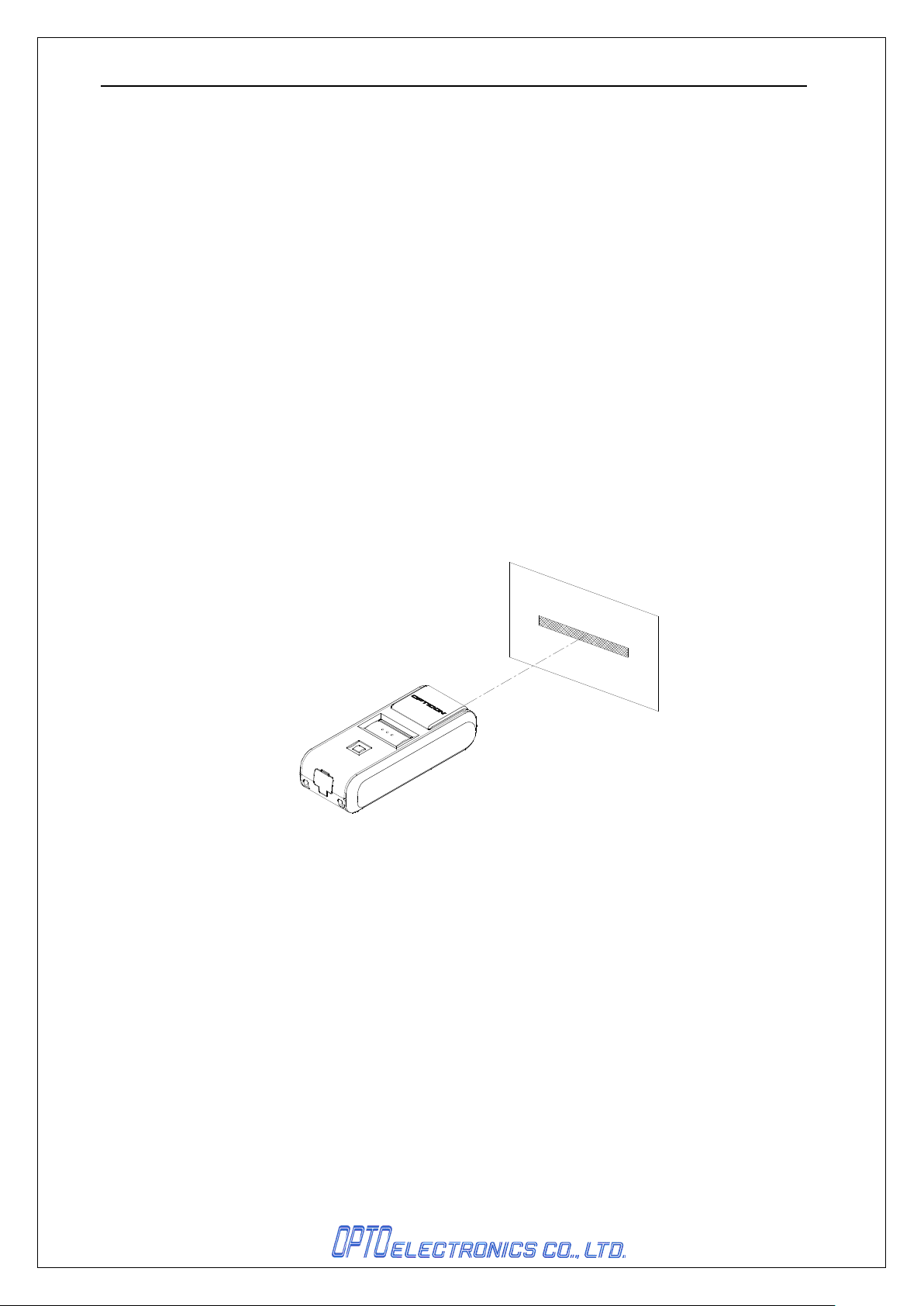

7.2. Aiming Pattern
水平撮像範囲
垂直撮像範囲
エイミング水平幅
L
Figure 4 : Aiming Pattern and Imaging Range
7.3. Imaging Range
The range is ±5% from the following values.
L: Distance from the front edge of scanner
[mm]
60
80
100
120
140
160
H: Horizontal imaging range
[mm]
66
82
97
111
125
136
V: Vertical imaging range
[mm]
42
52
62
72
82
93

OPN-3002n DOC ID：SS13022
9
8. Technical Specifications
Aim the laser light at the center of a code to scan it. For long distance scanning, ambient light entering the
angle of view may affect the scanning performance. The conditions for technical specifications are as follows,
unless otherwise specified in each section.
<Conditions>
Ambient Temperature and Humidity
Room temperature, room humidity
Ambient Light
100 -200 lux (on the surface of a bar code)
Angles
Pitch: α = 0°, Skew: β = 15°, Tilt: γ = 0°
Curvature
R = ∞
Power Supply Voltage
3.7 V
PCS (1D and 2D)
0.9 or higher
Scanning Test
Accept the performance with 70% or more success rate
for 10 tries of scan. One reading should be 2 seconds.
Barcode Test Sample (1D and 2D)
Specified below.
< Test chart >
For 1D codes, OPTOELECTRONICS test samples
For GS1 Databar, stacked codes and 2D codes, printed by a dedicated printer for bar code
8.1. Bar code Test Sample
1D Bar Codes
<Code 39>
Resolution
Symbology
PCS
Size (mm)
No. of Digits
0.127 mm (5 mil)
Code 39
0.9
32 × 10
15
0.20 mm (7.9 mil)
100 × 10
31
0.254 mm (10 mil)
32.5 × 12
7
0.508 mm (20 mil)
36 × 25
4
<Code 128>
Resolution
Symbology
PCS
Size (mm)
No. of Digits
0.20 mm (7.9 mil)
Code 128
0.9
42 × 10
16
<UPC>
Resolution
Symbology
PCS
Size (mm)
No. of Digits
0.330 mm (13 mil)
12-digit UPC
0.9/0.3
31.5 × 25.0
12
<Codabar>
Resolution
Symbology
PCS
Size (mm)
No. of Digits
0.15 mm (6 mil)
Codabar
0.9
20 × 10
10
GS1 Databar/Composite
<GS1-limited>
Resolution
Symbology
PCS
Size (mm)
No. of Digits
0.169 mm (6.7 mil)
Limited
0.9
12 × 1.5
14
0.169 mm (6.7 mil)
Limited-Composite
0.9
12 × 3.0
26

OPN-3002n DOC ID：SS13022
10
2D Codes
<PDF417>
Resolution
Error Correction
PCS
Size (mm)
No. of Character
0.169 mm (6.7 mil)
Level-3
0.9
23 × 10
58
0.254 mm (10 mil)
35 × 15
<QR Code: Model-2>
Resolution
Error Correction
PCS
Size (mm)
No. of Character
0.212 mm (8.4 mil)
M
0.9
6 × 6
44
0.381 mm (15 mil)
11 × 11
<Data Matrix>
Resolution
Model
PCS
Size (mm)
No. of Character
0.212 mm (8.4 mil)
ECC200
0.9
5 × 5
40
0.254 mm (10 mil)
6 × 6
* The size is outline dimensions excluding the quiet zones.

OPN-3002n DOC ID：SS13022
11

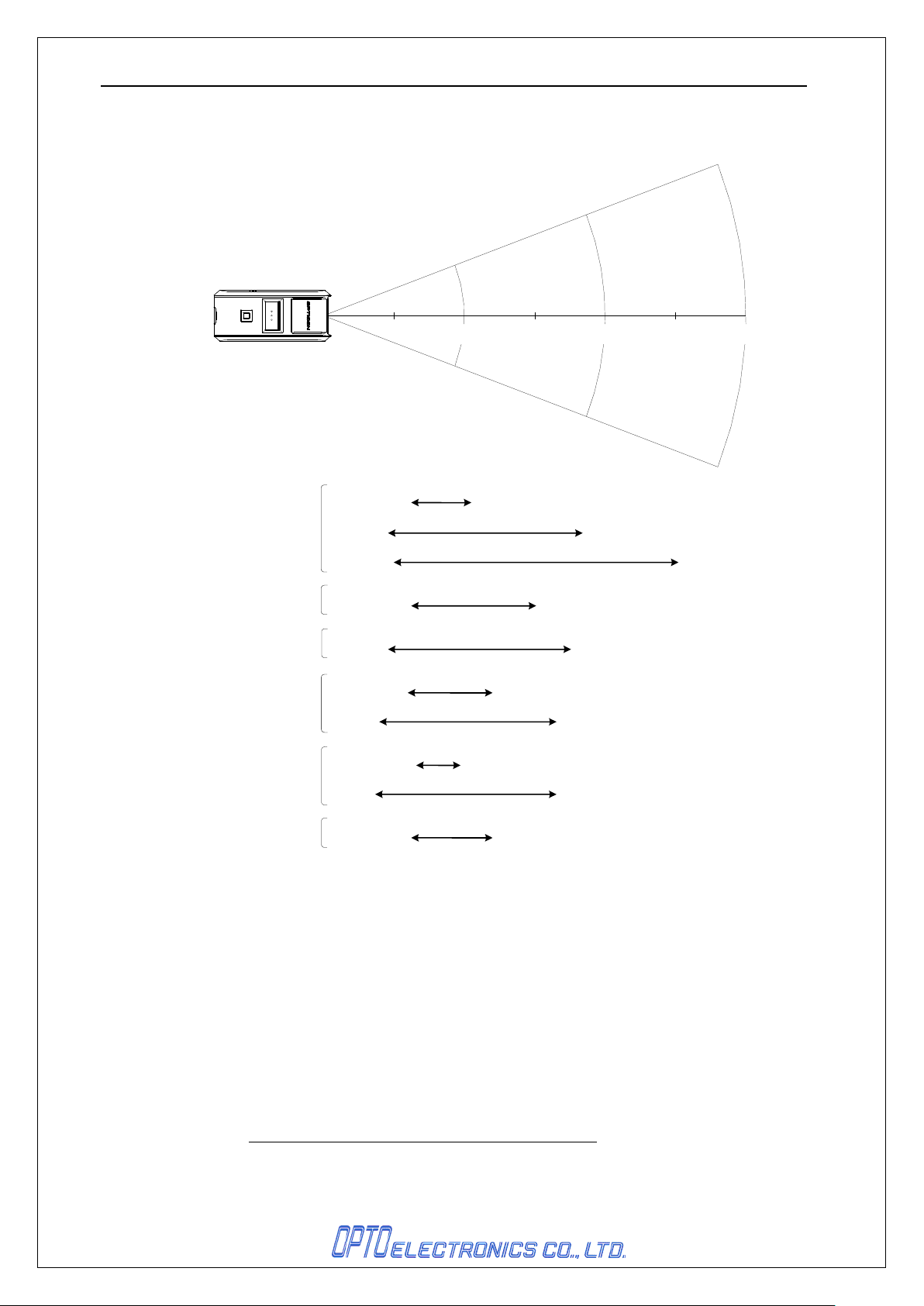

8.2. Scan Area and Depth of Field
Figure 5: Depth of Field
8.3. Printed Contrast Signal (PCS)
0.3 or higher
<Conditions>
MRD
: 32% and higher
(70% or higher reflectivity of space and quiet zone)
Distance
: 105mm from the front edge of the scanner
Bar Code Sample
: UPC specified in Chapter 8. (Resolution: 0.33 mm, PCS: 0.3)
MRD = Minimum reflectance of white bar - Maximum reflectance of black bar
PCS = Reflectance of white bar－Reflectance of black bar
Reflectance of white bar
250
65
150
175
120
60
165
40
70
95
35
165
65
120
Code
128
UPC
100
%
PDF
417
QR Code
Data Matrix
：
0
.
508
0
.
20
0
.
33
0
.
169
0
.
254
0
.
212
0
.
381
0
.
254
45
50
0
.
127
65
105
45
185
[
Unit
：
mm
]
0
.
254
Code
39
100 200 300
50 150 250

OPN-3002n DOC ID：SS13022
12
8.4. Minimum Resolution
1D Code : 0.127 mm (5 mil) Code 39 specified in Chapter 8.1
GS1-Databar : 0.169 mm (6.7 mil) GS1 Databar Limited specified in Chapter 8.1
Stacked Code : 0.169 mm (6.7 mil) PDF417, GS1 Databar Limited Composite specified in Chapter 7.1
2D Code : 0.212 mm (8.4 mil) QR Code and Data Matrix specified in Chapter 8.1
<Conditions>
Bar Code Sample
: The above codes specified in Chapter 8.1
Distance
: 75 mm from the front edge of the scanner
Angle
: α = 0°, β =＋15°, γ = 0°
Curvature
: R = ∞
8.5. Wide Barcode
Code 39 with width of 100 mm and resolution of 0.2 mm can be read
<Conditions>
Bar Code Sample
: 0.20 mm Code 39 / PCS 0.9 specified in Chapter 8.1
Distance
: 135 mm from the front edge of the scanner
Angle
: α = 0°, β =＋15°, γ = 0°
Curvature
: R = ∞
Figure 6 : Wide Barcode
8.6. Petch, Skew and Tilt
Pitch : α = ±50°
Skew : β = ±50°
Tilt: γ = ±180°
<Conditions>
Bar Code Sample
: 0.33 mm UPC specified in Chapter 7.1
Distance
: 105 mm from the front edge of the scanner
Curvature
: R = ∞
* For the pitch angle and tilt angle measurement, set the skew angle β = +15°

OPN-3002n DOC ID：SS13022
13
β
γ
+
+
+
-
-
-
Figure 7 : Pitch, Skew and Tilt
8.7. Curvature
0.33 mm 12-digit UPC : R ≧20 mm
0.15 mm 10-digit Codabar : R ≧16 mm
<Conditions>
Bar Code Sample
: 0.33 mm UPC, 0.15 mm Codabar specified in Chapter 7.1
Distance
: 85 mm from the front edge of the scanner
Angle
: α = 0°, β =＋15°, γ = 0°
R
バーコード
Figure 8 : Curvature
Note: Scanning may fail due to the specular reflection of LED illumination when the reflectivity is high.
Barcode

OPN-3002n DOC ID：SS13022
14
9. Environmental Specifications
9.1. Temperature
Operating : 0 - 50 ℃
Strage : -20 - 60 ℃
9.2. Humidity
Operating : 20 - 85%RH（no condensation, no frost）
Strage : 20 - 85%RH（no condensation, no frost）
9.3. Ambient Light Immunity
Scanning performance is guaranteed when the range of illumination on a barcode surface is the following
values.
Incandescent light : 0 - 10,000 lx
Fluorescent light : 0 - 10,000 lx
Sunlight : 0 - 100,000 lx
<Conditions>
Bar Code Sample
: 0.33 mm UPC specified in Chapter 7.1
Distance
: 100 mm from the front edge of the camera module
Angle
: α = 0°, β =＋15°, γ = 0°
Curvature
: R = ∞
Power Supply Voltage
: 3.7 V
* Be sure that the direct light or specular reflection from the light source does not enter the light receiving
section of the OPN-3002n.
9.4. Dust and Drip Proof
IEC IP42 equivalent
Protection against solid objects: Level 4
Protected against solid objects greater than 1.0 mm
Protection against liquids: Level 2 (JIS IPX2)
Protected against dripping water from the vertical when tilted up to 15°

OPN-3002n DOC ID：SS13022
15
9.5. Vibration Strength(without packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of
19.6m/s2 (2.0 G) for 30 minutes (60 minutes for a cycle) in the non-operating state. Repeat this in each X, Y
and Z direction.
9.6. Vibration Strength (in individual packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of 19.6
m/s2 (2.0 G) for 30 minutes (60 minutes for a cycle) in individually packaged state. Repeat this in each X, Y
and Z direction.

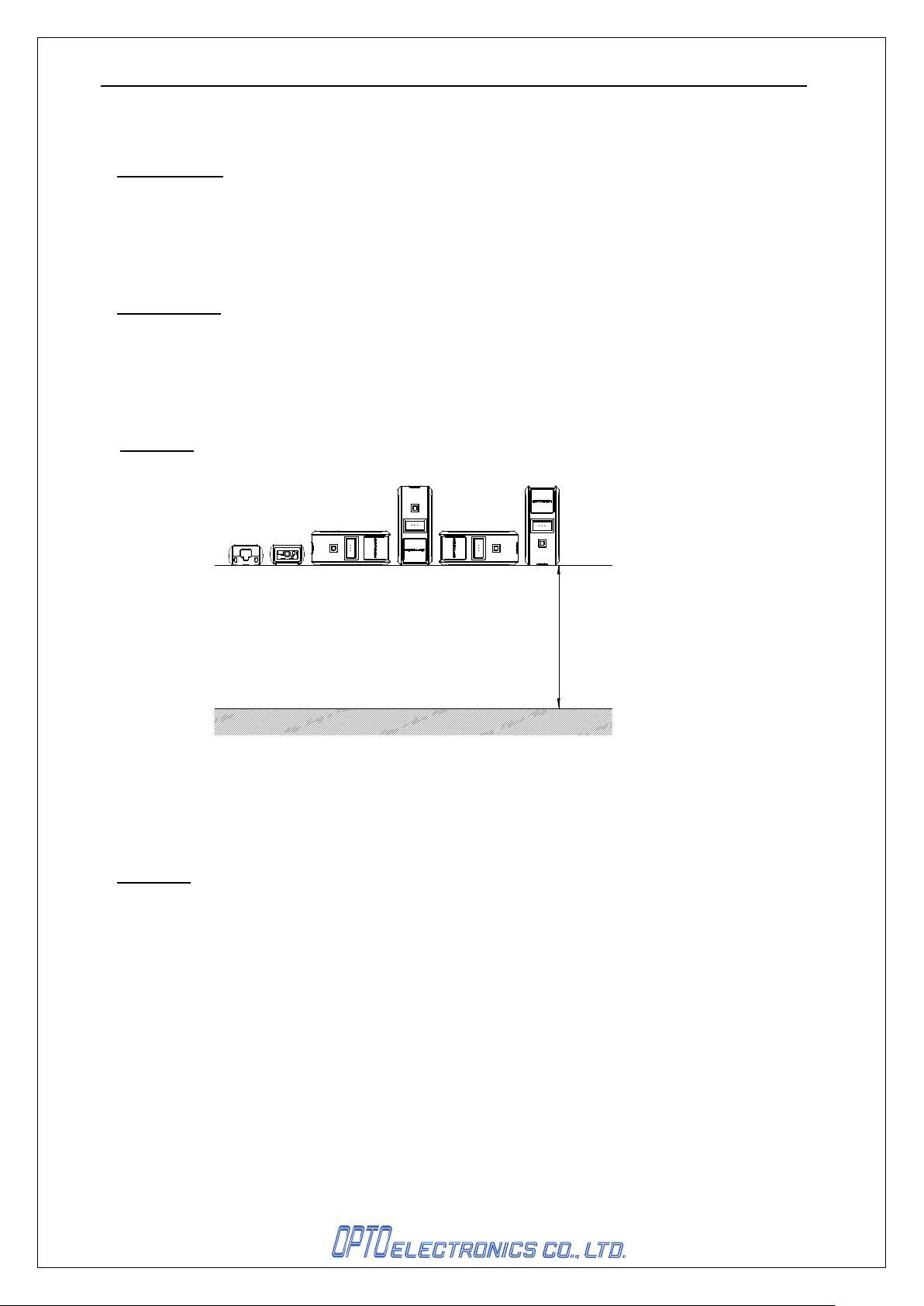

9.7. Drop Impact Strength
There shall be no sign of malfunction after the following drop test.
Drop test: Drop the scanner three times (18 times in total), at each 6 face, from a height of 150cm onto a
concrete floor as shown below.
150cm
Figure 9: Drop test
9.8. Drop Impact Strength (in individual packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges, and 6 faces,
from a height of 150 cm onto a concrete floor.
9.9. Electrical Specifications
Air discharge ±8 kV max. (No malfunction)
±15 kV max. (No destruction)
Measurement environment An electrostatic testing device compliant with IEC 61000-4-2 is
used.
Discharge resistance 330 Ω
Charging capacitor 150 pF

OPN-3002n DOC ID：SS13022
16
10. Regulatory Compliance
10.1. LED Safety
IEC 62471-1:2006 Exempt Risk Group
10.2. Product Safety
EN60950-1:2005
IEC60950-1:2006
10.3. EMC
EN55022
EN55024
FCC Part 15 Subpart C , Subpart B ClassB
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used according to the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which is found by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment or devices
•Connect the equipment to an outlet other than the receiver's
•Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus
Wireless may void the user's authority to operate this equipment.
RF Exposure
The OPN-2002n unit (FCC ID: UFOOPN2002n) complies with FCC radiation exposure
limits set forth for uncontrolled environment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65. The unit has very low level of RF
energy that it is deemed to comply without testing of specific absorption ratio (SAR).
