Optoma EH1060 User manual

1080p
10
10
10
10
0
0
0
80
80
80
80
80
80
80
80
80
80
p
p
p
p
p
p
p
p
Full HD 1080p for detail and clarity
Bright projection – 3500 ANSI Lumens
Digital connectivity, dual HDMI – perfect Full HD display
Crestron RoomView®– RJ45 control and monitoring
30dB
30
30
30
30
30
30
0
0
0
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Quiet operation – less than 30dB
Portable – carry bag provided for easy transportation
Environmentally friendly design <1W standby mode
�
Optoma EH1060 filter-free design – virtually no maintenance
EH1060
DLP®Projector Make a bright
detailed impact
1080p
Full HD
1080p
Full HD
www.optoma.co.uk
5
5

Full HD, the EH1060 produces crystal clear, bright images, perfect for projection for a broad range
of applications including technical, advertising media and medical uses where detail really matters. The
versatile EH1060 also incorporates networking and extensive connectivity.
The environmentally friendly EH1060 has energy saving features including <1W standby mode and auto
power off saving you both time and money. Our unique Optoma Colour and Imager guarantees ensure
hassle-free, long-lasting projection.
4:3 16:9
EH1060
CRESTRON ROOMVIEW®- NETWORK CONTROL
RoomView®software provides a custom configurable interface
to monitor, manage and control every device in every room
remotely from any computer.
Manage up to 250 projectors at the same time (via master PC)
Control and alter the projector settings using a simple web
browser page, including OSD menu control.
Set up email alerts for warning messages
Ideal for large installations in both in the educational and
business environments
RS232 CONTROL
The extensive RS232 command set makes it simple and easy
to control the EH1060 with any control system.
AMX Compatibility – Dynamic Discovery
Protocol is incorporated into the EH1060. This feature
allows for easy installation with AMX control systems.
EXTENSIVE CONNECTIVITY
This native 1080p projector accepts a wide variety of computer and
video input signals.
Connectivity includes: dual HDMI, VGA (SCART/ YPbPr via adaptor),
Component video, S-Video, Composite, VGA-Out, RS232 , RJ45
and +12V trigger.
Two audio inputs for individual PC and video connections enable
the EH1060 to function as an audio switcher and volume controller,
thereby eliminating complicated and costly additional audio hardware
and cabling.
FULL HD
Full HD (1920 x 1080) has twice the resolution of standard HD.
EH1060 is compatible with HDTV broadcasts and high–definition
media to project impressive full 1080p images and video in their
original digital brilliance.
XGA (1024 x 768) 1080p (1920 x 1080)
RESOLUTION COMPARISION
PC Compatibility Video
Compatibility
XGA 1024 x 768 WXGA 1280 x 800 SXGA 1280 x 1024 SXGA+ 1400 x 1050 HD Ready (720p) Full HD (1080p)
Projector Resolution
XGA 1024 x 768 - - - - -
720p 1280 x 720 ---- -
WXGA 1280 x 800   - - -
1080p 1920 x 1080      
Projector 2
Projector 1
PC
Centralised
management PC
Projector 3
Example:
Corporate LAN
Download Crestron RoomView®Express software from:
www.crestron.com/getroomview

STUNNING IMAGE QUALITY
Full HD 1080p technology delivers impeccable image quality
associated with the best digital cinema performance around the world.
Digital HDMI or DVI signals create a true digital projection system that
produces a spectacular High Definition display. This unprecedented
combination ensures natural, life-like images with crystal clarity.

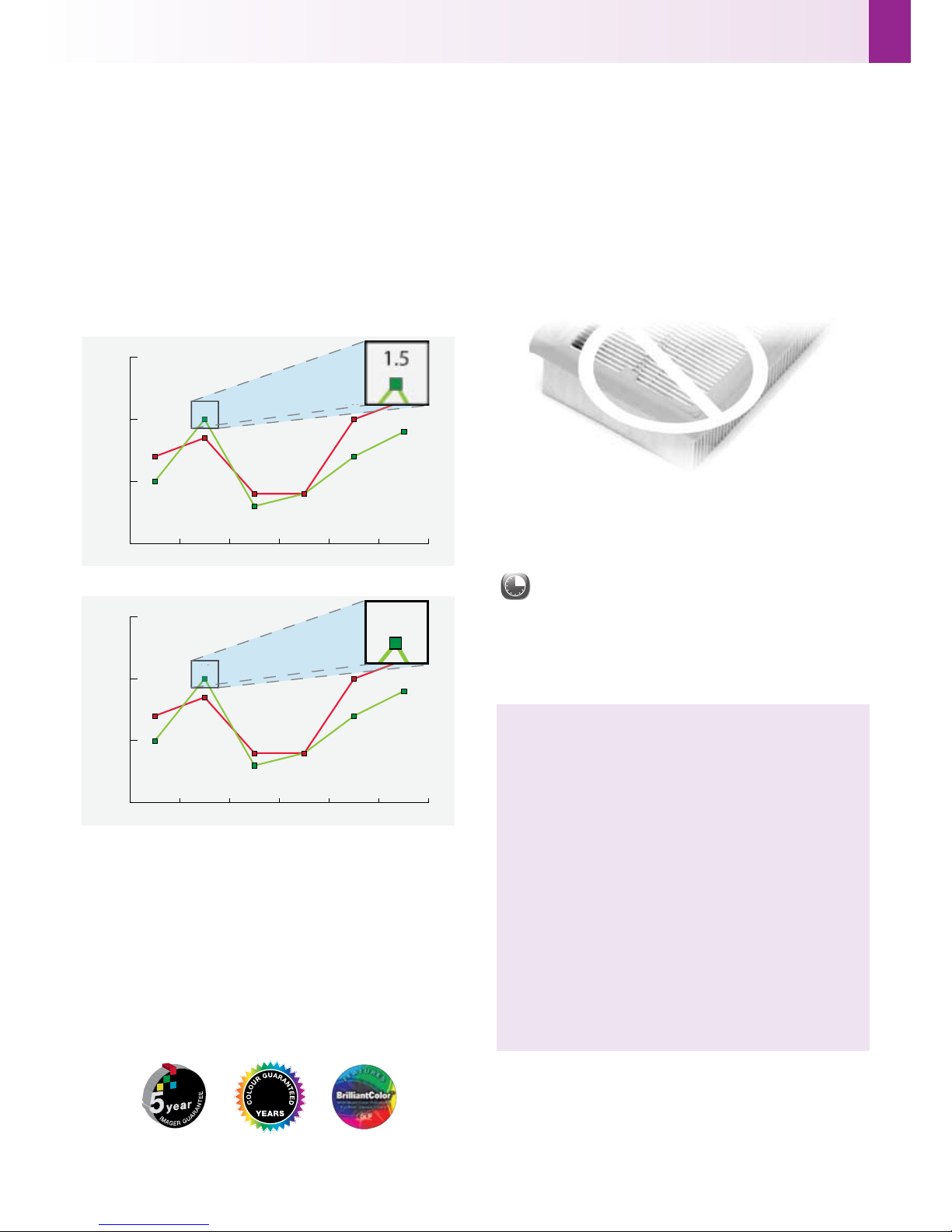

XGA Resolution
0.5
1.0
1.5
2.0
1.5 1.50
1.65
1.4
1.2
0.90.9
0.8
1.0
1.2
0.9
1.35
1.5
1.50
1.65
1.5
0.5
1.0
1.5
2.0
1.5 1.50
1.65
1.4
1.2
0.90.9
0.8
1.0
1.2
0.9
1.35
1.5
1.50
1.65
AMAZING COLOURS
The EH1060 incorporates BrilliantColor™ technology to produce
stunningly bright images with perfectly balanced life-like colours.
COLOUR AND IMAGER GUARANTEE
Bright colours and fantastic image quality are guaranteed for
an amazing 5 years after purchase - giving piece of mind that
the technology inside the Optoma EH1060 projector won’t fade
or degrade.
5
VIRTUALLY MAINTENANCE FREE = LOWER COST
OF OWNERSHIP
EH1060 provides lower cost of ownership, longer life and improved
reliability. The filter-free projector design does not require regular filter
cleaning or filter replacement, saving you time and money.
ENVIROMENTALLY FRIENDLY
The EH1060 incorporates energy saving features to conserve power and
extend the lamp life:
To achieve the maximum 3000hrs2lamp life time the projector
should be operating in STD mode and the shut down timer
should be enabled to automatically switch off the projector
if it is accidentally left on when no longer required. Enabling
the <1W Standby mode will ensure the minimum energy
consumption when the projector is not being used.
EH1060
1080p Resolution
EXTRA FEATURES
Easy lamp replacement from the top cover
Direct power on – start up time is significantly reduced
as standby mode is bypassed when the power cable is inserted
into an active power outlet. This eliminates the need to use the
‘Power’ button on the remote control or the projector keypad.
Signal Power On – The projector will power on when it receives
a signal. This eliminates the need to use the ‘Power’ button
on the remote control or the projector keypad.
Auto power off – if after a pre-determined time the projector
does not receive a signal, it will turn itself off automatically,
conserving power and extending the life of the lamp.
Key pad lock – once enabled prevents unauthorised
adjustments ensuring the projector can only be controlled via
the remote control.
+12v Trigger – electric screen control
Logo capture – customise your start up screen
Easy to use remote with laser pointer, mouse control and direct
source selection

EH1060 SPECIFICATIONS
Native Resolution 1080p 1920 x 1080
Brightness - BRIGHT mode13500 ANSI Lumens
Contrast 2500:1
Noise Level 28/30dB (STD/BRIGHT mode)
Display Technology Single 0.65” 1080p DC2 DMD chip DLP®Technology
by Texas Instruments
Throw Ratio 1.59 - 1.91:1 (Projection Distance:Image Width)
Projection Lens F/2.5~2.76; f=23.5~28.2mm, 1.2x Manual Zoom
Projection Distance 1.2 - 12m
Image Size 0.72 – 8.67m (28.41” - 341.28”) Diagonal 16:9
Weight / Dimensions (W x D x H) 3.5 kg / 326 x 259 x 109mm
Lamp Life23000/2000 (STD/BRIGHT mode)
Remote Control Full function remote with laser pointer, mouse control
and direct source selecting
INPUTS 2 x HDMI (HDCP) - audio supported
15 Pin D-Sub VGA (SCART/Component via adaptor)
Component Video RCA
S-Video 4 Pin Mini Din
Composite RCA
3.5mm Audio Mini Jack - Audio computer inputs
Stereo RCA - Audio video inputs
USB (remote mouse)
CONTROL RS232 - 9 Pin D-sub
RJ45
[Operation during standby mode - ECO standby must
be set to off]
OUTPUT 15 Pin D-Sub VGA
[Operation during standby mode - ECO standby must
be set to off]
Stereo Audio Mini Jack
+12v Trigger
Audio 3W Speaker
Aspect Ratio 16:9 Native, 16:10/4:3 Compatible
Keystone Correction ± 15° Vertical
On Screen Display 17 Languages: English, German, French, Italian, Spanish,
Portuguese, Polish, Dutch, Russian, Finnish, Swedish,
Greek, Norwegian/Danish, Hungarian, Czech, Turkish
& Arabic
Compatible Resolutions UXGA, SXGA+, WXGA, HD, XGA, SVGA
Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
Uniformity 85%
Displayable Colours 1.07 Billion
Horizontal Scan Rate 15 - 91kHz
Vertical Scan Rate 25 - 85Hz
Power Supply 100 - 240V, 50 - 60Hz
Power Consumption 350W BRIGHT mode < 1W Standby mode
290W STD mode < 1W Standby mode
Operating Conditions Operating: 5 - 40˚C, 85% Humidity
(Max), 3000m Altitude (Max)
Security Kensington Lock Port, Password Protection, Keypad Lock
Standard Accessories Soft Carry Bag, Lens Cover, AC Power Cord, VGA Cable,
Full Function Remote, Batteries x 2, Quick Start Guide,
CD User Manual, Warranty Card, WEEE Card
RoHS Compliant
Lamp Warranty 6 months or 1000 hours - whichever comes sooner
Warranty Warranty may vary by country.
Please see www.optomaeurope.com or ask
your local supplier for details
Colour Guarantee35 Years
Imager Guarantee45 Years
Optoma Europe Ltd.
42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ
www.optoma.co.uk
1Brightness and lamp lifetime will vary depending on selected projector mode, environmental conditions and usage.As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. 2Typical lamp life achieved through testing.Will vary
according to operational use and environmental conditions. 3Optoma guarantees that in normal use, Optoma DLP®colour quality will be indistinguishable from when new. Exclusions: (a) Guarantee is voided if the projector is subject to damage through misuse.
(b) Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is excessive (c) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other faults. (d) Over time worn
lamps within all projector types will show a slight colour variance. 4Optoma guarantees that in normal use, the DLP®imager will retain image quality for at least 5 years and provide consistent pixel performance. Exclusions: (a) Guarantee is voided if the projector
is subject to damage through misuse. (b) Guarantee may be void in industrial or commercial environments where dust or smoke is excessive. Copyright © 2010, Optoma Europe Ltd. All other product names and company names used herein are for identification
purposes only and may be trademarks or registered trademarks of their respective owners. Crestron®, the Crestron and RoomView®logo are registered trademarks of Crestron Electronics, Inc. Errors and omissions excepted, all specifications are subject
to change without notice. DLP®, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments.
Optoma recommended Screens
www.panoview.eu
EH1060
EASY TO USE REMOTE CONTROL
EH1060 Projection Distance 1.2 - 12m (16:9 Aspect Ratio)
Projection Distance (m) Max. Horizontal Image
Size (m)
Min. Horizontal Image
Size (m) Max. Vertical Image Size (m) Min. Vertical Image Size (m) Max Diagonal Image Size (m) Max Diagonal Image
Size (inch) Max. Image Offset (m)
1.20
2.00
2.50
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
0.75
1.26
1.57
1.89
2.52
3.14
3.77
4.40
5.03
5.66
6.29
6.92
7.55
0.63
1.05
1.31
1.57
2.09
2.62
3.14
3.66
4.19
4.71
5.24
5.76
6.28
0.43
0.71
0.89
1.07
1.42
1.78
2.13
2.49
2.84
3.20
3.55
3.91
4.26
0.35
0.59
0.74
0.89
1.18
1.48
1.77
2.07
2.37
2.66
2.96
3.25
3.55
0.87
1.44
1.81
2.17
2.89
3.61
4.33
5.06
5.78
6.50
7.22
7.95
8.67
34.13
56.88
71.10
85.32
113.76
142.20
170.64
199.08
227.52
255.96
284.40
312.84
341.28
0.06
0.11
0.13
0.16
0.21
0.27
0.32
0.37
0.43
0.48
0.53
0.59
0.64
For guide purposes only
EH1060 is capable of 4:3/16:10 aspect ratio projection. When projecting a 4:3/16:10 image the image sizes, screen height and offset information will differ from
the above.

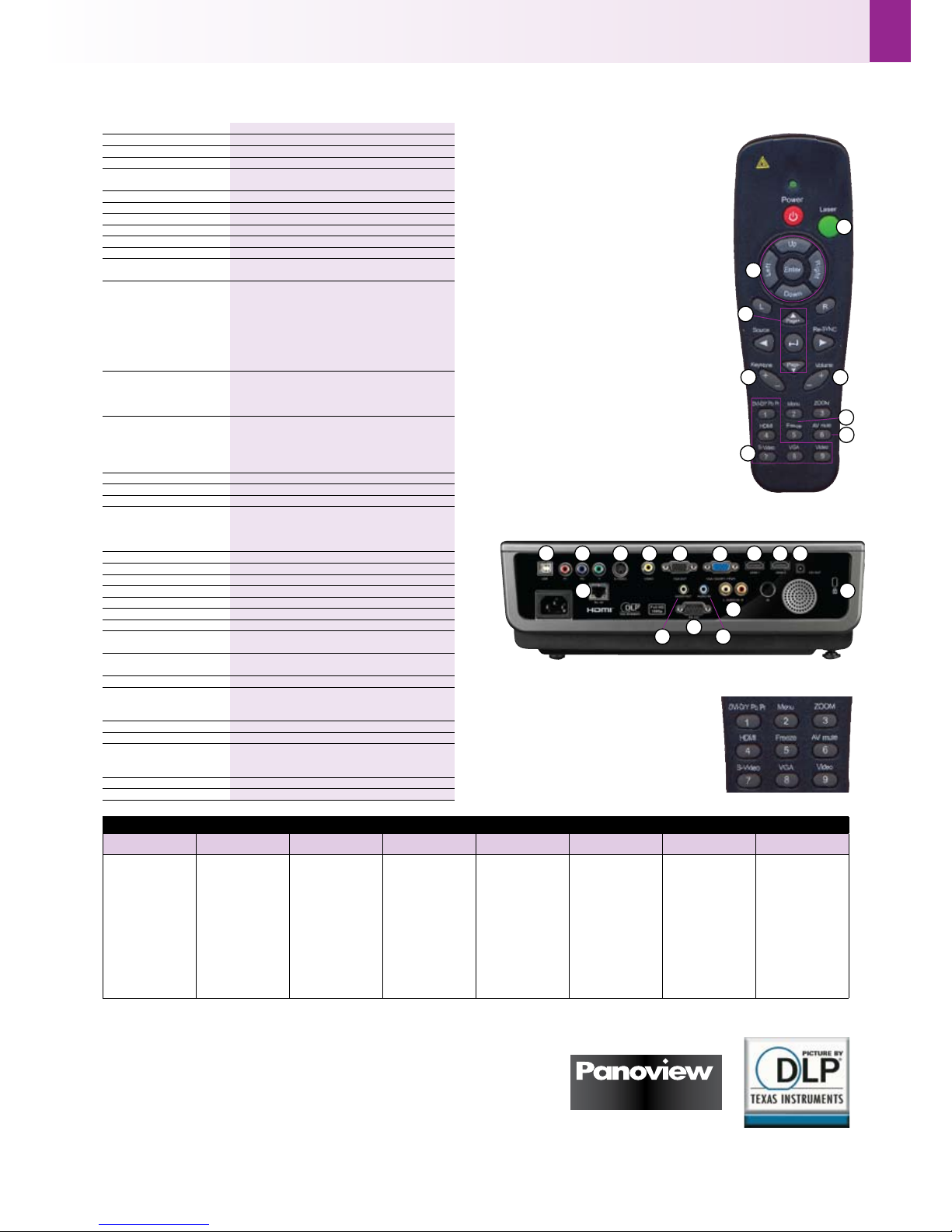

EH1060 Remote Control
1Laser
2Remote Mouse
3Page Up/Down Control
4Vertical Keystone Correction
5Volume Control
6Freeze
7AV Mute
8Direct Input Source Selection
EH1060 Connections
9USB (Remote Mouse)
10 Component Video
11 S-Video
12 Composite Video
13 VGA Out
14 VGA - SCART & Component
15 HDMI 1 (audio supported)
16 HDMI 2 (audio supported)
17 +12v Trigger
18 RJ45
19 Audio Out
20 RS232
21 Audio In (VGA)
22 Audio In (S-Video & Composite)
23 Kensington™ Lock
Easy to use remote
with buttons to change
the input sources
Exceptional Connectivity/Multiple Terminals
910 11 17
18
12 13 14 15 16
1
2
3
45
6
7
8
20
22
23
2119
