Optoma H50 User manual

1
English
XGA SVGA
Usage Notice
Precautions ........................................................................................................ 2
Introduction
Product Features ............................................................................................... 4
Package Overview ............................................................................................. 6
Product Overview............................................................................................... 7
Main Unit ...................................................................................................... 7
Panel Control ................................................................................................ 8
Connection Ports .......................................................................................... 9
Full Function Wireless emote Controller ................................................... 10
Installation

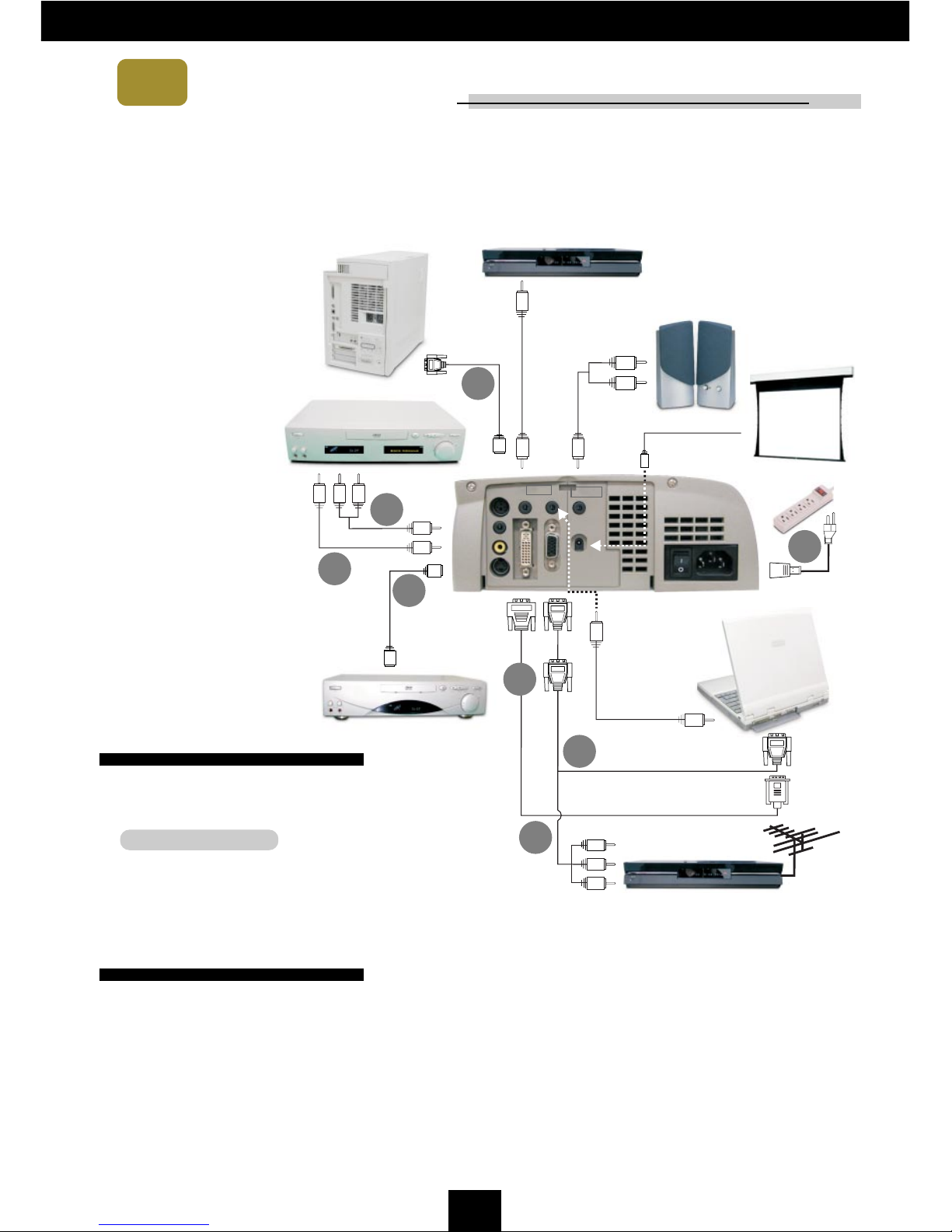

Connecting the Projector ................................................................................... 11
Powering On/Off the Projector ........................................................................... 13
Powering On the Projector ........................................................................... 13
Powering Off the Projector ........................................................................... 14
Adjusting the Projected Image ........................................................................... 15
Adjusting the Projector Height...................................................................... 15

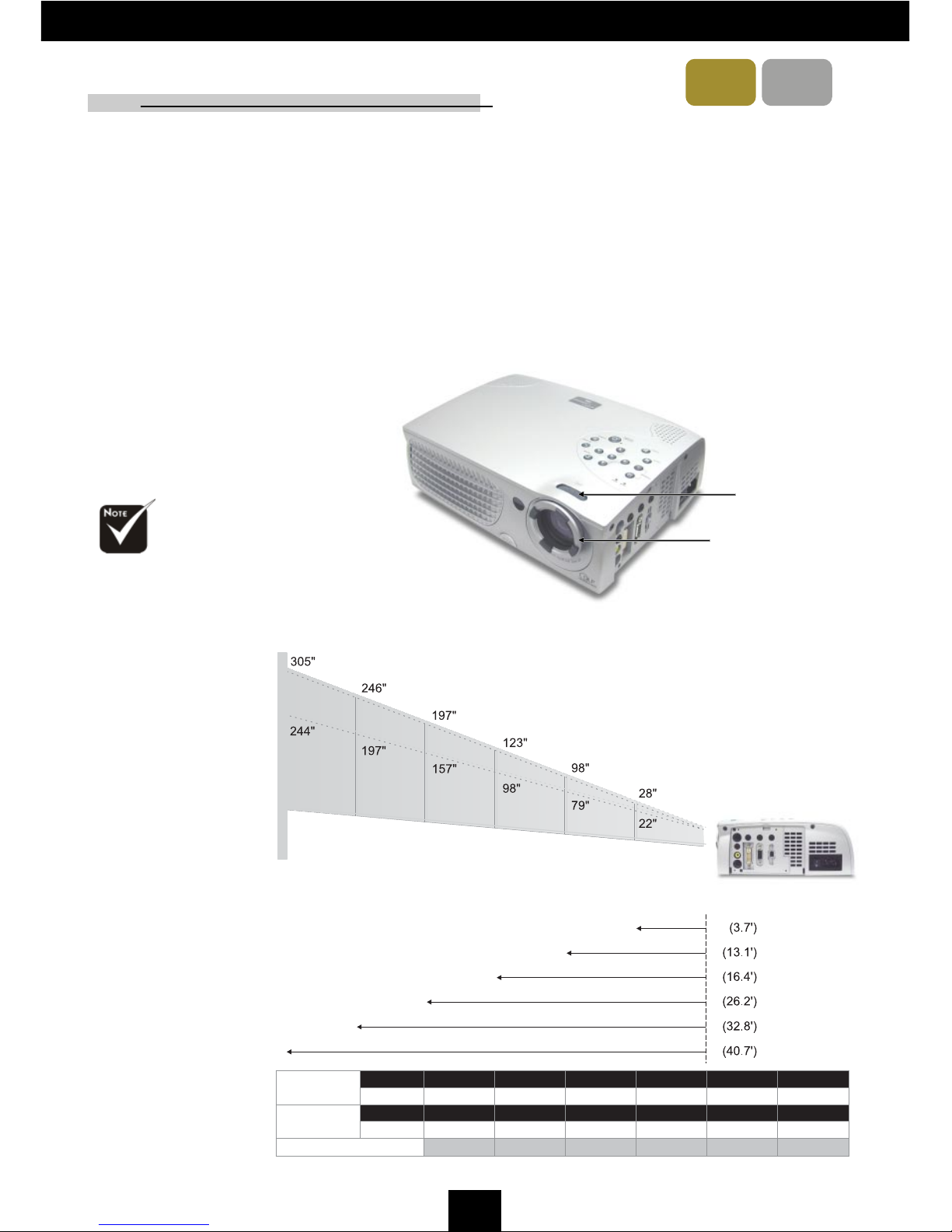

Adjusting the Projector Zoom/Focus ............................................................ 16
Adjusting Projection Image Size .................................................................. 16
User Controls
Panel Control & emote Control ........................................................................ 17
On-Screen Display Menus ................................................................................ 20
How to Operate ............................................................................................ 20
Image-I (Computer mode) ............................................................................ 21
Image-I (Video mode)................................................................................... 22
Image-II (Computer mode) ........................................................................... 24
Image-II (Video mode).................................................................................. 25
Audio ............................................................................................................ 26
Language ..................................................................................................... 27
Management ................................................................................................. 28
Appendices
Troubleshooting ................................................................................................. 29
Changing the Lamp ............................................................................................ 32
Specifications ..................................................................................................... 33
Compatibility Modes........................................................................................... 35
Table of Contents

2
English
XGA SVGA
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recom-
mended in this users guide to maximize the life of your unit.
Warning- Do not look into the lens. The bright light may hurt
your eyes.
Warning- To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
Warning- Please do not open or disassemble the product as this
may cause electric shock.
Warning- When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
Warning- After changing a new lamp, please reset the lamp life
from O D menu.
Warning- Before switching off the product, please keep the
cooling fan running for a few minutes.
Warning- When connecting the projector to computer, please turn
on the projector first.
Warning- When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this
happens, the projector will not turn back on until the
lamp module has been replaced. To replace the lamp,
follow the procedures listed under Changing the
Lamp.

3
English
XGA SVGA
Do:
vTurn off the product before cleaning.
vUse a soft cloth moistened with mild detergent to clean the
display housing.
vDisconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Dont:
vBlock the slots and openings on the unit provided for
ventilation.
vUse abrasive cleaners, waxes or solvents to clean the unit.
vUse under the following conditions:
- Extremely hot, cold or humid environment.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
Usage Notice

4
English
XGA SVGA
Product Features
This product is an XGA single chip .7 DLPTM projector. The
outstanding features of it are listed as follows:
uTrue XGA, 1024 x 768 addressable pixels
u6.4 lbs (2.9 kgs) compact design
uHigh contrast ratio 1000 : 1
uingle chip DLPTM technology
uPureProgressiveTM processing technology for artifact-free
film materials.
uHDTV compatible (480P,1080i,720P)
uNT C/NT C4.43/PAL/PAL-M/PAL-N/ ECAM and
HDTV compatible
uHigh-tech DVI connection for digital and analog video
connectivity
uFull function wireless remote controller
uMultimedia audio integration
uUser friendly multilingual on-screen display menu
uAdvanced electronic keystone correction
uUser friendly control panel
uLuxurious carrying case included
uXGA compression and VGA, VGA re-sizing
u200 Watts user replaceable UHP lamp
uMac compatible
Introduction

5
English
XGA SVGA Introduction
Product Features
This product is a SVGA single chip 0.7 DLPTM projector. The
outstanding features of it are listed as follo s:
uTrue SVGA, 800 x 600 addressable pixels
u6.4 lbs (2.9 kgs) co pact design
uHigh contrast ratio 800 : 1
uSingle chip DLPTM technology
uPureProgressiveTM processing technology for artifact-free
fil aterials.
uHDTV co patible (480P,1080i,720P)
uNTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and
HDTV co patible
uHigh-tech DVI connection for digital and analog video
connectivity
uFull function wireless re ote controller
uMulti edia audio integration
uUser friendly ultilingual on-screen display enu
uAdvanced electronic keystone correction
uUser friendly control panel
uLuxurious carrying case included
uXGA co pression and VGA, SVGA re-sizing
u200 Watts user replaceable UHP la p
uMac co patible

6
English
XGA SVGA
Introduction
Wireless Remote
Controller
D-15 to DVI Cable
Battery x 2Users Guide
Composite Video Cable
2
3
Projector with lens cap
1
Package Overview
This projector comes with all the items shown below. Check to
make sure your unit is complete. Contact your dealer immedi-
ately if anything is missing.
Carrying Case
Users Manual
Power Cord
vThe model shown is
the VGA.

7
English
XGA SVGA
Main Unit
Product Overview
1. Panel Control
2. Power Connector & Power witch
3. Connection Ports
4. Focus Ring
5. Zoom Lens
6. Zoom Ring
7. peaker
8. Remote Control Receiver
9. Elevator Button
10. Elevator Foot
1
2
3
4
5
8
6
7
10
Introduction
vThe model shown is
the VGA.

8
English
XGA SVGA
Introduction
Panel Control
1
3
4
511
10
8
6
2
7
1. Lamp Warning LED
2. Temperature Warning LED
3. Volume
4. Mute
5. Menu (On/Off)
6. Four Directional elect Keys
7. Enter
8. Zoom
9. Re-sync
10. ource
11. Power / tandby
vThe model shown is
the VGA.

9
English
XGA SVGA
Connection Ports
1 R 232 Input Connector
2. Audio Input for Video
3. Composite Video Input Connector
4. -Video Input Connector
5. Audio Input for DVI
6. DVI Input Connector
7. Audio Input for Computer
8. PC Analog ignal/HDTV/Component Video Connector
9. Audio Output Connector
10. 12V Relay Connector
11. Power witch
12. Power Connector
2
34
5
6
7
810
11
12
1
Introduction
vThe model shown is
the VGA.

10
English
XGA SVGA
Introduction
Full Function Wireless Remote Controller
Re-sync
Video ource
Menu
Four Directional
elect Keys
-Video ource
16:9/4:3 Aspect
Ratio
Backlight Power
Computer
ource
HDTV ource
Freeze
Color
Temperature
Brightness
Contrast
Mute
Volume
Keystone
Correction
Zoom
Enter
