Optoma HD2200 User manual

The Optoma HD2200 performs flawlessly and
delivers a dynamic big-screen experience! With
1900 ANSI lumens and 5000:1 contrast, the
HD2200’s true 1080p resolution brings excellent
color saturation and subtle details to dazzling life.
Weighing only 6.4 lbs., this sleek performer is
perfect for sharing entertainment - big-screen
movies, sporting events, concerts and video
gaming.
Dynamic
Performer
HD2200| Home Theater
HD2200 FEATURES
❏Bright at 1900 ANSI lumens and high
contrast ratio of 5000:1
❏Native 1080p DLP® chipset and
BrilliantColor™ technology by Texas
Instruments
❏Zero dead pixel guarantee for additional
peace of mind
❏ISF Certified Calibration Controls with Day
& Night modes
❏Perfect for connecting to any home
entertainment device with HDMI,
component, composite and VGA
❏Project up to 300" screen size for large
group viewing
www.optoma.com
HDMI 1
Power Off
Source Lock
Multi-Directional
Selector
Native
D-sub
Power On
16:9
YPbPr
Contrast
Source
Edge Mask
4:3
HDMI 2
Letterbox
Video
Brightness
Display Mode
Overscan
Re-Sync
Menu
Lamp Mode
AC Power Kensington
Lock
VGA-In
YPbPr HDMI 1
HDMI 2
Video +12V
Trigger
Service
Security
Bar

HD2200| Home Theater
All Specifications are subject to change without notice. ©2011 Optoma Technology, Inc. DLP®and the DLP logo are
registered trademarks of Texas Instraments. All other names mentioned herein are property of their respective owners.
Home-HD2200-002-0810
Menu
Power/
Standby
Lamp
LED
Select
Re-Sync
Temp
LED
Four
Directional
Keys
Source
Power
LED
Keystone +
Keystone -

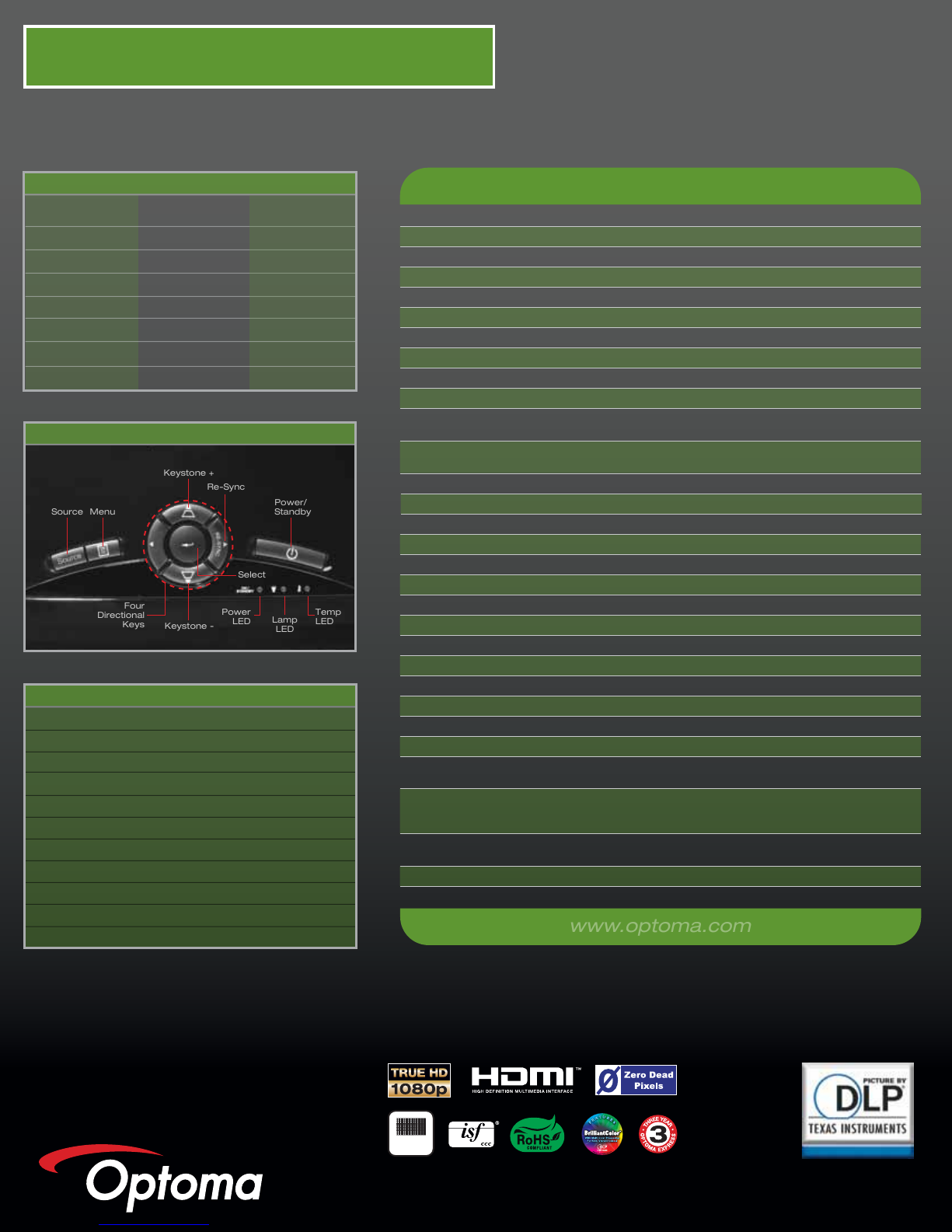

Control Panel
NO FILTER
REQUIRED
Optional Accessories
Lamp:
Mount:
Remote:
HDMI Cable (7.5m):
HDMI Cable (5m):
VGA to Component Cable (5m):
Component Cable (2m):
Composite Cable (2m):
Carrying Case:
106" 16:9 Fixed Frame Screen:
Power Cord (11m):
BL-FP230D
BM-5001U
BR-3042B
BC-DDHMXX08
BC-HMHMXX05
BC-VGCRXX05
BC-CRCRXX02
BC-COCOXX02
BK-4028
DF-WW9106F
BC-PUPIXY11
www.optoma.com
Specifications
Display Technology:
Resolution:
Brightness (Typical):
Contrast Ratio:
Lamp Life and Type (STD/Bright)*:
Throw Ratio:
Image Size (Diagonal):
Projection Distance:
Noise Level (STD/Bright):
Remote Control:
Computer Compatibility:
Video Compatibility:
Aspect Ratio:
Projection Lens:
Offset:
User Controls:
Keystone Correction:
Power Supply:
Power Consumption:
Weight:
Dimensions (W x H x D):
Operating Temperature:
Displayable Colors:
Projection Method:
Uniformity:
Security:
I/O Connectors:
Standard Accessories:
Optional Accessories
Warranty:
UPC:
Single 0.65” 1080p DMD DLP®Technology by Texas Instruments
Native 1080p (1920 x 1080)
1900 ANSI Lumens
5000:1 Contrast (Full On/Full Off)
Estimated at 4000/3000 Hours/230W P-VIP
1.5-1.8:1
37.6” to 301.1” (0.95 to 7.64 m)
4.92’ to 32.8’ (1.5 to 10 m)
29dB/31dB
Fully Featured Backlit IR Remote
HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized,
VESA, PC and Macintosh Compatible
NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p,
1080i/p)
16:9 Native, 4:3 and LBX Compatible
F=2.55-2.87, f=22.4-26.8mm, 1.2x Manual Zoom and Focus
116%
Complete On-Screen Menu Adjustments in 21 Languages
± 5º Vertical
AC Input 100 - 240V, 50-60 Hz, Auto-Switching
308 Watts (Bright), 254 Watts (STD), <1 Watt (Standby)
6.4 lbs (2.9 kg)
12.76” x 3.82” x 9.21” (324 x 97 x 234 mm)
41 - 95°F (5 - 35°C), 80% Max Humidity
1.07 Billion
Front, Rear, Ceiling Mount, Table Top
70%
Kensington® Lock Security Bar, Keypad Lock
Two HDMI , VGA-In, Component Video, Composite Video and
+12V Trigger
AC Power Cord, Composite Video Cable, Remote Control,
Batteries for Remote, Lens Cap, User’s Manual, Quick Start Card
and Warranty Card
Ceiling Mount, Component Cable, HDMI Cable, Composite Video
Cable and Panoview™ Series Screens
Three Years Optoma Replacement Service, Two Years on Lamp
796435 81 112 9
Projection Distance/Image Size
Projection Distance
(Feet)
6
8
10
12
14
16
18
Maximum Diagonal
(Inches)
55
73
92
110
129
147
165
Minimum Diagonal
(Inches)
46
61
76
92
107
122
138
* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time.
