Optoma Ezpro 732e User manual

1... English

12345678901234567890123456789012123456789012345678901

Table of Contents

Table of Contents ....................................................................................... 1

Usage Notice .............................................................................................. 2

Precautions ......................................................................................................... 2

Introduction ................................................................................................ 4

Product Features ................................................................................................ 4

Package Overview ............................................................................................. 5

Product Overview ............................................................................................... 6

Main Unit ........................................................................................................................ 6

Control Panel ................................................................................................................. 7

Connection Ports ........................................................................................................... 7

Remote Control ............................................................................................................. 8

Installation.................................................................................................. 9

Connecting the Projector .................................................................................... 9

Powering On/Off the Projector .......................................................................... 10

Powering On the Projector .......................................................................................... 10

Powering Off the projector .......................................................................................... 11

Warning Indicator ........................................................................................................ 11

Adjusting the Projected Image ......................................................................... 12

Adjusting the Projector Image Height ......................................................................... 12

Adjusting the Projector Zoom / Focus ........................................................................ 13

Adjusting Projected Image Size .................................................................................. 13

User Controls ........................................................................................... 14

Control Panel & Remote Control ...................................................................... 14

On-Screen Display Menus ............................................................................... 16

How to operate ............................................................................................................ 16

Language ..................................................................................................................... 17

Image-I ......................................................................................................................... 18

Image-II (Computer Mode) ......................................................................................... 19

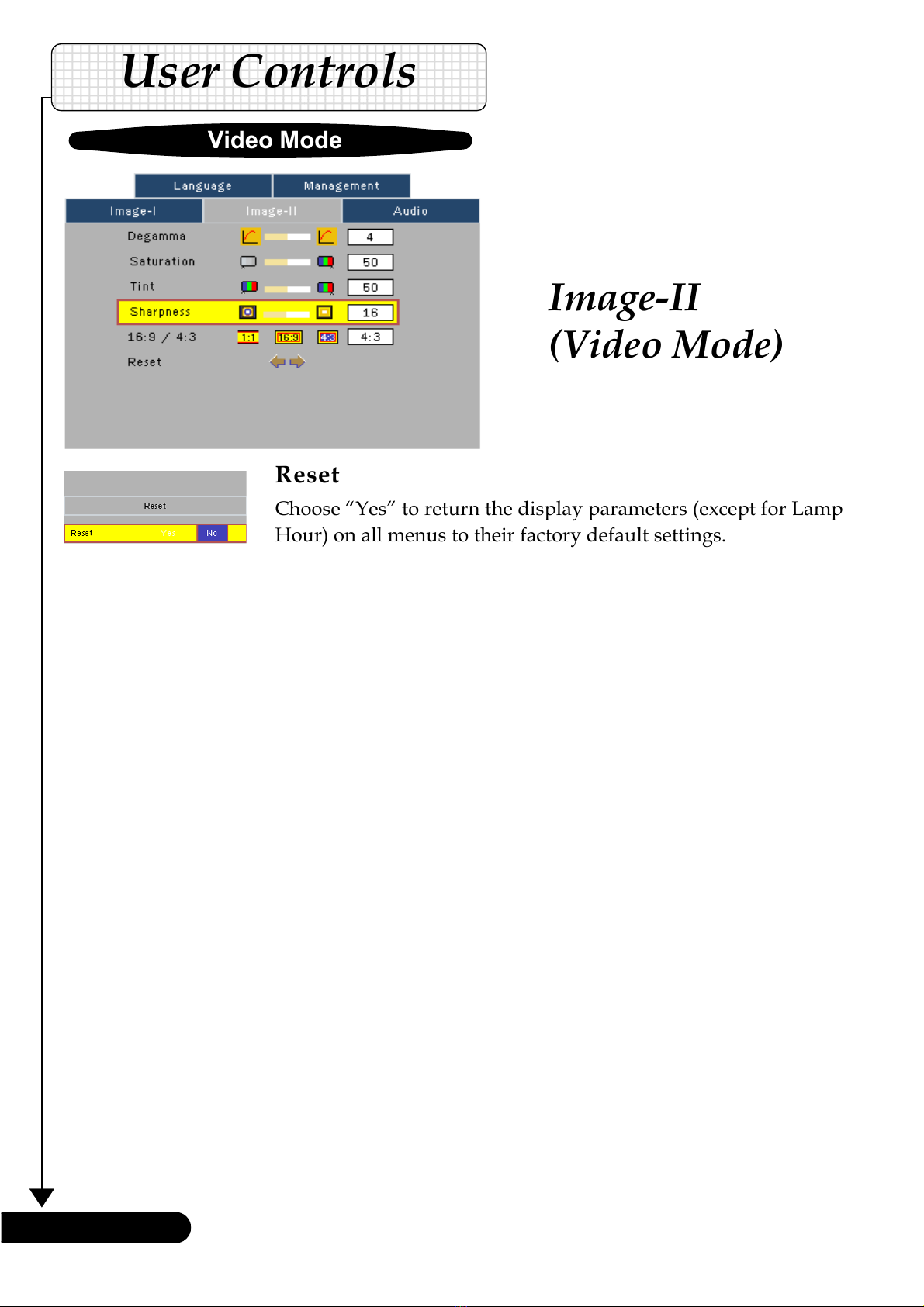

Image-II (Video Mode) ................................................................................................. 21

Audio ............................................................................................................................ 23

Management ................................................................................................................ 24

Appendices .............................................................................................. 26

Troubleshooting ................................................................................................ 26

Replacing the lamp .......................................................................................... 29

Specifications ................................................................................................... 30

Compatibility Modes ......................................................................................... 31

6

English ...

12345678901234567890123456789012123456789012345678901

Main Unit

Product Overview

1. Focus Ring

2. Zoom Ring

3. Elevator Button

4. Zoom Lens

5. Remote Control Receiver

6. Connection Ports

7. Power Connector

8. Control Panel

2

51

3

8

6

7

4

Introduction

7... English

12345678901234567890123456789012123456789012345678901

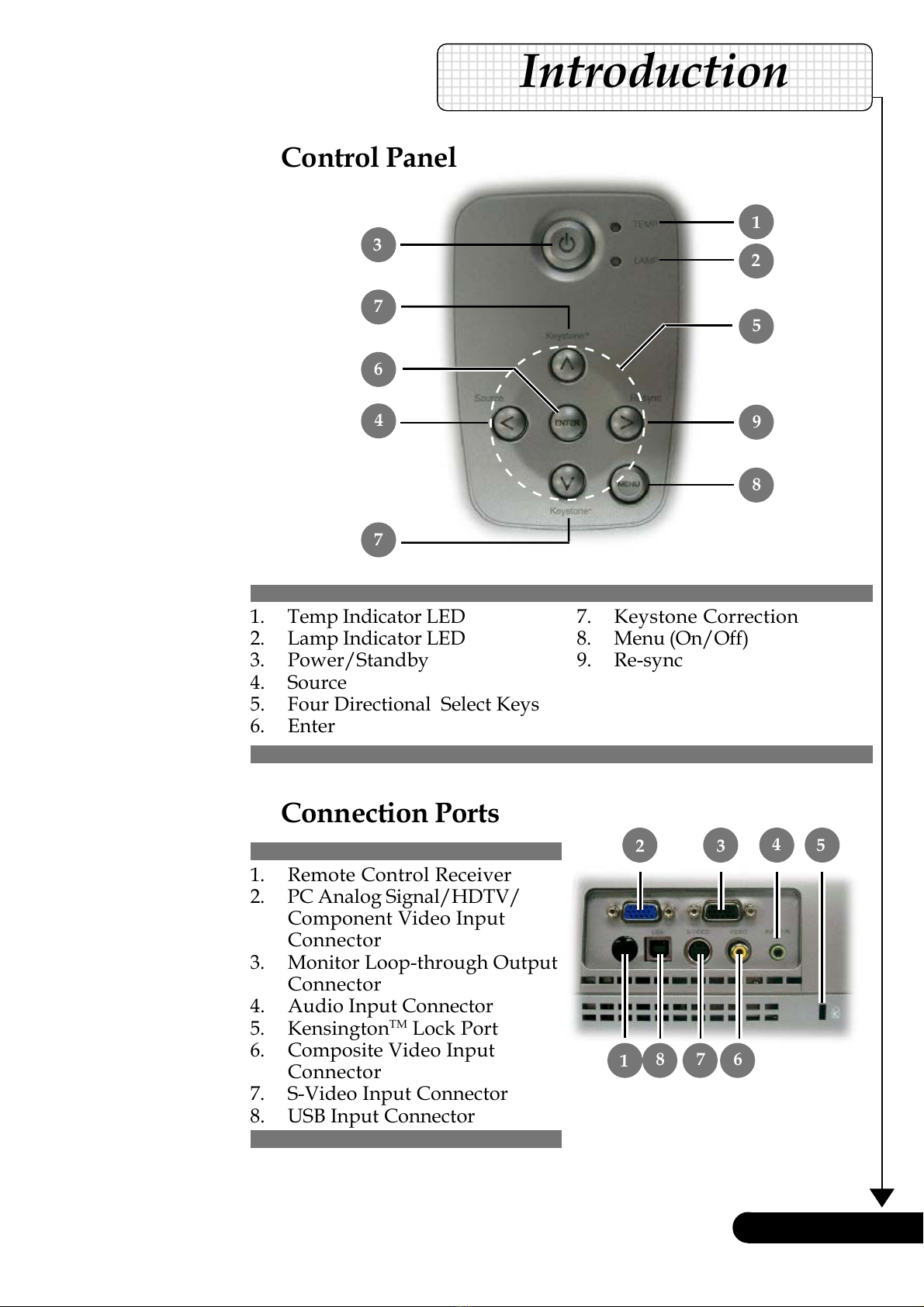

Control Panel

1. Temp Indicator LED

2. Lamp Indicator LED

3. Power/Standby

4. Source

5. Four Directional Select Keys

6. Enter

7

4

8

5

Connection Ports

1. Remote Control Receiver

2. PC Analog Signal/HDTV/

Component Video Input

Connector

3. Monitor Loop-through Output

Connector

4. Audio Input Connector

5. KensingtonTM Lock Port

6. Composite Video Input

Connector

7. S-Video Input Connector

8. USB Input Connector

2

1

45

6

1

32

9

7

3

78

Introduction

6

7. Keystone Correction

8. Menu (On/Off)

9. Re-sync

8

English ...

12345678901234567890123456789012123456789012345678901

Remote Control

Introduction

1

6

9

11

2

3

1. Transmit Indicator Light

2. Power

3. Re-Sync

4. Volume ( + / - )

5. Reset

6. Mute

7. Freeze

8. Page Up / Page Down

9. Keystone Correction

10. Menu

11. Four Directional Select Keys

4

7

8

105

12

14

13

15

12. Enter

13. VGA Source

14. S-Video Source

15. Composite Video Source

9... English

12345678901234567890123456789012123456789012345678901

1. Power Cord

2. VGA Cable

3. Composite Video Cable

4. Audio Cable Jack/RCA

(Optional Accessory)

5. S-Video Cable (Optional

Accessory)

6. D-15 to RCA Adapter for

YPbPr (Optional Accessory)

Connecting the Projector

To ensure the projector works well with your computer, please

set the display mode of your graphic card less than or equal to

800 X 600 resolution. Make sure the timing of the display mode is

compatible with the projector. Refer to the “Compatibility Modes”

section on page 31.

S-VideoOutput

VideoOutput

1

2

4

3

Installation

Digital Tuner Output

5

6

10

English ...

12345678901234567890123456789012123456789012345678901

Installation

Power/

Standby

1

2

Powering On the Projector

1. Remove the lens cap.n

2. Ensure that the power cord and signal cable are securely

connected. The “Power/Standby” button will flash green.

3. Turn on the lamp by pressing “Power/Standby” button on

the control panel. And the “Power/Standby” button will turn

green.o

The startup screen will display for 30 seconds.

4. Turn on your source (computer, notebook, video player ,etc.).

The projector will detect your source automatically.

If the screen displays “No Signal”, please make sure the signal

cables are securely connected.

If you connect multiple sources at the same time, use the “Source”

button on the remote control or control panel to switch.

Powering On/Off the Projector

Turn on the

projector first and then

the signal sources.

Lens cap

11 ... English

12345678901234567890123456789012123456789012345678901

Powering Off the Projector

1. Press the “Power/Standby” button to turn off the projector

lamp, you will see a message “Power off the lamp?” on the

on-screen display.

2. Press the “Power/Standby” button again to confirm.

Otherwise the message will disappear after 5 seconds.

3. The cooling fans continue to operate for about 60 seconds for

cooling cycle and the “Power/standby” button will turn

orange. When the light begins flashing, the projector has

entered standby mode.

If you wish to turn the projector back on, you must wait until

the projector has completed the cooling cycle and has entered

standby mode. Once in standby mode, simply press “Power/

Standby” button to restart the projector.

4. Disconnect the power cord from the electrical outlet and the

projector.

5. Do not turn on the projector immediately following a power

off procedure.

Warning Indicator

When the “LAMP” indicator lights solid orange for about 2

minutes, the projector will automatically shut itself down. Please

contact your local reseller or service center.

When the “TEMP” indicator lights solid orange, it indicates the

projector has been overheated. You will see a message “Projector

Overheated.” on the on-screen display. The projector will automati-

cally shut itself down.

Under normal conditions, the projector can be switched on again

after it has cooled down. If the problem persists, you should contact

your local dealer or our service center.

When the “TEMP” indicator flashs orange for about 10 seconds,

you will see a message “Fan fail. Lamp will automatically turn off

soon.” on the on-screen display. Please contact your local dealer or

our service center.

Installation

12

English ...

12345678901234567890123456789012123456789012345678901

Adjusting the Projected Image

Adjusting the Projector Image Height

Tilt Adjusting Wheel

Elevator Foot

1

2

3

Elevator Button

The projector is equipped with an elevator foot for adjusting

the image height.

To raise the image:

1. Press the elevator button n.

2. Raise the image to the desired height angle o, then release

the button to lock the elevator foot into position.

3. Use pto fine-tune the display angle.

To lower the image:

1. Press the elevator button.

2. Lower the image, then release the button to lock the elevator

foot into position.

3. Use pto fine-tune the display angle.

Installation

13 ... English

12345678901234567890123456789012123456789012345678901

Max. 39.4"(100.0cm) 84.4"(214.3cm) 140.6"(357.1cm) 225.0"(571.4cm) 281.2"(714.3cm) 337.5"(857.1cm)

Min. 32.5"(82.5cm) 69.6"(176.9cm) 116.1"(294.8cm) 185.7"(471.7cm) 232.1"(589.6cm) 278.6"(707.5cm)

Max.(WxH) 31.52" x 23.64"

(80.0 x 60.0cm)

67.52" x 50.64"

(171.4 x 128.6cm)

112.48" x 84.36"

(285.7 x 214.3cm)

180.00" x 135.00"

(457.1 x 342.8cm)

224.96" x 168.72"

(571.4 x 428.6cm)

270.00" x 202.50"

(685.7 x 514.3cm)

Min.(WxH) 26.00" x 19.50"

(66.0 x 49.5cm)

55.68" x 41.76"

(141.5 x 106.1cm)

92.88" x 69.66"

(235.8 x 176.9cm)

148.56" x 111.42"

(377.4 x 283.0cm)

185.68" x 139.26"

(471.7 x 353.8cm)

222.88" x 167.16"

(566.0 x 424.5cm)

4.59'(1.4m) 9.84'(3.0m) 16.4'(5.0m) 26.25'(8.0m) 32.81'(10.m) 39.37'(12.0m)

Focus Ring

Zoom Ring

Adjusting the Projector Zoom / Focus

You may turn the zoom ring to zoom in or out. To focus the image,

rotate the focus ring until the image is clear. The projector will

focus at distances from 4.6 to 39.4 feet (1.4 to 12.0 meters).

Adjusting Projection Image Size

32.5"

(82.5cm)

69.6"

(176.9cm)

116.1"

(294.8cm)

185.7"

(471.7cm)

232.1"

(589.6cm)

278.6"

(707.5cm)

39.4" (100.0cm)

84.4"(214.3cm)

140.6"(357.1cm)

225.0"(571.4cm)

281.2"(714.3cm)

337.5"(857.1cm)

4.59'

39.37'

32.81'

26.25'

16.40'

9.84'

(1.4m)

(12.0m)

(10.0m)

(8.0m)

(5.0m)

(3.0m)

Screen

(Diagonal)

Screen

Size

Distance

This graph is for user’s reference only.

Installation

14

English ...

12345678901234567890123456789012123456789012345678901

User Controls

Remote ControlControl Panel

Control Panel & Remote Control

There are two ways for you to control the functions: Remote

Control and Control Panel.

Using the Control Panel

Power/Standby

Refer to the “Power On/Off the Projector” section on pages

10-11.

Source

Press “Source” to choose RGB, Component-p, Component-i,

S-Video, Composite Video and HDTV sources.

Menu

Press “Menu” to launch the on screen display (OSD) menu.

To exit OSD, press “Menu” again.

Keystone

Adjusts image distortion caused by tilting the projector (±16

degrees).

Four Directional Select Keys

Use to select items or make adjustments to

your selection.

Enter

Confirm your selection of items.

Re-Sync

Automatically synchronizes the projector to the input source.

15 ... English

12345678901234567890123456789012123456789012345678901

Using the Remote Control

Power/Standby

Refer to the “Power On/Off the Projector” section on pages

10-11.

Re-Sync

Automatically synchronizes the projector to the input source.

Volume + / -

Increases/decreases speaker volume.

Reset

Changes the adjustments and settings to the factory default

value.

Mute

Momentarily turns off the audio and video.

Keystone /

Adjusts image distortion caused by tilting the projector (±16

degrees).

Page Up (Computer mode only)

Use this button to page up. This function is only available

when the projector is connected to a computer via an USB cable.

Page Down (Computer mode only)

Use this button to page down. This function is only available

when the projector is connected to a computer via an USB cable.

Freeze

Press “Freeze” to pause the screen image.

Four Directional Select Keys

Use to select items or make adjustments to

your selection.

Menu

Press “Menu” to launch the on screen display menu. To exit

OSD, press “Menu” again.

Enter

Confirm your selection of items.

VGA

Press “VGA” to choose Analog RGB, component and HDTV

source.

S-Video

Press “S-Video” to choose S-Video source.

Composite

Press “composite” to choose Composite video source.

User Controls

16

English ...

12345678901234567890123456789012123456789012345678901

The Projector has multilingual On Screen Display menus

that allow you to make image adjustments and change a

variety of settings. The projector will automatically detect

the source.

How to operate

1. To open the OSD menu, press “Menu” on the Remote Control or

Control Panel.

2. When OSD is displayed, use keys to select any item in the

main menu. While making a selection on a particular page, press

“Enter ” key to enter sub menu.

3. Use keys to select the desired item and adjust the

settings by key.

4. Select the next item to be adjusted in the sub menu and adjust as

described above.

5. Press “Menu” to confirm, and the screen will return to the main

menu.

6. To exit, press “Menu”again. The OSD menu will close and the

projector will automatically save the new settings.

On Screen Display Menus

Main Menu

Sub Menu Setting

User Controls

17 ... English

12345678901234567890123456789012123456789012345678901

Language

Choose the multilingual OSD menu . Use the or key to select

your prefered language.

Press “Enter” to finalize the selection.

Computer / Video Mode

User Controls

18

English ...

12345678901234567890123456789012123456789012345678901

Image-I

Brightness

Adjust the brightness of the image.

Press the to darken image.

Press the to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest

and darkest parts of the picture. Adjusting the contrast changes

the amount of black and white in the image.

Press the to decrease the contrast.

Press the to increase the contrast.

Color Temp.

Adjust the color temperature. At higher temperature, the screen

looks colder; at lower temperature, the screen looks warmer.

Color

Adjust the red, green and blue colors.

Keystone (Keystone Correction)

Adjust image distortion caused by tilting projection. (±16 degrees)

White Segment

Use the white segment control to set the white peaking level of

DMD chip. 0 stands for minimal peaking, and 10 stands for

maximum peaking. If you prefer a stronger image, adjust towards

the maximum setting. For a smooth and more natural image,

adjust towards the minimum setting.

Computer / Video Mode

User Controls

19 ... English

12345678901234567890123456789012123456789012345678901

Image-II

(Computer Mode)

Frequency

“Frequency”changes the display data frequency to match the

frequency of your computer’s graphic card. If you experience a

vertical flickering bar, use this function to make an adjustment.

Tracking

“Tracking” synchronizes the signal timing of the display with the

graphic card. If you experience an unstable or flickering image, use

this function to correct it.

Horizontal Position

Press the to move the image left.

Press the to move the image right.

Vertical Position

Press the to move the image down.

Press the to move the image up.

Degamma

This allows to you to choose a degamma table that has been fine-

tuned to bring out the best image quality for the input.

16 : 9 / 4 : 3

Use this function to choose your desired aspect ratio.

1:1 : Original image pixel.

4:3 : The input source will be scaled to fit the projection screen.

16:9 : The input source will be scaled to fit the width of the

screen.

Computer Mode

User Controls

20

English ...

12345678901234567890123456789012123456789012345678901

Reset

Choose “Yes” to return the display parameters (except for Lamp

Hour) on all menus to their factory default settings.

Image-II

(Computer Mode)

Computer Mode

User Controls

21 ... English

12345678901234567890123456789012123456789012345678901

Image-II

(Video Mode)

Video Mode

Degamma

This allows to you to choose a degamma table that has been fine-

tuned to bring out the best image quality for the input.

Saturation

Adjusts a video image from black and white to fully saturated

color.

Press the to decrease the amount of color in the image.

Press the to increase the amount of color in the image.

Tint

Adjusts the color balance of red and green.

Press the to increase the amount of green in the image.

Press the to increase the amount of red in the image.

Sharpness

Adjusts the sharpness of the image.

Press the to decrease the sharpness.

Press the to increase the sharpness.

16 : 9 / 4 : 3

Use this function to choose your desired aspect ratio.

1:1 : Original image pixel.

4:3 : The input source will be scaled to fit the projection screen.

16:9 : The input source will be scaled to fit the width of the

screen.

User Controls

22

English ...

12345678901234567890123456789012123456789012345678901

Reset

Choose “Yes” to return the display parameters (except for Lamp

Hour) on all menus to their factory default settings.

Image-II

(Video Mode)

Video Mode

User Controls

23 ... English

12345678901234567890123456789012123456789012345678901

Audio

Volume

Press the to decrease the volume.

Press the to increase the volume.

Treble

The treble setting controls the higher frequencies of your audio

source.

Press the to decrease the treble.

Press the to increase the treble.

Bass

The Bass setting controls the lower frequencies of your audio

source.

Press the to decrease the bass.

Press the to increase the bass.

Mute

Choose the left icon to turn mute on.

Choose the right icon to turn mute off.

Computer / Video Mode

User Controls

24

English ...

12345678901234567890123456789012123456789012345678901

Menu Location

Choose the Menu location on the display screen.

Projection

Front-Desktop

The factory default setting.

Rear-Desktop

When you select this function, the projector reverses the image

so you can project behind a translucent screen.

Front-Ceiling

When you select this function, the projector turns the image

upside down for ceiling-mounted projection.

Rear-Ceiling

When you select this function, the projector reverses and turns

the image upside down at same time. You can project from

behind a translucent screen with ceiling mounted projection.

Signal Type

Select signal type RGB, Component-i or Component-p sources.

Lamp Hour

Displays the lamp’s elapsed operating time (in hours).

Lamp Reset

Turns the lamp hour counter to 0 hours.

Computer / Video Mode

Management

User Controls

Optoma EzPro 732E User manual

Popular Projector manuals by other brands
